Insertion Sort

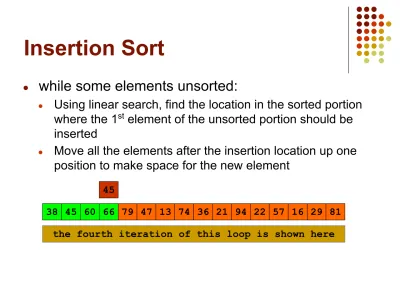

Insertion Sort

●

while some elements unsorted:

●

Using linear search, find the location in the sorted portion

where the 1

st

element of the unsorted portion should be

inserted

●

Move all the elements after the insertion location up one

position to make space for the new element

13 21 45 79 47 22 38 60 66 74 36 94 57 16 29 81 45 66 60 45

Insertion Sort Algorithm

public void insertionSort(Comparable[] arr) {

for (int i = 1; i < arr.length; ++i) { Comparable temp = arr[i];

int pos = i;

// Shuffle up all sorted items > arr[i]

while (pos > 0 &&

arr[pos-1].compareTo(temp) > 0) { arr[pos] = arr[pos–1];

pos--;

} // end while

// Insert the current item arr[pos] = temp;

} }

public void insertionSort(Comparable[] arr) {

for (int i = 1; i < arr.length; ++i) { Comparable temp = arr[i];

int pos = i;

// Shuffle up all sorted items > arr[i]

while (pos > 0 &&

arr[pos-1].compareTo(temp) > 0) { arr[pos] = arr[pos–1];

pos--;

} // end while

// Insert the current item arr[pos] = temp;

} }

Insertion Sort Analysis

outer loop outer times

inner loop

Insertion Sort: Number of

Comparisons

# of Sorted

Elements

Best case

Worst case

0

0

0

1

1

1

2

1

2

…

…

…

n-1

1

n-1

n-1

n(n-1)/2

Insertion Sort: Cost Function

●

1 operation to initialize the outer loop

●

The outer loop is evaluated n-1 times

● 5 instructions (including outer loop comparison and increment) ● Total cost of the outer loop: 5(n-1)

●

How many times the inner loop is evaluated is affected by the

state of the array to be sorted

●

Best case: the array is already completely sorted so no “shifting”

of array elements is required.

● We only test the condition of the inner loop once (2 operations = 1

comparison + 1 element comparison), and the body is never executed

Insertion Sort: Cost Function

●

Worst case: the array is sorted in reverse order (so each item

has to be moved to the front of the array)

● In the i-th iteration of the outer loop, the inner loop will perform 4i+1

operations

● Therefore, the total cost of the inner loop will be 2n(n-1)+n-1

●

Time cost:

● Best case: 7(n-1)

● Worst case: 5(n-1)+2n(n-1)+n-1

●

What about the number of moves?

● Best case: 2(n-1) moves ● Worst case: 2(n-1)+n(n-1)/2

Insertion Sort: Average Case

●

Is it closer to the best case (n comparisons)?

●

The worst case (n * (n-1) / 2) comparisons?

●

It turns out that when random data is sorted, insertion sort is

usually closer to the worst case

● Around n * (n-1) / 4 comparisons

● Calculating the average number of comparisons more exactly would

require us to state assumptions about what the “average” input data set looked like

● This would, for example, necessitate discussion of how items were

distributed over the array

●

Exact calculation of the number of operations required to perform

even simple algorithms can be challenging

(for instance, assume that each initial order of elements has the

same probability to occur)

Selection Sort

5

1

3

4

6

2

Comparison Data Movement Sorted

Selection Sort

5

1

3

4

6

2

Comparison Data Movement Sorted

Selection Sort

5

1

3

4

6

2

Comparison Data Movement Sorted

Selection Sort

5

1

3

4

6

2

Comparison Data Movement Sorted

Selection Sort

5

1

3

4

6

2

Comparison Data Movement Sorted

Selection Sort

5

1

3

4

6

2

Comparison Data Movement Sorted

Selection Sort

5

1

3

4

6

2

Comparison Data Movement Sorted

Selection Sort

5

1

3

4

6

2

Comparison Data Movement Sorted Largest

Selection Sort

5

1

3

4

2

6

Comparison Data Movement Sorted

Selection Sort

5

1

3

4

2

6

Comparison Data Movement Sorted

Selection Sort

5

1

3

4

2

6

Comparison Data Movement Sorted

Selection Sort

5

1

3

4

2

6

Comparison Data Movement Sorted

Selection Sort

5

1

3

4

2

6

Comparison Data Movement Sorted

Selection Sort

5

1

3

4

2

6

Comparison Data Movement Sorted

Selection Sort

5

1

3

4

2

6

Comparison Data Movement Sorted

Selection Sort

5

1

3

4

2

6

Comparison Data Movement Sorted Largest

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted Largest

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted Largest

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted

Selection Sort

2

1

3

4

5

6

Comparison Data Movement Sorted Largest

Selection Sort

1

2

3

4

5

6

Comparison Data Movement Sorted

Selection Sort

1

2

3

4

5

6

Comparison Data Movement Sorted

DONE!

void selection_sort(int n, int list[])

{

int min, temp;

int k, l, index;

for(index = 0; index< n - 1 ; index++)

{

min = index ;

for(k = index + 1; k < n ; k ++)

{

if(list[min] > list[k])

min = k ;

}

if(min != index)

{

temp = `list [index];

list[index] = list[min];

list[min] = temp;

}

printf(" \n Step : %d :",(index+1));

for( l = 0 ; l < n; l++)

printf(" %d", list[l]);

}

printf("\n Sorted list is as follows:\n");

for( index = 0 ; index < n; index++)

printf(" %d", list[index]);

return 0;

}

Sorting

●

Sorting takes an unordered collection and

makes it an ordered one.

5 12 35 42 77 101 1 2 3 4 5 6 5 12 35 ₄₂ 77 101 1 2 3 4 5 6

"Bubbling Up" the Largest

Element

●

Traverse a collection of elements

●

Move from the front to the end

●

“Bubble” the

largest value

to the end using

pair-wise comparisons and swapping

5 12 35 42 77 101 1 2 3 4 5 6

"Bubbling Up" the Largest

Element

●

Traverse a collection of elements

●

Move from the front to the end

●

“Bubble” the largest value to the end using

pair-wise comparisons and swapping

5 12 35 42 77 101 1 2 3 4 5 6 Swap 42 77

"Bubbling Up" the Largest

Element

●

Traverse a collection of elements

●

Move from the front to the end

●

“Bubble” the largest value to the end using

pair-wise comparisons and swapping

5 12 35 77 42 101 1 2 3 4 5 6 Swap 35 77

"Bubbling Up" the Largest

Element

●

Traverse a collection of elements

●

Move from the front to the end

●

“Bubble” the largest value to the end using

pair-wise comparisons and swapping

5 12 77 35 42 101 1 2 3 4 5 6 Swap 12 77

"Bubbling Up" the Largest

Element

●

Traverse a collection of elements

●

Move from the front to the end

●

“Bubble” the largest value to the end using

pair-wise comparisons and swapping

5 77 12 35 42 101 1 2 3 4 5 6 No need to swap

"Bubbling Up" the Largest

Element

●

Traverse a collection of elements

●

Move from the front to the end

●

“Bubble” the largest value to the end using

pair-wise comparisons and swapping

5 77 12 35 42 101 1 2 3 4 5 6 Swap 5 101

"Bubbling Up" the Largest

Element

●

Traverse a collection of elements

●

Move from the front to the end

●

“Bubble” the largest value to the end using

pair-wise comparisons and swapping

77 12 35 42 5 1 2 3 4 5 6 101

The “Bubble Up” Algorithm

index <- 1

last_compare_at <- n – 1

loop

exitif(index > last_compare_at)

if(A[index] > A[index + 1]) then

Swap(A[index], A[index + 1])

endif

index <- index + 1

endloop

No, Swap isn’t built in.

Procedure Swap(a, b isoftype in/out

Num

)

t isoftype

Num

t <- a

a <- b

b <- t

endprocedure // Swap

LB

Items of Interest

●

Notice that only the largest value is

correctly placed

●

All other values are still out of order

●

So we need to repeat this process

77 12 35 42 5 1 2 3 4 5 6 101

Repeat “Bubble Up” How Many

Times?

●

If we have N elements…

●

And if each time we bubble an element,

we place it in its correct location…

●

Then we

repeat the “bubble up”

process N – 1 times.

●

This

guarantees we’ll correctly

“Bubbling” All the Elements

77 12 35 42 5 1 2 3 4 5 6 101 5 42 12 35 77 1 2 3 4 5 6 101 42 5 35 12 77 1 2 3 4 5 6 101 42 35 5 12 77 1 2 3 4 5 6 101 42 35 12 5 77 1 2 3 4 5 6 101 N - 1

Reducing the Number of

Comparisons

12 35 42 77 101 1 2 3 4 5 6 5 77 12 35 42 5 1 2 3 4 5 6 101 5 42 12 35 77 1 2 3 4 5 6 101 42 5 35 12 77 1 2 3 4 5 6 101 42 35 5 12 77 1 2 3 4 5 6 101

Reducing the Number of

Comparisons

●

On the N

th

“bubble up”, we only need to

do

MAX-N comparisons

.

●

For example:

●

This is the 4

th

“bubble up”

●

MAX is 6

●

Thus we have

2 comparisons

to do

42 5 35 12 77 1 2 3 4 5 6 101

N is … // Size of Array

Arr_Type definesa Array[1..N] of Num

Procedure Swap(n1, n2 isoftype in/out Num)

temp isoftype Num

temp <- n1

n1 <- n2

n2 <- temp

procedure Bubblesort(A isoftype in/out Arr_Type)

to_do, index isoftype Num

to_do <- N – 1

loop

exitif(to_do = 0)

index <- 1

loop

exitif(index > to_do)

if(A[index] > A[index + 1]) then

Swap(A[index], A[index + 1])

endif

index <- index + 1

endloop

to_do <- to_do - 1

endloop

endprocedure // Bubblesort

Already Sorted Collections?

●

What if the collection was already

sorted?

●

What if only a few elements were out of

place and after a couple of “bubble

ups,” the collection was sorted?

●

We want to be able to

detect this

and “stop early”!

42 35 12 5 77 1 2 3 4 5 6 101

Using a Boolean “Flag”

●

We can use a boolean variable to

determine if any swapping occurred

during the “bubble up.”

●

If no swapping occurred, then we know

that the collection is already sorted!

●

This boolean “flag” needs to be reset after

did_swap isoftype Boolean

did_swap <- true

loop

exitif

(

(to_do = 0)

OR NOT(did_swap))

index <- 1

did_swap <- false

loop

exitif(index > to_do)

if(A[index] > A[index + 1]) then

Swap(A[index], A[index + 1])

did_swap <- true

endif

index <- index + 1

endloop

to_do <- to_do - 1

endloop

An Animated Example

67 45 23 14 6 33 98 42 1 2 3 4 5 6 7 8 to_do index 7 N 8 _{did_swap} true

An Animated Example

67 45 23 14 6 33 98 42 1 2 3 4 5 6 7 8 to_do index 7 1 N 8 _{did_swap} false

An Animated Example

67 45 23 14 6 33 98 42 1 2 3 4 5 6 7 8 to_do index 7 1 N 8 Swap did_swap false

An Animated Example

67 45 98 14 6 33 23 42 1 2 3 4 5 6 7 8 to_do index 7 1 N 8 Swap did_swap true

An Animated Example

67 45 98 14 6 33 23 42 1 2 3 4 5 6 7 8 to_do index 7 2 N 8 _{did_swap} true

An Animated Example

67 45 98 14 6 33 23 42 1 2 3 4 5 6 7 8 to_do index 7 2 N 8 Swap did_swap true

An Animated Example

67 98 45 14 6 33 23 42 1 2 3 4 5 6 7 8 to_do index 7 2 N 8 Swap did_swap true

An Animated Example

67 98 45 14 6 33 23 42 1 2 3 4 5 6 7 8 to_do index 7 3 N 8 _{did_swap} true

An Animated Example

67 98 45 14 6 33 23 42 1 2 3 4 5 6 7 8 to_do index 7 3 N 8 Swap did_swap true

An Animated Example

67 14 45 98 6 33 23 42 1 2 3 4 5 6 7 8 to_do index 7 3 N 8 Swap did_swap true

An Animated Example

67 14 45 98 6 33 23 42 1 2 3 4 5 6 7 8 to_do index 7 4 N 8 _{did_swap} true

An Animated Example

67 14 45 98 6 33 23 42 1 2 3 4 5 6 7 8 to_do index 7 4 N 8 Swap did_swap true

An Animated Example

67 14 45 6 98 33 23 42 1 2 3 4 5 6 7 8 to_do index 7 4 N 8 Swap did_swap true

An Animated Example

67 14 45 6 98 33 23 42 1 2 3 4 5 6 7 8 to_do index 7 5 N 8 _{did_swap} true

An Animated Example

67 14 45 6 98 33 23 42 1 2 3 4 5 6 7 8 to_do index 7 5 N 8 Swap did_swap true

An Animated Example

98 14 45 6 67 33 23 42 1 2 3 4 5 6 7 8 to_do index 7 5 N 8 Swap did_swap true

An Animated Example

98 14 45 6 67 33 23 42 1 2 3 4 5 6 7 8 to_do index 7 6 N 8 _{did_swap} true

An Animated Example

98 14 45 6 67 33 23 42 1 2 3 4 5 6 7 8 to_do index 7 6 N 8 Swap did_swap true

An Animated Example

33 14 45 6 67 98 23 42 1 2 3 4 5 6 7 8 to_do index 7 6 N 8 Swap did_swap true

An Animated Example

33 14 45 6 67 98 23 42 1 2 3 4 5 6 7 8 to_do index 7 7 N 8 _{did_swap} true

An Animated Example

33 14 45 6 67 98 23 42 1 2 3 4 5 6 7 8 to_do index 7 7 N 8 Swap did_swap true

An Animated Example

33 14 45 6 67 42 23 98 1 2 3 4 5 6 7 8 to_do index 7 7 N 8 Swap did_swap true

After First Pass of Outer Loop

33 14 45 6 67 42 23 98 1 2 3 4 5 6 7 8 to_do index 7 8 N 8

Finished first “Bubble Up”

The Second “Bubble Up”

33 14 45 6 67 42 23 98 1 2 3 4 5 6 7 8 to_do index 6 1 N 8 _{did_swap} false

The Second “Bubble Up”

33 14 45 6 67 42 23 98 1 2 3 4 5 6 7 8 to_do index 6 1 N 8 _{did_swap} false No Swap

The Second “Bubble Up”

33 14 45 6 67 42 23 98 1 2 3 4 5 6 7 8 to_do index 6 2 N 8 _{did_swap} false

The Second “Bubble Up”

33 14 45 6 67 42 23 98 1 2 3 4 5 6 7 8 to_do index 6 2 N 8 _{did_swap} false Swap

The Second “Bubble Up”

33 45 14 6 67 42 23 98 1 2 3 4 5 6 7 8 to_do index 6 2 N 8 _{did_swap} true Swap

The Second “Bubble Up”

33 45 14 6 67 42 23 98 1 2 3 4 5 6 7 8 to_do index 6 3 N 8 _{did_swap} true

The Second “Bubble Up”

33 45 14 6 67 42 23 98 1 2 3 4 5 6 7 8 to_do index 6 3 N 8 _{did_swap} true Swap

The Second “Bubble Up”

33 6 14 45 67 42 23 98 1 2 3 4 5 6 7 8 to_do index 6 3 N 8 _{did_swap} true Swap

The Second “Bubble Up”

33 6 14 45 67 42 23 98 1 2 3 4 5 6 7 8 to_do index 6 4 N 8 _{did_swap} true

The Second “Bubble Up”

33 6 14 45 67 42 23 98 1 2 3 4 5 6 7 8 to_do index 6 4 N 8 _{did_swap} true No Swap

The Second “Bubble Up”

33 6 14 45 67 42 23 98 1 2 3 4 5 6 7 8 to_do index 6 5 N 8 _{did_swap} true

The Second “Bubble Up”

33 6 14 45 67 42 23 98 1 2 3 4 5 6 7 8 to_do index 6 5 N 8 _{did_swap} true Swap

The Second “Bubble Up”

67 6 14 45 33 42 23 98 1 2 3 4 5 6 7 8 to_do index 6 5 N 8 _{did_swap} true Swap

The Second “Bubble Up”

67 6 14 45 33 42 23 98 1 2 3 4 5 6 7 8 to_do index 6 6 N 8 _{did_swap} true

The Second “Bubble Up”

67 6 14 45 33 42 23 98 1 2 3 4 5 6 7 8 to_do index 6 6 N 8 _{did_swap} true Swap

The Second “Bubble Up”

42 6 14 45 33 67 23 98 1 2 3 4 5 6 7 8 to_do index 6 6 N 8 _{did_swap} true Swap

After Second Pass of Outer

Loop

42 6 14 45 33 67 23 98 1 2 3 4 5 6 7 8 to_do index 6 7 N 8 _{did_swap} true

The Third “Bubble Up”

42 6 14 45 33 67 23 98 1 2 3 4 5 6 7 8 to_do index 5 1 N 8 _{did_swap} false

The Third “Bubble Up”

42 6 14 45 33 67 23 98 1 2 3 4 5 6 7 8 to_do index 5 1 N 8 _{did_swap} false Swap

The Third “Bubble Up”

42 6 23 45 33 67 14 98 1 2 3 4 5 6 7 8 to_do index 5 1 N 8 _{did_swap} true Swap

The Third “Bubble Up”

42 6 23 45 33 67 14 98 1 2 3 4 5 6 7 8 to_do index 5 2 N 8 _{did_swap} true

The Third “Bubble Up”

42 6 23 45 33 67 14 98 1 2 3 4 5 6 7 8 to_do index 5 2 N 8 _{did_swap} true Swap

The Third “Bubble Up”

42 23 6 45 33 67 14 98 1 2 3 4 5 6 7 8 to_do index 5 2 N 8 _{did_swap} true Swap

The Third “Bubble Up”

42 23 6 45 33 67 14 98 1 2 3 4 5 6 7 8 to_do index 5 3 N 8 _{did_swap} true

The Third “Bubble Up”

42 23 6 45 33 67 14 98 1 2 3 4 5 6 7 8 to_do index 5 3 N 8 _{did_swap} true No Swap

The Third “Bubble Up”

42 23 6 45 33 67 14 98 1 2 3 4 5 6 7 8 to_do index 5 4 N 8 _{did_swap} true

The Third “Bubble Up”

42 23 6 45 33 67 14 98 1 2 3 4 5 6 7 8 to_do index 5 4 N 8 _{did_swap} true Swap

The Third “Bubble Up”

42 23 6 33 45 67 14 98 1 2 3 4 5 6 7 8 to_do index 5 4 N 8 _{did_swap} true Swap

The Third “Bubble Up”

42 23 6 33 45 67 14 98 1 2 3 4 5 6 7 8 to_do index 5 5 N 8 _{did_swap} true

The Third “Bubble Up”

42 23 6 33 45 67 14 98 1 2 3 4 5 6 7 8 to_do index 5 5 N 8 _{did_swap} true Swap

The Third “Bubble Up”

45 23 6 33 42 67 14 98 1 2 3 4 5 6 7 8 to_do index 5 5 N 8 _{did_swap} true Swap

After Third Pass of Outer Loop

45 23 6 33 42 67 14 98 1 2 3 4 5 6 7 8 to_do index 5 6 N 8 _{did_swap} true

The Fourth “Bubble Up”

45 23 6 33 42 67 14 98 1 2 3 4 5 6 7 8 to_do index 4 1 N 8 _{did_swap} false

The Fourth “Bubble Up”

45 23 6 33 42 67 14 98 1 2 3 4 5 6 7 8 to_do index 4 1 N 8 _{did_swap} false Swap

The Fourth “Bubble Up”

45 23 14 33 42 67 6 98 1 2 3 4 5 6 7 8 to_do index 4 1 N 8 _{did_swap} true Swap

The Fourth “Bubble Up”

45 23 14 33 42 67 6 98 1 2 3 4 5 6 7 8 to_do index 4 2 N 8 _{did_swap} true

The Fourth “Bubble Up”

45 23 14 33 42 67 6 98 1 2 3 4 5 6 7 8 to_do index 4 2 N 8 _{did_swap} true No Swap

The Fourth “Bubble Up”

45 23 14 33 42 67 6 98 1 2 3 4 5 6 7 8 to_do index 4 3 N 8 _{did_swap} true

The Fourth “Bubble Up”

45 23 14 33 42 67 6 98 1 2 3 4 5 6 7 8 to_do index 4 3 N 8 _{did_swap} true No Swap

The Fourth “Bubble Up”

45 23 14 33 42 67 6 98 1 2 3 4 5 6 7 8 to_do index 4 4 N 8 _{did_swap} true

The Fourth “Bubble Up”

45 23 14 33 42 67 6 98 1 2 3 4 5 6 7 8 to_do index 4 4 N 8 _{did_swap} true No Swap

After Fourth Pass of Outer

Loop

45 23 14 33 42 67 6 98 1 2 3 4 5 6 7 8 to_do index 4 5 N 8 _{did_swap} true

The Fifth “Bubble Up”

45 23 14 33 42 67 6 98 1 2 3 4 5 6 7 8 to_do index 3 1 N 8 _{did_swap} false

The Fifth “Bubble Up”

45 23 14 33 42 67 6 98 1 2 3 4 5 6 7 8 to_do index 3 1 N 8 _{did_swap} false No Swap

The Fifth “Bubble Up”

45 23 14 33 42 67 6 98 1 2 3 4 5 6 7 8 to_do index 3 2 N 8 _{did_swap} false

The Fifth “Bubble Up”

45 23 14 33 42 67 6 98 1 2 3 4 5 6 7 8 to_do index 3 2 N 8 _{did_swap} false No Swap

The Fifth “Bubble Up”

45 23 14 33 42 67 6 98 1 2 3 4 5 6 7 8 to_do index 3 3 N 8 _{did_swap} false

The Fifth “Bubble Up”

45 23 14 33 42 67 6 98 1 2 3 4 5 6 7 8 to_do index 3 3 N 8 _{did_swap} false No Swap

After Fifth Pass of Outer Loop

45 23 14 33 42 67 6 98 1 2 3 4 5 6 7 8 to_do index 3 4 N 8 _{did_swap} false

Finished “Early”

45 23 14 33 42 67 6 98 1 2 3 4 5 6 7 8 to_do index 3 4 N 8 _{did_swap} false We didn’t do any swapping, so all of the other elements must be correctly placed.

We can “skip” the last two passes of the outer loop.

Summary

●

“Bubble Up” algorithm will

move largest

value to its correct location

(to the right)

●

Repeat “Bubble Up” until all elements are

correctly placed:

●

Maximum of N-1 times

●

Can finish early if

no swapping

occurs

●

We reduce the number of elements we

Truth in CS Act

●

NOBODY EVER USES BUBBLE SORT

●

NOBODY

●

NOT EVER

●

BECAUSE IT IS EXTREMELY INEFFICIENT

Sorting

●

Sorting takes an unordered collection and

makes it an ordered one.

5 12 35 42 77 101 1 2 3 4 5 6 5 12 35 ₄₂ 77 101 1 2 3 4 5 6

Divide and Conquer

●

Divide and Conquer cuts the problem in half

each time, but

uses the result of both halves

:

●

cut the problem in half until the problem is

trivial

●

solve for both halves

Mergesort

●

A divide-and-conquer algorithm:

●

Divide the unsorted array into 2 halves until the

sub-arrays only contain one element

●

Merge the sub-problem solutions together:

●

Compare the sub-array’s first elements

●

Remove the smallest element and put it into the result

array

●

Continue the process until all elements have been put

into the result array

How to Remember Merge Sort?

That’s easy. Just remember Mariah Carey.

As a singing star, Ms. Carey has perfected the “wax-on” wave

motion--a clockwise sweep of her hand used to emphasize lyrics.

The Maria

“Wax-on” Angle:

ƒ

(

θ

,t)

How To Remember Merge Sort?

Just as Mariah recursively moves her

hands into smaller circles, so too does

merge sort recursively split an array

into smaller segments.

ƒ

(

θ

,t)

We need two such recursions,

one for each half of the split

array.

Algorithm

Mergesort(Passed an array)

if array size > 1

Divide array in half

Call Mergesort on first half.

Call Mergesort on second half.

Merge two halves.

Merge(Passed two arrays)

Compare leading element in each array

Select lower and place in new array.

(If one input array is empty then place

More TRUTH in CS

●

We don’t really pass in two arrays!

●

We pass in one array with indicator variables

which tell us where one set of data starts and

finishes and where the other set of data starts

and finishes.

●

Honest.

s1 f1 s2 f2

Algorithm

Mergesort(Passed an array)

if array size > 1

Divide array in half

Call Mergesort on first half.

Call Mergesort on second half.

Merge two halves.

Merge(

Passed two arrays

)

Compare leading element in each array

Select lower and place in new array.

(If one input array is empty then place

remainder of other array in output array)

67 45

23 14 6 33

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 Merge

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 23 Merge

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 23 98 Merge

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 23 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 Merge 23 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 14 Merge 23 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 45 Merge 23 98 14

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 Merge 98 14 45 23

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 Merge 98 14 14 23 45

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 Merge 23 14 14 23 98 45

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 Merge 23 98 14 45 14 23 45

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 Merge 23 98 14 45 14 23 45 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 23 98 14 45 14 23 45 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 23 98 14 45 14 23 45 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 Merge 23 98 14 45 14 23 45 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 6 Merge 23 98 14 45 14 23 45 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 67 Merge 23 98 14 45 6 14 23 45 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 23 98 14 45 6 67 14 23 45 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 23 98 14 45 6 67 14 23 45 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 33 23 98 14 45 6 67 14 23 45 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 42 23 98 14 45 6 67 33 14 23 45 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 23 98 14 45 6 67 33 42 14 23 45 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 23 98 14 45 6 33 42 14 23 45 98 6 67

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 23 98 14 45 6 33 14 23 45 98 6 33 67 42

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 23 98 14 45 6 33 42 14 23 45 98 6 33 42 67

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 23 98 14 45 6 67 33 42 14 23 45 98 6 33 42 67

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 23 98 14 45 6 67 33 42 23 45 98 33 42 67 14 6

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 23 98 14 45 6 67 33 42 23 45 98 6 42 67 6 14 33

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 23 98 14 45 6 67 33 42 14 45 98 6 42 67 6 14 23 33

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 23 98 14 45 6 67 33 42 14 23 98 6 42 67 6 14 23 45 33

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 23 98 14 45 6 67 33 42 14 23 98 6 33 67 6 14 23 33 45 42

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 23 98 14 45 6 67 33 42 14 23 98 6 33 42 6 14 23 33 42 45 67

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 23 98 14 45 6 67 33 42 14 23 45 6 33 42 6 14 23 33 42 45 98 67

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 23 98 14 45 6 67 33 42 14 23 45 98 6 33 42 67 6 14 23 33 42 45 67

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 Merge 23 98 14 45 6 67 33 42 14 23 45 98 6 33 42 67 6 14 23 33 42 45 67 98

67 45 23 14 6 33 98 42 67 45 23 14 6 33 98 42 45 23 14 98 23 98 45 14 67 6 33 42 67 6 33 42 23 98 14 45 6 67 33 42 14 23 45 98 6 33 42 67 6 14 23 33 42 45 67 98

67 45

23 14 6 33

98 42

Summary

●

Divide

the unsorted collection

into two

●

Until the sub-arrays only

contain one element

●

Then

merge the sub-problem solutions

O-notation Introduction

●

Exact counting of operations is often difficult (and

tedious), even for simple algorithms

●

Often, exact counts are not useful due to other

factors, e.g. the language/machine used, or the

implementation of the algorithm (different types of

operations do not take the same time anyway)

●

O-notation is a mathematical language for

evaluating the running-time (and memory usage) of

algorithms

Growth Rate of an Algorithm

●

We often want to compare the performance of

algorithms

●

When doing so we generally want to know how they

perform when the problem size (n) is large

●

Since cost functions are complex, and may be

difficult to compute, we approximate them using O

notation

Example of a Cost Function

●

Cost Function: t

A

(n) = n

2

_{+ 20n + 100}

●

Which term dominates?

●

It depends on the size of n

●

n = 2, t

A

(n) = 4 + 40 + 100

●

The constant, 100, is the dominating term

●

n = 10, t

A

(n) = 100 + 200 + 100

●

20n is the dominating term

●

n = 100, t

A

(n) = 10,000 + 2,000 + 100

●

n

2

is the dominating term

●

n = 1000, t

A

(n) = 1,000,000 + 20,000 + 100
