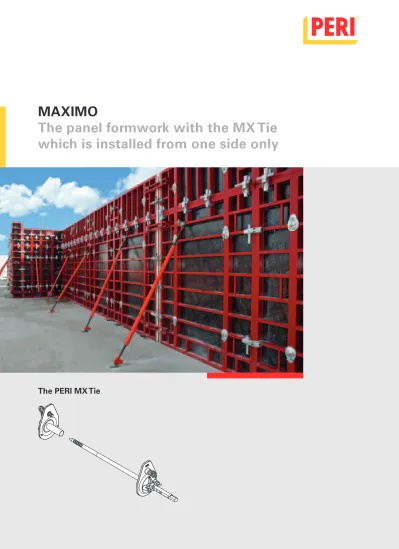

MAXIMO The panel formwork with the MX Tie which is installed from one side only

(1)

MAXIMO

The panel formwork with the MX Tie

which is installed from one side only

(2)

PERI GmbH

Formwork Scaffolding Engineering P.O. Box 1264 89259 Weissenhorn Germany Tel +49 (0)7309.950-0 Fax +49 (0)7309.951-0 [email protected] www.peri.com Edition 02/2010 Important Notes:

Without exception, all current safety regulations must be observed in those countries where our products are used.

The illustrations in this brochure are photographs of particular situations on a construction site. Safety or formwork anchor details are therefore not to be taken as a definitive guide to the way the equipment is to be used.

Safety instructions and load specifications are to be strictly observed at all times. Separate structural cal-culations are required for any deviations from the standard design data.

The information contained herein is subject to techni-cal changes in the interests of progress. Errors and typographical mistakes reserved.

(3)

Content

MAXIMO

3 The panel formwork with the MX Tie which is

installed from one side only

Faster

4 with the MX Tie which is installed from one side only

Time saving

6 through systematised tie points

8 through the reduced number of tie points

9 through low site personnel requirements

MAXIMO

11 Less individual operations = faster forming

Improved concrete finish

12 through a neat joint and tie arrangement

Project examples

14 The optimal system for all requirements

Reliable

16 through systematised sealing technology

Standard application with Inside Corner 50/20

20 Panel connections, T-junctions, wall connections,

corners, wall offsets

Standard applications

22 Stopend formwork, fillers, oblique angles

Supplementary system components

24 Inside Corner 60/60

25 Push-Pull Spreader

(4)

(5)

MAXIMO

The panel formwork with the MX Tie which

is installed from one side only

Flexible panel formwork system for all requirements

on small building sites ... ... as well as for large construction projects.

Photo left: perfectly designed concrete surfaces using MAXIMO at the PERI branch ofﬁce in Viersen.

Since its launch in 1986, PERI TRIO has developed into the world’s most suc-cessful panel formwork system. Argu-ments such as few different panel sizes or only one single connecting part, the BFD alignment coupler, have set bench-marks in the industry.

PERI MAXIMO panel formwork

The MX tie is installed from one side only which makes the MAXIMO particularly cost-effective. Cellar of a single-family house in Buchenberg/ Vorderburg, Germany.

The neat joint and tie arrangement allows construction of concrete surfaces of the highest quality.

Multi-storey car park in Mainz, Germany.

With the development of MAXIMO, PERI has justiﬁed its role as technologi-cal market leader.

This independent formwork system - fully compatible to TRIO - fulﬁls the highest requirements regarding cost-effectiveness and achievable quality of workmanship.

■_Faster

through one-sided anchoring with the MX Tie technology with-out spacer tubes

■_{Time saving}

through the systematised and reduced number of tie points

■_{Improved concrete ﬁnish}

through a neat joint and tie arrangement

(6)

Faster

with the MX Tie which is installed from one side only

2. Screw in MX Tie with the MX Tie Rod Spanner-2 until the Eye Bolt can be attached.

1. Push the tie through through the closing formwork into the wingnut of the placing formwork and screw in. Position MX

Wing-nut, attach Eye Bolt and tighten with the MX Tie Rod Spanner.

A. Placing Formwork B. Ties

Peg out the re-quired wall thick-ness with cotter pins and turn the nut against the cot-ter pin.

MX Tie System assembly sequence

Tie installation Preparation

The conical-shaped MX Tie rod is also set in the concrete when ﬁlling the formwork. Due to the special form, spacer tubes and cones are not re-quired. This saves materials and the tie can be installed and removed consider-ably quicker. 20 22 24 25 30 MX Tie 20 – 30 Item no. 112387

for wall thicknesses 20/22/24/25/30

MX Tie 15 – 25

Item no. 113847

for wall thicknesses 15/17.5/20/22/24/25

MX Tie 30 – 40

Item no. 112464

(7)

4. Tighten Eye Bolt. 3. Tighten MX tie with the MX Tie Rod

Spanner-2 as far as it can go.

1. First loosen and then completely un-screw the Eye Bolt.

2. Remove ties by means of the MX Tie Rod Spanner-2.

Dismantling ties

The opening in the frame allows deviations of the tie rod angle of ± 4°.

The tie hole is protected against any impact through a metal ring. The Sealing Sleeve seals the tie point and prevents any concrete bleeding.

With the PERI MAXIMO, the convention-al DW 15 and DW 20 systems can be used as well as the MX tie technology.

MX Tie Rod Spanner-2

Item no. 116841

MX Wingnut

(8)

Time saving

through systematised tie points

With MAXIMO, the tie points are sys-tematized, i. e. all panel sizes are centri-cally arranged and each position is en-gaged.

MAXIMO tie point. _{MAXIMO does not require any edge}

ties, all tie points are always engaged. With conventional panel formwork, all unused edge tie points must be closed.

Additional work is frequently necessary due to unclosed tie holes:

■_{Freeing the tie points in the panel}

which have been plugged with con-crete.

■_{Concrete cosmetic work on the}

(9)

Panel grid arrangement 30 cm MAXIMO panels are available in 6 heights from 30 cm up to 3.30 m as well as 5 widths from 30 cm to 2.40 m in 30 cm increments. In addition, a 45 cm wide panel is available which greatly reduces the use of ﬁ ller plates.

Width 240 120 90 60 45 30 Height 30 60 90 120 270 330 Panel connections

with the BFD alignment coupler The BFD alignment coupler ensures neat panel joints resulting in perfect concrete ﬁ nishes.

With only one component, every panel connection is ﬂ ush, aligned and tight.

(10)

Time saving

through the reduced number of tie points

Conventional formwork PERI MAXIMO

tie point savings

Comparison: PERI MAXIMO vs. conventional panel formwork Apart from the time advantage due to the MX tie being operated from one side only, the reduced number of tie points has a positive effect on the per-formance factor.

MAXIMO

■_{requires up to 40% fewer ties}

■_{results in a clear panel arrangement}

■_{ensures a neat tie and joint pattern}

High permissible concrete pressure Permissible fresh concrete pressure for 2.70 m panels according to DIN 18218. 81 kN/m2_{uniform load}

DIN 18202, Table 3, Line 6. 67.5 kN/m² triangular load DIN 18202, Table 3, Line 7.

Maximo fulﬁls the high demands re-garding the ﬂatness.

The high rigidity of the panels ensures only minimum deﬂection and distortion as well as being a guarantee for a high level of concrete surface evenness. In spite of the low number of required

ties, concreting can still be carried out quickly with MAXIMO.

Due to the centrically-positioned arrangement, up to 40% fewer ties are required.

(11)

Time saving

through low site personnel requirements

For the construction of concrete walls with panel formwork, the two formwork elements facing each other must be anchored.

MAXIMO

With the innovative tie system of the MAXIMO panel formwork ele-ments, tie operations take place af-ter a one-off basic assembly of the wingnut on the placing formwork always from one side only. Thus, one less worker is required the performance factor is reduced by approx. 40%.

Conventional formwork For conventional systems, one worker is required on each side of the formwork for this working step.

More information about the compari-son is available at:

www.peri.de/maximo

(12)

Working scaffold is not required resulting in more savings

Due to the fact that ties are installed from one side only, additional safety measures such as working scaffold for the placing formwork are not nec-essary which saves both time and money. This is of great importance particularly for high formwork.

(13)

MAXIMO

Less individual operations = faster forming

Comparison

Conventional panel formwork vs. MAXIMO

Shuttering - reinforcement work - concreting Conventional _formwork MAXIMO

1 Lay out/indicate on the bottom slab + +

2 Assemble placing formwork + +

3 Oil and mount MX Wingnut +

4 Oil placing formwork + +

5 Erect placing formwork/ ﬁx push-pull props + + 6 Mount guardrails (intermediate position for tie operations for heights over 3.00 m) ++

7 Position reinforcement scaffold + +

8 Lay out of box-outs/indicate + +

9 Nail on box-out units + +

10 Close unused tie holes +

11 Turn wingnut pivot plate on the tie +

12 Insert tie +

13 Cutting the spacer tubes to size + 14 Attach cones to spacer tube on both sides +

15 Push spacer tube on tie +

16 Reinforcement work + +

17 Remove reinforcement scaffold + +

18 Adjust MX Tie to wall thickness (only once is necessary according to speciﬁed wall thickness) +

19 Assemble closing formwork + +

20 Oil closing formwork + +

21 Attach guardrails + +

22 Erect closing formwork + +

23 Oil MX Tie +

24 Screw in MX Tie (1 worker) +

25 Attach eye bolt +

26 Screw wingnut counterplate on tie (2 workers) ++

27 If necessary, re-plugging of incorrectly closed tie points (2 workers) ++

28 Setting of stopends + +

29 Concreting + +

Striking

30 Release wingnut counterplate (2 workers) ++

31 Remove tie (2 workers) ++

32 Release eye bolt (1 worker) +

33 Remove MX Tie (1 worker) +

34 Closing formwork is retracted and removed + +

35 Cleaning of closing formwork + +

36 Placing formwork is retracted and re-positioned (ideally) + +

37 Clean placing formwork + +

38 Removing the compression cones + 39 If necessary, cosmetic work to repair impressions in the concrete due to unclosed tie holes. + 40 If, necessary, freeing of concrete residue from tie holes in the formwork +

Miscellaneous

Up to 25% more ties in conventional formwork, especially with high formwork ++

(14)

Improved concrete ﬁnish

through a neat joint and tie arrangement

Designing concrete surfaces

Systematically, cost-effective, simple A frequent request of building owners and architects is the realisation of spe-cial wall surfaces without any large ad-ditional work and expense using an efﬁ-cient panel formwork system.

PERI MAXIMO is the panel formwork with centrically arranged tie points for each panel. This results in a regular joint arrangement - horizontally as well as vertically.

Concrete surface design with the MX grid arrangement

With the possibility to select from a range of panel combinations, this pro-vides more creative freedom and thus more design options - cost-effectively realised with PERI MAXIMO.

Example: MX tie arrangement “Stack” More information available at: www.peri.de/maximo

(15)

The deﬁned arrangement of individual MAXIMO panels in so-called “MX grid”, allows the creation of attractively-de-signed visible concrete ﬁnishes:

■_{neat concrete surfaces}

■_{no impressions from unused tie}

points

■_{no concrete bleeding from unclosed}

tie points

Perfectly designed concrete surfaces with PERI MAXIMO.

(16)

Regular joint and tie arrangement on visibly remaining wall surfaces. Outlet Centre Business Complex, Metzingen, Germany

Short construction period with a small number of site personnel. Cellar for a semi-detached house, Rosenheim, Germany

Project examples

(17)

MAXIMO in climbing operations on Folding Platforms FB 180.

Siemens Logistics Centre, Frankfurt, Germany

High, visibly remaining wall surfaces. Rehabilitation Centre, Stuttgart-Fell-bach, Germany

Extension of the Environmental Research Station Schneeferner-haus, Zugspitze, Germany

A triple extension, moved as a complete unit and requiring no working scaffold on the opposite side. Rehearsal stage at the Staatstheater, Stuttgart, Germany MAXIMO for high, inclined walls in combination

with SKS climbing brackets.

Congress Centre am Schlossberg, Heidenheim, Germany

In addition to the requirement of being able to be used flexibly as well as effi-ciently on the construction site for all those components to be constructed, MAXIMO also fulfils the requirement to create the remaining visible concrete surfaces in high quality through the skil-ful selection and arrangement of the panels.

(18)

Reliable

through systematised sealing technology

Plug

MX Ø 17.5 – 22

Item no. 114300

■ Large lamellas.

■ For all hole diameters 17.5 – 22 mm.

■ Sealing only for visual effect.

Stopper MX 50 OF

Item no. 114503

■ Deeply inserted.

■ For all hole diametets 17.5 – 22 mm*.

■ Sealing against non-pressing water.

■ Walls with a sound protection function*.

■ Walls with Fire Resistance Class F90*.

*Test reports available.

With the MX Tie

Anchoring

Sealing system

Requirements

Closing tie points

Assembly

Installation takes place using an

Allen key or even faster with the help of a battery-powered screw-driver in seconds - regardless of environmental inﬂuences, such as temperature, and concrete tech-nology.

Allen Key 4 mm MX Tie

Depending on the wall thickness (see page 4).

(19)

MAXIMO Rahmenschalung

Aufbau- und Verwendungsanleitung für die Regelausführung

Ausgabe 12/2009

Stopper MX 50 MF

Item no. 114496

■ Install ﬂ ush with the surface.

Stopper MX 84 MF

Item no. 114509

■ Install ﬂ ush with the surface.

■ Sealing against non-pressing water.

■ Walls with a sound protection function*.

■ Sealing against pressing water according to DIN EN 206-1/ for components with high water penetration resistance*.

■ Walls with sound protection func-tion*.

The PERI assembly in-structions for MAXIMO should be taken into account!

Installation takes place using an Allen key or even faster with the help of a battery-powered screw-driver in seconds - regardless of environmental inﬂ uences, such as temperature, and concrete tech-nology.

Stud Spanner MAXIMO

Item no. 114619 For holding the stoppers.

(20)

Reliable

through systematised sealing technology

■ Used for attractively designed visible concrete surfaces.

■ Deeply inserted.

■ Used for attractively designed visible concrete surfaces.

■ With shadow joints.

■ Against pressing water according to DIN EN 206-1/ for components with high water penetration re-sistance*, e.g. for sewage plants or drinking water containers whereby the concrete surface and cones must be ﬂush.

■ Walls with sound protection func-tion*

■ Walls with Fire Resistance Class F90*, e.g. stairways.

*Test reports available. Magnets are ﬁtted in the

cone which means it is reli-ably ﬁxed to the metal ring of the sealing integrated in the panel.

Magnet Cone MX 55

Item no. 112937

DK Concrete Cone DW 15-58/30

Item no. 031642

DK Concrete Cone Architectur-al/01 DW 15-58/52

Item no. 031641

DK Concrete Cone UNI 58/52

Item no. 031643

Magnet Cone Spanner MX

Item no. 114797

With MX Ties

and Sealing Cones MX 55

Anchoring

Sealing system

Requirements

Closing tie points

Assembly

Dismantling of the sealing cone takes place with help of the MX Magnet Cone Spanner. For installing the concrete cones, see PERI Tie Technology brochure.

(21)

■ For sealing against pressing water according to DIN EN 206-1/ for components with high water pen-etration resistance*.

■ Walls with Fire Resistance Class F90*, e.g. stairways.

■ only as a visual function.

Plug DR 22 Item no. 065036 or Plug FRZ 22 Item no. 031360 DK Concrete Cone UNI 58/52 Item no. 031643 For use with Spacer

Tube, Rough DR 22 or Concrete Spacer Tube FZR. Covers the seal-ing on the panel.

Correspondingly, the DK Sealing Cones can also be used for DW 15

With Tie Rod DW 15

and Cone MX DR 22

Cone MX DR 22

Item no. 113018

With Tie Rod DW 20 and DK

Sealing Cone DW 20/55

For use with Spacer Tube DR 28 and DR Concrete Cone UNI 58/52. DK Sealing Cone DW 20/55 Item no. 031637

(22)

60 60 60 60 60 60 60 60 MXI 50/20 MXI 50/20 MXI 50/20 MXI 50/20 MXI 50/20 MXI 50/20 MXI 50/20 MXI 50/20 20 24 25 40 30 240 240 240 240

Standard application with Inside Corner 50/20

Panel connections, T-junctions, wall connections

T-Junctions

Wall thickness 15 – 40 cm

Internal formwork Inside Corner MXI 50/20 3 x Alignment Coupler BFD

External formwork Panel MX 60

2 x Alignment Coupler BFD

Adapting to the wall thickness with Wall Thickness Compensator MX or timber. 3 x Alignment Coupler BFD

Panel connections

Wall connections

With Alignment Coupler BFD

(23)

MXA 45 240 / 45 / 30 MXA 45 MXA 45 240 / 45 / 30 45 MXI 50/20 MXI 50/20 MXI 50/20 MXI 50/20 MXI 50/20 MXI 50/20 MXA 45 MXA 45 MXI 50/20 45 45 30 30 45 240 / 45 / 30 240 / 45 / 30 240 / 45 / 30 240 / 45 / 30 20 24/25 30

Corners, Wall Offsets

No tie is required on the short side of the Inside Corner MXI 50/20.

Wall Offset

20 – 28 cm

■_{Inside Corner MXI 50/20}

■_{Panel MX 45}

■_{Compensation Waler MAR 170}

■_{ﬁller timber supplied by contractor}

65 – 79 cm

■_{Outside Corner MXA 45}

■_{Panel MX 30}

with 1 Hook Tie DW 15 and Wingnut Pivot Plate

■_{ﬁller timber supplied by contractor}

Corners with MXI 50/20

Internal Formwork Inside Corner MXI 50/20 3 x Alignment Coupler BFD

External Formwork Outside Corner MXA 45 Panel MX 30

(24)

Standard applications

Stopend Formwork

With a conventional solution 3 x Compensation Waler MAR 85-2 at 2.70 m height.

With TRIO Stopend Panel MT/MTF For continuous reinforcement, with or without water bars.

■_{Time savings min. 40%.}

■_{No damage to the formlining.}

Centre Section MTF, with water bar Centre Section MT, without water

(25)

1 2 3 4 5 6 7 8 135° 2 4 7 1 6 1 6 3 5 8 1 6 1 6 75°

Fillers, Oblique Angles

External formwork

Articulated Corner MX outside Panel MXM 60

Panel MX 45 and MX 30 at 75°

Internal formwork

Articulated Corner MX inside Panel MX 45 Panel MX 30 at 75° Outside: 3 x BFD 2 x SRU 122 Inside: 2 x BFD = number of struts Outside: 3 x BFD 2 x MAR 85 Inside: 2 x BFD

Oblique Angles

Fillers

Up to 10 cm

With Wall Thickness Compensator MX or timbers and Alignment Coupler BFD.

10 cm to 36 cm

With Filler Support TPP and formlining. TPP 270, Item no. 101813

(26)

T-Junctions

Internal formwork

■_{3 x Alignment Coupler BFD} External formwork ■_{2 x Panel MX 45} ■_{1 x Panel MX 60} ■_{3 x MAR 170-2} ■_{2 x Alignment Coupler BFD} Internal formwork

■_{3 x Alignment Coupler BFD}

External formwork

■_{Outside Corner MXA 35 or 45}

■_{2 x Panel MX 45} ■_{4 x Alignment Coupler BFD}

Corners

Wall thickness 15 – 40 cm 45 45 60 MXi 60 MXA 45 MXI 60 45

Supplementary System Components:

Inside Corner 60/60

For perfectly-ﬁnished concrete surfaces and when

using the Sealing Cone MX 55

(27)

Foundations/Upturn Beams

■_{Only a minimum of working space is}

required.

■_{Water stop metal strips are no}

hin-drance.

The middle tie point brings decisive advantages when forming founda-tions, parapets and beams. Through the use of the push-pull spreader in connection with the middle tie of the MAXIMO panel, a bottom row of ties is not necessary.

Beam

■_{Thick reinforcement is no problem.}

Parapet or other similar

structural components

Push-Pull Spreader

Push-Pull Spreader MX

(28)

Item no. Weight kg

MAXIMO Panel Formwork

116454 445,000 Panel MX 330 x 270

8.910 m². Panel with plywood 18 mm.

600 1500 600 2700 45 0 12 00 12 00 45 0 33 00 120 114426 408,000 Panel MX 330 x 240

3 3 0 0 2400 120 1 2 0 0 4 5 0 1 2 0 0 4 5 0 1320 540 540 114248 226,000 Panel MX 330 x 120

3 30 0 4 5 0 1 2 0 0 1 2 0 0 4 5 0 600 600 1200 120

(29)

Item no. Weight kg

MAXIMO Panel Formwork

114258 172,000 Panel MX 330 x 90

1 2 0 0 1 2 0 0 45 0 4 5 0 3 3 0 0 900 450 450 120 114445 118,000 Panel MX 330 x 60

300 300 600 4 5 0 1 2 0 0 1 2 0 0 4 5 0 3 3 0 0 120 114452 99,800 Panel MX 330 x 45

1 2 0 0 1 2 0 0 4 5 0 4 5 0 3 3 0 0 225 225 450 120

(30)

Item no. Weight kg

MAXIMO Panel Formwork

114457 79,600 Panel MX 330 x 30

150 150 300 3 3 0 0 1 2 0 0 1 2 0 0 4 5 0 4 5 0 120 114464 133,000 Multi-Purpose Panel MXM 330 x 60

1.980 m². Panel with plywood 18 mm. For oblique angles, wall connections etc.

Complete with 33 x 116353 Plug MXM Ø 21. 33 x 113998 Sealing MXM Ø 16. 3 3 0 0 600 1 2 0 100 10 x 40 = 400 100 1 2 0 0 1 2 0 0 4 5 0 4 50

114470 206,000 Inside Corner MXI 330 x 60

3.960 m². Panel with plywood 18 mm. For 90° inside corners.

1 20 0 4 5 0 1 20 0 4 5 0 3 3 0 0 6 0 0 1 2 0 4 8 0

(31)

Item no. Weight kg

MAXIMO Panel Formwork

115338 135,000 Inside Corner MXI 330 x 50/20

2,310 m2_{. Panel with plywood 18 mm.}

For 90° inside corners.

Complete with 12 x 116353 Plug MXM Ø 21. 12 x 113998 Sealing MXM Ø 16. 4 5 0 45 0 3 3 0 0 2 0 0 500 1 2 0 0 1 2 0 0 1 2 0

114478 175,000 Outside Corner MXA 330 x 45

For 90° outside corners.

3 3 0 0 4 5 0 1 2 0

For 90° outside corners.

3 5 0 3 3 0 0 1 2 0

(32)

Item no. Weight kg

MAXIMO Panel Formwork

114583 86,600 Articulated Corner MXGI 330

1.980 m². Made of aluminium. For oblique angles from 75° for the inside.

3 3 0 0 300 300 1 2 0

114607 51,100 Articulated Corner MXGA 330

0.990m². Made of aluminium. For oblique angles from 75° for the outside.

150 150 1 20 3 3 0 0 114842 114826 114846 114394 17,800 18,900 20,200 12,100

Wall Thickness Compensators WDA MX 330 Wall Thickness Comp. WDA MX 330 x 4 Wall Thickness Comp. WDA MX 330 x 5 Wall Thickness Comp. WDA MX 330 x 6 Wall Thickness Comp. WDA MX 330 x 10, Alu For adaptating to different wall thicknesses.

B 40 50 60 100 3 3 0 0 B60 1 2 0 100 62 1 2 0

(33)

Item no. Weight kg

MAXIMO Panel Formwork

101829 9,790 Filler Profile TPP 330, Alu

For infillings with 21 mm plywood.

3 3 0 0 51 60 9 8 112006 336,000 Panel MX 270 x 240

6 0 0 1 5 0 0 6 0 0 2 7 0 0 540 1320 540 2400 120 112022 186,000 Panel MX 270 x 120

6 0 0 1 5 00 6 0 0 2 7 00 600 600 1200 120

(34)

Item no. Weight kg

MAXIMO Panel Formwork

112045 135,000 Panel MX 270 x 90

6 0 0 1 5 0 0 6 0 0 2 7 0 0 450 450 900 120 112200 104,000 Panel MX 270 x 60

300 300 600 6 0 0 1 5 0 0 6 0 0 2 7 0 0 120 112078 77,600 Panel MX 270 x 45

2 7 0 0 450 120 1 5 0 0 6 0 0 6 0 0 225 225

(35)

Item no. Weight kg

MAXIMO Panel Formwork

112090 62,800 Panel MX 270 x 30

2 7 0 0 300 120 6 0 0 1 5 0 0 6 0 0 150 150 112849 101,000 Multi-Purpose Panel MXM 270 x 60

Complete with 22 x 116353 Plug MXM Ø 21. 22 x 113998 Sealing MXM Ø 16. 1 5 0 0 6 0 0 6 0 0 2 7 0 0 600 100 100 1 2 0 400 10 x 40 =

1 5 0 0 6 0 0 6 0 0 2 7 0 0 1 2 0 6 0 0 4 8 0

(36)

Item no. Weight kg

MAXIMO Panel Formwork

Complete with 8 x 116353 Plug MXM Ø 21. 8 x 113998 Sealing MXM Ø 16. 2 0 0 500 6 0 0 6 0 0 2 7 0 0 1 5 0 0 1 20

4,860 m². Panel with plywood 18 mm. For 90° outside corners.

Complete with 24 x 116353 Plug MXM Ø 21. 24 x 113998 Sealing MXM Ø 16. 6 0 0 1 5 0 0 6 0 0 2 7 0 0 9 0 0 1 2 0

2.430 m². Panel with plywood 18 mm. For 90° outside corners.

2 7 0 0 4 5 0 1 2 0

(37)

Item no. Weight kg

MAXIMO Panel Formwork

2 7 0 0 3 5 0 1 2 0

2 7 0 0 300 300 1 2 0

0.810 m². Made of aluminium. For oblique angles from 75° for the outside.

2 7 0 0 1 2 0 150 150

(38)

Item no. Weight kg

MAXIMO Panel Formwork

114165 114186 114174 114128 14,700 15,700 16,800 10,000

B 40 50 60 100 2 70 0 B60 1 2 0 100 62 1 2 0

2 7 0 0 51 9 8 60 112104 166,000 Panel MX 120 x 240

6 0 0 6 0 0 540 1320 540 2400 1 2 0 0 120

(39)

Item no. Weight kg

MAXIMO Panel Formwork

112143 90,700 Panel MX 120 x 120

6 0 0 6 0 0 600 600 1200 1 2 0 0 120 112152 67,700 Panel MX 120 x 90

60 0 6 0 0 450 450 900 1 2 0 0 120 112221 51,200 Panel MX 120 x 60

6 0 0 6 0 0 12 0 0 300 300 600 120 112232 37,100 Panel MX 120 x 45

6 0 0 6 0 0 1 2 00 225 450 225 120

(40)

Item no. Weight kg

MAXIMO Panel Formwork

112239 27,400 Panel MX 120 x 30

6 0 0 60 0 150 150 1 2 0 0 300 120 112850 50,400 Multi-Purpose Panel MXM 120 x 60

Complete with 11 x 116353 Plug MXM Ø 21. 11 x 113998 Sealing MXM Ø 16. 6 0 0 6 0 0 1 2 0 0 600 100 100 1 2 0 400 10 x 40 =

6 0 0 6 00 1 2 0 0 1 2 0 6 0 0 4 8 0

Complete with 4 x 116353 Plug MXM Ø 21. 4 x 113998 Sealing MXM Ø 16. 6 0 0 6 0 0 12 0 0 2 0 0 500 1 2 0

(41)

Item no. Weight kg

MAXIMO Panel Formwork

1 2 0 0 4 5 0 1 2 0

1 2 0 0 350 1 2 0

1 2 0 0 ₃₀₀ ₃₀₀ 1 2 0

(42)

Item no. Weight kg

MAXIMO Panel Formwork

0.360 m². Made of aluminium. For oblique angles from 75° for the outside.

1 2 0 0 150 150 1 2 0 114212 114191 114181 114142 6,430 6,990 7,480 4,510

B 40 50 60 100 1 2 0 0 _B 12 0 100 12 0

1 2 0 0 9 8 51 60 112115 121,000 Panel MX 90 x 240

4 5 0 4 5 0 9 0 0 540 1320 540 2400 120

(43)

Item no. Weight kg

MAXIMO Panel Formwork

112252 48,900 Panel MX 90 x 90

45 0 4 5 0 450 450 900 90 0 120 112259 36,600 Panel MX 90 x 60

4 50 4 5 0 9 00 300 300 600 120 112265 31,200 Panel MX 90 x 45

9 0 0 450 225 225 45 0 4 5 0 120 112271 22,000 Panel MX 90 x 30

4 5 0 4 5 0 150 150 300 9 0 0 120

(44)

Item no. Weight kg

MAXIMO Panel Formwork

4 5 0 4 5 0 9 0 0 1 2 0 6 0 0 4 8 0

Complete with 12 x 116353 Plug MXM Ø 21. 12 x 113998 Sealing MXM Ø 16. 4 5 0 4 5 0 90 0 9 0 0 1 20 112126 88,100 Panel MX 60 x 240

3 0 0 3 0 0 60 0 540 1320 540 2400 120 112280 28,400 Panel MX 60 x 60

3 0 0 3 0 0 600 600 300 300 120

(45)

Item no. Weight kg

MAXIMO Panel Formwork

112286 21,900 Panel MX 60 x 45

3 0 0 30 0 225 225 450 6 0 0 120 112292 16,200 Panel MX 60 x 30

3 0 0 3 0 0 60 0 150 150 300 120

3 0 0 30 0 60 0 600 12 0 6 0 0

Complete with 12 x 116353 Plug MXM Ø 21. 12 x 113998 Sealing MXM Ø 16. 3 0 0 3 0 0 60 0 9 0 0 1 2 0

(46)

Item no. Weight kg

MAXIMO Panel Formwork

6 0 0 ₄50 1 2 0

6 0 0 3 5 0 1 2 0 112133 52,900 Panel MX 30 x 240

1 5 0 1 5 0 3 00 540 1320 540 2400 120

023500 4,350 Alignment Coupler BFD, galv.

For all panel connections of MAXIMO, TRIO and RUNDFLEX. Compensations up to 10 cm.

Technical Data

Permissible tension force 20.0 kN.

288 1 6 4 259 61 max 220

114034 13,800 Compensation Waler MAR 85-2

For fillers, height extensions, stopend formworks and special uses with MAXIMO. With captive connection components.

Technical Data

Permissible bending moment 3.9 kNm.

850 30 3 0 1 1 5 264 1 2 6

(47)

Item no. Weight kg

MAXIMO Panel Formwork

114036 23,000 Compensation Waler MAR 170-2

For fillers, height extensions, stopend formworks and special uses with MAXIMO. With captive connection components.

Technical Data

1 1 5 1 2 6 1700 30 30 264 023551 8,520 Waler 85

Equivalent to Compensation Waler TAR 85 without mounting hooks.

Technical Data

3 0 3 0 1 0 5 850 80

023820 0,375 Hook Tie Head DW 15, galv.

For connection of accessories to MAXIMO and TRIO panels. Thread DW 15.

Technical Data

82 30

6

8

Ø15

023650 0,769 Hook Tie DW 15 l = 400, galv.

For connection of accessories to MAXIMO and TRIO panels. Thread DW 15.

Technical Data

400

5

8

20

DW 15

023640 1,140 Stopend Tie TS, galv.

For transmitting force from stopends into MAXIMO and TRIO panels. Thread DW 15.

Technical Data

440 1 4 0 58 DW 15

(48)

Item no. Weight kg

MAXIMO Panel Formwork

115640 6,000 Bulkhead Tie MX DW 20

For forming wall offsets with MAXIMO in connection with the Multi-Purpose Panel MXM.

2

0

8

255 44

130

023660 3,310 Brace Connector TRIO, galv.

For connection of push-pull props and kickers to MAXIMO and TRIO panels. For mounting to horizontal and vertical struts.

Complete with

1 x 027170 Pin Ø 16 x 42, galv. 1 x 018060 Cotter Pin 4/1, galv.

1 6 9 222 18 5 115350 6,430 Push-Pull Spreader MX

For use with foundation formwork up to 1.20 m high and as a substitute for the top anchor with the MAXIMO 330.

Complete with 1 x 115331

1 x 018060 Cotter Pin 4/1, galv. Note

Adjustable in 0.5 cm increments from 15 to 30 cm, and in 1 cm increments from 30 to 40 cm.

Technical Data

Permissible tension and compression force 9 kN.

750 1 7 4 6 5 Ø13,2 6 1 113019 0,068 Stacking Device MX

For easy stacking of MAXIMO panels.

11

0

(49)

Item no. Weight kg

MAXIMO Panel Formwork

115058 7,490 Stacking Device MAXIMO

For stacking and shifting of 2-5 MAXIMO or TRIO panels of any size. Suitable for crane and fork-lift transportation. 4 pieces per stack.

Safety instructions Follow Instructions for Use.

Load-bearing capacity: 500 kg per device, 2 t per stack. 1 05 8 1 0 1 5 0

115168 7,740 Lifting Hook MAXIMO 1.5 t

For lifting of MAXIMO and TRIO panels.

Safety instructions

Always use 2 pieces per transportation unit. Follow Instructions for Use.

Load-bearing capacity: Steel panels 1.5 t Alu panels 750 kg. 185 110 6 0 3 2 5 22 2 11 0 60

044770 15,600 Lifting Gear-3 TRIO

For transportation of MAXIMO and TRIO panel stacks.

Safety instructions Follow Instructions for Use!

(50)

Item no. Weight kg

MAXIMO Panel Formwork

023670 12,800 Scaffold Bracket TRG 80

For mounting a working and concreting scaffold on MAXIMO and TRIO. For mounting to horizontal and vertical struts.

Note

Secured automatically when mounted. Technical Data

Permissble load 150 kg/m²

at a max. width of influence of 1.35 m.

165 6 7 3 1 0 5 1 930 / 1297 798 / 1165 159 1 2 0 4 4 0 65 35

022950 129,000 Concreting Platform TRIO 120 x 270

Working and concreting scaffold for MAXIMO and TRIO. Mounted on the panel from above, com-plete with self-locking device.

Note

Always lift with 4-sling lifting gear.

The crane lifitng points are marked in yellow for easy identification.

Technical Data

Permissible load capacity of 150 kg/m².

2680 1800 440 99 6 12 10 1165 123 1330 440

112588 5,520 Stripping Bar TRIO

1180 Ø26

(51)

Item no. Weight kg

MAXIMO Panel Formwork

027680 49,600 Connector SB-1,2 - MX/TR/D

For assembling Brace Frame SB-1,2 to MAXIMO, TRIO and DOMINO panels.

Safety instructions

Load-bearing point load capacity 1.0 t with a crane sling angle ≤ 15°.

6 0 1 7 7 0 m in 1 2 7 0 m a x 1 65 0 250 120 4 9 0 6 5 0 2 6 5 1 6 0 21 240 027690 027590 113255 114107 0,368 2,400 0,414 1,250 Accessories Bolt Ø 19 x 165, galv. Hook Strap SB-1, 2 Bolt SB-MAXIMO, galv. Sleeve SB-MAXIMO, galv.

025740 9,140 Connector SB-A, B, C - MX/TR/D

For assembling SB-A0, A, B, C to MAXIMO, TRIO and DOMINO panels.

Note

One for each tie point.

125 1 3 0 1 2 0 130 027690 113255 114107 0,368 0,433 1,250 Accessories Bolt Ø 19 x 165, galv. Bolt SB-MAXIMO, galv. Sleeve SB-MAXIMO, galv.

113255 0,414 Bolt SB-MAXIMO, galv.

For connecting MAXIMO panels with SB Brace Frames. 127 180 Ø19 Q 45 114107 1,250 Accessories

(52)

Item no. Weight kg

MAXIMO Panel Formwork

114107 1,250 Sleeve SB-MAXIMO, galv.

For connecting MAXIMO panels with SB Brace Frames.

83 Ø54

113255 0,414

Accessories

Bolt SB-MAXIMO, galv.

113847 3,940 MX Tie 15-25

For wall thicknesses 15 – 25 cm.

Note

To make striking easier, spray with a release agent before every use.

Technical Data

Permissible tension force 90 kN.

130 1 9 6 688 112387 4,060 MX Tie 20-30

Note

Technical Data

130 1 9 6 738 112464 4,310 MX Tie 30-40

Note

Technical Data

130

1

9

6

(53)

Item no. Weight kg

MAXIMO Panel Formwork

112386 2,560 MX Wingnut

Counternut for Tie MX.

Technical Data

141 130

1

9

6

116841 1,900 MX Tie Rod Spanner-2

For easier release of MX ties.

564

116353 0,004 Plug MXM Ø 21

For MAXIMO Multi-Purpose Panel MXM, Inside Corner 50/20, Outside Corner 90 and standard panels for single-sided use.

24 Ø 24 1 5 Ø 2 1 Ø 114300 0,017 Plug MX Ø 17.5 – 22

For sealing MX tie holes in the concrete.

18

3

2

Ø

114509 0,057 Stopper MX 84 MF

Note

For use with pressing water (waterproof concrete). Test report available!

1 7 82 3 0 114496 0,043 Stopper MX 50 MF

Note

For use with non-pressing water.

48

3

0

1

(54)

Item no. Weight kg

MAXIMO Panel Formwork

114503 0,036 Stopper MX 50 OF

For closing MX tie holes in the concrete if the flange should not be visible.

Note

For use with non-pressing water.

50

1

7

114619 0,037 Stud Spanner MX

For holding the Stopper MX 84 MF and MX 50 MF.

132

3

6 27

112937 0,183 Magnet Cone MX 55

For use with MAXIMO. For use with Tie MX.

Note

For use with waterproof or architectural concrete. Install on both sides.

54 6 2 Ø 114797 0,893 Accessories

Magnet Cone Spanner MX

031643 0,265 DK Concrete Cone UNI 58/52

For closing tie points with DK Sealing Cone DW 15/55, DW 20/55, DW 26/55 and SK Tie Cone DW 15.

Note

Delivery unit: 50 pieces.

52 5 8 ,5 Ø 4 8 Ø

114797 0,893 Magnet Cone Spanner MX

For removing the Magnet Cone MX 55.

560

9

5

(55)

Item no. Weight kg

MAXIMO Panel Formwork

113183 0,556 Spanner for Sealing Sleeve MX Ø 16

200 30 1 70 30 Ø 113018 0,012 Cone MX DR 22

For the use of DW 15 Tie Rods. Suitable for Spacer Tube DR 22. 63 Ø 2 1 15 031637 0,055 DK Sealing Cone DW 20/55

For waterproof, fire-resistant and sound-absorbing tie points with Tie Rod DW 20. For use with Tube Rough 28.

Note

Delivery unit: 50 pieces

22 55 6 1 ,5 Ø 2 8 ,5 Ø 112342 0,077 Sealing Sleeve MX Ø 16 52 Ø 29 36 Ø 16 ,5 Ø

112338 0,011 Nut Sealing Sleeve MX Ø 16

45 Ø 16 3 4 Ø 109768 0,080 Accessories Adhesive AN 302-60, 50 ml 109768 0,080 Adhesive AN 302-60, 50 ml

Sufficient for approx. 75 pieces, Nut Sealing Sleeve MX Ø 16.

(56)

D e 02/20 1 0 5ma Art.-Nr .: 7921 40 © Cop yright b y PERI GmbH Wall Formwork Panel Formwork Girder Formwork Circular Formwork Facade Formwork Brace Frame Column Formwork Square Rectangular Circular Slab Formwork Panel Formwork Beam Grid Formwork Girder Formwork Slab Table Beam Formwork

Shoring Systems

Steel Slab Props Aluminium Slab Props Tower Systems Heavy-Duty Props

Climbing Systems

Climbing Scaffold Self-Climbing System Climbing Protection Panel Platform Systems

Scaffold, Stairways, Working Platforms

Facade Scaffold Working Platform Weather Protection Roof Stairway Access

Bridge and Tunnel Formwork

Cantilevered Parapet Carriage Cantilevered Parapet Platform Engineer’s Construction Kit

Services Formwork Assembly Cleaning / Repairs Formwork Planning Software Statics Special Constructions Additional Systems Plywood Formwork Girders Stopend Systems Pallets Transportation Containers PERI GmbH

Formwork Scaffolding Engineering

P.O. Box 1264 89259 Weissenhorn Germany Tel +49 (0)73 09.9 50 - 0 Fax +49 (0)73 09.9 51- 0 [email protected] www.peri.com
