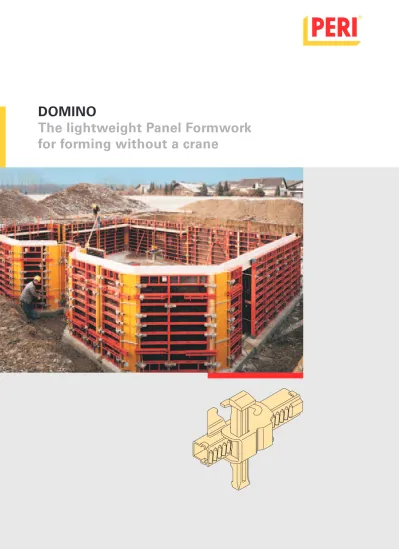

DOMINO

The lightweight Panel Formwork

for forming without a crane

(2)

Edition 01/2010 PERI GmbH

Formwork Scaffolding Engineering P.O. Box 1264 89259 Weissenhorn Germany Tel +49 (0)73 09.9 50-0 Fax+49 (0)73 09.9 51-0 [email protected] www.peri.com Important Notes:

Without exception, all current safety regulations must be observed in those countries where our products are used.

The illustrations in this brochure are photographs of real site situations. Safety or formwork anchor details are therefore not to be taken as a definitive guide to the way the equipment is to be used. Safety instructions and load specifications are to be strictly observed at all times. Separate structural calculations are required for any deviations from the standard design data.

The information contained herein is subject to tech-nical changes in the interests of progress. Errors and typographical mistakes reserved.

(3)

DOMINO

2 The lightweight panel formwork for forming without a crane 4 Corners, T-junctions, Fillers

6 Accessories for quick and simple forming 8 Components

24 PERI International

Content

(4)

DOMINO

The lightweight panel formwork

for forming without a crane

DOMINO is the lightweight panelized formwork system with elements made of steel or aluminium for smaller residential and civil engineer-ing projects.

Only four panel widths

This means any ground plan can be formed. The 0.75 m element is also available as a multi-purpose panel.

Whether on standard panel connections ...

DOMINO DRS Alignment Coupler It fastens, aligns and tightens in a single operation.

... or with ﬁller timbers up to 120 mm wide.

250 x 100

in steel and aluminium

250 x 75

in steel and aluminium

250 x 25

in steel

250 x 50

(5)

High allowable fresh concrete pressure For concreting heights up to 2.50 m, the DOMINO has been designed for the full hydrostatic pressure according to DIN 18202, table 3, line 7 (steel ele-ments) and line 6 (aluminium panels). For greater heights a fresh concrete pressure of 60 kN/m2_{(steel panels) is} allowable in compliance with DIN 18202, table 3, line 6. This allows quick concreting and ensures very ﬂat con-crete surfaces. At greater heights (ex-tended forms) the aluminium panels must only be used as extension panels at the top.

– Only 2 ties needed for concreting heights up to 2.50 m. This means 1.25 m² of wall area per tie.

– The DOMINO DG 85 scaffold bracket for an 850 mm wide concreting scaf-fold. The maximum bracket spacing is an economical 2.00 m under an im-posed load of 150 kg/m².

DOMINO form with push-pull props and concreting platform ready for use.

DOMINO DKS Wedge Coupler For the standard panel joint at foundations.

The DKS Wedge Coupler for standard panel joints with normal requirements. DOMINO panels are extremely light yet

withstand a high load. The 250 x 100 panel in aluminium weighs only 59 kg.

(6)

30 20 35 24 25 25

DOMINO standard application

Corners, T-junctions, Fillers

Corners

Two DRS alignment couplers are need- Four DOMINO DRS alignment couplers

DWD 5 DWD 5 DAR 80 DWD 5 2 DWD 5 DAR 80 DAR 80 Filler timber 1 cm

Compensation Waler DAR 80 2 DWD 5

External Corner DAW

D 50

DGE

The 50 panel and the DAW external cor-ner angle form the external corcor-ner. To-gether with the DWD 5 compensator, wall thicknesses from 150 to 350 mm in 50 mm increments are possible. Basic rules for corners:

Outside: Panel D 50 Corner Angle DAW Inside:

Articulated Corner DGE

Adjusted to wall thickness with DWD compensator or timber.

(7)

20 24 30 35 25

T-Junctions

Up to 300 mm with ﬁller support DPA and compensation waler DAR 80

Up to 120 mm with DOMINO DRS alignment coupler and ﬁller timber.

DWD 5 Filler timber 1 cm DWD 5 DWD 5 DGE D 75 DGE

The 75 panel and the articulated corner form the T-junction. Together with the DWD 5 compensator, wall thicknesses from 150 to 350 mm in 50 mm incre-ments are possible.

Basic rules for T-junctions: Outside:

Panel D 75 Inside:

Articulated Corner DGE

Adjusted to wall thickness with DWD compensator or timber.

(8)

DOMINO

Accessories for quick and simple forming

All of the cross struts of the DOMINO panelss have connecting holes for accessories. These details allow to shutter fast the easy way.

The coupler with captive wedge makes erection very easy.

Push-Pull Prop Connector DRA For connecting push-pull props and kicker braces to horizontal and vertical struts.

DOMINO Scaffold Bracket DG 85 The Scaffold Bracket DG 85 for an 850 mm wide concreting scaffold.

Simply hook in and lock with pin.

Moving a stack of panels with DOMINO stacking device.

Large units can be moved with the DOMINO Lifting Hook.

DOMINO Lifting Hook Safe working load:

500 kg For lifting upright single panels or units. Always use 2 hooks for each unit being moved.

DOMINO Stacking Device

makes handling with the crane and stacking on site easier. The stacks can also be moved with a fork-lift truck. 8 panels of a particular size can be stacked quickly and safely.

(9)

1,25 m

0,75 m

DOMINO elements are also extreme-ly suitable for forming foundations. One major beneﬁt is the inset tie points of the 1.25 m high panel. These allow even foundation forms to be tied easily.

Strip foundations and single footings with the DLS founda-tion tie spanner (below) and DAH tie bracket (above). The 1.25 m high DOMINO panels have inset tie points and can be used on their sides without any problems.

Foundation Tie Clamp DLS Item no. 066090

Perforated Foundation Tie, 25 m roll

Item no. 023020

Top Tie Bracket DAH Item no. 066086 Wall footings and single-column

footings with the foundation tie spanner and tie bracket.

– The DOMINO foundation tie clamp for shuttering foundations easily and re-places the bottom tie position and saves work space and hence earth-works.

– Ties are tensioned accurately with a self-cleaning hexagonal spindle. – Using the top tie bracket for the top

tie point avoids the DOMINO panels having to be aligned exactly. It is pos-sible to tie at any position on the panel.

(10)

Item no. Weight kg

DOMINO Panel Formwork

066020 87,700 Panel D 250 x 100

Panel with steel frame and formlining 15 mm.

2 5 00 5 3 0 1 4 40 5 3 0 1000 117 066022 71,600 Panel D 250 x 75

2 5 0 0 5 3 0 1 4 4 0 5 3 0 750 117 066025 54,500 Panel D 250 x 50

2 5 00 5 3 0 1 4 40 5 3 0 500 117

(11)

Item no. Weight kg

DOMINO Panel Formwork

066026 37,700 Panel D 250 x 25

5 3 0 1 4 4 0 5 3 0 2 5 0 0 250 117 066021 59,500 Panel DA 250 x 100

Panel with aluminium frame and formlining 15 mm.

2 5 0 0 5 3 0 1 4 4 0 5 3 0 1000 117 066023 47,500 Panel DA 250 x 75

2 5 0 0 5 30 1 4 4 0 5 3 0 750 117

(12)

Item no. Weight kg

DOMINO Panel Formwork

066024 066032

76,500 50,200

Multi Panels DM/DMA 250 Multi Panel DM 250 x 75 Multi Panel DMA 250 x 75

Panel Steel/Alu with formlining 15 mm. For oblique angles, wall connections etc..

Complete with 46 x 030290 Plug Ø 20 mm 2 5 0 0 5 3 0 1 4 4 0 5 3 0 45 22 x 30 = 660 45 1 1 7 750

066029 39,000 Articulated Corner DGE 250

Made of aluminium. For oblique angles from 75° for the outside and inside.

Complete with

2 x 066100 Corner Locking DEA 90°

2 5 00 5 3 0 1 4 40 5 3 0 1 1 7 250 250 250 066030 101986 7,820 11,600

Wall Thickness Compensations DWD 250 Wall Thickness Compensation DWD 250 x 5 Wall Thickness Compensation DWD 250 x 10 For adaptating to different wall thicknesses.

5 3 0 14 4 0 5 3 0 25 0 0 50 1 1 7 27 100 1 1 7 27

(13)

Item no. Weight kg

DOMINO Panel Formwork

066028 10,500 Outside Corner Angle DAW 250

For panel connection at 90° external corners.

2 5 0 0 117 1 1 7

066033 4,150 Filler Support DPA 250

For infillings with 21 mm plywood.

2 4 9 0 9 3 / 8 7 45

111603 148,000 Shaft Panel DSE 275

For lifting complete internal formwork in shafts.

Safety instructions

Load-bearing point: max. capacity 2.0 t.

2 7 5 0 500 1 1 7

(14)

Item no. Weight kg

DOMINO Panel Formwork

111665 4,360 Spindle Shaft Panel DSE

For use with Shaft Panel DSE. For spindling back to the starting position. 1 piece per Shaft Panel DSE.

Complete with

2 x 105822 Pin Ø 20 x 102, galv. 2 x 022230 Cotter Pin 5/1, galv. Note Spanner size SW 24. 2 3 0 150 66 248 SW 24 101927 108855 16,200 17,900

Stopend Panels DOMINO AT 250 Stopend Panel DOMINO AT 250 x 3 Stopend Panel DOMINO AT 250 x 5 Outside piece for stopend formwork.

Note

Concrete cover approx. 30 or 50 mm.

2 5 0 0 210 1 1 7 210 1 1 7 AT 250 x 3 AT 250 x 5 101928 101929 101930 101931 27,100 31,200 36,000 39,700

Stopend Panels DOMINO MTF 250 Stopend Panel DOMINO MTF 250 x 20 Stopend Panel DOMINO MTF 250 x 24/25 Stopend Panel DOMINO MTF 250 x 30 Stopend Panel DOMINO MTF 250 x 35/36 With water stop bar for stopend formwork.

B 118 158 218 268 2 5 0 0 B 1 2 0

(15)

Item no. Weight kg

DOMINO Panel Formwork

066040 47,300 Panel D 125 x 100

1 2 5 0 2 8 0 9 3 0 4 0 1000 117 066041 38,700 Panel D 125 x 75

1 2 5 0 4 0 2 40 9 3 0 4 0 750 117 066043 28,600 Panel D 125 x 50

1 2 5 0 2 8 0 9 3 0 4 0 500 117 066044 18,600 Panel D 125 x 25

1 2 5 0 2 8 0 9 3 0 4 0 250 117

(16)

Item no. Weight kg

DOMINO Panel Formwork

066050 31,000 Panel DA 125 x 100

1000 1 2 5 0 2 8 0 9 3 0 4 0 117 066051 24,800 Panel DA 125 x 75

4 0 2 4 0 9 3 0 4 0 1 2 50 750 117 066042 066052 43,700 27,300

Multi Panels DM/DMA 125 Multi Panel DM 125 x 75 Multi Panel DMA 125 x 75

Panel Steel/Alu with formlining 15 mm. For oblique angle, wall connections etc..

Complete with 46 x 030290 Plug Ø 20 mm 2 8 0 9 3 2 3 8 12 5 0 45 22 x 30 = 660 45 750 1 1 7

Complete with

2 8 0 9 3 0 4 0 1 2 5 0 250 250 1 1 7 250

(17)

Item no. Weight kg

DOMINO Panel Formwork

066048 101964

4,030 5,940

Wall Thickness Compensators DWD 125 Wall Thickness Compensator DWD 125 x 5 Wall Thickness Compensator DWD 125 x 10 For adaptating to different wall thicknesses.

2 8 0 9 3 0 4 0 1 2 50 ₂₇ ₅₀ 1 1 7 100 27 1 1 7

1 2 5 0 117 1 17

066053 2,070 Filler Support DPA 125

For infillings with 21 mm plywood.

1 2 4 0 9 3 / 8 7 45

111655 77,100 Shaft Panel DSE 125

For lifting complete internal formwork in shafts.

Load-bearing point: max. capacity 2.0 t.

1 2 5 0 500 1 1 7

(18)

Item no. Weight kg

DOMINO Panel Formwork

101934 108856

8,140 8,980

Stopend Panels DOMINO AT 125 Stopend Panel DOMINO AT 125 x 3 Stopend Panel DOMINO AT 125 x 5 Outside piece for stopend formwork.

Note

Concrete cover approx. 30 or 50 mm.

1 2 5 0 210 1 1 7 1 1 7 210 AT 125x3 AT 125x5 101935 101936 101937 101940 14,600 15,200 17,500 19,300

Stopend Panels DOMINO MTF 125 Stopend Panel DOMINO MTF 125 x 20 Stopend Panel DOMINO MTF 125 x 24/25 Stopend Panel DOMINO MTF 125 x 30 Stopend Panel DOMINO MTF 125 x 35/36 With water stop bar for stopend formwork.

B 118 158 218 268 1 2 5 0 _B 1 2 0 066064 12,100 Panel D 75 x 25

7 5 0 2 8 0 4 3 0 40 250 117 066063 19,300 Panel D 75 x 50

117 500 7 5 0 2 8 0 4 3 0 4 0 066061 26,600 Panel D 75 x 75

7 5 0 2 8 0 4 3 0 4 0

(19)

Item no. Weight kg

DOMINO Panel Formwork

066060 32,400 Panel D 75 x 100

1000 7 5 0 2 8 0 4 3 0 4 0 117 066062 31,600 Multi Panel DM 75 x 75

Panel with steel frame and formlining 15 mm. For oblique angles, wall connections, stopend formwork etc. Complete with 23 x 030290 Plug Ø 20 mm 7 5 0 2 8 0 4 3 2 3 8 ₄₅ _{22 x 30 =}₆₆₀ ₄₅ 750 1 1 7

Complete with

7 5 0 2 8 0 4 3 0 4 0 250 250 1 1 7 250

066068 2,520 Wall Thickness Compensator DWD 75 x 5 For adaptating to different wall thicknesses.

2 8 0 4 3 0 4 0 75 0 50 27 1 1 7

7 5 0 117 1 1 7

066100 1,470 Corner Locking DEA 90° For 90° inside corners.

6 0 1 65 120 1 20

(20)

Item no. Weight kg

DOMINO Panel Formwork

066095 1,060 Positioning Pin DGE 135° internal For 135° internal corners.

Complete with

2 pc. 710224 Bolt ISO 4017 M12 x 40-8.8, galv.

4

0

308 M 12x40

066097 1,560 Positioning Pin DGE 135° external For 135° external corners.

Complete with

2 pc. 710224 Bolt ISO 4017 M12 x 40-8.8, galv.

4

0

470 M 12x40

066080 3,630 Alignment Coupler DRS

For all DOMINO panel connections. Compensations up to 12 cm possible. 288 1 2 7 max 173 259 61 066081 1,160 Wedge Clamp DKS

For standard DOMINO panel connections not under high load.

1 5 1 1 3 3 2 5 109

066084 8,510 Compensation Waler DAR 80

For length compensations, height extensions, stopend formwork and special applications for DOMINO. With captive connection components.

790 4 0 40 1 1 2 60 1 6 5

(21)

Item no. Weight kg

DOMINO Panel Formwork

066085 6,570 Scaffold Bracket DG 85

For assembly of working and concreting scaffolds for DOMINO.

Technical Data

Permissible load 150 kg/m2_{with maximum width} of influence 2.00 m. 1044 6 5 3 45 034580 3,520 Accessories Guardrail Post HSGP

106877 2,730 Guardrail Post Holder DOMINO

For assembly of guardrails on DOMINO panels.

Complete with

1 x 018060 Cotter Pin 4/1, galv. Technical Data

Maximum width of influence 2.00 m.

34 9 14 6 142 28 21 3 034580 3,520 Accessories Guardrail Post HSGP 034580 3,520 Guardrail Post HSGP

As guardrail for different systems.

35 1 2 0 4 4 0 1 05 0 1 3 0 0 65

110406 2,100 Stopend Tie-2 DSA

For transferring forces from the stopend formwork to the DOMINO panels. Thread DW 15.

443 9 5 1 5 0 1 7 4 DW 15

(22)

Item no. Weight kg

DOMINO Panel Formwork

066082 1,040 Brace Connector DRA

For connecting push-pull props and kickers to DOMINO panels.

Complete with

1 pc. 027170 Bolt Ø 16 x 42, galv. 1 pc. 018060 Cotter Pin 4/1, galv.

1 1 7 120 98 6 8 Ø16x42 030290 0,002 Plug Ø 20 mm

For sealing tie holes Ø 20 mm, which are not required.

Note

Delivery unit 500 pieces.

13 25 Ø 21 Ø 027680 49,600 Connector SB-1,2 - MX/TR/D

For assembling Brace Frame SB-1,2 to MAXIMO, TRIO and DOMINO panels.

Load-bearing point load capacity 1.0 t with a crane sling angle ≤ 15°.

6 0 1 7 7 0 m in 1 2 7 0 m a x 1 65 0 250 120 4 9 0 6 5 0 2 6 5 1 6 0 21 240 027690 027590 113255 114107 0,368 2,400 0,433 1,250 Accessories Bolt Ø 19 x 165, galv. Hook Strap SB-1, 2 Bolt SB-MAXIMO, galv. Sleeve SB-MAXIMO, galv. 025740 9,140 Connector SB-A, B, C - MX/TR/D

For assembling SB-A0, A, B, C to MAXIMO, TRIO and DOMINO panels.

Note

One for each tie point.

125 1 3 0 1 2 0 130 Accessories

(23)

Item no. Weight kg

DOMINO Panel Formwork

027690 0,368 Bolt Ø 19 x 165, galv.

For panel formwork with 12 cm overall height.

125 165

Ø19

066090 2,480 Foundation Tie Clamp DOMINO DLS

For anchoring foundation formwork in combination with the Perforated Foundation Tie.

Note Spanner size SW 14. 1 7 0 3 4 SW 14 152

023020 0,676 Perforated Foundation Tie, 25 m roll

For use with Foundation Tie Clamp TRIO, DOMINO and HANDSET.

Technical Data

Permissible tension force 12,9 kN

5 0 2 0 22 50

066086 1,100 Top Tie Bracket DAH, galv.

For tying at any position outside of the frame, particularly for foundations.

100 1 0 0 88 Ø20,5

066091 6,330 Lifting Hook DOMINO 500 kg For transporting DOMINO panels.

Always use 2 pieces per transportation unit. Follow Instructions for Use.

Load capacity 500 kg. 5 5 5 1 2 187 100 1 9 5 1 1 2 80

(24)

Item no. Weight kg

DOMINO Panel Formwork

066094 7,980 Stacking Device DOMINO, galv.

For stacking and transportation of 2-8 DOMINO panels of all sizes. Suitable for crane and fork-lift transportation. 4 pieces per stack.

Safety instructions Follow Instructions for Use.

Load-bearing capacity: 250 kg per device, 1 t per stack. 1 0 0 1 1 1 5 1 2 5

066093 0,020 Stacking Device DOMINO DSH

Plastic. Prevents the element from sliding side-ways. 55 3 0 1 9

066099 0,030 Stacking Aid DOMINO DSW

For stacking DOMINO panels. 4 pieces per stack.

4

9

50

5

(25)

(26)

02 PERI S.A.S. 77109 Meaux Cedex [email protected] www.peri.fr 03 PERI AG 8472 Ohringen [email protected] www.peri.ch 04

PERI S.A. Sociedad Unipersonal 28110 Algete/Madrid [email protected] www.peri.es 05 N.V. PERI S.A. 1840 Londerzeel [email protected] www.peri.be 06 PERI B.V. 5480 AH-Schijndel [email protected] www.peri.nl 07

PERI Formwork Systems, Inc. Elkridge, MD 21075 [email protected] www.peri-usa.com 08

PT Beton Perkasa Wijaksana Jakarta 10210 [email protected] 09 PERI S.p.A. 20060 Basiano (MI) [email protected] www.peri.it 10 PERI Japan K.K. Tokyo 103-0015 [email protected] www.perijapan.jp 11 PERI Ltd. Rugby, CV23 0AN [email protected] www.peri.ltd.uk 12

PERI Kalıp ve İskeleleri Kıraç - Büyükçekmece/ Istanbul 34500 [email protected] www.peri.com.tr 13 PERI Kft.. 1181 Budapest [email protected] www.peri.hu 14

PERI Formwork Malaysia 43300 Seri Kembangan, Selangor DE

[email protected] www.perimalaysia.com 15

PERI ASIA Pte. Ltd Singapore 387355

16

PERI Ges.mbH

3134 Nußdorf ob der Traisen ofﬁ[email protected]

www.peri.at 17

PERI spol. s r.o. 252 42 Jesenice [email protected] www.peri.cz 18

PERI Danmark A/S 2670 Greve [email protected] www.peri.dk 19 PERI Suomi Ltd. Oy 05460 Hyvinkää info@perisuomi.ﬁ www.perisuomi.ﬁ 20 PERI NORGE AS 3036 Drammen [email protected] www.peri.no 21

PERI Polska Sp. z o.o. 05-860 Płochocin [email protected] www.peri.pl.pl 22 PERIform SVERIGE AB 30013 Halmstad [email protected] www.periform.se 23 PERI (Korea) Ltd. Seoul 135-080 [email protected] www.perikorea.com 24 PERIcofragens Lda. Linda-a-Pastora 2790-326 Queijas [email protected] www.peri.pt 25 PERI S.A. (1625) Escobar/Prov. Bs. As. [email protected] www.peri.com.ar 26 PERI Formas e Escoramentos Ltda. CEP 06730-000

Vargem Grande Paulista São Paulo

[email protected] www.peribrasil.com.br 27

PERI Chile Ltda. Colina, Santiago de Chile [email protected] www.peri.cl 28 PERI România SRL 077015 Baloteşti - ILFOV [email protected] www.peri.ro 29 PERI SLOWENIEN 2000 Maribor [email protected] www.peri.de 30

PERI spol. s r.o. 903 01 Senec [email protected] www.peri.sk 31

PERI Australia Pty. Ltd. Glendenning NSW 2761 [email protected] www.periaus.com.au 32 PERI AS 76406 Saku vald Harjumaa [email protected] www.peri.ee 33 PERI Hellas Ltd. 194 00 Koropi [email protected] www.perihellas.gr 34 PERI SIA 1057 Riga [email protected] www.peri-latvija.lv 35 PERI (L.L.C.) Dubai [email protected] 2 1 3 4 5 6 9 11 12 13 16 17 18 19 20 22 21 24 28 29 30 32 33 34 38 41 42 46 48 52 53 61 01 PERI GmbH Rudolf-Diesel-Strasse 89264 Weissenhorn [email protected] www.peri.com France Switzerland Spain Belgium/Luxembourg Netherlands USA Indonesia Italy Japan United Kingdom/Ireland Turkey Hungary Malaysia Singapore Austria Czech Republic Denmark Finland Norway Poland Sweden Korea Portugal Argentina Brazil Chile Romania Slovania Slovakia Australia Estonia Greece Latvia

United Arab Emirates

PERI International

(27)

36

PERI Formwork Systems, Inc. Bolton, Ontario L7E 1K1 [email protected] www.peri.ca 37 PERI GmbH Beirut

P.O. Box 90 416 Jdeidet [email protected] www.peri.de 38 PERI UAB 02300 Vilnius [email protected] www.peri.lt 39 PERI S.A. Tanger [email protected] www.peri.de 40 PERI Formwork Engineering Ltd 49002 Israel [email protected] www.peri.co.il 41

PERI BULGARIA EOOD 1839 – Soﬁa [email protected] www.peri.bg 42 MEST ltd., 220 Hafnarfjordur [email protected] www.mest.is 43

TOO PERI Kazakhstan 050010 Almaty [email protected] www.peri.kz 44 OOO PERI 142403 Noginsk [email protected] www.peri.ru 45

PERI Wiehahn (Pty.) Ltd. Bellville 7535

[email protected] www.periwiehahn.co.za 46

TOW PERI Ukraina 07400 Brovary [email protected] www.peri.ua 47 PERI GmbH 11361 Heliopolis Cairo [email protected] www.peri.com.eg 48

PERI Oplate d.o.o.

11272 Dobanovci

ofﬁ[email protected] www.peri.co.yu

49

PERI Cimbras y Andamios, S.A. de C.V. Estado de México, C.P. 54680 [email protected] www.peri.com.mx 50

PERI Kalıp ve İskeleleri Baku

[email protected] www.peri.com.tr 51

PERI Kalıp ve İskeleleri 744035 Aşgabat [email protected] www.peri.com.tr 52 PERI Belarus 220030 Minsk [email protected] www.peri.com.tr 53

PERI oplate i skele d.o.o. 10 250 Donji Stupnik/ Zagreb [email protected] www.peri.com.hr 54 PERI GmbH Building No. 4 P.O. Box 1939793669 Teheran-Iran [email protected] www.peri.ir 55 PERI (India) Pvt Ltd Mumbai – 400064 [email protected] www.peri.in 56 PERI Jordan 11947 Amman [email protected] www.peri.de 57 PERI Kuwait 13011 Kuwait [email protected] www.peri.de 58

PERI Saudi Arabia Jeddah - 21463 K.S.A [email protected] www.peri.de 59 PERI Qatar LLC Doha [email protected] www.peri.de 60

Société PERI S.A.S. Kouba - Alger [email protected] www.peri.fr 61 Autostrada TIRANE-DURRES Tirane / ALBANIA [email protected] www.peri.com.tr 62

PERI Peruana SAC Lima/Peru

[email protected] www.peri.com.pe 63

PERI Panama Inc. 587 Panama City [email protected] www.peri.com.pa 7 8 10 14 15 23 25 26 27 ₃₁ 35 36 37 39 ₄₀ 43 44 45 47 49 50 51 54 59 55 58 57 60 56 62 63 Canada Libanon Lithuania Marocco Israel Bulgaria Iceland Kazakhstan Russian Federation South Africa Ukraine Egypt Serbia Mexico Azerbaijan Turkmenistan Belorussia Croatia Iran India Jordan Kuwait Saudi Arabia Qatar Algeria Albania Peru Panama

(28)

D e 0 1/20 1 0 1 0ma Art.-Nr .: 790352 © Cop yright b y PERI GmbH Wall Formwork Panel Formwork Girder Formwork Circular Formwork Facade Formwork Brace Frame Column Formwork Square Rectangular Circular Slab Formwork Panel Formwork Beam Grid Formwork Girder Formwork Slab Table Beam Formwork

Shoring Systems

Steel Slab Props Aluminium Slab Props Tower Systems Heavy-Duty Props

Climbing Systems

Climbing Scaffold Self-Climbing System Climbing Protection Panel Platform Systems

Scaffold, Stairways, Working Platforms

Facade Scaffold Working Platform Weather Protection Roof Stairway Access

Bridge and Tunnel Formwork

Cantilevered Parapet Carriage Cantilevered Parapet Platform Engineer’s Construction Kit

Services Formwork Assembly Cleaning / Repairs Formwork Planning Software Statics Special Constructions Additional Systems Plywood Formwork Girders Stopend Systems Pallets Transportation Containers PERI GmbH

Formwork Scaffolding Engineering

P.O. Box 1264 89259 Weissenhorn Germany Tel +49 (0)73 09.9 50 - 0 Fax +49 (0)73 09.9 51- 0 [email protected]
