Analysis and Design of PWM Multi-Level NPC Inverter for Power Quality
Integration of Wind Power into Grid
Ramu Velishala
Assistant Professor, Department of EEE, University College of Engineering, Kakatiya University, Kothagudem, Telangana , India
ABSTRACT
This paper thinks about the modeling switching strategy and control conspire for impartial point clamped converter sustained into matrix. Design and Analysis of PWM 3– level inverter for power quality mix of wind power in to network to interface with the medium voltage framework. Inverters are arranged into single level inverter and multi-level converter. Multi-level converter has a ton of favorable position to single level inverters have least harmonic twisting, lessened EMI/RFI creation and keep running on very surprising voltage levels. Multi-level inverter is utilized for a few mechanical applications, for example, power filters, static var compensators and drives applications. The disadvantages are the disconnected power supplies required for every last one of the phases of the multi-level converter and costlier, extreme to oversee in programming. This venture goes for the reproduction investigation of 3-ɸ single level and multi-level convertor. The part of convertor in dynamic power channel for harmonic elimination is considered and reproduced in MATLAB/SIMULINK. Right off the bat, the 3-ɸ framework with non-straight loads is demonstrated and their trademark is resolved. Also, the dynamic power filters are making with the convertor and fitting switch regulation technique (PWM technique) to hold out harmonic elimination.
Keywords: Fuel Cells, Transmitted And Power Generation, Power Electronics, Photo-voltaic (PV), Renewable Energy.
I.
INTRODUCTION
At the point when air conditioning loads are associated with inverters it required that the yield voltage of wanted voltage greatness and recurrence be accomplished. A variable yield voltage may b acquired by changing the input dc voltage and keeps up the pick up of the converter steady. Then again, if the dc input voltage is settled to a specific size and it isn't variable, an alterable yield voltage might be gotten by changing the pick up of the converter, which is typically done by pulse-width-modulation (PWM) control inside the converter. The inverters which produce a yield voltage and a current with levels between 0 or +V and – V are known as 2 level
under innovative work for over 30 years and have fruitful business applications. The present work makes an answer for shape an effective multilevel model which is reasonable for medium and high power mechanical applications. There are a wide range of power inverter model and controlling technique utilized as a part of inverter designs. Diverse technique approaches address numerous issues that relying upon how the inverter is proposed to be utilized. In this manner execution of waveform might be balanced. Note that, run of the mill inverters dependably create low standard yield waveforms. To make the yield waveform subjective, LC channel are utilized as a part of the circuit. Along these lines, now of time analyst may have an inquiry that, why the nature of inverter yield is low? And why LC channel are as often as possible utilized as a part of the circuit. Further, which kind of arrangements is accessible to improve nature of yield waveform without losing execution and its effectiveness? In any case, in the long run this will be overseen in this proposition paper. In any case, at first we attempt to converter applications from low power to high power and then
we meet the necessities to take care of the powerful demand. At long last we endeavor to alleviate the issues and its answers are accessible to take care of the powerful demand. This displays the modern applications from low power to high power extend gadget. From it is very unsurprising that, power converters are an empowering technique. They are conceivably valuable for an extensive variety of utilizations like; low power devices, home machines, electric vehicles, photovoltaic, transport, and manufacturing, mining, and petrochemical application.
II.
POWER INVERTERS
While numerous scientist have fabricated a different sort of power inverters, yet at the same time analysts are in search for another kind of topology which may produce brilliant waveform with conservative size. In different terms improving power quality is the fundamental reason. By considering above thought, let us make a layout with respect to the demanding thought of power electronics converters, specific in Medium and high power go.

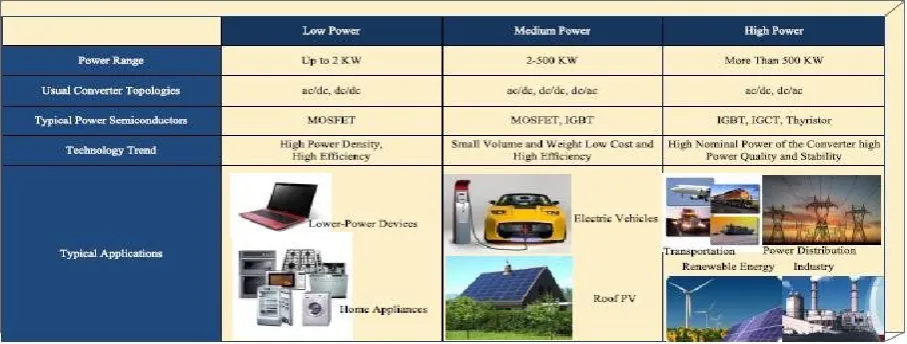

Figure 1. Power Inverters
The reliance on ordinary fuels and the expansion of its cost is depend to the venture of colossal measures of assets, efficient, to grow new less expensive and cleaner energy assets not identified with customary energy [3]. Truth be told, for a long time, renewable
the obligation to complete with high proficiency. The power electronics analyst and monetarily have center to this demand in two ways: creating semiconductor technique to achieve higher voltages and streams (as of now 8 kV and 6 kA) while keeping up old converter display (for the most part two - level voltage and current source inverters); and by growing new inverter models, with old semiconductor technique, known as multilevel converter [5]. In the principal approach there is advantage of surely understood circuit structures and regulation technique. Additionally the more up to date semi-conductors are all the more exorbitant and higher in power, other power-quality prerequisites must be meet, subsequently there might be need of additional power filters. In this way it will be very achievable to
make another inverter show in light of multilevel idea. At introduce there is intense rivalry between the utilization of customary power inverter show utilizing high-voltage semiconductors and new inverter display utilizing medium-voltage devices. This thought is appeared in Fig. where converters are making by interfacing devices in arrangement. In any case, in exhibit day, multilevel technique with medium voltage semiconductors are associating in an advancement race with customary power inverters utilizing high-power semiconductors gadget, which are under research and are not develop. Albeit, conventional converters are useful for least power applications, yet they are neglect to satisfy the prerequisites of high-power level inverter.

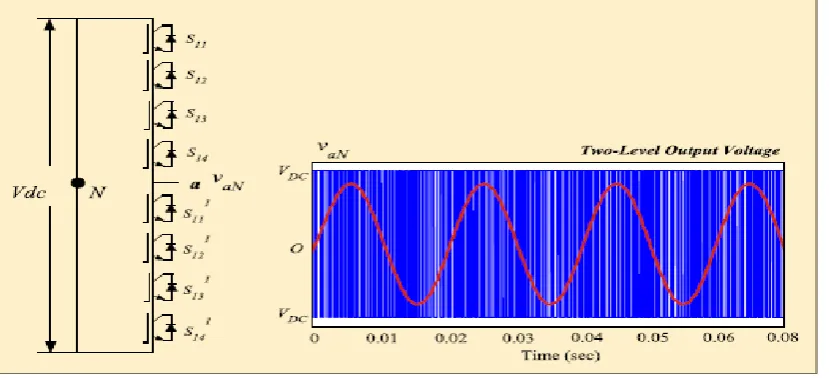

Figure 2. Classical converter and output waveform
In perspective of later, to recover the faults of conventional inverters we think about the multilevel innovation and the benefits it offer. Multilevel converters are a decent decision for power applications because of the way that, it can be accomplishes high power utilizing medium-power inverter technique. For all intents and purposes, multilevel inverters give more favorable circumstances looking at conventional converter. These favorable circumstances are essentially centered around advancements in the yield flag quality (Voltage and Current) and power increment in the
new multilevel inverter show (half and half or new ones), and regulation procedures [9]. In any case, before presenting about the multilevel converters, we are making a diagram about the conventional converters and their issues. To address the issues of customary converters, one ought to have a thought regarding the Mean to high-power go converters and related testing issues. A portion of the realities abridged.
1. Today's, application power scope of converter ckt utilizing the central "inverter leg" building piece is gigantic (<1 kW to 10 MW+)
2. In vast application region is in business (PWM controlled acceptance engine) drives (See Fig.3) are
around 3 kW to 100 kW power restrict. IGBT devices are utilizing High in this power run.
III. WIND POWER
With expanding power demands in India, wind power turns into an extremely mainstream because of as far as possible measure of ordinary energy ,that is the reason late change in the popular conclusion towards ensuring the earth. And it is additionally seen as a protected and solid energy that does not relies upon any restricted assets
Figure 3. Wind turbine model
Figure 4. Wind turbine power generating versus wind speed The chart recommended 3-primary factors on the
normal for wind turbine energy yield.
wind speed. The ostensible power is the most astounding energy yield of the wind turbine generator. 2. Cut-out wind speed: The most noteworthy wind speed at which the turbine is permitted to convey power or the specific wind
speed a wind turbine may run called greatest wind speed works .This trademark specify above is changing relying upon the kind of wind turbine utilizing for power generation

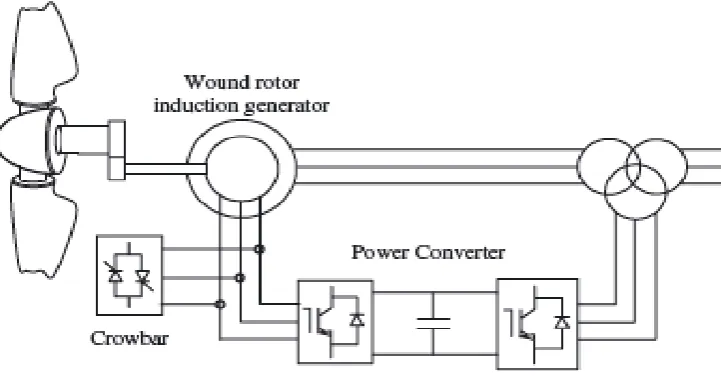

Figure 5. DFIG wind turbine model
DFIG wind turbine convey power through the connection of the stator and rotor of the generator, while the rotor additionally consumed energy relies upon the rotational speed of the generator. On the off chance that the generator working above synchronous speed, the power is convey from the rotor through the power converter to the grid. In the event that the generator is works underneath synchronous speed, at that point the rotor will ingest power from the grid through the power inverter. The power inverter is comprise of a Rotor-side converter (RSC) and a Grid-side converter (GSC).The power inverter control the dynamic and receptive power stream in the grid, and the DC capability of the DC-connect condenser between the DFIG wind turbine and the grid by giving the pulse width modules (PWM) to the
inverter (Seyedi, 2009). A crowbar is actualized to control SC (hamper) the wind power framework that outcomes in high present and high potential. The RSC converters working at the slip recurrence and its regulation of the transition in the DFIG wind turbine. The power rating of the RSC is computed by the most extreme dynamic and receptive power controls capacity. The RSC might fill in as a current-controlled voltage sources converter. The GSC worked at a framework recurrence and directs the voltage and current level of the DC-interface circuit. The wind power plant withstands voltage plunges to settled estimation of the ostensible voltage and for a settled time
Figure 6. Wind turbine power inverter Block
Figure 8. THD of Wind turbine power inverter

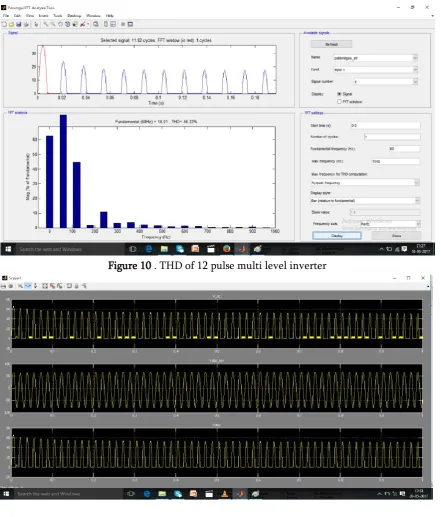

Figure 10 . THD of 12 pulse multi level inverter
Figure 11. 12 level multilevel inverter waveform
V.
CONCLUSION
In this paper, a variable control technique for mix of renewable energy resource to the dissemination grid is exhibited .The principle target of the proposed control strategy in both unfaltering state and transient activity have been checked through simulation comes about. The Neutral point clamped voltage source inverter amid association of non-customary energy resource to
regulation technique can be utilized as a part of a wide range of converters display and might be utilized as a multi objectives are coordination of numerous kind of various renewable energy resource into grid.
