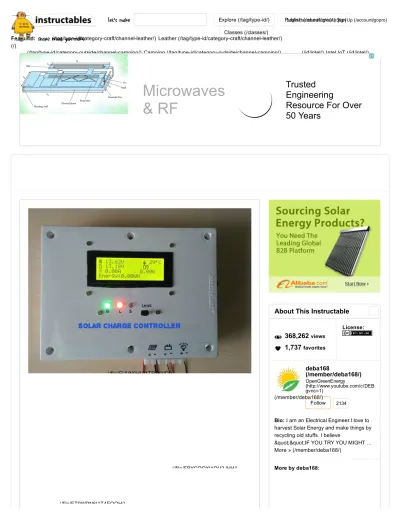

One year ago, I began building my own solar system to provide power for my village house.Initially I made a LM317 based charge controller and an Energy meter for monitoring the system.Finally I made PWM charge controller.In April 2014 I posted my PWM solar charge controller designs on the web,it became very popular. Lots of people all over the world have built their own. So many students have made it for their college project by taking help from me.I got several mails every day from people with questions regarding hardware and software modification for different rated solar panel and battery. A very large percentage of the emails are regarding the modification of charge controller for a 12Volt solar system.

You can see my other version charge controllers

ARDUINO MPPT SOLAR CHARGE CONTROLLER ( Version3.0) (http://www.instructables.com/id/ARDUINOSOLARCHARGECONTROLLER Version30/)

ARDUINO SOLAR CHARGE CONTROLLER (Version1)

(http://www.instructables.com/id/ARDUINOSOLARCHARGECONTROLLER PWM/)

To solve this problem I made this new version charge controller so that any one can use it without changing the hardware and software. I combine both the energy meter and charge controller in this design.

Specification of version2 charge controller :

1.Charge controller as well energy meter 2. Automatic Battery Voltage Selection (6V/12V)

3.PWM charging algorithm with auto charge set point according to the battery voltage 4.LED indication for the state of charge and load status 5. 20x4 character LCD display for displaying voltages,current,power,energy and temperature. 6.Lightning protection 7.Reverse current flow protection 8.Short Circuit and Over load protection 9. Temperature Compensation for Charging (/file/FAALTIKI8SLPCHQ/) (/file/FZ6QFU5I1T4BBAS/) (/file/FJPOEHKI1TR8BHI/) Show All Items (/id/GettingStarted WithNeoPixleWS2812RGBLED/) (/id/Smartphone ControlledArduinoRover/) (/id/DIY5500mW LaserEngraverCutter/) Arduino (/howto/Arduino/) PWM (/howto/PWM/) Solar (/howto/Solar/) Charge Controller (/howto/Charge%20Controller/) Energy (/howto/Energy/) Power (/howto/Power/) Current (/howto/Current/) LCD (/howto/LCD/) Battery (/howto/Battery/) Tags: Related (/id/ARDUINO ARDUINO SOLAR CHARGE CONTROLLER (Version1) (/id/ARDUINOSOLAR CHARGECONTROLLER PWM/) (/id/ARDUINO ARDUINO ENERGY METER (/id/ARDUINOENERGY METER/) by deba168 (/member/deba168/) (/id/ARDUINO ARDUINO MPPT SOLAR CHARGE CONTROLLER (Version3.0) (/id/ARDUINO SOLARCHARGE CONTROLLERVersion30/) (/id/SlimPanel/) DIY Portable Solar Powerbank (w/ 110v Outlets & USB Ports) (/id/SlimPanel/) by ASCAS (/member/ASCAS/) (/id/Solar Solar Powered Laptop Charger Using MPPT (/id/SolarPoweredLaptop ChargerUsingMPPT/) by inaliwahane

(3)

Electrical specifications : 1.Rated Voltage= 6v /12V 2.Maximum current = 10A 3.Maximum load current =10A 4.Open Circuit Voltage = 811V for 6V system /15 25V for 12V system

Step 1: Parts and Tools Required :

Parts: 1.Arduino Nano (Amazon ( http://goo.gl/YeeYce) / eBay (http://www.ebay.com/itm/USBNanoV30ATmega32816M5VMicrocontroller CH340GboardForArduino/311064700128? pt=LH_DefaultDomain_0&hash=item486ce6a4e0)) 2.PMOSFET ( Amazon ( http://goo.gl/OR0Ttu) / IRF 9540 (http://www.ebay.com/itm/5xIRF9540PChannelPowerMOSFET23A100V TO220IR/201161974643?pt=LH_DefaultDomain_0&hash=item2ed6302373) (/file/FD5E1NQI2P3OWVC/)

(4)

x2 ) 3.Power diode ( Amazon ( http://goo.gl/vuKhTm ) / MBR 2045 (http://www.ebay.com/itm/2pcsMBRF2045CTMBR2045DIODESCHOTTKY 45V20ATO220/181383569951? pt=LH_DefaultDomain_0&hash=item2a3b4da21f) for 10A and IN5402 for 2A) 4.Buck Converter ( Amazon (http://goo.gl/yzkorW) / eBay (http://www.ebay.com/itm/310683416079? _trksid=p2060778.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT)) or Voltage Regulator (LM7805 (http://www.ebay.com/itm/5PcsLM7805L78057805TO220 VoltageRegulatorIC/130747602965?pt=LH_DefaultDomain_0&hash=item1e712a1815)) 5.Temperature Sensor( Amazon (http://goo.gl/xHmZ5A) / LM35 (http://www.ebay.com/itm/LM35DZLM35TO92NSCTEMPERATURE SENSORIC/130952243512? pt=LH_DefaultDomain_0&hash=item1e7d5ca938)) 6.Current Sensor ( Amazon (http://goo.gl/xHmZ5A)/ ACS712 (http://www.ebay.com/itm/Newdesign20ArangeCurrentSensorModule ACS712ModuleArduinomoduleACS712T/181026550196? pt=LH_DefaultDomain_0&hash=item2a2605f1b4)) 7.TVS diode ( Amazon ( http://goo.gl/VFHgWD) / P6KE36CA (http://www.ebay.com/itm/P6KE36TVSDO15P6KE36CAE3 54/231357840535? pt=FR_YO_MaisonJardin_Bricolage_ElectroniqueComposants&hash=item35de 007c97)) 8.Transistors ( 2N3904 (http://www.ebay.com/itm/10pcs2N3904TRANSISTORNPN 40V200mATO92/180847922895?pt=LH_DefaultDomain_0&hash=item2a1b604ecf) or 2N2222) 9.Resistors( 100k x 2, 20k x 2,10k x 2,1k x 2, 330ohm x 5) 10.Ceramic Capacitors (0.1uF x 2) 11.Electrolytic Capacitors ( 100uF and 10uF) 12. 20x4 I2C LCD ( Amazon (http://goo.gl/NUSqdE) / eBay (http://www.ebay.com/itm/IICI2CTWISPISerialInterface200420X4 CharacterLCDModuleDisplayBlue/310575296583? pt=LH_DefaultDomain_0&hash=item484fbaf047)) 13.RGB LED ( Amazon (http://goo.gl/Fw1U82) / ebay (http://www.ebay.com/itm/20pcsUltraBright5mm4pinRGBDiffused CommonAnodeLEDRedGreenBlue/181306473181? pt=LH_DefaultDomain_0&hash=item2a36b53add)) 14.Bi Color LED ( Amazon (http://goo.gl/EHKC5Y) ) 15.Jumper Wires/Wires(eBay (http://www.ebay.com/itm/40PCSDupontwire jumpercables20cm254MMmaletomale1P1PFor Arduino/181012025872?pt=LH_DefaultDomain_0&hash=item2a25285210)) 16.Header Pins (Male (http://www.ebay.com/itm/10PCS40Pin254mmSingle RowStraightMalePinHeaderStripPBCArdunio/180974247480? pt=LH_DefaultDomain_0&hash=item2a22e7de38),Female (http://www.ebay.com/itm/10PCS40Pin254mmSingleRowStraightFemale PinHeaderStripPBCArdunio/180974322541? pt=LH_DefaultDomain_0&hash=item2a22e9036d) and right angle (http://www.ebay.com/itm/10Pcs40Pin254mmSingleRowRightAnglePin HeaderStrip/130766517822? pt=LH_DefaultDomain_0&hash=item1e724ab63e))

(5)

Microwaves & RF

Trusted Engineering Resource For Over 50 Years 17.Heat Sink ( Amazon (http://goo.gl/L4rnic) / eBay (http://www.ebay.com/sch/i.html? _odkw=smallheat+sink&_from=R40%7CR40%7CR40%7CR40%7CR40%7CR4 0%7CR40%7CR40%7CR40%7CR40%7CR40%7CR40%7CR40%7CR40%7CR 40%7CR40%7CR40&_osacat=0&_from=R40&_trksid=p2045573.m570.l1313.T R0.TRC0.H0.Xsmall+heat+sink&_nkw=small+heat+sink&_sacat=0)) 18.Fuse Holder and fuses ( Amazon (http://goo.gl/nDureh) / eBay (http://www.ebay.com/itm/5pcsPanelMountPCBFuseHolderCasewCover 5x20mm/181436161574?pt=LH_DefaultDomain_0&hash=item2a3e701e26)) 19.Push Button ( Amazon (http://goo.gl/QPXwuM)) 20.Perforated Board (Amazon (http://goo.gl/WdRs2x) / eBay (http://www.ebay.com/itm/10pcsDIYPrototypePaperPCBUniversalBoard79 cm79cmM27/121343437457? pt=LH_DefaultDomain_0&hash=item1c40a1ea91)) 21.Project Enclosure 22.Screw terminals ( 3x 2pin (http://www.ebay.com/itm/10pcsx2PinScrew TerminalBlockConnector5mmPitchG/400633791779? pt=LH_DefaultDomain_0&hash=item5d47a28523) and 1x6 pin (http://www.ebay.com/itm/6PinTerminalStrip832Screw/200984426384? pt=LH_DefaultDomain_0&hash=item2ecb9af790)) 23.Nuts/Screws/Bolts 24.Plastic Base Tools : 1.Soldering Iron ( Amazon (http://goo.gl/ZuP1Km) ) 2.Wire Cutter and Stripper ( Amazon (http://goo.gl/JmBxUF) ) 3.Screw Driver ( Amazon (http://goo.gl/1y7cPj) ) 4.Cordless Drill ( Amazon (http://goo.gl/ZWjBXQ)) 5.Dremel ( Amazon (http://goo.gl/ZAgCCZ) ) 6.Glue Gun ( Amazon (http://goo.gl/Tq50x2) ) 7.Hobby Knife ( Amazon (http://goo.gl/SSkTXG))

Step 2: How The Charge Controller Works :

(6)

The heart of of the charge controller is Arduino nano board.The arduino MCU senses the solar panel and battery voltages.According to this voltages it decides how to charge the battery and control the load. The amount of charging current is determined by difference between battery voltage and charge set point voltages. The controller uses two stages charging algorithm.According to the charging algorithm it gives a fixed frequency PWM signal to the solar panel side pMOSFET. The frequency of PWM signal is 490.20Hz(default frequency for pin3). The duty cycle 0100% is adjusted by the error signal. The controller gives HIGH or LOW command to the load side pMOSFET according to the dusk/dawn and battery voltage. The full schematic is attached bellow. charge controller version 2.pdf (/files/orig/F2S/BFVU/I8SLPCIY/F2SBFVUI8SLPCIY.pdf)

Step 3: Main functions of solar charge controller:

The charge controller is designed by taking care of the following points. 1.Prevent Battery Overcharge: To limit the energy supplied to the battery by the solar panel when the battery becomes fully charged.This is implemented in charge_cycle() of my code. 2.Prevent Battery Over discharge: To disconnect the battery from electrical loads when the battery reaches low state of charge.This is implemented in load_control() of my code. 3.Provide Load Control Functions: To automatically connect and disconnect an electrical load at a specified time. The load will ON when sunset and OFF when sunrise.This is implemented in load_control() of my code. (/file/FP23S90I1FPT07G/)

(7)

4.Monitoring Power and Energy : To monitor the load power and energy and display it. 5.Protect from abnormal Condition: To protect the circuit from different abnormal situation like lightening,over voltage,over current and short circuit etc. 6.Indicating and Displaying: To indicate and display the various parameters 7.Serial Communication: To print various parameters in serial monitor

Step 4: Sensing Voltages,Current and temperature :

1.Voltage Sensor: The voltage sensors are used to sense the voltage of solar panel and battery.It is implemented by using two voltage divider circuits.It consists of two resistors R1=100k and R2=20k for sensing the solar panel voltage ans similarly R3=100k and R4=20k for battery voltage.The out put from the R1and R2 is connected to arduino analog pin A0 and out put from the R3 and R4 is connected to arduino analog pin A1. 2.Current Sensor : The current sensor is used for measuring the load current.later this current is used to calculate the load power and energy.I used a hall effect current sensor (ACS71220A) (/file/FZB373YI1FPSBXA/) (/file/F5PMUQRI1FPSBN0/)

(8)

3.Temperature Sensor :

The temperature sensor is used to sense the room temperature. I used LM35 temperature sensor which is rated for −55°C to +150°C Range.

Why Temperature monitoring is Required ?

The battery’s chemical reactions change with temperature.As the battery gets warmer, the gassing increases. As the battery gets colder,it becomes more resistant to charging. Depending on how much the battery temperature varies, it is important to adjust the charging for temperature changes.So it is important to adjust charging to account for the temperature effects. The temperature sensor will measure the battery temperature, and the Solar Charge Controller uses this input to adjust the charge set point as required.The compensation value is 5mv /degC/cell for lead acid type batteries.(–30mV/ºC for 12V and 15mV/ºC for 6V battery).The negative sign of temperature compensation indicates,increase in temperature require a reduction in charge set point.

For more details on Understanding and Optimizing Battery Temperature Compensation (http://solarprofessional.com/articles/designinstallation/understandingandoptimizingbattery temperaturecompensation)

Step 5: Sensors Callibration

Voltage Sensors : 5V = ADC count 1024 1 ADC count = (5/1024)Volt= 0.0048828Volt Vout=Vin*R2/(R1+R2) Vin = Vout*(R1+R2)/R2 R1=100 and R2=20 Vin= ADC count*0.00488*(120/20) Volt Current Sensor: As per seller information for ACS 712 current sensor Sensitivity is =100mV / A =0.100V/A No test current through the output voltage is VCC / 2= 2.5 ADC count= 1024/5*Vin and Vin=2.5+0.100*I (where I=current) ADC count= 204.8(2.5+0.1*I) =512+20.48*I => 20.48*I = (ADC count512) => I =(ADC count/20.48) 512/20.48 Current (I) =0.04882*ADC 25 More details on ACS712 ( http://www.arduinothaishop.com/productdetail.html? id=6827) Temperature Sensor : As per data sheet of LM35 (http://www.ti.com.cn/cn/lit/ds/symlink/lm35.pdf) Sensitivity=10 mV/°C Temp in deg C =(5/1024)*ADC count*100 Note : The sensors are calibrated by assuming the arduino Vcc= 5V reference.But in practical it is not 5V always.So there may be chance of getting wrong value from the actual value.It can be solved by following way.

(9)

Measure the voltage between arduino 5V and GND by a multimeter.Use this voltage instead of 5V for Vcc in your code.Hit and try to edit this value until it matches the actual value. Example: I got 4.47V instead of 5V.So the change should be 4.47/1024=0.0043652 instead of 0.0048828.

Step 6: Charging Algorithm

1.Bulk :At this mode, a preset maximum constant amount of current (amps) is fed into the battery as no PWM is present. As the battery is being charged up , the voltage of the battery increases gradually (/file/FLLLTM5I1FPTKX6/) (/file/FR4L9API1FPTNLI/)

(10)

2. Absorption: When the battery reaches the bulk charge set voltage, the PWM begins to hold the voltage constant. This is to avoid overheating and over gassing the battery. The current will taper down to safe levels as the battery becomes more fully charged. 3. Float: When the battery is fully recharged, the charging voltage is reduced to prevent further heating or gassing of the battery This is the ideal charging procedure. The present charge cycle block of code is not implements 3 stages charging.I use a easier logic in 2 stages.It works good. I am trying the following logic for implementing the 3 stages charging. Future Planning for Charging Cycle : The bulk charge begins when solar panel voltage is larger than battery voltage. When the battery voltage reaches 14.4V, absorption charge will be entered. The charging current will be regulated by PWM signal to maintain the battery voltage at 14.4V for one hour. Float charge will then enter after one hour. The float stage generates a trickle charge to keep the battery voltage at 13.6V. When the battery voltage falls below 13.6V for 10mins, the charging cycle will be repeated. I request community members to help me for writing the piece of code to implement the above logic.

Step 7: Load Control

To automatically connect and disconnect the load by monitoring dusk/dawn and battery voltage,load control is used.

The primary purpose of load control is to disconnect the load from battery to protect it from deep discharging. Deep discharging could damage the battery. The DC load terminal is designed for low power DC load such as street light. The PV panel itself is used as the light sensor. Assuming solar panel voltage >5V means dawn and when < 5V dusk. ON Condition: In the evening, when the PV voltage level falls bellow 5V and battery voltage is higher than LVD setting, the controller will turn on the load and the load green led will glow. OFF Condition: The load will cut off in the following two condition. 1.In the morning when the PV voltage is larger than 5v, 2.When the battery voltage is lower than the LVD setting The load red led ON indicates that load is cut off. LVD is refers to Low Voltage Disconnect

Step 8: Power and Energy

Power : Power is product of voltage (volt) and current (Amp)

(11)

P=VxI Unit of power is Watt or KW Energy: Energy is product of power (watt) and time (Hour) E= Pxt Unit of Energy is Watt Hour or Kilowatt Hour (kWh) To monitor the load power and energy above logic is implemented in software and the parameters are displayed in a 20x4 char LCD.

Step 9: Protection

1.Reverse polarity protection for solar panel 2. Overcharge protection 3. Deep discharge protection 4. Short circuit and Overload protection 5.Reverse current protection at night 6.Over voltage protection at solar panel input For reverse polarity and reverse current flow protection I used a power diode (MBR2045).Power diode is used to handle large amount of current.In my earlier design I used a normal diode(IN4007). Overcharge and Deep discharge protection is implemented by the software. Over current and overload protection is implemented by using two fuses ( one at the solar panel side and other at load side).

Temporary over voltages occur in power systems for a variety of reasons, but lightning causes the most severe over voltages. This is particularly true with PV systems due to the exposed locations and system connecting cables.In this new design I used a 600 watt bidirectional TVS diode (P6KE36CA ) to suppress the lightning and over voltage at the PV terminals.In my earlier design I used a zeener diode.You can also use a similar TVS diode on the load side.

(12)

For selection guide of TVS diode click here (http://www.microsemi.com/documentportal/doc_view/14650howtoselecta transientvoltagesuppressor)

For choosing a right part no for TVS diode click here (http://www.littelfuse.com/~/media/electronics/datasheets/tvs_diodes/littelfuse_tv s_diode_p6ke_datasheet.pdf.pdf)

Step 10: LED Indication

Battery State Of Charge (SOC) LED: One important parameter that defines the energy content of the battery is the State of Charge (SOC). This parameter indicates how much charge is available in the battery A RGB LED is used to indicate the battery state of charge.For connection refer the above schematic Battery LED >Battery Status RED > Voltage is LOW GREEN > Voltage is Healthy BLUE > Fully Charged Load LED : A bi color (red/green) led is used for load status indication.Refer the above schematic for connection. Load LED >Load Status GREEN > Connected (ON) RED > Disconnected (OFF) I include a third led for indicating the solar panel status. (/file/FJ3RUP7I1OU39B1/)

(13)

Step 11: LCD display

To display the voltage,current,power,energy and temperature a 20x4 I2C LCD is used.If you do not want to display the parameter then disable the lcd_display() from the void loop() function.After disable you have indication led to monitor the battery and load status. You can refer this instructable for I2C LCD (http://www.instructables.com/id/I2C LCDControllertheeasyway/) Download the LiquidCrystal _I2C library from here (http://LiquidCrystal) Note : In code you have to change the I2C module address.You can use the address scanner (http://www.instructables.com/id/I2CLCDControllertheeasy way/)code given in the link.

Step 12: Bread Board Testing

(/file/FD0IZBVI1T4BNUW/)

Microwaves

& RF

Ad closed by

Stop seeing this ad Ads by Google Download (/id/ARDUINOSOLARCHARGECONTROLLERVersion20/?download=pdf) Favorite I Made it!  Collection

ARDUINO SOLAR CHARGE CONTROLLER ( Version 2.0)

by deba168 (/member/deba168/) (/contest/tech2014/) (/contest/micro2014/) 26 Steps _.  Share   h (/id/ARDUINOSOLARCHARGECONTROLLERVersion20/)

(14)

It is always a good idea to test your circuit on a breadboard before soldering it together. After connecting everything upload the code.The code is attached bellow. The entire software is broken into small functional block for flexibility.Suppose the user is not interested to use a lcd display and happy with the led indication .Then just disable the lcd_display() from the void loop().Thats all. Similarly according to the user requirement he can enable and disable the various functionality. Download the code from my GitHub Account ARDUINOSOLARCHARGECONTROLLERV2 (https://github.com/deba168/ARDUINOSOLARCHARGECONTROLLERV2) solar charge controller code.txt (/files/orig/FXU/IHN4/I283QTG2/FXUIHN4I283QTG2.txt)

Step 13: Power Supply and Terminals :

(/file/FIL5HT0I1FQ7N61/)

Trusted

Engineering

Resource For Over

50 Years

Microwaves

& RF

Ad closed by

ARDUINO SOLAR CHARGE CONTROLLER ( Version 2.0)

(15)

Terminals :

Add 3 screw terminals for solar input,battery and load terminal connections.Then solder it.I used the middle screw terminal for battery connection,left to it is for solar panel and the right one is for load.

Power Supply:

In my previous version the power supply for arduino was provided by a 9V battery.In this version the power is taken from the charging battery itself.The battery voltage is step down to 5V by a voltage regulator(LM7805).

Solder LM7805 voltage regulator near to the battery terminal.Then solder the electrolytic capacitors as per schematic.At this stage connect the battery to the screw terminal and check the voltage between pin 2 and 3 of LM7805.It should be near to 5V.

(/file/FQ6E463I1OU37EU/)

(/file/FPDWMJPI1OU39JE/) (/file/F88X14PI1FQ7KZU/)

(/file/FZMGXXBI1OU3BY3/) (/file/F2PEH3ZI2P3OO4Q/) (/file/FTXC7PVI2P3OO3W/)

Trusted

Engineering

Resource For Over

50 Years

Microwaves

& RF

Ad closed by

ARDUINO SOLAR CHARGE CONTROLLER ( Version 2.0)

(16)

When I used a 6V battery the LM7805 works perfectly.But for 12V battery it heated up after some time.So I request to use a heat sink for it.

Efficient Power supply :

After few testing I found that the voltage regulator LM7805 is not the best way to power the arduino as it waste lots of power in the form heat.So I decide to change it by a DC DC buck converter which is highly efficient.If you plan to make this controller, I advice to use a buck converter rather than LM7805 voltage regulator. Buck Converter Connection: IN+ > BAT+ IN > BAT OUT+ > 5V OUT > GND Refer the above pictures.

You can buy it from eBay (http://www.ebay.com/itm/310683416079? _trksid=p2060778.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT)

Step 14: Mount the Arduino :

(/file/F7QK3KMI1OU388V/)

Trusted

Engineering

Resource For Over

50 Years

Microwaves

& RF

Ad closed by

ARDUINO SOLAR CHARGE CONTROLLER ( Version 2.0)

(17)

Cut 2 female header strips of 15 pins each.Place the nano board for reference.Insert the two headers according to the nano pin.Check it whether the nano board is perfect to fit into it.Then solder it back side. Insert two rows of male header on both sides of nano borad for external connections.Then join the solder points between arduino pin and header pins.See the above picture. Initially I forgot to add Vcc and GND headers.At this stage you can put headers with 4 to 5 pins for Vcc and GND. As you can see I connected the voltage regulator 5V and GND to the nano 5V and GND by red and black wire.Later I removed it and soldered at the back side for better look of the board.

Step 15: Solder the components

(/file/FPQ9K6WI1FQ7MH1/) (/file/FE09UYBI1FQ7MKG/) (/file/F5YUM4KI1FQ7OF5/) (/file/FOPLM4WI1FQ7N4H/) (/file/FY089FEI1OU384P/)

Trusted

Engineering

Resource For Over

50 Years

Microwaves

& RF

Ad closed by

ARDUINO SOLAR CHARGE CONTROLLER ( Version 2.0)

(18)

Before soldering the components make holes at corners for mounting. Solder all the components as per schematic. Apply heat sink to two MOSFETs as well as power diode. Note: The power diode MBR2045 have two anode and one cathode.So short the two anode. I used thick wire for power lines and ground and thin wires for signal.signal. Thick wire is mandatory as the controller is designed for higher current. (/file/FHY15G2I1FQ7KMR/) (/file/FGI67A3I1FQ7N9U/) (/file/F98RD4ZI1FQ7NCK/) (/file/FK2LSEBI1FQ7KD4/) (/file/FVR401TI1FQ7KI7/) (/file/FMX56G3I1FQ7P1B/) Show All Items

Trusted

Engineering

Resource For Over

50 Years

Microwaves

& RF

Ad closed by

ARDUINO SOLAR CHARGE CONTROLLER ( Version 2.0)

(19)

Step 16: Connect the Current Sensor

After connecting all the components solder two thick wire to the load mosfet's drain and upper terminal of load side fuse holder.Then connect these wires to the screw terminal provided in current sensor( ACS 712).

Step 17: Make the Indication and temperature sensor panel

(/file/F5B0J09I1OU2JKB/) (/file/FNAI7X0I1OU3CAD/) (/file/FGERA57I1OU3C78/)

Trusted

Engineering

Resource For Over

50 Years

Microwaves

& RF

Ad closed by

ARDUINO SOLAR CHARGE CONTROLLER ( Version 2.0)

(20)

I have shown two led in my schematic.But I added a third led(bi color) for indicating the solar panel status in future. Prepare small size perforated board as shown.Then make two holes (3.5mm) by drill on left and right( for mounting). Insert the leds and solder it to the back side of the board. Insert a 3 pins female header for temperature sensor and then solder it. Solder 10 pins right angle header for external connection. (/file/FBNQHO7I1T4C2F5/) (/file/FP49R4QI1T4C1CN/) (/file/FZ7KB0EI1OU2JYF/) (/file/FBHGG9ZI1T4BZUD/) (/file/F6TBAA6I1T4BXK1/)

Trusted

Engineering

Resource For Over

50 Years

Microwaves

& RF

Ad closed by

ARDUINO SOLAR CHARGE CONTROLLER ( Version 2.0)

(21)

Now connect the RGB led anode terminal to the temperature sensor Vcc(pin1). Solder the cathode terminals of two bi color led.

Then join the solder points the leds terminal to the headers.You can paste a sticker with pin name for easy identifications.

Step 18: Connections for Charge controller

(/file/FPA97AOI283QLCW/) (/file/FPRBCT3I2R9UFYH/) (/file/FUMR1Z2I28OLTX1/)

Trusted

Engineering

Resource For Over

50 Years

Microwaves

& RF

Ad closed by

ARDUINO SOLAR CHARGE CONTROLLER ( Version 2.0)

(22)

Connect the Charge Controller to the Battery first, because this allows the Charge Controller to get calibrated to whether it is 6V or 12V system. Connect the negative terminal first and then positive. Connect the solar panel(negative first and then positive) At last connect the load. The charge controller load terminal is suitable for only DC load. How to run an AC Load ? If you want to run AC appliances then you must need an inverter. Connect the inverter directly to the battery.See the above picture.

Step 19: Final Testing :

After making the main board and indication board connect the header with jumper wires(femalefemale) Refer the schematic during this connection.Wrong connection may damage the circuits.So be care full in this stage. (/file/FAR5C87I1T4DTJ6/) (/file/FKE33NUI1T4DVVO/) (/file/FH50CGCI1T4FG5S/)

Trusted

Engineering

Resource For Over

50 Years

Microwaves

& RF

Ad closed by

ARDUINO SOLAR CHARGE CONTROLLER ( Version 2.0)

(23)

Plug the usb cable to the arduino and then upload the code.Remove the usb cable.If you want to see the serial monitor then keep it connected. Fuse Rating: In demo I have put a 5A fuse in the fuse holder.But in practical use, put a fuse with 120 to 125% of short circuit current. Example :A 100W solar panel having Isc=6.32A needs a fuse 6.32x1.25 = 7.9 or 8A How to test ? I used a buck boost converter and black cloth to test the controller.The converter input terminals are connected to battery and the output is connected to the charge controller battery terminal. Battery status : Rotate the converter potentiometer by a screw driver to simulate different battery voltages.As the battery voltages change the corresponding led will turn off and turn on. Note: During this process Solar panel should be disconnected or covered with a black cloth or card board. Dawn/Dusk : To simulate dawn and dusk use a black cloth. Night : Cover the solar panel entirely. Day: Remove the cloth from the solar panel. Transition : slow the remove or cover the cloth to adjust different solar panel voltages. Load Control : According to the battery condition and dawn/dusk situation the load will turn on and off. Temperature Compensation : Hold the temperature sensor to increase the temperature and place any cold things like ice to decrease the temp.It will be immediately displayed on the LCD. The compensated charge set point value can be seen on the serial monitor. In the next step onward I will describe the making of enclosure for this charge controller.

Step 20: Mounting the main board:

Trusted

Engineering

Resource For Over

50 Years

Microwaves

& RF

Ad closed by

ARDUINO SOLAR CHARGE CONTROLLER ( Version 2.0)

(24)

Place the main board inside the enclosure.Mark the hole position by a pencil. Then apply hot glue to the marking position. Place the plastic base over the glue. Then place the board over the base and screw the nuts.

Step 21: Make Space for LCD:

Trusted

Engineering

Resource For Over

50 Years

Microwaves

& RF

Ad closed by

ARDUINO SOLAR CHARGE CONTROLLER ( Version 2.0)

(28)

Step 24: Connect the External 6 pin terminal :

For connecting the solar panel,battery and load a external 6pin screw terminal is used. Connect the external terminal to the corresponding terminal of the main board.

Step 25: Connect the LCD, Indicator panel and Reset Button :

(/file/FDF4U2FI1TR84UE/) (/file/FVIWO4UI1TR86BO/) (/file/FF8DHZCI1TR87CD/) (/file/FWACZ2RI1TR87TD/)

Trusted

Engineering

Resource For Over

50 Years

Microwaves

& RF

Ad closed by

ARDUINO SOLAR CHARGE CONTROLLER ( Version 2.0)

(29)

Connect the indicator panel and LCD to the main board as per schematic.(Use femalefemale jumper wires) One terminal of the reset button goes to RST of Arduino and other goes to GND. After all connections.Close the front cover and screw it. (/file/FFR69N4I1TR8W27/) (/file/F5T3JR8I1TR8C9T/)

Trusted

Engineering

Resource For Over

50 Years

Microwaves

& RF

Ad closed by

ARDUINO SOLAR CHARGE CONTROLLER ( Version 2.0)

(30)

Step 26: Ideas and Planning

How to plot real time graphs ?

It is very interesting, if you can plot the serial monitor parameters (like battery and solar voltages) on a graph on your laptop screen.It can be done very easily, if you know little bit on Processing.

To know more you can refer Arduino and Processing ( Graph Example ). (http://arduining.com/2013/08/05/arduinoandprocessinggraphexample/) (/file/FPUS4KYI1XEL2M8/) (/file/FLM608YI1XEL30S/)
