Dmw Patiala

(1)

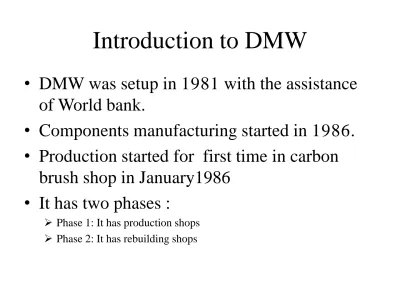

Introduction to DMW

• DMW was setup in 1981 with the assistance of World bank.

• Components manufacturing started in 1986. • Production started for first time in carbon

brush shop in January1986 • It has two phases :

 Phase 1: It has production shops  Phase 2: It has rebuilding shops

(2)

Objective of DMW

• Manufacturing and supply of high quality components and spares.

• Remanufacture of critical assemblies.

• Rebuilding locomotives and Power Pack. • Incorporating latest technological up

gradations.

• To enhance the performance of diesel locomotive.

(3)

ASSET LIFE IN YEARS PERFORMANCE AND RELIABILITY 6 12 18 24 30 PERIODIC OVERHAULS LOCOMOTIVE REBUILDING

(4)

Flow chart of Diesel Loco Rebuilding

Loco Stripping Power pack Traction Generator Traction motors Engine Block Magnet frame reclamation

Rewinding of TG

Rewinding of TMs

Engine block re-building

Bogies Frame repairs and furnishing Bogie assy and testing Component reclamation and Engine Assy Power pack assy

and testing

Under frame cleaning and repairs

Re-cabling, re-piping, brakes and loco assy Loco

(5)

(6)

Light Machine Shop

• It has more than 70 CNC machines.

• It produces more than 250 components. • It has the following main sections:

i. Gear section.

ii. Cam shaft section.

iii. Connecting rod section. iv. CNC turning section.

(7)

Heavy Machine Shop

• Complete re-treatment of engine blocks.

• Re-treatment of magnet frames of traction motors.

• Conversion of magnet frames of 2600 HP loco to suit 3100/3300 HP locos.

(8)

Cylinder Liner Shop

Various important processes at CLS are: • Cast iron honing

• Vapour cleaning • Grit blasting

• Chrome plating • Diamond honing

(9)

Power Pack Shop

• Dismantling, reconditioning and assembly of power pack.

• Load testing, specific fuel consumption testing and other type of testing

• It has following main sections:  Striping section

 Reconditioning section

 Turbo supercharger section  Governor room

(10)

Bogie Shop

• Bogie is a main assembly of a diesel engine carrying its frame, wheel and axle assembly, various springs; traction motor etc.

(11)

Loco Rebuilding Shop

• Water test of air dust cleaner

• Renewal of air filter housing and oil bath filter • Replacement of radiator and radiator fan

bearing

• Replacement of all gauges

(12)

Designation of Diesel Locomotives

• This code is of the form(WDM3A)

[gauge][power][load][series][subtype] W = Broad Gauge Y = Meter Gauge Z = Narrow Gauge (2' 6") N = Narrow Gauge (2') D = Diesel C = DC traction A = AC traction CA = Dual-power AC/DC traction B = Battery electric (rare) M = Mixed Traffic P = Passenger G = Goods S = Shunting

L = Light Duty (Light Passenger?) (no longer in use)

U = Multiple Unit (EMU / DEMU). R = Railcar (see below)

 The series digit identifies the horsepower range of the loco

(13)

Project Work

• To study all the components mounted on Power Pack of diesel loco and explain

complete mounting and testing procedure of power pack assembly.

• To note down all the rework done in power pack shop and quality improvement steps taken.

(14)

Power Pack of Diesel Loco

• It is the power generating component .

• It has an engine block of 16 cylinders v shaped inline.

• The firing order of the cylinders is 1R-1L-4R-4L-7R-7L-6R-6L-8R-8L-5R-5L-2R-2L-3R-3L • Fuel injection takes place before 25 degrees

(15)

Main components mounted on power

pack of diesel loco.

• There are approximately 500 components mounted on power pack.

• A few of important are as under: •Connecting rod

•Crank shaft •Cam shaft

•Cylinder liner •Engine block

•Piston with rings •Gudgeon pin

•After cooler • Lube oil filter • Fuel filter

• Traction alternator •Governor

•Crank case exhauster motor •Over speed trip

(16)

Engine block

• It is received from HMS after complete retreatment.

(17)

Piston, cylinder liner, connecting rod

• Piston is made by Federal Mogul Goetze limited Bangalore.

• Cylinder liner is made of cast iron alloy with chrome plating on inside.

(18)

Crank Shaft and Cam Shaft

• Crank shaft is imported from China and USA • Modified cam shafts are used these days.

(19)

Oil Catcher and Oil Damper

• A cast aluminum oil catcher is mounted on the

cylinder block and base and surrounds the periphery of the cranks shaft flange oil slinger at the power

take-off end of the engine.

(20)

Other main components

• Cylinder head

• FIP : Fuel Injection Pump • Turbo Super Charger

• After Cooler

• OST : Over Speed Trip

• Water and Lube oil pump • Traction Alternator

(21)

Cooling process of components

• Cylinder liner are cooled by circulating water around their periphery.

• Cooling of piston crown is done by lubricating oil.

Lube oil from main bearing goes to crank pin>big end>connecting rod>small end>gudgeon

pin>piston crown.

• Cylinder heads has cooling water jacket in which water is circulated.

(22)

Testing of various components in

PPS

• Hydraulic Testing of Engine block. • Hydraulic Testing of Gudgeon pin. • Hydraulic Testing of Cylinder head.

• Crack detection in connecting rod on Magna flux machine.

• Backlash testing of Water and Lube oil Pump. • Testing of power pack

(23)

Testing of Power Pack

• Check all the connection of water pipes, lube oil, fuel oil etc.

• Water and fuel oil are circulated and checked for leakages (if any)

• Pre lubrication must be done.

• Run the engine for five minutes.

• Check the engine base screen for any foreign material.

(24)

System wise failure percentage of

2008-09

(25)

Major up-gradations

• Fuel efficient kit

– Savings 6-7% - Rs. 600-800 thousand per annum

• Power enhancement from 2600 HP to 3300 HP

– Benefits derived:

• 3 extra coaches – earns Rs. 12 million per annum • Better acceleration- Punctuality improves

• More AC coaches with high revenue can be attached • Recorded increase of 8.9% in revenue during 01-02

(26)

Major up-gradations-contd

.

• Retro up-gradation of Engine Block

 Retro up-gradation of blocks for higher horse power ratings by providing extra stiffeners.

• Stiffer Unit cam shaft

 Power up-gradation and reduced maintenance time DCW the only unit manufacturing unit cam shafts

• 251+ cylinder heads

 Improved water jacket design for better cooling

• Super bowl pistons with 11.75:1 CR

(27)

Major up-gradations-contd

.

• Conversion from DC-DC to AC-DC

transmission and roller bearing suspension

– Lesser maintenance and higher reliability

• Micro-processor based governor

– Maintenance free and higher fuel efficiency

• Maintenance schedules

Trip schedule: 7days to 30 days

– Savings- 40 trips/320 hrs/Rs. 300 thousand/annum

First major schedule: 12 months to 24 months

(28)

Further Up-gradations

• Power enhancement to 3600 HP

 Prototype engine success fully tested  Adaptation of electrics under process

• Micro-processor based propulsion control system

 GE designed system for self diagnostics and in-built safety systems

 Prototype locos under trial

• Variable fuel injection timing

(29)

Rework done in PPS

 Lube oil strainer was not set because it was not aligned in vertical direction so gasket like

material was fitted along the periphery of strainer and bracket

• Rework was done on turbocharger support by enlarging and tapping due to its holes was out. • Ovality (0.003”) of 6th_{cylinder on right side}

crossed so cylinder was taken out from the block • Rework was done on L.O.P. by enlarging all

(30)

Quality improvement steps taken in

PPS

• Modification in push rod assembly with pressed ends

• Use of 18mm FIP to provide more fuel. • Improved FIP tube with auto Frettage

Increases fatigue strength
