Sap Abap Adobe Forms

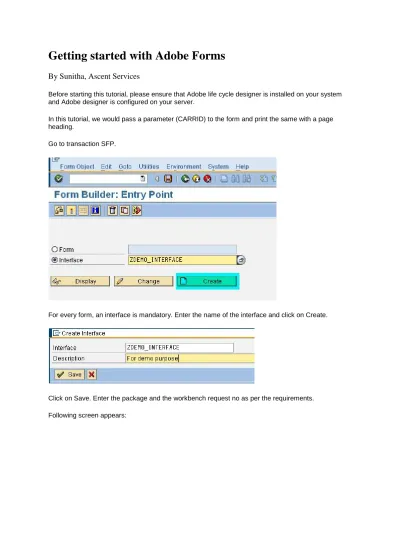

Getting started with Adobe Forms

By Sunitha, Ascent Services

Before starting this tutorial, please ensure that Adobe life cycle designer is installed on your system and Adobe designer is configured on your server.

In this tutorial, we would pass a parameter (CARRID) to the form and print the same with a page heading.

Go to transaction SFP.

For every form, an interface is mandatory. Enter the name of the interface and click on Create.

Click on Save. Enter the package and the workbench request no as per the requirements. Following screen appears:

Double-click on Import.

Following screen, with a default parameter name, appears:

Click on Create.

Enter the parameter values as shown above.

Save and activate the interface.

As shown above, select the radio-button Form and enter the name of the form. Click on ‘Create’. Enter the description for the Form and also enter the name of the interface created earlier.

Click on Save.

Now enter the package name and the workbench request. Following screen appears:

Now drag and drop the import parameter ‘Carrid’ from interface to Context on the right-hand side as shown below:

Now click on the tab ”Layout”

Now let us include a heading and display the value of the carrier id passed to this form.

A small pop-up box appears.

Now in the tab “Standard”, drag and drop the element “Text” onto the page.

Now go to library again (click on Palettes  Library) and drag and drop the object “Text Field” onto the page.

Now select the object “Text Field” created just now. Right-click and select Palettes  Object.

As shown above, change the caption to “Carrier ID”.

Now go to tab “Binding”. Select the parameter “CARRID” as shown below:

Save and activate the form.

Now test run the form by clicking on “Test” (F8)

Enter the CARRID value and click on Execute.

Following is the output:

Step1: Go to Transaction SFP to create Adobe form. Provide the interface name and click on create button.

Step2: Provide the description. Click on Save button.

Step3: The following screen would appear.

Save the interface.

Step4: Go to TYPES in the Global definitions to define the user define types as shown below.

Step5: In Global data,

Create an internal table with the same structure defined earlier in TYPES definition as shown below.

Save and activate the interface.

Step7: Now go back to the initial screen. Provide the form name and click on create button as shown below.

Provide the description for the form and interface name created as shown below.

Click on save button.

Step8: Now, the following screen will appear.

Step9: Here, we have to drag and drop the contents, to be displayed in the layout, from interface to context as shown below.

Step10: Here in the internal table PT_VBAP, we can de-activate the fields, which we don’t want to display in the layout. We can do this as shown below.

Place the cursor on the field and give a right click. Now select Deactivate.

Then, the field will appear as shown below.

Step11: Now, go to layout. The following screen appears.

Step13: Select the object VBELN. Go to palettes-object. You will get the following screen.

Select ‘None’ instead of ‘Sunken Box’.

Step14: Now, drag and drop the internal table PT_VBAP from Data View to body page.

Step15: Now, go to hierarchy, place the cursor on bodypage1. Go to palettesObject

Select Flowed instead of Position. Save and activate the form.

Step16: Execute the form, the output is

Adobe Forms - Create table (using subform)

By Venkat

Step1: Go to transaction SFP to create adobe form. Provide the interface name and click on create button.

Step2: Provide the short description and click on Save button.

Step3: The following screen will appear.

Now click on create button to enter the parameters.

Save the interface.

Step5: In Global data,

Create an internal table with the same structure defined earlier in TYPES definition types_vbap as shown below.

Step6: In Code Initialization,

Step7: Now go back to the initial screen. Provide the form name and click on create button as shown below.

Provide the description for the form and interface name created as shown below.

Click on save button.

Step8: Now, the following screen will appear.

Step9: Here, we have to drag and drop the fields to be displayed in the layout, from interface to context as shown below.

Step10: Here in the internal table PT_VBAP, we can de-activate the fields, which we don’t require to display in the layout. We can do this as shown below.

Place the cursor on the field, right click and select Deactivate.

Then, the field will appear as shown below.

Step11: Now, go to layout. The following screen appears.

Step12: Now, Drag and drop the VBELN (Document Number) to Master page and create text fields as shown below.

Step13: Now, create sub form in HIERARCHY as shown below in the body page.

Place the cursor on bodypage1 and right click on it. Now select Insert Subform to create the sub form in the body page.

Step14: Now, from the Data View, drag and drop the fields in the internal table into the sub form as shown.

Step15: Now, go to hierarchy, place the cursor on bodypage1.

Go to palettesObject The following screen appears.

Select Flowed instead of Positioned. Save and activate the form.

Adobe Forms - Using Alternative

By Jayachandra Nagaram, YASH Technologies

In this demo we will create adobe form, which displays two different table data in different scenarios based on the given input. This functionality is achieved by using Alternative in adobe forms.

Step1: Go to SFP transaction and create interface for the Adobe form.

Note: Maintain Interface type ABAP-Dictionary Base interface. (IN ECC6.0 Version)

Step2: In interface you will find import, export and Exceptions.

Create import parameters by clicking on below shown create button.

Step3: Create import parameters IT_SPFLI and FLAG.

The import parameter IT_SPFLI is used to input data and FLAG is used to select the table that should be displayed in the Output. Here the details of either SPFLI or SFLIGHT are displayed depending on the FLAG.

Step4: Create two global tables SPFLI and SFLIGHT to hold the data that needs to be displayed in the output.

Step5: Code for fetching the data is written in the code initialization part of interface.

In code initialization the variables whose values are being passed to the code to fetch the details of the output should be declared in the Input parameters and the variables to which the results are assigned needs to be declared in the Output parameters.

Step6: Write the below code in code initialization part. Check for errors and activate the interface. select *

from spfli

into table gt_spfli

for all entries in it_spfli where carrid eq it_spfli-carrid and connid eq it_spfli-connid. select *

from sflight

for all entries in it_spfli where carrid eq it_spfli-carrid and connid eq it_spfli-connid.

Step7: After the interface part is done, create Form by going to SFP transaction.

Step8: In the creation of the Form, we need to give the name of the interface for which we are creating the Form. This is the additional functionality in Adobe forms. One interface can be used for many Forms if it is suitable.

Step9: In the Context tab of the Form we will find two sections Interface and Context.

In Interface we will find the data that was created in the interface. Content area will be blank initially. We need to drag the elements that need to be displayed in output into the content area.

Step10: Drag and drop element FLAG into context area.

Step11: Select folder YDEMO_ALTERNATIVE in context and create an ALTERNATIVE. Right-clicking on the folder go to create--> Alternative.

Step 12: In Alternative will find two nodes TRUE and FALSE.

Initially both are blank.

Step13: Drag and drop table GT_SPFLI from Global data to TRUE node and de-activate fields which we don't need.

Step14: Drag and drop table GT_SFLIGHT from Global data to FALSE node and de-activate fields which we don't need.

Step15: Select the Alternative conditions tab and create condition for alternative.

Create condition as FLAG = INITIAL.

Means subform TRUE will be triggered when the flag is initial and subform FALSE will be triggered when there is some value in flag variable (NOT INITIAL).

Step16: Select tab page LAYOUT for going to Adobe layout.

In Layout, go to MASTER page decrease the page area and create the boiler plate elements, such as text and image elements. We can create these from dragging the elements from library.

Step17: In data view we will find subform ALERNATIVE, with in it tables will be placed in TRUE and FALSE subforms using choice subformset.

Step18: Drag and drop complete ALTERNATIVE subform into body page from data view.

Step19: Select body page and go to the object view from the pallets.

Step20: Go to SUBFORM tab; make the body page content FLOWED, Flow direction TOP TO BOTTOM.

Step21: Go to Pagination, set over flow to ‘Go To Page "Page1"’.

This should be done in order to flow the content to the next page when first page is filled completely.

Step22: Set subforms ALTERNATIVE, TRUE, FALSE content also to be flowed.

Step23: Select the elements in table data and set the appearance to ‘None’.

Step24: Save and activate the form.

Execute the form to see the below screen. Here for output we will have two scenarios. Step25:

SCENARIO 1: When the FLAG is INITIAL, SPFLI data will be displayed in output.

Step26: Select the table IT_SPFLI to give the input data. Give inputs to the table.

Step27: Now there are three entries in the table IT_SPFLI and the FLAG is BLANK.

Step28: Subform TRUE will be triggered when FLAG is INITIAL. And SPFLI table data will be displayed in output.

Step29: Maintain same data in IT_SPFLI and give 'X' in FLAG. Scenario 2 will be triggered.

Step30: Output screen displays SFLIGHT table data;

Using Text Modules in Adobe Forms

By Nikunj Shah, YASH Technologies

In this demo we will create an adobe form which displays text in two different languages (English or French) based on the given condition. This functionality is achieved by using TEXT MODULES in adobe forms.

Step1: Go to transaction SFP and create an interface for the Adobe form.

Note: Maintain Interface type ABAP-Dictionary Base interface. (IN ECC6.0 Version) Step2: Create an import parameter as shown below:

Step3: Save and Activate the interface.

Step4: Now go to transaction Smartforms to create Text Module for the Language Conversion, Select Text Module and Enter Text Module Name & Click on create.

Here, we are converting English text to French text, so we have to enter the French conversion of the English text.

Text 1: TEXT IN ENGLISH.

Similarly create the text module for text French to English. Text 2: TEXT IN FRENCH

Text 3: TEXT IN ITALIAN

STEP 5: Once the Text modules are created, Go to Transaction SFP to design form builder for the interface ZTEXTMODULE_TEMPLATE.

STEP 6: Click on Create.

STEP 7:

After clicking on create, the system would prompt you for the Interface name and description. In Interface Name tab : ZTEXTMODULE_TEMPLATE.

In Description : Form for the Language Conversion. Now the following screen appears:

STEP 8:

Right Click on Form name in the context area and create New Folder.

STEP 9:

Drag & Drop Flag1 field from the import part in to the Context area.

STEP 10:

Right Click on New FOLDER, create three texts for the text modules.

STEP 11:

Double click on the new folder. The following screen appears. Click on Condition

STEP 12:

Double-Click on Text and maintain the properties as shown below.

Text Type : Text Module

Text Name : Text Module name (‘ztest_french’) Text Language : ‘FR’

Repeat the above step for the other texts as well. STEP 13:

Click on Layout.

On the left side platter, in data view, we can view all the fields that we defined in the context part. (In this example, flag1 and three texts)

STEP 14:

In our layout, let us also include a logo and some text as well.

Go to Master Page. From Library Palette, insert image field and text into the master page. Enter text in text field and Enter image in image field and check the checkbox “Embedded image data”.

STEP 15:

Go to Body Page.

Create following three text fields: • Text in English

• Text in French • Text in Italian.

Now we need to do the binding for the text field. Select the text field “Text in English”, Click on palette  click on object go to binding tab. Please see the following screenshot for the binding.

Now repeat the above step for binding the other two text fields.

STEP 15 - 2:

Second way is Drag & Drop from the Data view.

Just below the text field drag & drop the text field from the data view, in this case you

don’t have to do the binding, it will assign automatically.

STEP 16:

Click on Save and Activate it. STEP 17:

Click on Execute. Assign Value ‘X’ to Flag1. Otherwise it only display in English. If FLAG1 has value ‘X’ than test will display in English & French Both.

Value help in Adobe interactive forms

By Sanjeeva Reddy Gujjula, YASH Technologies

Introduction

Value help in application is useful to avoid typos and to check list of possible values when

user don’t know exact value for the input field. We can incorporate these value helps in

Adobe interactive forms both for online and offline scenarios. This document explains step

by step procedure for adding two types of value helps in Adobe interactive forms. This

document considering integrating adobe forms in WebDynpro ABAP with integrated using

Zero Client Installation (ZCI).

•

Standard Value help

•

Static Value help/Context based value help

Standard Value Help

Here Standard value help means F4 help available in SAP; we can add this feature in adobe

interactive forms. Once user clicks on drop down button it fetches value help form SAP and

displays in the screen. Once user chooses one of the suitable entries that input field will get

updated with the selected entry.

Step1: In layout Choose UI element Value Help Drop-down List from WebDynpro Native

Controls of Library Palette.

Step2: Go to Object Palette and in Binding TAB update Default Binding with corresponding

field by pressing Arrow and choose form the Interactive From Context.

Step3: Pop-up screen will come to confirm the update of field properties. Click OK. If you

do so all properties will be updated at the same time the UI element will change to normal

input Field. You need to change this to Drop-down list in Object Palette->Field Tab as shown

below.

Step4: Now you are done with implementing Standard value help for you adobe interactive

form. Save and activate your form and test application. Now you can see Standard value help

once you click drop-down link on adobe form.

This is simple and Zero coding required in application.

Static/Context based Value Help

Instead of standard value help we can add custom value help; this can be form context of

Adobe form. In this case there is need of coding. For this value help you need to have a

context node with two fields one for value and another for corresponding text. As we are

proceeding with WebDynpro ABAP, we need to fill this node WDINIT method of

WebDynpro view or controller.

Step2: Select corresponding Values and texts into one internal table or populate internal table

with possible values and bind that internal table to context node.

Sample Coding:

* Create internal table

types: begin of x_country ,

land1 type t005-land1,

end of x_country.

data: t_country type STANDARD TABLE OF x_country.

* Select Data

select land1

from t005

into table t_country.

DATA lo_nd_adobedata TYPE REF TO if_wd_context_node.

DATA lo_nd_countrynode TYPE REF TO if_wd_context_node.

DATA lo_el_countrynode TYPE REF TO if_wd_context_element.

DATA ls_countrynode TYPE wd_this->element_countrynode.

* navigate from <CONTEXT> to <ADOBEDATA> via lead selection

lo_nd_adobedata =

wd_context->get_child_node( name = wd_this->wdctx_adobedata ).

* navigate from <ADOBEDATA> to <COUNTRYNODE> via lead selection

lo_nd_countrynode =

lo_nd_adobedata->get_child_node( name = wd_this->wdctx_countrynode ).

* Bind internal table to context

CALL METHOD lo_nd_countrynode->bind_table

EXPORTING

new_items = t_country.

Step3:

In Layout editor Choose field Enumerated Drop-down List form Library Palette and place on

the layout

Step5: One pop-up screen will come and there you need to set Binding properties Items, Item Text and Item Value as shown below and Press OK.

Items-> Context node

Item Text-> Text field in Context node

Item Value-> Value field in Context node

Now you are done with implementing Static/Context based value help for you adobe

interactive form. Save and activate your form and test application. Now you can see

Static/Context based value help once you click drop-down link on adobe form.

Comparison

Standard

Static

Coding Required

No

Yes

Online

Yes

Yes

Making subform behave as table and data part as body

row

By Nisrin Pindwarawala, YASH Technologies

Whenever we use a table in an adobe form using drag & drop, following are the common problems faced:

• Whenever the column fields are rearranged randomly into many rows, the data is displayed in a improper fashion.

• In debugging, if we delete any row, and the data that is displayed becomes improper. Solution: This demo will help us rectify the problem by making the subform behave as table and the data part as body row.

This is achieved by assigning binding to the subform.

Step1: Go to SFP transaction and create interface for the Adobe form.

Step2: Passing the table as import parameters, which will be passed through driver program.

Step3: Activate the interface.

Step5: The form contains the context area, which will display the contents of interface. Drag and drop the table 'IT_SFLIGHT' from context area under the folder 'YDEMO_SUBFORMS'.

Step6: Deactivate the fields of the table, which will not be used in the layout, it adds to the

Step7: Go to layout tab, under the layout change the content area adding a static text to the top of master page. Name the content area. Click on the tab body pages.

For the body page the subform content has to be positioned.

Move the fields, which you want to view from data view on to the body page individually.

Note: When we try to move the individual fields of the table the binding with the table is affected and the data that is displayed becomes inconsistent, this demo will help you retain the binding with the table by making the subform act as a table.

Step8: The field 'FLDATE' can be displayed in different formats as per the requirements, which will be explained by below snapshots.

Step9: Select all the fields being displayed on the layout and wrap them in subform.

The Accessibility of the form should be bodyrow. Create another subform for ex: Sflight details and wrap the fields in this subform and give the subform content as positioned and for the bodyrow subform give the subform contents as flowed. The check box "Allow page breaks within content" has to be marked for the data which is being flowed.

Step10: If the data is flowing to multiple pages then we direct the over flown data.

Move to pagination tab under object tab, under that if dataset is paginated under overflow give the name of content area and overflow leader as header row. By adding this whenever an overflow occurs the header will be displayed in all the pages.

We need to create two subforms, the reason is that the body of the table can be flowed to multiple pages and if we make the subform as flowed all the elements will be aligned either top to bottom or

western text (left to right). So as we need to display the table contents in two rows we created two subforms, first one will be flowed and the second one under first one which will be positioned. Step11: Creating Header row for the table.

Drag a static text element from the library and drop it above the body row. Wrap the text in a subform giving the accessibility as header row.

Step12: Creating a table subform. The content of the subform should be flowed and the accessibility should be table.

Name the untitled subform (Page 1) as "Bodypage1". After doing this change the content of the body page as flowed then click on pagination tab, under that if dataset is paginated under overflow give the name of content area same as what we performed for body row. (In body page we gave overflow leader as header row but in body page pagination do not use that)

Step13: Giving borders to the table and header.

Step14: Giving bindings to each of the subforms. Table Binding: YDEMO_SUBFORMS->IT_SFLIGHT.

Bodyrow Binding: YDEMO_SUBFORMS->IT_SFLIGHT->DATA. The checkbox repeat subform for each data item has to be checked giving Min.Count = 1.

Step15: Save and activate the form.

Step16: Creating a Driver Program which will call the form and on execution will display the adobe form.

*&---* *& Report yh_demo * *&---* *&Purpose: Demonstrating driver program to display adobe form * *&---*

REPORT yh_demo. *Data Declarations

DATA : it_sflight TYPE sflight_tab1. DATA :

w_doc_param TYPE sfpdocparams,"Doc Parameters w_output_param TYPE sfpoutputparams,

"Output Parameters result TYPE sfpjoboutput. "Joboutput

DATA :

fm_name TYPE rs38l_fnam. "Function Module name * Determine print data, Data which will be displayed on the form SELECT * FROM sflight

INTO TABLE it_sflight UP TO 20 ROWS.

IF sy-subrc NE 0 . ENDIF.

* Determine the function module which is generated at the runtime for * the pdf form used

CALL FUNCTION 'FP_FUNCTION_MODULE_NAME' EXPORTING

i_name = 'YDEMO_SUBFORMS' IMPORTING

e_funcname = fm_name.

* This function module is used to specify settings for the form output. * To specify whether you want the form to be printed, archived, or sent * back to the application program as a PDF.

* The form output is controlled using the parameters (w_ouput_param) * with the type SFPOUTPUTPARAMS.

CALL FUNCTION 'FP_JOB_OPEN' CHANGING ie_outputparams = w_output_param EXCEPTIONS cancel = 1 usage_error = 2 system_error = 3 internal_error = 4 OTHERS = 5. IF sy-subrc <> 0.

MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4. ENDIF.

* Set the language field the component of structure /1bcdwb/docparams w_doc_param-langu = 'EN'.

* Call the function module and passing the form interface values CALL FUNCTION fm_name

EXPORTING /1bcdwb/docparams = w_doc_param it_sflight = it_sflight * IMPORTING * /1BCDWB/FORMOUTPUT = EXCEPTIONS usage_error = 1 system_error = 2 internal_error = 3 OTHERS = 4 . IF sy-subrc <> 0.

MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4. ENDIF.

CALL FUNCTION 'FP_JOB_CLOSE' * IMPORTING * E_RESULT = result EXCEPTIONS usage_error = 1 system_error = 2 internal_error = 3 OTHERS = 4 . IF sy-subrc <> 0.

MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4. ENDIF.

Step17: Activating the report and executing it would pop a window.

Give the device name which is configured for ADS. Click on Print Preview to see the preview of the form.

The form output Page 1:

Page2:

Using Where conditions to relate header and item tables in

Adobe forms

By Jayachandra Nagaram, YASH Technologies

In this demo we will create an Adobe form, which displays relating data from two tables

(Header and Item) by using ‘Where conditions’ in Form context.

Step1: Go to transaction SFP and create interface for the form.

In this demo we can use the interface YDEMO_ALTERNATIVE which is used in previous tutorial using alternatives.

Step2: Create Form YDEMO_TABLELEVEL

Note: Maintain Interface type ABAP-Dictionary Base interface. (IN ECC6.0 Version) You will see two parts in screen Interface and context.

Step3: Drag and drop Global table GT_SPFLI from interface to context area.

Step4: Select all fields which are not required to display and deactivate the fields. (right click)

Step5: Select DATA under table GT_SPFLI and right click.

Go to create--> Loop

This will create a table i.e., a sub loop under the main loop.

Step6: A dialog box will open asking for table which you want to loop inside main loop.

Step7: Click the F4 help button, it shows the tables that exists in the interface.

Step8: Select the table GT_SFLIGHT (item details)

It will internally create a sub loop i.e, a table GT_SFLIGHT under the table SPFLI data. Step9: Select the fields which are not required to display and deactivate.

Step10: Double click table GT_SFLIGHT and go to the where conditions tab available in lower part of the window.

Create the where condition for the table loop. This internally creates below code.

Loop at GT_SPFLI.

Loop at GT_SFLIGHT where CARRID eq GT_SPFLI-CARRID

and CONNID eq GT_SPFLI-CONNID.

... } ---> code processing ...

Endloop. Endloop.

Step11: Go to Layout: in data view a nested loop (table) will be displayed. SFLIGHT under SPFLI. Create the boiler plate objects if needed.

Step12: Drag and drop all the fields under GT_SPFLI table into body page.

Note: Do not drag the entire table into body page. We need to follow creating table using sub forms concept.

Go to hierarchy view; Select all fields of spfli, Wrap the fields into sub form by right clicking. Again wrap the sub form in to another sub form. Sub form properties are maintained latter.

Step13: Drag and drop the fields from sflight into body page and create sub forms as showed in below snap. Keep note that the subforms created for sflight fields should be place inside the spflidata subform.

Maintain names as spflitable

'-->spflidata

'-->sflighttable

Step14: Content of body page should be flowed.

Step15: Maintain the subforms properties as showed in the below snaps.

Subform: spflitable

Subform: spflidata

Subform: sflighttable

Subform: sflightdata

Step16: Now your FORM is ready, check for syntax and activate it.

Execute the form and follow the below to get the data in hierarchy level. Header and its corresponding item details.

Output: Page1

Page2

Nested tables in Adobe Forms

By Sunil Saini, YASH Technologies

This Tutorial demonstrates on using Nested Tables in Adobe Forms. Step1: Go to SFP transaction and create interface for the Adobe form.

Note:

Maintain Interface type ABAP-Dictionary Based interface. (IN ECC6.0 Version)

Step 2: Create Global Types as shown below by clicking on Types, here we are creating a Nested Table type which consists of 2 Individual fields (carrid, carrname) and an Internal Table(spfli).

Step 3: Create Global Work Areas and Internal Tables as shown below.

WA_SCARR TYPE SCARR

IT_SCARR TYPE SCARR_TAB

WA_SPFLI TYPE SPFLI

IT_SPFLI TYPE SPFLI_TAB

WA_FLIGHT TYPE TYPE_FLIGHT

Step 4: Code for fetching the data is written in the code initialization part of interface.

In code initialization the variables whose values are being passed to the code to fetch the

details of the output should be declared in the Input parameters and the variables to which the

results are assigned needs to be declared in the Output parameters.

Input Parameters:

Output Parameters:

Step 5: Write the below code in code initialization part. Check for errors and activate the

interface.

* Fetching Flight Details from SCARR Table. SELECT *

INTO TABLE it_scarr FROM scarr

UP TO 10 ROWS.

* Fetching Data from SPFLI Table for corresponding Entries in SCARR. SELECT *

INTO TABLE it_spfli FROM spfli

FOR ALL ENTRIES IN it_scarr WHERE carrid EQ it_scarr-carrid. * Looping at SCARR Internal Table. LOOP AT it_scarr INTO wa_scarr.

wa_flight-carrid = wa_scarr-carrid. wa_flight-carrname = wa_scarr-carrname. * Looping at SPFLI Internal Table.

LOOP AT it_spfli INTO wa_spfli WHERE carrid EQ wa_scarr-carrid. * Appending SPFLI Records into the SPFLI part of FLIGHT Table. APPEND wa_spfli TO wa_flight-spfli.

ENDLOOP.

* Appending SCARR Records into the SCARR part of FLIGHT Table. APPEND wa_flight TO it_flight.

CLEAR wa_flight. ENDLOOP.

Step 6: After the interface part is done, create Form by going to SFP transaction.

Step 7: In the creation of the Form, we need to give the name of the interface for which we

are creating the Form. This is the additional functionality in Adobe forms. One interface can

be used for many Forms if it is suitable.

Step 8: In the Context tab of the Form we will find two sections Interface and Context.

In Interface we will find the data that was created in the interface. We need to drag the

elements that need to be displayed in output into the content area.

Deactivate the Unwanted Fields as shown below.

Rename Content Area to ContentArea1.

Then Right-Click on the Content Area and click on Insert SubForm and Resize it

accordingly.

After that Click on Master Pages and then Drag and Drop a Text and Enter any suitable Text.

Then Right-Click on data and create one more Sub Form and align it as shown below.

Step 9: Click on Subform and then in Right-click on the Subform and then in Palettes click on Object and then under Objects Tab click on Subform and make the Content as Flowed as shown below.

Then Create one more Subform and Rename it as Table and then Right-click on this Form and in Palettes click on Accessibility make the Subform role as Table and make its Subform content as Flowed as in above case.

Step 10: Then Insert two Sub Forms in the Table Sub Form, rename it as Header and Body, make sure to make them as Flowed too, and make the Accessibility of the two Subforms as Header Row and Body Row respectively.

Then Insert a Static Text in Header and insert the Field names as shown below.

Step 11: Then under Data View, individually Drag and Drop the Fields from the table it_flight in Body Sub Form.

Fields are CARRID, CARRNAME, SPFLI.

Step 12: Then under Hierarchy tab Select the 3 Fields (i.e. Carrid, Carrname, and SPFLI) and then drag drop them in Body Sub Form as shown below.

Then make the Body Sub Form as Flowed as well as make its Flow Direction as Western Text as shown below.

Select the all Fields and make their Appearance as None.

Insert a column to the left of connid as shown below.

Finally arrange the Fields as shown below.

Step 14: Under the Pagination Tab of Body Subform in Overflow choose the Go To Content Area value as ContentArea1.

Step 15: Change the Binding of the Body Subform as shown below.

Step 16: Give the binding for CARRID.

Change the binding for SPFLI as shown below.

Step 17:

Save and Activate the form. Step 18:

Execute the form. The following output will be displayed.

By Phani Diwakar Marepalli, YASH Technologies

In this document we discuss the how to achieve the control levels in the Adobe Form (both

using Table and Subform).

Step1: Go to transaction SFP and create interface by providing interface name.

A pop up window appears where we need to provide the description of the interface and save it. Step2: Define the user defined data types Types definition under Global Definitions as shown below.

Step3: Define Global data under Global Definitions,

Save and activate the interface. Come back to the initial screen of adobe form.

Step5: Now create the form as shown below.

A pop up window would appear where we need to assign the interface name to form and also the description of the form. Press Save button.

The following screen appears.

In the above screen, we have internal table IT_VBAP under Global Data, which is under Interface. Context area is a bridge between Interface and form. Whatever the information (data) we need to place in the form is to be placed in the context area.

Step6: Now drag and drop this internal table IT_VBAP into context area. Then only we can use the internal table in the form.

Provide the description of the internal table under properties tab below the context area.

Step7: Now go to Control Levels tab as shown in above screenshot and provide the field name on which sort to be done. Control levels were introduced in SAP Net weaver 2004s.

Now the internal table splits into two parts where sorted fields are in one part and remaining all fields are grouped under GROUP internal table.

Step8: Drag the static text from the library into the form and provide the descriptions of the fields (Acts as a header).

Save and activate the form.

Step9: Execute the form. The output is as shown below:

We can also create the table using subforms if we need the output alignment differently. In the above scenario, we directly drag and dropped the internal table into the form. But in this scenario, we use subforms to achieve the same.

Step10: Now, create a subform as shown below.

Renamed it as ‘Body’.

Step11: From the Data View, drag and drop the fields individually into the form as shown below.

Step12: Wrap the field ‘VBELN’ into the form as shown below.

And similarly wrap the remaining two fields into another subform ‘DATA’ which intern wrap into the subform ‘Group’. The final view of the Hierarchy is as shown below.

All the pink shades are subforms.

Step13: Place the cursor on sub form Body and Go to palettes-- Object. There select ‘Subform’ tab. Here, Initially Content is ‘Position’.

Change the Content field in the all sub forms ‘Body, Vbeln, Data’ from ‘Position’ to Flowed under subform tab as shown below.

Now, select the ‘Binding’ tab.

Here, Default binding is ‘Normal’ for sub form Body But select the Default binding as shown.

Now, default binding for subform Body becomes as shown below:

And the binding of subform ‘Vbeln’ is

The binding of the sub form ‘Group’ is

The binding of the sub form ‘Data’ is

The binding of field ‘VBELN’ is

The binding of field ‘POSNR’ is

Step14: The final layout looks as shown below

Step15: Execute the form, the output is

Now let us extend the scenario to have the page header whenever there is a page overflow. Step16: We can achieve this as shown below.

Place the cursor on the subform ‘Body’. Go to Palettes-Object.

Here, in the Pagination tab under Object, select Overflow leader as ‘Header’ subform.

Activate the form.

Calculating Page-wise Sub-Totals and Grand Total in

Adobe forms

By Nisrin Pindwarawala, YASH Technologies

This Tutorial focuses on how to calculate Page-wise Sub-Totals and Grand Total in Adobe forms using JavaScript.

In this demo, we will work with table 'SFLIGHT' and calculate Sub-totals and Grand total for the field 'PRICE'.

Step 1: Go to Transaction SFP and Create an Interface.

Step 2: Add the internal table it_sflight in global data

Step 3: In the Code Initialization part, fetch records from sflight into internal table it_sflight.

SELECT *

FROM SFLIGHT INTO TABLE IT_SFLIGHT UP TO 50 ROWS.

Step 4: Save and activate the interface.

Step 5: Go to transaction SFP and create a form.

Step 6: In the context part of the form drag and drop the table sflight from global data of interface area to the context area and deactivate the field which we don't require in the layout.

Step 7: Create a table by drag n drop from library on to the layout. Include one header row and footer row in the table.

Enter the name of the field you want to display in the header row of the table.

Move the table fields from the table by drag n drop from Data View Palette on to the body row of the table, which we have created. In the footer row insert a text field in the last column from the library as shown below.

Step 8: Calculating Sub-Total for field price.

We can achieve this by selecting,

• Select "Events with Scripts" in the Show drop down list • Select "JavaScript" in the Language drop down list • Run at: "Client" as shown below.

Write this code in the area provided under these selection boxes.

var fields = xfa.layout.pageContent(xfa.layout.page(this)-1, "field", 0); var total = 0;

for (var i=0; i <= fields.length-1; i++) { if (fields.item(i).name == "PRICE") { total = total + fields.item(i).rawValue; }

}

this.rawValue = total;

Click Enter Script Source Changes + to add the script to your form.

The value tab of the text field has to be set as below.

Step 9: Calculating Grand Total.

Group the elements of the body row, and then insert subform by right clicking on data.

• From the drop down list "Show" select Calculate

• Enable FormCalc for the text field "Grand Total" as shown below.

Step 10: Code for Grand-Total

Write the code under the area provided for the text field sum(Data.Table1.Group1.Row1[*].PRICE[*])

Click Enter Script Source Changes + to add the script to your form.

Step 11: Save and activate the form. Execute the form.

The output appears like this: Page1:

Step 9: Calculating Grand Total.

Group the elements of the body row, and then insert subform by right clicking on data.

• From the drop down list "Show" select Calculate

• Enable FormCalc for the text field "Grand Total" as shown below.

Step 10: Code for Grand-Total

Write the code under the area provided for the text field sum(Data.Table1.Group1.Row1[*].PRICE[*])

Click Enter Script Source Changes + to add the script to your form.

Step 11: Save and activate the form. Execute the form.

The output appears like this: Page1:

Including the Standard Texts (SO10) and any other Long

Texts in the Adobe Forms

By Chandra Mohan Reddy Piminty, YASH Technologies

First Step: Creating the Interface (Ex: ZCHANDU)

Transaction code SFP

Creating an Import parameter VALUE of type ZTEST_S. Structure of ZTEST_S is in the

next slide. Activate the Interface.

Second Step: Form Design

Transaction code SFP

Creating a Text node by right clicking on the top node ZCHANDU and then

CREATE -> TEXT.

In the properties of the TEXT node select Text type Include Text and then provide the Text

Name, Text Object, Text ID and Text Language values as shown below.

Drag the VALUE structure from the interface into the Context.

We can pass the Text node properties values dynamically as well. An example is shown

below:

Next go to the Layout Tab:

Drag the TEXT node into the BODY subform at the desired location.

The Hierarchy Palette and the Body pages screen shot is shown below.

Activate the Form.

Testing: Provide the values for the structure VALUE as below.

The screen shot of the Standard text created in Transaction SO10 is as below:

Limitations of Include Texts in Adobe Forms:

• If the values of the Text Symbols are coming into the Form in an internal table then we would not be able to use the Include text, as in Adobe Forms between the internal table name and the field names a DATA node is inserted due to the XML naming conventions and this DATA node is the one that creates the problem. Even though we have the table name and the field names same as in the Standard text, the error would be that the field is not found.

• The Text Symbols values must be coming from the Interface. If we are using Script (Formcalc or JavaScript) and filling the Field values, then those values would not be passed to the standard text, even though we have the calculated value in the Field and be able to print it.

Scenario on displaying logo, background image and

fetching data from multiple tables

Go to the transaction code SFP.

Let us first create an interface for the form. Say the name of the interface is ZTABLES.

Chose Create (f5) and provide the necessary description for the same.

Save the object either as local object or any package.

Double Click on import in the form interface and choose Create button over there. Provide the import parameter: PERNR as shown below.

In the types, provide the following code:.

types: begin of ty_final , pernr like pa0002-pernr, begda like pa0002-begda, endda like pa0002-endda,

vorna like pa0002-vorna, nachn like pa0002-nachn, ansal like pa0008-ansal, lga01 like pa0008-lga01, bet01 like pa0008-bet01, end of ty_final.

TYPES: it_final type table of ty_final, itab type table of pa0002 ,

itab1 type table of pa0008 .

Provide the following code in the initialization .

select * from pa0002 into table itab where pernr = pernr . select * from pa0008

into table itab1

for all entries in itab where pernr = itab-pernr . loop at itab into wa_itab .

wa_final-pernr = wa_itab-pernr. wa_final-begda = wa_itab-begda. wa_final-endda = wa_itab-endda . wa_final-vorna = wa_itab-vorna. wa_final-nachn = wa_itab-nachn .

read table itab1 into wa_itab1 with key pernr = wa_itab-pernr. wa_final-ansal = wa_itab1-ansal.

wa_final-lga01 = wa_itab1-lga01. wa_final-bet01 = wa_itab1-bet01.

append wa_final to it_final . endloop.

Define the import and output parameters as shown above.

Declare the following variables in the global declarations:

Save and Activate it .

Now create the form as shown.

Enter the description and provide the interface name as ZTABLES, which is created earlier.

Save the object either as local object or under a package .

Drag the import parameter PERNR and output tables and system fields( if needed) onto the

context area

First deactivate all the fields in the table itab and then select the fields to be visible in the output (right click on the field and choose activate) as shown below. Repeat the same for the internal tables itab1 and it_final as well .

Click on layout tab.

Now drag the fields from the data view to the design view...and arrange them in a specific order in which you want and create a text element for the header. Here you can change the font and size for the text element in the right side pane.

nserting logo on the form

Go to pallets -> object then a new window will opens as shown below. (Compare the above and below diagrams)

Double-click on the image dragged from the library (here it is shown below) then it will show a F4 help for selection of the image like this..

Click on the image and choose open then it will be on the body page and you can select the image and increase the size of the image also

For the image to be displayed on the form, it is important to do this. Right Click on the image and click on object and check the EMBED IMAGE DATA checkbox.

How to put the background image on the form

To put the image as a background, select the image into the body page and right click on the image and choose send backward then it will become the back ground like this..

(You need to check the checkbox EMBED IMAGE FIELD for the background image here as well) Save, Activate and execute it .

Choose execute. Give the input device as LP01 or LOCL

How to call this in a program

REPORT Zadobeforms .

data:/1BCDWB/FORMOUTPUT type FPFORMOUTPUT , /1BCDWB/DOCPARAMS type SFPDOCPARAMS , ie_outputparams type SFPOUTPUTPARAMS . CALL FUNCTION 'FP_JOB_OPEN'

CHANGING

ie_outputparams = ie_outputparams . .

*---here get the function module name from the form CALL FUNCTION '/1BCDWB/SM00000220' EXPORTING /1BCDWB/DOCPARAMS = /1BCDWB/DOCPARAMS pernr = '00001000' IMPORTING /1BCDWB/FORMOUTPUT = /1BCDWB/FORMOUTPUT . CALL FUNCTION 'FP_JOB_CLOSE' .

Printing Address using Business Address Services (BAS)

By Syed Abdul Adil, YASH Technologies

Instead of using custom tables for address information, many applications access Business

Address Services (BAS). In the Business Address Services, addresses are identified by means

of numbers.

The addresses that you integrate in form's layout will be formatted in accordance with

country-specific conventions.

Step 1: Go to Transaction SFP and Create an Interface.

Step 2: Define Import parameter under Form Interface. IS_ADDRESS_TYPE TYPE CHAR1

IS_ADDRESS_NUMBER TYPE ADRC-ADDRNUMBER IS_PERSON_NUMBER TYPE ADRP-PERSNUMBER

IS_COUNTRY TYPE LAND1

Step 3: Save and activate the interface. Step 4: Now create the form as shown below. .

Step 5: A pop up window would appear where we need to assign the interface name to form and also the description of the form. Press Save button.

Step 6: In the context part of the form Create Address Node as shown below.

Step 8: In the Layout part of the form, Drag and drop the Address Field.

Step 10: Set the Border properties of Address text field as shown below.

Step 12: Save and activate the form.

Step13: Test form, by entering Address type, Address Number and Sending Country. Note: Person Number is optional; it is applicable for Address type 2 and 3.

Step 14: Execute the form. The output is as shown below:

Printing Address without using Business Address Services

(BAS)

By Syed Abdul Adil, YASH Technologies

If our application makes no use of the Business Address Services but you still want to have country-specific addresses, we must use ABAP coding to achieve this. It is possible to do this in the application program or in the initialization coding of the interface.

Step 2: Define Import parameter under Form Interface. IS_CUSTOMER_ID TYPE S_CUSTOMER

IS_COUNTRY TYPE LAND1

Step 3: Define Global Types under Global definition as shown below. TYPES:

BEGIN OF ty_adr_printform_table_line, line_type TYPE ad_line_tp, address_line LIKE adrs-line0, END OF ty_adr_printform_table_line. TYPES:

Step 4: Define Global Work Areas and Internal Tables under Global definition as shown below.

IS_ADDRESS TYPE ADRS1.

IT_ADDRESS_LINES TYPE TY_ADR_PRINTFORM_TABLE. IS_ADDRESS_LINE TYPE TY_ADR_PRINTFORM_TABLE_LINE.

IS_SCUSTOM TYPE SCUSTOM.

Step 5: Write the below code in code initialization part. Check for errors and activate the interface. SELECT SINGLE * FROM scustom INTO is_scustom WHERE id EQ is_customer_id. is_address-title_text = is_scustom-form. is_address-name1 = is_scustom-name. is_address-street = is_scustom-street. is_address-po_box = is_scustom-postbox. is_address-post_code1 = is_scustom-postcode. is_address-city1 = is_scustom-city. is_address-region = is_scustom-region. is_address-country = is_scustom-country.

* Address Format According to Post Office Guidelines

* Note : Refer Function module documentation for more information. CALL FUNCTION 'ADDRESS_INTO_PRINTFORM'

EXPORTING

address_type = '1' "normal/company sender_country = is_country number_of_lines = 8 IMPORTING address_printform_table = it_address_lines.

Step 6: Save and activate the interface. Step 7: Now create the form as shown below.

Step 8: A pop up window would appear where we need to assign the interface name to form and also the description of the form. Press Save button.

Step 9: In Interface we will find the data that was created in the interface. We need to drag the elements that need to be displayed in output into the content area.

Step 10: In the Layout part of the form, Drag and drop the Address Field.

Step 12: Set the Border properties of Address text field as shown below.

Step 13: Set the Object properties of Address text field as shown below.

Step 15: Set Body page Object properties as shown below.

Step 16: Set Subform Object properties as shown below.

Step 18: Save and activate the form.

Step 19: Test form, by entering Customer id and Country.

Step 20: Execute the form. The output is as shown below:

Configuring the Adobe Forms / Smart forms / SAP Script to the output type in NACE

By Nikunj Shah, YASH Technologies

Go to transaction NACE.

Choose the required application from the list and click on output types.

Chose one of the Output types from the right pane and click on processing routines.

Following screen appears:

If an SAP Script to be attached, fill-in the driver program name, Form routine and SAP Script name in the field “Form” (shown below)”

If an Smart Form / Adobe Form are to be attached, enter the form name in the field “PDF/SmartForm Form” and select one of the types “PDF” or “SmartForm”. (See the screenshot below)

Demo scenario on Adobe Interactive Forms using ABAP

WebDynpro - Part1

By G.K.Akbar, The Washington Post

I have created a table ‘ZDEPT’ with just three fields; I will be creating an Adobe form for these three fields and will be updating this table using ABAP Web Dynpro framework.

Go to transaction SE80 and create a web dynpro component ZADOBE’.

Enter the details in the popup window as shown below

Assign a package to the application or save as a local object

You can see Component controller, Interface controller and window being created

Create a View as shown below

Give the view name as ‘MAIN_VIEW’ as show below

You can see the main view being created.

Go to the context tab of the “MAIN_VIEW’ and create a empty node.

You can see the node ‘Adobe’ being created below.

Create another node under the node adobe as shown below.

Give the name of the node as ‘ZDEPT’ and Dictionary structure as ‘ZDEPT’ and press the button ‘Add Attribute from Structure’.

Select the Fields as shown below and press enter.

You can see the node ‘ZDEPT’ with three fields being created under the node ‘ADOBE’.

Now create an attribute ‘PDF_SOURCE’ under the root node ‘CONTEXT’ as shown below

You can see all the nodes that we have created; your screen should appear like the one shown below.

Go to the Layout tab of the ‘MAIN VIEW’ and create a place holder for the adobe form, Right click on the ‘ROOTUIELEMENTCONTAINER’ select ‘insert Element’ from the context window as shown below.

Enter the details in the POPUP window, give the name of the place holder as ‘ADOBE’ and type ‘InteractiveForm’ as shown below.

You can see the placeholder ‘ADOBE’ being created, check the CHEKBOX enabled in the property list, this is a required entry for an interactive form, (an activex control ‘Active Control Framework’ will be automatically downloaded on to the client from the server when the web page is first

Click on the button in the property list for the property ‘pdfSource’ and select the node

In the property List for ‘template Source’ property give the name of the adobe form ’ZADOBE’ that we will be creating during this session and double click on it.

In the POPUP window, give the adobe form interface name ‘ZADOBE’ as shown below and press on the ‘Context button’ as shown below.

You can see the Adobe form application with our web dynpro context node ‘ZDEPT’ being mapped to the context of the Adobe form in the Data view tab.

Just Drag and Drop the ‘ZDEPT’ Node on to the form, in the subform tab of the object make the content as ‘Flowed’ as shown below

Drag and Drop ‘Text’ from the Library pallet and enter the text as you wish

Drag and Drop the Submit button on the form as shown below

Just select the event click* and language JavaScript and run at client (No coding is required)

Now save and just activate the Form and the interface as shown below.
