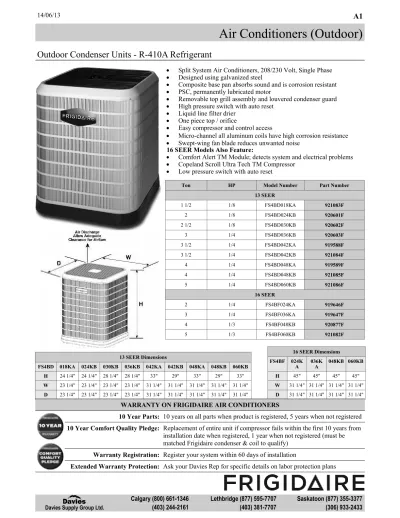

Air Conditioners (Outdoor)

(1)

Air Conditioners (Outdoor)

A1

14/06/13

Outdoor Condenser Units - R-410A Refrigerant

Ton HP Model Number Part Number 13 SEER 1 1/2 1/8 FS4BD018KA 921083F 2 1/8 FS4BD024KB 920601F 2 1/2 1/8 FS4BD030KB 920602F 3 1/4 FS4BD036KB 920603F 3 1/2 1/4 FS4BD042KA 919588F 4 1/4 FS4BD048KA 919589F 5 1/4 FS4BD060KB 921086F 16 SEER 2 1/4 FS4BF024KA 919646F 3 1/4 FS4BF036KA 919647F 4 1/3 FS4BF048KB 920877F 5 1/3 FS4BF060KB 921082F 3 1/2 1/4 FS4BD042KB 921084F 4 1/4 FS4BD048KB 921085F

FS4BD 018KA 024KB 030KB 036KB 042KA 048KA 060KB H 24 1/4" 24 1/4" 28 1/4" 28 1/4" 33" 33" 33" W 23 1/4" 23 1/4" 23 1/4" 23 1/4" 31 1/4" 31 1/4" 31 1/4" D 23 1/4" 23 1/4" 23 1/4" 23 1/4" 31 1/4" 31 1/4" 31 1/4" 13 SEER Dimensions 042KB 29" 31 1/4" 31 1/4" 048KB 29" 31 1/4" 31 1/4" FS4BF 024K A 036KA 048KB 060KB H 45" 45" 45" 45" W 31 1/4" 31 1/4" 31 1/4" 31 1/4" D 31 1/4" 31 1/4" 31 1/4" 31 1/4" 16 SEER Dimensions



Split System Air Conditioners, 208/230 Volt, Single Phase



Designed using galvanized steel



Composite base pan absorbs sound and is corrosion resistant



PSC, permanently lubricated motor



Removable top grill assembly and louvered condenser guard



High pressure switch with auto reset



Liquid line filter drier



One piece top / orifice



Easy compressor and control access



Micro-channel all aluminum coils have high corrosion resistance



Swept-wing fan blade reduces unwanted noise

16 SEER Models Also Feature:



Comfort Alert TM Module; detects system and electrical problems



Copeland Scroll Ultra Tech TM Compressor



Low pressure switch with auto reset

WARRANTY ON FRIGIDAIRE AIR CONDITIONERS

10 Year Parts:

10 years on all parts when product is registered, 5 years when not registered

10 Year Comfort Quality Pledge:

Replacement of entire unit if compressor fails within the first 10 years from

installation date when registered, 1 year when not registered (must be

matched Frigidaire condenser & coil to qualify)

Warranty Registration:

Register your system within 60 days of installation

(2)

Outdoor Condenser Units - R-410A Refrigerant - Builder Series



Split System Air Conditioners, 208/230 Volt, Single Phase



Designed using galvanized steel



Composite base pan absorbs sound and is corrosion resistant



PSC, permanently lubricated motor



Removable top grill assembly



High pressure switch with auto reset



Liquid line filter drier



One piece top / orifice



Easy compressor and control access



Complete metal wrapper



Micro-channel all aluminum coils have high corrosion resistance

WARRANTY ON PHILCO AIR CONDITIONERS

10 Year Parts:

10 years on all parts, including compressor, when product is registered, 5 years

when not registered

Warranty Registration:

Register your system within 60 days of installation

Ton HP Model Number Part Number 13 SEER 2 1/8 JS6BD024K 920813J 2 1/2 1/8 JS6BD030K 920814J 3 1/4 JS6BD036K 920815J 3 1/2 1/4 JS4BD042KB 921084J 4 1/4 JS4BD048KB 921085J 5 1/4 JS4BD060KB 921086J 13 SEER Dimensions JS_BD 024K 030K 036K 042KB H 27 1/2" 27 1/2" 35 1/2" 27 1/2" W 22 3/4" 22 3/4" 22 3/4" 30 3/4" D 22 3/4" 22 3/4" 22 3/4" 30 3/4" 048KB 060KB 27 1/2" 31 1/2" 30 3/4" 30 3/4" 30 3/4" 30 3/4"

(3)

Air Conditioner Coils

A1-2

03/10/14

Cased Air Conditioner Coils - R-410A Refrigerant - TXV "A" Coil

Ton Overall _{W x H} Depth _CondenserUse With _NumberModel _NumberPart

C6 Series 1.5 or 2 14 1/4" x 20 3/4" 20 3/4" FS4BD018KA FS4BD024KA FS4BF024KA C6BAX24CA 920006 1.5 or 2 17 1/2" x 20 3/4" 20 3/4" FS4BD018KA FS4BD024KA FS4BF024KA C6BAX24CB 920015 2.5 14 1/4" x 20 3/4" 20 3/4" FS4BD030KA C6BAX30CA 920024 2.5 17 1/2" x 20 3/4" 20 3/4" FS4BD030KA C6BAX30CB 920033 2.5 21" x 26 3/4" 20 3/4" FS4BD030KA C6BAX30CC 920551

3 17 1/2" x 20 3/4" 20 3/4" FS4BD036KA _FS4BF036KA C6BAX35CB 920045

3 17 1/2" x 26 3/4" 20 3/4" FS4BD036KA _FS4BF036KA C6BAX36CB 920054

3 21" x 26 3/4" 20 3/4" FS4BD036KA _FS4BF036KA C6BAX36CC 920186

3.5 17 1/2" x 26 3/4" 20 3/4" FS4BD042KA C6BAX42CB 920063

3.5 24 1/2" x 30 1/4" 20 3/4" FS4BD042KA C6BAX42CD 920192

4 21" x 30 1/4" 20 3/4" FS4BD048KA _FS4BF048KA C6BAX48CC 920081A

4 24 1/2" x 30 1/4" 20 3/4" FS4BD048KA _FS4BF048KA C6BAX48CD 920090

5 24 1/2" x 30 1/4" 20 3/4" FS4BD060KA _FS4BF060KA C6BAX60CD 920108

See Page A3

for Complete Coil Information

NOTE: Should Sell #01-1306

Filter Drier With Every TXV Coil

See page A13-1 for complete filter

drier listing

Replacement TXV Assembly for C6 Cased Coils Fits C6 Coil Model Number Part Number

C6BAX24C-A/B 920668 C6BAX30C-A/B/C 920669 C6BAX35C-A/B, C6BAX36C-B/ C, C6BAX37C-C 920670 C6BAX42C-B/C/D 920671 C6BAX48C-C/D 920672 C6BAX60C-C/D 920673

(4)

Ton Overall _{W x H} Depth _CondenserUse With _NumberModel _NumberPart C5 Series 5 21" x 28 3/4" 19 1/2" 060KA C5BAX60UC 919518D C6 Series 1.5 or 2 12 3/4" x 19" 19 1/2" FS4BD018KA FS4BD024KA FS4BF024KA C6BAX24UA 920007 1.5 or 2 16" x 19" 19 1/2" FS4BD018KA FS4BD024KA FS4BF024KA C6BAX24UB 920016 2.5 12 3/4" x 19" 19 1/2" FS4BD030KA C6BAX30UA 920025 2.5 19 1/2" x 23 3/4" 19 1/2" FS4BD030KA C6BAX30UC 920552

3 16" x 24 3/4" 19 1/2" FS4BD036KA _FS4BF036KA C6BAX36UB 920055

3 19 1/2" x 23 3/4" 19 1/2" FS4BD036KA _FS4BF036KA C6BAX36UC 920187

3.5 16" x 24 3/4" 19 1/2" FS4BD042KA C6BAX42UB 920064

3.5 19 1/2" x 23 3/4" 19 1/2" FS4BD042KA C6BAX42UC 920073

3.5 23" x 24" 19 1/2" FS4BD042KA C6BAX42UD 920193

4 19 1/2" x 28 3/4" 19 1/2" FS4BD048KA _FS4BF048KA C6BAX48UC 920082A

4 23" x 28 1/4" 19 1/2" FS4BD048KA _FS4BF048KA C6BAX48UD 920091

5 23" x 28 1/4" 19 1/2" FS4BD060KA _FS4BF060KA C6BAX60UD 920109

Uncased Air Conditioner Coils - R-410A Refrigerant - TXV "A" Coil

NOTE: Should Sell #01-1306

Filter Drier With Every TXV Coil

See page A13-1 for complete filter

drier listing

C5 Coil

C6 Coil

Replacement TXV Assembly for C6 Uncased Coils Fits C6 Coil Model Number Part Number

C6BAX24U-A/B 669681 C6BAX30U-A/B/C 669682 C6BAX35U-A/B, C6BAX36U-B/ C, C6BAX37U-C 669683 C6BAX42U-B/C/D 669684 C6BAX48U-C/D 669852 C6BAX60U-C/D 669686

(5)

Air Conditioner Coils

A3

25/02/11

Coil Data Charts

C6 TXV Uncased Coil

C5 TXV Uncased Coil

C6 TXV Cased Coil

(6)

Vertical Cased Air Conditioner Coils - R-410A Refrigerant - "A" Coil

Ton Overall _{W x H} Depth _NumberModel _NumberPart

C6 "A" Coils

5 24 1/2" x 30 1/4" 20 3/4" C6BAX60CC 920099

5 24 1/2" x 30 1/4" 20 3/4" C6BAX60CD 920108 C7 Vertical "A" Coils

1.5-2 14 1/2" x 20 3/4" 20 3/4" C7BAM01824C-A 921515 2.5-3 14 1/2" x 20 3/4" 20 3/4" C7BAM03036C-A 921517 1.5-2 14 1/2" x 20 3/4" 20 3/4" C7BAM01824C-B 921519 2.5-3 14 1/2" x 20 3/4" 20 3/4" C7BAM03036C-B 921521 3-3.5 17 1/2" x 26 3/4" 20 3/4" C7BAM03642C-B 921523 2-3 21" x 26 3/4" 20 3/4" C7BAM030C-C 921700 3-4 21" x 26 3/4" 20 3/4" C7BAM03648C-C 921525 3.5 24 1/2" x 30 1/4" 20 3/4" C7BAM042C-D 921529 4 24 1/2" x 30 1/4" 20 3/4" C7BAM048C-C 921838 4 24 1/2" x 30 1/4" 20 3/4" C7BAM048C-D 921841

See Page A3-4 for Complete Coil Information

NOTE:



Should sell #01-1306 Filter Drier With Every Coil



Frigidaire & Philco condensers come with Filter Drier

(7)

Air Conditioner Coils

A3-2

04/05/12

Horizontal Cased Air Conditioner Coils - R-410A Refrigerant - "A" Coil

Ton Overall _{W x H} Depth _NumberModel _NumberPart

C7 Horizontal "A" Coils

1.5-2 14 1/2" x 20 3/4" 20 3/4" C7BHM01824C-A 921661 2.5-3 14 1/2" x 20 3/4" 20 3/4" C7BHM03036C-A 921662 1.5-2 14 1/2" x 20 3/4" 20 3/4" C7BHM01824C-B 921663 2.5-3 14 1/2" x 20 3/4" 20 3/4" C7BHM03036C-B 921664 3-3.5 17 1/2" x 26 3/4" 20 3/4" C7BHM03642C-B 921665 2-3 21" x 26 3/4" 20 3/4" C7BHM030C-C 921701 3-4 21" x 26 3/4" 20 3/4" C7BHM03648C-C 921666 4-5 21" x 30 1/4" 20 3/4" C7BHM04860C-C 921667 3.5 24 1/2" x 30 1/4" 20 3/4" C7BHM042C-D 921668 4-5 21" x 30 1/4" 20 3/4" C7BHM04860C-D 921669

NOTE:



Should sell #01-1306 Filter Drier With Every Coil



Frigidaire & Philco condensers come with Filter Drier



See page A13-1 for complete filter drier listing

(8)

NOTE:



Should sell #01-1306 Filter Drier With Every Coil



Frigidaire & Philco condensers come with Filter Drier



See page A13-1 for complete filter drier listing

Uncased Air Conditioner Coils - R-410A Refrigerant - "A" Coil

See Next Page for Complete Coil Information

Ton Overall _{W x H} Depth _NumberModel _NumberPart C6 Series 5 19 1/2" x 28 3/4" 19 1/2" C6BAX60UD 920109 C7 Series 1.5-2 12 3/4" x 18 1/2" 19 1/2" C7BAM01824U-A 921514 2.5-3 12 3/4" x 18 1/2" 19 1/2" C7BAM03036U-A 921516 1.5-2 16" x 18" 19 1/2" C7BAM01824U-B 921518 2.5-3 16" x 18" 19 1/2" C7BAM03036U-B 921520 3-3.5 16" x 25" 19 1/2" C7BAM03642U-B 921522 2.5 19 1/2" x 18" 19 1/2" C7BAM030U-C 921699 3-4 19 1/2" x 24 1/2" 19 1/2" C7BAM03648U-C 921524 3.5 23" x 23 3/4" 19 1/2" C7BAM042U-D 921528 4 19 1/2" x 28 1/2" 19 1/2" C7BAM048U-C 921837 4 23" x 27 3/4" 19 1/2" C7BAM048U-D 921840

C7 Series

(9)

Air Conditioner Coils

A3-4

04/05/12

(10)

Tons Refrigerant Type Part Number 1.5 - 2 R-22 920662A 2.5 R-22 920663A 3 R-22 920664A 3.5 R-22 920665A 4 R-22 920666A 5 R-22 920667A 1.5 - 2 R-410A 920668A 2.5 R-410A 920669A 3 R-410A 920670A 3.5 R-410A 920671A 4 R-410A 920672A 5 R-410A 920673A

C6 Cased & Uncased "A" Coil TXV Kits

(11)

Fits Cabinet Size Overall Width Overall Height Brand Part Number

A 14 1/4" 20" Frigidaire 919330

B 19 3/4" 26" Frigidaire 919333

C5 Coil Wrappers For Uncased Coils

Cabinet Identifier Overall Width (W) Overall Height (H)

Liquid Line Height (HL)

Suction Line Height (HS)

Opening Width

(OW) Brand

Part Number C6 & C7 Coil Wrappers

A 14 1/4" 20 3/4" 17 1/2" 15 1/2" 12 7/8" Frigidaire 920256 A 14 1/4" 26 3/4" 23 1/2" 21 1/2" 12 7/8" Frigidaire 920257 B 17 1/2" 20 3/4" 17 1/2" 15 1/2" 16 1/8" Frigidaire 920258 B 17 1/2" 26 3/4" 23 1/2" 21 1/2" 16 1/8" Frigidaire 920259 C 21" 26 3/4" 23 1/2" 21 1/2" 19 5/8" Frigidaire 920260 C 21" 30 1/4" 27" 25" 19 5/8" Frigidaire 920261 D 24 1/2" 30 1/4" 27" 25" 23 1/8" Frigidaire 920262 D 34" Frigidaire 920263

C6 & C7 Coil Wrappers For Uncased Coils

Part Number

Kit for adapting a cased coil to a smaller width furnace. This could be either a C5 series coil with a narrower G7 furnace or a

C6 series coil with a G6 or L1 furnace. 920316

Description

Close Off Kit For Cased Coils

Air Conditioner Coil Wrappers & Close Off Kit

A4

(12)



Custom printed covers are a cost effective marketing tool that

promotes your company to the homeowner and neighbors - a great

source of new leads, referrals, callbacks and name recognition



Logo printed in any one color in one location (side or top)



Logo size: 8" x 14"



Minimum order of 30

Air Conditioner Covers - Customized Logo

Size: L"xW"xH" Part Number

22 3/4 x 22 3/4 x 34 1/4 0084A 22 3/4 x 22 3/4 x 26 1/2 0084B 30 3/4 x 30 3/4 x 26 1/2 0085B 30 3/4 x 30 3/4 x 30 1/2 0085C 23 1/4 x 23 1/4 x 24 1/4 0655C 23 1/4 x 23 1/4 x 28 1/4 0655D 23 1/4 x 23 1/4 x 36 1/4 0655B 31 1/4 x 31 1/4 x 33 0656D 31 1/4 x 31 1/4 x 37 0656A 31 1/4 x 31 1/4 x 45 0656C



Attractive AC cover with a glove like fit



Keeps dirt and debris out of condensing unit



Heavy duty vinyl resists slipping or tearing and is also specially

treated to protect against mold, mildew and UV rays



Helps prevent corrosion of electrical contacts



1/2" gap at bottom provides cross-ventilation to provide air flow and

prevent condensation



Velcro strap easily secures cover around suction and discharge lines

Air Conditioner Covers

Note: See AC Accessories Quick Pick Guide for model to cover chart

Custom printed covers are a cost

effective marketing tool!

Call Davies for

more information!

(13)



Heavy duty engineered steel brackets used for mounting A/C

condensers and heat pumps on vertical walls



Includes mounting holes and are finished in a durable grey powder

coat

Description Brand Part Number

30" Steel Bracket (pair) Mars 93630

Brackets

Air Conditioner Accessories

A6

25/06/10



PVC flexible connectors



Indoor or outdoor use



UV rated material for long outdoor life



Reusable design



Resists salt water, weak acids, gasoline, alcohol, oil, grease and most

common solvents

Connectors - Liquid Tight, Non-Metallic

Size Description Brand Part Number

1/2" Straight Connector Mars 85016

3/4" Straight Connector Mars 85017

1/2" 90o_Connector _Mars ₈₅₀₂₀

3/4" 90o_Connector _Mars ₈₅₀₂₁



Rigid coils combined with flexible PVC construction provide superior

wire protection



Use on a large variety of AC, refrigeration and HVAC equipment



Resilient to abuse, pulling or crushing



Use with PVC liquid tight connectors



Temperature range -18C to 75C (0F to 167F)

Size Length Brand Part Number

1/2" 100' Mars 84118

3/4" 100' Mars 84119

(14)



Single and three phase replacement compressors



1 year limited warranty

Compressors

BTU Capacity Volts Phase Fits Model Brand Part Number Single Phase - Fits R22 10 SEER

16,300 208/230 1 FS3BA018KA Copeland 912969 22,100 208/230 1 FS3BA024KA Copeland 912956 28,200 208/230 1 FS3BA030KA Copeland 912957 34,400 208/230 1 FS3BA036KA Copeland 914955 38,200 208/230 1 FS3BA042KA Copeland 912958 45,200 208/230 1 FS3BA048KA Copeland 918788 58,300 208/230 1 - Copeland 911250 61,200 208/230 1 FS3BA060KA Copeland 914926 Single Phase - Fits R22 13 SEER

24,000 208/230 1 FS5BD024KA Copeland 921045 30,000 208/230 1 FS5BD030KA Copeland 921046 48,000 208/230 1 FS5BD048KA Copeland 921050 60,000 208/230 1 FS5BD060KA Copeland 921052 Three Phase 32,000 200/230 3 - Copeland 912967 35,000 200/230 3 - Copeland 913944 41,900 200/230 3 - Copeland 912962 56,300 208/230 3 - Copeland 911367 46,000 208/230 3 - Tecumseh 912777

Air Compressor Sound Blanket



Simple cost-effective solution to compressor noise



Cheaper than replacing or moving equipment



Minimum 5 dB or 40%+ reduction of compressor noise



Fits well over 200 different models of compressor



Works with either hermetic or scroll compressors



Convenient easy to install universal-fit design



Convenient hook and loop straps to simplify installation

(15)



Solid base gives five times more foundation surface than a plastic

ribbed pad



Lightweight



Stays flat and stable, will not sink into the ground



Retains strength and color in direct sunlight



Vibration absorbing, it will not crack or chip



Non slip surface



Little or no ground preparation



Limited lifetime warranty

Size Weight lbs. Part Number

26" x 28" x 2" 16 UC2628-2

32" x 32" x 2" 22 UC3232-2

36" x 36" x 2" 27 UC3636-2

Equipment Pads - Ultralite™

Air Conditioner Accessories

A8

25/06/10



Line, load and ground terminals aligned for ease of wiring



Side door opens 180 degrees for maximum access



Full dead front



Convertible door for left or right swing



cUL Listed

60A Non-fusible disconnect switch Diversitech DDS-60U

Disconnect



18AEIC1 Evaporator Coil Low Temperature Limit

When attached to the suction line of the evaporator coil and wired in

series with the Y connection to the compressor, its normally closed

contact will shut down the refrigeration compressor when it senses

the evaporator coil freezing up. 3/4" cup.



A30-2311 Heat Pump Control

Designed to be wired in series with the cycling control. The capillary

senses the evaporator temperature and shuts the compressor off.

When the temperature reaches 60

o

F the contacts close and restart the

unit. Capillary Length: 30"

Evaporator - Anti-Ice Controls

Temperature Setting

Brand Part Number

Opens Closes

2.8C (37F) 15C (59F) Alltemp 18AEIC1

-1C (30F) 16C (60F) Robertshaw A30-2311 18AEIC1

(16)



Provides low voltage control of line voltage fan motors and auxiliary

circuits in heating, cooling or air conditioning systems



Transformer powers low voltage control systems and provides

overload protection



Mounts on standard 4" x 4" junction box



Low voltage terminal board provides convenient connections for

thermostat and heating, cooling equipment wiring

Fan Centres

Input Voltage Switching Action Motor Rating @ 120VAC Brand Part Number Full Load Locked Rotor

40 VA, 60Hz SPDT 12.0A / 6.0A 35A / 72A Honeywell R8285A1048

120 VAC, 60Hz DPST 8.0A / 14.0A 48.0A / 84.0A White Rodgers 8A05A-101



Standard used with most refrigerant/lubricant combinations



High moisture removal capacity



Very low pressure drop



Filtration down to 10 microns



Copper sweat connectors



Powder coated finish is 1000 hours salt spray rated



500 psig safe working pressure

Filter Driers - Liquid Line - Solder Type

Nominal

Tons Inlet / Outlet Connection Overall Length Diameter Brand Number Part

1/3 - 2 3/8" ODF 4.5" 2" Frigidaire 01-1306 (053S) 1 - 4 3/8" ODF 5.37" 2.5" Frigidaire 01-0787 (083S) 2 - 5 3/8" ODF 6.06" 2.5" Frigidaire 01-1308 (163S) 2 - 5 1/2" ODF 6.06" 2.5" Frigidaire 01-0789 (164S) R8285A10-48 8A05A-101

(17)



Nylon fittings for AC coil installations

Fittings- Nylon

Size Part Number

1/2" Barb x 3/4" MPT 701-002

5/8" Barb x 3/4" MPT 701-014 Description

A coil adapter, 2/pack A coil adapter, 2/pack

Drain hose elbow for ac coils, 2/pack 5/8" Barb x 3/4" MPT 701-028

Air Conditioner Accessories

A10

25/06/10

Hard Start Kits



Combination Start Relay, Start Capacitor & Motor Overload

(32781 / 32741)

-Designed to replace those components on a 115 volt single phase

refrigeration compressor installed on a capillary tube system.

-Factory wired (wiring diagram on the product label)

-Leads have push-on terminals for easy installation

-Compact & universal



Combination Relay and Safety Timer

(

DST-6)

-Offers a larger capacitor for severely hard-to-start compressors

-500% torque multiplier

-Can be used on all PSC single phase compressors

-Automatically disconnects in 0.5 seconds if the compressor fails to

start

HP Volts Brand Part Number

1/12 to 1/5 HP 115 VAC Mars 32781

1/4 to 1/3 HP 115 VAC Mars 32741

1 1/2 to 10 HP 120 to 288 VAC Diversitech DST-6

DST-6



Low Ambient Control

Temperature Setting

Brand Part Number

Opens Closes

(18)



For split system air conditioning applications



Quick and easy field installation

Linesets

Liquid Line (Non-Insulated) Suction Line (Insulated) Insulation

Thickness Part Number

3/8" 3/4" 3/8" LS383450 3/8" 7/8" 3/8" LS387835 3/8" 7/8" 3/8" LS387850 3/8" 3/4" 3/8" LS383435 Length 35' 50' 35' 50' 918727
