Name Date

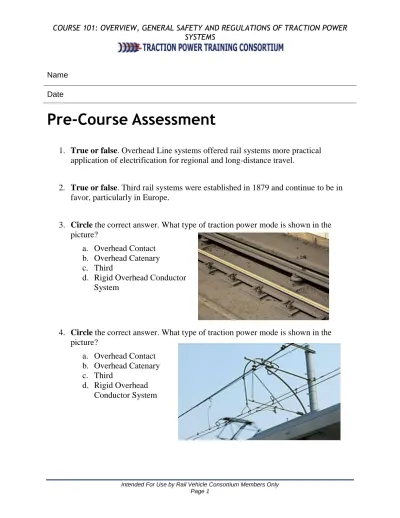

Pre-Course Assessment
1. True or false. Overhead Line systems offered rail systems more practical application of electrification for regional and long-distance travel.
2. True or false. Third rail systems were established in 1879 and continue to be in favor, particularly in Europe.
3. Circle the correct answer. What type of traction power mode is shown in the picture?
a. Overhead Contact b. Overhead Catenary c. Third
d. Rigid Overhead Conductor System
4. Circle the correct answer. What type of traction power mode is shown in the picture?
a. Overhead Contact b. Overhead Catenary c. Third
d. Rigid Overhead Conductor System
5. True or false. Every agency has the same local procedures for safety and health and you do not need to check with a supervisor or local guidelines for this.
6. Circle the correct answer. Which of the following options is not a part of an electrically safe condition?
a. Determine all sources of electrical supply b. Open disconnecting device for each source
c. Visually verify all blades of disconnecting devices are full open or withdrawn
d. Apply lockout/tagout devices according to policy
e. Test each phase conductor using an adequately rated voltage detector f. Ground phase conductors where a possibility exists for induced or stored
energy
g. All are correct parts
7. True or false. An electrically safe condition does not exist until all steps have been completed.
8. Circle the correct answer. In the picture, what is
the threshold where death is possible beyond that point?
a. Point A b. Point B c. Point C d. Point D e. Point E
9. True or false. Low voltage often means no to low hazard.
A
B
C
E D
10. Circle the correct answer. What is an arc flash?
a. A phenomenon where electric current leaves the intended path and travels through the air from one conductor to another, or ground
b. Electrical energy large enough to cause damage to humans while performing maintenance of rail lines
c. When humans are exposed to a lethal amount of electrical energy during lockout/tagout procedures
d. When electricity flows through the body through the hands and exits to ground through the feet
11. True or false. Contact with a source of electrical energy hot enough can cause only external burns.
12. True or false. If you see a victim of an arc flash, you should touch them to make sure they are conscious.
13. True or false. You should never tell a victim of arc flash to move, or move the victim yourself as neck or spinal injuries may have occurred.
14. True or false. The first thing to do if someone is lying near an electrical circuit and appears unconscious is to shut off the power via the appropriate disconnect switch or circuit breaker.
15. Describe what a zero energy state is:
16. True or false. Lockout/tagout procedure has individuals with shared padlock or combination locks and do not need to fill out paperwork describing the nature and duration of the work they are performing.
17. Circle the correct answer. Which of the following items does PPE not protect?
a. Injury by blunt impacts b. Electrical hazards
c. Heat, chemicals and infection
d. PPE provides protection against all of the above
18. Circle the correct answer. What does the following image show?
a. Zero Energy State b. Approach boundaries c. Arc Flash
d. Lockout/Tagout
19. True or false. Regulatory authority means an autonomous agency that oversees and regulates the health and safety of the workforce.
20. Circle the correct answer. Which of the following is not a federal agency for public transportation?
a. USDOT b. USDOL c. NFPA d. OSHA e. USDA f. IEEE
21. True or false. The National Electric Code (also known as NEC or NFPA 70) is a standardized set of code requirements and regulations for fire prevention device installation and reducing hazards mandated at state and local levels.
22. What is due process?
23. True or false. OSHA has a set of regulations laid out in California to offer minimum electrical safety requirements for workers.
24. True or false. In the following image, which is the DC voltmeter?
a. V b. R1 c. R2 d. BAT1
25. True or false. A DC voltmeter is inserted into an electrical circuit in a parallel formation to measure the electrical potential difference between two points.
26. Circle the correct answer. Besides electrical potential difference, what other sets of measurements can a Digital multimeter read?
a. Temperature, Resistance, Current b. Voltage, Current, Temperature c. Voltage, Resistance, Temperature d. Current, Voltage, Resistance
27. What is a hot stick?
28. Circle the correct answer. Grounding cables do which of the following?
a. Ground supplied electric current to overhead system
b. Offer an alternate path for current flow and Protect maintainers from potential shock and burn hazards
c. Can equip a variety of extension tools for different systems and circuits d. All of the above
29. What are some issues HI-pot testing help maintainers find?
30. True or false. A Digital Low Resistance Ohmmeter (DLRO) can identify lack of resistance in electric circuits or interrupted flow and prevent long-term damage and excess energy waste.
