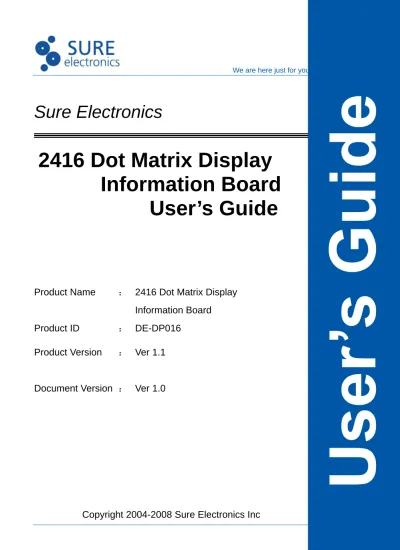

We are here just for you!
Sure Electronics
2416 Dot Matrix Display
Information Board
User’s Guide
Product Name
： 2416 Dot Matrix Display
Information Board
Product ID
： DE-DP016
Product Version
： Ver 1.1
Document Version ： Ver
1.0
24*16 Dot Matrix DisplayI nformation Board DE-DP016
Contents
Chapter1 Overview and Main Feature ... 2
1-1 Gallery ... 2
1-2 Main Feature ... 2
Chapter 2 Hardware Detail... 4
2-1 Schematic... 4
2-2 Physical Dimension ... 5
2-3 Electric Characters ... 5
2-4 Port Definition... 6
Chapter 3 Application Notes ... 8
3-1 Display Memory... 8
3-2 Command Format... 9
3-3 Command Summary...11
2416 Dot Matrix Display Information Board DE-DP016
Chapter1 Overview and Main Feature
2416 Dot Matrix Display Information Boards is manufactured by Sure Electronics. It can be driven by SPI like interface. It an be easy interfaced to any Microcontrollers. It can be widely used in panel meter, big clocks and any other information display usage.
It’s a memory mapping LED display board and driven by HT1632 LED display controller. The device supports 16-gradation LEDs for each outline using PWM control with software instructions. A serial interface is conveniently provided for the command mode and data mode. Only three or four signals are required for the interface between the host controller and the information board. The display can be extended by cascading the information board for wider applications.
1-1 Gallery
Figure 1
1-2 Main Feature
z Size: 4inch×2.5inch display area. z 2416 dot matrix on each board.
z Operating voltage and current: 5V, 350mA (Max.), 200mA(Avg.) z 16-level PWM brightness control.
z Each board contains 6 pieces of 8*8 LED dot matrix boards. z Serial MCU interface----CS, RD*(optional), WR, DATA.
z Cascading function for extended applications (up to 4 boards possible).
z Power can be supplied and command data can be transmitted by IDC sockets from microcontrollers.
z Auxiliary power supply terminal blocks may be needed when connected to next LED matrix board.
24*16 Dot Matrix DisplayI nformation Board DE-DP016
Page4 http://www.sure-electronics.net
Chapter 2 Hardware Detail
2-1 Schematic
Anode14 CS1 Cathode16 Cathode0 Cathode7 R18 33R R76 33R R38 33R Cathode21 Cathode14 R39 33R +5V Anode12 Anode5 CS1 Cathode2 C5 104 R47 33R R48 33R Cathode13 R53 33R R37 33R +5V Anode2 Cathode2 R13 33R R74 33R R68 33R Anode11 Cathode23 R33 33R R12 33R Anode1 Cathode1 Cathode12 Anode5 Anode14 CS4 Cathode4 R41 33R R91 33R R21 33R R59 33R Anode13 Anode5 Cathode8 D4 LED 22 19 16 13 3 6 9 12 24 23 21 20 18 17 15 14 2 14710 5 8 11 R57 33R Anode6 Anode3 Anode[0..15] Cathode15 Cathode10 CS4 R82 33R R73 33R Anode5 Cathode21 Anode13 Anode8 Anode9 Cathode3 +5V Anode15 Cathode21 Cathode14 R102 120R 1 10 12 14 16 3 5 7 9 11 13 15 2 4 6 8 BR1 MSV8X2 Anode3 R86 33R R97 120R Cathode4 Cathode17 R49 33R Anode7 Cathode10 R63 33R R94 33R Cathode2 Cathode12 Cathode20 R69 33R Anode14 Cathode18 Cathode3 Cathode9 SY NC Cathode11 D3 LED 22 19 16 13 3 6 9 12 24 23 21 20 18 17 15 14 2 14710 5 8 11 Anode6 Cathode5 R1 33R R64 33R Anode8 Cathode[0..23] CS2 Cathode11 Cathode15 R31 33R R50 33R Cathode11 Cathode22 Cathode5 C1 104 Anode10 R52 33R Cathode2 Cathode0 Cathode1 Anode3 Anode1 D6 LED 22 19 16 13 3 6 9 12 24 23 21 20 18 17 15 14 2 14710 5 8 11 Cathode9 Cathode14 OSC R51 33R R56 33R R75 33R +5V RD R65 33R R35 33R Anode3 Anode1 Cathode9 Cathode3 R8 33R Cathode19 Anode12 Cathode17 R95 33R D2 LED 22 19 16 13 3 6 9 12 24 23 21 20 18 17 15 14 2 14710 5 8 11 Anode9 Anode15 Cathode6 R87 33R WR Cathode15 Cathode7 Cathode17 R7 33R CS1 U1 HT1632 14 19 20 23 24 15 16 17 18 21 22 41 40 48 47 43 45 42 44 46 38 35 34 33 32 31 30 5 6 7 8 9 10 11 12 29 37 36 1 2 3 39 4 25 26 13 28 27 49 50 51 52 VSS CS SY NC COM1 COM2 OSC DATA WR RD VDD COM0 OUTBIT21 OUTBIT22 OUTBIT15 OUTBIT16 LED_VSS3 OUTBIT18 OUTBIT20 OUTBIT19 OUTBIT17 OUTBIT24/COM15 OUTBIT27/COM12 LED_VSS2 OUTBIT28/COM11 OUTBIT29/COM10 OUTBIT30/COM9 OUTBIT31/COM8 OUTBIT7 OUTBIT6 OUTBIT5 OUTBIT4 LED_VSS1 OUTBIT3 OUTBIT2 OUTBIT1 COM7 OUTBIT25/COM14 OUTBIT26/COM13 OUTBIT11 OUTBIT10 OUTBIT9 OUTBIT23 OUTBIT8 COM3 COM4 OUTBIT0 COM6 COM5 OUTBIT14 OUTBIT13 OUTBIT12 LED_VSS4 R42 33R R78 33R Anode15 Anode12 Cathode18 Cathode8 Cathode16 Cathode6 R15 33R R60 33R +5V R89 33R Anode0 CS2 Cathode15 DATA SY NC R29 33R R77 33R Cathode8 Cathode21 CS3 Cathode23 Cathode12 +5V Cathode13 R19 33R Cathode10 R84 33R R72 33R R23 33R R30 33R +5V ChipCS R70 33R R55 33R Anode8 Anode13 Anode4 Cathode4 Anode13 Anode15 R85 33R R43 33R +5V R17 33R Anode10 Cathode11 R24 33R Anode0 Anode4 Cathode22 R2 33R R6 33R C3 104 +5V Anode2 Cathode3 +C6 16V 22uFtan 1 2 Anode9 Cathode11 C4 104 Anode11 Cathode9 Cathode6 Cathode8 R3 33R R36 33R R88 33R Anode7 R66 33R Anode11 CS3 Cathode7 R5 33R Cathode19 Cathode17 Anode0 CS4 Cathode20 SW1 SW DIP-4 1234 8765 +C9 16V 22uFtan 1 2 +C8 16V 100uF 1 2 +5V Anode4 Cathode5 C2 104 Cathode1 Cathode14 R28 33R +5V DATA Cathode5 Cathode23 R62 33R ChipCS Cathode22 R16 33R R32 33R Cathode23 Cathode1 R98 120R Cathode22 Cathode18 Cathode6 R27 33R Cathode20 Anode11 Anode14 CS3 R61 33R Cathode4 SY NC R46 33R Anode6 R9 33R Anode8 Cathode17 Cathode10 +5V Anode9 Cathode22 Cathode21 Cathode16 R67 33R Anode10 Cathode1 R40 33R R92 33R D1 LED 22 19 16 13 3 6 9 12 24 23 21 20 18 17 15 14 2 14710 5 8 11 Anode4 CS2 Cathode3 Cathode16 Cathode16 D5 LED 22 19 16 13 3 6 9 12 24 23 21 20 18 17 15 14 2 14710 5 8 11 R90 33R R45 33R R54 33R WR OSC R81 33R R96 33R RD Cathode7 Cathode14 DATA R20 33R R80 33R R22 33R R83 33R 1 2 J2 MSV2 Cathode23 Cathode20 R14 33R R71 33R R93 33R Anode10 RD Cathode0 Cathode13 Cathode13 R99 120R +C7 16V 100uF 1 2 Cathode19 Anode2 Cathode18 Cathode18 OSC R34 33R R101 120R Anode1 Cathode12 Cathode9 +5V Cathode19 WR R25 33R R79 33R R58 33R R44 33R Anode2 Cathode19 1 10 12 14 16 3 5 7 9 11 13 15 2 4 6 8 BR2 MSV8X2 1 2 J1 MSV2 R11 33R Anode7 Cathode10 Cathode0 Cathode20 Cathode13 Cathode2 Cathode7 Cathode12 R10 33R +5V Anode12 Cathode6 Anode7 Anode6 R4 33R Cathode0 Cathode8 Cathode4 R26 33R Anode0 R100 120R Cathode15 Cathode5 Figure 22-2 Physical Dimension
Figure 3 Physical Dimension
2-3 Electric Characteristics
D.C. Characteristics
Parameter Symbol Absolute Maximum Rating Units
Working Voltage Vin 5 V
Operating Temperature Topr -20~+80 ℃
Storage Temperature Tstg -25~+85 ℃
LED work current Iw 30mA on each LED, 1/8 duty
24*16 Dot Matrix DisplayI nformation Board DE-DP016
A.C. Characteristics
Dot Scan: More than 1024Hz
Row Scan, Column Scan: More than 128Hz
2-4 Port Definition
Top Bottom Figure 4 PCB Layout
Port Definition
Part Pin Name Function
1 CS1 Chip Select. Close CS1 on Switch, SW1, to Enable the First Information Board in the serial. 2 CS2 Chip Select. Close CS2 on Switch, SW1, to
Enable the Second Information Board in the serial.
3 CS3 Chip Select. Close CS3 on Switch, SW1, to Enable the Third Information Board in the serial. 4 CS4 Chip Select. Close CS4 on Switch, SW1, to
Enable the fourth Information Board in the serial. 5 WR Write Clock Input from Microcontroller (on BR1)
or output to Next board (on BR2).
6 RD Read Clock Input from Microcontroller (on BR1) or output to Next board (on BR2). Optional. BR1,
BR2
7 DATA Serial Data Input from Microcontroller (on BR1) or output to Next board (on BR2).
http://www.sure-electronics.net Page7
8,11,13,15 GND Ground reference.
9 OSC If the System Clock is Sourced from an External Clock Source, the External Clock Source should be Connected to this Pad. If the On-Chip RC Oscillator is Selected, this Pad can be connected to a High or Low level. If the Cascade Mode is Selected, this Pad is the Driver of Clock Signal. 10 SYNC Cascade Synchronization Input and Output. 12,14,16 +5v Positive Power Supply, +5V only.
J1 --- --- Auxiliary Power Supply, +5V only. J2 --- --- Auxiliary Power Supply, +5V only.
24*16 Dot Matrix DisplayI nformation Board DE-DP016
Page8 http://www.sure-electronics.net
Chapter 3 Application Notes
3-1 Display Memory
The static display memory, RAM, is organized into 96×4 bits and stores the displayed data. The contents of the RAM are directly mapped to the contents of LED driver. Data in the RAM can be accessed by the READ, WRITE, and READ-MODIFY-WRITE commands. The following table shows the mapping from the RAM to the LED pattern:
Com15 Com14 Com13 Com12 Addr. Com3 Com2 Com1 Com0 Addr.
Out0 03H 00H Out1 07H 04H Out2 0BH 08H Out3 0FH 0CH Out4 13H 10H Out5 17H 14H Out6 1BH 18H Out7 1FH 1CH Out8 23H 20H Out9 27H 24H Out10 2BH 28H Out11 2FH 2CH Out12 33H 30H Out13 37H 34H Out14 3BH 38H Out15 3FH 3CH Out16 43H 40H Out17 47H 44H Out18 4BH 48H Out19 4FH 4CH Out20 53H 50H Out21 57H 54H Out22 5BH 58H Out23 5FH 5CH D3 D2 D1 D0 Data ….. ….. ….. D3 D2 D1 D0 Data
The corresponding relation of dot on LED dot matrix board between LED RAM is as follow:
Figure 5
3-2 Command Format
The command mode consists of a system configuration command, a system frequency selection command, a LED configuration command, and an operating command. The data mode, on the other hand, includes READ, WRITE, and READ-MODIFY-WRITE operations.
The mode of command should be issued before the data or command is transferred. If successive commands have been issued, the command mode ID, namely 1 0 0, can be omitted. While the system is operating in the non-successive command or the non-successive address data mode, the CS pin should be set to “1” and the previous operation mode will be reset also. Once the CS pin returns to “0”, a new operation mode ID should be issued first.
Timing Diagrams
READ Mode---Command Code=1 1 0
READ Mode --- Successive Address Reading
24*16 Dot Matrix DisplayI nformation Board DE-DP016
Page10 http://www.sure-electronics.net
WRITE Mode --- Command Code= 1 0 1
WRITE Mode --- Successive Address Reading
READ-MODIFY-WRITE Mode --- Command Code=1 0 1
Command Mode --- Command Code= 1 0 0
3-3 Command Summary
Name ID Command Code D/C Function
READ 110 A6A5A4A3A2A1A0D0D1D2D3 D Read data from the RAM WRITE 101 A6A5A4A3A2A1A0D0D1D2D3 D Write data to the RAM READ-MODIFY-
WRITE 101 A6A5A4A3A2A1A0D0D1D2D3 D
Read and Write data to RAM
SYS DIS 100 0000-0000-X C
Turn off both system oscillator and LED duty cycle generator
SYS EN 100 0000-0001-X C Turn off system oscillator LED OFF 100 0000-0010-X C Turn off LED duty cycle
generator
LED ON 100 0000-0011-X C Turn on LED duty cycle generator
BLINK OFF 100 0000-1000-X C Turn off blinking function BLINK ON 100 0000-1001-X C Turn on blinking function SLAVE MODE 100 0001-00XX-X C Set slave mode and clock
source from external clock
MASTER MODE 100 0001-01XX-X C
Set master mode and clock source on-chip RC oscillator
RC 100 0001-10XX-X C System clock
EXT CLK 100 0001-11XX-X C System clock source,
external clock source COMMONS
OPTION 100 0010-11XX-X C
P-MOS open drain output and 16 common option
101X-0000-X C PWM 1/16 duty 101X-0001-X C PWM 2/16 duty 101X-0010-X C PWM 3/16 duty PWM Duty 100 101X-0011-X C PWM 4/16 duty http://www.sure-electronics.net Page11
24*16 Dot Matrix DisplayI nformation Board DE-DP016 Page12 http://www.sure-electronics.net 101X-0100-X C PWM 5/16 duty 101X-0101-X C PWM 6/16 duty 101X-0110-X C PWM 7/16 duty 101X-0111-X C PWM 8/16 duty 101X-1000-X C PWM 9/16 duty 101X-1001-X C PWM 10/16 duty 101X-1010-X C PWM 11/16 duty 101X-1011-X C PWM 12/16 duty 101X-1100-X C PWM 13/16 duty 101X-1101-X C PWM 14/16 duty 101X-1110-X C PWM 15/16 duty 101X-1111-X C PWM 16/16 duty
