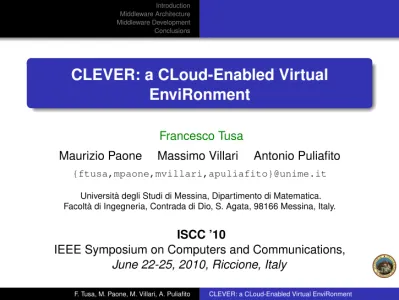

CLEVER: a CLoud-Enabled Virtual EnviRonment

(1)

Introduction Middleware Architecture Middleware Development Conclusions

CLEVER: a CLoud-Enabled Virtual

EnviRonment

Francesco Tusa

Maurizio Paone

Massimo Villari

Antonio Puliafito

{ftusa,mpaone,mvillari,apuliafito}@unime.it

Università degli Studi di Messina, Dipartimento di Matematica. Facoltà di Ingegneria, Contrada di Dio, S. Agata, 98166 Messina, Italy.

ISCC ’10

IEEE Symposium on Computers and Communications,

June 22-25, 2010, Riccione, Italy

(2)

Outline

1

Introduction

Inside the Cloud

State of the art

Our contribution

2

_{Middleware Architecture}

General Overview

Middleware Components and Features

3

_{Middleware Development}

UML description

Implementation

(3)

Introduction

Middleware Architecture Middleware Development Conclusions

Inside the Cloud State of the art Our contribution

Summary

1

Introduction

Inside the Cloud

State of the art

Our contribution

2

_{Middleware Architecture}

General Overview

Middleware Components and Features

3

_{Middleware Development}

UML description

Implementation

4

Conclusions

(4)

Introduction

A cloud definition

“Cloud Computing is a large-scale distributed computing paradigm that is driven by economies of scale, in which a pool of abstracted, virtualized, dynamically-scalable, managed computing power, storage, platforms, and services are delivered on demand to external customers over the Internet.”

(5)

Introduction

Three different cloud service levels

Virtualization technology for “abstracting resources”.

(6)

Introduction

A Cloud classification: Public, Private and Hybrid Clouds

Public Clouds

Management of Virtual Machine instances within aproprietary infrastructure. Many different customers can run and control their own applications. Access from a remote interface using a specific protocol.

Private Clouds

Infrastructure owned by asingle organizationoffering its internal computing resources to local users: do not “sell“ computing capacity.

Open Source tools employment, dedicated operating environment offered to local users with high trust level.

Hybrid Clouds

Aprivate cloudwhich adds to the local infrastructure more computing capacity with resources coming from anexternal public clouds.

(7)

Introduction

Private/Hybrid Cloud middlewares: a reference stack

Features of Private/Hybrid cloud middlewares:

Middleware for Virtual Infrastructure Management: essentiallydynamic orchestratorof Virtual Environments (VEs).

Middleware for High-level Management: transforms existing infrastructures into an IaaS clouds with cloud-like interfaces; adds Security, Contextualization, Federation and other”high-level” mechanisms.

(8)

Introduction

Private/Hybrid Cloud middlewares: existing solutions

Virtual Infrastructure Management Middlewares: OpenQRM and OpenNebula Deploy and manage VEs: individually or in groups needing parallel scheduling on local resources or external public clouds.

Automate VE setup regardless of the underlying virtualization layer.

Lack mechanisms for building hybrid IaaS clouds: public cloud-like interfaces, the ability to deploy VMs on external clouds and other High-level functionalities.

High-level Middlewares: Globus Nimbus and Eucalyptus

Transform existing infrastructure into an IaaS cloud with cloud-like interfaces. Compatible with the Amazon EC2 or Web Services Resource Framework (WSRF) interfaces and offers self-configuring virtual cluster support. Include Cloud-like interfaces and higher-level functionalities for security, contextualization.

Limited VI management capabilities: lack the features of middlewares specialized in VI management.

(9)

Introduction

A new cloud computing middleware: CLEVER

Acts as a middleware for the management of

Private and

Hybrid cloud computing

infrastructures.

Specifically integrates

VI Management layer

functionalities.

Tries to minimize the design and implementation issues of

the existing solutions: integrates

fault-tolerance

and

scalability

features.

Abstract low-level technologies using a plug-ins design.

Provides simple and easily accessible

interfaces

:

Integration of security, contextualization and other

high-level functionalities made available from

higher level

software components;

Interconnection

of different

heterogeneous

cloud computing

infrastructures.

(10)

Introduction

Middleware Architecture

Middleware Development Conclusions

General Overview

Middleware Components and Features

Summary

1

Introduction

Inside the Cloud

State of the art

Our contribution

2

_{Middleware Architecture}

General Overview

Middleware Components and Features

3

_{Middleware Development}

UML description

Implementation

4

Conclusions

(11)

Introduction

General Overview

Reference Scenario

Hierarchical reference stack

Private/Hybrid cloud scenarios usually composed of acluster of computers. Virtual Infrastructure Management layer functionalitiesarrangedaccording to the physical infrastructure: Host Management and Cluster Management sub-layers.

(12)

Introduction

General Overview

General Architecture on the reference scenario

N computing nodescontaining one host level Management module: Host Manager.

One nodeincludes a cluster level Management module: Cluster Manager. External components: XMPP Server and Distributed Database.

Middleware entities “talks” in an XMPP chat room exploiting thepresence feature.

(13)

Introduction

General Overview

CLEVER Architecture

Host Manager (HM)

Communicates with the hosts’ OS, hypervisor and distributed file-system on which the VE disk-images are stored.

Performs both physical resources and VEs monitoring.

Runs VEs on the physical hosts even performing their migration.

Cluster Manager (CM)

Coordinates the HMs and performs operations on the Distributed Database. Acts as an interface between the clients and the HM.

Performs the user VE disk-images management and the monitoring of the overall cluster state.

At least one CM has to be deployed on each cluster: many of them should exist to enable fault-tolerance.

A master CM will be in active state while the other ones will remain in a monitoring state: automatic active CM re-election.

(14)

Introduction

General Overview

CLEVER Architecture: XMPP and Fault Tolerance

XMPP

Offers a decentralized communication channel: more XMPP server could exists. Using more servers a central point of failure will not exist.

Both CMs and HMs “talks” in a chat room exploiting the presence feature. Information about the cluster state (connected hosts) offered directly by the protocol.

It is easy to add new nodes in the infrastructure: scalability.

Distributed Database

Database containing the overall set of information related to the middleware: the current state of the VEs, data related to the XMPP connection.

Developed according to a well structured approach, for enabling fault tolerance features.

(15)

Introduction

General Overview

Host Manager Components: Host Coordinator

Each HM component mapped an a different OS process: high modularity and fault tolerance.

The core of the Host Manager: it coordinates all the HM internal components using a specific Internal Communication protocol based on Java Message Service (JMS).

Through the CM interface communicates with the CMs exchanging XMPP chat messages on the specific room (VEs allocation, Monitoring State, etc.).

(16)

Introduction

General Overview

Host Manager: Monitor and Low-level components

Monitor: Resource usage monitoring for each host. Information organized and

made available for the HM coordinator.

Hypervisor Interface: middleware back-end to the host hypervisor. Different

virtualization technologies could be employed using different plug-ins structure has to be developed.

Image Manager: supply to the Hypervisor Interfaces the needed VE disk-image

corresponding to a specific VE. Different plug-ins associated to different data access/transfer method.

Network Manager: Gathers information about the host network state. Manages

host network (OS level) according to the guidelines provided by the HM Coordinator: dynamic creation of network bridges, routing and firewalling rules.

(17)

Introduction

General Overview

Cluster Manager Components: Cluster Coordinator

Each CM component mapped an a different OS process: high modularity and fault tolerance.

The core of the Cluster Manager: like the HM Coordinator it coordinates all the CM internal components using a specific Internal Communication protocol based on Java Message Service (JMS).

Performs Virtual Environment deploying based on the cluster workload and features of each host.

HMs Interface, Client Interface and External Cluster Interface for communicating on different XMPP chat with the cluster HMs, the cloud clients (or High-level software) and other “federated” infrastructures.

(18)

Introduction

General Overview

Cluster Manager: Low-level components

Database Manager: interacts with the database used to store information

needed to the cluster handling. Database Manager must maintain the data strictly related to the cluster state.

Performance Estimator: Analysis of the set of data collected from the

Coordinator, in order to compute and provide a probable trend estimation of the collected measures.

Image Manager: manages registration and upload within the Cluster Storage

System of the VEs disk-images. The Storage Manager is used to perform the registration process of such files and manage the internal cluster distributed file system.

(19)

Introduction Middleware Architecture Middleware Development Conclusions UML description Implementation

Summary

1

Introduction

Inside the Cloud

State of the art

Our contribution

2

_{Middleware Architecture}

General Overview

Middleware Components and Features

3

_{Middleware Development}

UML description

Implementation

4

Conclusions

(20)

Design state

Whole system behavior described through UML:

Use Case Diagrams: Global system, Middleware

Initialization, VEs execution and VEs registration.

Activity Diagrams: XMPP communication, Component

Interaction, VE Migration, ...

Class Diagram: one for each component and Internal

Communication Protocol.

Sequence Diagrams: VEs Migration, Inter-process

Communication Protocol.

(21)

(22)

(23)

Implementation State

Fully Implemented Components

HM-CM Communication Protocol over XMPP Host Manager:

Host Coordinator and Internal Communication Protocol Hypervisor Interface with Libvirt plugin

Monitor

Network Manager Cluster Manager:

Cluster Coordinator and Internal Communication Protocol Partially Implemented Components

Host Manager: Image Manager

(24)

Summary

1

Introduction

Inside the Cloud

State of the art

Our contribution

2

_{Middleware Architecture}

General Overview

Middleware Components and Features

3

_{Middleware Development}

UML description

Implementation

(25)

Introduction Middleware Architecture Middleware Development

Conclusions

A CLEVER summary

Mainly acts as “CLEVER“ Virtual Infrastructure Management cloud middleware. Exposes suitable interfaces at the High-level Management layer.

Enables the integration of Public Cloud Interfaces, Contextualization, Security, Federation and other High-level functionalities.

Using Monitoring, is able to perform best VEs allocation and migration. Thanks to its pluggable design, CLEVER grants scalability, modularity, flexibility. Abstraction from the underlying technologies.

Fault Tolerance using more CMs.

Presence concept exploited to know the state of the cluster: available hosts, disconnected hosts.
