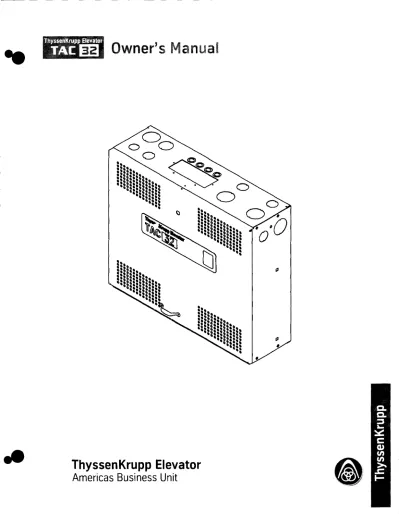

Owner's Manual

..

ThyssenKrupp Elevator

1-_···-

-_.-.-Every attempt has been made to ensure that this documentation is as accurate and up-ta-date as possible. However, ThyssenKrupp Elevator assumes no liability for consequences, directly or indirectly, resulting from any error or omission. The material contained herein is subject to revision, and ThyssenKrupp Elevator makes every effort to inform its product users of these revisions as they occur. Please report any problems with this manual to ThyssenKrupp Elevator, P.O. Box 2177, Memphis, TN 38101.

ThyssenKrupp Elevator· P.O. Box 2177 • Memphis, Tennessee 38101

©2010 ThyssenKrupp Elevator. All rights reserved. Published 2010

Firsth Edition February, 2010 Printed in the United States of America.

Manual No.: 66150 v1.1

..

..

Owner's Manual

Technical

Information

General Maintenance

2

Sliding Guides

" 2

Cabs

"

2

Gates and Doors . . . ..

3

Motors

3

Power Unit

4

Controller

4

Jacks

4

Care and Cleaning of Architectural Metals

5

III!Im

Owner's Manual

General Maintenance Instructions

..

General Maintenance

Your ThyssenKrupp Elevator is the finest piece of equipment of its type on the market today. It is designed, manufactured and installed to minimize maintenance. However, mainte-nance must be provided to prolong the life of your equipment and protect your investment.

A planned sequential procedure, regularly performed, will keep your maintenance cost to an absolute minimum and ensure realization of the long trouble free service the equipment was designed to deliver. The procedure should begin the day the elevator goes into service. Cleanliness of the elevator's components, machine room and hoistway cannot be overstressed.

Every precaution should be taken when servicing any elevator, whether specifically mentioned here or not. Common sense precautions should be followed making sure life and limb of the person servicing the elevator and the pub-lie is not endangered.

Procedures listed in this manual that involve entering the hoistway or machine room should only be carried out by a trained elevator professional. Electrical and mechanical hazards exist for untrained service personnel who are un-familiar with this type of equipment.

Make certain ALL voltage is removed before touching any parts of the electric controller or its peripherals. Due to the nature of some internal controller power supplies, voltage may be present on some components after the in-put power source has been removed. Always check for voltage with a meter before servicing any component. When access to the pit or hoistway is necessary, see that safety measures are used to protect the public as well as the servicing personnel.

Sliding Guides

1. Check Guide Shoes at regular intervals for condition and adjustment. Check the clearance between guide shoes and the guide rails. Sliding shoes should be fitted to the rail with approximately_{1/32 "}clearance. All bolts holding the shoes in place should be tight. Check that the bolted connections on the guide rail and brackets are securely fastened.

2. For sliding guide shoes, check that guide rails are coated with a film of approved lubricant (nameplate specified) to ensure smooth operation. Guide rail lubricators, when used, are located either at the top of the guide rails or on the top guide shoes. The level of lubricant should be checked regularly and refilled when low.

Cabs

1. Visually inspect the cab for burned out lamps, damaged flooring or carpeting and damage to cab fixtures. 2. Check that all bolted connections on the cab are

tight-ened securely.

3. Ensure that the car sill is clean at all times as trash in the sill grooves can affect proper door operation.

4. Keep the car push button station clean and dry, as dirt or moisture can cause electrical problems.

..

Gates and Doors

Owner's Manual

Motors

..

1. Check the car and hoistway doors and the door operator for ease of operation. Any binding or dragging of the doors indicates a need for alignment or adjustment. 2. Ensure that the doors are plumb and close completely.

Excessive looseness may constitute a safety hazard. 3. The guide grooves in the hoistway sills should always be

kept clean. NEVER sweep dirt or trash into the hoistway. 4. An experienced ThyssenKrupp serviceman should check the power door operation, linkage and door hardware regularly.

Checklist

• Ensure that all pivots in the linkage mechanism on the doors have free operation and are lubricated sparingly. • Inspect brushes regularly on DC motors and replace when

worn excessively.

• Check for proper operation of the switches and sensors which governs acceleration and deceleration of the door operator motor.

• Check that the pick-up rollers and clutch operate smoothly. • Check the vee belts on the drive wheel and motor for

ten-sion, fraying or splitting.

Failure to provide this regular maintenance, beginning when the equipment is new, will eventually result in premature failure of components with consequent equipment break-downs. ThyssenKrupp Elevator strongly recommends that maintenance be carried out by a member of their national qualified service organization. There is no substitute for the trained eye and hand of an experienced elevator serviceman.

Rotating electrical equipment. Use strict safety precautions when performing these tasks. Do not wear loose clothing, jewelry or other items that can become entangled in the moving parts of the machine or belts. Never place your-self physically in a position where unexpected motion of the machine could be harmful.

1. Prevent dust accumulation by keeping the machine room and hoistway clean. Dust or dirt accumulated in the wind-ings will reduce the ability of the unit to dissipate heat and impair efficiency.

• Should dust collect, blow it out, taking precautions to guard against personal injury as well as to avoid damage to the equipment.

2. Check the brushes of DC motors for wear and replace where necessary, using only genuine ThyssenKrupp brushes.

NOTE: Use of the wrong brushes may seriously damage the

commutator and/or interfere with the operation land adjust-ment of electrical components.

3. The spring tension ofThyssenKrupp brush holders is au-tomatically maintained and never needs adjustment. • Check to be sure the brush is free in its holder and the

spring is applying even pressure. ThyssenKrupp recom-mends that brush replacement be done by a qualified ser-viceman.

IIZ!Im

Owner's Manual

Power Unit

1. Check the following:

a. The machine room is well ventilated and proper clear-ance is provided around the Power Unit per local code requirement.

b. Oil level is within the safe limits as shown on the indicator. Only use hydraulic fluid that meets ThyssenKrupp specifications. Contact your local ThyssenKrupp Office for the fluid recommended for your area.

c. Check that all belts, if used, are properly tensioned. d. Ensure that any fluid leakage is cleaned and that all

covers are in place on the Power Unit.

Controller

All maintenance and adjustment of the controller should be done by qualified ThyssenKrupp personnel as they are best qualified to safely and correctly perform the necessary steps.

Jacks

Jack inspection should only be made by qualified ThyssenKrupp personnel.

1. Inspect jack head for cleanliness and leakage. Remove any debris or oil that has accumulated.

Every precaution should be taken when servicing any elevator., whether specifically mentioned here or not. Common sense precautions should be followed making sure life and limb of the person servicing the elevator and the pub-lic is not endangered.

Make certain ALL voltage is removed before touching any parts of the electric controller or its peripherals. Due to the nature of some internal controller power supplies, voltage may be present on some components after the in-put power source has been removed. Always check for voltage with a meter before servicing any component. When access to the pit or hoistway is necessary, see that safety measures are used to protect the public as well as the servicing personnel.

2. Check that all bolts and connecting hardware between the jack, platen and bolsters is securely fastened. 3. Replace seal(s) when leakage becomes excessive .

..

Owner's Manual

I. .

I

Care and Cleaning of Architectural Metals

Listed below are suggested care and cleaning instructions and typical products for use by building owners. Any cleaning

or refinishing, other than routine, should be handled by qualified professions.

#4 Brushed and #7 or #8 Mirror Finished Stainless Steel

The use of chloride-containing cleaners must be avoided. Surfae damage will occur from the use of such cleaners. Routine cleaning with a mild dishwasher liquid will remove fingerprints, smears and everyday liquids such as soda, coffee and other beverages. Consumer type glass cleaners

are also effective on fingerprints and beverage spills and a good stainless steel cleaner can also be used. Do not use abrasives such as scouring powders. Always finish with a light rinse of warm clean water.

#4 Brushed and #7 or #8 Mirror Finished Muntz (Bronze)

Only routine care and cleaning is recommended. The surface should be waxed weekly with paste wax (or more often depending on building traffic). This puts a protective coating of wax over the lacquer and reduces scuffing. Do not use any abrasives or chemical cleaners. This type of product will

cause damage. Recommended cleaning is to remove spills, smears and fingerprints with a soft cloth dampened with plain tap water. If this recommendation is not followed, early failure of the coating will occur.

ThyssenKrupp Baked Enamel Finishes

Routine cleaning with a mild detergent, soap and water will remove fingerprints, smears and everyday type liquid spills

such as coffee or soda. Do not use any abrasive powders or harsh chemicals.

-Owner's Manual

This page

intentionally

left blank.

..

..

..

Owner's Manual

Traditional

Signal Fixtures

Audible

2

Car Braille

3

Emergency Light

7

Hall Braille

8

Hall Station

12

Lantern

12

Lantern Traditional

12

Phone

15

Push Button

15

Station Inspection

19

Switch Push / Pull

19

Switch Rotary

20

Switch Toggle

20

Traditional Faceplate

22

Traditional Hall Station

22

Traditional Key Core

24

Traditional Key Switch

25

Traditional Key Switch

26

Traditional Push Button

26

Traditional Key Switch Selection Chart . . . .. 27

I'IIm

Owner's Manual

Audible

Part No.

I

Print No.

_I

Description

9760593

I

76059 , Bell, Alarm, 6" Dia X 2.625" Deep, 120 VAC

Audible

Part No.

I

Print No.

_I

Description

9726603

I

32660

I

Buzzer, 120 V

Audible

Part No.

I

Print No.

_I

Description

9882777

I

177AC1

I

Buzzer, 24 V, Audible, Fire Service

Audible

Part No. Print No. Description

9882765 68276 Buzzer, 24 VDC 9882753 68275 Buzzer, 48 VDC

•

..

..

•

•

•

..

Owner's

Manual

Audible

Part No.

Print No.

Description

9780490 Chime, 2 ON, 1 UP, 48 V ACiOC 9780506 Chime, 20N, 1UP, 115 V AC/OC 9780464 Chime, 20N, 1UP, 24 V AC/DC

Audible

Part No.

Print No.

Description

9724394 32439 Gong Assy, Single Stroke, 115 VDC

9737194 107191 Gong Assy, Single Stroke, Hall Lantern, Continuous Duty Coil In SeriesWIGE 161 Lamp, Brass, 24 V 9737170 107190 Gong Assy, Single Stroke, Hall Lantern, Continuous

Duty CoillnSeriesWIGE 161 Lamp, Brass, 48 VDC 9711818 111828 Gong Assy, Single Stroke, Steel, 24 VDC 9711820 111827 Gong Assy, Single Stroke, Steel, 48 VDC

Car Braille

Part No.

I

Print No.

_I

Description

9798262

I

I

Plate, Mounting Kit, for Car Braille

Car Braille

Part No.

Print No.

Description

9796046 Plate, Round, 1 1/2", #4 SS, Door Close Rear Symbol

9798237 Plate, Round, 1 1/2", #4 SS, Door Open Rear Symbol

9798225 Plate, Round, 11/2",#4 SS, Rear Mount, "4" 9798031 Plate, Round, 1 112", #4 SS, Star 2

9797830 Plate, Round, 1 1/2", #4 SS, Star L

II!!Im

Owner's Manual

Car Braille

Part No. Print No. Description

9797737 169BL41 Plate, Round, 1 1/2", Rear Mount,"*G" 9797920 169BLl Plate, Round, 1 1/2", Rear Mount, "1" 9796435 169BLlO Plate, Round, 1 112", Rear Mount, "10" 9796538 169BLl1 Plate, Round, 1 112", Rear Mount, "11" 9796630 169BLl2 Plate, Round, 1112", Rear Mount, "12" 9796733 169BLl3 Plate, Round, 1112", Rear Mount, "13" 9796836 169BLl4 Plate, Round, 1 112", Rear Mount, "14" 9796939 169BL15 Plate, Round, 1 1/2", Rear Mount, "15" 9798020 169BL2 Plate, Round, 1 112", Rear Mount, "2" 9798122 169BL3 Plate, Round, 11/2", Rear Mount, "3" 9797932 169BL4 Plate, Round, 11/2", Rear Mount, "4" 9798328 169BL5 Plate, Round, 1 1/2", Rear Mount, "5" 9796034 169BL6 Plate, Round, 1 112", Rear Mount, "6" 9796137 169BL7 Plate, Round, 1 112", Rear Mount, "7" 9796230 169BL8 Plate, Round, 1 112", Rear Mount, "8" 9796332 169BL9 Plate, Round, 1 1/2", Rear Mount, "9" 9797038 169BL26 Plate, Round, 1 112", Rear Mount, "B" 9797439 169BL29 Plate, Round, 1 1/2", Rear Mount, "G" 9797130 169BL30 Plate, Round, 1 112", Rear Mount, "L" 9797531 169BL34 Plate, Round, 1 112", Rear Mount, "LL" 9797233 169BL31 Plate, Round, 1 112", Rear Mount, "M" 9797336 169BL32 Plate, Round, 1 112", Rear Mount, "P" 9797634 169BL39 Plate, Round, 1 1/2", Rear Mount, "UL" 9796149 169BL42 Plate, Round, 1 112", Rear Mount, Alarm 9798330 169BL44 Plate, Round, 1 1/2", Rear Mount, Door Close 9798134 169BL43 Plate, Round, 1 112", Rear Mount, Door Open

..

..

Owner's Manual

Car Braille

Part No. Print No. Description

9796241 Plate, Round, 13/8", #4 55, "1" 9797142 Plate, Round, 1 3/8", #4 55, "10" 9797245 Plate, Round, 1 3/8", #4 55, "11" 9797348 Plate, Round, 1 3/8", #4 55, "12" 9797440 Plate, Round, 13/8", #4 55, "13" 9797543 Plate, Round, 13/8", #4 55, "14" 9797646 Plate, Round, 13/8", #455, "15" 9769344 Plate, Round, 1 3/8", #4 55, "2" 9769447 Plate, Round, 13/8", #455, "3" 9796540 Plate, Round, 13/8", #4 55, "4" 9796642 Plate, Round, 13/8", #455, "5" 9796745 Plate, Round, 1 3/8", #4 55, "6" 9796848 Plate, Round, 13/8", #4 55, "7" 9796940 Plate, Round, 13/8", #4 55, "8" 9797040 Plate, Round, 13/8", #4 55, "9" 9797749 Plate, Round, 13/8", #4 55, "8" 9797075 Plate, Round, 13/8", #4 55, "G" 9797841 Plate, Round, 1 3/8", #4 55, "L" 9796976 Plate, Round, 1 3/8", #4 55, "LL" 9797944 Plate, Round, 1 3/8", #4 55, "M" 9797178 Plate, Round, 13/8", #4 55, "P" 9796873 Plate, Round, 1 3/8", #4 55, "UL" 9798365 Plate, Round, 13/8", #4 55, Alarm 9796575 Plate, Round, 1 3/8", #4 55, 5tar 1 9796472 Plate, Round, 1 3/8", #4 55, 5tar 2 9796770 Plate, Round, 13/8", #4 55, 5tar G 9796678 Plate, Round, 1 3/8", #4 55, 5tar L

i .•

Car Braille

Part No. Print No. Description

9796071 Plate, Round, 1 3/8", #4 55, Door Close Rear 5ymbol

9796174 Plate, Round, 13/8", #4 55, Door Close Symbol 9796277 Plate, Round, 1 3/8", #4 55, Door Open Rear

5ymbol

9796370 Plate, Round, 1 3/8", #4 55, Door Open Symbol

I-I I

-~

Owner's Manual

Car Braille

Part No. Print No. Description

9716040 126496SP Plate, Square, Stick On, 1 1/4", #4 Bronze, "PH" (Not Shown)

Car Braille

Part No. Print No. Description

9796423 126047 Plate, Square, Stick On, 11/4", #455, "* 1" 9796526 126046 Plate, Square, Stick On, 1 1/4", #4 SS, "* 2" 9796228 126041 Plate, Square, Stick On, 11/4", #4 SS, "* G" 9796320 126043 Plate, Square, StICk On, 11/4", #4 SS, "* L"

Car Braille

Part No. Print No. Description

9737078 124238 Plate, Square, Stick On, 11/4", #4 SS, "1" 9737080 124239 Plate, Square, Stick On, 1 1/4", #455, "2" 9737091 124240 Plate, Square, Stick On, 11/4", #4 SS, "3" 9737108 124241 Plate, Square, Stick On, 11/4", #4 SS, "4" 9737110 124242 Plate, Square, Stick On, 1 1/4", #4 SS, "5" 9737121 124249 Plate, Square, Stick On, 1 1/4", #4 SS, "B" 9737017 33301 Plate, Square, Stick On, 11/4", #4 55, "CALL" 9737029 126049 Plate, Square, Stick On, 1 1/4", #4 SS, "ON" 9737133 124250 Plate, Square, Stick On, 1 1/4", #4 SS, "G" 9737303 124248 Plate, Square, Stick On, 1 1/4", #4 SS, "L" 9737285 124765 Plate, Square, Stick On, 11/4", #4 SS, "LL" 9737145 124762 Plate, Square, Stick On, 1 114", #4 55, "M" 9737030 124234 Plate, Square, Stick On, 11/4", #4 SS, "OPEN" 9737157 124247 Plate, Square, Stick On, 1 114", #4 SS, "P" 9716051 126496 Plate, Square, Stick On, 1 1/4", #4 SS, "PH" 9737054 126050 Plate, Square, Stick On, 1 114", #4 SS, "UP" 9737005 124237 Plate, Square, Stick On, 11/4", #4 55, Alarm Bell 9737042 124236 Plate, Square, Stick On, 11/4", #4 SS, Emergency Stop_Symbol

Owner's Manual

•

Car Braille

Part No. Print No. Description

9796927 124744 Plate, Square, Stick On, 11/4", #4 SS, "10" 9797026 124745 Plate, Square, Stick On, 1 1/4", #4 SS, "11" 9797129 124746 Plate, Square, Stick On, 1 1/4", #4 SS, "12" 9797221 124747 Plate, Square, Stick On, 11/4", #4 SS, "13" 9797324 124748 Plate, Square, Stick On, 1 1/4", #4 SS, "14" 9797427 124749 Plate, Square, Stick On, 1 1/4", #4 SS, "15" 9796629 124243 Plate, Square, Stick On, 1 1/4", #4 SS, "6" 9796721 124244 Plate, Square, Stick On, 1 1/4", #4 SS, "7" 9796824 124245 Plate, Square, Stick On, 1 1/4", #4 SS, "8" 9798043 124246 Plate, Square, Stick On, 1 1/4", #4 SS, "9" 9797520 124766 Plate, Square, Stick On, 1 1/4", #4 SS, "UL" 9737431 124743 Plate, Square, Stick On, 11/4", #4 SS, Door Close

Symbol

Car Braille

Part No. Print No. Description

9797828 Plate, Square, Stick On, 11/4", #4 SS, Door Close Rear Symbol

9797725 Plate, Square, Stick On, 11/4", #4 SS, Door Close Symbol

9797622 Plate, Square, Stick On, 11/4", #4 SS, Door Open Rear Symbol

Emergency Light

Part No. Print No. Description

9880148 118412 Card, Emergency Light And Alarm, Repair, Sub-Assy

9818420 118412 Card, Emergency Light And Alarm, Sub-Assy

r

-III!Iill

Owner's Manual

Emergency Light

Part No.

I

Print No.

_I

Description

9880719

I

108519

I

Emergency Light And Alarm Battery, 6 V

Emergency Light

Part No. Print No. Description

9787379 118414 Lens, Emergency Light And Alarm Assy 5.44" x 1.50"

Hall Braille

Part No. Print No. Description

9796710 169BK19 Plate, 4" x 4", B&W, "* 1" 9796812 Plate, 4" x 4", B&W, "* 2" 9796915 Plate, 4" x 4", B&W, "* 3" 9796514 169BK54 Plate, 4" x 4", B&W, "*G" 9796617 169BK55 Plate, 4" x 4", B&W, "*L"

- - - _ . _ - - - _ .

-..

Owner's Manual

Hall Braille

Part No. Print No. Description

9797014 169BKI Plate, 4" x 4", B&W, "1" 9797117 169BK2 Plate, 4" x 4", B&W, "2" 9797210 169BK3 Plate, 4" x 4", B&W, "3" 9797312 169BK4 Plate, 4" x 4", B&W, "4" 9797415 169BK5 Plate, 4" x 4", B&W, "5" 9797518 169BK6 Plate, 4" x 4", B&W, "6" 9797610 169BK7 Plate, 4" x 4", B&W, "7" 9797713 169BK8 Plate, 4" x 4", B&W, "8" 9797816 169BK9 Plate, 4" x 4", B&W, "9" 9798316 169BK20 Plate, 4" x 4", B&W, "B" 9797919 169BK21 Plate, 4" x 4", B&W, "G" 9798018 169BK22 Plate, 4" x 4", B&W, "L" 9798110 169BK30 Plate, 4" x 4", B&W, "LL" 9796022 169BK23 Plate, 4" x 4", B&W, "M" 9796125 169BK24 Plate, 4" x 4", B&W, "P" 9798213 169BK65 Plate, 4" x 4", B&W, "UL"

Hall Braille

Part No. Print No. Description

9894196 169AX29 Plate, Black Plastic, "0" (Zero) SUFFIX 9894469 169AX30 Plate, Black Plastic, "I" SUFFIX 9894470 169AX31 Plate, Black Plastic, "2" SUFFIX 9894482 169AX32 Plate, Black Plastic, "3" SUFFIX 9894494 169AX33 Plate, Black Plastic, "4" SUFFIX 9894500 169AX34 Plate, Black Plastic, "5" SUFFIX 9894512 169AX35 Plate, Black Plastic, "6" SUFFIX 9894524 169AX36 Plate, Black Plastic, "7" SUFFIX 9894536 169AX37 Plate, Black Plastic, "8" SUFFIX 9894548 169AX38 Plate, Black Plastic, "9" SUFFIX

Hall Braille

Part No. Print No. Description

9761020 169AX20 Plate, Black Plastic, "1" PREFIX 9761019 169AX21 Plate, Black Plastic, "2" PREFIX 9761007 169AX22 Plate, Black Plastic, "3" PREFIX 9760994 169AX23 Plate, Black Plastic, "4" PREFIX 9760982 169AX24 Plate, Black Plastic, "5" PREFIX 9760970 169AX25 Plate, Black Plastic, "6" PREFIX 9760969 169AX26 Plate, Black Plastic, "7" PREFIX 9894172 169AX27 Plate, Black Plastic, "8" PREFIX 9894184 169AX28 Plate, Black Plastic, "9" PREFIX

~

Owner's Manual

Hall Braille

Part No. Print No. Description

9894100 169AX1 Plate, Black Plastic, "A" 9761070 169AX2 Plate, Black Plastic, "B" 9894457 169AX3 Plate, Black Plastic, "C"

9894550 169AX4 Plate, Black Plastic, "D" 9894561 169AX5 Plate, Black Plastic, "E" 9894573 169AX6 Plate, Black Plastic, "F" 9761068 169AX7 Plate, Black Plastic, "G" 9894585 169AX9 Plate, Black Plastic, "L" 9761056 169AX9 Plate, Black Plastic, "L" 9761044 169AX10 Plate, Black Plastic, "M"

9894111 169AX11 Plate, Black Plastic, "N" 9894597 169AX12 Plate, Black Plastic, "0" ALPHA 9761032 169AX13 Plate, Black Plastic, "P" 9894123 169AX14 Plate, Black Plastic, "R" 9894135 169AX15 Plate, Black Plastic, "S" 9894147 169AX16 Plate, Black Plastic, "1"

9894159 169AX17 Plate, Black Plastic, "U" 9894160 169AX18 Plate, Black Plastic, "W" 9760957 169AX39 Plate, Black Plastic, STAR Symbol

Hall Braille

Part No. Print No. Description

9796502 139002 Plate, Square, 4" x 4", #4 SS, "1" 9796605 139003 Plate, Square, 4" x 4", #4 SS, "2" 9796708 139004 Plate, Square, 4" x 4", #4 SS, "3" 9796800 139005 Plate, Square, 4" x 4", #4 SS, "4" 9796903 139006 Plate, Square, 4" x 4", #4 SS, "5" 9797002 139007 Plate, Square, 4" x 4", #4 SS, "6" 9797105 139008 Plate, Square, 4" x 4", #4 SS, "7" 9797208 139009 Plate, Square, 4" x 4", #4 SS, "8" 9797300 139010 Plate, Square, 4" x 4", #4 SS, "9" 9797804 139013 Plate, Square, 4" x 4", #4 SS, "B" 9797403 139014 Plate, Square, 4" x 4", #4 SS, "G" 9797506 139012 Plate, Square, 4" x 4", #4 SS, "l" 9797609 139602 Plate, Square, 4" x 4", #4 SS, "ll" 9797907 139598 Plate, Square, 4" x 4", #4 SS, "M" 9798006 139011 Plate, Square, 4" x 4", #4 SS, "P" 9797701 139603 Plate, Square, 4" x 4", #4 SS, "Ul"

..

•

•

..

..

Owner's Manual

Hall Braille

Part No. Print No. Description

9796204 Plate, Square, Stick On, 4" x 4", #4 SS, ,,* I" 9796307 Plate, Square, Stick On, 4" x 4", #4 55, ,,* 2" 9796400 Plate, Square, Stick On, 4" x 4", #4 S5, ,,* 3"

Hall Braille

Part No. Print No. Description

9737169 124252 Plate, Square, Stick On, 4" x 4", #4 SS, "1" 9737182 124253 Plate, Square, Stick On, 4" x 4", #4 SS, "2" 9737200 124254 Plate, Square, Stick On, 4" x 4", #4 SS, "3" 9737212 124255 Plate, Square, Stick On, 4" x 4", #4 SS, "4" 9737224 124256 Plate, Square, Stick On, 4" x 4", #4 5S, "5" 9737236 124263 Plate, Square, Stick On, 4" x 4", #4 SS, "8" 9737248 124264 Plate, Square, Stick On, 4" x 4", #4 5S, "G" 9737297 124262 Plate, Square, Stick On, 4" x 4", #4 SS, "L" 9737273 124739 Plate, Square, Stick On, 4" x 4", #4 S5, "LL" 9737250 124735 Plate, Square, Stick On, 4" x 4", #4 SS, "M" 9737261 124261 Plate, Square, Stick On, 4" x 4", #4 5S, "P"

Hall Braille

Part No. Print No. Description

9796009 Plate, Square, Stick-On, 4" x 4", #4 SS,,,*G" 9796101 Plate, Square, Stick-On, 4" x 4", #4 5S,,,*L"

, - - -

-~

Owner's Manual

Hall Station

Part No.

I

Print No.

_I

Description

9856456

I

35645

I

Station, Hall Emergency Key

Traditional Lantern

Part No.

I

Print No. 1 Description

9722129

I

124081

I

Insert, Lantern

Traditional Lantern

Part No. Print No. Description

9753655 150080 Lantern, Car Riding, 24 V, Entrance Column_{Mounting, 4" x 10"}

Traditional Lantern

Part No. Print No. Description

9753667 150078 Lantern, Car Riding, 48 V, Entrance Column,_{Mounting, 4" x 10"}

..

..

..

Owner's Manual

Traditional Lantern

Part No. Print No. Description

9797452 FEG 12LTR45HIB Hall Lantern Assy WI Box, Horizontal, Intermediate, #455, 110 V, 31/2"x 9"

9797350 FED24LTR45 1HB Hall Lantern Assy WI Box, Horizontal, Intermediate, #455, 24 V, 31/2"x 9"

9797257 FEF48LTR451 HB Hall Lantern Assy WI Box, Horizontal, Intermediate, #455, 48 V, 31/2"x 9"

Traditional Lantern

Part No. Print No. Description

9797154 FEG12LTR45DHB Hall Lantern Assy WI Box, Horizontal, Terminal Down, #4 55, 110 V, 31/2"x 9"

9797051 FED24LTR45DHB Hall Lantern Assy WI Box, Horizontal, Terminal Down, #4 55, 24 V, 3 1/2" x 9"

9796952 FEF48LTR45DHB Hall Lantern Assy WI Box, Horizontal, Terminal Down, #4 55, 48 V, 3 1/2" x 9"

Traditional Lantern

Part No. Print No. Description

9796850 FEG 12LTR45UHB Hall Lantern Assy WI Box, Horizontal, Terminal Up, #4 55, 110 V, 31/2" x 9"

9796757 FED24LTR4SHUB Hall Lantern Assy WI Box, Horizontal, Terminal Up, #455, 24 V, 3 112" x 9"

9796654 FEF48LTR4SUHB Hall Lantern Assy WI Box, Horizontal, Terminal Up, #455, 48 V, 3 112" x 9"

Traditional Lantern

Part No. Print No. Description

9796551 FEG12LTR451VB Hall Lantern Assy WI Box, Vertical, Intermediate, #4 55, 110 V, 31/2"x 9"

9796459 FED24LTR451VB Hall Lantern Assy WI Box, Vertical, Intermediate, #4 55, 24 V, 31/2"x 9"

9796356 FEF48LTR4SIVB Hall Lantern Assy WI Box, Vertical, Intermediate, #4 SS, 48 V, 31/2"x 9"

~

Owner's Manual

Traditional Lantern

Part No.

Print No.

Description

9796253 FEG 12LTR4SDVB Hall Lantern Assy WI Box, Vertical, Terminal Down, #455, 110 V, 31/2"x 9"

9796150 FED24LTR45DVB _{#455,24 V, 3 1/2" x 9"}Hall Lantern Assy WI Box, Vertical, Terminal Down,

9796058 FEF48LTR45DVB Hall Lantern Assy WI Box, Vertical, Terminal Down, #455, 48 V, 3 1/2" x 9"

Traditional Lantern

Part No.

Print No.

Description

9798341 FEG 12LTR45UVB Hall Lantern Assy WI Box, Vertical, Terminal Up, #4 55,110 V, 31/2" x 9"

9798249 FED24LTR4SUVB Hall Lantern Assy WI Box, Vertical, Terminal Up, #4_{55, 24 V, 3 1/2" x 9"}

9798146 FEF48LTR45UVB Hall Lantern Assy WI Box, Vertical, Terminal Up, #4 55,48 V, 3 1/2" x 9"

Traditional Lantern

Part No.

I

Print No.

_I

Description

9730205

I

130204

I

Lens, Round, Hall

Traditional Lantern

Part No.

Print No.

Description

9872097 107208 Reflector, Combination Hall Lantern and Position Indicator

- I

..

..

•

Owner's Manual

Phone

Part No. [ Print No.

_I

Description

9738800

I

3019

I

Box, Phone, 5RH/LH #4 55 (phone not included)

Push Button

Part No.

I

Print No.

_I

Description

9840230

I

160644

I

Cap, Push Button, Clear,A0A

Push Button

Part No.

I

Print No.

_I

Description

9806349

I

106349

I

Halo, Push Button, Black

Push Button

Part No.

I

Print No.

_I

Description

9828230

I

42820

I

Halo, Push Button, White

©2010 THYSSENKRUPP ELEVATOR Traditional Signal Fixtures-15 Printed in USA February, 2010

-11Im

Owner's Manual

Push Button

Part No. Print Description No.

9883710 106734 Jewel, White, Vertical, "Fire Service"

9890683 160645 Push Button, White, ADA, Horiz, "lOBBY"

9890014 160645 Push Button, White, ADA, Vertical,"1" 9890210 160645 Push Button, White, ADA, Vertical, "10"

9890233 160645 Push Button, White, ADA, Vertical,"11"

9890257 160645 Push Button, White, ADA, Vertical,"12" 9890270 160645 Push Button, White, ADA, Vertical,"13" 9890294 160645 Push Button, White, ADA, Vertical,"14" 9890312 160645 Push Button, White, ADA, Vertical,"15" 9890051 160645 Push Button, White, ADA, Vertical,"2" 9890075 160645 Push Button, White, ADA, Vertical,"3" 9890099 160645 Push Button, White, ADA, Vertical,"4" 9890117 160645 Push Button, White, ADA, Vertical,"5" 9890130 160645 Push Button, White, ADA, Vertical,"6" 9890154 160645 Push Button, White, ADA, Vertical,"7" 9890178 160645 Push Button, White, ADA, Vertical,"8" 9890191 160645 Push Button, White, ADA, Vertical,"9"

9883101 106734 Push Button, White, Vertical,"10",replace WI9890210 9883113 106734 Push Button, White, Vertical,"11",replace WI9890233 9883125 106734 Push Button, White, Vertical,"12",replace WI9890257 9883137 106734 Push Button, White, Vertical, "13",replace WI9890270 9883149 106734 Push Button, White, Vertical,"14",replace WI9890294 9883150 106734 Push Button, White, Vertical, "15",replace WI9890312 9883034 106734 Push Button, White, Vertical,"3",replace WI9890075 9883046 106734 Push Button, White, Vertical,"4",replace WI9890099 9883058 106734 Push Button, White, Vertical, "5",replaceWI 9890117

9883060 106734 Push Button, White, Vertical, "6", replaceWI 9890130

9883071 106734 Push Button, White, Vertical,"7",replaceWI 9890154

9883083 106734 Push Button, White, Vertical,"8",replaceWI 9890178

9883095 106734 Push Button, White, Vertical,"9",replaceWI 9890191

9883381 106734 Push Button, White, Vertical, "Alarm", replaceWI 9890440

9883356 106734 Push Button, White, Vertical, "B", replaceWI 9890373

9883447 106734 Push Button, White, Vertical, "CAll", replaceWI 9890580

9883423 106734 Push Button, White, Vertical, "D", replaceWI 9890520

9883344 106734 Push Button, White, Vertical, "Door Close", replaceWI 9890350

9883368 106734 Push Button, White, Vertical, "Door Open", replaceWI 9890397

9883393 106734 Push Button, White, Vertical, "G", replaceW/9B90464

9883332 106734 Push Button, White, Vertical, "l", replaceWI 9890336

9883400 106734 Push Button, White, Vertical, "ll", replaceWI 9890488

9883186 106734 Push Button, White, Vertical, "P"

9883174 106734 Push Button, White, Vertical, "R"

9883721 106734 Push Button, White, Vertical, "Return"

9883162 106734 Push Button, White, Vertical, "SB"

9883435 106734 Push Button, White, Vertical, "Ul", replaceWI 9890567

G

..

..

•

Owner's Manual

Push Button

Part No. Print No. Description

9890002 160645 Push Button, White, ADA, Horizontal, "1" 9890208 160645 Push Button, White, ADA, Horizontal, "10" 9890221 160645 Push Button, White, ADA, Horizontal, "11" 9890245 160645 Push Button, White, ADA, Horizontal, "12" 9890269 160645 Push Button, White, ADA, Horizontal, "13" 9890282 160645 Push Button, White, ADA, Horizontal, "14" 9890300 160645 Push Button, White, ADA, Horizontal, "15" 9890026 160645 Push Button, White, ADA, Horizontal, "2" 9890063 160645 Push Button, White, ADA, Horizontal, "3" 9890087 160645 Push Button, White, ADA, Horizontal, "4" 9890105 160645 Push Button, White, ADA, Horizontal, "5" 9890129 160645 Push Button, White, ADA, Horizontal, "6" 9890142 160645 Push Button, White, ADA, Horizontal, "7" 9890166 160645 Push Button, White, ADA, Horizontal, "8" 9890180 160645 Push Button, White, ADA, Horizontal, "9" 9890440 160645 Push Button, White, ADA, Horizontal, "Alarm" 9890373 160645 Push Button, White, ADA, Horizontal, "B" 9890580 160645 Push Button, White, ADA, Horizontal, "Call" 9890520 160645 Push Button, White, ADA, Horizontal, "D" 9890350 160645 Push Button, White, ADA, Horizontal, "Door Close" 9890397 160645 Push Button, White, ADA, Horizontal, "Door Open" 9890464 160645 Push Button, White, ADA, Horizontal, "G" 9890336 160645 Push Button, White, ADA, Horizontal, "l" 9890488 160645 Push Button, White, ADA, Horizontal, "ll" 9890725 160645 Push Button, White, ADA, Horizontal, "LOBBY" 9890506 160645 Push Button, White, ADA, Horizontal, "M"

9890701 160645 Push Button, White, ADA, Horizontal, "RETURN" 9890427 160645 Push Button, White, ADA, Horizontal, "Send" 9890567 160645 Push Button, White, ADA, Horizontal, "Ul" 9840229 160645 Push Button, White, ADA, Horizontal, Blank

I

I-··_·-~---~···-~

Owner's Manual

Push Button

Part No. Print No. Description

9890439 160645 Push Button, White, ADA, Horizontal, "Alarm" 9890361 160645 Push Button, White, ADA, Horizontal, "B" 9890579 160645 Push Button, White, ADA, Horizontal, "Call" 9890518 160645 Push Button, White, ADA, Horizontal, "D" 9893428 106734 Push Button, White, ADA, Horizontal, "D" 9890348 160645 Push Button, White, ADA, Horizontal, "Door Close" 9890385 160645 Push Button, White, ADA, Horizontal, "Door Open" 9894421 160645 Push Button, White, ADA, Horizontal, "Fire

Service", Jewel Button

9890452 160645 Push Button, White, ADA, Horizontal, "G" 9890324 160645 Push Button, White, ADA, Horizontal, "l" 9890476 160645 Push Button, White, ADA, Horizontal, "ll" 9890490 160645 Push Button, White, ADA, Horizontal, "M" 9890403 160645 Push Button, White, ADA, Horizontal, "Send" 9890555 160645 Push Button, White, ADA, Horizontal, "Ul" 9840229 160645 Push Button, White, ADA, Horizontal, Blank 9893106 106734 Push Button, White, Horizontal, "10", replace WI

9890208

9893118 106734 Push Button, White, Horizontal, "11", replace WI 9890221

9893120 106734 Push Button, White, Horizontal, "12", replace WI 9890245

9893143 106734 Push Button, White, Horizontal, "14", replace WI 9890282

9893155 106734 Push Button, White, Horizontal, "15", replace WI 9890300

9893090 106734 Push Button, White, Horizontal, "9", replace WI 9890180

9893374 106734 Push Button, White, Horizontal, "Send", replace WI 9890403

9893430 106734 Push Button, White, Horizontal, "Ul", replace WI 9890555

Push Button

Part No. Print No. Description

9890658 160645 Push Button, White, ADA, Horizontal, Down Arrow 9890592 160645 Push Button, White, ADA, Horizontal, Up Arrow

2

V

··~···d···.

.. ..."

...

:j

..

Owner's Manual

Push Button

Part No. Print No. Description

9890671 160645 Push Button, White, ADA, Vertical, Down Arrow 9890609 160645 Push Button, White, ADA, Vertical, Up Arrow

Push Button

Part No. Print No. Description

9818431 171AP1 Switch, V7 Push Button, SPOT, 250 VAC, 10 A and 125 VDC, .5 A

•

•

•

..

Station Inspection

Part No.

I

Print No.

_I

Description

9890531

I

140158 !Inspection Station, Car Top

Switch Push

I

Pull

Part No. Print No. Description

9810857 108150 Switch Assy, Stop Horizontal, "Push Stop, Pull Run" 9810845 108155 Switch Assy, Stop Vertical, "PUSH STOP, PULL

RUN"

II!!Im

Owner's Manual

Switch Rotary

Part No. Print No. Description

9703019 32704 Switch, Rotary Kit, Contains 3 Position Switch, Bracket And Screws

9703032 32706 Switch, Rotary Kit, Contains 4 Position Switch, Bracket And Screws

Switch Rotary

Part No. Print No. Description

9737613 102761 Switch, Rotary, 3 Position, OFF-ON-ON, 0-45-90 deg, Hall Fire Service

Switch Rotary

Part No. Print No. Description

9777970 77797 Switch, Rotary, 4 Position, Off (12), On (3, 6, 9 O'Clock)

Switch Toggle

Part No. , Print No.

_I

Description

9743637

I

76703

I

Switch, Light, Snap-in

..

I~--Owner's Manual

•

..

Switch Toggle

Part No.

I

Print No.

_I

Description

9758495 , 141208 , Switch, Toggle, 3P, On-Off-On, 125 VAC, 15 A

Switch Toggle

Part No. Print No. Description

9826105 32610 Toggle Switch Kit, Spring Return, Contains Cam, Bracket, Switch and Screws

9826671 32667 Toggle Switch Kit, WI Bracket & Mounting Material &Cam

Switch Toggle

Part No.

I

Print No.

_I

Description

9826221

I

32622

I

Toggle Switch Kit, WI Bracket & Mounting Material

~

Owner's Manual

Traditional Faceplate

Part No. Print No. Description

9830200 130104 Faceplate, Intermediate, #4 Bronze, 3.50" X9.00",_{1.25" Dia. Button Cutouts} 9832609 32600 Faceplate, Intermediate, #4 SS, 3.50" X 9.00" 9830250 32600SP Faceplate, Intermediate, #8 SS, 3.50" X 9.00" 9830212 130103 Faceplate, Terminal, #4 Bronze, 3.50" X 9.00",

1.25" Dia. Button Cutouts

9832610 32601 Faceplate, Terminal, #4 SS, 3.50" X 9.0" 9830248 32601SP Faceplate, Terminal, #855,3.50" X 9.0"

Traditional Faceplate

Part No.

I

Print No.

_I

Description

9826919

I

32691 ) Faceplate, Terminal, #4 55, Midwest, Hall 5tation

Traditional Hall Station

Part No.

I

Print No.

_I

Description

9954181

I

C718M4

I

Hall Fire Service

Traditional Hall Station

Part No. Print No. Description

9828369 130148 Hall Fire Service, Includes 1 Device Hall StationWI 9832610 Faceplate And 35053 Box

..

..

..

Owner's Manual

Traditional Hall Station

Part No. Print No. Description

9810020 110029 Hall Station, Intermediate,WI Illuminated Buttons, #4 SS, 48 V, 3.5" x 9.0"

9810031 110031 Hall Station, Terminal,WI Illuminated Buttons, #4 SS, 48 V, 3.5" x 9.0"

Traditional Hall Station

Part No. Print No. Description

Window, for Emergency Key Box 9856456, printed 9856470 35647 "Elevator Key For Fire Department and Emergency

Use Only"

ELEVATOR

KEY

FOR FIRE DEPT. AND EMERGENCY USE ONLY

~

Owner's Manual

Traditional Key Core

Part No.

Print No.

Description

9821934 142193 Core, Key, 3 Position Car Fire Service Horizontal, HOLD (12) ON (3) FIRE (6) OFF (9)

9819629 130229 Core, Key, Black, LOBBY (12), ON (3), PARK (6) 9775626 117562 Core, Key, Car Fire Service, Red,Off (12), ON (3),

Fire (6)

9775614 117561 Core, Key, Hall Fire Service, Red, OFF-ON (12) to (1), Fire (6), Bypass (9)

9822987 108188 Core, Key, Rotary Key Switch, Black, Blank 9823062 32743 Core, Key, Rotary Switch, Black, EMERGENCY (12),

ON (3), POWER (6)

9823025 32751 Core, Key, Rotary Switch, Black, FAN (12), OFF (9) 9823074 32744 Core, Key, Rotary Switch, Black, LIGHT (12), FAN

(3), OFF (9)

9823037 32750 Core, Key, Rotary Switch, Black, LIGHT (12), OFF (9) 9823049 32741 Core, Key, Rotary Switch, Black, MG (12), OFF (3) 9822999 32758 Core, Key, Rotary Switch, Black, OFF (12) HI (3),

FAN (6), LOW (9), (2 Speed Fan) 9823013 32753 Core, Key, Rotary Switch, Black, ON (3)

9823001 32754 Core, Key, Rotary Switch, Black, ON (3), SERVICE (6), (Used For OutOfService)

9823050 32742 Core, Key, Rotary Switch, Black, Photo-Eye (12), OFF (9)

9753412 35341 Core, Key, Toggle Key Switch, Black (Replaces 9822987)

9832660 32665 Core, Key, Toggle Switch, Black, OFF (12), ON (3) 9822975 32665 Core, Key, Toggle Switch, Black, ON (3)

..

..

•

•

•

Owner's Manual

Traditional Key Switch

Part No. Print Description

No.

9720029 138520 Switch Assy, Key, V7, Horizontal, 1848, Car Call Re9ister 9720017 138521 Switch Assy, Key, V7, Horizontal, Hall Call, Terminal Register 9715952 138530 Switch, Key, Micro Switch, 1846, " In Car Stop"

9715976 138526 Switch, Key, V7, H2389 Key, 3 Pas, "Hall Fire Service,"_{Horizontal "Fire" "Bypass" "Off" "On"} 9772613 138532 _TilSwitch, Key, V7, Horizontal, H1846, Hoistway Access for DMC-I, 9772674 138537 Switch, Key, V7, Horizontal, H1846, Hoistway Access for Till 9772595 138527 Switch, Key, V7, Horizontal, H1846, Hoistway Access for WCR 9772418 138514 Switch, Key, V7, Horizontal, H1846, Inspection

9772558 138522 Switch, Key, V7, Horizontal, H1848, Hall Call Registration,_Intermediate 9719763 138519 Switch, Key, V7, Horizontal, H1848, Micro Switch, "Car Call_Lockout" 9772583 138525 Switch, Key, V7, Horizontal, H2389, Emergency Power 9772455 138533 Switch, Key, V7, Horizontal, H2389, Impulse, California Car Fire_{Service, "Off", "On", "Fire""} 9720637 138534 Switch, Key, V7, Horizontal, H2389, Impulse, California Hall Fire_{Service, "Off", "On", "Fire", "Bypass"} 9772649 138535 Switch, Key, V7, Horizontal, H2389, Impulse, Chicago Car Fire_{Service, "Off", "On"! "Fire'!} 9772650 138536 _{Service, "Fire"}Switch, Key, V7, Horizontal, H2389, Impulse, Chicago Hall Fire

1"On"1"Service"

9772716 138538 Switch, Key, V7, Horizontal, H2389, Impulse, Hall Fire Service,_{"Off", "On", "Fire"} 9772431 138528 Switch, Key, V7, Horizontal, H2395, 2-speed Fan

9772443 138529 Switch, Key, V7, Horizontal, H239S, Attendant Service 9772728 138539 Switch, Key, V7, Horizontal, H239S, Code Blue 9772546 138518 Switch, Key, V7, Horizontal, H239S, Door Hold Open 9772522 138517 Switch, Key, V7, Horizontal, H239S, Emergency Service 9772935 138511 Switch, Key, V7, Horizontal, H239S, Fan/Light 9772492 138510 Switch, Key, V7, Horizontal, H239S, Light

9772480 138512 SWitch, Key, V7, Horizontal, H239S, Light/2-speed Fan 9772560 138524 Switch, Key, V7, Horizontal, H239S, Lobby Park 9772601 138531 Switch, Key, V7, Horizontal, H239S, Lobby Return

9719775 138515 Switch, Key, V7, Horizontal, H239S, Micro Switch, "Independent Service"

9772420 138516 Switch, Key, V7, Horizontal, H2395, Photo-Eye 9772467 138540 Switch, Key, V7, Horizontal, H2395, Photo-Eye (front) 9772753 138543 Switch, Key, V7, Horizontal, H2395, Photo-Eye (lower) 9772479 138541 Switch, Key, V7, Horizontal, H2395, Photo-Eye (rear) 9772741 138542 Switch, Key, V7, Horizontal, H2395, Photo-Eye (upper)

~

Owner's Manual

Traditional

Key

Switch

Part No. Print No. Description

Switch, Key, V7, H2389 Key, Micro Switch, 3 Pas, 9715990 138513 "Car Fire Service," Vertical, "Off" "Hold" "On"

"Fire"

Traditional Push Button

Part No. Print No. Description

9822800 108301 Push Button Assembly, Marked" 1" 9822914 108310 Push Button Assembly, Marked "10" 9822811 108302 Push Button Assembly, Marked "2" 9822823 108303 Push Button Assembly, Marked "3" 9822835 108304 Push Button Assembly, Marked "4" 9822847 108305 Push Button Assembly. Marked "5" 9822859 108306 Push Button Assembly, Marked "6" 9822872 108307 Push Button Assembly, Marked "7" 9822884 108308 Push Button Assembly, Marked "8" 9822902 108309 Push Button Assembly, Marked "9" 9822938 108335 Push Button Assembly, Marked "B" 9822963 108339 Push Button Assembly, Marked "G" 9822940 108333 Push Button Assembly, Marked "L"

..

Owner's Manual

..

Traditional Key Switch Selection Chart

PART NO

DESCRIPTION

BEZEL

KEY

KEY PLUG

SPG

KEY

DEG

PRINT NO

POS

ROT

9772443

Attendant Service, H

138492

9703135

9719519

N

2

90

~

138529

H2395

660AC2

9772728

Code Blue, H

138508

9703135

9719519

y

2

45

~

138539

H2395

660AC2

9772546

Door Hold, H

138502

9703135

9719519

N

2

45

~

138518

H2395

660AC2

9772583

_{Emergency Power, H}

138493

9703196

660AC1

N

2

90

em

138525

H2389

9772522

_{Emergency Service, H}

138490

9703135

9719519

N

2

90

~

138517

H2395

660AC2

9719519

OFF

977243.1

_{Fan, 2 spd, H}

138507

9703135

N

3

180

~([)=

138528

H2395

660AC2

"'At'

9715990

Fire Service, Car, ANSI,

138487

9703196

660AC1

N

3

180

138513

Red, H

H2389

9772455

Fire Service, Car,

₁₃₈₅₀₄

9703196

_660AC1

_N

₂

₄₅

W

138533

California, Red, H

H2389

9772649

Fire Service, Car,

₁₃₈₅₀₄

9703196

_660AC1

_N

₂

₄₅

W

138535

Chicago, Red, H,

H2389

,.,--Fire Service, Hall, ANSI,

138486

9703196

660AC1

N

3

135

Red,H

H2389

9720637

Fire Service, Hall,

138486

9703196

660AC1

N

3

135

138534

California, Red, H

H2389

•

Fire Service, Hall,

9703196

~

138509

660AC1

N

2

45

Chicag(}, Red, H

H2389

9772716

Fire Service, Hall, 2

138504

9703196

660ACl

N

2

90

W

138538

position, Red, H

H2389

:

..

•

II!fEI

·

32

Owner's Manual

Traditional Key Switch Selection Chart (cont.)

..

PART NO

DESCRIPTION

BEZEL

KEY

KEY PLUG

SPG

KEY

DEG

PRINT NO

POS

ROT

9772613

Hoistway Access, DMC,

138491

9731064

9845641

Y

3

90

~

138532

T2, H

H1846

660AD1

~~

9772674

Hoistway Access,

n,

138491

9731064

9845641

y

₃

₉₀

~

138537

T4, H

H1846

660AD1

"ce~

9772595

Hoistway Access, WCR,

9731064

9845641

~

138527

H

138491

H1846

660AD1

Y

3

90

"ce~

9772418

Hoistway Enable,

₁₆₀₅₀₄

9731064

9845641

_N

2

90

~

138514

(Inspection), H

H1846

660AD1

9719775

Independent Service, H

138489

9703135

9719519

N

2

90

~

138515

H2395

660AC2

9772492

_{Light, H}

₁₃₈₄₉₆

9703135

9719519

N

2

90

ID

138510

H2395

660AC2

9772935

9703135

9719519

OIF"

138511

LightFan,H

138497

H2395

660AC2

N

3

180

~CD!

FA"

9772480

_{Light 2spd Fan, H}

₁₃₈₄₉₈

9703135

9719519

_N

4

270

@)

138512

H2395

660AC2

~R'f.

9772560

Lobby Park, H

138499

9703135

9719519

N

2

90

~

138524

H2395

660AC2

9772601

_{Lobby Return, H}

₁₃₈₄₉₅

9703135

9719519

_y

2

45

@

138531

H2395

660AC2

9719763

Lockout, Car Call, H

138494

9703391

660AD2

N

2

90

@

~ I

138519

H1848

9719763

Lockout, Hall Call, H

138494

9703391

660AD2

N

2

90

~

138523

H1848

9772420

_{Photoeye, H}

138500

9703135

9719519

_N

2

90

~

138516

H2395

660AC2

..

9772467

138505

9703135

9719519

~

138540

Photoeye Front, H

H2395

660AC2

N

2

90

Owner's Manual

..

Traditional Key Switch Selection Chart (cont.)

PART NO

DESCRIPTION

BEZEL

KEY

KEY PLUG

SPG

KEY

DEG

PRINT NO

POS

ROT

..

_9772479

₁₃₈₅₀₆

_9703135

_9719519

@J

138541

Photoeye Rear, H

H2395

660AC2

N

2

90

9772753

Photoeye Lower, H

138545

9703135

9719519

N

2

90

138543

H2395

660AC2

9772741

Photoeye Upper, H

138544

9703135

9719519

N

2

90

CW)

..

138542

H2395

660AC2

9720029

Registration, Car Call, H

138494

9703391

660AD2

y

₂

₄₅

@

138520

H1848

9772558

Registration, Hall Call,

138501

9703391

660AD2

Y

3

90

@)

138522

Intermediate, H

H1848

'.

9720017

Registration, Hall Call,

138494

9703391

_660AD2

_y

₂

₄₅

@

138521

Terminal, H

H1848

9715952

_Stop,Car,H

138503

9731064

9845641

N

2

90

@)

H1846

660AD1

..

1-~

Owner's Manual

This page

intentionally

left blank.

..

•

- - -

-..

Owner's Manual

..

Vandal Resistant

Signal Fixtures

Vandal Resistant Pushbutton Kit. . . .. 2

Pushbutton Assembly. . . .. 3

Vandal Resistant Lantern and Position Indicator

4

Vandal Resistant Lantern Intermediate. . . .. 5

Vandal Resistant Call Register Light . . . .. 6

1 - - - -

~---I!fIm

Owner's Manual

Vandal Resistant Pushbutton Kit

Easyriser #3101

..

ITEM

1

2

3

4

5 6 7

8

6

PART NO. PRINT NO.

161089

161072

161071

161085

138594

138593 138590

138592

138588

/,,~

(2)

"

'--/~

DESCRIPTION

Contact Base Assembly Pushbutton, Vandal Resistant Shim, Metal

Halo, Vandal Resistant Ring, Retaining, 1.25" Ring, Retaining, .875"

Halo Ring, Pushbutton, Stainless Steel

Pushbutton, Stainless Steel, Vandal Resistant w/jewel Pushbutton, Stainless Steel, Vandal Resistant wo/jewel

..

Owner's Manual

Vandall Resistant Pushbutton Assembly

#138585 Illuminated

#138586 Non-Illuminated

5

•

ITEM 1 2 3 4 5 6 7 8 9

PART NO. PRINT NO.

138592 138588 138590 138593 138594 130595 129BC1 228AF2 292AA1 292AA1 DESCRIPTION

Pushbutton, Stainless Steel, Vandal Resistant w/jewel Pushbutton, Stainless Steel, Vandal Resistant wo/jewel

Halo Ring Pushbutton, SS Ring, Retaining, .875" Ring, Retaining, 1.25"

Halo, PushbuttonVandalResistant Base, Mounting

Cam, Switch Cap, Switch Switch, SPOT

- - -

-I!f.Im

Owner's Manual

Vandal Resistant Lantern

and Position Indicator

..

•

~

•

•

1

2

3

4

•

ITEM

PART NO.

PRINT NO.

DESCRIPTION

1 Faceplate (Custom Order for No. Landings) 2 160629 Bracket, Jewel Mounting

3 138316 Holder, Jewel

4 138313 Jewel, Red

138315 Jewel, Green

5 9727190 107189 Lamp, Wedgebase, 28V 6 9711065 110608 Lampholder, 24V

9778147 108149 Lampholder w/resistor, 48V (Uses 28V Lamp above.)

7 160591 Gong Assembly, 24V

160590 Gong Assembly, 48V

- - -

-Owner's Manual

Vandal Resistant Lantern

Intermediate

Terminal

ITEM PART NO. PRINT NO. DESCRIPTION

1 160861 Faceplate, Terminal, #4 SS 160862 Faceplate, Terminal, #8 SS 160863 Faceplate, Terminal, #4 Muntz 160864 Faceplate, Terminal, #8 Muntz 2 160865 Faceplate, Intermediate, #4 SS

160866 Faceplate, Intermediate, #4 SS 160867 Faceplate, Intermediate, #4 Muntz 160868 Faceplate, Intermediate, #8 Muntz 3 160629 Bracket, Jewel Mounting

4 138316 Holder, Jewel

5 138313 Jewel, Red

138315 Jewel, Green

6 160511 Fastening Kit, #4 SS

160512 Fastening Kit, #8 SS 160513 Fastening Kit, #4 Muntz

..

160514 Fastening Kit, #8 Muntz

7 160591 Gong Assembly, 24V (Not Shown) 160590 Gong Assembly, 48V (Not Shown)

I!!rm

Owner's Manual

Vandal Resistant Call Register Light

#6300KJ1 24 VDC

#6300KJ2 48 VDC

#6300KJ3 115 VAC

- - - _...- -~-~

~---Owner's Manual

•

•

..

..

_..

Signa

4

2004 Fire Service Panel 176CL

2

Fire Service Panel 176CF " . . . .. 6

Fire Insert Lens 130CL . . . .. 7

Car Riding Lantern 556EB

9

Telephone Kit 200AFA

11

Button Assembly 680AX

"

12

P.

I.

and Emergency Light Panel 176CG

"

14

Discrete Position Indicator Kit 200AFB . . . .. 15

Discrete Position Indicator Display 178ME1

17

LON Electronic Position Indicator 178LP7

18

CAN Position Indicator 178ME2 and LON Position Indicator 178ME4 . . .. 19

Fire Phone Jack with Bezel Assembly

(Hall or Car

=>

2004 Fire Code 128BW1 / 128BW3

20

2000 Fire Phone Jack with Bezel Assembly

(Car

<=

2000 Fire Code) 128BW2 / 128BW4

20

Light Fixture Assembly, Hall, Round Terminal and Intermediate 555DM .. 21

Light Fixture Assembly, Hall, Arrows Terminal and Intermediate 555DM . 23

Hall Station Assembly 8503AN_1

25

Hall Station Assembly 8503AN_2

27

Hall Station Assembly 8503AN_3

29

Hall Station Assembly 8503AN_4

31

Hall Station Assembly 8503AN_5

33

Trademark Panel Faceplate Assembly 141HV

35

Car Key Switches

36

Hall Key Switches . . . .. 43

Key Switch Bezels . . . .. 47

Key Core Bezels

50

French Key Core Bezels

56

Push Button Inserts

58

DMG Contact Block Removal Procedure

, 51

IZfIm

Owner's Manual

2004 Fire Service Panel

176CL

Front and Rear Opening Assembly

5

2

J---t+f-JI'" ITEM 1 2

19

,

PART NO. PRINT NO.

168FHl 141KM2 141KM51 141KM31 141KM7 141KM52 141KM32 141KM8 141KM53 141KM33 141KM9 141KM54 141KM34 141KMlO 141KM4

15

Front Opening Assembly

DESCRIPTION

Frame Assembly, 2004 Fire Service

Faceplate, locked Compartment Door, ASME, lH, #4 SS Faceplate, locked Compartment Door, ASME, lH, #4 SS, French Faceplate, locked Compartment Door, ASME, LH, #4 SS, No Smoking Faceplate, Locked Compartment Door, ASME, LH, #8 SS

Faceplate, Locked Compartment Door, ASME, LH, #8 SS, French Faceplate, Locked Compartment Door, ASME, LH, #8 SS, No Smoking Faceplate, Locked Compartment Door, ASME, LH, #4 Muntz Metal Faceplate, Locked Compartment Door, ASME, LH, #4 Muntz Metal, French Faceplate, Locked Compartment Door, ASME, LH, #4 Muntz Metal, No Smoking

Faceplate, Locked Compartment Door, ASME, LH, #8 Muntz Metal Faceplate, Locked Compartment Door, ASME, LH, #8 Muntz Metal, French Faceplate, Locked Compartment Door, ASME, LH, #8 Muntz Metal, No Smoking

Faceplate, Locked Compartment Door, ASME, LH, Special Metal Faceplate, Locked Compartment Door, Mass.-LH, #4 SS

Owner's Manual

2004 Fire Service Panel

(continued)

ITEM PART NO. PRINT NO. DESCRIPTION

141KM36 Faceplate, Locked Compartment Door, Mass.-LH, #4 SS, No Smoking 141KM17 Faceplate, Locked Compartment Door, Mass.-LH, #8 SS

2 141KM37 Faceplate, Locked Compartment Door, Mass.-LH, #8 SS, No Smoking 141KM18 Faceplate, Locked Compartment Door, Mass.-LH, #4 Muntz Metal 141KM38 Faceplate, Locked Compartment Door, Mass.-LH, #4 Muntz Metal,

No Smoking

141KM19 Faceplate, Locked Compartment Door, Mass.-LH, #8 Muntz Metal 141KM39 Faceplate, Locked Compartment Door, Mass.-LH, #8 Muntz Metal,

No Smoking

141KM20 Faceplate, Locked Compartment Door, Mass.-LH, Special Metal 141KM40 Faceplate, Locked Compartment Door, Mass.-LH, Special Metal,

No Smoking

141KM21 Faceplate, Locked Compartment Door, ASME, RH, #4 SS 141KM55 Faceplate, Locked Compartment Door, ASME, RH, #4 SS, French 141KM41 Faceplate, Locked Compartment Door, ASME, RH, #4 SS, No Smoking 141KM22 Faceplate, Locked Compartment Door, ASME, RH, #8 SS

141KM56 Faceplate, Locked Compartment Door, ASME, RH, #8 SS, French 141KM42 Faceplate, Locked Compartment Door, ASME, RH, #8 SS, No Smoking 141KM23 Faceplate, Locked Compartment Door, ASME RH, #4 Muntz Metal 141KM57 Faceplate, Locked Compartment Door, ASME RH, #4 Muntz Metal, French 141KM43 Faceplate, Locked Compartment Door, ASME RH, #4 Muntz Metal,

No Smoking

141KM24 Faceplate, Locked Compartment Door, ASME RH, #8 Muntz Metal

Ie

141KM58 Faceplate, Locked Compartment Door, ASME RH, #8 Muntz Metal, French 141KM44 Faceplate, Locked Compartment Door, ASME RH, #8 Muntz Metal,

No Smoking

141KM25 Faceplate, Locked Compartment Door, ASME RH, Special Metal

141KM45 Faceplate, Locked CompartmentDoor,ASME RH, Special Metal, No Smoking 141KM26 Faceplate, Locked Compartment Door, Mass.-RH, #4 SS

141KM46 Faceplate, Locked Compartment Door, Mass.-RH, #4 SS, No Smoking 141KM27 Faceplate, Locked Compartment Door, Mass.-RH, #8 SS

141KM47 Faceplate, Locked Compartment Door, Mass.-RH, #8 SS, No Smoking 141KM28 Faceplate, Locked Compartment Door, Mass.-RH, #4 Muntz Metal 141KM48 Faceplate, Locked Compartment Door, Mass.-RH, #4 Muntz Metal,

No Smoking

141KM29 Faceplate, Locked Compartment Door, Mass.-RH, #8 Muntz Metal 141KM49 Faceplate, Locked Compartment Door, Mass.-RH, #8 Muntz Metal,

No Smoking

!:-

141KM30 Faceplate, Locked Compartment Door, Mass.-RH, Special Metal 141KM50 Faceplate, Locked Compartment Door, Mass.-RH, Special Metal,

I No Smoking

3 562AMI Keyswitch, A17.1, Key No. 204

Bill

Owner's Manual

2004 Fire Service Panel

(continued)

ITEM PART NO. PRINT NO. DESCRIPTION

562AM2 Keyswitch, South Carolina 562AM4 Keyswitch, Arizona 562AM5 Keyswitch, Rhode Island 562AM6 Keyswitch, Ontano, Canada 562AM7 Keyswitch, Florida Region 1 562AM8 Keyswltch, Florida Regions 2 3 562AM9 Keyswitch, Florida Region 3

562AMlO Keyswitch, Florida Region 4 562AMll Keyswitch, Florida Region 5 562AM12 Keyswitch, Florida Region 6 562AM13 Keyswitch, Florida Region 7

562AN3 Keyswitch, Massachusetts, New Hampshire, New Jersey, RH 562AN4 Keyswitch, Massachusetts, New Hampshire, New Jersey, LH (Shown) 4 700514 FS, Screw, MSPS. 164(#8) .375

5 580AEDI Marker, Overlay, 2004 Fire Service, Top Half 580AE03 Marker, Overlay, 2004 Fire Service, Top Half (French) 6 580AED2 Marker, Overlay, 2004 Fire Service, Lower Half

580AED4 Marker, Overlay, 2004 Fire Service, Lower Half (French) 7 9873537 393DK2 FS, Nut, Self-Threading

8 9734739 172CG2 Box

9 128BV2 Bezel, Red, Fire Service, Reset/Off/On, Massachusetts, New Hampshire, New Jersey

128BP76 Bezel, Keycore, Red, Off/Hold/On, A17.1 128BY31 Bezel, Keycore, Red, Off/Hold/On, A17.1 (French) 128BP86 Bezel, Keycore, Red, Off/Hold/On, AI7.1, Florida

10 See Keyswitch Parts Page

11 9852364 660BNl Plug, Plastic, Black

12 9810845 108155 Stop Assembly, Stop/Run, Vertical 13 680AP3 Jewel, Assembly, Fire Hat

14 680AV45 Push Button Assembly, Open Door, Microban 680B024 Push Button Assembly, Open Door, Microban (French) 15 680AV46 Push Button Assembly, Close Door, Microban

680B025 Push Button Assembly, Close Door, Microban (French) 16 680AV47 Push Button Assembly, Close Door Front, Microban

680B026 Push Button Assembly, Close Door Front, Microban (French) 17 680AV48 Push Button Assembly, Close Door Rear, Microban

680B027 Push Button Assembly, Close Door Rear, Microban (French)

18 680AV49 Push Button Assembly, Open Door Front, Microban

..

680B028 Push Button Assembly, Open Door Front, Microban (French)

19 680AV50 Push Button Assembly, Open Door Rear, Microban 680B029 Push Button Assembly, Open Door Rear, Microban (French)
