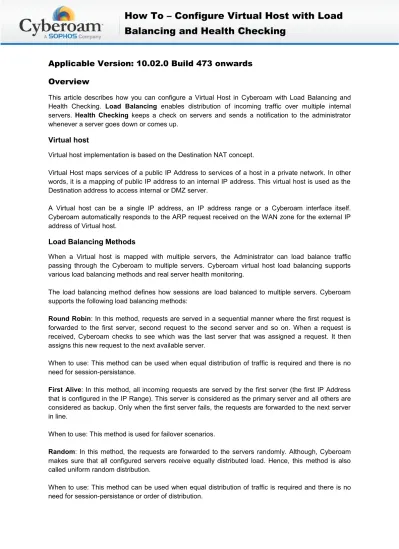

Applicable Version: 10.02.0 Build 473 onwards
Overview
This article describes how you can configure a Virtual Host in Cyberoam with Load Balancing and Health Checking. Load Balancing enables distribution of incoming traffic over multiple internal servers. Health Checking keeps a check on servers and sends a notification to the administrator whenever a server goes down or comes up.
Virtual host
Virtual host implementation is based on the Destination NAT concept.
Virtual Host maps services of a public IP Address to services of a host in a private network. In other words, it is a mapping of public IP address to an internal IP address. This virtual host is used as the Destination address to access internal or DMZ server.
A Virtual host can be a single IP address, an IP address range or a Cyberoam interface itself.
Cyberoam automatically responds to the ARP request received on the WAN zone for the external IP address of Virtual host.
Load Balancing Methods
When a Virtual host is mapped with multiple servers, the Administrator can load balance traffic passing through the Cyberoam to multiple servers. Cyberoam virtual host load balancing supports various load balancing methods and real server health monitoring.
The load balancing method defines how sessions are load balanced to multiple servers. Cyberoam supports the following load balancing methods:
Round Robin: In this method, requests are served in a sequential manner where the first request is forwarded to the first server, second request to the second server and so on. When a request is received, Cyberoam checks to see which was the last server that was assigned a request. It then assigns this new request to the next available server.
When to use: This method can be used when equal distribution of traffic is required and there is no need for session-persistance.
First Alive: In this method, all incoming requests are served by the first server (the first IP Address that is configured in the IP Range). This server is considered as the primary server and all others are considered as backup. Only when the first server fails, the requests are forwarded to the next server in line.
When to use: This method is used for failover scenarios.
Random: In this method, the requests are forwarded to the servers randomly. Although, Cyberoam makes sure that all configured servers receive equally distributed load. Hence, this method is also called uniform random distribution.
When to use: This method can be used when equal distribution of traffic is required and there is no need for session-persistance or order of distribution.
Balancing and Health Checking
Sticky IP: In this method, along with Round Robin distribution of traffic, Cyberoam forwards incoming traffic according to the Source IP Address. All traffic from a particular source is forwarded only to its mapped Server. This means that all requests for a given source IP are sent to the same application server instance.
When to use: This method is useful in cases where all requests or sessions are required to be processed by the same server. For example, Banking websites, E-Commerce websites.
Health Check
The Health Check feature monitors servers and sends a notification to the administrator when the status of any of the servers changes. This ensures that the requests are forwarded only to servers that are up and running. For Health Check, Cyberoam uses two methods: TCP Probe and ICMP Probe.
Scenario
Consider a hypothetical network, as shown in the diagram below, with Web Servers 1, 2 and 3 hosted in DMZ and are accessed from the Internet using a single Public IP address 204.88.128.93, i.e., Cyberoam WAN IP. In this article, we create a virtual host for the Web Servers to implement Load Balancing and Health Checking.
Configuration
The entire configuration is to be done from Web Admin Console using profile having read-write administrative rights over relevant features.
Step 1: Configure Virtual Host
Go to Firewall > Virtual Host > Virtual Host and click Add to create a virtual host with parameters given below.
Parameter Description
Parameter Value Description
Name WebServers Name to identify the Virtual Host.
External IP PortB – 204.88.128.93 The IP address through which Internet users access the internal server/host.
Mapped IP 192.168.1.10-
192.168.1.12
The IP Range of the internal servers/hosts.
Please note that Load Balancing and Health Check can only be configured on an IP Range.
Physical Zone DMZ
LAN, WAN, DMZ, VPN or custom zone of the mapped IP address(s). For example, if mapped IP address represents any internal server then it is the zone in which server resides physically.
Port Forwarding
Enable Port Forwarding Enabled
Click to enable service port forwarding. If Port Forwarding is enabled, following options are available.
Protocol TCP Select the protocol TCP or UDP that you
want the forwarded packets to use.
External Port Type Port Click to specify whether port mapping should be single or range of ports.
External Port 80 Specify public port number for which you want to configure port forwarding.
Mapped Port Type Port Click to specify whether port mapping should be single or range of ports.
Mapped Port 80
Specify mapped port number on the destination network to which the public port number is mapped.
Enable Load Balancing Enabled
Click to enable load balancing. This option is available if incoming traffic is to be distributed to more than one internal server
Method Round Robin
Select the method for load balancing from the available options.
Available Options:
Round Robin
First Alive
Random
Sticky IP
For details on each method, refer to the Load Balancing Methods section.
Enable Health Check
(For Failover) Enabled
Click to enable checking for failover. By default, this feature is enabled for First Alive Load Balancing method. For other methods, it is optional.
Health Check Method ICMP Probe
Select the method to check the health of the server from the available options: TCP Probe and ICMP Probe.
Interval 60 Specify the time interval in seconds after which the health will be monitored.
Timeout 2 Specify the time interval in seconds within
which the server must respond.
Retries 3
Specify the number of tries to probe the health of the server, after which the server will be declared unreachable
Step 2: Create Firewall Rule(s) to Allow Access to Web Servers from Other Zones
On clicking OK, the Add Firewall Rules For Virtual Host screen appears which enables you to create rules to allow access to the Web Servers from other zones. Enable Add Firewall Rule(s) For Virtual Host.
Set rule parameters as desired. Here, we have created a rule which allows access to the Web Servers from WAN zone.
Select Yes for Create Reflexive Rule.
The above configuration allows access to Web Servers from Internet and implements Load Balancing and Health Checking.
Step 3: Verify Firewall Rules
You can verify the Firewall Rules from Firewall > Rule > Rule, as shown below.
Document Version: 2.3 – 21 March, 2014
