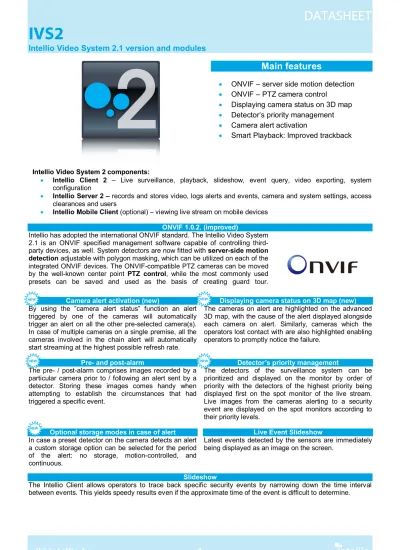

DATASHEET
IVS2
Intellio Video System 2.1 version and modules
wiki.intellio.hu
1
Main features
ONVIF – server side motion detection
ONVIF – PTZ camera control
Displaying camera status on 3D map
Detector’s priority management
Camera alert activation
Smart Playback: Improved trackback
Intellio Video System 2 components:
Intellio Client 2 – Live surveillance, playback, slideshow, event query, video exporting, system
configuration
Intellio Server 2 – records and stores video, logs alerts and events, camera and system settings, access
clearances and users
Intellio Mobile Client (optional) – viewing live stream on mobile devices
ONVIF 1.0.2. (improved)
Intellio has adopted the international ONVIF standard. The Intellio Video System 2.1 is an ONVIF specified management software capable of controlling third-party devices, as well. System detectors are now fitted with server-side motion
detection adjustable with polygon masking, which can be utilized on each of the
integrated ONVIF devices. The ONVIF-compatible PTZ cameras can be moved by the well-known center point PTZ control, while the most commonly used presets can be saved and used as the basis of creating guard tour.
Camera alert activation (new)
By using the ”camera alert status” function an alert triggered by one of the cameras will automatically trigger an alert on all the other pre-selected camera(s). In case of multiple cameras on a single premise, all the cameras involved in the chain alert will automatically start streaming at the highest possible refresh rate.
Displaying camera status on 3D map (new)
The cameras on alert are highlighted on the advanced 3D map, with the cause of the alert displayed alongside each camera on alert. Similarly, cameras which the operators lost contact with are also highlighted enabling operators to promptly notice the failure.
Pre- and post-alarm
The pre- / post-alarm comprises images recorded by a particular camera prior to / following an alert sent by a detector. Storing these images comes handy when attempting to establish the circumstances that had triggered a specific event.
Detector’s priority management
The detectors of the surveillance system can be prioritized and displayed on the monitor by order of priority with the detectors of the highest priority being displayed first on the spot monitor of the live stream. Live images from the cameras alerting to a security event are displayed on the spot monitors according to their priority levels.
Optional storage modes in case of alert
In case a preset detector on the camera detects an alert a custom storage option can be selected for the period of the alert: no storage, motion-controlled, and continuous.
Live Event Slideshow
Latest events detected by the sensors are immediately being displayed as an image on the screen.
Slideshow
The Intellio Client allows operators to trace back specific security events by narrowing down the time interval between events. This yields speedy results even if the approximate time of the event is difficult to determine.
NEW NEW
NEW NEW
DATASHEET
IVS2
Intellio Video System 2.1 version and modules
wiki.intellio.hu
2
Technical Data Sheet
There are features which are not supported by the ILS-BASE basic module by default. These features has grey background in the table below and can be purchased as added modules or licenses to ILS-BASE.
Recording
Number of Intellio cameras / NVR
(IVS-INT-1)
Maximum 80 cameras
(ILS-BASE supports 1 by default)
Number of ONVIF cameras and encoders / NVR (IVS-OCS-1)
Maximum 40 cameras
(ILS-BASE supports 1 by default)
Compression Intellio Video Codec, MPEG4, H.264, MJPEG
Storage capacity 24TB / server
Real-Time Recording speed 1200 fps / server
Event storing capacity 360 days
Storage Rules
Unlimited number of storage groups, Required days to store, Maximum allowed days to store, Maximum recording speed, Pre-/Post-alarm time (max. 4sec), Storage even during no motion, Week scheduler, Exceptions (handling high days and unique time intervals), Optional storage mode in case of an alarm
Archive Management up to 10 TB
Export
Export possibilities Snapshot, Video footage export, Data export
Video Formats Intellio Video Codec, MPEG-4, H.264 (AVI)
Image Formats BMP, JPEG, PNG
Data Formats *.CSV (Excel), *.TXT (Text), MySQL (SQL)
Visual Interface
Monitoring 40 Cameras simultaneously (in 2 monitors)
Layouts 10pcs 4:3 layouts (max. 4×4 cameras), 10pcs 16:9 layouts (max. 5×4 cameras)
Min/Max Resolution Min.: 1024×768; Max: 2560×1600
No. of monitors 2 Monitors / Client
Playback 1×-2×-4×-10×-20×-30× times playback from maximum 16 cameras simultaneously
Smart Playback
(IVS-SPB) Posterior event detection based on saved tracker metadata, Listing detected events
Monitor Wall Support
(IVS-MTW) Remote control of monitors, Select views, Select cameras
Saved Views Unlimited number of saved views, Sequence of saved views in the set order
PTZ Control Vector based PTZ control, Center point based PTZ control, Intelligent 3D Map based PTZ control
Slideshow Improves event trace back, from maximum 4 Cameras simultaneously
3D Map
DATASHEET
IVS2
Intellio Video System 2.1 version and modules
wiki.intellio.hu
3
System Architecture
Multi-Server Site Support
(IVS-SITE) Maximum 4 Servers can be Connected within one Site
Load Balancing
Load Balancing divides the network load evenly among servers. By enabling this feature the servers storage use will be more balanced out while the system's overall reliability improves, and response times become shorter.
Camera Take Over
This feature ensures that in the event of a server failure recording is not interrupted. Other servers within the site automatically take over the cameras of the failed server for recording.
Domain Support (IVS-DOMAIN)
Connecting individual sites into domain through wide area networks makes possible of monitoring all of the cameras of all of the sites from one interface.
No. of connected Clients Limited to maximum 5 client connections per server at the same time
(IVS-CLS-U) Unlimited
No. of connected Mobile Clients
(IVS-MBL)
Unlimited
No. Of users Maximum 2
(IVS-USR-U) Unlimited users
Actions
I/O Actions Camera I/O control, controlling the I/O port of multi I/O device connected to the server
Partitions Detector scheduling, Grouping several actions
Alert actions Send E-mail, Go to PTZ preset, Log events into database, Launch program, Camera alarm state action
Integration
Intellio Video SDK (IVS-SDK)
Live feed, Recorded feed, Alerts, Technical events transfer to 3rd party systems, Display live video feed using web interface
ONVIF PTZ control: save presets, guard tour, on-board and server side motion detection
Server-side VCA
License Plate Recognition
(IVS-ANPR) 4 cameras / server
VisiScanner
DATASHEET
IVS2
Intellio Video System 2.1 version and modules
wiki.intellio.hu
4
Optional Accessories
IVR-80-RACK IVR-40/40-RACK IVC-40-DSKT IVR-NAS-1U
IVS2 Modules
Name Type
IVS-BASE Intellio Video System 2 basic module* module IVS-INT-1 Intellio camera license license IVS-OCS-1 ONVIF camera and encoder license license IVS-VPC1 VisiScanner retail camera license license IVS-VSCR1 VisiScanner face analytics camera license license IVS-CLS-U Unlimited client connection support module IVS-USR-U Unlimited user support module IVS-PTZ Center point PTZ control module
IVS-SITE Site support module
IVS-DOMAIN Domain support module
IVS-MAP 3D Map module
IVS-MBL Mobile Client support module IVS-SPB Smart Playback support module
IVS-ANPR ANPR support module
IVS-MTW Monitor Wall support module
IVS-SDK SDK support module
IVS-DATA VisiScanner customer analytics and people
counter SQL server module
* The IVS-BASE basic module supports the following features: Live monitoring, Recording, Playback, Event Query, setting different storage rules, Slideshow, Actions and I/O events. The basic module supports 5 client connections per Site and 2 predefined global users (Administrator, Operator) whom user roles can be modified based on demand. The IVS-BASE basic module supports one Intellio camera and one ONVIF camera or encoder by default. More cameras / encoders can be handled by having more licenses (IVS-INT-1 / IVS-OCS-1).
DATASHEET
IVS2
Intellio Video System 2.1 version and modules
wiki.intellio.hu
5
Examples for typical projects
Intellio Video System 2 with the following: 25 Intellio cameras, 3 ONVIF camera support, 5 client connections simultaneously, Maximum 2 different users, Center point PTZ control, mobile client support, Smart Playback support:
IVS-BASE Intellio Video System 2 basic module 1 module IVS-INT-1 Intellio camera license 24 IVS-OCS-1 ONVIF camera and encoder license 2 IVS-PTZ Center point PTZ control 1 module IVS-MBL Mobile Client support 1 module IVS-SPB Smart Playback support 1 module
2 server Site, 150 Intellio cameras, 10 ONVIF cameras, unlimited number of client connections, Unlimited users, Center point PTZ control, Mobile Client support, Smart Playback support:
IVS-BASE Intellio Video System 2 basic module 2 modules
IVS-SITE Site support 2 modules
IVS-INT-1 Intellio camera license 149 IVS-OCS-1 ONVIF camera and encoder license 9 IVS-CLS-U Unlimited client connection support 2 modules IVS-USR-U Unlimited user support 2 modules IVS-PTZ Center point PTZ control 2 modules IVS-MBL Mobile Client support 2 modules IVS-SPB Smart Playback support 2 modules
System Requirements
Intellio Client 2 System Requirements:
Windows VISTA SP2, Windows 7 operation system Core 2 Duo, Core 2 Quad or i-series processor 2048MB RAM
250MB HDD
CD/DVD writer / reader
DirectX9.0c or later version VGA, 512Mbyte RAM, Pixel Shader 2.0 support
1280 x 1024 or higher resolution monitor
1000 Mbps network card(TCP/IP protocol support) Local Area Network or / and Wide Area Network
connection
Intellio Server 2 System Requirements:
Windows Server 2003, Windows Server 2008, Windows Vista SP2, Windows 7 operation system
Core 2 Duo, Core 2 Quad or i-series processor 2048MB RAM
250MB HDD
CD/DVD writer / reader
1000 Mbps network card(TCP/IP protocol support) Local Area Network or / and Wide Area Network
connection
FAT32 or NTFS file system storage (DAS, NAS, SCSI, iSCSI, SATA)
