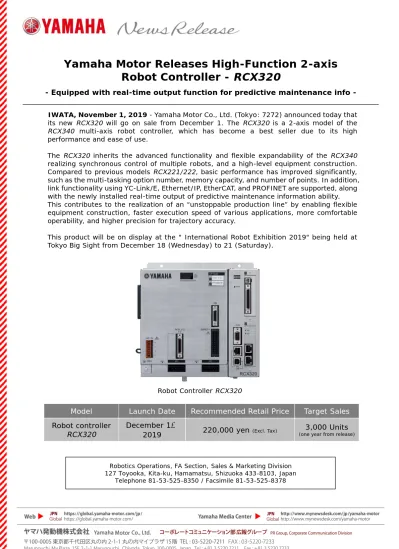

Yamaha Motor Releases High-Function 2-axis Robot Controller - RCX320

IWATA, November 1, 2019 - Yamaha Motor Co., Ltd. (Tokyo: 7272) announced today that

its new RCX320 will go on sale from December 1. The RCX320 is a 2-axis model of the

RCX340 multi-axis robot controller, which has become a best seller due to its high

performance and ease of use.

The RCX320 inherits the advanced functionality and flexible expandability of the RCX340

realizing synchronous control of multiple robots, and a high-level equipment construction.

Compared to previous models RCX221/222, basic performance has improved significantly,

such as the multi-tasking option number, memory capacity, and number of points. In addition,

link functionality using YC-Link/E, Ethernet/IP, EtherCAT, and PROFINET are supported, along

with the newly installed real-time output of predictive maintenance information ability.

This contributes to the realization of an “unstoppable production line” by enabling flexible

equipment construction, faster execution speed of various applications, more comfortable

operability, and higher precision for trajectory accuracy.

This product will be on display at the " International Robot Exhibition 2019" being held at

Tokyo Big Sight from December 18 (Wednesday) to 21 (Saturday).

Model

Launch Date

Recommended Retail Price

Target Sales

Robot controller

RCX320

December 1，

2019

220,000 yen

3,000 Units

Robot Controller RCX320

- Equipped with real-time output function for predictive maintenance info -

Robotics Operations, FA Section, Sales & Marketing Division

127 Toyooka, Kita-ku, Hamamatsu, Shizuoka 433-8103, Japan

Telephone 81-53-525-8350 / Facsimile 81-53-525-8378

Yamaha Motor Releases High-Function 2-axis

Robot Controller - RCX320

2

Main Features of the RCX320

Significantly Improved Basic Performance

Base performance is greatly improved on previous models RCX221/222.

- Multi-tasking: Up to 16 tasks (RCX221/222: 8 tasks maximum)

- Memory capacity: 2.1MB (RCX221/222: 364KB)

- Number of programs: Up to 100 programs (Equivalent to the RCX221/222)

- Points: 30,000 points (RCX221/222: 10,000 points)

Controlling ability from small to large cartesian robots via one unit

All Yamaha Motor 2-axis robots from small to large can be used with this machine,

including the XYX series 2-axis cartesian robot, the FLIP-X series servo motor

single-axis robot, and the PHASER series linear motor single-axis robot etc.

Easy control of dual robots

You can easily control a dual robot that drives two axis synchronously.

Achieves 6-axis* control at low cost

In addition to the control of 2-axis robots, inter-controller communication YC-Link/E

can be used to easily connect to the RCX340. Low cost 6-axis* control capability is

also available.

*Not applicable in the articulated robot YA series.

Synchronous control of multiple robots

Inter-controller communication YC-Link/E enables synchronous control of multiple

robots such as in cartesian robots + SCARA robot combinations. Significant

reductions in system startup times are achievable as operations can be carried out by

a program using only the master controller. The RCX320 controller is compatible with

both master and slave specifications, enabling a flexible system build.

*Up to four RCX320 and RCX340 units can be connected by the inter-controller communicating YC-Link/E.

Enhanced field network support and other optional functions

Supports six types of international field networks: Ethernet/IP, EtherCAT, CC-Link,

DeviceNet, PROFINET, and PROFIBUS. Building a system that meets your needs is

more possible now that the RS-232C and Ethernet ports are equipped as standard,

and optional functions such as gripper and vision systems are also supported.

About 3 times the CPU processing capacity

The processing capacity of the CPU has been tripled compared to the previous model.

Control performance, such as motion trajectory and internal processing time, is

greatly improved.

Improved trajectory accuracy

As the unit is equipped with a servo motion engine equivalent to RCX340, the

follow-up performance has been improved compared to the previous model along

with smoother movement. Shortened positioning time and improved trajectory

accuracy.

Supporting software RCX-StudioPro

Compatible with RCX-StudioPro common to RCX340. As RCX320 is equipped with an

emulator function, programs can be created and debugged without a controller. The

cycle time between two points can be calculated quickly, and the optimal robot can

be easily selected. Even after startup, real-time tracing and debugging information of

multiple tasks can be displayed at the same time to check the status.

Industrial Ethernet option real-time output functionality

An “unstoppable production line” is achieved when an industrial Ethernet option

(Ethernet/IP, EtherCAT, or Profinet) is selected, this enables information necessary

for predictive maintenance such as error status, current positions, electric current

values, motor load rates, and operation times to be output in real time.

4

RCX320 Basic Specifications

Applicable Robots Single-axis, linear single-axis, cartesian, and pick-and-place type robots Connected motor capacity 2 axis, total 1200 W or less

Power Capacity 2400 VA

Exterior Dimensions W 213×H 195×D 130 mm (Unit only)

Weight 3.6 Kg （Unit only)

Input Power Supply

Control Power

Source Single Phase AC 200-230 V ±10 % 50/60 Hz

Main Power Source Single Phase AC200-230V±10% 50/60Hz

Axis

Cont

rol

Control Axis No. Max 2 axis Up to four RCX320 and RCX340 units can be connected by the inter-controller communicating YC-Link/E.

Drive system AC full digital servo

Position detection method Resolver, magnetic linear scale

Control method PTP operation (Point to Point), arch motion, linear interpolation, circular _{interpolation}

Progr

ami

ng

Program Language Yamaha BASIC II (JIS B8439 <SLIM language> compliant)

Multi-task Max 16 Tasks

Sequence Programs 1 Programs

Memory Capacity 2.1 MB (total capacity of programs and points) (The program usable capacity when using the maximum number of points is 300 KB)

Programs Up to 100 programs (Max program no.) _{9999 lines (maximum number of lines per program)}

Points 30000 points (Max point no.)

Point Teaching Method MDI (coordinate value input), direct teaching, teaching playback, off-line _{teaching (data input from outside)}

E xt ernal In pu t/ou tput SAFETY

Input 2 x Emergency Stop Input Systems _{2 x Automatic Mode Input Systems (valid only for CE specifications)} Output 2 x Emergency Stop Input Systems 2 x Enable Contact Outputs Systems (valid only when using PBX-E)

2 x Motor Power Ready Output Systems

Brake Power Transistor Output (PNP Open Collector)

External communication

RS-232C： 1CH（D-SUB 9 Pin 〈Female〉）

Ethernet： 1CH（IEEE802.3u/IEEE802.3 Compliant） 100 Mbps/10 Mbps（100BASE-TX/10BASE-T） Auto Negotiation Compatible

RS-422： 1CH（PBX Only） Opt ional Opt ion Board Parallel I/O board Standard specifications

Dedicated Input 8 points, Dedicated Output 9 points General Input 16 points, General Output 8 points (Maximum 1 board, NPN/PNP Spec. selection) Extended

Specifications General Input 24 points, General Output 16 points (Maximum 4 board, NPN/PNP Spec. selection) CC-Link Board Ver

1.1/2.0

Remote I/O Dedicated Input/Output: 16 points each _{General Input/Output: 96 points each} DeviceNetTM _Board

EtherNet/IPTM _Board

PROFIBUS Board

Remote Register Input/Output: 16 Words each xxx

PROFINET Board EtherCAT Board YC-Link/E Board (Master/Slave)

Communication Cycle: 1 ms, Control Cycle: Minimum 1 ms/Maximum 8 ms, Maximum Robot Np.: 4

Maximum Control Axis No.: All 14 axis (including 2 master controller axis) Up to 12 axis when only with slaves

YRG (Gripper) Board

Position Detection Method: Optical Rotary Encoder, Minimum setting distance: 0.01 mm

Speed Setting: Set at 20-100 % of the maximum parameter speed, Number of grippers connected: Up to 2

Tracking Board

Number of Encoders Connected: Max. 2; Target Encoder: 26LS31/26C31 equivalent line driver (RS422 compliant)

Encoder Power Supply: DC 5 V (2 x Counters (ch) total less than 500 mA) (supplied from the controller)

iVY2 Unit Camera Pixel No.: Max. 5 million pixels, Number of types set: 254 types, Number of Connected Cameras: Max. 2 Power Supply: DC 24 V ±10 % 1.5 A Max

Programing Box PBX, PBX-E

Absolute Battery 3.6 V 2750 mAH/Axis Backup retention period: approx. 1 year
