JSF flow of control The basic steps in using JSF Static navigation One result mapping Dynamic navigation Multiple result mappings Accessing the request and response objects Common JSF problems

(1)

Customized Java EE Training: http://courses.coreservlets.com/

Java, JSF 2, PrimeFaces, Servlets, JSP, Ajax, jQuery, Spring, Hibernate, RESTful Web Services, Hadoop, Android.

Developed and taught by well-known author and developer. At public venues or onsite at yourlocation.

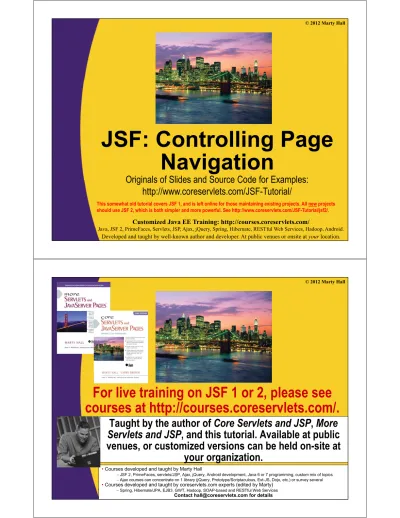

JSF: Controlling Page

Navigation

Originals of Slides and Source Code for Examples:

http://www.coreservlets.com/JSF-Tutorial/

This somewhat old tutorial covers JSF 1, and is left online for those maintaining existing projects. All new projects should use JSF 2, which is both simpler and more powerful. See http://www.coreservlets.com/JSF-Tutorial/jsf2/.

For live training on JSF 1 or 2, please see

courses at http://courses.coreservlets.com/.

(2)

Topics in This Chapter

• JSF flow of control

• The basic steps in using JSF

• Static navigation

–

One result mapping

• Dynamic navigation

–

Multiple result mappings

• Accessing the request and response

objects

• Common JSF problems

5

(3)

JSF Flow of Control

(Highly Simplified)

7

Blah.jsp

submit form

POST request Blah.faces Instantiate_Bean _{Controller Method}Run Action conditionreturn Choose_JSP forward result1.jsp_result2.jsp

... resultN.jsp

Bypass Java code. Form specifies return condition.

faces-config.xml

- beans declared in managed-bean section - mapping of return conditions

declared in navigation-rule section

Business Logic

results

JSF Flow of Control (Simplified)

• A form is displayed

–

Form uses f:view and h:form

• The form is submitted to itself

–

Original URL and

ACTION

URL are http://…/

blah

.faces

• A bean is instantiated

–

Listed in the managed-bean section of faces-config.xml

• The action controller method is invoked

–

Listed in the action attribute of h:commandButton

• The action method returns a condition

(4)

Steps in Using JSF

1) Create a bean

A) Properties for form data

B) Action controller method

C) Placeholders for results data

2) Create an input form

A) Input fields refer to bean properties

B) Button specifies return condition

(or action controller method that will return condition)

3) Edit faces-config.xml

A) Declare the bean

B) Specify navigation rules

4) Create results pages

–

Output form data and results data with h:outputText

5) Prevent direct access to JSP pages

–

Use a filter that redirects blah.jsp to blah.faces

9

Example: Registration

• Started by copying jsf-blank-myfaces

–

Renamed it to jsf-navigation

–

Edited .settings/…component file as in previous lecture

• Original URL

–

http://

hostname

/jsf-navigation/register.faces

• When form submitted

–

A static page (WEB-INF/results/result.jsp) is displayed

• Static result

–

No business logic, beans, or Java code of any sort

• Main points

–

Format of original form

(5)

Main Points of This Example

• Input form has following format:

<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %> <%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>

<f:view>

HTML markup

<h:form>

HTML markup and h:blah tags

</h:form>

HTML markup

</f:view>

• faces-config.xml specifies navigation rules:

<?xml version='1.0' encoding='UTF-8'?> <!DOCTYPE faces-config PUBLIC …>

<faces-config>

<navigation-rule>

<from-view-id>/blah.jsp</from-view-id> <navigation-case>

<from-outcome>some string</from-outcome>

<to-view-id>/WEB-INF/results/something.jsp</to-view-id> </navigation-case>

</navigation-rule>

</faces-config>

11

Step 1: Create a Bean

• Postponed until next lecture

–

This example ignores form data

–

Button in form directly specifies return condition

(6)

Step 2: Create Input Form

• Basic format

<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %> <%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %> <f:view>

…

<BODY> …

<h:form> …

</h:form> …

</BODY> </f:view>

• Invoking page

–

Actual file is

blah

.jsp

–

URL is

blah

.faces

13

Step 2: Create Input Form

• The h:form element

–

ACTION is automatically self (current URL)

–

METHOD is automatically POST

• Elements inside h:form

–

Use special tags to represent input elements

• h:inputText corresponds to <INPUT TYPE="TEXT">

• h:inputSecret corresponds to <INPUT TYPE="PASSWORD">

• h:commandButton corresponds to <INPUT TYPE="SUBMIT">

–

In later sections, we will see that input elements will be associated

with bean properties

–

For static navigation, specify simple string as action of

h:commandButton

• String must match navigation rule from faces-config.xml

• More info on h:

blah

elements

–

http://java.sun.com/j2ee/javaserverfaces/1.1/docs/tlddocs/

(7)

Step 2: Example Code

(register.jsp)

<!DOCTYPE …> <HTML>

<HEAD>…</HEAD> <BODY>

<CENTER>

<TABLE BORDER=5>

<TR><TH CLASS="TITLE">New Account Registration</TH></TR> </TABLE>

<P> <h:form>

Email address: <h:inputText/><BR> Password: <h:inputSecret/><BR>

<h:commandButton value="Sign Me Up!" action="register"/> </h:form>

</CENTER></BODY></HTML> </f:view>

15

Step 2: Result

• File is …/WebContent/register.jsp

(8)

Step 3: Edit faces-config.xml

• General format

<faces-config> …

</faces-config>

• Specifying the navigation rules

…

<faces-config>

<from-view-id>/the-input-form.jsp</from-view-id> <navigation-case>

<from-outcome>string-from-action</from-outcome> <to-view-id>/WEB-INF/…/something.jsp</to-view-id> </navigation-case>

</navigation-rule> </faces-config>

17

Step 3: Example Code

<faces-config>

<from-view-id>/register.jsp</from-view-id>

<navigation-case>

<from-outcome>register</from-outcome>

<to-view-id>/WEB-INF/results/result.jsp</to-view-id>

</navigation-case> </navigation-rule> </faces-config>

(9)

Step 4: Create Results Pages

• RequestDispatcher.forward used

–

So page can/should be in WEB-INF

• Example code:

–

…/WEB-INF/results/result.jsp

<!DOCTYPE …> <HTML>

<HEAD>…</HEAD> <BODY>

<CENTER>

<TABLE BORDER=5>

<TR><TH CLASS="TITLE">Success</TH></TR> </TABLE>

<H2>You have registered successfully.</H2> </CENTER>

</BODY></HTML>

19

Step 4: Example Result

(10)

Step 5: Prevent Direct Access

to JSP Pages

• Filename/URL correspondence

–

Actual files are of the form

blah

.jsp

–

URLs used are of the form

blah

.faces

–

You must prevent clients from directly accessing JSP

pages

• Since they would give erroneous results

• Strategies

–

You cannot put input-form JSP pages in WEB-INF

• Because URL must correspond directly to file location

–

So, use filter in web.xml. But:

• You have to know the extension (.faces)

• Assumes no non-JSF .jsp pages

• This is a major drawback to JSF design

21

Direct Access to JSP Pages

(11)

Preventing Direct Access:

FacesRedirectFilter

public class FacesRedirectFilter implements Filter { private final static String EXTENSION = "faces";

public void doFilter(ServletRequest req, ServletResponse res, FilterChain chain) throws ServletException, IOException {

HttpServletRequest request = (HttpServletRequest)req; HttpServletResponse response = (HttpServletResponse)res; String uri = request.getRequestURI();

if (uri.endsWith(".jsp")) { int length = uri.length(); String newAddress =

uri.substring(0, length-3) + EXTENSION; response.sendRedirect(newAddress);

} else { // Address ended in "/"

response.sendRedirect("index.faces"); }

} ...

23

Preventing Direct Access:

web.xml

...

<filter>

<filter-name>faces-redirect-filter</filter-name> <filter-class>

coreservlets.FacesRedirectFilter </filter-class>

</filter>

<filter-mapping>

<filter-name>faces-redirect-filter</filter-name> <url-pattern>*.jsp</url-pattern>

(12)

Preventing Direct Access:

Result

• Either URL

– http://localhost/jsf-navigation/register.faces – http://localhost/jsf-navigation/register.jsp

25

(13)

JSF Flow of Control

(Simplified)

27

Blah.jsp

submit form

POST request Blah.faces Instantiate_Bean _{Controller Method}Run Action conditionreturn Choose_JSP forward result1.jsp_result2.jsp

... resultN.jsp faces-config.xml

- beans declared in managed-bean section

- mapping of return conditions declared in navigation-rule section

Business Logic

results

JSF Flow of Control (Simplified)

• A form is displayed

–

Form uses f:view and h:form

• The form is submitted to itself

–

Original URL and

ACTION

URL are http://…/

blah

.faces

• A bean is instantiated

–

Listed in the managed-bean section of faces-config.xml

• The action controller method is invoked

–

Listed in the action attribute of h:commandButton

• The action method returns a condition

(14)

Steps in Using JSF

1) Create a bean

A) Properties for form data

B) Action controller method

C) Placeholders for results data

2) Create an input form

A) Input fields refer to bean properties

B) Button specifies action controller method that will return condition

3) Edit faces-config.xml

A) Declare the bean

B) Specify navigation rules

4) Create results pages

–

Output form data and results data with h:outputText

5) Prevent direct access to JSP pages

–

Use a filter that redirects blah.jsp to blah.faces

29

Example: Health Plan Signup

• Original URL

–

http://

hostname

/jsf-navigation/signup.faces

• Collects info to see if user qualifies for health plan

• When form submitted, one of two possible

results will be displayed

–

User is accepted into health plan

–

User is rejected from health plan

• Main points

–

Specifying an action controller in the form

–

Creating an action controller method in the bean

–

Using faces-config.xml to

• Declare bean

• Map return conditions to output pages

(15)

Main Points of This Example

• Specify the controller with #{beanName.methodName}

<h:commandButton

value="Sign Me Up!"

action="#{healthPlanController.signup}"/>

• Controller method returns strings corresponding to conditions

– If null is returned, the form is redisplayed

– Unlike with Struts, the controller need not extend a special class

• Use faces-config.xml to declare the controller as follows

<faces-config> <managed-bean>

<managed-bean-name>controller name</managed-bean-name>

<managed-bean-class>controller class</managed-bean-class>

<managed-bean-scope>request</managed-bean-scope> </managed-bean>

</faces-config>

• Add multiple navigation-rule entries to faces-config.xml

– One for each possible string returned by the controller – If no string matches, the form is redisplayed

31

Scope could also be session or application

Step 1: Create a Bean

(A) Properties for form data

–

Postponed until next lecture

(B) Action controller method

public class HealthPlanController {

public String signup() { if (Math.random() < 0.2) {

return("accepted"); } else {

return("rejected"); }

(16)

Step 2: Create Input Form

• Same general syntax as in previous example

–

Except for action of commandButton

…

<h:form>

First name: <h:inputText/><BR> Last name: <h:inputText/><BR> ...

<h:commandButton

value="Sign Me Up!"

action="#{healthPlanController.signup}"/>

</h:form>… </f:view>

33

Step 2: Result

• File is …/WebContent/signup.jsp

• URL is http://localhost/jsf-navigation/signup.faces

(17)

Step 3: Edit faces-config.xml

(A) Declaring the bean

…

<faces-config> <managed-bean>

<managed-bean-name> healthPlanController </managed-bean-name> <managed-bean-class>

coreservlets.HealthPlanController </managed-bean-class>

<managed-bean-scope>request</managed-bean-scope> </managed-bean>

…

</faces-config>

35

Use request scope unless you have a specific reason to use session scope or (rarely) application scope

Step 3: Edit faces-config.xml

(B) Specifying navigation rules

–

Outcomes should match return values of controller

<faces-config>

… (bean definitions

from previous page)

<from-view-id>/signup.jsp</from-view-id> <navigation-case>

<from-outcome>accepted</from-outcome>

(18)

Step 4: Create Results Pages

• …/WEB-INF/results/accepted.jsp

<!DOCTYPE …>

<HTML>

<HEAD>…</HEAD>

<BODY>

<CENTER>

<TABLE BORDER=5>

<TR><TH CLASS="TITLE">Accepted!</TH></TR>

</TABLE>

<H2>You are accepted into our health plan.</H2>

Congratulations.

</CENTER>

</BODY></HTML>

37

Step 4: Create Results Pages

(Continued)

• …/WEB-INF/results/rejected.jsp

<!DOCTYPE …>

<HTML>

<HEAD>…</HEAD>

<BODY>

<CENTER>

<TABLE BORDER=5>

<TR><TH CLASS="TITLE">Rejected!</TH></TR>

</TABLE>

<H2>You are rejected from our health plan.</H2>

Get lost.

</CENTER>

</BODY></HTML>

(19)

Step 4: Results

39

Step 5: Prevent Direct Access

to JSP Pages

• **Use filter that captures url-pattern *.jsp**

(20)

Notes and

Additional Capabilities

Summary

• Wildcards in navigation rule

–

* for from-view-id matches any starting page

–

Omitting from-outcome results in all values matching

• from-action in addition to from-outcome

–

For when different buttons invoke different methods and methods

have same values mapped differently. Overused.

• Getting the request and response objects

ExternalContext context =

FacesContext.getCurrentInstance().getExternalContext(); HttpServletRequest request =

(HttpServletRequest)context.getRequest(); HttpServletResponse response =

(HttpServletResponse)context.getResponse();

• Interleaving managed-bean & navigation-rule

–

It is legal to alternate back and forth

(21)

Wildcards in Navigation Rules

• * for from-view-id matches any starting page

–

Used when multiple different pages map same return

value to same result page

• Example

<from-view-id>*</from-view-id> <navigation-case>

<from-outcome>success</from-outcome>

<to-view-id>/WEB-INF/results/success.jsp</to-view-id> </navigation-case>

43

Without Wildcards

<from-view-id>/page1.jsp</from-view-id> <navigation-case>

<from-outcome>condition1</from-outcome>

<to-view-id>/WEB-INF/results/result1.jsp</to-view-id> </navigation-case>

<from-outcome>unknown-user</from-outcome>

<to-view-id>/WEB-INF/results/unknown.jsp</to-view-id> </navigation-case>

</navigation-rule> <navigation-rule>

(22)

With Wildcards

<navigation-rule> <from-view-id>*</from-view-id> <navigation-case> <from-outcome>unknown-user</from-outcome> <to-view-id>/WEB-INF/results/unknown.jsp</to-view-id> </navigation-case> </navigation-rule> <navigation-rule> <from-view-id>/page1.jsp</from-view-id> <navigation-case> <from-outcome>condition1</from-outcome> <to-view-id>/WEB-INF/results/result1.jsp</to-view-id> </navigation-case> </navigation-rule> <navigation-rule> <from-view-id>/page2.jsp</from-view-id> <navigation-case> <from-outcome>condition2</from-outcome> <to-view-id>/WEB-INF/results/result2.jsp</to-view-id> </navigation-case> </navigation-rule> 45

Wildcard Matching Return

Conditions

• Omitting from-outcome means all other

return conditions match

–

Except for null, which always means redisplay form

(23)

Explicit from-outcome

47

Default (Omitted) from-outcome

(24)

from-action

• Designates the method that you came from

–

Suppose you had two buttons that invoked two different methods,

and both returned "error". But you want the two "error" values to

have different results pages.

<navigation-rule> <from-view-id>/somepage.jsp</from-view-id> <navigation-case> <from-action>#{beanName.method1}</from-action> <from-outcome>error</from-outcome> <to-view-id>/WEB-INF/results/err1.jsp</to-view-id> </navigation-case> <navigation-case> <from-action>#{beanName.method2}</from-action> <from-outcome>error</from-outcome> <to-view-id>/WEB-INF/results/err2.jsp</to-view-id> </navigation-case> </navigation-rule>

–

Easier to avoid using the same names for different things

–

Rarely needed in real life, but some books (

JSF The Complete

Reference

) use it needlessly.

49

Getting the Request

and Response Objects

• JSF controller methods do not have direct

access to the request and response

–

Unlike in Struts, where controller method (execute) gets

request and response automatically

–

If they are needed, use static method calls to get them

ExternalContext context =

FacesContext.getCurrentInstance().getExternalContext(); HttpServletRequest request =

(HttpServletRequest)context.getRequest(); HttpServletResponse response =

(HttpServletResponse)context.getResponse();

–

In some environments, you cast results of getRequest and

getResponse to values other than HttpServletRequest and

HttpServletResponse

• E.g., in a portlet environment, you might cast result to

PortletRequest and PortletResponse

(25)

Getting the Request

and Response Objects

• Purpose

–

Useful for many request properties

• Explicit session manipulation (e.g., changing inactive

interval or invalidating session)

• Explicit cookie manipulation (e.g., long-lived cookies)

• Reading request headers (e.g., User-Agent)

• Looking up requesting host name

• Not needed to get request parameters

– Bean populated automatically as in next lecture

–

Useful for a few response properties

• Setting status codes

• Setting response headers

• Setting long-lived cookies

51

Interleaving managed-bean and

navigation-rule

• If you have several different addresses in

your app, it is OK to alternate

<managed-bean> Stuff for bean1 </managed-bean> <navigation-rule>

Rules for address that uses bean1 </navigation-rule>

(26)

Common Problems

Pressing Button and Nothing

Happens

• In JSF, many error conditions simply result

in the system redisplaying the form

–

No error messages or warnings

–

Very confusing to beginning developers

• Debugging strategies for these situations

–

Many of the errors cause the process to abort at certain

points. Knowing how far things got is very helpful.

–

Use print statements or IDE breakpoints

• Put a print statement in the controller method

• Put a print statement in the empty constructor

– public MyBean() { System.out.println("MyBean built"); }

– Bean should be instantiated twice for request scope

• Put print statements in the bean setter methods

(27)

Pressing Button and Nothing

Happens: Common Cases

1. Return value of controller method does not

match from-outcome of navigation-case

• Remember values are case sensitive

2. Using from-action instead of from-outcome

<navigation-case>

<from-action>accepted</from-action>

<to-view-id>/WEB-INF/results/accepted.jsp</to-view-id>

</navigation-case>

• This is really a special case of (1), since there is now

no

from-outcome

• This situation occurs frequently with Eclipse users that

don't look carefully at the choices Eclipse offers in

popup menu for the navigation-case entries.

55

Should be from-outcome, not from-action

Pressing Button and Nothing

Happens: Common Cases

3. Forgetting # in action of h:commandButton

<h:commandButton

value="Button Label"

action="{beanName.methodName}"/>

• This is really a special case of (1), since

action="beanName.methodName" means the literal

String "beanName.methodName" is the from-outcome

• In this situation and several others, it is very helpful to

put a print statement in controller method to see if/when

it is invoked

(28)

Pressing Button and Nothing

Happens: Common Cases

5. Controller method returns null

• This is often done on purpose to redisplay the form, but can be

done accidentally as well.

6. Type conversion error

• You declare field to be of type int, but value is not an integer

when you submit.

• Behavior of redisplaying form is useful here. See validation section.

7. Missing setter method

• You associate textfield with bean property foo, but there is no

setFoo method in your bean.

• Debugging hint: You will see printout for bean being instantiated, but not for controller method
