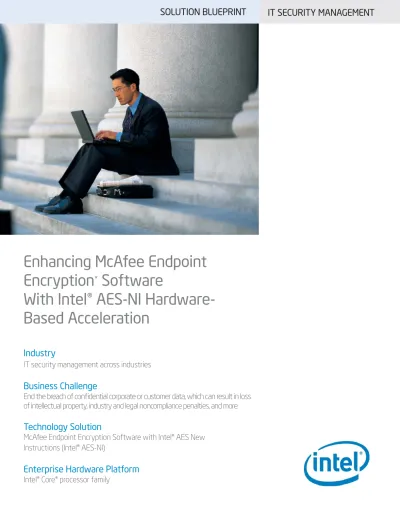

SOLUTION BLUEPRINT
IT SECURITY MANAGEMENT
Enhancing McAfee Endpoint
Encryption
*
Software
With Intel® AES-NI
Hardware-Based Acceleration
Industry
IT security management across industries
Business Challenge
End the breach of condential corporate or customer data, which can result in loss
of intellectual property, industry and legal noncompliance penalties, and more
Technology Solution
McAfee Endpoint Encryption Software with Intel® AES New
Instructions (Intel® AES-NI)
BUSINESS AND SOLUTION DETAILS
MEETING MARKETPLACE DEMANDS
Organizations are under increasing pressure to protect sensitive data and minimize the risk of data breaches. Global regulations protecting personally identiable information (PII) are becoming more strin-gent and breaches more costly to organizations that fail to comply. In addition, valuable intellectual prop-erty (IP) that holds competitive advantage is also under risk of loss, theft, or unauthorized access. Encryption is one of the best solutions to protect valuable data on endpoints by making the en-crypted data unreadable by unauthorized parties.
McAfee and Intel optimize full-disk encryption by adding hardware-based acceleration to software-based encryption. This gives organizations the benets of both increased performance and security.
BUSINESS CHALLENGE
If organizations have valuable IP- and/or compliance-related data, it’s a target for theft.
Laptop computers have historically been a major source of sensitive data loss and leakage due to the mobility, large storage capacity, and database access capabilities of PCs. To help protect the vast amounts of digital data on these endpoints, companies deploy managed full-disk encryption to auto-matically secure all data on the laptop from unauthorized access.
Intellectual capital (e.g., patented technology, trade secrets, and proprietary data) makes up a majority of a company’s value, so it makes sense to protect access to it, especially on mobile endpoints. For compliance-related data, when a PC with managed encryption is lost or stolen, it’s generally not considered to be a breach event because the data is unusable, unreadable, or indecipherable to unau-thorized individuals. Without encryption or proof of protection through managed encryption, the biggest security concern is the possibility of a data breach. The breach of condential corporate or customer data can result in loss of intellectual property, industry and legal noncompliance penalties, and more.
SOLUTION OVERVIEW
Intel® AES-NI acceleration speeds all AES encryption operations, making full-disk encryption even faster. Working with McAfee Endpoint Encryption for PCs, which has unique native support for Intel AES-NI, provides key benets:
• Reduced end user logon times • Faster resume from hibernate • Faster initial hard disk encryption • Decreased file save times
Solution Blueprint:
Enhancing McAfee
Endpoint Encryption
Software With Intel®
AES-NI
Hardware-Based Acceleration
McAfee Endpoint Encryption for PCs protects valuable data on laptop and desktop computers with full-disk encryption and strong access control. McAfee ePolicy Orchestrator* provides robust, central-ized management and proof of protection.
From a single console, McAfee ePolicy Orchestrator delivers centralized deployment and management, shared policies, policy administration, password recovery, monitoring, auditing, reporting, and proof of protection. McAfee ePolicy Orchestrator is also the same management infrastructure for a wide range of McAfee data protection, endpoint, and security solutions. This provides customers with ease of management, consistent protection, and lower TCO.
McAfee and Intel optimize full disk encryption by adding hardware-based Intel AES-NI acceleration to McAfee software-based encryption.
SOLUTION ARCHITECTURE
Intel AES-NI is built into the processor. McAfee Endpoint Encryption for PCs automatically detects its presence and uses it if it is available. No configuration is required by the end user or the administrator. Intel AES-NI is a set of new instructions included in the Intel® Core® processor family (codenamed Westmere) or newer. This speeds up execution of the AES encryption/decryption algorithms.
To be clear, Intel AES-NI doesn’t implement the entire AES application. Instead, it accelerates just parts of it. This is important for legal classication purposes because encryption is a controlled technology in many countries. Intel AES-NI adds six new AES instructions, four for encryption and decryption, one for the mix column, and one for generating next-round text. These instructions speed up the AES op-erations in the rounds of transformation and assist in the generation of the round keys.
Intel NI also includes a seventh new instruction: CLMUL. This instruction could speed up the AES-GCM and binary elliptical curve cryptography (ECC) and assists in error correcting codes, general-pur-pose cyclic redundancy checks (CRCs), and data de-duplication. It particularly helps in carryless multiplication, also known as binary polynomial multiplication. This is the mathematical operation of computing the product of two operands without generating or propagating carries. Such
multiplica-TECHNOLOGY
Figure 1. Resume from Hibernate (HDD) Times
Users can feel the speed bene-ts provided by Intel AES-NI during everyday activities like resuming from hibernation (Figure 1).
Encryption with Intel® AES-NI
Standard Encryption
No Encryption
Time 0 10 20 30 40 50 (Seconds)
tions are an essential step in computing multiplications in binary Galois elds. Intel AES-NI includes Intel’s carryless multiplication instruction. Algorithms can use CLMUL to compute the Galois Hash, the underlying computation of the GCM. CLMUL speeds up execution of GCM by computing the carryless multiplication of two 64-bit operands.

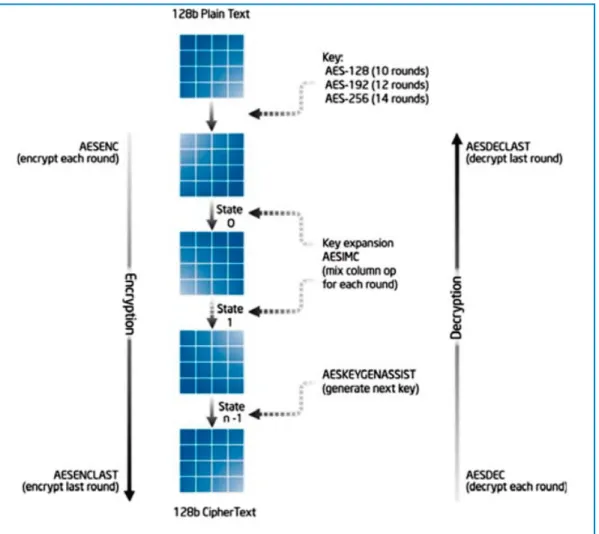

Figure 2. Physical Implementation
Figure 2 shows four of the new instructions at work encrypting and decrypting rounds from a 128-bit plain text to 128-bit cipher text and vice versa. During each round, there are two instructions that as-sist in generating the follow-on key. The AESENC instruction encrypts each round and AESENCLAST encrypts the last round. In reverse (decryption), AESDEC decrypts each round and AESDECLAST de-crypts the last round. Another instruction, AESIMC, does the mix column operation for each round and AESKEYGENASSIST generates the next key. The keys can be 128-, 192-, or 256-bit. Remember, all these computations are being done by the hardware, providing a signicant speedup: 4x in CBC en-crypt in serial mode and more than 14x in parallel modes of operation.
Besides the performance benet of Intel AES-NI, its execution of instructions in hardware provides some additional security in helping to prevent software side-channel attacks. Software side channels are vulnerabilities in the software implementation of cryptographic algorithms. They emerge in multi-ple processing environments (multimulti-ple cores, threads, or operating systems). Cache-based, software side-channel attacks exploit the fact that software-based AES has encryption blocks, keys, and
running on the platform could seed the cache, run cryptographic operations, and then time specially-crafted memory accesses to identify changes in the cache. From these changes, the attack could de-termine portions of the cryptographic key value. For example, by measuring the time it takes for a given cryptographic operation, an attacker might be able to determine that the uppermost bit of a key is a “0.” Knowing that, single-bit cuts in half the key space that must be searched to identify the com-plete key value. More effective side-channel attacks reduce the key space signicantly (i.e., they may identify half the bits in the key).
Since Intel AES-NI is hardware based, it has no need for lookup tables and the encryption blocks are executed in hardware within the microprocessor. This enables implementations of AES that use Intel AES-NI to address software side-channel attacks. These instructions also make AES simple to imple-ment, with reduced code size. This helps to reduce the risk of inadvertently introducing security aws such as hard-to-detect side channel leaks. Also, the acceleration provided by Intel AES-NI can allow the system to execute larger key sizes, making data transfers more secure.
Every company needs encryption to protect IP- or compliance-related data. Generally, companies that are externally required to protect compliance data (e.g., nancial, customer or employee data) are a good place to start. Companies with valuable IP like proprietary data and patents also need encryption. Endpoint encryption is most often handled by chief information security ofcer (CISO) and chief infor-mation ofcer (CIO) organizations. These organizations report into senior-level executives who focus on data security and compliance on endpoints within an organization.
McAfee Endpoint Encryption for PCs prevents unauthorized access and renders sensitive data unread-able and useless in the event of device loss or theft. Most companies don’t want to use encryption— but to protect business data, they must. That’s why it’s important to provide organizations with high-performance encryption that’s easy to use and manage.
To learn more about Intel AES-NI, visit www.intel.com.
To learn more about McAfee Endpoint Encryption, visit www.mcafee.com.
MARKET SEGMENT AND VALUE PROPOSITION
Sources:
“Securing the Enterprise with Intel® AES-NI” (Intel Corporation, March 2010).
“McAfee, Inc. Endpoint Encryption Delivers True Common Management for Endpoint Security and Data Protection “ (McAfee Corporation, October7, 2009).
“McAfee Endpoint Encryption” (McAfee Corporation, 2011).
Intel® AES-NI requires a computer system with an AES-NI enabled processor, as well as non-Intel software to execute the instructions in the correct se-quence. AES-NI is available on select Intel® processors. For availability, consult your reseller or system manufacturer. For more information, see http://software.intel.com/en-us/articles/intel-advanced-encryption-standard-instructions-aes-ni/
