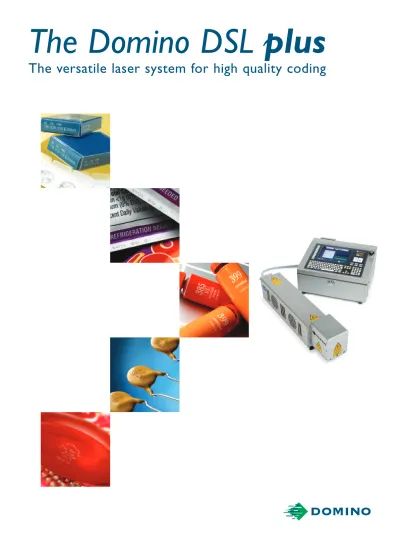

The Domino DSL plus. The versatile laser system for high quality coding

The Domino DSL

plus

The DSL

plus

is a highly versatile range of industrial scribing lasers designed

to provide high quality codes across a wide range of production speeds.The

robust and easy to use DSL

plus

offers flexibility whilst maintaining

productivity.

A manufacturer supplying

manufacturers:

Domino has a commitment to continually evolve by listening to manufacturers and to supply the tools that will enhance their business.

• DSL

plus

features directly impact the measured performance of the production environment

• DSL

plus

offers versatile, permanent coding in the most demanding applications

• Remote control and networking capabilities enable seamless integration of the DSL

plus

into the production line

A Supplier you can rely on:

• Supported by a global sales and service network, the range delivers complex laser codes in the most demanding production environments

• The DSL

plus

can be complemented by TotalCare

plus

, a range of managed maintenance services allowing manufacturers to choose their support model from fully outsourced to a self-sufficient approach

DSL plusoffers a wide marking field The DSL plusrange

Benefits:

• Reduced downtime –robust machines designed for use in demanding environments to minimise unplanned stoppages and maximise performance. All laser systems in the range are ambient air-cooled eliminating the need for compressed air or water cooling ensuring maximum uptime

• Clean operation –laser creates an indelible mark directly onto products and packaging without the need for ink or other chemicals.The Domino DPX range of fume extractors ensures efficient extraction of fumes and particles giving a safe and clean working environment

• Flexibility – a flexible portfolio of laser products based around a standard design, the versatility of the DSL

plus

range enables the product to be integrated into a wide range of industrial applications

The DSL

plus

range will improve overall equipment effectiveness –

maximising uptime with intuitive set-up designed to reduce operator errors,

leading to minimum changes over time.

Indelible, quality codes on a wide range of substrates

• Reduced errors –with a simple “Text Assistant” and a clear WYSIWYG interface, codes are quick and easy to set-up and edit. Standard multi-level user passwords give greater control and security

• Fast product changeovers – the Basic User Interface enables instantaneous message changeover with easy message selection and start-up

• Reduced rejects – consistent high quality, legible codes reduce the risk of costly returns

DSL plus benefits:

• Easy installation –the step-by-step “Installation Wizard” and the modular design of DSL

plus

allows it to be installed quickly and easily and in any orientation

• Versatile coding –the DSL

plus

can mark serial numbers, batch codes, bar codes, 2D codes, real-time numbers, logos, graphics, or more complicated European and Asian characters with a choice of laser powers dependent on the application

• Simple Operation –designed for operator ease of use, a full sized keyboard and the WYSIWYG display combined with Windows® _{based software}

ensures a familiar interface. Online help is also available for immediate assistance

• Speed and fonts –DSL

plus

offers the flexibility to print an unlimited number of lines of text in any orientation, in a wide range of fonts at heights of between 0.5mm and 180mm high at line speeds of up to 400 m/min (1312 ft/min)

• Substrates –DSL

plus

is ideal for marking onto paper, cartons, plastics and glass in the food,

beverage, pharmaceutical, tobacco and personal care industries

• Pharmaceutical – DSL

plus

pharma offers unique user passwords and change reporting for adherence to 21-CFR part 11 and GMP. This option can be supplied and installed with validation packages to ensure that systems are tested and proven to the highest standards in a timely and cost effective manner

DSL pluspharma version available DSL plusController provides clear WYSIWYG display and full-sized

DPX range ensures a clean and safe working environment

Remote Control and Networking

Utilising the OPC server provides seamless integration into ERP (SCADA) systems for:

• ERP (SCADA) coder control

• Message selection

• Status monitoring

• Access to performance metric data

Integrated Fume Extraction

The DSL

plus

range of printers has a direct interface to the Domino DPX for automatic extraction of fumes and particles produced during laser marking.This ensures efficient and cost-effective laser coding as well as safeguarding the production environment and personnel

A

1 2

3 _B

C

Code 1234 5678 9012

Des_crip tion Blue Red Green _MedBigSize

ium Sm_all

4

ERP

£

$

HMI

www.

domino-printing

.com

Domino Worldwide

AUSTRALIA

Domino (Australia) Pty. Ltd. Unit 12

6 Gladstone Road Castle Hill Sydney NSW 2154 Tel: + 61 2 9894 7833

CANADA

Domino Printing Solutions Inc. 2751 Coventry Road Oakville

Ontario L6H 5V9

Tel: + 1 800 387 7972

CHINA

Domino Coding Ltd. No. 1150 yun Qiao Road Jin Qiao Export Processing Zone Pudong Shanghai 201206 Tel: + 86 21 5050 9999

FRANCE

Domino SAS ZA du Bel Air 2 Rue Mege Mouries 78120 Rambouillet Tel: + 33 1 3046 5678

GERMANY

Domino Deutschland GmbH Lorenz-Schott-Strasse 3 55252 Mainz-Kastel Tel: + 49 61 34 25 050

INDIA

Domino Printech India Private Limited 167, Udyog Vihar Phase I, H.S.I.D.C Gurgaon - 122016 Haryana Tel: + 91 124 400 7406

MEXICO

Domino Printing México SA de CV

Calle 3 No. 47 Local 6F Col. Industrial Naucalpan 53370 Edo. De México Tel: + 52 55 5576 7979

NETHERLANDS

Domino Amjet BV Ambachtsweg 8 3991 LH Houten Tel: + 31 30 636 3333

SOUTH KOREA

Domino Korea Pte Ltd 1st-3rd Floor Rich Town Building #694 Bokjeong-dong, Sujeong-gu,

Seongnam-city, Gyeonggi-do 461-200

Tel: + 82 2 797 1811

SPAIN

Domino Amjet Ibérica S.A. Avenida Fuente Nueva No 14 28700 S.S. de los Reyes Madrid

Tel: + 34 91 654 2141

UNITED ARAB EMIRATES

Domino UK Ltd (Dubai) PO Box 16984 Jebel Ali Dubai

Tel: + 971 4 88 35003

UNITED KINGDOM

Domino UK Ltd Bar Hill Cambridge CB23 8TU Tel: + 44 1954 782 551

UNITED STATES OF AMERICA

Domino Amjet. Inc. 1290 Lakeside Drive Gurnee

Illinois 60031 Tel: + 1 800 486 7414

Through an extensive global network of subsidiaries and distributors,

Domino operates in over 120 countries.This network offers customers

both sales support and access to highly skilled service teams, providing

technical support packages to suit the varying production environments

and customer requirements across the world.

Domino

plus

is an integrated range of high quality products and services that addresses the most common causes of reduced efficiency in manufacturing – down time, speed losses and defects, and has been developed in response to needs expressed by customers. A key ingredient to successful manufacturing is the continual improvement of overall equipment effectiveness. Understanding this, Domino

plus

has been developed to ensure improved availability of equipment, supported by a high performance organisation and its people. Our commitment is to continually evolve by listening to manufacturers and supplying the tools that will enhance their business.
