400 450 500 550 600 650 700 750 800
180
165
150
135
120
105
90
75
60
45
30
15
0
15
30
45
60
75
90
105
120
135
150
165
61.6°

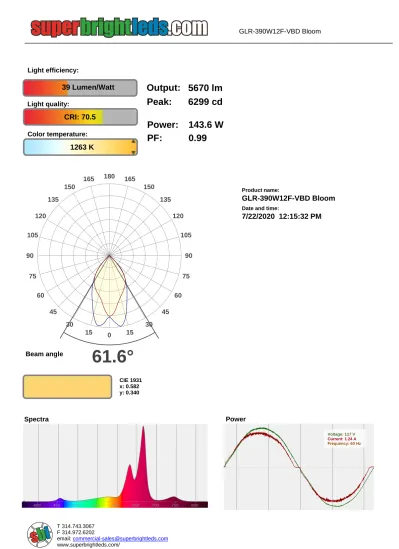

GLR-390W12F-VBD Bloom
Light efficiency:
39 Lumen/Watt
Light quality:
Color temperature:
CRI: 70.5
1263 K
Output:
Peak:
Power:
PF:
5670 lm
6299 cd
143.6 W
0.99
Beam angle
CIE 1931 x: 0.582 y: 0.340
Product name:
GLR-390W12F-VBD Bloom
Date and time:7/22/2020 12:15:32 PM
Spectra
Voltage: 117 V
Current: 1.24 A
Frequency: 60 Hz
34 C1 45 C2 17 C3 8 C4 16 C5 34 C6 1 C7 24 C8 58 C9 71 C10 61 C11 39 C12 58 C13 57 C14 45 C15 73 C16 64 R1 79 R2 81 R3 59 R4 57 R5 64 R6 93 R7 67 R8 42 R9 68 R10 39 R11 5 R12 64 R13 82 R14 67 R15 34 Q1 38 Q2 43 Q3 42 Q4 44 Q5 36 Q6 4
Q7 Q80 Q90 Q100 Q110 Q120 Q130 Q140 Q150
0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.0
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7
2200 K 2700 K 3000 K 3500 K 4000 K 5000 K 6000 K 7000 K 8000 K 9000 K 10000 K 12000 K 15000 K 20000 K 40000 K 450 460 470 480 490 500 510 520 530 540 550 560 570 580 590 600 610 620 630
2200 K
2700 K
3000 K
3500 K
4000 K
5000 K
6000 K
7000 K
8000 K
9000 K
10000 K
12000 K
15000 K
20000 K
40000 K
450 460 470 480 490 500 510 530 540 550 560 570 580 590 600 610 620 630 T 314.743.3067 F 314.972.6202email: [email protected]
GLR-390W12F-VBD Bloom
1263 K
CRI R values, only R1-R8 are used to calculate final CRI value
R1 R2 R3 R4 R5 R6 R7 R8 R9 R10 R11 R12 R13 R14 R15
64.5 78.9 81.0 59.2 56.8 64.0 92.6 67.3 41.9 67.7 39.3 5.0 63.6 81.7 66.8
TM30 C values, 16 binned values out of total of 99 C values
C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14 C15 C16
34.0 45.5 17.4 8.1 15.8 33.9 0.8 23.9 58.0 70.6 61.1 39.5 58.2 57.2 44.6 72.6
CQS Q values
Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8 Q9 Q10 Q11 Q12 Q13 Q14 Q15
34.4 37.7 42.7 41.5 44.0 35.7 3.9 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
CQS: n/a
Color temperature Color rendering index
Red component Color fidelity Color gamut Color quality scale
Color coordinate cie 1931
Color coordinate cie 1931
Color coordinate Color coordinate Color diviation from black body
CCT CRI CRI R9 TM30 Rf TM30 Rg CQS x y u v Δuv
1263 K 70.5 41.9 42.7 185.9 n/a 0.582 0.340 0.394 0.345 -0.0139
TM30: 42.7
CRI: 70.5 (R1-R8)
Δuv: -0.0139
CIE 1931 ZOOM CIE 1931
x: 0.582 y: 0.340
Color parameters
34 45 17 8 16 34 1 24 58
71
61
39
58 57
45 73
9%
28% 72%109%101%73% 55% 25%
14% 15%
30% 37% 23% 20% 24%
8%
GLR-390W12F-VBD Bloom
TM30 Report
100
80
60
40
20
0
Fi
del
it
y
I
ndex
,
R
f
100
90
80
70
60
50
20% 15% 10% 5% 0% -5% -10% -15% -20%
Color distortion graphics Color vector graphics
Hue bin Hue bin
C
hrom
a
s
hi
ft
by h
ue
R
f
by
hue
140
130
120
110
100
90
80
70
60
50 60 70 80 90 100
Rg
Rf Graphic shifts (%)
Hue Bin Rf Chroma Hue
1 34 9% 26%
2 45 28% 51%
3 17 72% 71%
4 8 109% 51%
5 16 101% 5%
6 34 73% -6%
7 1 55% -45%
8 24 25% -39%
9 58 14% -15%
10 71 15% 1%
11 61 30% 10%
12 39 37% -11%
13 58 23% -20%
14 57 20% -36%
15 45 24% -42%
16 73 8% -10%
Rf 42.7
Fidelity index Rf
Rg 185.9
Gammut index Rg
Approx. limits for sources on the Planckian locus. Approx. limits for practical light sources. 1
2
T 314.743.3067 F 314.972.6202
email: [email protected]
Beam intensities from 1-20m
1m 2m 3m 4m 5m 6m 7m 8m 9m 10m 11m 12m 13m 14m 15m 16m 17m 18m 19m 20m
3.3ft 6.6ft 9.8ft 13.1ft 16.4ft 19.7ft 23ft 26.2ft 29.5ft 32.8ft 36.1ft 39.4ft 42.7ft 45.9ft 49.2ft 52.5ft 55.8ft 59.1ft 62.3ft 65.6ft 5392lx 1348lx 599lx 337lx 216lx 150lx 110lx 84lx 67lx 54lx 45lx 37lx 32lx 28lx 24lx 21lx 19lx 17lx 15lx 13lx 500.9fc
d
125.2fc d
55.7fcd 31.3fcd 20fcd 13.9fcd 10.2fcd 7.8fcd 6.2fcd 5fcd 4.1fcd 3.5fcd 3fcd 2.6fcd 2.2fcd 2fcd 1.7fcd 1.5fcd 1.4fcd 1.3fcd
Beam angle 50% Field angle 10% Cutoff angle 2,5% Intensity ratio in 120° cone Intensity ratio in 90° cone
61.6° 94.6° 111.4° 98.0% 91.4%
1.6 ft
(0.5 m)
3.3 ft
(1 m)
4.9 ft
(1.5 m)
6.6 ft
(2 m)
9.8 ft
(3 m)
Distance
feet
(meter)
11.7 ft
(7.2 m)
61.6°
7.9 ft
(5.4 m)
5.8 ft
(4.2 m)
3.9 ft
(3.6 m)
1.9 ft
(0.6 m)
Foot-candles*
(Lux)*
*measured at center of beam
Beam Width
feet
(meter)
56 fc (599 lx)
223 fc (2396 lx)
125 fc (1348 lx)
501 fc (5392 lx)
2004 fc (21567 lx)
90° 75° 60° 45° 30° 15° 0° -15° -30° -45° -60° -75°
15m 49.2f
12m 39.4f
9m 29.5f
6m 19.7f
3m 9.8f
0m 0f
-3m -9.8f
-6m -19.7f
-9m -29.5f
-12m -39.4f
GLR-390W12F-VBD Bloom
ISO Diagrams
ISO candela diagram
ISO lux diagram
10% 20% 30% 40% 50% 60% 70% 80% 90%
Conditions:
Number of c-planes: 16 Candela at center: 5392 cd
3% 5% 10% 30% 50%
539 cd 1078 cd 1618 cd 2157 cd 2696 cd 3235 cd 3774 cd 4313 cd 4853 cd
1.62 lx 2.70 lx 5.39 lx 16.2 lx 27.0 lx
Conditions:
Number of c-planes: 16 Lux at center: 53.9 lx
Lux distribution on a surface when lamp is mounted at 10 meters from the surface. Horizontal angles
V
e
rti
c
a
l a
n
g
le
H=7H=6 H=6H=7H=5 H=5H=4 H=4
T 314.743.3067 F 314.972.6202
email: [email protected]
www.superbrightleds.com/
GLR-390W12F-VBD Bloom
Ceiling
reflectance 80 70 50 30 10 0
Wall
reflectance 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
Floor
reflectance 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 0
RCR
(RCR: Room Cavity Ratio) Room Values are expressed as percentage of Lumens delivered to the task surface0 119 119 119 119 116 116 116 116 111 111 111 106 106 106 102 102 102 100
1 113 110 107 105 110 108 105 103 103 101 100 100 98 97 96 95 94 92
2 107 101 97 93 104 99 95 92 96 93 90 93 90 88 90 88 86 84
3 100 93 88 83 98 92 87 83 89 85 81 87 83 80 84 81 79 77
4 95 86 80 76 93 85 79 75 83 78 74 81 77 73 79 75 72 71
5 89 80 74 69 87 79 73 68 77 72 68 75 71 67 74 70 67 65
6 84 74 68 63 83 74 67 63 72 66 62 70 66 62 69 65 61 60
7 79 69 63 58 78 69 62 58 67 62 58 66 61 57 65 60 57 55
8 75 65 58 54 74 64 58 54 63 57 53 62 57 53 61 56 53 51
9 71 61 54 50 70 60 54 50 59 54 50 58 53 49 57 53 49 48
10 67 57 51 46 66 57 50 46 56 50 46 55 50 46 54 49 46 45
Light Planning
Coefficients of Utilization
Luminaire budgetary diagram
10 20 30 40 50 70 100 200 300 500 700 1K 2K 3K 4K 5K 7K 2
3 4 5 6 7 8 9 10 20 50
30 40
LAMPS (number of lamps)
AREA m2 (area of the room)
Conditions
H = Room height
Hdown Lamp distance from ceiling 0.00m Hwork Work area height from floor 0.00m Ework Average lux on work area 100lx
p(%) Ceiling reflectance
Wall
reflectance
Floor
reflectance
70 50 30
50 30 20
0°-10° 10°-20° 20°-30° 30°-40° 40°-50° 50°-60° 60°-70° 70°-80° 80°-90°
499 lm 1237 lm 1545 lm 1434 lm 689 lm 148 lm 70.6 lm 23.1 lm 4.17 lm
90°-100° 100°-110° 110°-120° 120°-130° 130°-140° 140°-150° 150°-160° 160°-170° 170°-180°
1.45 lm 1.74 lm 1.97 lm 2.38 lm 2.90 lm 2.82 lm 2.50 lm 1.75 lm 0.628 lm
GLR-390W12F-VBD Bloom
BUG rating:
B3 U2 G0
Forward light
Lumens
Lumens %
Low(0-30):
1678.3
29.6%
Medium(30-60):
1220.5
21.5%
High(60-80):
50.7
0.9%
Very high(80-90):
2.4
0%
Back light
Low(0-30):
1601.9
28.3%
Medium(30-60):
1052.7
18.6%
High(60-80):
43.2
0.8%
Very high(80-90):
1.9
0%
Uplight
Low(90-100):
1.5
0%
High(100-180):
16.6
0.3%
BVH 80-90° 1.9 lm 0%
FVH 80-90° 2.4 lm 0%
BH 60-80° 43.2 lm 0.8%
BM 30-60° 1052.7 lm 18.6%
BL 0-30°
FH 60-80° 50.7 lm 0.9%
FM 30-80° 1220.5 lm 21.5% FL 0-30°
UL 90-100° 1.5 lm 0% UL 90-100°
1.5 lm 0%
UH 100-180° 16.6 lm 0.3% 29.6%
22.2%
14.8%
7.4%
Front Back
Road Report
LCS table
1 min
32 sec
3 min
4 sec
4 min
37 sec
6 min
9 sec
7 min
41 sec
9 min
14 sec
10 min
46 sec
12 min
18 sec
13 min
51 sec
15 min
23 sec
100%
97.8%
99.5%
98.9%
98.4%
-2.2% variation in 15 min 23 sec
T 314.743.3067 F 314.972.6202
email: [email protected]
www.superbrightleds.com/
GLR-390W12F-VBD Bloom
Warmup time:
15 min 23 sec
Warmup variation
-2.2%
Stable period: 15 min
Stable change max: 2.0%
Minimum time: 15 min
CCT start CCT change CCT end
1256 K +7 K 1263 K
Output start Output change Output end
5789 lm -119 lm 5670 lm
Stabilization
Warmup curve
Warmup result
Warmup conditions
Color temperature change
136%
Maximum
61%
Minimum
100%
Average
0%
Cycle time: 8.33ms (120.1 Hz)
Span 0 - 2000Hz
GLR-390W12F-VBD Bloom
Flicker frequency:
120.12 Hz
Flicker index:
0.12
Flicker percentage:
38.03 %
SVM: (Visual flicker)
1.37
Sample rate: 40000 samples/second
Flicker
Flicker curve (complete sampled flicker signal)
Flicker frame (frame of one flicker period)
Flicker FFT (frequency scope of flicker curve)
Flicker results:
