Analysis of Inter-Satellite Optical Wireless Communication
System
Rajbir Singh
UIET MDU, Rohtak, Haryana, India
Abstract- Optical networks are bandwidth efficient networks are used for long haul communication providing seamless data transfer. For high speed data transmission in open space between different satellites, Inter-satellite Optical wireless communication (IsOWC) is widely used. In this paper we have evaluated the performance of IsOWC communication link for high speed data transmission. The performance of the system is evaluated on the basis of qualitative parameters such as Q-factor and BER using optisystem simulator.
Keywords: - IsOWC (Inter-Satellite Optical Wireless Communication), Radio over fiber (ROF), Elastic Optical Networks(EONs), EDFA
I. INTRODUCTION
Optical communication is playing an important role in backbone networks for long haul communication. As the multimedia applications are increasing day by day that require high speed data transfer from sender to receiver. This ever increasing traffic demand is being accommodated using several advancements in optical network technologies. The DWDM system [1][2], the improved RoF optical communication networks [3][4][5]and the evolving field of EONs [6][7] are being used to accommodate huge heterogeneous traffic in existing networks. The IsOWC is used for point to point communication at a high data rate. With the increasing demand of real time digital multimedia services, the demand for efficient and economical communication networks that provides high speed wired and wireless access in indoor and outdoor environments [8].
The IsOWC supports high data rate capability, unregulated bandwidth, low power, high efficiency, lesser antenna sizes and low cost but it also have several disadvantages includes the tracking problem and misalignment of transmitter and receiver apertures and the changes due to atmospheric conditions. The tracking problem causes various noise sources such as laser relative noise intensity, Johnson noise, dark current noise. Vibration noise is the most degrading factor in IsOWC communication system. These noises cause errors in the system and made it more susceptible towards the pointing errors. The main aim is to reduce the power dissipation and to reduce the BER. This result in high transmitter power and lesser receiver noise to obtain desired signal [9][10].
Figure 1: FSO as Inter-Satellite communication link
ISSN(E): 2277-128X, ISSN(P): 2277-6451, pp. 10-15 effect of atmospheric turbulences is heterogeneous for different modulation formats The data rate can be varied from 5Gbps to20Gbps with a tolerable quality factor. Transmission properties affected due to other parameters include transmission aperture diameter, receiver aperture diameter and power of the operating laser source. The system requires more power when operated at large distances. To avoid the tracking problems the satellites should be in Line-of-Sight links so that transmitter and receiver pointing angles must be precisely confirmed. Signal reception can be intricate or impossible with a small deviation in beam angles.
II. OPTICAL INTERSATELLITE SYSTEM
The basic block diagram of IsOWC diagram is shown in Figure2.In our proposed system, the first subsystem is the transmitter part which consists of PRBS generator. It generates the data which is to be transmitted i.e. data source. The second subsystem represents the different modulation formats which get its output from the previous block. This subsystem encodes the data from PRBS output by (CSRZ, DRZ and DPSK) techniques. The third subsystem is DML i.e. directly modulate laser which operates on wavelength of 1552 nm because of low attenuation characteristics in optical communication in this wavelength region.

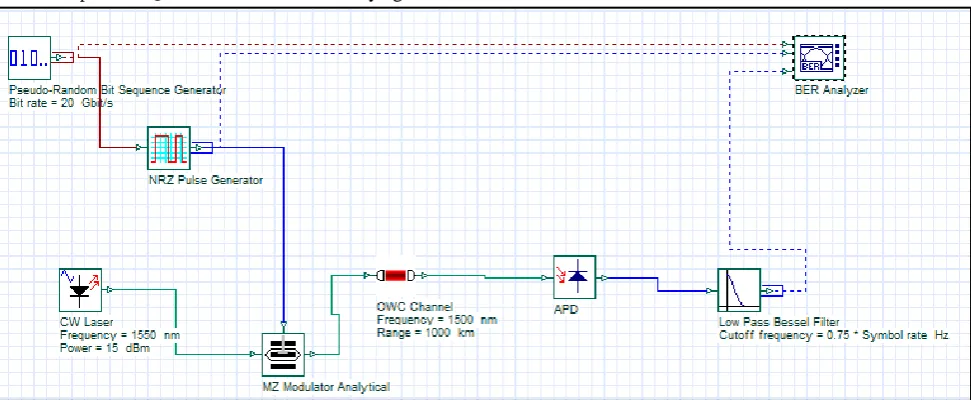

Figure 2 Block diagram for IsOWC
The free space between transmitter and receiver is considered as OWC channel which is the propagating medium for the transmitted optical signal. The optical receiver comprises of a photo detector followed by a low pass Bessel filter. In this section of system, the optical signal is converted back into electrical signal.APD (avalanche photo-diode) is used because of its high gain property. The last subsystem is BER tester which gives the Quality factor and BER measurement.
III. DESIGNED BLOCK DIAGRAM
We have designed a IsOWC using optisystem software .Figure 3 shows the block diagram of the proposed system. In this diagram a pseudo random sequence generator is used to generate a PN sequence which is then used to generate an electrical pulse using NRZ pulse generator. The input signal is modulated over a CW carrier laser using a MZM modulator and transmitted using an OWC channel. From the simulation, observation was done which is the relationship of the Q-factor and distance at varying the bit rates.
Figure 3 Designed Inter-Satellite communication link simulation setup
IV. RESULT AND DISCUSSION
ISSN(E): 2277-128X, ISSN(P): 2277-6451, pp. 10-15 Table I Variation of Q factor with distance at 5, 10, and 15Gbps data rate
DISTANCE(KM) MAX. Q FACTOR
5GHz 10GHz 15GHz
200 72.1126 68.9634 45.6517
400 51.1599 48.3587 32.3794
600 40.5972 32.1873 26.48671
800 25.49263 18.55449 14.85070
1000 9.4896 7.7230 5.77669
Figure 4 shows the variation of Q-factor with increasing the distance as given below:
Figure 4 Variation of Q-factors with increasing Distances
From Table I and Figure 4It can be observed that as the range of communication increases, the quality factor of the system decreases. The value of Q-Factor is greater for 5GHz than 10 and 15GHz.As the distance of communication increases, the Q-Factor decreases. As the data rate increases, the Quality Factor decreases.
Table II Variation in BER with distance at 5, 10, and 15 Gbps data rate
DISTANCE(KM) Min. BER
5GHz 10GHz 15GHz
200 0 0 2.02174e-145
400 1.11487e-099 1.36125e-075 1.10487e-095
600 1.53439e-026 2.00767e-020 1.05185e-037
800 1.96985e-018 2.58367e-016 2.14863e-013
1000 1.12948e-009 1.23936e-006 1.8593e-005
Table II shows the variation of BER with respect to communication distance. The value of BER increases with increase in communication link. Results of eye camera analyser, shown below, as the range of communication increases, the value of BER is shown in Tables II
(a) 200 km (b) 400 km (c) 600km 0 10 20 30 40 50 60 70 80
200km 400km 600km 800km 1000km
Q
-f
ac
tor
Distance
Variation of Q-factor with distance
5GHz
10GHz
ISSN(E): 2277-128X, ISSN(P): 2277-6451, pp. 10-15

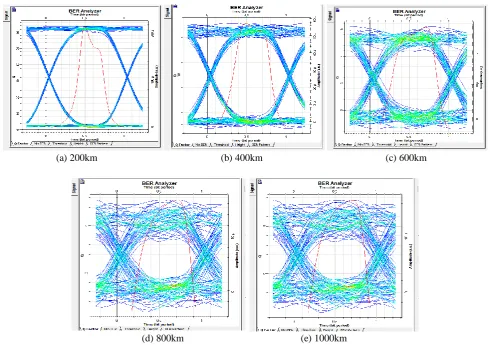

(d) 800km (e) 1000km Figure 5 Eye Diagram for 5 Gbps data rate at different distances.
(a) 200km (b) 400km (c) 600km
(d) 800km (e) 1000km
Figure 6. Eye Diagram for10 Gbps data rate at different distances.
ISSN(E): 2277-128X, ISSN(P): 2277-6451, pp. 10-15
(d) 800km (e) 1000km Figure 7 Eye Diagram for15 Gbps data rate at different distance
Figure 5, 6 and 7 shows the eye diagrams obtained at BER analyzer.. These eye diagrams shows that at small distances of 200 and 400km ,eye diagrams have a larger eye opening, greater eye height and width and there is less distortion among the various spectral components hence the Q-Factor of the system is high irrespective of data rates. As the transmission distance increases, the Q-Factor decreases and overlapping of spectral components occurs and we obtained distorted eye diagrams.
V. CONCLUSION
In this paper we have analyzed IsOWC for inter satellite communication which can provide communication at higher speed and upto a larger distance compared to ordinary RF links. We have evaluated the performance of the system at different transmission distances of 200,400,600,800 and 1000km at 5,10,15Gbps data rates. We found that as the data rate increases, the Q factor decreases and at a particular data rate the Q-Factor decreases with increase in communication distance.
