Component-based Development
Process and Component Lifecycle
Ivica Crnkovic
1, Stig Larsson
2and Michel Chaudron
31M¨alardalen University, V¨asteras, Sweden˚ 2ABB Corporate Research, V¨asteras, Sweden˚
3Technical University Eindhoven, Eindhoven, The Netherlands
In recent years component-based development has be-come an established approach. Component-based Soft-ware Engineering (CBSE) that deals with the entire
lifecycle of component-based products has been focused on technologies related to design and implementation of software components and systems built from soft-ware components. The experience has shown that pure technologies alone are not enough. A CBSE approach requires certain changes in development and life cycle processes. However, very few CBSE works, either research or practical, have addressed these topics. This paper describes principle differences of component-based and non- component based processes. Also we give an overview of a case study from a company that applies component-based approach.
Keywords: component-based software engineering, life-cycle processes.
1. Introduction
Component-based approach has in last years shown considerable success in many application domains. Distributed and web-based systems, desktop and graphical applications are typi-cal examples of domains in which component-based approach has been very successful. In these domains the general-purpose component technologies, such as COM, .NET, EJB, J2EE are used.
There is, however, very little development pro-cesses knowledge specific to component-based development.
This paper describes the characteristics of component-based processes, the reasons for this, and the differences from a non-component-based development process. From a case study it shows that component-based approach provides specific solutions in organization of a company.
The rest of the paper is organized as follows. Section 2 gives an overview of development processes. Section 3 discusses some basic char-acteristics of component-based approach and il-lustrates component-based activities in the “V” development process model. We illustrate a component-based development approach in an industrial case study in section 4. Finally, sec-tion 5 concludes the paper.
2. Basic Characteristic
of Lifecycle Process Models
Lifecycle processes include all activities of a product or a system during its entire life, from the business idea for its development, through its usage and its completion of use. Differ-ent models have been proposed and exploited in software engineering, and different models have exhibited their (in)abilities to efficiently
Independently of the model type we can iden-tify the basic activities present in any lifecycle process model. These activities are the follow-ing:
Requirements analysis and specification. The system’s services, constraints and goals are es-tablished(i.e. a specification of what the system
is supposed to do).
System and software design. An overall sys-tem and software architecture is established. A detailed design follows the overall design. Soft-ware design includes identifying and describing the fundamental software systems abstractions and their relationships.
Implementation and unit testing. The for-malization of the design in an executable way, which can be composed of smaller units. Test-ing of the units follows their implementation. System integration. The system units are inte-grated.
System verification and validation. Correct-ness of the complete system is verified and the system is validated with respect to the require-ments.
Operation support and maintenance. A set of activates that are required for the expected performance of the system.
Disposal. A disposal activity, often forgotten in many lifecycle models, includes the phasing-out of the system, i.e. a possible replacement by another system or a complete termination. Not all models are suitable for all types of sys-tem lifecycles. Usually large syssys-tems, which include many stakeholders and whose develop-ment lasts a long period, prefer using sequential models. The systems which use new technolo-gies are smaller and to which the time to market is important, usually explore evolutionary mod-els that are more flexible and can show some results much earlier than sequential models. These models can be applied in a component-based development, but require adaptation to the principles of component-based approach.
3. Component-Based Lifecycle Process Models
CBSE addresses challenges similar to those en-countered elsewhere in software engineering.
Many of the methods, tools and principles of software engineering used in other types of sys-tem will be used in the same or similar way in CBSE. There is, however, one difference; CBSE specifically focuses on questions related to components and in that sense it distinguishes the process of “component development” from that of “system development with components”.
3.1. Building Systems from Components
The main idea of the component-based approach is building systems from pre-existing compo-nents. This assumption has several consequences for the system lifecycle. First, the develop-ment processes of component-based systems are separated from development processes of the components; the components should already have been developed and possibly used in other products when the system development process starts. Second, a new separate process will ap-pear: Finding and evaluating the components. Third, the activities in the processes will be dif-ferent from the activities in non- component-based approach; for the system development the emphasis will be on finding the proper compo-nents and verifying them, and for the component development, design for reuse will be the main concern.
There is a difference in requirements and busi-ness ideas in these two cases and different ap-proaches are necessary. Components are built to be used and reused in many applications, some possibly not yet existing, in some possibly un-foreseen way
System development with components is fo-cused on the identification of reusable entities and relations between them, beginning from the system requirements and from the availability of already existing components 1]4]. Much
implementation effort in system development will no longer be necessary, but the effort re-quired in dealing with components: locating them, selecting those most appropriate, testing them, etc. will increase6].
of each other. In reality, the processes are al-ready separate as many components are devel-oped by third parties, independently of the sys-tem development. Even components being de-veloped internally in an organization which uses these very same components, are often treated as separate entities developed separately.
Let us discuss these differences in more detail. Figure 1 shows a V development model adapted to component-based approach.
We use V model as this model is widely used in many organizations — typically large organiza-tion building complex long-life products, such as cars or robots. In this model the process starts in a usual way by requirements engineering and requirements specification, followed by system specification. In a non-component-based ap-proach the process would continue with the unit design, implementation and test. Instead of per-forming this activities that often are time and efforts consuming, we simply select appropri-ate components and integrappropri-ate them in the sys-tem. However, two problems appear here which break this simplicity: (i)It is not obvious that
there is any component to select, and(ii)the
se-lected component only partially fits our overall design. The first fact shows that we must have a process for finding components. This process includes activities for finding the components, and then the component evaluation. The second fact indicates for a need of component adapta-tion and testing before it can be integrated into the system. And of course there must be a pro-cess of component development, this being in-dependent of the system development process.
Figure 1 also shows a simplified and idealized process. Its assumption is that the components selected and used are sufficiently close to the units identified in the design process, so that the adaptation process requires(significantly)less
efforts than the units’ implementation. Further, it does not consider what happens in the main-tenance process; what happens if a system mal-functions due to a problem that has occurred in a component, or due to incompatibilities of the components. This indicates that the component-based approach is not only limited to the devel-opment process, or part of the develdevel-opment pro-cess, but to the entire lifecycle. At a very early stage, in the Requirements and Design phases,
Fig. 1.V development process for CBD.
the system requirements engineers and system architects must be aware about the availability of already existing components.
A more realistic process is shown in Figure 2. Let us look at the activities in different phases of the development process in more detail. Requirements analysis and specification. In this phase one important activity is to analyze the possibility of realizing the solutions that will meet these requirements. In a component-based approach this implies that it is necessary to ana-lyze whether these requirements can be fulfilled with available components. This means that the requirements engineers must be aware of the components that can possibly be used. Since it is not likely that appropriate components can always be found, there is a risk that the new components have to be implemented. To keep with component-based approach(and utilize its
advantages) one possibility is to negotiate the
requirements and modify them to be able to use the existing components.
System and software design. Similar to the re-quirements specification phase the system spec-ification and design are strongly related to the availability of the components. The potential components are complying with a particular component model. One could assume that it would be possible to use components imple-mented in different component technologies, but in practice it is very difficult to achieve inter-operability between different component mod-els. Particular component model requires a par-ticular architectural framework, and the appli-cation is supposed to use this framework. This has a direct impact on architectural decisions. For example, if the component model requires a client-server architecture style, it is obvious that the application will use that style and not another one(for example pipe-filter). This will
put limitations on the system design. Also, other properties of components can have a di-rect influence on the design decisions. For this reason the design process is tightly connected to the availability of the components.
Implementation and unit testing. When build-ing component-based system, an ideal case is to build an application by direct integration of components, i.e. connecting components di-rectly. The “glue code” is a code that spec-ifies this connection. In practice the role of the glue code will also include adaptation of the components, and even implementation of new functions. In an ideal case the compo-nents themselves are already built and tested. However, the component tests in isolation are not sufficient. Often, design units will be im-plemented as assemblies of several components and possibly a glue code. These assemblies must be tested separately since an assembly of correct components may be incorrect, although the components themselves are correct3].
System Integration. The integration process includes integration of standard infrastructure components that build a component framework and the application components. The integra-tion of a particular component into a system is called a component deployment. Unlike the entire system integration, a component deploy-ment is a mechanism for integration of partic-ular components — it includes download and registering of the component.
System verification and validation. The stan-dard test and verification techniques are used here. A specific problem for component-based approach is location of error, especially when
components are of “black box” type and de-livered from different vendors. Typically, a component can exhibit an error, but the cause of the malfunction lies in another component. Contractual interfaces play an important role in checking the proper input and output from com-ponents. These interfaces enable a specification of input and output and checking the correctness of data.
Operation support and maintenance. The maintenance process includes some steps that are similar to the integration process: A new or modified component is deployed into the sys-tem. Also, it may be necessary to change the glue code. In most of the cases an existing component will be modified or a new version of the same component will be integrated into the system. Once again, new problems caused by incompatibility between components, or by bro-ken dependencies, may occur. This means that the system must be verified(either formally, or
by simulation, or by testing).
In comparison with a non-component-based ap-proach, in a component-based development cess there are significantly less efforts in pro-gramming, but the verification and testing re-quire considerably more efforts. The verifica-tion activity is repeated in several phases, with slightly different goals:
Verifying component in isolation; Verifying components in an assembly; Verifying the system when a component has been deployed into the system.
3.2. Building Reusable Components
The process of building components can fol-low an arbitrary development process model. However, any model will require certain mod-ification to achieve the goals; in addition to the demands on the component functionality, a component is built to be reused. Reusabil-ity implies generalReusabil-ity and flexibilReusabil-ity, and these requirements may significantly change the com-ponent characteristics. For example there might be a requirement for portability, and this re-quirement could imply a specific imple- menta-tion solumenta-tion(like choice of programming
lan-guage, implementation of an intermediate level of services, programming style, etc.). The
efforts and more qualified developers. The com-ponent development will require more efforts in testing and specification of the components. The components should be tested in isolation, but also in different configurations. Finally, the documentation and delivery will require more efforts since the extended documentation is very important for increasing understanding of the component. An example of extended compo-nent specification can be found in ROBOCOP component model 5]; a component is
speci-fied by a row of modules: executable model, functional model, simulation model, resource model, etc. Each model includes a correspond-ing documentation.
4. Industrial Case of
Component-Based Process Model
We give here a short overview of a case study: a process model used in a large international con-sumer electronics company. The case study was performed by four researchers in intensive inter-views with different stakeholders of the devel-opment projects: system architects, component architects, developers, project leaders, the man-agement, the quality assurance and test people, and principal specialists.
The development divisions of the company are placed in four different countries and they pro-duce numerous products with different vari-ants and models. The company has adopted component-based development using product-line architecture. The component model is ternally developed and most of the tools are in-ternally developed. The reason for that are spe-cific requirements of the domain: low resource usage, high availability, and soft real-time re-quirements.
The component model follows the basic prin-ciples of CBSE: The components are specified by interfaces which distinguish “require” from “provide” interfaces. In addition to functional specification, the interface includes additional information; interaction protocols, timeliness properties, and the memory usage. The com-ponent model enables a smooth evolution of the components as it allows existence of multiple interfaces. The model has a specific charac-teristic; it allows hierarchical compositions: a composite component is treated as a standard component and it can be further integrated in
another component. The components are also developed internally, but their development is separated from the development of the products. The product-line architecture identifies the ba-sic architectural framework. The product archi-tecture is shown in Figure 3.
The product architecture is a layered architec-ture which includes (i) operating system, (ii)
the component framework which is an inter-mediate level between domain-specific services and operating,(iii)core components which are
included in all product variants, and(iv)
appli-cation components that are usually different for different product variants.
Complementary to this horizontal layering there is a vertical structuring in form of subsystems. Subsystems are also related to organizational structures; they are responsible for development and maintenance of particular components. The overall process is designed as shown in Figure 4.
Fig. 3.Product software architecture.
In the overall process there are three sets of independent parallel processes: (i) An overall
architecture and platform development process are responsible for delivering new platforms and basic components,(ii)subsystem development
processes which deliver a set of components that provide different services, and(iii)the product
development process which is basically an in-tegration process. This process arrangement makes it possible to deliver new products ev-ery six months, while the development of sub-system components takes typically between 12 and 18 months. The specific feature of these projects is that all deliverables have the same form. A deliverable is a software package de-fined as a component. Two main documents belong to every deliverable: component inter-face specification and component sheet; the first document describing the interconnection, the second describing the component internals. Although the overall development and produc-tion is successful, the process suffers from sev-eral drawbacks. The most serious is late dis-covery of errors, due to interface or architec-tural mismatches, insufficient specifications of semantics of the components, or due to inappro-priate interfaces. Also, the problems related to encapsulation of a service in components often occur; due to functional overlaps, or some re-quirements affecting the architecture, it is diffi-cult to decide in which components a particular function will be implemented. All these prob-lems indicate that it is difficult to perform the processes independently; negotiation between different subsystems and agreement in many technical details between different teams are necessary. For this reason the processes are not completely separated. They are distributed among several projects and there is an overall project that coordinates them all.

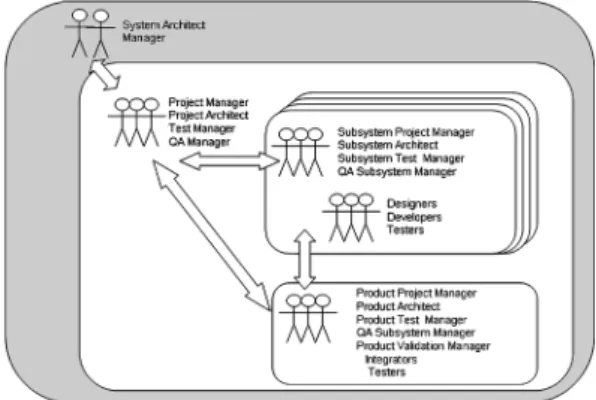

The processes have a strong support in the project and organization structure (see Figure
5).
The system architect and the management have overall responsibilities for requirements, poli-cies, product line architecture, products visions and long term goals. The project architect has a responsibility for the overall project which re-sults in a line of products. He/she coordinates
the architectural design of the product family and subsystems. The test and quality-assurance
Fig. 5.Project organization structure.
(QA) managers have similar role in their
do-mains: to ensure coordination and compatibil-ity of tests and qualcompatibil-ity processes. Subsystem architects provide the designs of their subsys-tems and coordinate the design decisions with other subsystems. Each subsystem has a test team and a QA manager whose responsibility is the quality of delivered subsystem compo-nents. The integration team which works in delivery projects is represented by a product architect, QA and test managers who coordi-nate the activities with other projects. We can observe that project teams have many “non-productive” stakeholders. This is in line with the component-based approach — more efforts must be put on overall architecture and testing, and less on the implementation itself. Develop-ment processes in our case are manly of an evo-lutionary model. The platform, the subsystems and the products are developed in several itera-tions until the desired functionality and quality are achieved. This requires synchronizations of iterations.
5. Conclusion
By an industrial case study we have pointed out the difficulties to achieve a complete separa-tion of the development processes of systems from the components, as well as the need for a project organization which puts more empha-sis on architectural issues and on system and components verification.
6. Acknowledgments
The authors would like to thank Chritiene Aarts for his enormous help in organizing the inter-views and all the interviewees who took their valuable time for the interviews.
References
1] L. BASS, P. CLEMENTS ANDR. KAZMAN,Software
Architecture in Practice, Addison Wesley, 1998.
2] V. BORGHOFF, R. PARESI, (editors), Information
Technology for Knowledge Management,New York: Springer Verlag; 1998.
3] IVICACRNKOVIC ANDMAGNUSLARSSON(editors),
Building Reliable Component-Based Software Sys-tems, Artech House Publishers, ISBN 1-58053-327-2, 2003.
4] D. GARLAN, R. ALLEN AND J. OCKERBLOOM,
Ar-chitectural Mismatch: Why Reuse is so Hard,IEEE Software, Vo. 12, issue 6, 1995.
5] ITEA project, ROBOCOP-Robust Open
Com-ponent Based Software Architecture for
Con-figurable Devices Project http://www.hitech-projects.com/euprojects/robocop.
6] M. MORISIO, C. B. SEAMAN, A. T. PARRA, V. R.
BASIL, S. E. KRAFT AND S. E. CONDON,
Investi-gating and Improving a COTS-Based Software Development Process,In Proceedings , 22nd ICSE, ACM Press, 2000.
Recived:June, 2005. Accepted:October, 2005.
Contact address: Ivica Crnkovic M¨alardalen University V¨asteras˚
Sweden ivica.crnkovic@mdh.se Stig Larsson ABB Corporate Research V¨asteras˚
Sweden stig.bm.larsson@se.abb.com Michel Chaudron Technical University Eindhoven Eindhoven The Netherlands
IVICACRNKOVICis a professor of industrial software engineering at M¨alardalen University where he is the administrative leader of the software engineering laboratory and the scientific leader of the in-dustrial software engineering research. His research interests include component-based software engineering, software configuration man-agement, software development environments and tools, as well as software engineering in general. Professor Crnkovic received an M.Sc. in electrical engineering in 1979, an M.Sc. in theoretical physics in 1984, and a Ph.D. in computer science in 1991, all from the University of Zagreb, Croatia.
MICHELR. V. CHAUDRONis an assistant professor at the Eindhoven University of Technology and a researcher in the System Architecture and Networking group. His research interests include software archi-tecture, empirical software engineering and component-based software engineering. He received his MSc and his PhD from the Universiteit Leiden and worked as a consultant in traffic and transport telematics.
STIGLARSSONis responsible for the product development process
