Please see the attached file: "SendExample.asp" for an example of how you can send files using classic ASP.

(1)

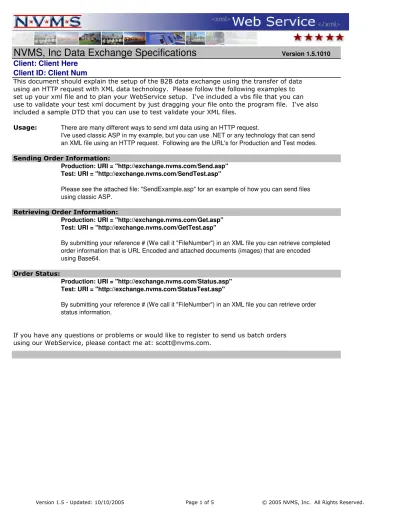

NVMS, Inc Data Exchange Specifications

Version 1.5.1010

Client: Client Here

Client ID: Client Num

This document should explain the setup of the B2B data exchange using the transfer of data using an HTTP request with XML data technology. Please follow the following examples to set up your xml file and to plan your WebService setup. I've included a vbs file that you can use to validate your test xml document by just dragging your file onto the program file. I've also included a sample DTD that you can use to test validate your XML files.

Usage: There are many different ways to send xml data using an HTTP request.

I've used classic ASP in my example, but you can use .NET or any technology that can send an XML file using an HTTP request. Following are the URL's for Production and Test modes.

Sending Order Information:

Production: URI = "http://exchange.nvms.com/Send.asp" Test: URI = "http://exchange.nvms.com/SendTest.asp"

Please see the attached file: "SendExample.asp" for an example of how you can send files using classic ASP.

Retrieving Order Information:

Production: URI = "http://exchange.nvms.com/Get.asp" Test: URI = "http://exchange.nvms.com/GetTest.asp"

By submitting your reference # (We call it "FileNumber") in an XML file you can retrieve completed order information that is URL Encoded and attached documents (images) that are encoded using Base64.

Order Status:

Production: URI = "http://exchange.nvms.com/Status.asp" Test: URI = "http://exchange.nvms.com/StatusTest.asp"

By submitting your reference # (We call it "FileNumber") in an XML file you can retrieve order status information.

If you have any questions or problems or would like to register to send us batch orders using our WebService, please contact me at: [email protected].

(2)

Sending Order Data

Field Definitions/Explanation

Field/Attribute Field Type (Size) Required Notes Format Ex: XML Tag

username int Yes Same as client ID "10" security

password varchar(50) Yes Given to you at time of setup "password" security

ClientID int Yes *See Client Section for correct ID "73" details, service

UserID int Yes *See Client Specific Users for user ID "23" details

FileNumber varchar(50) Yes Your unique file number. "any text or num" details

PropOwner varchar(50) Yes Business name or Property name. "new business" details

PropAddress varchar(50) Yes Business or property address. "123 Main St" details

PropCity varchar(50) Yes Business or property city. "FreeTown" details

PropState varchar(50) Yes Business or property state. "VA" details

PropZip varchar(50) Yes Business or property zip. "21220" details

PropDesc varchar(100) No Optional business description. "Building" details details

mobYear varchar(10) No Optional mobile home year built. "1980" details

mobModel varchar(50) No Optional mobile home model. "RED ONE" details

mobSerial varchar(50) No Optional mobile home serial number. "283983AB" details

mobLength varchar(5) No Optional mobile home length "40 ft" details

mobWidth varchar(5) No Optional mobile home width. "70 ft" details

AccContact varchar(50) No Business contact name. "Bill Coctosin" details

AccMobile varchar(50) No Business contact mobile phone number. "7035551212" details

AccFax varchar(50) No Business contact fax number. "7035551234" details

AccHome varchar(50) No Business contact home phone number. "7034582321" details

AccWork varchar(50) No Business contact work phone number. "7035551243" details

AccEmail varchar(50) No Business contact email. [email protected] details

ClientDBA varchar(50) No You can use this field as the dba name or the agent name/sales person name.

"BankCard Systems" or "John Doe"

details

Notes varchar(1000) No Optional order notes. "Notes Here" details

ServiceID int Yes *See Client Specific Services for service ID "6" service

pid int Yes Same as parent order id attribute "2" service

Client Specific Services - Client Here

ServiceID Service Description

You will receive these details once your company is signed up.

Client Specific Users - Client Here

UserID Name Email

You will receive these details once your company is signed up.

XML Example

<?xml version="1.0"?>

<!DOCTYPE root SYSTEM "OrderExchange.dtd"> <root>

(3)

</order> <order id="2">

</order> </root>

XML Data Field Explanation:

1.) All XML files sent to NVMS, Inc. should include the DOCTYPE tag referencing the OrderExchange.dtd or you file will fail validation.

2.) The order id attribute should be a unique value for each order sent in the batch.

3.) You can attach multiple services using the <service> tag. The "pid" attribute must match the

parent order id for all services under the parent order. All attributes must be included in the service tag.

DTD Example

<!ELEMENT root (security,order+)> <!ELEMENT security (#PCDATA)>

<!ATTLIST security username CDATA #REQUIRED> <!ATTLIST security password CDATA #REQUIRED> <!ELEMENT order (details,service+)>

<!ATTLIST order id CDATA #REQUIRED> <!ELEMENT details (#PCDATA)>

<!ATTLIST details ClientID CDATA #REQUIRED> <!ATTLIST details UserID CDATA #REQUIRED> <!ATTLIST details FileNumber CDATA #REQUIRED> <!ATTLIST details PropOwner CDATA #REQUIRED> <!ATTLIST details PropAddress CDATA #REQUIRED> <!ATTLIST details PropCity CDATA #REQUIRED> <!ATTLIST details PropState CDATA #REQUIRED> <!ATTLIST details PropZip CDATA #REQUIRED> <!ATTLIST details PropDesc CDATA #IMPLIED> <!ATTLIST details mobYear CDATA #IMPLIED> <!ATTLIST details mobModel CDATA #IMPLIED> <!ATTLIST details mobSerial CDATA #IMPLIED> <!ATTLIST details mobLength CDATA #IMPLIED> <!ATTLIST details mobWidth CDATA #IMPLIED> <!ATTLIST details AccContact CDATA #IMPLIED> <!ATTLIST details AccMobile CDATA #IMPLIED> <!ATTLIST details AccFax CDATA #IMPLIED> <!ATTLIST details AccHome CDATA #IMPLIED> <!ATTLIST details AccWork CDATA #IMPLIED> <!ATTLIST details AccEmail CDATA #IMPLIED> <!ATTLIST details ClientDBA CDATA #IMPLIED> <!ATTLIST details Notes CDATA #IMPLIED> <!ELEMENT service (#PCDATA)>

<!ATTLIST service pid CDATA #REQUIRED> <!ATTLIST service clientID CDATA #REQUIRED> <!ATTLIST service serviceID CDATA #REQUIRED>

(4)

Client Transfer Example

'************************ HTTP Request Example for DataExchange Response **************** Dim xmlhttp, url, xmlFile

Dim xmlDoc, oXmlSend

Set oXmlSend = Server.CreateObject("MSXML2.ServerXMLHTTP.3.0") Set oXmlGet = Server.CreateObject("MSXML2.ServerXMLHTTP.3.0") url = "http://exchange.nvms.com/SendTest.asp" xmlFile = "http://yourserver/webfolder/testNVMS.xml" Response.ContentType = "text/html" 'Get File

oXmlGet.open "GET", xmlFile, false oXmlGet.send()

xmlDoc = oXmlGet.responseText

'Send File

oXmlSend.open "POST", url, false oXmlSend.send(xmlDoc) If err.number <> 0 Then Response.Write err.Description Else Response.Write oXmlSend.responseText End If

Retrieving Order Data

XML Example

<?xml version="1.0" encoding="utf-8"?> <root>

Submit your XML file to us in this format and receive order documents that can be saved in your own document management system. You can batch as many order tags as you like in this XML request, but remember each file will be +/- 1.5 MB - This depends on the number of reports and images included in each report.

Return XML Schema: <root>

</root>

The XML schema returned is like the example above. The report data is sent to you in a URL Encoded format so you'll have to decode this to before reading it. The report is just an HTML table. The attachments are encoded using Base64 so you'll have to decode these as well using some sort of Base64 decode function. Let me know if you need help with either… Please look in the exchange.zip file for the file "testNVMSget.xml" for an example of the XML data returned.

You also need to watch for errors in the response file. If there are errors, an "<error>" tag will be returned with corresponding text. <error text="No attachments found for this report..." />

(5)

Order Status

XML Example (request)

<?xml version="1.0" encoding="utf-8"?>

<root>

Submit your XML file to us in this format and receive order status for each file number passed. You can use this info from your system to send us this request to tell which order are complete. If complete you may then run the "Retrieve" function to pull down the data of the full report.

Return XML Schema:

<?xml version="1.0" encoding="utf-8" ?> <root>
