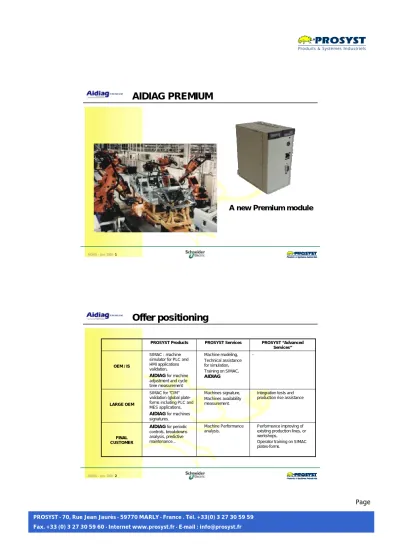

AIDIAG PREMIUM. Offer positioning

(1)

AIDIAG – janv. 2003 -1

A new Premium module

Offer positioning

Performance improving of existing production lines, or workshops,

Operator training on SIMAC plates-forms.

Machine Performance analysis.

AIDIAGfor periodic controls, breakdowns analysis, predictive maintenance…

FINAL CUSTOMER

Integration tests and production rise assistance

Machines signature,

Machines availability measurement.

SIMAC for “CIM” validation (global plate-forms including PLC and MES applications, AIDIAGfor machines

signatures. LARGE OEM Machine modeling, Technical assistance for simulation, Training on SIMAC, AIDIAG SIMAC : machine simulator for PLC and HMI applications validation, AIDIAGfor machine

adjustment and cycle time measurement OEM / IS PROSYST “Advanced Services” PROSYST Services PROSYST Products

(2)

AIDIAG Premium

a PLC module for machines signature, performance rate measurement, process tracking and diagnosis

Adjustment and acceptance for new equipments and rewamping :

Functional control,

Machine signature,

« Machine Availability » measure.

Setting up,periodic control,

Breakdown analysis,

Measure and analysis of performance indicators,

Process tracking,

« Conciliation magistrate »,

Remote diagnosis, remote monitoring.

Performance obtaining for any equipment on exploitation :

Recording and analysis operation of machines or automated processes

AIDIAG Premium

Easy to use,

A high precision recorder and data analyzer, Totally transparent for the

PLC and the PL7 Pro application, compliant UNITY,

Easy to implement : “Plug and work” !

(3)

AIDIAG records all the data (actuators and sensors evolutions), essential to well understand and improve the machines behavior :

Measure and adjustment of machines production cycles

(commissioning new applications / periodic control),

Measure and analysis of machines performance rates,

Events trapping and breakdowns analysis.

Really adapted to the car industry applications !

AIDIAG Premium

“Plug and work” : so easy to implement

AIDIAG automatically uploads the binary code from the PLC CPU, and gets the I/O lists, their labels and comments, the addresses areas of configured bits and internal words ;

All the available objects are automatically displayed for user’s choice through the “AIDIAG OPC Server” browser ;

AIDIAG automatically detects any change in the I/O

configuration;

The “AIDIAG OPC Server” -- PC based -- detects AIDIAG modules, and stores their network addresses.

(4)

AIDIAG Premium

A powerful data analyzer

AIDIAG detects and dates any PLC variables evolution :

Digital and analog I/O : on BUS X, FIP, AS-i, Interbus and Profibus,

Internal bits and words (%M, %MW, %S, %SW).

Resolution : as the same rate of the PLC tasks for I/O survey

(for example : 3 milli-seconds resolution for I/O in a 3 ms fast task !)

Total transparency :

no declaration into the PL7-Pro configuration,

no modification into the PL7-Pro application,

no impact on the PLC : neither CPU cycle time nor memory.

AIDIAG :

an immediate pay-back ... for end users :

Thanks to a better machine availability :

Break down analysis, events trapping,

Deeper “level one” maintenance,

Periodic control of machine cycles, adjustment,

Easy calculation and analysis of machines performance rates

without programming, neither modifying PL7 Pro application.

Thanks to validation of new machines or renovations being in accordance with specifications ;

Thanks to process behavior tracking (cf. pharmaceutical, food industry applications…) ;

(5)

… and for machines manufacturers : Improvement of quality ;

Reduction of tuning and commissioning time ;

Setting up of a reference state, documentation improvement ; new services offering competitive advantages : remote diagnosis

and maintenance, periodic controls ;

Analysis of malfunctions and responsibilities in case of problem on plant.

an immediate pay-back…

An offer which reinforce

SCHNEIDER electric prescription

Thanks to Prosyst offer, without equivalent at the other constructors, Schneider Electric France proposes in addition, on the new projects and the rewamping, products and services to reduce the deadlines, to pronounce the reception of the machines, to accelerate the production rise and to guarantee efficiency obtainment.

Schneider is not only seen like a components supplier for large OEM, but a partner close to end users concerns in term of quality,times and productivity.

(6)

AIDIAG Premium : external layout

- PREMIUM from 5710 to 5745 - Double sized module to be

plugged in bus X

- FIP connection (via FPCE030 cable on ACC4 block)

- Insertion of module allowed when power on

- Communication

* via X WAY (FIPWAY,

ETHWAY…) * Ethernet TCP IP (RJ45 connector) * local RS FIPIO connection RS local communication Bus X connection X-WAY communication Ethernet TCP IP Communication

AIDIAG Premium : internal architecture

Mother board - Bus X, FIP

communication controllers, - Specific FPGA module for data

analysis and dating.

Consummation : 2.2 A CPU PC104 format

- PENTIUM Processor - 8 MB RAM

(7)

Hardware / software configuration

Bus X® MMMM OOOO DDDD II II CCCCOOOO NNNN AIDIAG ASi Fipio Interbus Profibus Bus X® MMMM OOOO DDDD II II CCCCOOOO NNNN AIDIAG ASi Fipio Interbus Profibus - Local connection X-WAY, TCP IP - Internet Windows 98, NT or 2000 OPC COM/DCOM

AIDIAG OPC Server

AIDMAP II

Vijeo look full compatibility

(activex implementation)

AIDIAG Black Box, and AIDMAP II Viewer, can be inserted into any Vijeo Look application, through their ActiveX new version !

Vijeo Look

AIDIAG Black Box ActiveX AIDMAP II ActiveX

AIDIAG

(8)

AIDIAG Premium

Multi-clients : examples of simultaneous connected applications

Local connection (periodic machine adjustment,

machine cycles analysis…) X-WAY communication

(breakdown analysis, production survey, Vijeo look application)

High capacity internal storage

“black box” on flash hard disk Local

(Machine performance, track keeping …) Internet connection (Remote diagnosis, Remote maintenance …) Ethernet communication
