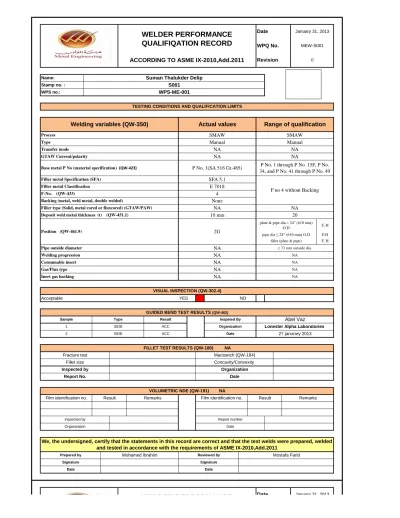

Welder Performance Qualifications Record

(1)

Acceptable YES NO

Base metal P No (material specification) (QW-423) P No. 1(SA 516 Gr.485) P No. 1 through P No. 15F, P No. 34, and P No. 41 through P No. 49

Revision 0

Name: Suman Thalukder Delip

TESTING CONDITIONS AND QUALIFICATION LIMITS

Welding variables (QW-350)

Date January 31, 2013 WPQ No. MEW-S001

WELDER PERFORMANCE

QUALIFIQATION RECORD

WELDER PERFORMANCE

QUALIFIQATION RECORD

Date January 31, 2013

Actual values

Range of qualification

Stamp no. : S001

WPS no.: WPS-ME-001

Process SMAW SMAW

Type Manual Manual

Transfer mode NA NA

GTAW Current/polarity NA NA

Filler metal Specification (SFA) SFA 5.1

F no 4 without Backing

Filler metal Classification E 7018

F-No. (QW-433) 4

Backing (metal, weld metal, double welded) None

Filler type (Solid, metal cored or fluxcored) (GTAW/PAW) NA NA

Deposit weld metal thickness (t) (QW-451.1) 10 mm 20

Position (QW-461.9) 2G

plate & pipe dia > 24" (610 mm)

O.D F, H

pipe dia ≤ 24" (610 mm) O.D F,H fillet (plate & pipe) F, H

Pipe outside diameter NA ≥ 73 mm outside dia.

Welding progression NA NA

Consumable insert NA NA

Gas/Flux type NA NA

SIDE ACC

Inert gas backing NA NA

VISUAL INSPECTION (QW-302.4)

Date 27 janurary 2013

GUIDED BEND TEST RESULTS (QW-462)

Sample Type Result Inspeted By Abel Vaz

1

FILLET TEST RESULTS (QW-180) NA

Fracture test Mactoetch (QW-184)

Organization Lonester Alpha Laboratories

2 SIDE ACC

Inspected by Organization

Fillet size Concavity/Convexity

Result Remarks

Report No. Date

VOLUMETRIC NDE (QW-191) NA Film identification no. Result Remarks Film identification no.

Inspected by Report number

Prepared by Mohamed Ibrahim Reviewed by Mostafa Farid

Organization Date

ACCORDING TO ASME IX-2010,Add.2011

Date Date

Signature Signature

We, the undersigned, certify that the statements in this record are correct and that the test welds were prepared, welded and tested in accordance with the requirements of ASME IX-2010,Add.2011

(2)

Acceptable YES NO

WELDER PERFORMANCE

QUALIFIQATION RECORD

Date January 31, 2013

WPQ No. MEW-S002

ACCORDING TO ASME IX-2010,Add.2011

Revision 0

Name: Dolan Kanti Chowdhuri

Stamp no. : S002

WPS no.: WPS-ME-002

Welding variables (QW-350)

Actual values

Range of qualification

F no 4 with/without Backing

F-No. (QW-433) 4

Backing (metal, weld metal, double welded) Double Welded

O.D F, H

Sample Type Result Inspeted By Abel Vaz

1 SIDE ACC Organization Lonester Alpha Laboratories

2 SIDE ACC Date 27 janurary 2013

VOLUMETRIC NDE (QW-191) NA

Film identification no. Result Remarks Film identification no. Result Remarks

Organization Date

Signature Signature Date Date

WELDER PERFORMANCE

QUALIFIQATION RECORD

Date January 31, 2013 WPQ No. MEW-S003

(3)

Acceptable YES NO

WELDER PERFORMANCE

QUALIFIQATION RECORD

_{WPQ No.} MEW-S003

ACCORDING TO ASME IX-2010,Add.2011

Revision 0

Name: Abdul Kader

Stamp no. : S003

WPS no.: WPS-ME-001

Welding variables (QW-350)

Actual values

Range of qualification

F no 4 without Backing

F-No. (QW-433) 4

Backing (metal, weld metal, double welded) Single Side Weld

O.D F, H

GUIDED BEND TEST RESULTS (QW-462) NA

Sample Type Result Inspeted By

1 SIDE ACC Organization

2 SIDE ACC Date

VOLUMETRIC NDE (QW-191)

1/22/2013

PQR/ME/Kader ACC. Acc.Pores.

Signature

Inspected by Report number RT01

Organization Date

Date Date

(4)

(5)

(6)

(7)

Acceptable YES NO

P No. 1 to P No.1 (SA 106 Gr. B) P No. 1 through P No. 15F, P No. 34, _{and P No. 41 through P No. 49}

Deposit weld metal thickness (t) (QW-451.1) 8.74 mm max. 17mm

Filler metal Specification (SFA) SFA 5.18

Filler metal Classification

Zulfiqar Ali

Stamp no. : 10-2-2013

WPQ No.

G 001

WELDER PERFORMANCE

QUALIFIQATION RECORD

Revision

0

ACCORDING TO ASME IX-2010,Add.2011

G001

Date

Welding variables (QW-350) Actual values Range of Qualified

Name:

Process GTAW GTAW

Type Manual Manual

Transfer mode NA

Filler type (Solid, metal cored or flux cored) (GTAW/PAW) Solid Solid

NA

GTAW Current/polarity DCEN DCEN

Base metal P No (material specification) (QW-423)

F, H

F-No. (QW-433) 6

Backing (metal, weld metal, double welded) Without Backing ER 70S-6

Three Layers Minimum YES

Pipe outside diameter (QW-452.3) 2 inch 1 inch (25 mm) and over

fillet (plate & pipe) F, H pipe dia ≤ 24" (610 mm) O.D F,H

Position (QW-461.9) 2G

plate & pipe dia > 24" (610 mm) O.D

None None

Welding progression NA NA

Consumable insert NA NA

Company Lonestar Alpha Laboratories

1 Transverse Face Bend Accepted

Gas/Flux type SG-A Argon 99.997% (single) SG-A Argon 99.997%

VISUAL INSPECTION (QW-302.4) Inert gas backing

Report No.

2 Transverse Root Bend Accepted Date

Sample Type Result

Fillet size NA Concavity/Convexity NA

Fracture test NA Mactoetch (QW-184) NA

Report No. NA Report No. NA

Inspected by NA Organization NA

NA VOLUMETRIC NDE (QW-191) NA

NA NA NA NA NA NA NA NA Date NA NA

NA Date Signature Signature ____ GMY 9-Feb-13 LMM/ 1300146 Organization Date

We, the undersigned, certify that the statements in this record are correct and that the test welds were prepared, welded and tested in accordance with the requirements of ASME IX-2010,Add.2011. Manufacturer: Metal Engineering Oil and Gas Division

Prepared by Reviewed by

Welding Supervised by : Mostafa M. Farid

Conducted by with/without Backing ____ ____ F No 6 NO
