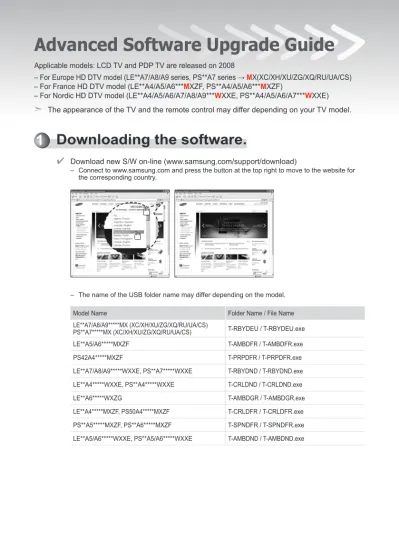

Advanced Software Upgrade Guide

(1)

Advanced Software Upgrade Guide

Applicable models: LCD TV and PDP TV are released on 2008

– For Europe HD DTV model (LE**A7/A8/A9 series, PS**A7 series → MX(XC/XH/XU/ZG/XQ/RU/UA/CS) – For France HD DTV model (LE**A4/A5/A6***MXZF, PS**A4/A5/A6***MXZF)

– For Nordic HD DTV model (LE**A4/A5/A6/A7/A8/A9***WXXE, PS**A4/A5/A6/A7***WXXE)

➣

The appearance of the TV and the remote control may differ depending on your TV model.

1 Downloading the software.

✔

Download new S/W on-line (www.samsung.com/support/download)

Connect to www.samsung.com and press the button at the top right to move to the website for the corresponding country.

The name of the USB folder name may differ depending on the model.

Model Name Folder Name / File Name

LE**A7/A8/A9*****MX (XC/XH/XU/ZG/XQ/RU/UA/CS)

PS**A7*****MX (XC/XH/XU/ZG/XQ/RU/UA/CS) T-RBYDEU / T-RBYDEU.exe

LE**A5/A6*****MXZF T-AMBDFR / T-AMBDFR.exe

PS42A4*****MXZF T-PRPDFR / T-PRPDFR.exe

LE**A7/A8/A9*****WXXE, PS**A7*****WXXE T-RBYDND / T-RBYDND.exe

LE**A4*****WXXE, PS**A4*****WXXE T-CRLDND / T-CRLDND.exe

LE**A6*****WXZG T-AMBDGR / T-AMBDGR.exe

LE**A4*****MXZF, PS50A4*****MXZF T-CRLDFR / T-CRLDFR.exe

PS**A5*****MXZF, PS**A6*****MXZF T-SPNDFR / T-SPNDFR.exe

LE**A5/A6*****WXXE, PS**A5/A6*****WXXE T-AMBDND / T-AMBDND.exe

–

(2)

✔

_{How to prepare the USB Memory Drive}

1. Save the firmware file from ‘Samsung.com’ onto your computer. File Name :

– T-AMBDFR.exe, T-CRLDFR.exe, T-PRPDFR.exe, T-SPNDFR.exe (For France model) – T-AMBDND.exe, T-CRLDND.exe, T-RBYDND.exe (For Nordic model)

– T-RBYDEU.exe (For Pan Euro model) – T-AMBDGR.exe (For Germany model)

2. Connect the USB Memory Drive to the USB port of your PC. Copy the file onto the USB Memory Drive.

3. Go to the USB Memory Drive and then double click the file. 4. Press the ‘Install’ button.

5. Unzipping is in progress and the program will close automatically when the installation is complete.

6. A folder containing the firmware files has been added to the USB memory drive. File Name :

– T-AMBDFR.exe, T-CRLDFR.exe, T-PRPDFR.exe, T-SPNDFR.exe (For France model) – T-AMBDND.exe, T-CRLDND.exe, T-RBYDND.exe (For Nordic model)

– T-RBYDEU.exe (For Pan Euro model) – T-AMBDGR.exe (For Germany model)

7. Safely disconnect the USB memory drive by right clicking the green check mark on the taskbar and then left click ‘Safely Remove’.

Caution!!

(3)

2 Connecting the USB device to the TV.

✔

Insert USB to “WISELINK” on Side TV. HDMI IN4

✔

If USB is inserted perfectly, the below OSD is showed up.

if not, disconnect and re-connect USB to “WISELINK” port. –

✔

Use ► and Enter button on remote control, Select “No”. New portable device connected.

Play multimedia files using WISELINK? Device : TURBO II

Yes No

3 Running the software upgrade ﬁ le.

✔

_{Press the}_MENU_{button. Press the ▲, ▼, and}_ENTER_{buttons to select “Setup”→} “Software Upgrade”→ “By USB”.

The software upgrade start screen appears, Software Upgrade

Current Version 2008/01/01_000075

BY USB ►

BY Channel Standby Mode Upgrade : On Alternative Software 2008/01/01_000075 Return Enter Move –

O

Another Method

Press the SOURCE button on the TV and the POWER button on the remote control at the same time. The software upgrade screen appears.

Press the buttons in the Standby state. –

(4)

✔

_{Wait about 30 seconds and check S/W version on OSD. Press the}_ENTER_{button to} select “OK”.

If the TV fails to recognize the upgraded fi le, check the fi les in the software folder and copy the fi les to the folder of the USB memory again.

Warning!!

Please be careful to not disconnect the power or remove the USB drive while upgrades are being applied.

Software Upgrade Scanning for USB... It may take up to 30 seconds.

Software Upgrade

Upgrade version XXXX to version XXXX? The system will be reset after upgrade.

OK Cancel

–

✔

During upgrading, do not disconnect USB (Wait)

If upgrade is stopped, please re-try.

Software Upgrade

Upgrading now. Please do not disconnect USB before upgrade is completed.

HDMI IN4

–

✔

The TV will turn off and turn on automatically after completing the S/W upgrade.

You can check power off/on with LED on the front. (When power is on, LED is blinking.)

Software Upgrade

Upgrade is completed. Power will turn off in 3 seconds

and turn on again automatically. LED –

Warning !!

After or while upgrading, if the TV freezes for more than 10 minutes or does not turn on, disconnect and reconnect the power cord.However, if the TV still has a problem, contact a Samsung Customer center.

4 Verifying the software upgrade.

✔

_{Select “Software Upgrade” of “Setup” menu on OSD.} Press the info button to check fi rmware version. You can see the micom version: “T-XXXDFRC-XXXX”

Setup

Energy Saving : Off

PIP

Software Upgrade ►

(5)
