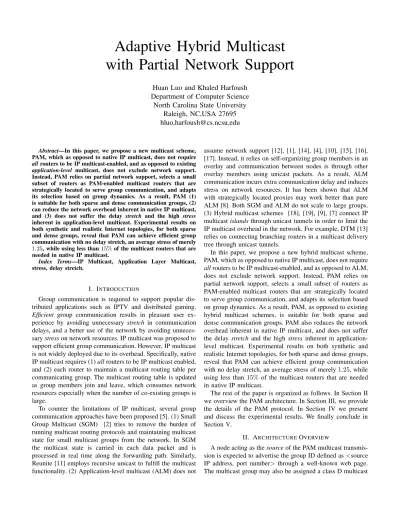

Adaptive Hybrid Multicast with Partial Network Support

Adaptive Hybrid Multicast

with Partial Network Support

Huan Luo and Khaled Harfoush

Department of Computer Science

North Carolina State University

Raleigh, NC,USA 27695

hluo,[email protected]

Abstract—In this paper, we propose a new multicast scheme, PAM, which as opposed to native IP multicast, does not require allrouters to be IP multicast-enabled, and as opposed to existing application-level multicast, does not exclude network support. Instead, PAM relies on partial network support, selects a small subset of routers as PAM-enabled multicast routers that are strategically located to serve group communication, and adapts its selection based on group dynamics. As a result, PAM (1) is suitable for both sparse and dense communication groups, (2) can reduce the network overhead inherent in native IP multicast, and (3) does not suffer the delay stretch and the high stress inherent in application-level multicast. Experimental results on both synthetic and realistic Internet topologies, for both sparse and dense groups, reveal that PAM can achieve efficient group communication with no delay stretch, an average stress of merely

1

.25, while using less than15%of the multicast routers that are needed in native IP multicast.

Index Terms—IP Multicast, Application Layer Multicast, stress, delay stretch.

I. INTRODUCTION

Group communication is required to support popular dis-tributed applications such as IPTV and disdis-tributed gaming. Efficient group communication results in pleasant user

ex-perience by avoiding unnecessary stretch in communication

delays, and a better use of the network by avoiding unneces-sarystresson network resources. IP multicast was proposed to support efficient group communication. However, IP multicast is not widely deployed due to its overhead. Specifically, native

IP multicast requires (1)allrouters to be IP multicast enabled,

and (2) each router to maintain a multicast routing table per communicating group. The multicast routing table is updated as group members join and leave, which consumes network resources especially when the number of co-existing groups is large.

To counter the limitations of IP multicast, several group communication approaches have been proposed [5]. (1) Small Group Multicast (SGM) [2] tries to remove the burden of running multicast routing protocols and maintaining multicast state for small multicast groups from the network. In SGM the multicast state is carried in each data packet and is processed in real time along the forwarding path. Similarly, Reunite [11] employs recursive unicast to fulfill the multicast functionality. (2) Application-level multicast (ALM) does not

assume network support [12], [1], [14], [4], [10], [15], [16], [17]. Instead, it relies on self-organizing group members in an overlay and communication between nodes is through other overlay members using unicast packets. As a result, ALM communication incurs extra communication delay and induces stress on network resources. It has been shown that ALM with strategically located proxies may work better than pure ALM [8]. Both SGM and ALM do not scale to large groups. (3) Hybrid multicast schemes [18], [19], [9], [7] connect IP

multicastislandsthrough unicast tunnels in order to limit the

IP multicast overhead in the network. For example, DTM [13] relies on connecting branching routers in a multicast delivery tree through unicast tunnels.

In this paper, we propose a new hybrid multicast scheme, PAM, which as opposed to native IP multicast, does not require

allrouters to be IP multicast-enabled, and as opposed to ALM,

does not exclude network support. Instead, PAM relies on partial network support, selects a small subset of routers as PAM-enabled multicast routers that are strategically located to serve group communication, and adapts its selection based on group dynamics. As a result, PAM, as opposed to existing hybrid multicast schemes, is suitable for both sparse and dense communication groups. PAM also reduces the network overhead inherent in native IP multicast, and does not suffer

the delay stretchand the high stress inherent in

application-level multicast. Experimental results on both synthetic and realistic Internet topologies, for both sparse and dense groups, reveal that PAM can achieve efficient group communication

with no delay stretch, an average stress of merely1.25, while

using less than 15%of the multicast routers that are needed

in native IP multicast.

The rest of the paper is organized as follows. In Section II we overview the PAM architecture. In Section III, we provide the details of the PAM protocol. In Section IV we present and discuss the experimental results. We finally conclude in Section V.

II. ARCHITECTUREOVERVIEW

A node acting as thesourceof the PAM multicast

transmis-sion is expected to advertise the group ID defined as<source

IP address, port number> through a well-known web page.

Fig. 1. A content delivery tree.

address and the mapping between the class D address and the group ID can be done through session directory services [21]. A content delivery tree rooted at the source node, with group members at its leaves, is constructed as group members join the system – Refer to Section III for the tree construction details. As shown in Figure 1, the delivery tree may have some routers acting as PAM multicast routers, which we refer

to as m-routers, and the other routers being unicast routers,

which we refer to as u-routers.

Each router, R, whether it is an m-router or a u-router,

maintains IP address information about its closest m-router

for this group along each downstream interface, and if no

m-router exists along a downstream interface, then R also

maintains information about all groups members that are reachable through this downstream interface over the delivery

tree. We refer to the nodes for which a router, R, maintains

IP address information as R’s children, and refer to R as

their parent. For example, in Figure 1, routers M0, M1 and

M2 are m-routers. RouterM0’s children are group members

G0,G3 andm-routersM1andM2. RouterM1’s children are

group members G1 andG2. Router M2’s children are group

members G4, G5, G6 and G7. Routers U0, U1, U2, U3, U4

andU5areu-routers.G0is a child forU0and forU1.M1is a

child forU2 andU3.G4 andG5 are the children forU5.G4,

G5, andG6are the children forU4. Furthermore, each router

maintains information about its parent in the tree, which is

typically an m-router, and the number of hope towards the

parent.

Eachm-router creates an IPtunnelwith each of its children.

Upon receiving content from the source, whether directly or

through intermediate routers, anm-router creates and sends a

copy to each of its children through the corresponding tunnel (IP-in-IP encapsulation). The arrows in Figure 1 show the

tunnels used by each m-router. Note that if an m-router,M,

has a directly connected child, which is also an m-router

then M can simply send an IP multicast packet, using the

group’s class D address, to this child instead of doing

IP-in-IP encapsulation. For example, M0 in Figure 1 can send

IP multicast packets to M2. On the other hand, children

information at u-routers are not used to route/tunnel PAM

multicast packets. Instead, they are used merely to decide

whether they should switch tom-routers or not. Thusu-routers

will forward tunneled packets from their upstream parents in

the tree just like typical unicast routers do. That is,u-routers,

as opposed tom-routers, forward one packet at a time without

the overhead of replicating and sending content to multiple destinations.

The question now is: How arem-routers selected? Or more

specifically, what triggers a u-router’s decision to convert

to an m-router? To answer this question, notice that if all

routers are m-routers, then there will be no extra stress at

any link (the delivered content will traverse each link only once) but all routers will have to participate in the multicast content replication and routing. On the other hand, If all

routers are u-routers, then the stress on many links will be

high (content copies are likely to traverse the same links many times) but routers will merely forward packets with no multicast overhead. Notice that in either case, there is no extra delay stretch as is the case in ALM, and the tradeoff is between network stress and multicast overhead. PAM exploits

this tradeoff. In other words, PAM will introduce m-routers

only to reduce high stress. High stress will happen in the

following two scenarios:

• A u-router, R, having a large number of children (high

degree). The reason for the high stress in this case is that

an upstreamm-router,M, will have to duplicate packets

for allR’s children and these copies will all travel over

the links connectingM toR, leading to the high stress

over these links. The solution to the high stress in this

case is to convert R into into an m-router. Figure 2(A)

shows this case when R is a u-router compared to an

m-router.

• A u-router, R, having (1) at least two children, and (2)

having alargenumber of upstreamu-router hops towards

its parent (an m-router) in the tree. The reason for the

high stress in this case is that R’s parent will have to

duplicate and send packets for all R’s children over the

large number of hops connectingR’s parent to R. The

solution to the high stress in this case is to convert R

into into anm-router. Figure 2(B) shows this case when

R is au-router compared to anm-router.

PAM resolves these high stress cases by converting

prob-lematic u-routers to m-routers through two thresholds: (1)

A degree threshold, and (2) a hop threshold. If the number

of children of a u-router exceeds the degree threshold, or

-Fig. 2. Illustration of high stress due to (A) high degree and (B) high number of upstreamu-router hops.

router parent in the tree exceeds the hop threshold, then the

router is converted into anm-router. Note that the information

maintained at each router, the children and the number of hops towards the parent, is used to test whether the degree and hop thresholds are violated or not. The tree in Figure 1 is constructed with a degree threshold equal to four and a hop threshold equal to two. By varying these thresholds, PAM becomes varies in its aggressiveness in assigning multicast routers and managing the stress on the network resources, and adapts the locations of these multicast routers to the locations of the group members in the delivery tree.

III. PROTOCOLDETAILS

PAM mainly relies on the following messages: (1) join, (2)

graft, and (3) prune. All these messages are sent upstream in the delivery tree. Routers, which are not willing to run the PAM protocol are not problematic to PAM routers as all

messages are tunneled through them. PAM routers (u-routers

andm-routers) maintain their children and parent information

as soft state. Join messages are sent periodically to update

the routers’ state. This information expires after some time period and is purged from routers if not updated. Leave, graft, and prune messages are triggered by a change of the state maintained at PAM routers as explained below.

Joinmessages from nodes joining the system are unicasted

towards the source node in order to construct/update the delivery tree. Join messages cary a protocol ID field in the IP header that is representative of the PAM protocol, and some additional PAM fields to identify the message type, the multicast address, etc. A Join message destined to the source

of a multicast group G is eventually intercepted by an m

-router for groupG, au-router, or the source itself, which also

acts as either au-router or anm-router. Upon receiving a join

message, a u-router, U, adds the IP address information of

the joining node to its own list of children. If the number of

children ofU does not exceed the degree threshold,D, and if

the number of upstream u-routers from U to its parent does

not exceed the hop threshold, H, then U forwards the join

message upstream. Otherwise, if the degree threshold or the

hop threshold is violated, then U converts into an m-router

and sends a prune message upstream. The prune message

containsU’s list of children so that upstream routers remove

U’s children from their own list of children and appendUitself

to their list. Upon receiving a join message, anm-router,M,

adds the IP address information of the joining node to its own

list of children, but does not send the join message further

upstream in the tree. When the degree threshold and/or the

hop threshold at an m-router become non-violated then the

router reverts back to a u-router and sends a graft message

upstream to implant his children in the upstream routers.

Upon receiving aprunemessage at au-router,R, the router

removes the list of nodes provided in the prune message from its own list of children and appends the IP address of the node originating the message to its list of children. The prune message is then forwarded to upstream routers. Upon receiving a prunemessage at an m-router, M, the router removes the

list of nodes provided in the prune message from its own list of children and appends the IP address of the node originating

the message to its list of children. The prune message is not

forwarded any further.

Upon receiving agraftmessage at au-router,R, the router

appends the list of nodes provided in the graft message to its own list of children and removes the IP address of the node originating the message from its list of children. The graft

message is then forwarded to upstream routers only ifR will

not convert tom-router. Upon receiving agraftmessage at an

m-router,M, the router appends the list of nodes provided in

the graft message to its own list of children and removes the IP address of the node originating the message from its list of

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0 100 200 300 400 500 600 700 800

Fraction of multicast routers

group size PAM(5,2) PAM(∞,2) PAM(5,∞) DTM 1 2 3 4 5 6 7 8 0 100 200 300 400 500 600 700 800 avg. stress group size PAM(5,2) PAM(∞,2) PAM(5,∞) STAR 20 40 60 80 100 120 140 160 180 200 0 100 200 300 400 500 600 700 800 max. stress group size PAM(5,2) PAM(∞,2) PAM(5,∞) 20 40 60 80 100 120 140 160 180 200 0 100 200 300 400 500 600 700 800 max. fanout group size PAM(5,2) PAM(∞,2) PAM(5,∞) DTM DVMRP

Fig. 3. Performance of the multicast strategies on the GTITM topology as the group size increases.

IV. PERFORMANCEEVALUATION

A. Simulation Setup

We test the performance of PAM on (1) a synthetic topology using the GTITM Internet topology generator [3] and (2) a real snapshot of the Internet topology collected on PlanetLab [20]. GTITM employs a transit-stub model to generate router-level topologies. In our experiment, the GTITM topology has one

transit domain with 5 transit nodes, 5 stub domains per

transit node, and 40 nodes in each stub domain. The total

number of nodes in the graph is 1005. In our study of the

GTITM topology, we generate 25 different instances, with

different random seeds on 5 topologies, each with random

group members. Each result is an average of the 25 _runs.

Group members only belong to stub domains. We vary the

group size between 100 _and 800 _{to represent various group}

densities.

The PlanetLab topology was obtained by collecting path

information between 598 PlanetLab nodes using thetraceroute

tool. However, blocked ICMP messages and unresponsive routers have lead to incomplete traceoute path information and we were able to get complete path information between only 364 nodes. The traceroute probing between these 364 nodes revealed 8530 distinct IP addresses. We then performed alias resolution on these IP addresses, through reverse DNS

queries, in order to reveal the IP addresses that belong to different interfaces of the same router. As a result, we only had 8075 routers connecting the 364 PlanetLab nodes. In our simulations, we attach group members to these routers uniformly at random. In our study of the PlanetLab topology,

as in the GTITM case, we generate25_{different instances, and}

each result is an average of25_{runs on these instances.}

In our experiments on the GTITM and PlanetLab topologies,

we capture the following performance metrics: (1) thefraction

of multicast routers, (2) themaximum fanout, (3) themaximum stress, (4) the average stress. The maximum fanout is the maximum node degree. The stress is defined as the maximum number of duplicate copies of the multicast content transmitted

on any network link. Given a fraction of multicast routers,p,

and an average stress,s, we estimate a protocoleffectivenessas

s.p. The smaller the value ofs.pthe better. For example, if the

number of multicast routers is reduced to half (p= 0.5), and

the average stress is doubled (s = 2), then the effectiveness

becomes 1. PAM can obtain an average stress of s = 1.25

using only 6% of the existing routers as multicast routers

(p= 0.06) leading to an effectiveness of0.075.

We compare PAM with (1) DVMRP [22], (2) DTM [13], and (3) STAR. DVMRP is network level multicast protocol in

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 1 2 3 4 5 6 7 8

Fraction of multicast routers

Degree Threshold (D) PAM(D,2) PAM(D,4) 1 1.05 1.1 1.15 1.2 1.25 1.3 1.35 1.4 1.45 1 2 3 4 5 6 7 8 avg. stress Degree Threshold (D) PAM(D,2) PAM(D,4) 10 20 30 40 50 60 70 1 2 3 4 5 6 7 8 max. stress Degree Threshold (D) PAM(D,2) PAM(D,4) 20 40 60 80 100 120 140 160 1 2 3 4 5 6 7 8 max. fanout Degree Threshold (D) PAM(D,2) PAM(D,4)

Fig. 4. Performance of PAM on the GTITM topology as we vary the threshold values,DandH.

only between branching routers and thus only assumes that these branching routers are multicast capable. STAR represents the other end of the spectrum in which no routers are multicast enabled and the source sends content directly to all group members through unicast transmission. PAM, DVMRP, DTM, and STAR all do not lead to delay distortion; DVMRP and DTM both also do not lead to network stress; STAR results in more stress than the other three protocols; and PAM adaptively adapts the number and the location of multicast capable routers to attain minimal stress.

B. Performance Results

Recall that PAM relies on two thresholds: The degree

threshold, D, and the hop threshold, H. We refer to

PAM(D,H) as the PAM protocol using theDandH threshold

values. PAM(∞,H) refers to the PAM protocol whenD=∞,

that is when the degree threshold is not considered in the

clustering decision at PAM routers. Similarly, PAM(D,∞)

refers to the case when the hop threshold is not considered. In Figure 3 we compare the performance of the different multicast strategies as we vary the multicast group size on the GTITM topology. For each measured performance metric, we plot three curves for the PAM protocol to highlight the impact of the degree and path thresholds. Specifically we plot

the results for PAM(5,2), PAM(∞,2), and PAM (5,∞). The

curves in Figure 3 show that (1) Combining the degree and hop thresholds leads to better performance with relatively less multicast routers than using only one of the thresholds. (2) PAM is able to reduce the number of multicast routers dra-matically with minimal impact on performance. For example,

PAM uses less than50%_{the multicast routers than DTM, and}

only 10% _to 15% _{of the multicast routers in DVMRP with}

roughly similar stress and fanout. The average stress for PAM

was only1.25_{while STAR has a stress as high as 6. (3) As}

the group size increases, the benefits of using PAM become more prevalent.

In Figure 4 we plot the performance of the PAM protocol on

the GTITM topology as we vary the degree threshold,D, when

the group size is500_{and the hop threshold,}His equal to2_and

to4_{. The results clearly show PAM’s ability to trade multicast}

state/routers for performance. Specifically, when the threshold values increase, the number of multicast routers decreases, while the stress and fanout values increase. We have also tested a skewed distribution of the multicast group members in the GTITM topology, following a Zipf distribution, instead of placing them uniformly at random. Our results follow our intuition that the performance is better than in the uniform distribution case.

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0 100 200 300 400 500 600 700 800

Fraction of multicast routers

group size PAM(5,2) PAM(∞,2) PAM(5,∞) DTM 2 4 6 8 10 0 100 200 300 400 500 600 700 800 avg. stress group size PAM(5,2) PAM(∞,2) PAM(5,∞) STAR 10 20 30 40 50 60 70 80 90 100 0 100 200 300 400 500 600 700 800 max. stress group size PAM(5,2) PAM(∞,2) PAM(5,∞) 10 20 30 40 50 60 70 80 90 100 0 100 200 300 400 500 600 700 800 max. fanout group size PAM(5,2) PAM(∞,2) PAM(5,∞) DTM DVMRP

Fig. 5. Performance of the multicast strategies on the PlanetLab topology as the group size increases.

multicast strategies as we vary the multicast group size on the PlanetLab topology. The results have similar trends as those observed in Figure 3. The number of PAM routers remains about half the DTM multicast routers and is reduced to around

6%_{of the DVMRP multicast routers, with an average stress of}

1.1_{. By comparing the results on the GTITM and PlanetLab,}

it is clear that the PAM edge is more pronounced on the PlanetLab topology. This is due to the difference between the GTITM and PlanetLab topology structures. GTITM generates

afattree with a low diameter (around9_{), while PlanetLab has}

a diameter above30_{. So on PlanetLab there is more chance for}

clustering nodes by multicast routers. The results obtained by varying the PAM threshold values are similar to those obtained on the GTITM topology.

V. CONCLUSION ANDFUTUREWORK

In this paper, we introduce PAM, a hybrid network multicast scheme which can adapt the configuration of the multicast de-livery tree thus delivering a performance close to IP multicast with no delay stretch and minimal network stress, with only a small fraction of the multicast enabled routers required for native IP multicast. PAM excels in realistic Internet topologies. There are numerous possible extensions to PAM. Adapting the threshold values with the underlying topology and group size

is one direction. Implementing and testing PAM in a realistic Internet setup is another.

REFERENCES

[1] Suman Banerjee, Bobby Bhattacharjee, Christopher Kommareddy Scal-able Application Layer Multicast, Proceedings of ACM Sigcomm 2002, Pittsburgh, Pennsylvania, August 2002

[2] Rick Boivie,Nancy Feldman,Christopher Metz,Small Group Multicast: A New Solution for Multicasting on the Internet,IEEE Internet Comput-ing, vol.04,no.3,pp.75-79,May,2000.

[3] K. Calvert, M. Doar and E. W. Zegura. Modeling Internet Topology, IEEE Communications Magazine, June 1997.

[4] Y. Chu, S. Rao, and H. Zhang.A Case for End System Multicast, in ACM SIGMETRICS 2000. Santa Clara, CA, USA,June 2000. [5] A. EI-Sayed, V. Roca,A survey of proposals for an alternative group

communication service, IEEE Network, 2003, 17(1):46-51.

[6] A. Garyfalos, K. Almeroth, and J. Finney,A Comparison of Network and Application Layer Multicast for Mobile IPv6 Networks, in Pro-ceedings of the 6th ACM international workshop on Modeling anal-ysis and simulation of wireless and mobile systems(MSWIM ’03),San Diego,CA,September,2003.

[7] Dongkyun Kim, Ki-Sung Yu, A Scalable Hybrid Overlay Multicast Adopting Host Group Model for Subnet-Dense Receivers International Journal of Computer Science and Network Security(IJCSNS 2007). [8] Li Lao, Jun-Hong Cui, Mario Gerla and Dario Maggiorini,A

Compar-ative Study of Multicast Protocols: Top, Bottom, or In the Middle?, in Proceedings of Eighth IEEE Global Internet Symposium (GI 2005,in conjunction with INFOCOM 2005), Miami, Florida, March, 2005 [9] Shaofei Lu, Jianxin Wang, Guanzhong Yang, Chao Guo,SHM: Scalable

and Backbone Topology-Aware Hybrid Multicast,ICCCN 2007, Hon-olulu, Hawaii,USA, Aug. 2007.

[10] M. Castro, P. Druschel, A. Kermarrec, A. Nandi, A. Rowstron, A. Singh, SplitStream: high-bandwidth multicast in cooperative environments, Proceedings of the nineteenth ACM symposium on Operating systems principles, October 19-22, 2003, Bolton Landing, NY, USA.

[11] Ion Stoica, T. S. Eugene Ng, Hui Zhang,REUNITE: A Recursive Unicast Approach to Multicast,INFOCOM’00, Tel-Aviv, Israel, March 2000. [12] Su-Wei Tan, Gill Waters, John Crawford,MeshTree: A Delay-optimised

Overlay Multicast Tree Building Protocol,INFOCOM 05,Miami, Florida, March, 2005.

[13] Jining Tian, Gerald Neufeld, Forwarding State Reduction for Sparse Mode Multicast Communication,INFOCOM 1998,San Francisco, CA, USA, March,1998.

[14] Duc A. Tran, Kien Hua, Tai Do, ZIGZAG: An Efficient Peer-to-Peer Scheme for Media Streaming,INFOCOM 2003,San Francisco, CA, USA,April,2003.

[15] D. Kostic, A. Rodriguez, J. Albrecht, A. Vahdat,Bullet: high bandwidth data dissemination using an overlay mesh, Proceedings of the nineteenth ACM symposium on Operating systems principles, October 19-22, 2003, Bolton Landing, NY, USA.

[16] D. Pendarakis, S. Shi, D. Verma, M. Waldvogel,ALMI: an application level multicast infrastructure, Proceedings of the 3rd conference on USENIX Symposium on Internet Technologies and Systems, p.5-5, March 26-28, 2001, San Francisco, California.

[17] Y. D. Chawathe, E. A. Brewer,Scattercast: an architecture for internet broadcast distribution as an infrastructure service, University of Cali-fornia, Berkeley, 2000.

[18] Beichuan Zhang, Sugih Jamin, Lixia Zhang, Universal IP Multicast Delivery, Computer Networks: The International Journal of Computer and Telecommunications Networking archive Volume 50 , Issue 6 (April 2006)

[19] Beichuan Zhang, Sugih Jamin, Lixia Zhang,Host Multicast: A Frame-work for Delivering Multicast To End Users, INFOCOM 2002,New York,NY,June,2002.

[20] http://planetlab.org

[21] M. Handley,Session directories and scalable Internet multicast address allocation, ACM Computer Communication Review 28 (4) (1998) 105116.
