Instrument GE

(1)

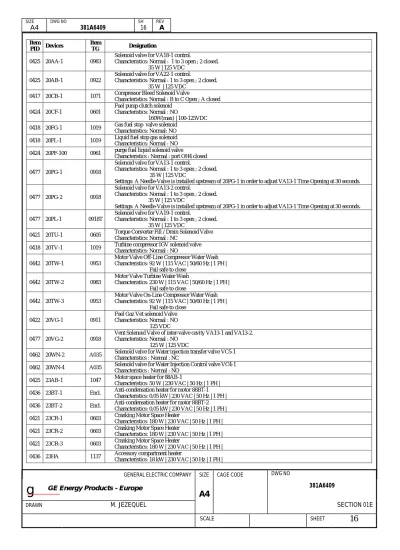

GENERAL ELECTRIC COMPANY SIZE CAGE CODE DWG NO

g

GE Energy Products - Europe

A4

381A6409

DRAWN

M. JEZEQUEL

SECTION 01E

SCALE SHEET

₁₆

Ç

SIZE DWG NO SH REV

A4

381A6409

16 A

Item PID Devices Item TG Designation 0425 20AA-1 0983

Solenoid valve for VA18-1 control.

Characteristics: Normal : 1 to 3 open ; 2 closed. 35 W | 125 VDC

0425 20AB-1 0922

0417 20CB-1 1071 Compressor Bleed Solenoid Valve

Characteristics: Normal : B to C Open ; A closed 0424 20CF-1 0601

Fuel pump clutch solenoid Characteristics: Normal : NO

160W(max) | 100-125VDC 0418 20FG-1 1019 Gas fuel stop valve solenoid

Characteristics: Normal: NO 0418 20FL-1 1019 Liquid fuel stop gas solenoid Characteristics: Normal : NO 0424 20PF-100 0961 purge fuel liquid solenoid valve

Characteristics : Normal : port OH4 closed 0477 20PG-1 0918

Settings: A Needle-Valve is installed upstream of 20PG-1 in order to adjust VA13-1 Time Opening at 30 seconds. 0477 20PG-2 0918

Settings: A Needle-Valve is installed upstream of 20PG-1 in order to adjust VA13-1 Time Opening at 30 seconds. 0477 20PL-1 0918T

0421 20TU-1 0605 Torque Converter Fill / Drain Solenoid Valve Characteristics: Normal : NC

0418 20TV-1 1019 Turbine compressor IGV solenoid valve Characteristics: Normal : NO

0442 20TW-1 0953

Motor Valve Off-Line Compressor Water Wash Characteristics: 92 W | 115 VAC | 50/60 Hz | 1 PH | Fail safe to close

0442 20TW-2 0983

Motor Valve Turbine Water Wash

Characteristics: 230 W | 115 VAC | 50/60 Hz | 1 PH | Fail safe to close

0442 20TW-3 0953

Motor Valve On-Line Compressor Water Wash Characteristics: 92 W | 115 VAC | 50/60 Hz | 1 PH | Fail safe to close

0422 20VG-1 0911

Fuel Gaz Vet solenoid Valve Characteristics: Normal : NO 125 VDC 0477 20VG-2 0918

Vent Solenoid Valve of inter-valve cavity VA13-1 and VA13-2. Characteristics: Normal : NO

125 W | 125 VDC

0462 20WN-2 A035 Solenoïd valve for Water injection transfer valve VC5-1 Characteristics : Normal : NC

0462 20WN-4 A035 Solenoïd valve for Water Injection Control valve VC4-1 Characteristics : Normal : NO

0425 23AB-1 1047 Motor space heater for 88AB-1

Characteristics: 50 W | 230 VAC | 50 Hz | 1 PH | 0436 23BT-1 Encl. Anti-condensation heater for motor 88BT-1

Characteristics: 0,05 kW | 230 VAC | 50 Hz | 1 PH | 0436 23BT-2 Encl. Anti-condensation heater for motor 88BT-2

Characteristics: 0,05 kW | 230 VAC | 50 Hz | 1 PH | 0421 23CR-1 0603 Cranking Motor Space Heater

Characteristics: 180 W | 230 VAC | 50 Hz | 1 PH | 0421 23CR-2 0603 Cranking Motor Space Heater

Characteristics: 180 W | 230 VAC | 50 Hz | 1 PH | 0421 23CR-3 0603 Cranking Motor Space Heater

Characteristics: 180 W | 230 VAC | 50 Hz | 1 PH | 0436 23HA 1137 Accessory compartment heater

(2)

g

GE Energy Products - Europe

A4

381A6409

DRAWN

M. JEZEQUEL

SECTION 01E

SCALE SHEET

₁₇

Ç

SIZE DWG NO SH REV

A4

381A6409

17 A

Item PID Devices Item TG Designation

0434 23HQ-1 0628 Heater hydraulic oil pump motor

Characteristics: 0,05 kW | 230 VAC | 50 Hz | 1 PH | 0436 23HT Encl. Acoustic TG enclosure Heater

Characteristics: 18 kW | 230 VAC | 50 Hz | 1 PH | 0416 23QT-1 0938 Immersion heater Lube Oil Tank

Characteristics: 10,2 kW | 400 VAC | 50 Hz | 3 PH | 0416 23QT-2 0938 Immersion heater Lube Oil Tank

Characteristics: 10,2 kW | 400 VAC | 50 Hz | 3 PH | 0421 23TG-1 0603 Turning Gear Motor Space Heater

Characteristics: - kW | 230 VAC | 50 Hz | 1 PH | 0417 23TK-1 1233 Anti-condensation heater for motor 88TK-2

Characteristics: - kW | 230 VAC | 50 Hz | 1 PH | 0417 23TK-2 1233 Anti-condensation heater for motor 88TK-2

Characteristics: - kW | 230 VAC | 50 Hz | 1 PH | 0436 23VG-1 1643 Motor space heater for 88VG-1 _{Characteristics: 0,05 kW | 230 VAC | 50 Hz | 1 PH |} 0436 23VG-2 1643 Motor space heater for 88VG-2

Characteristics: 0,05 kW | 230 VAC | 50 Hz | 1 PH | 0462 23WN-1 A035 Anti-condensation heater for motor 88WN-1

Characteristics: 0,05 kW | 230 VAC | 50 Hz | 1 PH | 0421 26CR-1 0603 Stator Winding High Temperature Sensor - Ph1

Characteristics: Non linear RTD type - 2 stable states 0421 26CR-2 0603 Stator Winding High Temperature Sensor - Ph2

Characteristics: Non linear RTD type - 2 stable states 0421 26CR-3 0603 Stator Winding High Temperature Sensor - Ph3

Characteristics: Non linear RTD type - 2 stable states 0436 26HA 1137

Thermostat, lower temperature in accessory compartment Characteristics: Normal : NO

measure range : 2 to 50C° (35,6 to 122°F) 0436 26HT Encl.

Thermostat, low temperature in acoustic enclosure Characteristics: Normal : NO measure range : 2 to 50C° (35,6 to 122°F) 0415 28FD-10 1121 Flame detector 0415 28FD-11 1121 Flame detector 0415 28FD-4 1121 Flame detector 0415 28FD-5 1121 Flame detector 0436 33BT-1 Encl.

GT enclosure ventilation damper limit switch Characteristics: Normal : NO

Settings: damper open : limit switch activated and contact closed 0436 33BT-2 Encl.

GT enclosure ventilation damper limit switch Characteristics: Normal : NO

Settings: damper open : limit switch activated and contact closed 0417 33CB-1 1022

11 stage compressor Bleed Valve Limit Switch Characteristics: Normal : NO

Settings: Valve open : limit switch activated, contact closed 0417 33CB-2 1022

Settings: Valve open : limit switch activated, contact closed 0424 33FL-1 0511

Liquid fuel stop valve limit switch (bc) Characteristics: Normal: NO

Settings: Valve closed : switch actuated, contact closed 0424 33FL-2 0511

Liquid fuel stop valve limit switch Characteristics: Normal: NO

Settings: Valve opened : switch actuated, contact closed 0424 33PF-1 0961 purge fuel liquid valve limit switch VP-1

0424 33PF-2 0961 purge fuel liquid valve limit switch VP-2 0477 33PG-1 0918

VA13-1 Close Position Limit Switch. Characteristics: Normal: NO

(3)

g

GE Energy Products - Europe

A4

381A6409

DRAWN

M. JEZEQUEL

SECTION 01E

SCALE SHEET

₁₈

Ç

SIZE DWG NO SH REV

A4

381A6409

18 A

Item PID Devices Item TG Designation 0477 33PG-2 0918

VA13-1 Open Position Limit Switch. Characteristics: Normal: NO

Settings: Valve open : switch actuated, contact closed 0477 33PG-3 0918

VA13-2 Close Position Limit Switch. Characteristics: Normal: NO

Settings: Valve closed : switch actuated, contact closed. 0477 33PG-4 0918

VA13-2 Open Position Limit Switch. Characteristics: Normal: NO

Settings: Valve open : switch actuated, contact closed 0421 33TC-1 0605

Torque Converter Solenoid Valve Limit Switch Characteristics: Normal : NO

Settings: Switch activated with 20TU-1 de energized - Contact closed 0421 33TM-5 0605 Torque Converter Low Torque Limit Switch _{Settings: Setup at 2 tr (range 0-31 tr)}

0421 33TM-6 0605 Torque Converter High Torque Limit Switch Settings: Setup at 28 tr (range 0-31 tr) 0436 33VG-1 Encl.

Load compartment ventilation damper limit switch Characteristics: Normal : NO

Settings: damper open : limit switch activated and contact closed 0422 33VG-11 0911

Limit Switch on Solenoid Valve 20VG-1 Characteristics: See specifications

Settings: Valve open :limit switch activated and contact closed 0436 33VG-2 Encl.

Load compartment ventilation damper limit switch Characteristics: Normal : NO

Settings: damper open : limit switch activated and contact closed 0462 33WN-1 A035

VC4-1 control valve limit switch Characteristics: Normal: NO

Settings: Switch actuated and contact closed when control valve full open 0462 33WN-3 A035

VC5-1 transfer valve limit switch Characteristics: Normal: NO

Settings: Switch actuated and contact closed when control valve full open 0462 33WN-6 A035

VC4-1 control valve limit switch Characteristics: Normal: NO

Settings: Switch actuated and contact closed when control valve full closed 0462 33WN-7 A035

VC5-1 transfer valve limit switch Characteristics: Normal: NO

Settings: Switch actuated and contact closed when control valve full closed 0415 39V-1A 1218 Vibration Sensor

Characteristics: For 25,4 mm/s (1 in/s), 150 ± 4,5 mV peak 0415 39V-1B 1218 Vibration Sensor

Characteristics: For 25,4 mm/s (1 in/s), 150 ± 4,5 mV peak 0415 39V-2A 1218 Vibration Sensor

Characteristics: For 25,4 mm/s (1 in/s), 150 ± 4,5 mV peak 0415 39V-3A 1218 Vibration Sensor

Characteristics: For 25,4 mm/s (1 in/s), 150 ± 4,5 mV peak 0415 39V-3B 1218 Vibration Sensor

Characteristics: For 25,4 mm/s (1 in/s), 150 ± 4,5 mV peak 0415 39VS-11 0235 Vibration Sensor Settings: -10,5 ± 0,5 VDC 0415 39VS-12 0235 Vibration Sensor Settings: -10,5 ± 0,5 VDC 0415 39VS-31 1160 Vibration Sensor Settings: -10,5 ± 0,5 VDC 0415 39VS-32 1160 Vibration Sensor Settings: -10,5 ± 0,5 VDC

0426 43CP-1 Encl. Break glass unit accessory compartment Characteristics: Normal : NO

0426 43CP-2 Encl. Break glass unit GT compartment Characteristics: Normal : NO

0426 43CP-3 Encl. Break glass unit accessory compartment Characteristics: Normal : NO

0426 43CP-4 Encl. Break glass unit GT compartment Characteristics: Normal : NO 0426 43CP-5 Encl. Break glass unit load compartment

(4)

g

GE Energy Products - Europe

A4

381A6409

DRAWN

M. JEZEQUEL

SECTION 01E

SCALE SHEET

₁₉

Ç

SIZE DWG NO SH REV

A4

381A6409

19 A

0424 43FUOP 1103 valve VP-1 and VP-2 push button 0442 43TW-1/PB 1105 Off-Line Water Wash Push button 0442 43TW-2/PB 1105 Turbine Water Wash Push button

0426 45FA-1A 1104 Thermostatic fire detector Accessory compartment

Characteristics: Normal : NO Closed : 163 ± 14°C (325 ± 25°F) 0426 45FA-1B 1104 Thermostatic fire detector Accessory compartment

Characteristics: Normal : NO Closed : 163 ± 14°C (325 ± 25°F) 0426 45FA-2A 1104 Thermostatic fire detector Accessory compartment

Characteristics: Normal : NO Closed : 163 ± 14°C (325 ± 25°F) 0426 45FA-2B 1104 Thermostatic fire detector Accessory compartment

Characteristics: Normal : NO Closed : 163 ± 14°C (325 ± 25°F) 0426 45FT-1A 1103 Thermostatic fire detector Turbine compartment

Characteristics: Normal : NO Closed : 316 ± 14°C (600 ± 25°F) 0426 45FT-1B 1103 Thermostatic fire detector Turbine compartment

Characteristics: Normal : NO Closed : 316 ± 14°C (600 ± 25°F) 0426 45FT-8A 1160 Thermostatic fire detector Load compartment

Characteristics: Normal : NO Closed : 385 ± 14°C (725 ± 25°F) 0426 45FT-8B 1160 Thermostatic fire detector Load compartment

Characteristics: Normal : NO Closed : 385 ± 14°C (725 ± 25°F) 0426 45FT-9A 1160 Thermostatic fire detector Load compartment

Characteristics: Normal : NO Closed : 316 ± 14°C (600 ± 25°F) 0426 45FT-9B 1160 Thermostatic fire detector Load compartment

Characteristics: Normal : NO Closed : 316 ± 14°C (600 ± 25°F) 0474 45HA-1 Encl. Gas detector Gas Auxiliary compartment

Characteristics: Range : 0 - 20% LEL 0474 45HA-2 Encl. Gas detector in Auxiliary Compartment

Characteristics: Range : 0 - 20% LEL 0474 45HA-3 Encl. Gas detector Gas in Auxiliary Compartment.

Characteristics: Range : 0 - 20% LEL 0474 45HA-4 Encl. Gas detector Gas in Gas cabinet Module. _{Characteristics: Range : 0 - 20% LEL} 0474 45HA-5 Encl. Gas detector Gas in Gas cabinet Module.

Characteristics: Range : 0 - 20% LEL 0474 45HA-6 Encl. Gas detector Gas in Gas cabinet Module.

Characteristics: Range : 0 - 20% LEL 0474 45HT-1 Encl. Gas detector Turbine Compartment

Characteristics: Range : 0 - 20% LEL

0474 45HT-4 Encl. Gas detector Turbine Compartment ventilation duct Characteristics: Range : 0 - 20% LEL

0426 5E-1 1104 Emergency Stop Button accessory compartment Characteristics: Normal : NC

0426 5E-2 1104 Emergency Stop Button accessory compartment Characteristics: Normal : NC

0424 63FL-2 0926

Liquid fuel pressure upstream of stop valve Characteristics: NORMAL: NO

Settings: DEC opened = 35 ± 1 psig INC closed = 40 ± 2 psig

(5)

g

GE Energy Products - Europe

A4

381A6409

DRAWN

M. JEZEQUEL

SECTION 01E

SCALE SHEET

₂₀

Ç

SIZE DWG NO SH REV

A4

381A6409

20 A

Item PID Devices Item TG Designation 0434 63HF-1 0926

Hyd.filter diff. press. alarm Characteristics: Normal : NC

Settings: Inc open at 4,13 ± 0,2 bar (60 ± 3 psi) Dec close at 2,75 ± 1,03 bar (40 ± 15 psi) 0418 63HG-1 0926

Hydraulic Trip Oil Pressure sw gas stop valve Characteristics: Normal: NO

Settings: Dec. Open : 1,40 ± 0,07 bar (20 ± 1 psi)

(For Information Inc. Close : 1,65 ± 0,14 bar (24 ± 2 psi)) 0418 63HG-2 0926

Hydraulic Trip Oil Pressure sw gas stop valve Characteristics: Normal: NO

Settings: Dec. Open : 1,40 ± 0,07 bar (20 ± 1 psi)

(For Information Inc. Close : 1,65 ± 0,14 bar (24 ± 2 psi)) 0418 63HG-3 0926

Hydraulic Trip Oil Pressure sw gas stop valve Characteristics: Normal : NO

Settings: Dec. Open : 1,40 ± 0,07 bar (20 ± 1 psig)

(For Information Inc. Close : 1,65 ± 0,14 bar (24 ± 2 psi)) 0418 63HL-1 0926

Hydraulic Trip Oil Pressure - Liquid Fuel System Characteristics: Normal : NO

Settings: (For Information Inc. Close : 1,65 ± 0,14 bar (24 ± 2 psi)) Dec. Open : 1,40 ± 0,07 bar (20 ± 1 psi)

0418 63HL-2 0926

0418 63HL-3 0926

0434 63HQ-1 0926

Low hydraulic supply press. aux hydl. pump start Characteristics: Normal : NO

Settings: Inc closed at 100 ± 3,1 bar (1450 ± 45 psi ) Dec open at 93 ± 1,7 bar (1350 ± 25 psi) 0424 63LF-3 0992

Fuel filter differential pressure alarm Characteristics: NORMAL: NC Settings: INC opened = 15 ± 1 psi 0477 63PG-1 0918

Pressure switch on VA13-1 & VA13-2 intervalves space. Characteristics: Normal: NC

Settings: Increase open at 3,10 ± 0,13 bar (45 ± 2 psi)

For information, decrease close at 2,75 ± 0,13 bar (45 ± 2 psi) 0477 63PL-21 0918T

Pressure switch on liquid fuel purge air. Characteristics: Normal: NO

Settings: Increase close at 7 ± 0,25 bar (101 ± 4 psi) For information decrease open at 5,6 ± 0,25 bar (81 ± 4 psi). 0416 63QA-2 0926

Low Lube Oil Pressure Alarm Characteristics: Normal : NO

Settings: Dec. Open : 2,8 ± 0,07 bar (40,6 ± 1 psig)

(For Information : Inc. Close : 3,1 ± 0,14 bar ( 45 ± 2 psig)) 0416 63QQ-1 0926

Differential pressure switch Main Lube Oil Filter Characteristics: Normal : NC

Settings: Inc. Open : 1,03 ± 0,068 bar (15 ± 0,1 psig)

(For Information : Dec. Close : 0,9 ± 0,2 bar (13 ± 3 psig)) 0416 63QQ-8 0916

Torque converter filter differencial pressure Characteristics: Normal : NC

Settings: Inc. Open : 1,5 ± 0,2 bar (21,75 ± 3 psi) 0416 63QT-2A ALT.

Low Lube Oil Pressure generator side Characteristics: Normal : NO

Settings: Dec. Open : 0,55 ± 0,021 bar (8 ± 0,3 psig)

(For Information : Inc. Close :0,62 ± 0,035 bar (9 ± 0,5 psig)) 0416 63QV-1 0926

Oil mist eliminator filter high pressure drop alarm Characteristics: Normal : NC

Settings: Inc. open : 80 ± 3 mbar (1,16 ± 0,04 psi) 0417 63TK-1 A053

Turbine shell and exhaust frame blower discharge pressure switch Characteristics: Normal : NO

(6)

g

GE Energy Products - Europe

A4

381A6409

DRAWN

M. JEZEQUEL

SECTION 01E

SCALE SHEET

₂₁

Ç

SIZE DWG NO SH REV

A4

381A6409

21 A

Item PID Devices Item TG Designation 0417 63TK-2 A053

Turbine shell and exhaust frame blower discharge pressure switch Characteristics: Normal : NO

Settings: Closed above 15 ± 3 inch H2O 0436 63VL

Gas cabinet ventilation pressure switch Characteristics: Normal : NO

Settings: increase close at 25 ± 3 mm CE 0424 65FP 0533 Liquid fuel pump (by pass valve) servo valve 0422 65GC 0541 Gas control valve servo valve

0416 71QH-1 1038

High level lube oil tank Characteristics: Normal : NC

Settings: Incr. open on high level. See lube oil schematic MLItem 416 for setting 0416 71QL-1 1038

Low level lube oil tank Characteristics: Normal : NO

Settings: Decr. open on low level. See lube oil schematic MLItem 416 for setting 0424 77FD-1 0992 Flow divider magnetic pickup

Settings: Gap : 0,20 ± 0,02 mm (0,0078 ± 0,00078 in) 0424 77FD-2 0992 Flow divider magnetic pickup

Settings: Gap : 0,015 ± 0,002 in 0424 77FD-3 0992 Flow divider magnetic pickup

Settings: Gap : 0,015 ± 0,002 in 0415 77HT-1 0546 Speed Sensor

Settings: Air-gap : 1,27 ± 0,127 mm (0,05 ± 0,005 inch) 0415 77HT-2 0546 Speed Sensor

Settings: Air-gap : 1,27 ± 0,127 mm (0,05 ± 0,005 inch) 0415 77HT-3 0546 Speed Sensor

Settings: Air-gap : 1,27 ± 0,127 mm (0,05 ± 0,005 inch) 0415 77NH-1 0546 Speed Sensor

Settings: Air-gap : 1,27 ± 0,127 mm (0,05 ± 0,005 inch) 0415 77RP-11 0235 Vibration Sensor

Settings: -10,5 ± 0,5 VDC 0462 77WN-1T3 A035

Water injection common circuit flow pick-up Settings: 0 ± 0,05 V = 0 GPM

10 ± 0,05 V = 130 GPM 0425 88AB-1 1047 Atomizing air booster motor

Characteristics: 15 kW | 2925 rpm | 400 VAC | 50 Hz | 3 PH | 0436 88BT-1 Encl. Cooling air fan motor - Acoustic enclosure

Characteristics: 15 kW | 1460 rpm | 400 VAC | 50 Hz | 3 PH | 0436 88BT-2 Encl. Cooling air fan motor - Acoustic enclosure

Characteristics: 15 kW | 1460 rpm | 400 VAC | 50 Hz | 3 PH | 0421 88CR-1 0603 Electrical Cranking Motor

Characteristics: 1000 kW | 2975 rpm | 6,6 kV | 50 Hz | 3 PH | 0424 88FM 0613 Flow divider starting motor

Characteristics: 0,37 kW | 1400 rpm | 400 VAC | 50 Hz | 3 PH | 0436 88HA 1137 Air Fan of Accessory compartment heater

0434 88HQ-1 0628 (auxiliary) hydraulic supply pump motor

Characteristics: 15 kW | 2925 rpm | 400 VAC | 50 Hz | 3 PH | 0436 88HT Encl. Air Fan of Acoustic TG enclosure Heater

0416 88QA-1 1006 Auxiliary Lube oil pump motor

Characteristics: 90 kW | 3000 rpm | 400 | 50 Hz | 3 PH | 0416 88QE-1 1007 Emergency Lube Oil Pump Motor

Characteristics: 7,5 kW | 1750 rpm | 125 V | - Hz | DC | 0416 88QV-1 A098 Lube Oil Mist Eliminator Motor

Characteristics: 7,5 kW | 3000 rpm | 400 VAC | 50 Hz | 3 PH | 0421 88TG-1 0538

Turning Gear Electrical Motor

Characteristics: 30 kW | 725 rpm | 400 VAC | 50 Hz | 3 PH | Settings: Not applicable

0417 88TK-1 1233 Turbine Exhaust Frame Cooling Fan Vent Motor

Characteristics: 45 kW | 2900 rpm | 400 VAC | 50 Hz | 3 PH | 0417 88TK-2 1233 Turbine Exhaust Frame Cooling Fan Vent Motor

(7)

g

GE Energy Products - Europe

A4

381A6409

DRAWN

M. JEZEQUEL

SECTION 01E

SCALE SHEET

₂₂

Ç

SIZE DWG NO SH REV

A4

381A6409

22 A

0421 88TM-1 0605 Torque adjuster drive motor

Characteristics: 1,5 kW | 3000 rpm | 400 VAC | 50 Hz | 3 PH | 0436 88VG-1 Encl. Cooling air fan motor Load compartment.

Characteristics: 7,5 kW | 1450 rpm | 400 VAC | 50 Hz | 3 PH | 0436 88VG-2 Encl. Cooling air fan motor Load compartment.

Characteristics: 7,5 kW | 1450 rpm | 400 VAC | 50 Hz | 3 PH | 0436 88VL-1 1605 Cooling air fan motor - Gas compt.

Characteristics: 3 kW | - rpm | 400 VAC | 50 Hz | 3 PH | 0436 88VL-2 1605 Cooling air fan motor - Gas compt.

Characteristics: 3 kW | - rpm | 400 VAC | 50 Hz | 3 PH | 0462 88WN-1 A035 Water injection syst. Pump motor

Characteristics: 90 kW | 3000 rpm | 400 VAC | 50 Hz | 3 PH | 0422 90SR-1 0541 Speed ratio/stop valve servo valve

0469 90TV-1 0540 Inlet Guide Vane Servovalve 0462 90WN-1 A035 Servovalve for VC5-1 control valve 0415 95SP-13 1214 Spark plug

0415 95SP-14 1214 Spark plug

0415 95TR-13 1213 Ignition transformer for 95SP-13

Characteristics: 345 VA | 230 VAC | 15 kV | 0,35 kW 0415 95TR-14 1213 Ignition transformer for 95SP-14

Characteristics: 345 VA | 230 VAC | 15 kV | 0,35 kW 0425 96AD-1 0926

Atomizing air main compressor differential pressure transmitter Settings: 4 ± 0.05 mA for 0 bar

20 ± 0.05 mA for 6 bar (87 psi) 0492 96AP-1A 0559 Pressure transmitter

Settings: 4 mA ± 0,02 mA for 0,800 bar (23,6 in of Hg), 20 mA ± 0,10 mA for 1,200 bar (35,4 in of Hg) 0492 96AP-1B 0559 Pressure transmitter

Settings: 4 mA ± 0,02 mA for 0,800 bar (23,6 in of Hg), 20 mA ± 0,10 mA for 1,200 bar (35,4 in of Hg) 0492 96AP-1C 0559 Pressure transmitter

Settings: 4 mA ± 0,02 mA for 0,800 bar (23,6 in of Hg), 20 mA ± 0,10 mA for 1,200 bar (35,4 in of Hg) 0417 96CD-1C 0557

Compressor Discharge Pressure Transmitter Settings: 4 ± 0.05 for 0 bar ( 0 psi ) 20 ± 0.05 for 21 bar ( 304.5 psi ) 0492 96CS-1 0559 Pressure transmitter

Settings: 4 mA ± 0,02 mA for 0,0000 bar, 20 mA ± 0,10 mA for 0,0274 bar (11 in of H2O) 0422 96FG-2A 0557

Fuel Gaz inter-valve Pressure Transmitter Settings: 0 ± 0,05V for 0 bar (0 psi) 5 ± 0,05 V for 34,5 bar (500 psi) 0422 96FG-2B 0557

Fuel Gaz inter-valve Pressure Transmitter Settings: 0 ± 0,05V for 0 bar (0 psi) 5 ± 0,05 V for 34,5 bar (500 psi) 0422 96FG-2C 0557

Fuel Gaz inter-valve Pressure Transmitter Settings: 0 ± 0,05V for 0 bar (0 psi) 5 ± 0,05 V for 34,5 bar (500 psi) 0422 96FG-3 0557

Exhaust Pressure Transmitter Settings: 4 ± 0,05 mA for 0 bar ( 0 psi) 20 ± 0,1 mA for 35 bar (510 psi) 0422 96GC-1,2 0509 Gas control valve LVDT

Settings: 0,7 ± 0,01 VAC for 0 mm 0416 96QA-2 0926

Lube Oil header Pressure transducer Settings: 4 ± 0,05 mA for 0 bar (0 psi) 20 ± 0,1mA for 7 bar (101,5 psi) 0416 96QT-2A ALT.

Header end Lube Oil Pressure transducer Settings: 4 ± 0,05 mA for 0 bar (0 psi) 20 ± 0,1mA for 5 bar (72,51 psi) 0422 96SR-1,2 0507 Stop Ratio Fuel Gaz (VSR-1) LVDT

Settings: 0.7 ± 0,01 VAC for 0 mm 0421 96TM-1 0605

Torque Converter IGV Position Transmitter Settings: 4 ± 0,05 for 0 tr

20 ± 0,05 for 31 tr 0469 96TV-1 0548 Inlet Guide Vane LVDT

Settings: 0,7 ± 0,01 VAC for 34°

0469 96TV-2 0548 Inlet Guide Vane Actuator LVDT (Linear variable displacement transmitter) Settings: 0,7 ± 0,01 VAC for 34°

(8)

g

GE Energy Products - Europe

A4

381A6409

DRAWN

M. JEZEQUEL

SECTION 01E

SCALE SHEET

₂₃

Ç

SIZE DWG NO SH REV

A4

381A6409

23 A

Item PID Devices Item TG Designation 0415 96VC-11 0235 Vibration Sensor Settings: -10,5 ± 0,5 VDC 0415 96VC-12 0235 Vibration Sensor Settings: -10,5 ± 0,5 VDC 0462 96WN-1 A035

water injection skid inlet absolute pressure transmitter

Characteristics: 1600 PSI | 0 – 40 PSI to 0 – 800 PSI | -40 to +185 F | 10.5 to 36 V CC | 4 – 20 mA Settings: 4 ± 0,05 mA = 0 bar

20 ± 0,1 mA = 5.5 bar 0462 96WN-3 A035

Water injection pump outlet relative pressure transmitter

Characteristics: 2030 PSI | 0 – 1000 PSI to 0 – 5996 PSI | -22 to +194 F | 12 to 45 V CC | 4 – 20 mA Settings: 4 ± 0,05 mA = 0 bar

20 ± 0,1 mA = 68,9 bar 0462 96WN-4 A035

Water injection pump outlet differential pressure transmitter

Characteristics: 2030 PSI | 0 – 166.8 PSI to 0 – 1000 PSI | -22 to +194 F | 12 to 45 V CC | 4 – 20 mA Settings: 4 ± 0,05 mA = 0 bar

20 ± 0,1 mA = 3,45 bar

0425 AAT-1A 0637 Atomizing air precooler air discharge thermocouple. _{Characteristics: Type K} 0425 AAT-2A 0637 Atomizing air precooler air discharge thermocouple.

Characteristics: Type K 0434 AH1-1 0502

Control oil hydraulic accumulator Characteristics: Capacity : 2,5 gal | Nitrogen Settings: 51,7 ± 1 bar (750 ± 15 psi) 0434 AH1-2 0502

Control oil hydraulic accumulator Characteristics: Capacity : 2,5 gal | Nitrogen Settings: 51,7 ± 1 bar (750 ± 15 psi)

0436 AT-LC-1 0637 Load compartment temperature _{Characteristics: PT100 | 100 ohms at 0°C | 0,385 ohm / °C |} 0436 AT-TC-1 0637 Turbine compartment temperature

Characteristics: PT100 | 100 ohms at 0°C | 0,385 ohm / °C | 0462 AW-1 A035

Water injection common circuit accumulator-hale Characteristics: Capacity : 0,264 gal Settings: Precharge : 435 psig

0415 BT-J1-1A,1B 0235 Thermocouple Characteristics: Type K 0415 BT-J1-2A,2B 0235 Thermocouple Characteristics: Type K 0415 BT-J2-1A,1B 0235 Thermocouple Characteristics: Type K 0415 BT-J2-2A,2B 0235 Thermocouple Characteristics: Type K 0415 BT-J3-1A,1B 0235 Thermocouple Characteristics: Type K 0415 BT-J3-2A,2B 0235 Thermocouple Characteristics: Type K 0415 BT-TA1-2A,2B 0235 Thermocouple Characteristics: Type K 0415 BT-TA1-5A,5B 0235 Thermocouple Characteristics: Type K 0415 BT-TA1-8A,8B 0235 Thermocouple Characteristics: Type K 0415 BT-TI1-2A,2B 0235 Thermocouple Characteristics: Type K 0415 BT-TI1-5A,5B 0235 Thermocouple Characteristics: Type K 0415 BT-TI1-9A,9B 0235 Thermocouple Characteristics: Type K

0425 CA1 0607 Main atomizing air compressor. _{Characteristics: Centrifugal | 2,7kg/s | 6500 rpm} 0425 CA2 1047 Booster Atomizing Air Compressor.

Characteristics: Volumetric | 510m3/h | 6200 rpm 0415 CT-DA-1 0637 Thermocouple

Characteristics: Type K 0415 CT-DA-2 0637 Thermocouple

(9)

g

GE Energy Products - Europe

A4

381A6409

DRAWN

M. JEZEQUEL

SECTION 01E

SCALE SHEET

₂₄

Ç

SIZE DWG NO SH REV

A4

381A6409

24 A

Item PID Devices Item TG Designation 0415 CT-IF-1 0637 Thermocouple Characteristics: Type K 0415 CT-IF-2 0637 Thermocouple Characteristics: Type K 0477 FA3-1 0918T Liquid fuel purge air filter. 0425 FA4-1 0983 Atomizing air actuation air filter.

0477 FA6-1 1015 Filter on actuation air of fuel gas purge air valves. 0462 FA90-1 A035 Strainer on control air supply circuit

0424 FD1-1 0613 Flow divider

Characteristics: Volumetric | 883 l/min | 1650 Hz | 1650 tr/min 0424 FF2-1 HP fuel filter

0424 FF2-2 1024 HP fuel filter 0434 FH2-1 1051 Hydraulic supply filter 0434 FH2-2 1051 Hydraulic supply filter

0424 FH3-1 0992 Hydraulic supply filter-liquid fuel servo 0469 FH6-1 0548 IGV controller assembly hydraulic oil supply filter

0422 FH7-1 0911 Servo hydraulic supply filter of Gas fuel control & stop valve 0417 Filtre 0909 control air Filter 1” air supplied from Compressor discharge 0462 FM1-1 A035 Water injection common flow meter

Characteristics: Flow range : 16 to 130 GPM 0462 FW1-1 A035 Water injection system low pressure strainer 0462 FW2-1 A035 Water injection system main filter

0462 FW3-1 A035 High pressure strainer downstream flow meter water injection 0421 HM1 0605 Torque Converter and Reversing Gear

Characteristics: Driven at 3000 rpm approximatively 0469 HM3-1 0548 Actuator assembly, Inlet Guide Vane System

Settings: Actuator operation limits : 32° to 86° 0425 HX1-1 1003 Atomizing air precooler.

0416 LT-B1D-1A,1B 0637 Lube Oil Thermocouple #1 Bearing Drain Characteristics: Type K

0416 LT-BT1D-1A,1B 0637 Lube Oil Thermocouple #1 Bearing Drain Characteristics: Type K

0416 LT-G1D ALT./ GEN.

Lube Oil Thermocouple generator #1 Bearing Drain Characteristics: Type K

0416 LT-G2D ALT./ GEN.

Lube Oil Thermocouple generator #2 Bearing Drain Characteristics: Type K

0416 LT-OT-1A 0938 Lube oil tank resistance temperature detector Characteristics: Type K

0416 LT-OT-2A 0938 Lube oil tank resistance temperature detector Characteristics: Type K

0416 LT-TH-1A,1B 0637 Lube oil temperature turbine header thermocouple Characteristics: Type K

0422 MG1 0512 Gas fuel nozzle 0424 PF1 0611 Main fuel Pump

Characteristics: Volumetric | 870.5 l/min | 68.9 bar | 1550 tr/min 0434 PH1 0627

Main hydraulic supply pump

Characteristics: Volumetric – positive displacement 65 l/min (17,1 GPM) |105 bar (1500 psi) | 1422 tr/min (1422 RPM)

0434 PH2 0628 Auxiliary hydraulic supply pump

Characteristics: Volumetric 45,4 l/min (12 GPM) | 105 Bar (1500 psi) |1450 tr/min (1450 RPM) 0462 PW1-1 A035 Water injection centrifugal fixed speed pump

0417 Separateur 0931 Air Cleaner

0426 SLI-1 1104 Light warning accessory compartment Characteristics: 230 VAC-50/60 Hz 0426 SLI-1A Encl. Fire alarm : flashing light unit _{Characteristics: 24VDC}

(10)

g

GE Energy Products - Europe

A4

381A6409

DRAWN

M. JEZEQUEL

SECTION 01E

SCALE SHEET

₂₅

Ç

SIZE DWG NO SH REV

A4

381A6409

25 A

0426 SLI-1B Encl. Fire alarm : flashing light unit Characteristics: 24VDC

0426 SLI-1C Encl. Fire alarm : horn and flashing light unit load Characteristics: 24VDC

0426 SLI-2 1104 Light warning accessory compartment Characteristics: 230 VAC-50/60 Hz 0426 SLI-2C Encl. Fire alarm : horn and flashing light unit load

Characteristics: 24VDC

0426 SLI-3C Encl. Fire alarm : horn and flashing light unit load Characteristics: 24VDC

0415 TT-IB-1 0637 Thermocouple Characteristics: Type K 0415 TT-WS1A0-1 0637 Thermocouple

Characteristics: Type K 0415 TT-WS1A0-2 0637 Thermocouple _{Characteristics: Type K} 0415 TT-WS1FI-1 0637 Thermocouple Characteristics: Type K 0415 TT-WS1FI-2 0637 Thermocouple Characteristics: Type K 0415 TT-WS2A0-1 0637 Thermocouple Characteristics: Type K 0415 TT-WS2A0-2 0637 Thermocouple Characteristics: Type K 0415 TT-WS2F0-1 0637 Thermocouple Characteristics: Type K 0415 TT-WS2F0-2 0637 Thermocouple Characteristics: Type K 0415 TT-WS3A0-1 0637 Thermocouple Characteristics: Type K 0415 TT-WS3A0-2 0637 Thermocouple Characteristics: Type K 0415 TT-WS3F0-1 0637 Thermocouple Characteristics: Type K 0415 TT-WS3F0-2 0637 Thermocouple Characteristics: Type K 0415 TT-XD-1 0623 Thermocouple Characteristics: Type K 0415 TT-XD-10 0623 Thermocouple Characteristics: Type K 0415 TT-XD-11 0623 Thermocouple Characteristics: Type K 0415 TT-XD-12 0623 Thermocouple Characteristics: Type K 0415 TT-XD-13 0623 Thermocouple Characteristics: Type K 0415 TT-XD-14 0623 Thermocouple Characteristics: Type K 0415 TT-XD-15 0623 Thermocouple Characteristics: Type K 0415 TT-XD-16 0623 Thermocouple Characteristics: Type K 0415 TT-XD-17 0623 Thermocouple Characteristics: Type K 0415 TT-XD-18 0623 Thermocouple Characteristics: Type K 0415 TT-XD-19 0623 Thermocouple Characteristics: Type K 0415 TT-XD-2 0623 Thermocouple Characteristics: Type K 0415 TT-XD-20 0623 Thermocouple Characteristics: Type K 0415 TT-XD-21 0623 Thermocouple Characteristics: Type K

(11)

g

GE Energy Products - Europe

A4

381A6409

DRAWN

M. JEZEQUEL

SECTION 01E

SCALE SHEET

₂₆

Ç

SIZE DWG NO SH REV

A4

381A6409

26 A

Item PID Devices Item TG Designation 0415 TT-XD-22 0623 Thermocouple Characteristics: Type K 0415 TT-XD-23 0623 Thermocouple Characteristics: Type K 0415 TT-XD-24 0623 Thermocouple Characteristics: Type K 0415 TT-XD-3 0623 Thermocouple Characteristics: Type K 0415 TT-XD-4 0623 Thermocouple Characteristics: Type K 0415 TT-XD-5 0623 Thermocouple Characteristics: Type K 0415 TT-XD-6 0623 Thermocouple Characteristics: Type K 0415 TT-XD-7 0623 Thermocouple _{Characteristics: Type K} 0415 TT-XD-8 0623 Thermocouple

Characteristics: Type K 0415 TT-XD-9 0623 Thermocouple

Characteristics: Type K 0477 VA13-1 0918 Gas fuel purge air valve.

Characteristics: Normal: NC 0477 VA13-2 0918 Gas fuel purge air valve.

Characteristics: Normal: NC

0424 VA17-1 1026 False start drain valve-combustion wrapper Settings: Normal : NO

0424 VA17-2 1026 False start drain valve-exhaust frame Settings: Normal : NO

0424 VA17-5 1026 False start drain valve-exhaust plenum Characteristics: Normal : NO

0425 VA18-1 1070 Atomizing air compressor by pass valve. Characteristics: Normal: NC

0477 VA19-1 0918T Liquide fuel purge air valve.

Characteristics: Normal : C to L opened ; U closed 0417 VA2-1 1022 Compressor Bleed valve 11

th_stage

Characteristics: Normal : NO 0417 VA2-2 1022 Compressor Bleed valve 11

th_stage

Characteristics: Normal : NO

0425 VA22-1 0922 Booster atomizing air compressor isolating valve. Characteristics: Normal: NO

0417 VA2-3 1022 Compressor Bleed valve 11

th_stage

Characteristics: Normal : NO 0417 VA2-4 1022 Compressor Bleed valve 11

th_stage

Characteristics: Normal : NO

0434 VAB1 0947 Hydraulic system air bleed valve (main) 0434 VAB2 0947 Hydraulic system air bleed valve (aux.) 0424 VC3-1 0516

By pass control valve Characteristics: Normal : NO

Stroke : 1,125 in 0462 VC4-1 A035 Water injection flow control valve primary circuit

Characteristics: Normal: NC

0462 VC5-1 A035 Big flow manifold water injection transfer valve Characteristics: Normal: NC

0424 VCK1-1T14 0961

Liquid fuel nozzle check valve Characteristics: Normal: NC

Cracking press : 8,27 ± 0,34 Bar (120 ± 5 psig) 0477 VCK2-1T14 0918T

Liquid fuel nozzle purge air check valve. Characteristics: Normal: NC

Cracking pressure 0.34 ± 0.07 bar (4.93 ± 1 psi). 0434 VCK3-1 0947 Hydraulic pump check valve for main pump

0434 VCK3-2 0947 Hydraulic pump check valve for auxiliary pump 0417 VCK7-1 1233 Turbine Shell and Exhaust Frame Blower Check Valve

Characteristics: Normal : NC

0417 VCK7-2 1233 Turbine Shell and Exhaust Frame Blower Check Valve Characteristics: Normal : NC

(12)

g

GE Energy Products - Europe

A4

381A6409

DRAWN

M. JEZEQUEL

SECTION 01E

SCALE SHEET

₂₇

Ç

SIZE DWG NO SH REV

A4

381A6409

27 A

Item PID Devices Item TG Designation 0422 VGC 0509

Gas control valve

Characteristics: Normal : NC

stroke maxi : 44,5 ± 0,5 mm 0422 VH12 0509 VGC trip valve

Characteristics: Normal : NO 0469 VH3-1 0540 Trip relay, hydraulic, IGV 0422 VH5 0507 VSR security discharge valve

Characteristics: Normal : NO 0434 VM4 1052 Hydraulic filter transfer valve 0424 VP-1 0961 Fuel liquid purge multiport valve 0424 VP-2 0961 Fuel liquid purge multiport valve 0416 VPR2-1 1023

Bearing header pressure regulator valve Characteristics: Normal : NC

Settings: Set point : 1,72 + 0,13 /-0 bar (25 + 2 /-0 psi) 0434 VPR3-1 0627 Hydraulic supply pump (PH1) compensator

Settings: Setting : 1500 +20/-0 psig

0477 VPR44-1 0918 Filter pressure regulator on actuation air of gas fuel purge air valve. Settings: 2,3 +0/-0,2 bar (33,35 +0/-2,9 psi)

0477 VPR44-2 0918 Filter pressure regulator on actuation air of gas fuel purge air valve. Settings: 2,3 +0/-0,2 bar (33,35 +0/-2,9 psi)

0477 VPR54-1 0918 Filter pressure regulator on actuation air of liquid fuel purge air valve. Settings: 3,27 +1,7/-0 bar (47,5 +2,7/-0 psi)

0462 VPR62-11 A035

Water injection stop valve pressure regulator Characteristics: Normal : NC

Settings: 6,9 ± 0.340 bar (100 ± 4,9 psi)

0425 VPR68-1 0922 Instrumentation air filter pressure regulator on VA22-1 actuation. Settings: 3,79 ± 0,13 bar (55 ± 2 psi)

0462 VPR90-1 A035 Water injection VC4-1 transfer valve air pressure regulation Settings: Setting: 2 +0.4/-0 bar

0462 VPR90-2 A035 Water injection VC5-1 transfer valve air pressure regulation Settings: Setting: 2 +0.4/-0 bar

0462 VQE-1 A035 Quick exhaust valve Characteristics: Normal : NC 0416 VR1 1016

Main lube oil pump pressure relief valve Characteristics: Normal : NC

Settings: Opening at 6,89 + 0,13/-0 bar (100 + 2/-0 psi) 0434 VR21 0947 Main hydraulic supply pump pressure relief valve

Settings: 1650 ± 20 psi

0434 VR22 0947 Auxiliary hydraulic supply pump pressure relief valve Settings: Setting : 1650 ± 20 psig

0424 VR27 0992

Pressure relief valve on liq. fuel piping Characteristics: Normal: NC

Settings: Setting : 6 ± 0,2 bar (87 ± 2,9 psi) 0424 VR4 0992

Main fuel pump pressure relief valve Characteristics: Normal : NC

Settings: Setting : 82,7 ± 1,72 bar (1200 ± 25 psi) 0424 VS1 0511 Fuel oil stop valve

Characteristics: Normal : NC 0462 VS2-1 A035 Water injection stop valve

Characteristics: Normal : NC 0422 VSR 0507 Fuel gas stop/speed ratio valve

Characteristics: Normal : NC | stroke maxi : 88,67 mm ( 3,5 in) 0420 VTR1 1035

Brg header temperature regulator valve Characteristics: Normal: E to B open, C closed. Settings: Starts to open at Oil T° = 130 ± 3.6 F. 0420 VTR2-1 1027

Atmg air precooler air discharge temp.rgltr valve Characteristics: Normal: B to E open, C closed. Settings: T° air = 225 ± 3.6 F

0420 WT-TL-1 0637 Resistance thermometer detector Support legs water temperature _{Characteristics: Platine PT100 | 100 Ohm at 32°F | 0,214 Ohm / °F | -58 to 500 °F} 0420 WT-TL-2 0637 Resistance thermometer detector Support legs water temperature

(13)

(14)

(15)

(16)

(17)

(18)

(19)

(20)

(21)

(22)

(23)

(24)

(25)

(26)

(27)

(28)

(29)

(30)

(31)

(32)

(33)

(34)

(35)

(36)

(37)

(38)

(39)

(40)

(41)

(42)
