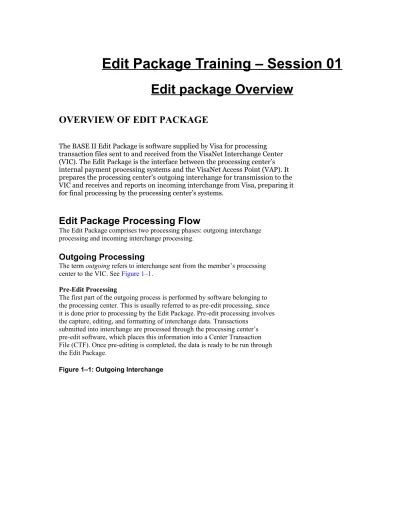

Edit Package Training – Session 01
Edit package Overview
OVERVIEW OF EDIT PACKAGE
The BASE II Edit Package is software supplied by Visa for processing transaction files sent to and received from the VisaNet Interchange Center (VIC). The Edit Package is the interface between the processing center’s internal payment processing systems and the VisaNet Access Point (VAP). It prepares the processing center’s outgoing interchange for transmission to the VIC and receives and reports on incoming interchange from Visa, preparing it for final processing by the processing center’s systems.
Edit Package Processing Flow
The Edit Package comprises two processing phases: outgoing interchange processing and incoming interchange processing.
Outgoing Processing
The term outgoing refers to interchange sent from the member’s processing center to the VIC. See Figure 1–1.
Pre-Edit Processing
The first part of the outgoing process is performed by software belonging to the processing center. This is usually referred to as pre-edit processing, since it is done prior to processing by the Edit Package. Pre-edit processing involves the capture, editing, and formatting of interchange data. Transactions
submitted into interchange are processed through the processing center’s pre-edit software, which places this information into a Center Transaction File (CTF). Once pre-editing is completed, the data is ready to be run through the Edit Package.
Edit Package Processing
E3OUT, the overall outgoing control program, calls initialization processes at the beginning of each outgoing Edit Package run and then processes each transaction found in the CTF.
At the end of processing, the control program produces the necessary reports. Then the Edit Package produces an Interchange Transaction File (ITF) which is transferred to a VAP, where it is held until a predetermined collection time. The transmission of the file is jointly managed by the VAP and the VIC, with little or no intervention required by center personnel. If a VAP or other electronic transmission means is unavailable, the file must be mailed to the VIC.
BASE II System Processing
At a predetermined time, the BASE II System at the VIC dials the VAP and collects the interchange. As the interchange transactions are received by BASE II at the VIC, clearing occurs. The transactions are validated, converted to the appropriate currencies, and totaled and sorted by destination. Fees are then calculated. At the end of each BASE II cycle, settlement positions are computed for all members with either incoming or outgoing transactions. Interchange data are protected from system failure after being accepted by the VIC. In the event of a failure, the BASE II System can restart processing where the failure occurred. If requested, interchange files can also be rebuilt and electronically transmitted to the processing center.
Incoming Processing
The term incoming refers to interchange coming into the member’s processing center from the VIC. See Figure 1–2.
The overall incoming control program E3IN calls an initialization process at the beginning of each incoming Edit Package run and then processes each transaction found in the ITF. At the end of processing, the control program produces the necessary reports and makes the CTF available for use by the processing center if there are no severe errors in the interchange file.
Incoming Edit Package files contain:
Financial and nonfinancial interchange transactions Settlement totals
BASE II System settlement reports Edit Package table update transactions
NOTE: To ensure proper application of table update transactions, all
incoming files must be processed. Files must be processed in sequence by the Central Processing Date (CPD) on which they were created to properly update the table files.
Post-Edit Processing
Post-edit software, written by center personnel or by an outside vendor, reformats and processes incoming interchange received from the VIC. This software prepares interchange so that it can be processed by cardholder and merchant posting programs and used for other processing center purposes, such as fraud analysis.
Key Features of the Edit Package
The Edit Package provides maximum flexibility for both installation and daily processing. The key features that help make the Edit Package flexible are:
Use of rules and value table files Availability of run control options
Rule and Value Tables
Edit Package transaction validation is performed using edit logic stored in rules table files, rather than hard-coded edits.
When new business enhancements arise, the changes to the edits are downloaded from the VIC to the processing center through incoming
interchange. This reduces the need to install new Edit Package software whenever changes are introduced.
Run Control Options
Access to most functions in the Edit Package is available through run control options. The use of run control options allows processing centers to customize the Edit Package in a way best suited to their specific processing needs. Run control options can be modified either at installation time or before each Edit Package processing run.
Run control options allow the selection of a variety of functions, including:
Splitting incoming ITFs into multiple CTFs
Setting tolerance checking limits at the run or item levels Establishing duplicate batch detection settings
Edit Package Functions
Edit Package functions can be divided into five groups:
Environmental—These functions determine the environment in which
the Edit Package is run. Through the use of run control options, the processing center can modify how the Edit Package software runs in the individual environments.
Formatting—One of the functions of the Edit Package is to format CTF
data into ITF data during an outgoing cycle and to format ITF data into CTF data during an incoming cycle.
The processing center can control some formatting functions so that outgoing and incoming files and transactions can be more easily processed by the center’s internal systems.
Validation—Validation of interchange is a major function of the Edit
Package. In addition to standard validation, processing centers can select additional forms of validation, such as the setting of tolerance levels at both the run and item levels. Additional validation functions are controlled through the use of run control options.
Reporting—The Edit Package also includes functions for reporting.
Formatted reporting of outgoing and incoming transactions is available. Processing centers can select which particular transaction codes are reported.
Formats for dates, time, and numeric values can be modified according to national standards and are available using run control options.
PC Edit Package and Edit Package Data Entry Systems—These
systems are available to processing centers whether the Edit Package runs on a mainframe or a PC. They give processing centers the ability to key-enter original transactions that can be validated online. The PC Edit Package and Edit Package Data Entry Systems validation logic uses the same rule and value tables as the core Edit Package.
Both the PC Edit Package and Edit Package Data Entry System also provide a mechanism for correcting both transactions rejected by the Edit Package and transactions returned by the VIC.
Outgoing Edit Package Processing
Outgoing Processing Flow
This section describes the outgoing Edit Package processing cycle. Processes are listed in the order they occur.
Outgoing Control Program
The outgoing Edit Package is a single-step process controlled by an overall program that calls many submodules. The outgoing control program, E3OUT, calls initialization functions as needed at the beginning of each run and then processes each transaction found in the Center Transaction File (CTF). At the end of processing, if there were no severe errors, the control program produces the necessary reports and makes the Interchange Transaction File (ITF) available for staging on the VisaNet Access Point (VAP).
Figure 3–1 provides a high-level illustration of the processing flow for a typical outgoing Edit Package run.
Input Requirements
The following items are required before an outgoing Edit Package run can be executed:
An outgoing CTF generated by the processing center’s pre-edit program The following files, which must reside on a direct access storage device:
– Permanent and Temporary Run Control Options Files – Incoming Run Hold File
– Account Range Definition (ARDEF) File – BIN File
– Language File – Rules File
– History File (indexed and backup) – Log File (indexed and backup) – Merged Table File
– Table Control File
Initializing the System
The following processes occur during system initialization: Search Run Control Options Files
At the start of an outgoing Edit Package run, E3OUT searches the Permanent and Temporary Run Control Options Files for the following run control options:
Center BIN (CENTRBIN) Center Code (CENTRCODE) Center Name (CENTRNAME) Table Date (TABLEDATE) Run Date (RUNDATE) Run Mode (RUNMODE)
Table Key (TBLKEY) Table Data (TBLDATA)
NOTE: TABLEDATE, RUNDATE, RUNMODE, TBLKEY, and TBLDATA run
control options are not required. If not present in either run control options file, default values are used.
Load Internal Tables
Next, E3OUT uses the information from the above run control options to load the following files into internal tables:
ARDEF File BIN File
NOTE: Information from the BIN and ARDEF Top Gun History files
determine the Processing Center’s most frequently referenced BINs and ARDEFs. and ensure they are loaded into computer memory.
Language File Rules File
E3OUT loads the tables with values needed for the transaction validation process. If specified, E3OUT calls optional extended service modules to calculate cutoff dates required to perform timeliness edits for incentive scheme processing.
Validate Run Control Options
Once the files and tables are loaded, E3OUT validates all run control options, and:
1. Sets default values for run control options, where necessary
2. Performs cross-validation of run control options to ensure that there are no conflicting options in the run
3. Stores the run control options in effect for the run in internal tables 4. Writes the run control options in effect for the run to the Log File Assign Run and Starting Batch Numbers
After validating the run control options, E3OUT references the History File to assign run and starting batch numbers. Batch numbers start at 1 for each processing day and are incremented by 1 for each batch processed.
Reruns—If the current outgoing Edit Package run is a rerun, E3OUT verifies that it has already performed the run for the run date in effect and reuses the starting batch number in effect for the original run.
Creating the Outgoing ITF
The creation of the outgoing ITF consists of the following processes: Process CTF
1. Check File Header—If there is a file header, this process verifies that it is correct. If the file header contains a nonzero Unique File ID, then E3OUT checks the History File to verify that it is not a duplicate file. 2. Build Logical Transactions—This process reads one Transaction
Component Record (TCR) at a time from the outgoing CTF, validates the sequence number, and groups the TCRs together to build each logical transaction.
Validate Transactions
E3OUT passes the TCRs for each logical transaction to the table manipulation submodule that validates the transaction code. Based on the transaction code, the table manipulation submodule uses the appropriate transaction layout from the tables and performs edits against the rules and values defined in the tables. (See BASE II Clearing Interchange Formats manuals for definitions of the transaction edits.)
The table manipulation submodule also passes back to E3OUT any errors and formatted information needed to generate reports.
Perform Optional Processing
After validating transactions, E3OUT performs optional processing, including:
Item or run tolerance checking
Calculates the hash value for each record, if duplicate batch checking via
hashing is selected Extract Reports
Once optional processing is completed, E3OUT calls the report extract module which extracts summary and transaction-based report information and passes it to a work file.
Create ITF
After extracting summary and transaction-based report information, E3OUT calls the transaction write module. If a transaction was not rejected, it is written to the outgoing ITF.
Rejected Transactions—If a transaction was rejected and the processing center has selected the SAVEREJECT run control option, the transaction is written to the Rejected Item File.
Hash Totals—If the processing center uses an IBM mainframe (MVS and VSE), a 2-byte hash total field is inserted in each transaction at this time. CTF Trailers
E3OUT verifies that all batch and file trailers balance, that is, totals read from the records in the CTF equal the sums of accepted and rejected totals accumulated by E3OUT during processing. If duplicate batch detection has been selected using the DUPBATCH option, E3OUT will also compare the batch hash value or Center Batch ID against the history file values.
ITF Trailers
The Edit Package writes a batch trailer to the ITF every time a batch trailer is encountered in the CTF. File trailers are written to the ITF at the end of CTF processing. If more than one CTF is processed, the Edit Package will combine the CTFs on the ITF. If ITF files are being written to tape or diskette, the Edit Package will also write a file trailer whenever the tape or diskette is full. A file header record for the next tape or diskette is then written to the ITF.
Generate TC 50 Text Transactions
ITF that contains TC 50 text transactions. These transactions contain:
Edit Package incoming and outgoing environmental information, such as
date of run and version and date of tables used during the run.
Information showing the version number of the Edit Package software
being used and the level of TIU’s applied.
There is one TC 50 for each record in the Permanent and Temporary Run Control Options Files. There also is an environmental record and a record for each run control option used during the previous incoming Edit Package run.
Producing Exception, Control, and Summary Reports
Producing exception, control, and summary reports consists of the following: Load Tables
After the ITF is created, E3OUT calls the table manipulation submodule to reload the Rule, Value, and Language Tables with information needed to generate reports.
Sort Data and Format Reports
Next, E3OUT sorts data for the following reports:
Validation Exception Detail Report
Summary reports that summarize the transactions accepted for
interchange
Optional transaction-based reports that are detail reports of the
transaction information
After sorting data for the above reports, E3OUT calls the appropriate modules to format the reports.
Updating the History File
If the run was successful, E3OUT updates the History File with the following:
An outgoing batch record for each batch processed during the run An outgoing file record for each file processed during the run One outgoing run record
Updating the Top Gun History Files
During transaction validation, E3OUT collected statistics on the number of BIN and ARDEF table references that was made. At the end of the outgoing run, these statistics are used to update the BIN and ARDEF Top Gun History files. The top gun history files determine the most frequently referenced BINs and ARDEFs for the processing center, and are used during subsequent table loads to ensure that these BINs and ARDEFs are loaded into computer memory for faster access.
Updating the Engine Table Usage Message Files
At the completion of each Edit Package run, statistics regarding the dynamic usage of the Edit Package tables are output to the Engine Table Usage Metric Files. This information may be requested by Visa to assist in support issues.
Producing the Outgoing Log Report
end of the outgoing run, whatever data was accumulated in the Log File during the run is written to the EP–199 Log Report.
Exception Conditions
The several types of exception conditions are as follows: Severe Errors
If a severe error is detected during the outgoing Edit Package run:
The appropriate severe error message appears in the Validation Exception
Detail Report (EP–100A) and the Log File Report (EP–199)
An ITF is not created
Processing of the Edit Package continues to the end of the run, if possible.
If the Reject Message Limit (REJMSGLIM) run control option is specified, processing stops when the percentage of the transactions processed so far exceed the percentage specified for the REJMSGLIM option. If the Reject ITF Limit (REJITFLIM) run control option is specified, error reporting continues until all transaction in the input file are processed, but the ITF is not created if the percentage of transactions containing errors for the entire input file, exceeds the percentage specified on the REJITFLIM option.
CTF Errors
If any errors are detected during the processing of the CTF, the transactions with errors are written to the Validation Exception Detail Report (EP–100A) and are not passed to the ITF. If the SAVEREJECT run control option is selected, the transactions in error are written to a separate CTF.
Messages
After each outgoing Edit Package run, the banner page on the EP–100A Validation Exception Detail Report displays a message indicating the status of the run.
MAJOR FILES USED IN OUTGOING PROCESSING
Table Files
The Edit Package table files consist of two separate loadable table images called image A and image B. One of the images is used for the current Edit Package release, while the other image is reserved for possible use with a future release of the Edit Package.
Each loadable table image consists of four indexed files: ARDEF, BIN, Language, and Rules files. Each image has two merged sequential copy files, which include the contents of all four indexed files. During outgoing runs, the merged files are used only to recover the indexed version of the files when the existing indexed versions are not usable.
Transaction layouts and edit logic are maintained by TC 54 table updates received from the VIC through the processing center’s incoming interchange. This allows business enhancements to be implemented without the need to update and redistribute Edit Package source code.
The indexed ARDEF File is a permanent file containing a valid ARDEF Table. The ARDEF Table contains all valid ARDEF entries, including the account prefix range, its associated BIN, card-number length indicator, check-digit indicator, and card type. The ARDEF File is used to validate account numbers used in transactions processed for interchange.
BIN File
The indexed BIN File is a permanent file containing a valid BIN Table. A BIN is a six-digit system number used by Visa to identify processing centers and members. The BIN Table contains all valid BINs and their BASE II
processing status codes. The BIN File is used to validate BINs used in transactions processed for interchange.
Language File
The indexed Language File includes the text of:
Validation error messages Log messages
Report headings Report literals
Reason code descriptions Returned item code descriptions
Rules File
The indexed Rules File contains transaction layouts and business validation logic. The transaction layouts and business validation logic are used to edit and report interchange transactions.
Table Control File
This file indicates which version of the merged sequential files is current. During outgoing runs, this file controls the table recovery process, if the indexed table files become unusable.
Merged Table Files
These files contain all the data from ARDEF, BIN, Language, and Rules Files in a sequential format. During the outgoing run, the merged table files are used to recover the contents of the indexed files when the indexed files are not usable. There are four merged files, one for each image and copy of the tables.
Permanent and Temporary Run Control Options Files
These files contain the permanent and temporary run control options and their associated values specified by the processing center. These run control options are used to control the outgoing run.
Top Gun History Files
These files contain the statistical reference history of the BINs and ARDEFs that are most frequently referenced by the processing center during all
previous outgoing runs. The information is used by the Edit package to ensure that the highest referenced BINs and ARDEFs are loaded into computer memory during an Edit Package run.
This file collects BIN and ARDEF reference statistics for the current outgoing run, and is used to update the Top Gun History files at the end of the run.
Engine Table Usage Metrics
These files are used to collect statistical information about the Edit Package dynamic table usage at the processing center. This information may be requested by Visa in order to assist in support issues.
Currency Conversion Rates File (Optional)
The Currency Conversion Rates File is required only when processing in multiple currencies and using the run tolerance checking option. It contains all valid BASE II currency codes, their effective dates, scale factors, and conversion rates. This file is updated during incoming runs by TC 56 currency rate update transactions.
History File
The indexed History File contains a history of batches, files, and runs for outgoing and incoming Edit Package processing.
Rejected Item File
The Rejected Item File, in CTF or reject format, is created during outgoing Edit Package runs if the processing center has elected to retain rejected transactions by using the SAVEREJECT run control option. The file contains each transaction that was rejected (not written to the ITF) due to errors detected during editing. This file is only created during runs that successfully create an ITF.
Log File
The indexed Log File contains messages recorded during Edit Package processing. The messages include run control and environmental information, as well as any unusual conditions warranting review.
Incoming Run Hold File
The Incoming Run Hold File contains environmental report data and the run control option values from the most recent incoming Edit Package run for transmission to the VIC during the next outgoing processing. The data in this file is used to create reports used by Visa support personnel.
Backup Files
The types of backup files are as follows: Log Backup File
The Log Backup File is a sequential copy of the indexed Log File used to restore the indexed Log File if it becomes unusable. The Log Backup File is also used to reorganize the indexed Log File on a monthly basis.
History Backup File
The History Backup File is a sequential copy of the indexed History File used to restore the indexed History File if it becomes unusable. The indexed
History File is copied into this file after every successful run of the Edit Package. The History Backup File is also used to reorganize the indexed History File on a monthly basis.
Work and Sort Files
The types of work and sort files are as follows: Transaction Report Work File
This file contains information to be sorted for the transaction-based reports and exception reports.
Summary Report Work File
The Summary Report Work File contains information to be sorted for the summary reports.
EP100 Work File
This file contains information used to produce the EP–100B and EP–100C summary reports.
EP110 Work File
This file contains information used to produce the EP–110 series of reports. Transaction Report Sort File
This file contains sorted information for use in the EP–100A Validation Exception report and optional transaction-based reports.
Summary Report Sort File
This file contains sorted information for use in the summary reports. Top Gun Statistics Temporary Work File
This file contains top gun statistics for the current outgoing run that has been sorted into BIN and ARDEF sequence. The file is used during the Top Gun History file update process.
Report Files
Each outgoing Edit Package report is written to a separate file. If data for a particular report was not received, the file will contain a report header and a message indicating that there is not any data to report.
Processes Controlled by Data
The following outgoing Edit Package process does not require the use of run control options.
Duplicate File Detection
This function gives processing centers the ability to check for potential file duplicates prior to processing the CTF.
The outgoing CTF may contain a TC 90 header record. This record is used for duplicate file detection within the same processing date. The provision of an outgoing CTF TC 90 header record is optional. Processing centers that use this feature must generate the TC 90 header record in all pre-edit software
that creates outgoing CTFs destined for outgoing interchange.
Duplicate file detection is based on two data elements in the TC 90 header record:
Center Processing Date—This is the processing date of the member’s
pre-edit system.
File ID—This is a three-digit number that must be unique for each CTF
processed by the Edit Package for any given Center Processing Date. File IDs do not need to be in an ascending sequence.
The outgoing Edit Package compares the combination of Center Processing Date and File ID against the Edit Package History File. If a match is found, the Edit Package run is immediately terminated.
Processing centers can produce a TC 90 header record and avoid duplicate detection by applying a value of zero in the File ID field.
NOTE: If multiple pre-edit systems create outgoing CTFs destined for outgoing
interchange, Visa recommends that a pre-defined range be allocated to each pre-edit system to ensure uniqueness of File IDs and to avoid potential conflict.
Introduction to Report Basics
The output of the Edit Package includes audit control and reconciliation reports in the following categories: Validation exception, summary, and processing log reports produced during the outgoing run Validation exception, returned item, summary, and processing log reports produced during the
incoming run.
On-request reports produced by Edit Package utility programs.
Optional transaction-based reports produced during either the incoming or outgoing run Numbering Convention
Edit Package reports are identified by the prefix EP, an en dash (–), and a three-digit number that conforms to the following numbering scheme:
Report Type Report Number Series
Outgoing Reports 100–199
Incoming Reports 200–299
On-Request Reports 300–399
Optional Transaction-Based Reports 700–799
Index of Reports 999
For example, the report ID for the incoming Interchange Transaction File Distribution report is: EP–230. The following provides report extensions used by the Edit Package:
Report Levels Report Extensions
Transaction Detail A
Batch or BIN B
File or Center C
Central Processing Date (CPD) D
Run E
For example, the incoming interchange summary reports that are produced with different levels of detail are labeled EP–210B at the batch level, EP–210C at the file level, EP–210D at the CPD level, EP–210E at the run level, and EP–210F at the final summary level.
A separate set of alphabetic identifiers applies to Fee Collection/Funds Disbursement reports or the EP–748 BASE I Advice reports. The levels for the reports are as follows:
Transaction Format or Origin Report Extensions Combined Visa and Non-Visa-Generated C
Enriched Format E
Non-Visa-Generated N
Standard Format S
Visa-Generated V
Outgoing Edit Package Reports
Outgoing interchange reports are created as a result of the Edit Package validation of data contained in the Center Transaction File (CTF).
EP–100: Validation Exception Reports
PurposeRecords transaction exceptions so that erroneous fields can be corrected before submitting the transaction for reprocessing.
Balancing and Reconciliation
First, check if rejected transactions match on the EP–100C and EP–110E reports (for the run). Then for details, see if they reconcile with EP–110B (for the same batch) and EP–110C (for the same file). Rejected transactions are also reported on EP–111C (for the same file) and on EP–111E (for the run) by type of currency.
Description
This report lists outgoing interchange transactions found to be in error and not included in the Interchange Transaction File (ITF). It is introduced by a banner page showing one of the run status messages.
Based on the value of run control option EXCPRPTFMT, rejected items shown on this report will be formatted like the EP–204A and EP–206A returned item reports or they will be unformatted. Also, based on the value of run control option EXCPRPTSEQ, rejected items will appear sequenced by source BIN or in the same sequence they were processed from the input CTF.
An image of each erroneous transaction is printed with all erroneous fields identified by asterisks (*). For each error, an error code and brief description are provided. If there are no errors to report in a run, only the banner page containing the NO ERRORS DETECTED message will be printed.
EP–100A: Detail Report (EXCPRPTFMT=DUMP)
EP–100A: Detail Report (EXCPRPTFMT=FORMAT)
Report EP–100A report has two layouts, both of which are controlled by the EXCPRPTFMT run control option. The first sample of the EP–100A detail report shows the default format
(EXCPRPTFMT=DUMP), which does not include field names. The second sample, which includes field names, is selected by using EXCPRPTFMT=FORMAT.
EP–100B: Summary by BIN
Report EP–100B summarizes rejected transactions by transaction code within the reject reason code for each BIN processed. Total lines always show the total number of transactions.
A rejected transaction will be included on more than one detail line if more than one error was reported for that transaction. For that reason, the sum of the column labeled TRAN COUNT will not always add up to the transaction total shown on the total line.
EP–100C: Summary by Center
Report EP–100C summarizes rejected transactions by transaction code within the reject reason code at the processing center level. The number of rejected transactions shown on this summary will match the total number of rejected transactions shown on the EP–110E and EP–110F summary reports. This report has the same layout as the EP–100B report.
EP–110: Outgoing Interchange Summaries
Provides an audit trail of outgoing interchange summarized by transaction.
Balancing and Reconciliation
First, check if EP–110B reconciles with EP–110C and EP–110E both for accepted and rejected transactions. Then, match total number of accepted batches with EP–110F. Second, see if EP–110B is an exact match of EP–221B (Collected Batch Acknowledgements report, minus rejected items), except in the case of batch rejects or partial file collection. All EP–110C reports should add up to the amounts shown on EP–110E. If only one tape was created, EP–110C matches EP–110E. Then, see if EP–110C and EP–111C (File Summary by Currency Code) match per currency. Check if EP–110E and pre-edit report amounts reconcile. Next, see if EP–110E and EP–111E (Run Summary by Currency Code) match per currency. Match the accepted amounts on this report and collected amounts on EP–221E (Collected Batch Acknowledgements Summary), with the exception of batch rejects or partial file collection. See if the total number of accepted batches, financial and nonfinancial counts, and financial amount for each batch on EP–110F reconcile with total transactions and gross amounts on EP–110B. Accepted amounts for the file(s) should also reconcile with EP–120F (Outgoing ITF Summary by Volume). Accepted financial counts and amounts should match the EP–120F. EP–110F nonfinancial counts do not include batch trailers or file trailers, but the EP–120F does.
Description
The report is produced at four different summary levels: Batch (EP–110B)
File (EP–110C) Run (EP–110E) Final (EP–110F)
All four levels distinguish between financial and non-financial transactions.
Report EP–110B totals draft financial transaction types within a batch as drafts, vouchers, or cash disbursements. Totals for other transactions, including Fee Collections (TC 10) and Funds
Disbursements (TC 20), are listed under “TOTAL” columns only. The report includes both accepted and rejected transactions. There is a breakdown for each currency type. If currency types are mixed, the report includes a warning that there is more than one currency or settlement type.
EP–110C: File Summary
Report EP–110C segregates accepted and rejected transactions. Each transaction type is printed on a separate line. If currency types are mixed, there will be a breakdown for each currency type. The report includes a message when there is more than one currency.
EP–110E: Run Summary
Report EP–110E totals each transaction type within the overall run. The information on this report differs from the file summary only when an outgoing run is processed using multiple files.
EP–110F: Final Summary
Report EP–110F shows the grand totals of financial and nonfinancial transactions for each batch and file, and for the overall run.
EP–111: Outgoing Interchange Summaries by Currency
Code
Purpose
Provides an audit trail of outgoing interchange financial transactions for each currency/settlement type combination.
Balancing and Reconciliation
All EP–111C reports should add up to the amounts shown on EP–111E for the same currency. If only one file was created, EP–111C matches EP–111E. EP–111C amounts are also reported on EP–110C (Outgoing Interchange File Summary).
Description
The report is produced at two different summary levels: file (EP–111C) and run (EP–111E). Both levels of reporting are in the same basic format. There is a separate page for each currency and settlement flag. Accepted, rejected, and total transactions are summarized.
EP–111C: File Summary
Report EP–111C totals the financial transaction types within the file by the type of currency and settlement used in the transaction. Nonfinancial transactions are not reported on the EP–111C.
Separate pages are produced for each specific currency and settlement combination present in outgoing interchange. EP–111C is always produced. If there are no multiple currencies or settlement types, the information in report EP–111 will be the same as the financial transaction information in report EP–110.
Separate EP–111C report summary totals are produced for the following settlement types: 0 – International Settlement Service. BASE II selects the appropriate settlement service based on routing and country default.
3 – Clearing Only Service. This settlement type may be used only if the member’s country has registered with Visa for this type of service for domestic interchange.
6 – National Bilateral Interchange. Settlement is in the currency of the country in which the transactions took place.
8 – National Net Interchange. Settlement is in the currency of the country in which the transactions took place.
9 – Settlement to be determined by Visa. Settlement is in the currency established by Visa at the request of a processing center.
EP–111E: Run Summary
Report EP–111E totals each transaction type within the overall run by the type of currency and settlement used. The run summary differs from the file summary only when an outgoing run is processed using multiple files.
EP–120F: Outgoing ITF Summary by Volume
PurposeProvides an audit trail of outgoing Interchange Transaction Files summarized by physical output volume.
Frequency
Generated for each outgoing run (unless the TRIALRUN run control option is in effect).
Balancing and Reconciliation
First, check if amounts on this report reconcile with the accepted amounts on EP–110F (Outgoing
Interchange File Summary). To reconcile nonfinancial counts, the number of files and number of batches for the run must be subtracted from the nonfinancial counts. This is because batch and file trailer transactions are not included on the EP–110F nonfinancial counts. EP–120F counts should match the MIP Log. This ensures that the correct file has been loaded.
Description
The report is based on ITF TC 92 trailer information. Members who generate ITF output on tape or diskette may receive more than one ITF per run. The number of records written to one ITF is controlled by the MAXOUTRECS run control option. If this option is in effect and more records are processed during a run than can be written to one tape or diskette, this report will show two or more ITFs.
Purpose
Reports all system activity during outgoing runs.
Description This report lists all messages generated by the system, including selected options (permanent
and temporary overrides) and system status. Messages have five levels of severity:
A – Abnormal termination (highest severity). A system error caused processing to stop abruptly. E – Severe error. A serious error caused an abnormal termination of the control program. I – Informational only.
R – Reply requested. The message is a cue to the operator to manually intervene. W – Warning or precautionary. The message requires attention after the Edit Package run.
The information on this report applies to one outgoing run of the Edit Package and is retained in the Edit Package log file.
Incoming Edit Package Processing
Incoming Processing Flow
This section describes the incoming Edit Package processing cycle. Processes are listed in the order they occur.
NOTE: To ensure proper application of table update transactions, all
incoming files must be processed. Files must be processed in sequence by the Central Processing Date (CPD) on which they were created to properly update the table files.
Incoming Control Program
The incoming Edit Package is a single-step process controlled by an overall program that calls many submodules. The incoming control program, E3IN, calls initialization functions as needed at the beginning of each incoming run and then processes each transaction found in the Interchange Transaction File (ITF). At the end of processing, unless there were severe errors, the control program produces the necessary reports and makes the Center Transaction File (CTF) available for use by the processing center.
Input Requirements
The following items are required before an incoming Edit Package run can be executed:
An incoming ITF generated by the VisaNet Interchange Center (VIC). The following files which must reside on a direct access storage device:
– Permanent and Temporary Run Control Options Files – Account Range Definition (ARDEF) File
– BIN File – Language File – Rules File
– Log File (indexed and backup) – Merged Table File
– Table Control File
– BIN and ARDEF Top Gun History (may be initially empty)
NOTE: For processing centers that subscribe to the Currency Rate Delivery
Service, the Currency Conversion Rates File is required.
In addition, the processing center must have the Edit Package software itself available for execution.
Initializing the System
The following processes occur during system initialization: Search Run Control Options Files
The first thing E3IN does at the start of an incoming Edit Package run is to search the Permanent and Temporary Run Control Options Files for the following run control options:
CENTRBIN (Center BIN) CENTRCODE (Center Code) CENTRNAME (Center Name) TABLEDATE (Table Date) RUNDATE (Run Date) RUNMODE (Run Mode) TBLKEY (Table Key) TBLDATA (Table Data)
NOTE: The TABLEDATE, RUNDATE, RUNMODE, TBLKEY, and TBLDATA run control options are not required. If not present in either run control options file, default values are used.
Load Internal Tables
Next, E3IN uses information from the above run control options to load the following files into internal tables:
ARDEF File BIN File
NOTE: Information from the BIN and ARDEF Top Gun History files determine the processing center’s most frequently referenced BINs and ARDEFs, and ensure they are loaded into computer memory.
Language File Rules File
Validate Run Control Options
Once the files and tables are loaded, E3IN: 1. Validates all run control options
2. Sets default values for run control options, where necessary
3. Performs cross-validation of run control options to ensure that there are no conflicting options in the run
4. Stores the run control options in effect for the run in internal tables 5. Writes the run control options in effect for the run to the Log File Assign Incoming Run Number
This process assigns run numbers within each processing date. The run number is established by extracting the previous run number from the History File and adding 1 to it. The first run of each date is set to 1.
Creating the Incoming CTF
The creation of the incoming CTF consists of the following processes: Process ITF
1. Check File Header—E3IN compares the BASE II Unique File ID field in the ITF file header against the History File, in order to verify that the file has not been processed previously. If the RERUN option has been used, a History File entry must exist that matches the BASE II Unique File ID of the file currently being processed.
E3IN also ensures that the incoming ITF file header information matches run control options for:
– Center BIN – Center Code – Run Mode
2. Build Logical Transactions—This process reads one Transaction Component Record (TCR) at a time from the incoming ITF and builds the TCRs into logical transactions; that is, all TCRs for a transaction are grouped together and the transaction is processed as one logical transaction. E3IN then passes the logical transactions to the table manipulation submodule.
If the processing center’s computer system is IBM, hash totals are calculated and validated against those in the records. Hash totals are then stripped from the record so the record becomes 168 bytes.
3. Format Transaction Data for Reporting—The table manipulation submodule moves formatted information required for generating reports to E3IN.
4. Validate Incoming File Trailer—This process validates the file trailer (TC 92) at the end of the incoming ITF. After all input has been processed, E3IN generates a file trailer for the CTF.
Extract Data for Reporting
Based on run control options and transaction type, information is written to temporary files that are later sorted for reporting purposes.
Create CTF
As transactions are processed from the incoming ITF, the incoming CTF is created for input to the processing center’s post-edit program.
Returned Item File—If the processing center has selected the
SAVERETURN run control option and if there were any returned transactions in the incoming ITF, then the write transactions module writes the returned transactions to the Returned Item File.
Multiple CTFs—If the processing center specified any SPLITINCTF run control options, the write transactions module determines to which CTF subfile the transaction should be written. If the processing center did not select SPLITINCTF run control options or if there were transactions that were not split into a specific subfile, these transactions are written to subfile 01.
Balance Batch and File Trailers
counts in the trailers must equal the sum of the returned and accepted counts. The monetary transaction count and the monetary amount hash totals must equal the corresponding values for accepted transactions.
Producing Exception, Control, and Summary Reports
Producing exception, control, and summary reports consists of the following: Load Tables
After the CTF is created, E3IN calls the table manipulation submodule to reload the Rules and Language Tables with information needed to generate reports.
Sort Data and Format Reports
Next, E3IN sorts data for the following reports:
Validation Exception Report
Summary reports that summarize the transactions received in
interchange
Optional transaction-based reports that are detail reports of transaction
information
After sorting data for the above reports, E3IN calls the appropriate modules to format the reports.
Updating/Creating Files
During processing the Edit Package will update/create the following files: Write TC 33 (Optional)
Certain optional Visa services may cause the delivery of TC 33 records in the interchange file to write to a separate file. Data delivered by this mechanism include: Plus BIN tables, combined Visa/Plus routing table, Visa Transaction Routing Service tables, Interlink BIN tables, Visa Electron Routing Table, Visa check card II BIN file, MasterCard Routing, Cirrus Routing, Armed Forces Financial Network, and VisaVue Solution Series Data. The Edit Package recognizes designated TC 33 records and writes the full-length TC 33 into a separate file. A program written by the processing center may be required to separate the different types of data and extract that data in the format required for the processing center to use. For more information regarding data content and extraction, refer to documentation provided by Visa that applies to the services to which the processing center subscribes. Update Currency Conversion Rates File (Optional)
If the processing center subscribes to the Currency Rate Delivery Service, this process uses TC 56 conversion rate update transactions to replace currency rate entries contained in the Currency Conversion Rates File.
Update Control Tables
This process uses TC 54 table update transactions to update individual entries in the BIN, ARDEF, Rules, and Language Tables. E3IN writes the TC 54s to a work file during CTF processing. After reporting is completed, the TC 54s are applied to the appropriate tables.
Save Environmental Run Information
and temporary run control options to the incoming Run Hold File. This data is passed to the VIC during the next outgoing Edit Package run. The Run Hold File is overlaid with data each time an incoming ITF is processed.
Update History File
If the run was successful, E3IN updates the History File with file and run information from the incoming Edit Package run.
Update Engine Table Usage Metric File
At the completion of each Edit Package run, statistics regarding the dynamic usage of the Edit Package tables are output to the Engine Table Usage Metric Files. This information may be requested by Visa to assist in support issues.
MAJOR FILES USED IN INCOMING PROCESSING
Table Files
The Edit Package table files consist of two separate loadable table images called image A and image B. One of the images is used for the current Edit Package release, while the other image is reserved for possible use with a future release of the Edit Package.
Each loadable table image consists of four indexed files: ARDEF, BIN, Language, and Rules files. Each image has two merged sequential copy files, which include the contents of all four indexed files. During incoming runs the copy files are used to merge TC 54 table updates with the current version of the tables. Copy files are also used to recover the indexed version of the files when the existing indexed versions are not usable. The table control file selects the correct image and copy to be used during an update or recovery. Rules File information is maintained by TC 54 table updates received from the VIC through the processing center’s incoming interchange. This allows business enhancements to be implemented without the need to update and redistribute Edit Package source code.
Account Range Definition (ARDEF) File
The indexed ARDEF File is a permanent file containing a valid ARDEF Table. The ARDEF Table contains all valid ARDEF entries, namely: the account prefix range, its associated BIN, card-number length indicator, check-digit indicator, and card type. The ARDEF File is used to verify account numbers received in interchange.
BIN File
The BIN File is a permanent file containing a valid BIN Table. A BIN is a sixdigit system number used by Visa to identify processing centers and members.
The BIN Table contains all valid BINs and their BASE II processing status codes. The BIN File is used to associate BINs used in interchange with their processors.
Language File
The indexed Language File includes the text of:
Validation error messages Log messages
Report headings Report literals
Reason code descriptions Returned item code descriptions
Rules File
The indexed Rules File contains transaction layouts and validation logic. The transaction layouts and business validation logic are used to ensure file integrity and report interchange transactions.
Table Control File
This file indicates which version of the merged sequential files is current. The table control file controls the TC 54 table update merge process. This control file also controls the recovery process, if the indexed table files become unusable.
Merged Table Files
These files contain BIN, ARDEF, Language, and Rules file data in a
sequential format. The merged table files are used when updated TC 54 table transactions are processed.
TC 54 Work File
TC 54 table update transactions are written to the TC 54 Work File during ITF processing. When ITF processing is complete, transactions from this file are used to update the Edit Package table files.
Permanent and Temporary Run Control Options Files
These files contain the permanent and temporary run control options and their associated values specified by the processing center. These run control options are used to control the incoming run.
Top Gun History Files
These files contain the statistical reference history of the BINs and ARDEFs that are most frequently referenced by the processing center during all
previous outgoing runs. The information is used by the Edit Package to ensure that the highest referenced BINs and ARDEFs are loaded into computer memory during an Edit Package run.
Engine Table Usage Metrics
These files are used to collect statistical information about the Edit Package dynamic table usage at the processing center. This information may be requested by Visa in order to assist in support issues.
Currency Conversion Rates File (Optional)
The Currency Conversion Rates File is required for the Currency Rate Delivery Service. It contains all valid BASE II currency codes, their effective dates, scale factors, and conversion rates. This file is updated by TC 56 currency rate update transactions.
History File
The indexed History File contains a history of batches, files, and runs for outgoing and incoming Edit Package processing.
Returned Item File
The Returned Item File is created during incoming Edit Package runs, if the processing center has elected to separate returned transactions by using the SAVERETURN run control option. The file will contain each transaction that was returned by Visa as a result of BASE II editing at the VIC.
Log File
The indexed Log File contains messages recorded during Edit Package processing. The messages include run control and environmental information, as well as any unusual conditions warranting review.
Incoming Run Hold File
The Incoming Run Hold File contains environmental report data and the run control option values from the most recent incoming Edit Package run for transmission to the VIC during outgoing processing. The data in this file is used to create reports used by Visa support personnel.
TC 33 Extract File
The TC 33 Extract File contains data received from optional Visa services. This file consists of BASE II TC 33 transactions and includes: Plus BIN tables, combined Visa/Plus routing table, Visa Transaction Routing tables, Interlink BIN tables, Visa Electron Routing Table, Visa check card II BIN file, MasterCard Routing, Cirrus Routing, Armed Forces Financial Network, and VisaVue Solution Series data.
Backup Files
Log Backup File
The Log Backup File is a sequential copy of the indexed Log File used to restore the indexed Log File, if it becomes unusable. This file is also used to reorganize the indexed Log File on a monthly basis.
History Backup File
The History Backup File is a sequential copy of the indexed History File used to restore the indexed History File, if it becomes unusable. The indexed History File is copied into this file after every successful run of the Edit Package. The History Backup File is also used to reorganize the indexed History File on a monthly basis.
Work and Sort Files
The types of work and sort files are as follows: Transaction Report Work File
This file contains information to be sorted for the transaction-based reports and exception reports.
Summary Report Work File
EP200 Work File
This file contains information used to produce the EP–200B and EP–200C summary reports.
EP210 Work File
This file contains information for the EP–210 summary reports series. EP221 Work File
This file contains information for the EP–221 batch acknowledgment summary reports series.
Transaction Report Sort File
This file contains sorted information for use in the transaction-based reports and the EP–200A Validation Exception Report.
Summary Report Sort File
This file contains sorted information for use in the summary reports.
Report Files
Each Edit Package report is written to a separate file. If data for a particular report was not received, then the file will contain a report header and a message indicating that there is no data to report.
Microfiche Reports File (Optional)
This file contains transaction-based reports, VIC settlement reports, and General Delivery Reports in a format suitable for microfiche. The Microfiche Reports File is optional. Reports can be directed to this file using the
REPTFICHE run control option,
Processes Controlled by Data
The following incoming Edit Package process does not require the use of run control options.
Duplicate File Detection
This function prevents the processing center from accidentally processing the same financial ITF twice, unless a rerun is specified.
Incoming duplicate file detection is based on the BASE II Unique File ID in the ITF TC 90 header record.
If rerun is not specified, the History File must not contain a record for the BASE II Unique File ID.
PROGRAM NAMING CONVENTION
Edit Package software consists of many program modules. The software is written in COBOL and conforms to ANSI-74 standards. Assembler programs EDITHASH are provided for IBM MVS and VSE mainframe and CRC32 for IBM MVS platforms only.
There is a separate single-step process for outgoing and for incoming Edit Package processing. Each process has its own control program, E3OUT or E3IN, respectively, which calls other submodules as needed to:
Generate reports
Create either the Center Transaction File (CTF) or the Interchange
Transaction File (ITF) containing valid interchange transactions
Module Naming Conventions
All COBOL modules and submodules other than E3OUT and E3IN are named with the format of E3xyyy, where:
E3 = abbreviation for Edit Package Release 3.
x = functional category of the module or submodule, where:
– C = common processing – O = outgoing processing – I = incoming processing
– X = extended service submodule – U = utility module
yyy = numerical identifier of the module or submodule
Incoming Edit Package Reports
Three types of reports are created during the incoming Edit Package run:
Incoming reports generated by the Edit Package contain accumulated information from transactions. Information is presented in summaries of each batch, file, and run that are produced as output of the Edit Package incoming process. These reports are used for control and reconciliation.
VisaNet Settlement reports are received by the Edit Package on TC 47 Report Generation Record transactions.
General Delivery Reports are received on TC 45 General Delivery Report transactions. These reports are generated by other Visa services, to which your center may subscribe. They are described in the documentation for the services that created them, such as the Issuer Clearing House Service, or the Fraud Reporting System.
EP–200: Validation Exception Reports
PurposeRecords transaction exceptions. Errors on incoming transactions should be reported to Visa.
Description
Based on the run control options selected, these reports indicate whether any errors have been detected in the incoming run and whether the Center Transaction File (CTF) has been created.
The EP–200 series of reports include:
EP–200A Validation Exception Report (Detail).
EP–200B Validation Exception Report (Summary by BIN). EP–200C Validation Exception Report (Summary by Center).
Each erroneous transaction is printed and all the fields in error are identified. An error code and a brief description are also provided. If the run contains no errors, only the banner page containing the message NO ERRORS DETECTED will be printed.
An incoming CTF is not created when errors are detected on financial transactions, file headers, batch trailers, or file trailers.
EP–200B: Summary by BIN
Report EP–200B summarizes rejected transactions by transaction code within the reject reason code for each BIN processed. TOTAL lines always show the total number of transactions. A rejected transaction will be included on more than one detail line if more than one error was reported for that transaction. For this reason, the sum of the TRAN COUNT column will not always equal the transaction total shown on the TOTAL line.
EP–200C: Summary by Center
Report EP–200C summarizes rejected transactions by transaction code within the reject reason code at the processing center level. The number of rejected transactions shown on this report will match the total number of rejected transactions shown on the EP–210E and EP–210F summary reports. This report has the same layout as the EP–200B report.
EP–204A: BASE II Returned Item Reports
PurposeReports all erroneous transactions returned by the VIC, except for the Chargeback Reduction Service (CRS) returned items.
Balancing and Reconciliation
Check if total number of returned transactions on EP–204A match the number of returned transaction amounts per currency on EP–204B for the same BIN.
All EP–204B reports should add up to the returned items totals per currency on EP–204C. EP–204B items are also reported on VSS-900 series reports as well as Returned Items on VSS–140 (Visa Charges Report). All returned items on EP–204C and EP–206C should add up to the returned item amounts on EP–210E, EP–211E, and EP–230.
The financial amounts passed to settlement are reflected in the VSS–110 (Settlement Summary Report).
Description
This transaction detail report contains formatted images of returned transactions, along with the return reason codes. The primary reporting sequence is by BIN.
Visa returns to the originator any transactions failing to conform to either the BASE II format or the BASE II or CRS edit requirements. CRS returned items appear on the EP–206 reports; all other returned items are on the following EP–204 reports:
Returned Item Detail (EP–204A)
Returned Item Summary by BIN (EP–204B) Returned Item Summary by Center (EP–204C)
This report will always print even if no returned items are received in the ITF.
EP–204A: Detail
Report EP–204A contains unformatted images of returned transactions, along with the return reason codes. The primary reporting sequence is by BIN. This report is formatted like the transaction-based reports and the EP–206A report. This report will always print even if no returned items are received in the ITF.
EP–204B: Summary by BIN
Report EP–204B reports the number of transactions returned by the VIC to the processing center. The EP–204B and EP–204C reports have separate summaries by Central Processing Date (CPD). There will also be a summary of all CPDs processed during the run. When space permits, CPD and run summaries will print on the same page. If only one CPD is processed during the run, only the run summary information will be printed.
EP–204C: Summary by Center
Report EP–204C reports transactions returned by the VIC for each processing center. It has the same report layout as the summary by BIN (EP–204B).
EP–206: CRS—Returned Item Reports
PurposeReports erroneous transactions returned by the VICthat are part of the Chargeback Reduction Service
(CRS).
Balancing and Reconciliation
Check if total number of returned transactions match per currency on the EP–206A and EP–206B reports for the same BIN.
EP–206B items are also reported on the VSS–900 (Reconciliation) series reports. Return Item Charges are listed in the VSS-140 (Visa Charges Report).
All returned items on EP–204C and EP–206C should add up to the returned item amounts on EP–210E, EP–211E, and EP–230. They are also reported in the VSS–110 (Settlement Summary Report).
Description
A transaction detail report contains a formatted image of returned transactions along with the return reason codes. The VIC returns to the originator any transactions failing to conform to the Chargeback Reduction Service edit requirements. Those returned items are listed on the following set of reports:
CRS—Returned Item Detail (EP–206A)
CRS—Returned Item Summary by BIN (EP–206B) CRS—Returned Item Summary by Center (EP–206C)
This report will always print even if no returned items are received in the ITF.
Report EP–206A contains a formatted image of returned transactions along with the return reason codes. The reporting sequence is by BIN. The report has the same layout as EP–204A when there are Chargeback Reduction Service returns.
EP–206B: Summary by BIN
Report EP–206B reports the number of transactions returned by the VIC to the processing center. Items are sorted in ascending order first by BIN, then by return reason code. The report has the same layout as EP–204B when there are CRS returns.
EP–206C: Summary by Center
Report EP–206C reports transactions returned by the VIC for each processing center. It has the same report layout as EP–204C when there are CRS returns.
EP–210: Incoming Interchange Summaries
PurposeProvides an audit trail of incoming interchange summarized by transaction. The transaction summaries are by batch, by file, by CPD, and by run. A final summary is also produced for all financial and nonfinancial transactions.
Balancing and Reconciliation
Check if number of batches, financial and nonfinancial counts, and gross amount for the same batch match on EP–210B and EP–210F. Transaction amount and counts should also match on EP–210B and EP–210F. All EP–210C reports for the same CPD should add up to EP–210D for that same CPD. Amounts for the same currency should also reconcile with EP–211C (File Summary by Currency Code).
Amounts for the same currency should reconcile between EP–210D and EP–211D (CPD Summary by Currency Code) for the same CPD. Amounts for the same currency should reconcile between EP–210E and EP–211E (Run Summary by Currency Code).
Description
The report is produced at five different summary levels: Batch (EP–210B)
File (EP–210C) CPD (EP–210D) Run (EP–210E) Final (EP–210F)
All five levels make a distinction between financial and nonfinancial transactions.
EP–210B: Batch Summary
Report EP–210B totals draft financial transaction types within a batch as drafts, vouchers, or cash disbursements. Totals for other transactions, including Fee Collections (TC 10) and Funds
Disbursements (TC 20), are listed under TOTAL columns only. If currency types are mixed, there will be a breakdown by type. The report includes a warning message if there is more than one currency or settlement type.
EP–210C: File Summary
Report EP–210C totals the amount and count for each transaction type processed in a file. Each transaction type is printed on a separate line. If currency types are mixed, there will be a breakdown by type. The report includes a warning message if there is more than one currency or settlement type.
EP–210D: CPD Summary
Report EP–210D has the same layout as EP–210C. The CPD summary totals each transaction type for each Central Processing Date (CPD). If two files from the same CPD are processed, they will be summarized on this report. If two files from different CPDs are processed, the file summaries will correspond to the CPD summaries. If only one file is processed, the file summary will be the same as the CPD summary.
EP–210E: Run Summary
Report EP–210E has the same layout as the EP–210C and EP–210D. The run summary totals each transaction type for the overall run. If files from more than one CPD are processed, they will be summarized on this report. If files from only one CPD are processed, the run summary will be the same as the CPD summary.
EP–210F: Incoming Batch Summary
Report EP–210F shows grand totals for financial and nonfinancial transactions for each batch, file, and for the overall run.
EP–211: Incoming Interchange Summaries by Currency
Code
Purpose
Provides an audit trail of incoming interchange financial transactions for each currency and settlement type combination.
Balancing and Reconciliation
Check if amounts for the same currency match on EP–211C, EP–211D, and EP–211E. All EP–211C and EP–210C (Incoming Interchange File Summary) amounts should reconcile.
EP–211D reports should add up to EP–210D (Incoming Interchange CPD Summary). If there is only one currency in the cycle, then EP–211D matches EP–210D for the same CPD.
EP–211E reports should add up to EP–210E (Incoming Interchange Run Summary). If there is only one currency in the cycle, then EP–211E matches EP–210E.
The Total Net Financial from EP–211E compares to the VSS–900 and VSS–900P series reports. For more
This report is produced at three summary levels: File (EP–211C)
CPD (EP–211D) Run (EP–211E)
All levels of reporting are in the same basic format. Each currency and settlement flag are printed on a separate page. The report shows transaction counts and transaction amounts. Each transaction type is printed on a separate line.
EP–211C: File Summary
Report EP–211C totals financial transaction types within the file by the type of currency and settlement used in the transaction. Nonfinancial transactions are not reported on the EP–211C. A separate page is generated for each currency type in incoming interchange.
You will receive separate EP–211C report summary totals for the following settlement types: 0 – International Settlement Service. BASE II selects the appropriate settlement service based on routing and country default.
3 – Clearing Only Service. This settlement type may be used only if the member’s country has registered with Visa for this type of service for domestic interchange.
6 – National Bilateral Interchange. Settlement is in the currency of the country in which the transactions took place.
8 – National Net Interchange. Settlement is in the currency of the country in which the transactions took place.
9 – Settlement to be determined by Visa. Settlement is in the currency established by Visa at the request of a processing center.
The reports are identified with corresponding headings (based on the settlement flags) on the same line following the currency code.
EP–211D: CPD Summary
The layout of Report EP–211D is the same as EP–211C. The CPD summary totals each transaction type for each Central Processing Date (CPD). If two files from the same CPD are processed, they will be summarized on this report. If two files from different CPDs are processed, the file summaries will correspond to the CPD summaries. If only one file is processed, the CPD summary will be the same as the file summary.
EP–211E: Run Summary
Report EP–211E totals each transaction type within the overall run by the type of currency and settlement flag used. The run summary differs from the file summary only when an incoming run is processed using multiple files.
