Casa Grande Development Center Effective August 1, 2008 Building & Fire Codes

(1)

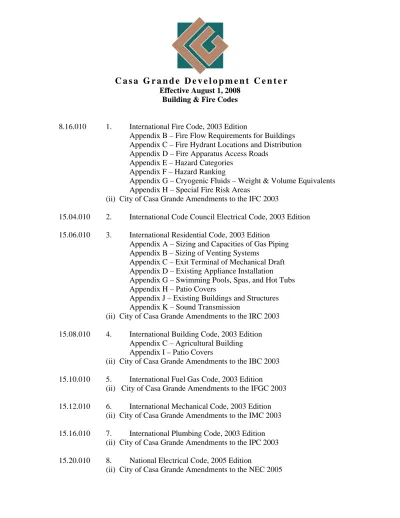

C a s a G r a n d e D e v e l o p m e n t C e n t e r

Effective August 1, 2008

Building & Fire Codes

8.16.010 1. International Fire Code, 2003 Edition

Appendix B – Fire Flow Requirements for Buildings Appendix C – Fire Hydrant Locations and Distribution Appendix D – Fire Apparatus Access Roads

Appendix E – Hazard Categories Appendix F – Hazard Ranking

Appendix G – Cryogenic Fluids – Weight & Volume Equivalents Appendix H – Special Fire Risk Areas

(ii) City of Casa Grande Amendments to the IFC 2003

15.04.010 2. International Code Council Electrical Code, 2003 Edition 15.06.010 3. International Residential Code, 2003 Edition

Appendix A – Sizing and Capacities of Gas Piping Appendix B – Sizing of Venting Systems

Appendix C – Exit Terminal of Mechanical Draft Appendix D – Existing Appliance Installation

Appendix G – Swimming Pools, Spas, and Hot Tubs Appendix H – Patio Covers

Appendix J – Existing Buildings and Structures Appendix K – Sound Transmission

(ii) City of Casa Grande Amendments to the IRC 2003 15.08.010 4. International Building Code, 2003 Edition

Appendix C – Agricultural Building Appendix I – Patio Covers

(ii) City of Casa Grande Amendments to the IBC 2003 15.10.010 5. International Fuel Gas Code, 2003 Edition

(ii) City of Casa Grande Amendments to the IFGC 2003 15.12.010 6. International Mechanical Code, 2003 Edition

(ii) City of Casa Grande Amendments to the IMC 2003 15.16.010 7. International Plumbing Code, 2003 Edition

(ii) City of Casa Grande Amendments to the IPC 2003 15.20.010 8. National Electrical Code, 2005 Edition

(2)

City of Casa Grande

Amendments to International Fire Code, 2003 Edition

Designated as a Public Record In:

Casa Grande City Clerk’s Office

Pursuant to Casa Grande Resolution #___________________

Effective: _________________

By:

City Of Casa Grande

510 E. Florence Blvd.

Casa Grande, AZ 85222

(3)

CHAPTER 1 ADMINISTRATION

SECTION 101 GENERAL

101.1 Title.

These regulations shall be known as the Fire Code of (NAME OF JURISDICTION), hereinafter referred to as “this code.”

101.1 is amended to read:

These regulations shall be known as the Fire Code of Casa Grande, hereinafter referred to as “this code.”

101.2.1 Appendices.

Provisions in the appendices shall not apply unless specifically adopted.

101.2.1 is amended to read:

Appendices. The following appendices are adopted as part of this code by the City of Casa Grande: Appendices B, C, D, E, F, G, and Appendix H as added. Other provisions in the appendices shall not apply.

SECTION 102 APPLICABILITY

102.3 Change of Use or Occupancy.

The provisions of the International Existing Building Code shall apply to all buildings undergoing a change of occupancy.

Change of Use or Occupancy. All changes of use or occupancy shall comply with the provisions of the International Existing Building Code and shall be coordinated with the Fire Chief prior to issuance of a temporary or permanent Certificate of Occupancy.

102.6 Referenced codes and standards.

The codes and standards referenced in this code shall be those that are listed in Chapter 45 and such codes and standards shall be considered part of the

requirements of this code to the prescribed extent of each such reference. Where differences occur between the provisions of this code and the referenced

standards, the provisions of this code shall apply.

Referenced codes and standards. The codes and standards referenced in this code shall be those that are listed in Chapter 45 as amended. Such codes and standards shall be considered part of the requirements of this code to the

(4)

provisions of this code and the referenced standards, the provisions of this code shall apply.

SECTION 103 DEPARTMENT OF FIRE PREVENTION

103.2 Appointment. The fire code official shall be appointed by the chief appointing authority of the jurisdiction; and the fire code official shall not be removed from office except for cause and after full opportunity to be heard on specific and relevant charges by and before the appointing authority.

Appointment. The fire code official shall be appointed by the chief appointing authority of the jurisdiction.

SECTION 105 PERMITS

105.1.1 Permits required.

Permits required by this code shall be obtained from the fire code official. Permit fees, if any, shall be paid prior to issuance of the permit. Issued permits shall be kept on the premises designated therein at all times and shall be readily available for inspection by the fire code official.

Permits required; fees. It shall be unlawful for any person, firm, or corporation to use a building or premises or engage in any activities for which a permit is determined to be required by the Fire Chief without having first obtained such permit. The fees for fire code permits shall be established by the City of Casa Grande Consolidated Fee Schedule. Permit fees shall be paid prior to issuance of the permit. Issued permits shall be kept on the premises designated therein at all times and shall be readily available for inspection by the fire code official.

105.1.1.1 is added as follows:

Work commencing before permit issuance; fees. Any person who

commences any work on an item requiring a fire code permit before obtaining the necessary permits shall be liable for the cost of the permit, along with an

additional assessment equal to the normal assessed permit fees.

105.7 Required construction permits. The fire code official is authorized to issue construction permits for work as set forth in Sections 105.7.1 through 105.7.12.

Required construction permits. The fire code official is authorized to issue construction permits for work as set forth in Sections 105.7.1 through 105.7.15.

(5)

105.7.13 is added as follows:

Fire apparatus access gates. A construction permit is required to install or modify both manual and automatic fire apparatus access gates and their appurtenances. This also includes gates for auxiliary access openings. 105.7.14 is added as follows:

Access-controlled egress doors. A construction permit is required to install or modify the connection to the fire alarm system for access-controlled egress doors in accordance with Section 1008.1.3.4.

Delayed egress locks. A construction permit is required to install to the fire alarm system for delayed egress locks in accordance with Section 1008.1.8.6.

SECTION 106 INSPECTIONS

Inspection requests. It shall be the duty of the holder of the permit or their duly authorized agent to notify the fire code official when work is ready for inspection. It shall be the duty of the permit holder to provide access to and means for inspections of such work that is required by this code.

Approval required. Work shall not be done beyond the point indicated in each successive inspection without first obtaining the approval of the fire code official. The fire code official, upon notification, shall make the requested inspections and shall either indicate the portion of the construction that is satisfactory as

completed, or notify the permit holder or the agent wherein the inspection fails to comply with this code. Any portions that do not comply shall be corrected and such portion shall not be covered or concealed until re-inspected and authorized by the fire code official.

106.3 Concealed work.

Whenever any installation subject to inspection prior to use is covered or

concealed without having first been inspected, the fire code official shall have the authority to require that such work be exposed for inspection.

Concealed work. It shall be the duty of the permit applicant to cause the work to remain accessible and exposed for inspection purposes. Whenever any

installation subject to inspection prior to use is covered or concealed without having first been inspected and approved, the fire code official shall have the authority to require that such work be exposed for inspection. Neither the fire code official nor the jurisdiction shall be liable for expense entailed in the removal

(6)

or replacement of any material required to allow inspection and all expenses shall be incurred by the permit applicant.

106.4 is added as follows:

On-site construction documents. One set of code official approved

construction documents shall be on the job site for each inspection. Failure to have approved construction documents on site shall result in canceling the inspection and is subject to assessment of a fee in accordance with the adopted consolidated fee schedule of the City of Casa Grande.

SECTION 111 STOP WORK ORDER

111.4 Failure to comply.

Any person who shall continue any work after having been served with a stop work order, except such work as that person is directed to perform to remove a violation or unsafe condition, shall be liable to a fine of not less than [AMOUNT] dollars or more than [AMOUNT] dollars.

Failure to comply. Any person who shall continue any work after having been served with a stop work order, except such work as that person is directed to perform to remove a violation or unsafe condition, shall be liable for a fine of not less than $250.00 or more than $2500.00 per occurrence.

(7)

CHAPTER 2 DEFINITONS

SECTION 202 GENERAL DEFINITIONS

202 is amended to add the following definitions:

STANDBY PERSONNEL. Qualified fire service personnel, whether City employees or otherwise, as reasonably approved by the Fire Chief. When utilized, the number required shall be as directed by the Fire Chief. Charges for utilization of city employees as standby personnel shall be as set forth in the City of Casa Grande Consolidated Fee Schedule.

SPECIAL FIRE RISK AREA. Land which is covered with grass, grain, brush or forest, whether privately or publicly owned, which is so situated or is of such inaccessible location that a fire originating upon it would present an

abnormally difficult job of suppression or would result in great or unusual damage through fire, or such areas designated by the Fire Chief.

202 is further amended as follows:

Group I-1. This occupancy shall include buildings, structures or parts thereof housing more than 16 persons, on a 24-hour basis, who because of age, mental disability or other reasons, live in a supervised residential environment that provides personal care services. The occupants are capable of responding to an emergency situation without physical assistance from staff. This group shall include, but not be limited to, the following:

Alcohol and drug centers Assisted living facilities Congregate care facilities Convalescent facilities Group homes

Half-way houses

Residential board and care facilities Social rehabilitation facilities

A facility such as the above with five or fewer persons shall be classified as Group R-3 or shall comply with the International Residential Code. A facility such as above, housing at least six and not more than 16 persons, shall be classified as Group R-4.

Group I-1 is amended to read:

Group I-1. This occupancy shall include a building or part thereof housing more than 10 persons on a 24-hour basis, who because of age, mental disability or other reasons, live in a supervised residential environment which provides personal care services. The occupants are capable of responding to an emergency situation without physical assistance from staff. This group shall include, but not be limited to the following: residential board and care facilities, assisted living facilities, half-way houses, group homes, congregate care faculties, social rehabilitation, alcohol and drug centers and convalescent

(8)

facilities. A facility such as the above with five or fewer persons shall be classified as Group R-3. A facility such as above, housing at least six and not more than 10 persons shall be classified as Group R-4.

---

R-3 Residential occupancies where the occupancies are primarily permanent in nature and not classified as R-1, R-2, or Group I and where buildings do not contain more than two dwelling units, or adult and child care facilities that provide accommodations for five or fewer persons of any age for less than 24-hours. Adult and child care facilities that are within a single-family home are permitted to comply with the International Residential Code.

R-3 is amended to read:

R-3 Residential occupancies where the occupants are primarily permanent in nature and not classified as R-1, R-2, R-4 or Group I and where buildings do not contain more than two dwelling units or adult and child care facilities not located in a single-family home that provide accommodations for five or fewer persons of any age for less than 24 hours. Adult and child care facilities that are within single-family home are permitted to comply with the International Residential Code.

R-3 Residential Care/Assisted Living Facilities occupancies in existing structures with five or fewer occupants excluding staff shall meet the following

requirements:

1. Inter-connected hard wired Smoke detectors shall be installed in all livable areas.

2. Posted evacuation map and emergency procedures.

3. Portable fire extinguishers in accordance to Casa Grande Fire Code. ---

R-4 Residential occupancies shall include buildings arranged for occupancy as Residential Care/Assisted Living Facilities including more than five but not more than 16 occupants. Group R-4 occupancies shall meet the requirements for construction as defined for Group R-3 except for the height and area limitations provided in Section 503 of the International Building Code or shall comply with the International Residential Code.

R-4 is amended to read:

R-4 Residential occupancies shall include buildings arranged for occupancy as Residential Care/Assisted Living Facilities including more than five but not more than 10 occupants, excluding staff. Such occupancies shall meet the following requirements:

1. An automatic fire sprinkler system installed in accordance with the City of Casa Grande Fire Code.

(9)

2. Smoke detectors shall be installed in all livable areas. 3. Posted evacuation map and emergency procedures.

4. Portable fire extinguishers in accordance to Casa Grande Fire Code. Exceptions:

1. State licensed residential care/assisted living facilities in which all of the care recipients are capable of self-preservation and responding to an emergency situation without assistance from another person.

2. R-4 occupancies existing before August 1, 2008, shall not be required to install an automatic fire sprinkler system unless there is a change of occupancy classification due to an increase in the number of licensed occupants.

(10)

CHAPTER 3 GENERAL PRECAUTIONS AGAINST FIRE

SECTION 302 DEFINITIONS

302.1 is amended to add the following definition:

FORCED AIR CURTAIN DESTRUCTOR. A forced air pit incinerator that is utilized for the purpose of disposal of waste or vegetative debris.

SECTION 307 OPEN BURNING AND RECREATIONAL

FIRES

Forced air curtain destructor. A forced air curtain destructor requires a permit and shall not be conducted within 500 feet of any dwelling. Conditions which could cause a fire to spread within 50 feet of a structure shall be eliminated prior to ignition.

SECTION 308 OPEN FLAMES

308.3.1 Open-flame cooking devices.

Charcoal burners and other open-flame cooking devices shall not be operated on combustible balconies or within 10 feet (3048 mm) of combustible construction. Exceptions:

1. One- and two-family dwellings.

2. Where buildings, balconies and decks are protected by an automatic sprinkler system.

Open-flame cooking devices. Charcoal burners, portable barbecues and other open flame devices shall not be operated on combustible balconies or within 10 feet (3048 mm) of combustible construction.

Exception: One and two-family dwellings.

SECTION 311 VACANT PREMISES

311.2.2 Fire protection.

Fire alarm, sprinkler and standpipe systems shall be maintained in an operable condition at all times.

Exceptions:

1. When the premises have been cleared of all combustible materials and debris and, in the opinion of the fire code official, the type of construction, fire separation distance and security of the premises do not create a fire hazard.

(11)

2. Where buildings will not be heated and fire protection systems will be exposed to freezing temperatures, fire alarm and sprinkler systems are permitted to be placed out of service and standpipes are permitted to be maintained as dry systems (without an automatic water supply) provided the building has no contents or storage, and windows, doors and other openings are secured to prohibit entry by unauthorized persons.

(12)

CHAPTER 5 FIRE SERVICE FEATURES

SECTION 501 GENERAL

Finished Drawings. Upon completion of construction and prior to issue of a Certificate of Occupancy, unless the same would constitute a demonstrated hardship to the applicant, a copy of finished drawings shall be supplied to the Fire Department in an electronic format acceptable to the Fire Department.

SECTION 502 DEFINITIONS

502.1 is amended to add the following definitions:

PREEMPTION DEVICE. A listed and approved electronic device that receives a signal compatible with transmitters on emergency vehicles and that is used to automatically open or close fire apparatus access gates and all traffic control devices.

FIRE FLOW. The flow rate of a water supply, measured at 20 psi residual pressure that is available for firefighting.

SECTION 503 FIRE APPARATUS ACCESS

Temporary Fire Department access. Temporary Fire Department access shall comply with Fire Department requirements. No construction on any project may proceed until such time as the fire protection plan for the project has been approved by the fire code official.

503.6 Security gates

The installation of security gates across a fire apparatus access road shall be approved by the fire chief. Where security gates are installed, they shall have an approved means of emergency operation. The security gates and the emergency operation shall be maintained operational at all times.

503.6 is as amended as follows:

The installation of security gates across a fire apparatus access road shall be approved by the fire chief. Where security gates are installed, they shall have a preemption device and a key override switch for entry and exit. The security gates and the emergency operation shall be maintained operational at all times.

(13)

SECTION 508 FIRE PROTECTION WATER SUPPLIES

508.3 Fire flow.

Fire flow requirements for buildings or portions of buildings and facilities shall be determined by an approved method.

Fire flow. Fire flow requirements for buildings or portions of buildings and facilities shall be determined by an approved method and in accordance with Appendix B as amended. The Fire Chief may require an approved independent third party individual or firm to conduct a fire flow test prior to issuance of a Certificate of Occupancy.

Fire Flow Verification. The Fire Chief may require all new buildings or structures to provide fire flow verification according to the requirements in Appendix B as amended. Verification shall be conducted by an approved separate third party certifying the fire flow data.

508.5 Fire hydrant systems. Fire hydrant systems shall comply with Sections 505.5.1 through 508.5.6.

508.5 is amended to read: Fire hydrant systems shall comply with Sections 508.5.1 through 508.5.7.

Water Service Maps. Each water service provider serving areas within the City, whether municipal or private, shall provide the fire department with three sets of maps identifying the location of water tanks, distribution lines, service lines, and fire hydrants within the service area of the water provider. The maps shall be submitted on or before December 31, of each year, and shall be updated by the water service provider as new fire hydrants are installed.

Fire Hydrant Color. All fire hydrants shall have aboveground barrels painted with a prime coat plus two coats of OSHA yellow paint. The tops and nozzle caps shall be painted with the following capacity-indicating color scheme in

accordance with NFPA 291:

Light blue Class AA Rated capacity of 1500 gpm (5680 L/min) or greater Green Class A Rated capacity of 1000–1499 gpm (3785–5675 L/min) Orange Class B Rated capacity of 500–999 gpm (1900–3780 L/min) Red Class C Rated capacity of less than 500 gpm (1900 L/min)

For rapid identification at night, the capacity colors shall be of reflective-type paint.

(14)

Hydrant Reflective Markers. All fire hydrants and Fire Department Connections shall be clearly identified by installation of reflective blue markers as specified by the Fire Chief.

Fire Protection Water Supply. The water system is required to be looped with a minimum of two separate connections under the following conditions:

1. Dead end water line exceeds 100’ for 6” lines or 400’ for 8” lines.

2. Water lines serve a building over 52,000 sq. ft. (40,000 sq. ft. when used for any amount of high-piled storage).

3. Water lines serve a building over two stories.

4. Water lines serve more then one commercial building. 5. Water lines serve over 30 single-family residential units. 6. Water lines serve a Group “H” occupancy.

7. As otherwise required by the fire marshal.

Where two water connections are required, they shall be placed a distance apart equal to not less than one half of the length of the maximum overall diagonal dimension of the property or area to be served, measured in a straight line between the water connections. Where two water connections are required, they shall be made to separate water lines where possible.

Water distribution system failure notification. Each water service provider serving areas within the city, whether municipal or private, shall notify the Fire Department of any failure in their water distribution system, hydrant repair, main breaks, pump failures, or other interruptions of water supply that may affect water supply for fire control purposes as soon as possible in writing. A 30 day written notification is required for any fire line service that is to be discontinued due to financial lack of financial payment.

Out of service hydrants: Any hydrant that is out of service shall have an out of service ring located on the 4 inch supply and shall remain in place until the hydrant is operational and verified by the Fire Department.

Separate water supply. Water supply for Fire Protection systems shall not be combined with the domestic water supply.

(15)

CHAPTER 9 FIRE PROTECTION SYSTEMS

SECTION 903 AUTOMATIC SPRINKLER SYSTEMS

903.2.1.1 Group A-1.

An automatic sprinkler system shall be provided for Group A-1 occupancies where one of the following conditions exists:

1. The fire area exceeds 12,000 square feet (1115 m2); 2. The fire area has an occupant load of 300 or more;

3. The fire area is located on a floor other than the level of exit discharge; or 4. The fire area contains a multi-theater complex.

903.2.1.1 is amended to read:

Group A-1. An automatic sprinkler system shall be provided for Group A-1 occupancies where one of the following conditions exists:

1. The fire area exceeds 5,000 square feet;

2. The fire area has an occupant load of 300 or more;

3. The fire area is located on a floor other than the level of exit discharge; or 4. The fire area contains a multi-theater complex.

903.2.1.3 Group A-3.

1. The fire area exceeds 12,000 square feet (1115 m2); 2. The fire area has an occupant load of 300 or more; or

3. The fire area is located on a floor other than the level of exit discharge. Exception: Areas used exclusively as participant sports areas where the main floor area is located at the same level as the level of exit discharge of the main entrance and exit.

3. The fire area is located on a floor other than the level of exit discharge. 903.2.1.4 Group A-4.

1. The fire area exceeds 12,000 square feet (1115 m2); 2. The fire area has an occupant load of 300 or more; or

3. The fire area is located on a floor other than the level of exit discharge. Exception: Areas used exclusively as participant sports areas where the main floor area is located at the same level as the level of exit discharge of the main entrance and exit.

(16)

3. The fire area is located on a floor other than the level of exit discharge. 903.2.2 Group E.

An automatic sprinkler system shall be provided for Group E occupancies as follows:

1. Throughout all Group E fire areas greater than 20,000 square feet (1858 m2) in area.

2. Throughout every portion of educational buildings below the level of exit discharge.

Exception: An automatic sprinkler system is not required in any fire area or area below the level of exit discharge where every classroom throughout the building has at least one exterior exit door at ground level.

Group E. An automatic sprinkler system shall be provided for Group E occupancies as follows:

1. Throughout all Group E fire areas greater than 5,000 square feet. 2. Throughout every portion of educational buildings below the level of

discharge. 903.2.3 Group F-1.

An automatic sprinkler system shall be provided throughout all buildings

containing a Group F-1 occupancy where one of the following conditions exist: 1. Where a Group F-1 fire area exceeds 12,000 square feet (1115 m²); 2. Where a Group F-1 fire area is located more than three stories above

grade; or

3. Where the combined area of all Group F-1 fire areas on all floors, including any mezzanines, exceeds 24,000 square feet (2230 m2).

Group F-1. An automatic sprinkler system shall be provided throughout all buildings containing Group F-1 occupancy where one of the following conditions exists:

1. Where a Group F-1 or area exceeds 5,000 square feet;

2. Where a Group F-1 or fire area is located more than three stories above grade; or

3. Where the combined area of all Group F-1 fire areas on all floors, including any mezzanines, exceeds 5,000 square feet.

(17)

903.2.5 Group I

An automatic sprinkler system shall be provided throughout buildings with a Group I fire area.

Exception: An automatic sprinkler system in accordance with Section 903.1.2 or 903.1.3. shall be allowed in Group I-1 facilities.

903.2.5 Group I is amended to read:

An automatic sprinkler system shall be provided throughout buildings with a Group I fire area.

Exceptions:

1. An automatic sprinkler system in accordance with Section 903.1.2 or 903.1.3. shall be allowed in Group I-1 facilities. 2. Daycare or childcare facilities occurring in single-family

dwellings. 903.2.6 Group M.

An automatic sprinkler system shall be provided throughout buildings containing a Group M occupancy where one of the following conditions exists:

1. Where a Group M fire area exceeds 12,000 square feet (1115 m2);

2. Where a Group M fire area is located more than three stories above grade; or

3. Where the combined area of all Group M fire areas on all floors, including any mezzanines, exceeds 24,000 square feet (2230 m2).

Group M. An automatic sprinkler system shall be provided throughout all buildings containing Group M occupancy where one of the following conditions exists:

1. Where a Group M fire area exceeds 5,000 square feet;

2. Where a Group M fire area is located more than three stories above grade;

3. Where the combined area of all Group M fire areas on all floors, including mezzanines, exceeds 5,000 square feet.

903.2.7 Group R

An automatic sprinkler system installed in accordance with Section 903.3 shall be provided throughout all buildings with a Group R fire area.

Group R. An automatic sprinkler system installed in accordance with Section 903.3 shall be provided throughout all buildings with a Group R fire area.

Exception: Automatic sprinkler systems shall not be required in R-3 occupancies of 5,000 square feet or less or R-4 occupancies that are exempted by Section 202 of this Fire Code.

(18)

903.2.8 Group S-1.

An automatic sprinkler system shall be provided throughout all buildings containing a Group S-1 occupancy where one of the following conditions exist:

1. Where a Group S-1 fire area exceeds 12,000 square feet (1115 m2); 2. Where a Group S-1 fire area is located more than three stories above

grade; or

3. Where the combined area of all Group S-1 fire areas on all floors, including any mezzanines, exceeds 24,000 square feet (2230 m2).

Group S-1 and S-2. An automatic sprinkler system shall be provided throughout all buildings containing Group S-1 occupancy where one of the following conditions exists:

1. Where a Group S-1 or S-2 fire area exceeds 5,000 square feet; 2. Where a Group S-1 or S-2 fire area is located more than three stories

above grade; or

3. Where the combined area of all Group S-1 or S-2 fire areas on all floors, including mezzanines, exceeds 5,000 square feet.

903.2.8.1 Repair garages.

An automatic sprinkler system shall be provided throughout all buildings used as repair garages in accordance with the International Building Code, as follows:

1. Buildings two or more stories in height, including basements, with a fire area containing a repair garage exceeding 10,000 square feet (929 m2). 2. One-story buildings with a fire area containing a repair garage exceeding

12,000 square feet (1115 m2).

3. Buildings with a repair garage servicing vehicles parked in the basement. 903.2.8.1 is amended to read:

Repair Garages. An automatic sprinkler system shall be provided throughout all buildings used as repair garages in accordance with the International Building Code, as follows:

1. Buildings two or more stories in height, including basements, with a fire area containing a repair garage exceeding 5,000 square feet.

2. One-story buildings with a fire area containing a repair garage exceeding 5,000 square feet.

3. Buildings with a repair garage servicing vehicles parked in the basement. 903.2.8.2 Bulk storage of tires.

Buildings and structures where the area for the storage of tires exceeds 20,000 cubic feet (566 m3) shall be equipped throughout with an automatic sprinkler system in accordance with Section 903.3.1.1.

(19)

Bulk storage of tires. Buildings and structures where the area for the storage of tires exceeds 5,000 square feet shall be equipped throughout with an automatic sprinkler system in accordance with Section 903.3.1.1.

903.2.13 is added to read:

Group B. An automatic sprinkler system shall be provided throughout buildings containing a Group B occupancy where one of the following conditions exists:

1. Where a Group B fire area exceeds 5,000 square feet (1115m2)

2. Where a Group B fire area is located more than three stories above grade; or 3. The fire area has an occupant load of 300 or more.

903.3.5 Water supplies.

Water supplies for automatic sprinkler systems shall comply with this section and the standards referenced in Section 903.3.1. The potable water supply shall be protected against backflow in accordance with the requirements of this section and the International Plumbing Code.

Water supplies. Water supplies for automatic sprinkler systems shall comply with this section and the standards referenced in Section 903.3.1. The potable water supply shall be protected against backflow in accordance with the requirements of this section and the International Plumbing Code. Automatic sprinkler systems water supply data for hydraulic calculations shall be based on a curve that is 90 percent of the available water supply curve as determined by flow test information. 903.3.7 Fire department connections. The location of fire department

connections shall be approved by the fire code official. 903.3.7 is amended to read:

Fire department connections. The fire department connection (FDC) shall be a separate approved line that connects to the sprinkler riser above the control valve. The location of fire department connections shall be approved by the fire code official and, unless shown to the fire code official to be adequate based on unique circumstances to the development, be located within 150 feet of a hydrant.

Existing buildings with fire walls. Any addition, alteration or repair causing any portion of the building or structure divided by a fire wall or partition to exceed 5000 square feet shall be required to conform to the requirements of Section 903.2 for that fire area.

903.7 is added as follows:

Protection and security of sprinkler systems. All fire sprinkler risers shall be secured and protected from the environment by being located inside the building or structure with a direct exterior access.

(20)

SECTION 904 ALTERNATIVE AUTOMATIC FIRE

EXTINGUISHING SYSTEMS

Additions, alterations, or repairs. Existing automatic fire extinguishing systems shall be upgraded to an approved fire-extinguishing system, installed throughout all portions of any commercial cooking system when there are additions or alterations to an existing non-compliant system.

SECTION 907 FIRE ALARM AND DETECTION SYSTEMS

Interior Tenant Notification. Interior Tenant Notification shall be provided when monitoring of the fire sprinkler system is provided. Group R occupancies are exempt from this requirement.

Shell Buildings: 1 (one) horn strobe shall be installed and operational within the interior space prior to final. When demising walls are present, 1 (one) horn-strobe shall be installed for each space. Multi-story buildings shall require a minimum of 1 (one) horn-strobe per level.

Tenant Improvements (Shell build-outs): 1 (one) horn-strobe shall be provided for each individual tenant. When a common area is provided serving multiple tenants, a minimum of 1 (one) horn-strobe in the common area shall be provided.

These requirements may be increased based on occupancy type or if reasonably necessary for adequate protection of life safety as determined by the Fire Chief.

(21)

Chapter 45 REFERENCED STANDARDS

The following NFPA standard reference numbers are deleted and replaced with the following:

Deleted – NFPA 13/1999 Installation of Sprinkler Systems Replaced – NFPA 13/2002 Installation of Sprinkler Systems

Deleted – NFPA 13D/1999 Installation of Sprinkler Systems in One- and Two-Family Dwellings and Manufactured Homes.

Replaced – NFPA 13D/2002 Installation of Sprinkler Systems in One-and Two-Family Dwellings and Manufactured Homes

Deleted – NFPA 13R/1999 Installation of Sprinkler Systems in Residential Occupancies up to and Including Four Stories in Height

Replaced – NFPA 13R/2002 Installation of Sprinkler Systems in Residential Occupancies up to and Including Four Stories in Height

Deleted – NFPA 72/1999 National Fire Alarm Code Replaced – NFPA 72/2002 National Fire Alarm Code

Delete the following NFPA publications: 231 – 98 General Storage

231C – 98 Rack Storage of Materials 231D – 98 Storage of Rubber Tires

480 – 98 Storage, Handling, and Processing of Magnesium Solids and Powders 481 – 00 Production, Processing, Handling and Storage of Titanium

482 – 96 Production, Processing, Handling and Storage of Zirconium

651 – 98 Machining and Finishing of Aluminum and the Production and Handling of Aluminum Powders

ADD the following NFPA publications

230 – 03 Standard of the Fire Protection of Storage 232 – 00 Standard for the Protection of Records 409 – 01 Standard on Aircraft Hangers

(22)

APPENDIX B FIRE-FLOW REQUIREMENTS FOR

BUILDINGS

B105.2 Buildings other than one- and two-family dwellings:

The minimum fire flow and flow duration for buildings other than one- and two-family dwellings shall be as specified in Table B105.1.

Exception: A reduction in required fire flow of up to 50 percent, as approved, is allowed when the building is provided with an approved automatic sprinkler system installed in accordance with Section 903.3.1.1 or 903.3.1.2 of the

International Fire Code. Where buildings are also of Type I or II construction and are a light-hazard occupancy as defined by NFPA 13, the reduction may be up to 75 percent. The resulting fire flow shall not be less than 1,500 gallons per minute (5678 l/min) for the prescribed duration as specified in Table B105.1.

B105.2 is amended to read:

Buildings other than one-and two-family dwellings. The minimum fire flow and flow duration for buildings other than one-and two- family dwellings shall be as specified in Table B105.1.

Exceptions:

1. All occupancies within the Central City and High School Redevelopment Districts as defined by Resolutions 2317, 2317.1, and 2588 (to be known collectively as the “Downtown Redevelopment District”) are exempt from the requirements of Table B105.1. All new construction and changes to occupancies within the Downtown Redevelopment District are also exempt from the requirements of Table B105.1 but shall be required to have a Fire Protection System equipped to handle the fire flows required by Table B105.1.

2. A reduction in required fire flow of up to 50 percent, as approved, is allowed when the building is provided with an approved automatic sprinkler system installed in accordance with Section 903.3.1.1 or

903.3.1.2 of the International Fire Code. The resulting fire flow shall not be less than 1,500 gallons per minute for the prescribed duration as specified in Table B105.1

3. Where buildings are also of Type I or II construction and are light-hazard occupancies as defined by NFPA 13, the reduction may be up to 75 percent. The resulting fire flow shall not be less than 1,500 gallons per minute for the prescribed duration as specified in Table B105.1

4. In H occupancies, no reduction in required fire flow is allowed when the building is provided with an approved automatic sprinkler system installed in accordance with Section 903.3.1.1 or 903.3.1.2 of the International Fire Code. The resulting fire flow shall not be less than 1,500 gallons per minute for the prescribed duration as specified in Table B105.1

5. In buildings with high-piled storage, a reduction in required fire flow of up to 50 percent, as approved, is allowed when the building is provided with an approved automatic sprinkler system installed in accordance with Section 903.3.1.1 or 903.3.1.2 of the International Fire Code. The resulting

(23)

fire flow shall not be less than 1,500 gallons per minute for the prescribed duration as specified in Table B105.1

Note: The reduction allowed in these exceptions does not apply to the flow duration requirements in Table B105.1 or to the number and distribution of fire hydrants in Table C105.1.

APPENDIX H SPECIAL FIRE RISK AREAS

Appendix H relating to control and suppression in special Fire Risk Areas is added as follows:

H100 Control and Suppression in Special Fire Risk Areas H101 Scope.

The unrestricted use of grass-, grain-, brush- or forest-covered land in Special Fire Risk Area is a potential menace to life and property from fire and resulting erosion. Safeguards to prevent the occurrence of fire and provide adequate fire-protection to control the spread of fire which might be caused by recreational, residential, commercial, industrial, or other activities conducted in Fire Risk Areas shall be in accordance with Appendix H.

H102 Clearance of Brush or Vegetation growth from Structures: Persons owning, leasing, controlling, operating or maintaining buildings or structures in, upon or adjoining Special Fire Risk Areas, and person owning, leasing or controlling land adjacent to such buildings or structures, shall at all times:

1. Maintain an effective firebreak by removing and clearing away flammable vegetation and combustible growth from areas with 30 feet (9144 mm) of such buildings or structures;

Exception: Single specimens of trees, ornamental shrubbery or similar plants used as ground covers, provided that they do not form a means of rapidly transmitting fire from the native growth to any structure.

2. Maintain additional fire protection or firebreak by removing brush,

flammable vegetation and combustible growth located from 30 feet to 100 feet (9144 mm to 30 480 mm) from such buildings or structures, when required by the Fire Chief because of extra-hazardous conditions causing a firebreak of only 30 feet (9144 mm) to be insufficient to provide

reasonable fire safety;

Exception: Grass and other vegetation located more than 30 feet (9144 mm) from buildings or structures and less than 18 inches (457 mm) in height above the ground need not be removed where necessary to stabilize the soil and prevent erosion.

(24)

The Fire Chief is authorized to give notice to the owner of the property upon which conditions regulated by Section 102 exist to correct such conditions and if not corrected abate such conditions in accordance with the provisions of Chapter 8 of the Casa Grande City Code.

(25)

City of Casa Grande

Amendments to International Residential Code, 2003 Edition

Designated as a Public Record In:

Casa Grande City Clerk’s Office

Pursuant to Casa Grande Resolution #___________________

Effective: (Date)____

By:

City Of Casa Grande

510 E. Florence Blvd.

Casa Grande, AZ 85222

(26)

CHAPTER 1 ADMINISTRATION

(NO AMENDMENTS)

(27)

CHAPTER 2 DEFINITIONS

The following definition is amended as follows: R202 DEFINITIONS

EXTERIOR WALL. An above-grade wall enclosing conditioned space that defines the exterior boundaries of a building. Includes between floor spandrels, peripheral edges of floors, roof and basement knee walls, dormer walls, gable end walls, walls enclosing a mansard roof, and basement walls with an average below grade wall area that is less than 50 percent of the total opaque and non-opaque area of that enclosing side.

(28)

CHAPTER 3 BUILDING PLANNING

The following table is amended as follows:

TABLE R 301.5

USE LIVE LOAD

Attics with storage b,e 20 40 Attics without storage beg 10

Sleeping rooms 30 40

(No other changes to Table)

g. For trussed systems, this load need not be considered as acting simultaneously with other live loads imposed upon the ceiling framing or its supporting structure.

The following sections are amended as follows:

R309.1 Opening protection. Openings from a private garage directly into a room used for sleeping purposes shall not be permitted. Other openings between the garage and residence shall be equipped with solid wood doors not less than 1 3/8 inch (35 mm) in thickness, solid or honeycomb core steel doors not less than 1 3/8 inches (35 mm) thick, or 20-minute fire-rated doors. Doors providing opening protection shall be self-closing and self-latching.

R310.1 Emergency escape and rescue required openings. Basements with habitable space and every sleeping room shall have at least one openable emergency escape and rescue opening. Where basements contain one or more sleeping rooms, emergency egress and rescue openings shall be required in each sleeping room, but shall not be required in adjoining areas of the basement. Where emergency escape and rescue

openings are provided they shall have a sill height of not more than 44 inches (1118 mm) above the floor. Where a door opening having a threshold below the adjacent ground elevation serves as an emergency escape and rescue opening and is provided with a bulkhead enclosure, the bulkhead enclosure shall comply with Section 310.3. The net clear opening dimensions required by this section shall be obtained by the normal operation of the emergency escape and rescue opening from the inside. Emergency escape and rescue openings with a finished sill height below the adjacent ground

elevation shall be provided with a window well in accordance with Section R310.2. Such openings shall open directly into a public street, public alley, yard or court.

(29)

R320.1 Subterranean termite control. In areas favorable to termite damage In this jurisdiction, which is designated by Table R301.2(6) as “moderate to heavy” probability of termite infestation, as established by Table R301.2(1), methods of protection shall be by chemical soil treatment, pressure preservatively treated wood in accordance with the AWPA standards listed in Section R319.1, naturally termite-resistant wood, or physical barriers (such as metal or plastic termite shields), or any combination of these methods.

(30)

CHAPTER 4 FOUNDATIONS

(NO AMENDMENTS)

CHAPTER 5 FLOORS

(NO AMENDMENTS)

CHAPTER 6 WALL CONSTRUCTION

(NO AMENDMENTS)

CHAPTER 7 WALL COVERING

(NO AMENDMENTS)

CHAPTER 8 ROOF-CEILING CONSTRUCTION

(NO AMENDMENTS)

CHAPTER 9 ROOF ASSEMBLIES

(NO AMENDMENTS)

(31)

CHAPTER 10 CHIMNEYS AND FIREPLACES

Table R1003.1 is amended as follows:

TABLE R1003.1

SUMMARY OF REQUIREMENTS FOR MASONRY FIREPLACES AND CHIMNEYS

ITEM LETTER REQUIREMENTS SECTION

Hearth slab thickness A 4” R1003.9.1 Hearth extension

(each side of opening)

B 8” fireplace opening < 6 sq. ft. 12” fireplace opening ≥ 6 sq. ft. R1003.9.2 Hearth extension (front of opening) C 16” fireplace opening< 6 sq. ft. 20” fireplace opening ≥ 6 sq. ft. R1003.10 Hearth slab reinforcing D Reinforced to carry its own

weight and all imposed loads.

R1003.9 Thickness of wall of

firebox

E 10” solid brick or 8” where a firebrick lining is used. Joints in

firebrick ¼” max.

R1003.5

Distance from top of opening to throat

F 8” R1003.7 Smoke chamber wall

thickness unlined wall

G 6” for lined walls

8” for unlined walls R1003.8 Chimney

Vertical reinforcingb

H Four No. 4 full-length bars for chimney up to 40” wide. Add

two No. 4 bars for each additional 40” or fraction of width or each additional flue

R1003.3.1

Horizontal reinforcingb J ¼-inch ties at every 18” and two ties at each bend in vertical steel

R1003.3.2 Bond beams K No specified requirement

Fireplace lintel L Noncombustible material. R1003.7 Chimney walls with flue

lining

M Solid masonry units or hollow masonry units grouted solid with at least 4 inch nominal thickness.

R1001.7

Walls with unlined flue N 8” solid masonry. R1001.9 Distances between

adjacent flues

N See Section R1001.10. R1001.10 Effective flue area

(based on area of fireplace opening)

P See Section R1001.12. R1001.12

Clearances:

Combustible material Mantel and trim Above roof

R See Sections R1001.15 and R003.12. See Section R1001.13. 3’ at roofline and 2’ at 10’. R1001.15 R003.12 R1001.13

(32)

Anchorage b Strap Number Embedment into chimney Fasten to Bolts S 3/16” x 1” Two

12” hooked around outer bar with 6” extension 4 joists Two ½” diameter. R1003.4.1 Footing Thickness Width T 12” min.

6” each side of fireplace wall.

R1003.2

For SI: 1 inch = 25.4 mm, 1 foot = 304.8 mm, 1 Square foot = 0.0929 m2_.

Note: This table provides a summary of major requirements for the construction of masonry chimneys and fireplaces. Letter references are to Figure R 1003.1, which shows examples of typical construction. This table does not cover all requirements, nor does it cover all aspects of the indicated requirements. For the actual mandatory requirements of the code, see the indicated section of text.

a. The letters refer to Figure R 1003.1.

(33)

CHAPTER 11 ENERGY EFFICIENCY

(NO AMENDMENTS)

CHAPTER 12 MECHANICAL ADMINISTRATION

(NO AMENDMENTS)

(34)

CHAPTER 13 GENERAL MECHANICAL SYSTEM REQUIREMENTS

The following section is added as follows:

M1307.6 Liquefied Petroleum Appliances. LPG appliances shall not be installed in an attic, pit or other location that would cause a ponding or retention of gas.

(35)

CHAPTER 14 HEATING AND COOLING EQUIPMENT

The following sections are amended as follows:

M1403.2 Foundations and supports. Supports and foundations for the outdoor unit of a heat pump mechanical systems shall be raised at least 3 inches (76 mm) above the ground to permit free drainage of defrost water finished grade, and shall conform to the

manufacturer’s installation instructions.

M1411.3.1 Auxiliary and secondary drain systems. In addition to the requirements of Section M1411.3, a secondary drain or auxiliary drain pan shall be required for each cooling or evaporator coil where damage to any building components will occur as a result of overflow from the equipment drain pan or stoppage in the condensate drain piping. Such piping shall maintain a minimum horizontal slope in the direction of

discharge of not less than one-eighth unit vertical in 12 units horizontal (1-percent slope). Drain piping shall be a minimum of 3/4 –inch (19.1 mm) nominal pipe size. One of the following methods shall be used:

(36)

CHAPTER 15 EXHAUST SYSTEMS

(NO AMENDMENTS)

CHAPTER 16 DUCT SYSTEMS

(NO AMENDMENTS)

CHAPTER 17 COMBUSTION AIR

(NO AMENDMENTS)

CHAPTER 18 CHIMNEYS AND VENTS

(NO AMENDMENTS)

CHAPTER 19 SPECIAL FUEL-BURNING EQUIPMENT

(NO AMENDMENTS)

CHAPTER 20 BOILERS/WATER HEATERS

(NO AMENDMENTS)

(37)

CHAPTER 21 HYDRONIC PIPING

(NO AMENDMENTS)

CHAPTER 22 SPECIAL PIPING AND STORAGE SYSTEMS

(NO AMENDMENTS)

CHAPTER 23 SOLAR SYSTEMS

(38)

CHAPTER 24 FUEL GAS

The following subsection is added to G2406.2 as follows:

5. Liquefied Petroleum Appliances. LGP appliances shall not be installed in an attic, pit or other location that would cause a ponding or retention of gas.

The following section is amended as follows:

G2415.9 (404.9) Minimum burial depth. Underground piping systems shall be

installed a minimum depth of 12 inches (305 mm) below grade, except as provided for in Section G2415.9.1. for metal piping and 18 inches (457 mm) for plastic piping.

(39)

CHAPTER 25 PLUMBING ADMINISTRATION

P2503.6 Water-supply system testing. Upon completion of the water supply system or a section thereof, the system, or portion completed, shall be tested and proved tight under a water pressure not less than the working pressure of the system; or, for piping systems other than plastic, by an air test of not less than 50 psi (344kPa). This pressure shall be held for at least 15 minutes. The water utilized for tests shall be obtained from a potable water source.

(40)

CHAPTER 26 GENERAL PLUMBING REQUIREMENTS

(NO AMENDMENTS)

CHAPTER 27 PLUMBING FIXTURES

(41)

CHAPTER 28 WATER HEATERS

P2803.6.1 Requirements of discharge pipe. The outlet of a pressure relief valve, temperature relief valve or combination thereof, shall not be directly connected to the drainage system. The discharge from the relief valve shall be piped full size separately to the floor, to the outside of the building or to an indirect waste receptor located inside the building. In areas subject to freezing, the relief valve shall discharge through an air gap into an indirect waste receptor located within a heated space, or by other approved means. The discharge shall be installed in a manner that does not cause personal injury or

property damage and this is readily observable by the building occupants. The discharge from a relief valve shall not be trapped. The diameter of the discharge piping shall not be less than the diameter of the relief valve outlet. The discharge pipe shall be installed so as to drain by gravity flow and shall terminate atmospherically not more than 6 inches (152 mm) above the floor not less than 6 inches (152mm) nor more than 24 inches (610 mm) above the floor or finish grade. The outlet end of the discharge pipe shall not be threaded or have a valve or tee installed.

(42)

CHAPTER 29 WATER SUPPLY AND DISTRIBUTION

(NO AMENDMENTS)

CHAPTER 30 SANITARY DRAINAGE

(43)

CHAPTER 31 VENTS

P3103.1 Roof Extension. All open vent pipes which extend through a roof shall be terminated at least 6 inches above the roof or 6 inches above the anticipated snow

accumulation, whichever is greater, except that where a roof is to be used for any purpose other than weather protection, the vent extensions shall be run at least 7 feet (2134 mm) above the roof.

(44)

CHAPTER 32 TRAPS

(NO AMENDMENTS)

CHAPTER 33 GENERAL REQUIREMENTS

(NO AMENDMENTS)

CHAPTER 34 ELECTRICAL DEFINITIONS

(NO AMENDMENTS)

(45)

CHAPTER 35 SERVICES

IRC Table E3503.1 is amended to as follows:

(“Minimum Grounding Electrode Conductor Size” column to remain the same) CONDUCTOR TYPES AND SIZES-THHW,

THW, THWN, USE, XHHW

(Parallel sets of 1/10 and larger conductors are permitted in either a single raceway or in separate raceways)

Allowable Ampacity Service or Feeder Rating (Amperes)

Copper (AWG)

Aluminum and Copper-clad aluminum <30C (86F) > 30C (86F) 4 2 100 3 1 110 2 1/0 125 100 1 2/0 150 125 1/0 3/0 175 150 2/0 4/0 or two sets of 1/0 200 175 3/0 250 kcmil or two sets of 2/0 225 200 4/0 or two sets of 1/0 300 kcmil or two sets of 3/0 250 225 250 kcmil or two sets of 2/0 350 kcmil or two sets of 3/0 300 250 350 kcmil or two sets of 3/0 500

or two sets of 250 kcmil

350 300

400 kcmil 600

or two sets of 300 kcmil

400 350

(46)

CHAPTER 36 BRANCH CIRCUIT AND FEEDER REQUIREMENTS

(NO AMENDMENTS)

CHAPTER 37 WIRING METHODS

(47)

CHAPTER 38 POWER AND LIGHTING DISTRIBUTION

E3802.7 Bar sink receptacles Sink, wash basin, tub, or shower receptacles. All 125-volt, single-phase, 15- and 20-ampere convenience receptacles that serve a countertop surface, and that are located within 6 feet (1829 mm) of the outside edge of a wet bar sink any sink, wash basin, tub, or shower shall have ground-fault circuit-interrupter protection for personnel. Receptacle outlets shall not be installed in a face-up position in the work surfaces or countertops.

(48)

CHAPTER 39 DEVICES AND LUMINAIRES

(NO AMENDMENTS)

CHAPTER 40 APPLIANCE INSTALLATION

(NO AMENDMENTS)

CHAPTER 41 SWIMMING POOLS

(NO AMENDMENTS)

CHAPTER 42 CLASS 2 REMOTE-CONTROL, SIGNALING AND

POWER-LIMITED CIRCUITS

(NO AMENDMENTS)

CHAPTER 43 REFERENCED STANDARDS

(NO AMENDMENTS)

(49)

CHAPTER 44 MANUFACTURED HOUSING

CHAPTER 44, Manufactured Housing, is added as follows: SECTION 4401

GENERAL

4401.1 Purpose. The purpose of this Chapter is to provide standards to safeguard life and limb, health, property and public welfare by regulating and controlling the design, construction and quality of materials for foundation systems and building service

equipment connections for the installation of manufactured homes, mobile homes, single-family factory built buildings, park models, and their accessory structures, as well as to provide standards for alterations, additions and repairs to such structures.

4401.2 Scope. The provisions of this Chapter shall be applicable only to manufactured units used as a single-family dwelling unit. Accessory buildings and structures shall be classified as to occupancy as set forth in the International Building Code.

4401.3 Application. Manufactured units which are in existence at the time of adoption of this guideline may have their existing use or occupancy continued if such use or occupancy was legal at the time of the adoption of this guideline, provided such continued use is not dangerous to life, health and safety.

Exception: Installation of smoke detectors, see Section 4409 (a) below. 4401.4 Maintenance. All manufactured units and their building service equipment, existing and new, and all parts thereof shall be maintained in a safe and sanitary condition. All devices or safeguards which are required by applicable codes or by the Manufactured Home Standards as may be established by the City or as established by the Office of Manufactured Housing, Arizona Department of Fire, Building and Life Safety, shall be maintained in conformance with the code or standard under which it was

installed. The owner or his designated agent shall be responsible for the maintenance of manufactured homes, accessory structures and their building service equipment. To determine compliance with this subsection, the Building Official may cause any manufactured home, accessory building or structure to be inspected or re-inspected. 4401.5 Applicability of Other Codes. In addition to complying with all applicable Federal, State, County, and City code provisions, the following shall be specifically adhered to:

4401.5.1 Casa Grande Municipal Code Chapter 15.40, Flood Damage Prevention. Any unit or property located in a 100 year floodplain or floodway shall comply with said Chapter’s requirements.

(50)

4401.5.2 Casa Grande Municipal Code Title 17 Single-Family Residential (R-1) Zone. Specifications in regards to: Principally permitted uses, permitted accessory uses, conditionally permitted uses, and minimum lot area.

4401.5.3 Casa Grande Municipal Code, Title 17 Mobile Home Residential (R-4) Zone. Specifications in regards to: Principally permitted uses, and minimum lot area.

4401.6 Conditionally Permitted Uses. In the granting of a conditionally permitted use by the Planning and Zoning Commission the following conditions shall be adhered to, in addition to those imposed by the Commission:

a. Running gear shall be removed.

b. Towing assembly (tongue) shall be removed.

c. The exterior perimeter of the unit shall be mounted upon a block stem wall foundation, in addition to any interior pier blocking that may be required. The stem wall foundation shall be constructed to the structural standards of Veteran’s Administration regulations.

Exception: Units recessed into the ground.

d. The exterior elements (eaves, stairs, porches, appliances, heating and cooling units, etc.) of the unit shall be painted and maintained in good condition to compliment the surrounding area.

4401.7 Appeals. Persons who are aggrieved by orders, decisions, or determinations by the Building Official in the enforcement of this Chapter may make an appeal to the City of Casa Grande’s Board of Appeals.

Upon review by the Board of Appeals, the applicant shall provide an affidavit that the following conditions exist and will be complied with:

a. Applicant is the bona fide owner of the mobile home.

b. For existing units, the unit has been continuously occupied for a period of not less than one year immediately preceding the application date.

c. The applicant intends to occupy the unit for a period of not less than one year from the issuance date of the permit.

d. Set forth the reasons, and a description of evidence of hardship that the applicant would suffer if the appeal is not granted.

(51)

SECTION 4402 DEFINITIONS

Section 4402 – Definitions. The following terms shall, for the purposes of this chapter and as used elsewhere in the code, have the following meaning:

ACCESSORY STRUCTURE. Installation, assembly, connection or construction of any habitable room, storage room, patio, porch, garage, carport, awning, skirting, retaining wall, evaporative cooler, refrigeration air conditioning system, solar system or wood decking attached to a new or used manufactured unit.

ACT. National Manufactured Home Construction and Safety Standards Act of 1974 and as amended by applicable Public Laws.

BUILDING SERVICE EQUIPMENT. Refers to the plumbing, mechanical, electrical and elevator equipment including piping, wiring, fixtures and other accessories which provide sanitation, lighting, heating, ventilation, cooling, refrigeration,

fire-fighting and transportation facilities essential for the habitable occupancy of the building or structure for its designated use and occupancy.

CERTIFICATE OF REHABILITATION. A certificate wherein a mobile home, having demonstrated that it can meet set standards that significantly decrease the life-safety hazards of the unit, is permitted to be installed within the City boundaries. The Arizona Office of Manufactured Housing’s rehabilitation standards are set as the standard for the City.

FACTORY BUILT BUILDING, SINGLE-FAMILY. Residential building which is either wholly or in substantial part manufactured at an off-site location to be assembled on-site. This does not include a manufactured home or mobile home as defined in this section.

HUD. Means the United States Department of Housing and Urban Development. INSIGNIA OF APPROVAL. Numbered or serialized label or seal issued by the Office of Administration of the Arizona Department of Building and Fire Safety as certification of compliance with the provisions of this Chapter.

INSTALLATION: Includes one or all of the following:

a. Connecting new or used mobile homes, manufactures homes, park models or factory-built buildings to on-site utility terminals or repairing these utility connections.

b. Placing new or used mobile homes, manufactured homes, park models, accessory structures or factory-built building on foundation systems or repairing these foundation systems.

(52)

c. Providing ground anchoring for new or used mobile homes or manufactured homes or repairing the ground anchoring.

MANUFACTURED HOME. Structure built on or after June 15, 1976 in accordance with the Act.

MANUFACTURED HOME STANDARDS. Manufactured Home Construction and Safety Standards as promulgated by HUD.

MANUFACTURED UNIT. A generic term used to describe a manufactured home, mobile home, park model, factory-built building for single-family use or accessory structures.

MOBILE HOME. Structure built prior to June 15, 1976, on a permanent chassis, capable of being transported in one or more sections and designed to be used with or without a permanent foundation as a dwelling when connected to on-site utilities except factory-built buildings.

PARK MODEL (PARK TRAILER). A unit built on a single chassis, mounted on wheels and designed to be connected to utilities necessary for operation of installed fixtures and appliances and has a gross trailer area of not less than three hundred twenty square feet and not more than four hundred square feet when it is set up, except that it does not include fifth wheel trailers. Units shall be constructed to American National Standards Institute A119.5.

SECTION 4403 PERMITS

4403.1 Permits. The following permits shall be required for all homes falling within this Chapter.

4403.1.1 General. Manufactured Homes, park models and Mobile Homes shall not be installed, reinstalled, or occupied without first obtaining an installation permit from the Building Official.

4403.1.2 Installations. An installation permit shall be issued only to those units that qualify as:

a. Mobile home bearing the insignia of approval and issued a Certificate of Compliance by the Arizona Office of Manufactured Housing.

b. Manufactured home. c. Park Model.

d. Factory built building used as a single-family dwelling unit.

e. Mobile home issued a Certificate of Rehabilitation by the City of Casa Grande. See Section 4409 (B).

4403.1.3 Accessory Structures. Permits shall be required for the installation, alteration, or repair of accessory structures and their building service equipment.

Casa Grande Development Center Effective August 1, 2008 Building & Fire Codes
