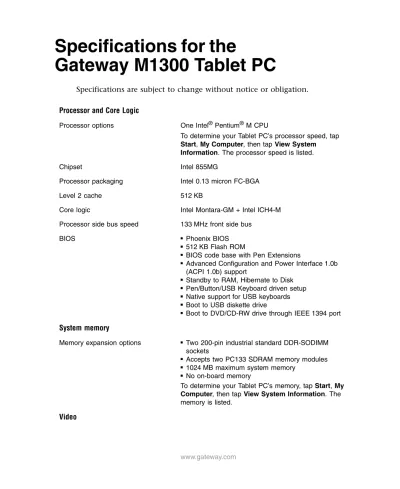

Specifications for the Gateway M1300 Tablet PC

Specifications for the

Gateway M1300 Tablet PC

Specifications are subject to change without notice or obligation.

Processor and Core Logic

Processor options One Intel® Pentium® M CPU

To determine your Tablet PC’s processor speed, tap Start, My Computer, then tap View System Information. The processor speed is listed.

Chipset Intel 855MG

Processor packaging Intel 0.13 micron FC-BGA

Level 2 cache 512 KB

Core logic Intel Montara-GM + Intel ICH4-M Processor side bus speed 133 MHz front side bus

BIOS ■_{Phoenix BIOS}

■_{512 KB Flash ROM}

■_{BIOS code base with Pen Extensions}

■_{Advanced Configuration and Power Interface 1.0b}

(ACPI 1.0b) support

■_{Standby to RAM, Hibernate to Disk} ■_{Pen/Button/USB Keyboard driven setup} ■_{Native support for USB keyboards} ■_{Boot to USB diskette drive}

■_{Boot to DVD/CD-RW drive through IEEE 1394 port}

System memory

Memory expansion options ■_{Two 200-pin industrial standard DDR-SODIMM}

sockets

■_{Accepts two PC133 SDRAM memory modules} ■_{1024 MB maximum system memory}

■No on-board memory

To determine your Tablet PC’s memory, tap Start, My Computer, then tap View System Information. The memory is listed.

rotation

Video memory UMA (shared memory) architecture

LCD display panel 12.1-inch active matrix (TFT) LCD color display Maximum panel resolution: 1024

×

Maximum color depth: 32-bit (16.7 million colors) LCD supported video modes XGA

LCD maximum refresh rate 60 Hz

Controls ■ _{Brightness level selectable through software}

“Dashboard”

■ _{Auto dim on battery} ■ Auto bright on AC power

External video Supports dual display and dual view

External CRT resolutions Supports standard IBM VGA compatible modes Maximum resolution: 1800

×

×

IEEE 1394 ■ _{One 4-pin connector}

■ _{100/200/400mps}

■ _{Supports video and audio capture}

Audio

Audio AC97 audio codec supported by a Realtek codec Volume controls ■ _{Software control provided through “Dashboard”}

■ _{Software control provided through Windows}

Internal speakers Stereo speakers built into side of tablet PC

Audio jacks ■ _{Stereo headphone output}

■ _{Monophonic microphone input}

Internal microphone Omni-directional, low-impedance

Communications

Modem features ■ _{Integrated V.90/56K data/fax modem}

■ Uses the RJ-11 jack on the port side of the tablet PC

Specifications for the Gateway M1300 Tablet PC

10/100 Mbps Ethernet interface features

■_{Integrated IEEE 802.3 (10/100 BASE-TX) Ethernet}

interface

■Uses the RJ-45 jack on the port side of the tablet PC or back of optional docking station

■_{Supports Wake on LAN}

Wireless Ethernet interface features Intel® PRO/Wireless IEEE 802.11b network card

■_{Uses factory-installed internal antenna assembly} ■11 selectable channels

■_{2412 MHz - 2462 MHz Direct Sequence Spread}

Spectrum

■_{128 & 64 bit WEP encryption}

Input/Output (I/O)

Pointing device Wacom active digitizer pen with single button Buttons ■_{Portrait/landscape rotation key with available}

secondary function

■_{Cursor pad} ■F_{N key}

■_{Security button (equivalent to CTRL+ALT_DELETE)} ■_{Two programmable hot keys with secondary functions}

Status indicators ■_{Hard drive access} ■_{Power/Suspend} ■_{Battery status}

■Wireless Ethernet status

Keyboard ■_{Connects through USB port}

■U.S. English keyboard

■_{Full-sized 88-keys}

Keyboard pointing device:

■_{Gateway touchpad} ■_{2-button design}

Keyboard status indicators:

V.92, 56K Modem (RJ-11)

■ _{10/100 Ethernet (RJ-45)} ■ _{External monitor (VGA)} ■ _{Stereo headphone output} ■ _{Monophonic microphone input} ■ _{PC Card socket (one Type II)} ■ DC input

■ _{FlexDoc docking connector}

PCMCIA ■ Accepts one Type II device

■ _{O2 micro OZ6912 PCI Cardbus controller}

NOTE: This tablet PC does not support Zoom Video.

Docking solution

Type Desktop FlexDoc

Docking supported ■ _{Hot dock} ■ _{Warm dock} ■ _{Cold dock}

Input/Output (I/O ports) ■ _{Two USB 2.0 (4-pin)} ■ _{IEEE 1394 (4-pin)} ■ _{10/100 Ethernet (RJ-45)} ■ External monitor (VGA)

■ _{Stereo headphone output} ■ _{Monophonic microphone input} ■ _{DC input}

■ _{FlexDoc docking connector}

Storage

Hard drive controller ■ _{PCI bus master Enhanced IDE}

■ _{Supports up to Ultra DMA 100 and up to PIO mode 4}

Hard drive ■ _{2.5-inch diameter}

■ _{9.5 mm height}

To find the hard drive capacity, tap Start, then tap My Computer. Button-tap the drive letter, then tap Properties. The drive’s capacity and available space appear. If the drive has multiple partitions (for example, C: and D:), add the capacities of each partition to determine the drive’s total capacity.

Optical Drive ■ _{External design}

Specifications for the Gateway M1300 Tablet PC

Power

AC adapter ■_{19 VDC, 2.5 A, 50 W output}

■_{Automatically adjusts for 90 to 264 VAC, 47 to 63 Hz}

power source

■_{Two-wire design}

Battery type ■_{Removable 6-cell lithium Ion battery pack}

■_{Embedded controller inside to support smart battery}

Battery capacity ■_{3.6 Ah}

■_{11.1 V nominal} ■40 Wh

Maximum 4 hours with battery mark 4.0. Battery life varies depending on configuration, programs, power management settings, and features used. Recharge time varies, depending on usage.

Controls Icon on taskbar shows battery charge as a percentage remaining

Power switch Power On/Off or Suspend/Resume (selectable in setup)

Security

Passwords ■_{Power-on password (2-level password support)} ■_{Hard drive password}

Physical ■_{Main system memory compartment screw} ■_{Hard drive kit screw}

■Kensington® security slot

System software

Operating system Microsoft® Windows® XP Professional Tablet PC Edition

Physical specifications Dimensions ~11.7× 9.4 × 0.90 in. (W × D × H) ~296× 240 × 22 mm (W × D × H) System weight ~3 lbs. ~1.36 kg Includes battery

Weight varies depending on configuration. AC adapter weight 10.5 ounces (300 g)

Radiator all countries

Adapter CUL, UL1950, CB Report, CE Mark, TUV EN950, MITI

Battery CUL, UL1950, CE Mark, TUV EN950

Telecom FCC part 68, CTR21, JATE

EMC FCC-Class B, Industry Canada-ICES-003-Class B, CE, EN 55022, EN 55024, EN 61000-3-2, EN 6000-3-3, EN 55011

Environment

Operating temperature 41

°

°

°

°

°

°

°

°

Operating humidity 20% to 80% relative humidity; no condensation Storage humidity 8% to 90% relative humidity; no condensation
