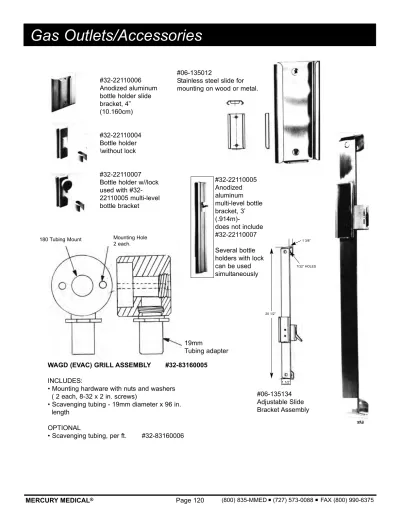

180 Tubing Mount
#06-135012
Stainless steel slide for
mounting on wood or metal.
#32-22110006
Anodized aluminum
bottle holder slide
bracket, 4”
(10.160cm)
#32-22110004
Bottle holder
\without lock
#32-22110007
Bottle holder w//lock
used with
#32-22110005 multi-level
bottle bracket
Mounting Hole
2 each.
#32-22110005
Anodized
aluminum
multi-level bottle
bracket, 3’
(.914m)-does not include
#32-22110007
Several bottle
holders with lock
can be used
simultaneously
19mm
Tubing adapter
#06-135134
Adjustable Slide
Bracket Assembly
WAGD (EVAC) GRILL ASSEMBLY
#32-83160005
INCLUDES:
• Mounting hardware with nuts and washers
( 2 each, 8-32 x 2 in. screws)
• Scavenging tubing - 19mm diameter x 96 in.
length
OPTIONAL
• Scavenging tubing, per ft.
#32-83160006
20 1/2”
1 1/2”
7/32” HOLES 1 3/8”
Gas Outlets/Accessories
D.I.S.S.
Service
Part Number
Oxygen
#06-121100
Nitrous Oxide
#06-121101
Medical Air
#06-121102
Vacuum
#06-121103
WAGD (Evacuation) #06-121109
Nitrogen
#06-121104
Carbon Dioxide
#06-121110
CO2-O2 (CO2>7.5%) #06-121111
O2-CO2 (CO2<7.5%) #06-121112
HeO2 (He>7.5%)
#06-121113
O2-He (He<7.5%)
#06-121114
Slide
#06-120978
DIAMETER INDEX
SAFETY SYSTEM
(D.I.S.S.) OUTLET
OHMEDA (Compatible)
QUICK-CONNECT
OUTLET
Chemetron Compatible
Service
Part Number
Oxygen
#06-121040
Nitrous Oxide
#06-121041
Medical Air
#06-121042
Vacuum
#06-121043
WAGD (Evacuation)
#06-121049
Slide
#06-120978
Ohmeda Compatible
Service
Part Number
Oxygen
#06-121030
Nitrous Oxide
#06-121031
Medical Air
#06-121032
Vacuum
#06-121033
WAGD (Evacuation)
#06-121039
Slide
#06-120978
N2 (D.I.S.S.)
#06-121104
Service
Part Number
Oxygen
#06-121020
Nitrous Oxide
#06-121021
Medical Air
#06-121022
Vacuum
#06-121023
WAGD (Evacuation)
#06-121029
Slide
#06-120978
PURITAN-BENNETT
QUICK CONNECT
OUTLET
CHEMETRON (Compatible)
QUICK-CONNECT
OUTLET
Accessories shall be of a modular design
allowing them to be ganged with a Beacon
Medical (Puritan-Bennett) manufactured medical
gas outlets on the job site to create a
console-like appearance. Each accessory shall consist
of a rough-in and finish assembly. All Electrical
Accessories utilize UL/CSA recognized hospital
grade receptacles. The rough-in for electrical
devices shall include a standard electrical box
for electrical connections. Gauges shall have a
pressure range of 0-100 psi for Oxygen, Nitrous
Oxide, Medical air, and Carbon Dioxide; 0-300
psi for Nitrogen and 0-30” Hg for Vacuum and
Evacuation. Gas specificity shall be maintained
by positive pin indexing between rough-in and
finish assembly. A machined brass outlet block
shall be permanently attached to the mounting
plate in such a manner so as to permit the
7-inch long, 3/8” O.D. type K copper inlet tube to
be swiveled 360° for attachment to the piping
system. A secondary valve shall be installed in
the outlet block assembly for pressure testing
and to prevent gas flow when the gauge is
removed.
Note: Electrical Accessories furnished with 5/8” raised device cover. For wall thickness other than 5/8” customer must furnish correct size cover.
2 -1/2” 1/4” 5/8” 4” 3” 5” 5-3/4” 5” 10” 15” 20” 4” 1-1/16” 5-3/4” 5”
ELECTRICAL ACCESSORIES
Slides shall be extruded aluminum mounted to a standard
insert and rough-in assembly. Blanks shall consist of a
standard rough-in assembly with solid anodized aluminum
insert plate and chrome plated cover plate.
Service
Complete Assy
Gauge
O2 (Oxygen)
#06-120980
N2O (Nitrous oxide)
#06-120981
Medical Air
#06-120982
Vac (Vacuum)
#06-120983
N2 (Nitrogen)
#06-120984
Electrical
Twist Lock
#06-120970
Simplex Receptacle
#06-120971
Duplex Receptacle
#06-120972
Hampden Gnd. Recep.
#06-120974
Miscellaneous Slide
#06-120978
Blank, Gas
#06-120979
Blank, Electrical
#06-120969
GAUGE
ELECTRICAL
SLIDE
BLANK
1/2”
5/16”
A maximum of 3 units may be ganged without additional support.
QUICK CONNECT TYPE
FIELD GANGABLE
Ohmeda (Ohio Medical) Compatible Quick Connect Medical Gas outlets shall
be gas specific for the services indicated and accept only corresponding
Ohmeda (Ohio Medical) Quick Connect adapters. The Outlets shall be UL
listed, CSA approved, and meet NFPA 99 Standards (formally NFPA 56-F). All
outlets shall be tested and cleaned for oxygen service prior to shipping. A
complete outlet shall consist of a gas specific finishing assembly to be
installed after walls are finished and a matching gas specific finishing
assembly to be installed after walls are finished.
The rough-in assembly shall be of modular design and include a gas specific
16 ga. steel mounting plate designed to permit on-site ganging of multiple
outlets, in any order, on any order, on 5 inch centerline spacing. A machined
brass outlet block shall be permanently attached to the mounting plate in
such a manner so as to permit the 7 inch long, 3/8” O.D. type K copper inlet
tube to be swiveled 360o for attachment to the piping system. A secondary
valve shall be installed in the outlet block assembly for pressure testing and
to prevent gas flow when the latch/valve assembly is removed for service. A
1/2” high metal flange around the outlet block seal opening shall provide a
plaster barrier. Gas service identification shall be affixed to the inlet tube and
the face of the mounting plate. A temporary, transparent cover shall be
provided to keep debris out of the outlet during installation while permitting
labels to be viewed for outlet service identity.
The latch/valve assembly shall include a double seal primary valve and be
gas specific for the labeled service and accept only corresponding Ohmeda
(Ohio Medical) Compatible hose and apparatus adapters. The latch/valve
assembly shall be indexed to the corresponding rough-in assembly to avoid
accidental cross-fitting and shall telescope up to 3/4” to allow for variation in
finished wall thickness from 1/2” to 1-1/4”. A metal trim plate with permanent,
color coded marking of service identification shall be included as part of the
latch/valve assembly.
A die cast, chrome plated coverplate shall be provided to trim each outlet and
to fill the space between adjacent outlets. Coverplate design shall allow latch
valves to be individually removed for servicing.
Item Number
Service
#06-121030
O
2OHMEDA Q.C.
#06-121031
N
2O
#06-121032
MEDICAL AIR
#06-121033
VAC
#06-121039
WAGD (EVACUATION)
#06-120978
SLIDE
#06-121104
N
2(D.I.S.S.)
OHMEDA
• UL Listed/CSA Approved
• Meets or exceeds National and
International Codes
• Compensates For Variation In Wall
Thickness Up To 3/4”
• 360o Swivel Inlet Tube To Simplify
Installation
• Gas Specific Indexing
• Modular Design For Simplified On-Site
Arrangement
• Accepts All Corresponding Ohmeda Gas
Specific Compatible Adapters
• Made In the U.S.A.
The Puritan-Bennett Style Outlet:
Easy-to-Use and Reliable.
• Fingertip, push-button release mechanism for secondary equipment. • Utilizes Chemetron backbox
for easy upgrade to Chemetron Completion Kit. • Die-cast faceplate is
chrome-plated for long life and durability.
• Non-interchangeable indexing system, prevents mislabeling.
• Meets NFPA and CGA standards.
• Cleaned and tested for oxygen use.
• Outlet design meets Domestic and International standards for medical gas equipment.
• Modular design gives installer flexibility to vary sequence of gases for individual rooms. • Color-coded outlet has non-interchangeable
indexing system to prevent accidental interchange.
• Improved secondary check increases gas flow to patients.
• Easier installation due to adjustability for varying wall thickness and adjustable rotating inlet tube.
• U.L. and C.S.A. approved.
• Chrome-plated, die-cast faceplate provides durability and improved appearance.
PB STYLE
QUICK CONNECT
Oxygen
#32-64-03-5001
Vacuum
#32-64-03-5002
Medical Air
#32-64-03-5003
Nitrous Oxide
#32-64-03-5004
WAGD (Evacuation)
#32-64-03-5006
Carbon Dioxide
#32-64-03-5007
O
2/CO
2<7%
#32-64-03-5008
QUICK CONNECT
#32-64-03-5051
#32-64-03-5052
#32-64-03-5053
#32-64-03-5004
#32-64-03-5006
#32-64-03-5007
#32-64-03-5008
Domestic
ISO
DOMESTIC ISOOXEQUIP Quick Connect Quick Connect
Oxygen #21-1930-2112 #21-1930-2121 Vacuum #21-1930-2212 #21-1930-2221 Medical Air #21-1930-2412 #21-1930-2421 Nitrous Oxide #21-1930-2312 #21-1930-2321 WAGD (Evacuation) #21-1930-2712 #21-1930-2721 Carbon Dioxide #21-1930-2512 #21-1930-2521 D.I.S.S. D.I.S.S. Oxygen #21-1930-1112 #21-1930-1121 Vacuum #21-1930-1212 #21-1930-1221 Medical Air #21-1930-1412 #21-1930-1421 Nitrous Oxide #21-1930-1312 #21-1930-1321 WAGD (Evacuation) #21-1930-1712 #21-1930-1721 Carbon Dioxide #21-1930-1512 #21-1930-1521
The Oxequip Outlet:
Flexibility that meets all the Standards.
SURFACE MOUNTED QUICK-CONNECT WALL STATION
(top inlet, 3 5/8” (9.21 cm) centers)
349 Series
#32-64-12-0001
Oxygen
#32-64-12-0002
Medical Air
#32-64-12-0003
Vacuum
#32-64-12-0004
Nitrous Oxide
#32-64-12-0005
Oxygen-Blank-Medical Air
#32-64-12-0006
Oxygen-Blank-Vacuum
#32-64-12-0009
Oxygen-Blank-Nitrous Oxide
#32-64-12-0011
Nitrogen
#32-64-12-0013
Oxygen-Blank-Oxygen
#32-64-12-0016
Vacuum-Blank-Oxygen
#32-64-12-0018
Vacuum-Blank-Vacuum
SURFACE MOUNTED D.I.S.S. WALL STATION
(top inlet, 3 5/8” (9.21 cm) centers)
347 Series
#32-64-15-0001
Oxygen
#32-64-15-0002
Medical Air
#32-64-15-0004
Oxygen-Blank-Medical Air
#32-64-15-0005
Oxygen-Blank-Vacuum
#32-64-15-0006
Oxygen-Blank-Nitrous Oxide
#32-64-15-0007
Vacuum
#32-64-15-0008
Nitrous Oxide
#32-64-15-0010
Vacuum-Blank-Vacuum
WALL (FLUSH) QUICK-CONNECT OUTLET STATION
500 Series (Field Gangable)
#32-64-01-5001
Oxygen
#32-64-01-5002
Vacuum
#32-64-01-5003
Medical Air
#32-64-01-5004
Nitrous Oxide
#32-64-01-5006
WAGD (Evacuation)
#32-64-01-5007
Carbon Dioxide
#32-64-01-5008
95%, 02, 5%, CO2
#32-64-01-9431
Blank fascia cover kit
#32-64-06-0001
Vacuum bottle slide
Assy
560 Series (Field Gangable)
#32-64-04-5601
Oxygen
#32-64-04-5602
Vacuum
#32-64-04-5603
Medical Air
#32-64-04-5604
Nitrous Oxide
#32-64-04-5605
Nitrogen
#32-64-04-5606
WAGD (Evacuation)
#32-64-04-5607
Carbon Dioxide
#32-64-04-5608
95% O2, 5% CO2
#32-64-06-0001
Vacuum bottle slide Assy
#32-64-01-9431
Blank fascia cover kit
HIGH PRESSURE NITROGEN QUICK CONNECT OUTLET STATION
#32-64-20-0007
Nitrogen HP (top inlet) DYNACON TYPE
400 Series Top Inlet
#32-64-20-0001
Oxygen
#32-64-20-0002
Medical Air
#32-64-20-0004
Carbon Dioxide
#32-64-20-0005
Vacuum
#32-64-20-0006
Nitrous Oxide
#32-64-20-0003
95%O2, 5%
CO2
#32-64-20-0008
WAGD (Evacuation)
#32-64-35-0001
Oxygen
#32-64-35-0002
Medical Air
#32-64-35-0003
Carbon Dioxide (>7%)
#32-64-35-0004
Vacuum
#32-64-35-0005
Nitrous Oxide
400 Series Bottom Inlet
#32-64-26-0001
#32-64-26-0002
#32-64-26-0005
WALL /CEILING (FLUSH) D.I.S.S. OUTLET STATION
460 Series
I
NTRODUCING
T
HE
C
ONNECT
2®
M
EDICAL
G
AS
O
UTLET
S
TATION
NEW
ONE OUTLET
TWO ADAPTERS
q Ideal for institutions
with more than one type
of quick connect.
q Great for emergency
departments receiving
transported patients with
ancillary gas services.
• The first medical gas outlet that accepts both Chemetron and Ohmeda adapters (patent pending design).
• Push button mechanism for quick adapter release. Ohmeda adapter has second method of release with twisted feature. • Chemetron adapter can support secondary
equipment, including a suction regulator with 1/2 gallon collection bottle. • Eliminates need for hospital personnel to
carry both styles of adapters to ensure proper connection.
• Fail-safe color coding and safety keyed to ensure appropriate gas.
• Valve body O-ring easily accessible for maintenance. Inlet tube has secondary check unit to permit removal of valve body without shutting off gas to the outlet. • U.L. approved.
The Right Connection For
New Or Existing Structures
3/8” flared connection Faceplate is safety keyed to backplate Stainless steel Push-button release Keying for Chemetron Adapter
Keying for Ohmeda Adapter
Chrome plated Faceplate Chemetron
Adapter
Ohmeda Adapter
Inlet tube capable of rotating 360o Adjustment for various wall thicknesses
CONNECT2
CONNECT2
5 1/4” Width
5 1/4” Width
Oxygen
#32-64-02-5001
Vacuum
#32-64-02-5002
Medical Air
#32-64-02-5003
Nitrous Oxide
#32-64-02-5004
WAGD (Evacuation) #32-64-02-5006
Carbon Dioxide
#32-64-02-5007
O
2/CO
2<7%
#32-64-02-5008
Wall Slide
#32-64-06-0001
FASCIA ASSEMBLIES
CONVERT EXISTING Chemetron
500 SERIES OR 560 SERIES
OUTLETS TO DUAL CAPABILITY
Oxygen
#32-64-02-9531
Vacuum
#32-64-02-9532
Medical Air
#32-64-02-9534
Nitrous Oxide
#32-64-02-9533
2 1/4” Width
2 3/4” Width
Gas Outlet
Fascia
Outlet
Fascia
Oxygen
#32-64-02-4011
#32-64-90-4011
#32-64-02-4001
#32-64-90-4001
Vacuum
#32-64-02-4012
#32-64-90-4012
#32-64-02-4002
#32-64-90-4002
Medical air
#32-64-02-4014
#32-64-90-4014
#32-64-02-4004
#32-64-90-4004
Nitrous Oxide
#32-64-02-4013
#32-64-90-4013
#32-64-02-4003
#32-64-90-4003
(WAGD) Evacuation
#32-64-02-4018
#32-64-90-4018
#32-64-02-4008
#32-64-90-4008
Carbon Dioxide
#32-64-02-4015
#32-64-90-4015
#32-64-02-4005
#32-64-90-4005
FEATURES:
• Accepts only Chemetron gas
specific adapters
• Indexed to prevent
interchangeability of gas
services
• Universal rough-in accepts
quick connection (Chemetron
®,
Ohmeda
®, Puritan-Bennett
®)
or DISS latch valve assemblies
• Modular design capability
• 100% hydrostatically tested
• Complies with NFPA 99 and CGA G-4.1 standards
• UL Listed
SPECIFICATIONS:
Medical gas outlet(s) shall be manufactured by Genstar
Technologies Co., Inc. (GENTEC
®). Wall outlet shall be
designed for concealed piping installation and available for
services indicated.
The latch valve assembly shall be Chemetron quick connect
compatible and accept only gas specific Chemetron type quick
connect adapters. Each latch valve assembly shall be
color-coded for ease of gas identification per the appropriate
standards (US or ISO). Latch valve assemblies shall have gas
specific pin indexing corresponding to the rough-in assembly to
prevent interchangeability of gas services and shall adjust up to
1” for variations in wall thickness.
Universal rough-in assembly shall include the wall rough-in
plate (16 ga.) with inlet tubing silver brazed to the outlet body.
Inlet tubing shall be type “K” copper, 1/2” (12.7 mm) OD,
extend 6-1/2 inches (165 mm), and swivel 360° for ease of
installation. Rough-in assembly shall accept only the specified
gas service by use of indexes. Rough-in assembly shall be of
modular design to permit on-site ganging of multiple outlets
with assurance of accurate alignment and providing 5”
centerline spacing. A dust plug and cover shall be provided to
protect rough-in assembly from contamination during handling
and installation at the job site.
Rough-in assemblies shall accept any latch valve assembly of
the same gas service. The latch valve assembly shall be
interchangeable, allowing conversion from one connection
style to another without shutting down the medical gas
system.
All positive pressure gas outlets shall have a primary and
secondary check valve, where the secondary valve in the
rough-in assembly allows servicing of the latch valve
assembly without having to disrupt gas service to the outlet.
Complete outlet shall be delivered to the customer in a gas
specific rough-in assembly, a matching gas specific latch
valve assembly, both cleaned for oxygen use and in a sealed
package, and a trim plate. All assemblies shall be 100%
tested for leaks, manufactured to comply with the latest
edition of NFPA 99, and UL Listed.
FEATURES:
• Accepts only Ohmeda gas
specific adapters
• Indexed to prevent
interchangeability of
gas services
• Universal rough-in accepts
quick connection (Chemetron
®,
Ohmeda
®, Puritan-Bennett
®)
or DISS latch valve assemblies
• Modular design capability
• 100% hydrostatically tested
• Complies with NFPA 99 and CGA G-4.1 standards
• UL Listed
SPECIFICATIONS:
Medical gas outlet(s) shall be manufactured by Genstar
Technologies Co., Inc. (GENTEC
®). Wall outlet shall be
designed for concealed piping installation and available for
services indicated.
The latch valve assembly shall be Ohmeda quick connect
compatible and accept only gas specific Ohmeda type quick
connect adapters. Each latch valve assembly shall be
color-coded for ease of gas identification per the appropriate
standards (US or ISO). Latch valve assemblies shall have gas
specific pin indexing corresponding to the rough-in assembly
to prevent interchangeability of gas services and shall adjust
up to 1” for variations in wall thickness.
Universal rough-in assembly shall include the wall rough-in
plate (16 ga.) with inlet tubing silver brazed to the outlet body.
Inlet tubing shall be type “K” copper, 1/2” (12.7 mm) OD,
extend 6-1/2 inches (165 mm), and swivel 360° for ease of
installation. Rough-in assembly shall accept only the specified
gas service by use of indexes. Rough-in assembly shall be of
modular design to permit on-site ganging of multiple outlets
with assurance of accurate alignment and providing 5”
centerline spacing. A dust plug and cover shall be provided to
protect rough-in assembly from contamination during handling
and installation at the job site.
Rough-in assemblies shall accept any latch valve assembly of
the same gas service. The latch valve assembly shall be
interchangeable, allowing conversion from one connection
style to another without shutting down the medical gas
system.
All positive pressure gas outlets shall have a primary and
secondary check valve, where the secondary valve in the
rough-in assembly allows servicing of the latch valve
assembly without having to disrupt gas service to the outlet.
Complete outlet shall be delivered to the customer in a gas
specific rough-in assembly, a matching gas specific latch
valve assembly, both cleaned for oxygen use and in a sealed
package, and a trim plate. All assemblies shall be 100%
tested for leaks, manufactured to comply with the latest
edition of NFPA 99, and UL Listed.
Dimensional Data Notes:
A. Additional support needed if ganging more than 3
outlets
B. Wall thickness may vary from 1/2” to 1”
(12.7mm to 25.4mm).
C. 1/2” O.D. (3/8” Nominal) type K copper inlet tube
allows 360° swivel on outlet body for entry from any
angle.
D. Inch (mm)
ORDERING INFORMATION
CHEMETRON COMPATIBLE
Gas Service
Item #
Oxygen
#ES-3823U-O
Vacuum
#ES-3823U-V
Medical Air
#ES-3823U-A
Nitrous Oxide
#ES-3823E-2
WAGD
#ES-3823U-W
Slide
#ES-3820-SLD
DIMENSIONS: (Chemetron)
Dimensional Data Notes:
A. Additional support needed if ganging more than 3
outlets
B. Wall thickness may vary from 1/2” to 1”
(12.7mm to 25.4mm).
C. 1/2” O.D. (3/8” Nominal) type K copper inlet tube
allows 360° swivel on outlet body for entry from any
angle.
D. Inch (mm)
ORDERING INFORMATION
OHMEDA COMPATIBLE
Gas Service
Item #
Oxygen
#ES-3821U-O
Vacuum
#ES-3821U-V
Medical Air
#ES-3821U-A
Nitrous Oxide
#ES-3821E-2
WAGD
#ES-3821U-W
Slide
#ES-3820-SLD
MATERIAL
Latch Valve
Trim Plate
Rough-in
Aluminum
Cast Aluminum
Stainless Steel
ABS Plastic
Powder Coating
ABS Plastic
Steel/Brass + Plating
Neoprene
Stainless Steel
Steel + Plating
Brass
Copper
Neoprene
Rubber
MATERIAL
Latch Valve
Trim Plate
Rough-in
Aluminum
Cast Aluminum
Stainless Steel
ABS Plastic
Powder Coating
ABS Plastic
Steel/Brass + Plating
Neoprene
Stainless Steel
Steel + Plating
Brass
Copper
Neoprene
Rubber
DIMENSIONS: (Ohmeda)
Ordering Information for Complete Wall Outlets (Includes Latch Valve Assembly, Trim Plate and Rough-in Assembly)
Note: US colors listed. For ISO 32 colors replace “U” with “E” in the above catalog numbers.
Ordering Information for Complete Wall Outlets (Includes Rough-in, Trim Plate and Latch Valve Assembly)
Note: US colors listed. For ISO 32 colors replace “U” with “E” in the above catalog numbers.
FEATURES:
• Accepts only DISS gas specific adapters
• Indexed to prevent interchangeability of gas services
• Universal rough-in accepts quick connection (Chemetron®, Ohmeda®,
Puritan-Bennett®) or DISS latch valve
assemblies
• Modular design capability • 100% hydrostatically tested • Complies with NFPA 99 and CGA
G-4.1 standards • UL Listed
SPECIFICATIONS:
Medical gas outlet(s) shall be manufactured by Genstar Technologies Co., Inc. (GENTEC®). Wall outlet shall be designed for concealed piping installation and
available for services indicated.
The latch valve assembly shall be Compressed Gas Association (CGA) Diameter Index Safety System (DISS) threaded connectors and accept only corresponding gas specific type nut and nipple adapters. Each latch valve assembly shall be color-coded for ease of gas identification per the appropriate standards (US or ISO). Latch valve assemblies shall have gas specific pin indexing corresponding to the rough-in assembly to prevent interchangeability of gas services and shall adjust up to 1” for variations in wall thickness.
Universal rough-in assembly shall include the wall rough-in plate (16 ga.) with inlet tubing silver brazed to the outlet body. Inlet tubing shall be type “K” copper, 1/2” (12.7 mm) OD, extend 6-1/2 inches (165 mm), and swivel 360° for ease of installation. Rough-in assembly shall accept only the specified gas service by use of indexes. Rough-in assembly shall be of modular design to permit on-site ganging of multiple outlets with assurance of accurate alignment and providing 5” centerline spacing. A dust plug and cover shall be provided to protect rough-in assembly from contamrough-ination durrough-ing handlrough-ing and rough-installation at the job site. Rough-in assemblies shall accept any latch valve assembly of the same gas service. The latch valve assembly shall be interchangeable, allowing conversion from one connection style to another without shutting down the medical gas piping system.
All positive pressure gas outlets shall have a primary and secondary check valve, where the secondary valve in the rough-in assembly allows servicing of the latch valve assembly without having to disrupt gas service to the outlet. Complete outlet shall be delivered to the customer in a gas specific rough-in assembly, a matching gas specific latch valve assembly, both cleaned for oxygen use and in a sealed package, and a trim plate. All assemblies shall be 100% tested for leaks, manufactured to comply with the latest edition of NFPA 99, and UL Listed.
FEATURES:
• Accepts only Puritan-Bennett gas specific adapters
• Indexed to prevent interchangeability of gas services
• Universal rough-in accepts quick connection (Chemetron®, Ohmeda®,
Puritan-Bennett®) or DISS latch valve
assemblies
• Modular design capability • 100% hydrostatically tested • Complies with NFPA 99 and CGA
G-4.1 standards • UL Listed
SPECIFICATIONS:
Medical gas outlet(s) shall be manufactured by Genstar Technologies Co., Inc. (GENTEC®). Wall outlet shall be designed for concealed piping installation and
available for services indicated.
The latch valve assembly shall be Puritan-Bennett quick connect compatible and accept only gas specific Puritan-Bennett type quick connect adapters. Each latch valve assembly shall be color-coded for ease of gas identification per the appropriate standards (US or ISO). Latch valve assemblies shall have gas specific pin indexing corresponding to the rough-in assembly to prevent interchangeability of gas services and shall adjust up to 1” for variations in wall thickness.
Universal rough-in assembly shall include the wall rough-in plate (16 ga.) with inlet tubing silver brazed to the outlet body. Inlet tubing shall be type “K” copper, 1/2” (12.7 mm) OD, extend 6-1/2 inches (165 mm), and swivel 360° for ease of installation. Rough-in assembly shall accept only the specified gas service by use of indexes. Rough-in assembly shall be of modular design to permit on-site ganging of multiple outlets with assurance of accurate alignment and providing 5” centerline spacing. A dust plug and cover shall be provided to protect rough-in assembly from contamrough-ination durrough-ing handlrough-ing and rough-installation at the job site. Rough-in assemblies shall accept any latch valve assembly of the same gas service. The latch valve assembly shall be interchangeable, allowing conversion from one connection style to another without shutting down the medical gas system.
All positive pressure gas outlets shall have a primary and secondary check valve, where the secondary valve in the rough-in assembly allows servicing of the latch valve assembly without having to disrupt gas service to the outlet. Complete outlet shall be delivered to the customer in a gas specific rough-in assembly, a matching gas specific latch valve assembly, both cleaned for oxygen use and in a sealed package, and a trim plate. All assemblies shall be 100% tested for leaks, manufactured to comply with the latest edition of NFPA 99, and UL Listed.
American Medical Gas Outlets
Gentec Medical Gas Outlets shall be UL Listed, cleaned for medical gas service, and compliant to the latest edition of NFPA 99. They shall accept only corresponding Ohmeda®, DISS,
Chemetron®, or Puritan Bennett®style
quick connect adapters. Outlets are designed with an universal rough-in assembly for interchangeability on different quick connects without removing the entire outlet. For outlets providing positive pressure gas, they shall have a primary and secondary check valve, where the secondary check valve allows for servicing without isolating an entire zone.
Latch Valve Assembly (front)
The latch-valve assembly shall have gas specific index corresponding to the gas service on the rough-in assembly to prevent interchanging of gas service. Each latch-valve assembly shall be color coded for it’s specified gas service.
Rough-In Assembly (back)
The rough-in assembly shall be manufactured using (1/2" O.D.) type “K” copper tubing, silver-brazed to the outlet body. The tubing allows 360 degrees swivel on the outlet body for easy installation. Rough-in assembly is manufactured to accept only the specified gas service by use of indexes.
Features
• Accepts only Ohmeda®, DISS,
Chemetron®, or Puritan Bennett®
style gas specific adapters • Unique pin index for gases to prevent
interchanging of gas service • Universal rough-in assembly • Color-coded for easy gas identification • 360° swivel on the inlet pipe for easy
installation
• UL listed and complies to the latest edition of NFPA 99
• Type K, 3/8" size copper tubing [1/2" real O.D. (12.7mm)]
• 100% hydrostatically tested
Latch Valve Assembly + Rough-In Assembly = Complete Assembly
Dimensional Data Notes:
A. Additional support needed if ganging more than 3
outlets
B. Wall thickness may vary from 1/2” to 1”
(12.7mm to 25.4mm).
C. 1/2” O.D. (3/8” Nominal) type K copper inlet tube
allows 360° swivel on outlet body for entry from any
angle.
D. Inch (mm)
ORDERING INFORMATION
DISS STANDARD
Gas Service
Item #
Oxygen
#ES-3822U-O
Vacuum
#ES-3822U-V
Medical Air
#ES-3822U-A
Nitrous Oxide
#ES-3822E-2
WAGD
#ES-3822U-W
Carbon Dioxide
#ES-3822E-C
Nitrogen
#ES-3822E-N
Slide
#ES-3820-SLD
DIMENSIONS: (DISS)
Dimensional Data Notes:
A. Additional support needed if ganging more than 3
outlets
B. Wall thickness may vary from 1/2” to 1”
(12.7mm to 25.4mm).
C. 1/2” O.D. (3/8” Nominal) type K copper inlet tube
allows 360° swivel on outlet body for entry from any
angle.
D. Inch (mm)
ORDERING INFORMATION
PURITAN-BENNETT COMPATIBLE
Gas Service
Item #
Oxygen
#ES-3824U-O
Vacuum
#ES-3824U-V
Medical Air
#ES-3824U-A
Nitrous Oxide
#ES-3824E-2
WAGD
#ES-3824U-W
Slide
#ES-3820-SLD
MATERIAL
Latch Valve
Trim Plate
Rough-in
Aluminum
Cast Aluminum
Stainless Steel
ABS Plastic
Powder Coating
ABS Plastic
Steel/Brass + Plating
Neoprene
Stainless Steel
Steel + Plating
Brass
Copper
Neoprene
Rubber
MATERIAL
Latch Valve
Trim Plate
Rough-in
Aluminum
Cast Aluminum
Stainless Steel
Zinc Alloy
Powder Coating
ABS Plastic
ABS Plastic
Neoprene
Steel + Plating
Steel + Plating
Stainless Steel
Copper
Brass
Neoprene
Rubber
DIMENSIONS: (Puritan-Bennett)
Ordering Information for Complete Wall Outlets (Includes Rough-in, Trim Plate and Latch Valve Assembly)
Note: US colors listed. For ISO 32 colors replace “U” with “E” in the above catalog numbers.
Ordering Information for Complete Wall Outlets (Includes Rough-in, Trim Plate and Latch Valve Assembly)
Note: US colors listed. For ISO 32 colors replace “U” with “E” in the above catalog numbers.
Oxequip
®
Med*Star
®
Quick-Connect Medical Gas Outlets
Elements
• Safety keyed to prevent cross-connections
• Conforms to NFPA 99 and CSA standards
• Accepts Med*Star and ‘07 Series Adapters
• Modular design
• Cleaned for oxygen service
• UL Listed
Description
The Oxequip
®Med*Star
®Series outlet stations provide convenient access to medical
gases in patient care locations. They are fully compatible with Med*Star and ’07 Series
adapters.
The outlets can be grouped together in any order desired by the facility. Outlets are
spaced 5" (12.7 cm) center to center. Outlet finish plates and rough-in plates are pin
indexed using steel pins for positive cross-connection prevention. Valve bodies are
separate from the finish plate, allowing easy testing for leaks and cross connection, and
contain a self-sealing poppet. Valve bodies are field adjustable to compensate for variations in plaster thickness of 12.7 mm (1/2") to
19 mm (3/4").
The 152.5 mm (6") Type K copper inlet tube has a 9.5 mm (3/8") ID (12.7 mm (1/2") OD) connection, and can rotate 360 degrees to
accommodate any field piping arrangement. The primary gas check can be serviced without shutting off the gas supply.
The cam plate contains a positive latching mechanism to retain the adapter in the outlet. The adapter is removed by operating the
release mechanism which is integral to the Med*Star adapter (’07 Series adapters use the twist mechanism).
All components (cam plate, tumbler, valve body, poppet, faceplate) are individually field replaceable.
The outlet stations are fully compliant with NFPA 99 (2002) and CSA Z-305, and are cleaned for oxygen service in accordance with
CGA G-4.1. The outlet is UL listed. Rough-in plates for the outlets are zinc plated steel for corrosion resistance and fire safety. Finish
plates are die-cast zinc, chrome-plated with brushed stainless inserts for appearance. Gas identification is provided by a
polycarbonate plastic insert, color-coded by gas service.
The cam plate/tumbler assembly is color-coded and labeled for the gas service. Release is easily accomplished with one hand using
the adapter release mechanism. The primary valve poppet provides a dust proof seal. Vacuum outlets may be used with or without
slide brackets for vacuum collection bottles of up to 2 liters (1/2 gallon) capacity (where slides are used, provide one per vacuum
outlet).
Ordering Information
Gas Service
Item #
(US Color Codes)
Oxygen
#21-1930-2111
Vacuum
#21-1930-2211
Air
#21-1930-2411
Nitrous Oxide
#21-1930-2311
WAGD
#21-1930-2811
Carbon Dioxide
#21-1930-2511
Slide Bracket
#21-1857-A
Dimensional Data
Oxequip
®
Med*Star
®
DISS Medical Gas Outlets
Elements
• Safety keyed to prevent cross-connections
• Conforms to NFPA 99 and CSA standards
• Modular design
• Cleaned for oxygen service
• UL Listed
Description
The Oxequip Diameter Index Safety System (DISS) Series outlet stations provide
convenient access to medical gases in patient care locations. They are fully compatible
with DISS style diameter indexed threaded adapters.
The outlets can be grouped together in any order desired by the facility. Outlets are
spaced 5" (12.7 cm) center to center. Outlet finish plates and rough-in plates are pin
indexed using steel pins for positive cross-connection prevention. The chrome-plated
brass valve bodies contain a self-sealing poppet, and are separate from the
finish plate, allowing easy testing for leaks and cross connection. Valve bodies are field
adjustable to compensate for variations in plaster thickness of 12.7 mm (1/2") to 19 mm (3/4").
The 152.5 mm (6") Type K copper inlet tube has a 9.5 mm (3/8") ID (12.7 mm (1/2") OD) connection, and can rotate 360 degrees to
accommodate any field piping arrangement. The primary gas check can be serviced without shutting off the gas supply.
The outlet stations are fully compliant with NFPA 99 (2002) and CSA Z-305, and are cleaned for oxygen service in accordance with
CGA G-4.1. The outlet is UL listed. Rough-in plates for the outlets are zinc plated steel for corrosion resistance and fire safety. Finish
plates are die-cast zinc, chrome-plated with brushed stainless inserts for appearance. Gas identification is provided by a
polycarbonate plastic insert, color-coded by gas service.
Vacuum outlets may be used with or without slide brackets for vacuum collection bottles of up to 2 liters (1/2 gallon) capacity (where
slides are used, provide one per vacuum outlet).
Ordering Information
Gas Service
Item #
(US Color Codes)
Oxygen
#21-1930-1111
Vacuum
#21-1930-1211
Air
#21-1930-1411
Nitrous Oxide
#21-1930-1311
WAGD
#21-1930-1811
Carbon Dioxide
#21-1930-1511
Nitrogen
#21-1930-1611
Slide Bracket
#21-1857-A
Dimensional Data
Flush Mounted “Twist Sleeve” Wall Outlets
#35-040000300
Single wall outlet for oxygen
#35-040000200
Single wall outlet for nitrous oxide
#35-040000400
Single wall outlet for vacuum
#35-040000100
Single wall outlet for medical air
QUICK-CONNECT (OHMEDA COMPATIBLE)
#GP-Q1132
WAGD (evacuation) recessed outlet
#GP-Q1124
Oxygen recessed outlet
#GP-Q1122
Vacuum recessed outlet
#GP-Q1116
Medical air recessed outlet
#GP-Q1104
Nitrous Oxide recessed outlet
#GP-Q2132
WAGD (evacuation) exposed outlet
#GP-Q2124
Oxygen exposed outlet
#GP-Q2122
Vacuum exposed outlet
#GP-Q2116
Medical air exposed outlet
#GP-Q2104
Nitrous Oxide exposed outlet
D.I.S.S. WALL OUTLETS
#GP-F1132
WAGD (evacuation) recessed outlet
#GP-F1124A
Oxygen recessed outlet
#GP-F1122
Vacuum recessed outlet
#GP-F1116
Medical air recessed outlet
#GP-F1112
Nitrogen recessed outlet
#GP-F1104
Nitrous Oxide recessed outlet
#GP-F2132
WAGD (evacuation) exposed outlet
#GP-F2124A
Oxygen exposed outlet
#GP-F2122
Vacuum exposed outlet
#GP-F2116
Medical air exposed outlet
#GP-F2112
Nitrogen exposed outlet
#GP-F2104
Nitrous Oxide exposed outlet
#GP-F1144
Slide Bracket for recessed outlets
CHEMETRON
COMPATIBLE
WALL OUTLETS
CEILING OUTLETS
OXYGEN
MEDICAL AIR
VACUUM
NITROUS OXIDE
WAGD (EVACUATION)
VAC. SLIDE
AM-OCHWALU-OXY
AM-OCHWALU-AIR
AM-OCHWALU-VAC
AM-OCHWALU-N
2
O
AM-OCHWALU-EVA
AM-OWALSLIDE
N/A
N/A
N/A
N/A
N/A
N/A
OHMEDA
COMPATIBLE
OXYGEN
MEDICAL AIR
VACUUM
NITROUS OXIDE
WAGD (EVACUATION)
VAC. SLIDE
WALL OUTLETS
CEILING OUTLETS
AM-OQDWALU-OXY
AM-OQDWALU-AIR
AM-OQDWALU-VAC
AM-OQDWALU-N
2
O
AM-OQDWALU-EVA
AM-OWALSLIDE
N/A
N/A
N/A
N/A
N/A
N/A
PURITAN-BENNETT
COMPATIBLE
OXYGEN
MEDICAL AIR
VACUUM
NITROUS OXIDE
WAGD (EVACUATION)
VAC. SLIDE
WALL OUTLETS
CEILING OUTLETS
N/A
N/A
N/A
N/A
N/A
N/A
AM-OPBWALU-OXY
AM-OPBWALU-AIR
AM-OPBWALU-VAC
AM-OPBWALU-N
2
O
AM-OPBWALU-EVA
AM-OWALSLIDE
D.I.S.S. DIAMETER
INDEX SATY
SYSTEM
WALL OUTLETS
CEILING OUTLETS
AM-ODISWALU-OXY
AM-ODISWALU-AIR
AM-ODISWALU-VAC
AM-ODISWALU-N
2
O
AM-ODISWALU-NIT
AM-ODISWALU-CO
2
AM-ODISWALU-EVA
AM-ODISWALU-INA
AM-OWALSLIDE
OXYGEN
MEDICAL AIR
VACUUM
NITROUS OXIDE
NITROGEN
CARBON DIOXIDE
WAGD (EVACUATION)
INSTRUMENT AIR
VAC. SLIDE
AM-ODISCELU-OXY
AM-ODISCELU-AIR
AM-ODISCELU-VAC
AM-ODISCELU-N
2
O
AM-ODISCELU-NIT
AM-ODISCELU-CO
2
AM-ODISCELU-EVA
Description
Item Number
1. Box
#98-408-1463-300
2. Spring Clip
#98-203-5081-304
3. Primary Check Spring
#98-203-4042-300
(10 Pkg)
#98-203-3219-870
4. Inlet Screen
#98-214-7162-300
5. Secondary Ball Check
#98-409-1697-300
6. Secondary Check Spring
#98-203-3230-300
(10 Pkg)
#98-203-3215-870
7. Secondary Check O-ring
#98-210-0629-300
(10 Pkg)
#98-210-0492-870
8. O-ring
#98-210-0703-300
(10 Pkg)
#98-210-0497-870
9. Retainer; Vacuum
#98-221-2440-500
Pressure Gases
#98-221-2524-500
10. Quad Ring
#98-210-4512-300
(10 Pkg)
#98-210-4513-870
11. Locking Spring
#98-203-5064-300
12. Primary Check O-ring
#98-210-0572-300
(10 Pkg)
#98-210-0489-870
13. Piston
#98-6803-7030-030
14. Screw
#98-1406-6113-105
15. Keying Disc with Ears
Oxygen
#98-221-2400-100
Nitrous Oxide
#98-221-2401-100
Vacuum
#98-221-2402-100
Medical air (Black)
#98-221-2403-100
Medical air (Yellow)
#98-221-2422-100
Evacuation
#98-221-2404-600
Carbon Dioxide
#98-397-0000-804
Keying Disc Without Ears
Oxygen
#98-221-2405-100
Nitrous Oxide
#98-221-2406-100
Vacuum
#98-221-2407-100
Medical air (Yellow)
#98-221-2421-100
Medical air (Black)
#98-221-2408-100
WAGD (Evacuation) #98-221-2409-600
Carbon Dioxide
#98-397-0000-803
16. Screw, Keying Disc
#98-0140-6224-106
17. Name Plate Label
Oxygen
#98-205-4610-300
Nitrous Oxide
#98-205-4611-300
Vacuum
#98-205-4612-300
Medical air (Black)
#98-205-4613-300
Medical air (Yellow) #98-205-4614-300
18. Screw, Name Plate
#98-142-2243-210
19. Name Plate
#98-221-2515-542
20. Primary Check Body
New Style; for use with
Plastic Keying Disc
#98-221-2420-500
Old Style; For use with
metal keying disc
#98-221-2523-500
21. Maintenance Kit
#98-680-3720-0002
Pressure and Vacuum
Includes 1 each of Items #3,6,7,8,10,11
1.
2.
20.
19.
18.
17.
1.
16.
14.
13.
12.
15.
9.
8.
7.
6.
5.
4.
3.
10.
11.
Keying Disc (Item #15) is held in place by 2 screws.
Repair parts are no longer available for Diamond II outlets. These
outlets must be converted to a Diamond III outlet to correct
problems.
3 EASY STEPS
1. Select appropriate Conversion Kit(s);
Pressure gases (O2, N2O, Medical air & CO2)
#98-221-3976-870
Vacuum & Evacuation
#98-221-3976-871
Above Kits include10 each of Item #’s 3, 5, 6 & 7
2. Order desired quantity of secondary check units,
Item number 4 below
#98-221-3970-500
3. Select appropriate finishing assembly
Oxygen
#98-221-3982-800
Nitrous Oxide
#98-221-3982-801
Vacuum
#98-221-3982-802
Medical air
#98-221-3982-803
Carbon Dioxide
#98-221-3982-804
WAGD (Evacuation)
#98-221-3982-805
Description
Item Number
16. O-ring (10 Each)
#98-0210-0491-870
17. Washer
#98-0402-1130-300
18. Lock-in Adapter Spring
#98-0203-5129-870
(10 Each)
19. Detail for replacing spring assembly
20. Keying Disc
Wall Mounted
Console Mounted
Oxygen
#98-0221-1500-600 #98-0221-3919-600
Nitrous Oxide #98-0221-1501-600 #98-0221-3915-600
Vacuum
#98-0221-1502-600 #98-0221-3920-600
Medical Air
#98-0221-1508-600 #98-0221-3921-600
Carbon Dioxide #98-0221-1509-600
N/A
WAGD
(Evacuation) #98-0221-1507-600
N/A
Nitrogen
N/A
N/A
21. Eyelet (2), (50 Each)
#98-0203-5643-870
22. Finish Plate
#98-0221-1464-500
23. Screw, 6-32 x 1-1/2” (2)
#98-0140-6324-124
Secondary Check Repair Kit for 10 Outlets
10 Each of items 3, 5, 6 and 7 for
Pressure Gases
#98-0221-3976-870
Secondary Check Repair Kit for 10 Outlets
10 Each of items 3, 5, 6 and 7 for
Vacuum and WAGD
#06-290803PG
Primary Check Repair Kit for 10 Outlets
Repair Kit with 10 Each of items 5, 11
12, 16, 17 and 18; and 30 each
of item 21
#06-290804PG
Description
Item Number
1. Back Body
#98-0221-3954-701
2. O-ring
#98-0210-0706-300
3. Spring, bronze for Pressure Gases
(10 Each)
#98-0203-3217-870
Stainless Steel for Vacuum and
WAGD (10 each)
#98-0203-3218-870
4. Secondary Check
#98-0221-3970-500
5. O-ring (10 each)
#98-0210-0491-870
6. Rubber Bushing (10 Each) #98-6803-2030-000
7. Ring, 1” Spirolex (10 Each) #98-6803-2030-001
8. Back Plate
9. Screw, 8 x 5/8 (2)
#98-6812-2000-075
10. Ring, 1.125” Spirolex
#98-6812-2000-404
11. Spring (10 Each)
#06-833436PG
12. Piston (10 Each)
#98-0221-1587-870
13. Gasket (2)
#98-0210-0070-300
14. Cover Plate (with logo)
#98-0221-1528-100
15. Front Body Cylinder
#98-0221-3960-500
Diamond III Series
(Stamped with 300 Series Number on
Back Side of Cover Plate, #14)
Quick Connect
D.I.S.S.
14
12
10
12
10
8
4
6
3
11
SEE next page for ordering Numbers
PART
ITEM NUMBER DESCRIPTION
3. #06-814051 Screw (Tie Bar)
4. #06-826001 Tinnerman 6/32 Speed nut
6. #06-815301 Screw (Block Mounting)
8. #06-815321 Shoulder Screw
10. #06-230240 D.I.S.S. Valve (O2)
#06-230241 D.I.S.S. Valve (N2O)
#06-230242 D.I.S.S. Valve (Medical air) #06-230243 D.I.S.S. Valve (Vac)
#06-211170 Quick Connect Valve (O2)
#06-211171 Quick Connect Valve (N2O)
#06-211172 Quick Connect Valve (Medical air)
#06-211173 Quick Connect Valve (Vac)
11. #06-425211 Escutcheon (Single)
#06-425212 Escutcheon (Double)
#06-425213 Escutcheon (Triple)
#06-425214 Escutcheon (Quad)
#06-425215 Escutcheon (Quint.)
12. #06-230320 D.I.S.S.-Insert Plate Assy. (O2) (Includes Dust #06-230321 D.I.S.S.-Insert Plate Ass. (N2O Cover/Chain) #06-230322 D.I.S.S.-Insert Plate Assy. (Medical air) #06-230323 D.I.S.S.-Insert Plate Assy. (Vac) #06-230324 D.I.S.S.-Insert Plate Assy. (N2) #06-230300 Q.C. - Insert Plate Assy. (O2) #06-230301 Q.C. - Insert Plate Assy. (N2O) #06-230302 Q.C. - Insert Plate Assy. (Medical air) #06-230303 Q.C. - Insert Plate Assy. (Vac) 14. #06-230056 Dust Cover & Chain Assy. (O2)
#06-230057 Dust Cover & Chain Assy. (N2O, Medical air, Vac, N2)
Repair Parts for Series A Outlets are
available on a limited basis.
Outlets requiring obsolete parts can
be updated.
500 SERIES
Quick Connect Model
Description
1. 6” copper tube connection to medical gas or vacuum supply line. 2. Swivel base housing 3. Back box
(Field replacement of items 1, 2 and 3 is not feasible).
4. Secondary check kit (6 pk): A. Secondary check B. Washer C. Housing
D. Deflator spring assembly 5. Housing base O-Ring (12/pk) 6. Poppet
7. Poppet O-Ring(12/pk)
8. Valve body assemblies (poppet and O-Rings) Valve body with poppet pressure
Valve body with poppet vacuum Valve body with poppet pressure (4 pk) 9. Valve body O-ring (12/pk)
10. Face plate assemblies: Oxygen Nitrous Oxide Vacuum Medical Air WAGD (Evacuation) CO2 O2/CO2
11. Latch spring kit (12 pk) 12. Faceplate mounting
screw kit (48/pk) 13. Vacuum spring kit (6/pk) 14. Test plug kit (12pk)
15. Back box mounting screw/fastener kit (24pk)
D.I.S.S. Model
Description
16. D.I.S.S. poppet all service except Oxygen, vacuum, evacuation 17. D.I.S.S. poppet oxygen, vacuum,
evacuation
18. D.I.S.S. valve body, key ring and poppet assembly: Oxygen Nitrous Oxide Vacuum Medical Air WAGD (Evacuation) N2 CO2 O2/CO2
19. D.I.S.S. Face Plate Assemblies: Oxygen Nitrous Oxide Vacuum Medical Air WAGD (Evacuation) N2 CO2 O2/CO2
20. D.I.S.S. face plate screw kit (24/pk).
21. D.I.S.S. dust cap and chain assembly: Oxygen
Nitrous Oxide Vacuum Medical Air
22. D.I.S.S. poppet O-Ring only Item Number #32-64-90-0650 #32-64-90-0185 #32-98-90-0002 #32-64-90-0097 #32-64-90-0620 #32-64-90-0621 #32-64-90-0653 #32-64-90-0186 #32-64-91-1501 #32-64-91-1504 #32-64-91-1502 #32-64-91-1503 #32-64-91-1506 #32-64-91-1507 #32-64-91-1508 #32-64-90-0096 #32-64-90-0031 #32-64-90-0034 #32-64-90-0651 #32-64-90-0652 Item Number #32-64-90-0029 #32-64-90-0028 #32-64-90-0631 #32-64-90-0633 #32-64-90-0632 #32-64-90-0634 #32-64-90-0638 #32-64-90-0636 #32-64-90-0635 #32-64-90-0637 #32-64-91-1561 #32-64-91-1564 #32-64-91-1562 #32-64-91-1563 #32-64-91-1566 #32-64-91-1565 #32-64-91-1567 #32-64-91-1568 #32-64-90-0030 #32-64-90-0098 6/Pk #32-64-90-0100 6/Pk #32-64-90-0099 6/Pk #32-64-90-0101 6/Pk #32-34-90-0026 12/Pk Figure #2 - Operation Figure #1 - Initial Setting
Lightly lubricated* O-Ring shown loaded
around rod and in installer assembly cavity.
Slide bracket assembly up or down until rod lines up with center of poppet.
#32-64-90-2060 O-Ring installation tool only *Medical Gas Outlet Lubrication (1 ox.) #32-64-90-2111
348, 378, 400 Series
348 Series
378 Series
400 Series
Description Item Number
1. 6” Copper tube for connection N/A
to gas or vacuum supply line
2. Mounting Box N/A
3. Back box
(Field replacement of items 1,2 N/A
and 3 are not feasible)
4. Mounting block O-ring #32-64-90-0185 12/Pk 5. Secondary check valve #32-64-90-0151* 6/Pk 6. Secondary check washer #32-64-90-0107 12/Pk
7. Housing #32-64-90-0002
8. Housing O-Ring #32-64-90-0185 12/Pk
9. Secondary check spring #32-64-90-0151* 6/Pk
10. Vacuum Spring #32-64-90-0034 6/Pk
11. Test Plug #32-64-90-0001 6/Pk
12. Poppet #32-98-90-0002
13. Poppet O-Ring #32-64-90-0097 12/Pk
14. Valve body, #32-64-90-0039 12/Pk
Quick-connect (Pressure without poppet)
Valve body, #32-64-90-0040
Quick-connect (Vacuum without poppet)
Valve body assembly, #32-64-90-0180 (Pressure,
Quick-connect with poppet)
Valve body assembly, #32-64-90-0181 (Vacuum,
Quick-connect with poppet)
15. Valve body O-Ring #32-64-90-0186 12/Pk
*Chemetron Outlet Stations manufactured with rear entry of
pigtail (1) use Secondary Check Valve Catalog No. #32-64-90- 0152 Items 5 & 9 make up kit, 6 kits/pk
Description Item Number Description Item Number 16. Face plate springs #32-64-90-0096 12/Pk
17. Latch button (indicia) #32-64-90-0003 6/Pk 378, 400 series only (Oxygen)
#32-64-90-0004 6/Pk (Vacuum) #32-64-90-0005 6/Pk (Medical air) #32-64-90-0006 6/Pk (Nitrous Oxide) 348 Series Only #32-64-90-0009 6/Pk (Oxygen) #32-64-90-0155 6/Pk (Vacuum) #32-64-90-0011 (Medical air) 6/Pk #32-64-90-0012 6/Pk (Nitrous Oxide) 18. Face Plate - 400 Series
#32-64-92-0176 (Oxygen) #32-64-92-0177 (Vacuum) #32-64-92-0178 (Medical air) #32-64-91-4003 (Nitrous Oxide) #32-64-91-4015 (Carbon Dioxide) #32-64-91-4020 (Oxygen/CO2) #32-64-91-4021 WAGD (Evac.) Ceiling Column Faceplate #32-83-90-4021 WAGD (Evac.) 19. Face plate screws #32-64-90-0031 48/Pk 20. Poppet #32-64-90-0028 (Oxygen and vacuum)
21. Poppet #32-64-90-0029
(N2O, Medical air, CO2)
22. Poppet O-Ring, D.I.S.S #32-34-90-0026 12/Pk
23. Valve Body #32-64-90-0157 (Oxygen)
#32-64-90-0078 (Vacuum) #32-64-90-0079 (Nitrous Oxide) #32-64-90-0080 (Medical air)
24. Face Plate -460 Series #32-64-91-6001 (Oxygen) #32-64-91-6002 (Vacuum) #32-64-91-6004 (Medical air) #32-64-90-6003 (Nitrous oxide) 25. Latch Button #32-64-90-0020 (Oxygen) 6/Pk #32-64-90-0021 (Vacuum) 6/Pk #32-64-90-0022 (Medical air) 6/Pk #32-64-90-0023 (Nitrous Oxide) 6/Pk 26. Face plate screws
#32-64-90-0030 24/Pk 27. Dust cap and chain
#32-64-90-0098 (Oxygen) 6/Pk #32-64-90-0099 (Vacuum) 6/Pk #32-64-90-0100 (Nitrous Oxide) 6/Pk #32-64-90-0101 (Medical air) 6/Pk 28. O-Ring Kit. #32-98-90-0003 (Consists of 12 each. of items 4, 13, 15)
Quick Connect
D.I.S.S.
Gas Outlets/
Breakdowns/Chemetron (NCG)
07 (O.E.S.) SERIES QUICK CONNECT
Repair components are limited. Existing outlets may be modernized/converted from the detailed list below. All conversions require additional purchase of drill indexing template(s) for each gas.
Modernizations/Conversions
(Requires use of drill indexing template)
‘07 SERIES Q.C. & D.I.S.S. TO Med*Star D.I.S.S.
Item Number Description
#21-2227-H Oxygen (Template not included) #21-2227-J Vacuum (Template not included) #21-2227-K Nitrous Oxide (Template not included) #21-2227-M Nitrogen (Template not included) #21-2227-L Medical air (Template not included)
‘07 SERIES Q.C. & D.I.S.S. TO Med*Star Q.C.
#21-1227-C Oxygen (Template not included) #21-1327-C Vacuum (Template not included) #21-1427-C Nitrous Oxide (Template not included) #21-1527-C Medical air (Template not included)
(Nitrogen not Available)
Med*Star Drill Indexing Templates
Must be used when changing ‘07 Series to Med*Star #21-1227-G Oxygen, drill indexing template #21-1327-G Vacuum, drill indexing template #21-1427-G Nitrous Oxide, drill indexing template #21-1527-G Medical air, drill indexing template #21-1627-G Nitrogen, drill indexing template
Med*Star QUICK-CONNECT
COMPONENT IDENTIFICATION
Med*Star
®
D.I.S.S.
COMPONENT IDENTIFICATION
Detail No. Description Item Number
1. Coverplate Screw 24/PK #21-1207-150-RPL 2. Coverplate Tapered side #21-1227-P Straight #21-2027-X 4. Depth Spacer #21-1207-172 5. Camplate Assembly 5/PK #21-1227-M-RPL
6. Molded Dust Cover #21-1227-41
7. Color-coded Pin-Indexed Tumbler oxygen #21-1207-162 nitrous oxide #21-1407-62 medical air #21-1507-62 vacuum #21-1307-62 8. Seat Washer #21-1217-10 9. Slide Valve #21-1207-69
10. Slide Valve Spring
pressure #21-1207-67 vacuum #21-1307-12 11.+ Ball Check Retainer Bushing #21-1227-W
with Seal
12.+ Ball Check #21-3727-10
10.+ Ball Check Spring #21-1207-67
13. Outlet Body N/A
+ Not used in vacuum outlets. ++ Not used on ceiling outlets.
Detail No. Description Item Number
1. Coverplate Screw #21-1207-150
2.++ Dust Cap and chain
Oxygen #21-1218-A All others #21-1218-T 3. Coverplate tapered side #21-2227-P straight side #21-2227-X 4. Depth Spacer #21-2227-17
5. Color-coded Pin Indexed Tumbler oxygen #21-2227-A nitrous oxide #21-2227-C medical air #21-2227-D vacuum #21-2227-B nitrogen #21-2227-E 6. Depressor Tube oxygen (1-3/4-44.45mm) #21-2207-12 all others (1- 5/8-41.275mm) #21-2227-16 7. Seat Washer #21-1217-10 8. Slide Valve #21-1207-69
9. Slide Valve Spring
pressure #21-1207-67 vacuum #21-1307-12 10.+ Ball check Retainer Bushing
With seal #21-1227-W
11.+ Ball Check #21-3727-10
9.+ Ball Check Spring #21-1207-67
12. Outlet Body N/A
+ Not used in vacuum outlets. ++ Not used on ceiling outlets.
A. Pressure Outlet Slide #21-1227-Y
Valve Assembly
B. Pressure Outlet Internal #21-1227-X Parts Kit
A. Pressure Outlet Slide #21-1227-Y
Valve Assembly
B. Pressure Outlet Internal #21-1227-X Parts Kit
Description Item Number Description Item Number
1. Coverplate Screw 21-1207-150 7. Seat Washer 21-1217-10
2. Coverplate 8. Slide Valve 21-1207-69
Oxygen 21-1207-B 9. Slide Valve Spring
Nitrous Oxide 21-1407-B pressure 21-1207-67
Medical Air 21-1507-B vacuum 21-1307-12
Vacuum 21-1307-B 10.+ Ball Check Retainer
3. Overhang Spacer 21-1207-37 Bushing 21-1207-64
4. Depth Spacer 21-1207-35 11.+ Ball Check “O” Ring 21-1247-11 5. Camplate Assembly 21-1207-M 12.+ Ball Check 21-3727-10 6. Seat Retainer Bushing 13.+ Ball Check Spring 21-1207-66
Oxygen 21-1207-11 14. Outlet Body
Nitrous Oxide 21-1407-11 Medical Air 21-1507-11 Vacuum 21-1307-11
Parts for 07 Series are available on a limited basis.
1 2 1 4 5 6 7 8 9 10 11 12 10 13 B A 1 2 3 1 4 5 6 7 8 9 10 11 9 12 B A
Converts Most Quick Connect
Style Outlets to D.I.S.S. (Screw-On)
Features
The Frontal D.I.S.S. medical gas conversion outlets
represent the most technically advanced means of
providing medical gas connections to the central
piping system.
• Unique patented valve cartridge.
• Gas specific D.I.S.S. outlet body.
• Double permanent identification for the user
-service identified on both connector and faceplate.
• Full faceplate color coding.
• Strength of connections eliminates unintended
disconnects.
• Provides support for dispensing equipment
without the use of additional brackets.
Specifications
The medical gas wall outlet shall be Frontal D.I.S.S.
Medical Gas Outlets. The outlets shall incorporate
full faceplate sized color coding.
The outlets shall be capable of supporting
dispensing equipment without the use of slide
brackets.
The medical gas outlets shall be designed so that
once installed, routine service of both the primary
and secondary check valves can be accomplished
without removing the nameplate or gas specific
positions. The primary check valve shall be unitized
and of the cartridge type and the primary check can
be removed for service without shutting off the gas.
The outlet name plate shall be permanently color coded and
sealed behind a lexan protective cover. To prevent leaks
within the finished wall, there shall be no rubber o-rings for a
gas seal behind the faceplate. The name of the gas service
shall be permanently embossed on the outlet sub-mounting
plate and the chrome plated brass outlet body.
Medical gas outlets shall be cleaned for oxygen service in
accordance with the current Compressed Gas Association
(CGA) Pamphlet G-4.1, capped and placed in a protective
container for shipment.
The outlets shall be installed in strict accordance with
manufacturer’s instructions, and tested before use in
conformance with local and federal codes.
NTAL
F
Chemetron/NCG
5/8-27
Chemetron/NCG
3/4-16w/ Flange
Melco/Foregger/Linde
9/16-18
Ohmeda Diamond
Series 1
Ohmeda Diamond
Series II/III
Ohmeda
40 Series
Oxequip 07
5/8-24
Oxequip Med*Star
5/8-27
Oxequip Med*Star
(smooth bore)
Puritan Series 73
5/8-24
Puritan Litharge
1/4 NPT
Puritan Series A
(not threaded)
Puritan
Series B
Schrader
1/4 NPT
Schrader
5/8-24
Schrader
5/8-27
#GP-F3816
#GP-F3916
#GP-F3116
#GP-F4016
#GP-F4116
#GP-F4216
#GP-F3216
#GP-F3616
#GP-F3716
#GP-F3316
#GP-F3416
#GP-F3516
#GP-F4616
#GP-F4316
#GP-F4416
#GP-F4516
#GP-F3112
#GP-F3212
#GP-F3612
#GP-F3712
#GP-F3804
#GP-F3904
#GP-F3104
#GP-F4004
#GP-F4104
#GP-F4204
#GP-F3204
#GP-F3604
#GP-F3704
#GP-F3304
#GP-F3404
#GP-F3504
#GP-F4604
#GP-F4304
#GP-F4404
#GP-F4504
#GP-F3824A
#GP-F3924A
#GP-F3124A
#GP-F4024A
#GP-F4124A
#GP-F4224A
#GP-F3224A
#GP-F3624A
#GP-F3724A
#GP-F3324A
#GP-F3424A
#GP-F3524A
#GP-F4624A
#GP-F4324A
#GP-F4424A
#GP-F4524A
#GP-F3822
#GP-F3922
#GP-F3122
#GP-F4022
#GP-F4122
#GP-F4222
#GP-F3222
#GP-F3622
#GP-F3722
#GP-F3322
#GP-F3422
#GP-F3522
#GP-F4622
#GP-F4322
#GP-F4422
#GP-F4522
Item Number
Medical Air
Nitrogen
Nitrous Oxide Oxygen
Vacuum
Standard Conversion Outlets*
* Trim plates are available for multiple outlets and can be installed against the wall behind the
outlet faceplate. Trim plates are custom-made based on the distance between outlet centers.
Valve Body/O-Ring Identification Chart (Chemetron Outlets)
Shown below are actual size drawings of these parts. Check the drawing to verify your catalog number.
INSTALLATION TOOL #32-65-10-1001
1.
2.
3.
4.
CONVERT FROM
PURITAN-BENNETT OUTLETS
PURITAN BENNETTSERIES 73 Outlet
Remove and discard Quick connect
valve Wall
Surface Wall
Surface Keyed Housing
Quick connect Valve
Stainless Steel Trimplate
Plastic Insert
Some new Puritan Outlets have a keyed housing ring that is partially riveted to the base. This rivet must be drilled out before removal can proceed. Most housing rings are attached by two screws. Plastic Plate
W/Stainless Inserts Remove And Discard NOTE:
EARLY PURITAN OUTLETS USED LITHARGE (combination of white lead and glycerin). To secure the Quick-Connect Valve to the Outlet Block. Use of mild heat is recommended to loosen this connection.
LITHARGED CONNECTION
Puritan-Bennett Outlet with Litharged Connection WALL
SURFACE
SPRING AND POPPET
Quick connect Valve Remove and Discard STAINLESS STEEL
