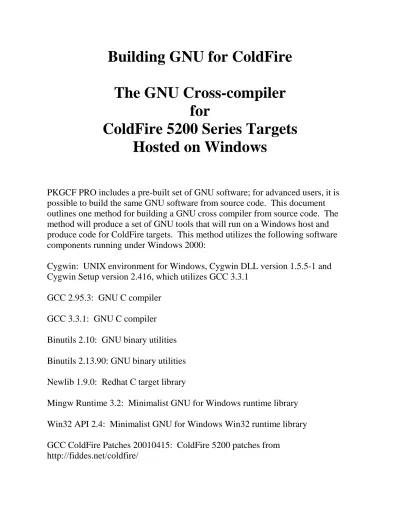

Building GNU for ColdFire
The GNU Cross-compiler
for
ColdFire 5200 Series Targets
Hosted on Windows
PKGCF PRO includes a pre-built set of GNU software; for advanced users, it is possible to build the same GNU software from source code. This document outlines one method for building a GNU cross compiler from source code. The method will produce a set of GNU tools that will run on a Windows host and produce code for ColdFire targets. This method utilizes the following software components running under Windows 2000:
Cygwin: UNIX environment for Windows, Cygwin DLL version 1.5.5-1 and Cygwin Setup version 2.416, which utilizes GCC 3.3.1
GCC 2.95.3: GNU C compiler GCC 3.3.1: GNU C compiler Binutils 2.10: GNU binary utilities Binutils 2.13.90: GNU binary utilities Newlib 1.9.0: Redhat C target library
Mingw Runtime 3.2: Minimalist GNU for Windows runtime library Win32 API 2.4: Minimalist GNU for Windows Win32 runtime library GCC ColdFire Patches 20010415: ColdFire 5200 patches from
Installing Cygwin
Install Cygwin prior to building the GNU tool set. Download the Cygwin installer from the website:
http://sources.redhat.com/cygwin/
This build example refers to the Cygwin DLL version 1.5.5-1 and Cygwin Setup version 2.416, which utilizes GCC 3.3.1.
If another installation of Cygwin exists on the same host, consider uninstalling the existing version. If running several installations of Cygwin, be sure to understand the implications of this before attempting setup. See the Cygwin documentation, available on the web, regarding mount points and paths.
Run the Cygwin installer. Select "Install from Internet", then select a root installation directory. For this example, the root directory is:
C:\pemicro\pkg5272C3z
When prompted, select any download site. A list of application groups should appear in a dialog box. To ensure a successful GNU build, it is crucial that all the necessary Cygwin software is downloaded. For this installation, the following software groups are selected:
Admin Archive Base Devel Interpreters Libs Shells System Text Utils
The above software groups should be set to "Install". Leave the remaining groups at "Default". Complete the installation procedure.
Configuring Cygwin
For detailed information regarding Cygwin configuration and paths, see the Cygwin manual found on the website above.
Check that the Cygwin mount points are configured correctly. In this example, the root / should point to C:\pemicro\pkg5272C3z. Use the commands "mount" and "umount" to change the Cygwin mount table, if necessary.
The Cygwin PATH environment variable should reflect the executable path search order for Cygwin. For this example, our native Cygwin applications are located in C:\pemicro\pkg5272C3z\bin, which translates to the Cygwin path /bin.
However, the ColdFire cross-compiler tools will reside at a different location. We will produce three unique sets of cross-compiling tools:
C:\pemicro\pkg5272C3z\usr\local1\bin which translates to the Cygwin path /usr/local1/bin
This directory will contain the GNU tools for a Cygwin host (i686-pc-cygwin) and Windows target (i386-mingw32).
C:\pemicro\pkg5272C3z\usr\local2\bin which translates to the Cygwin path /usr/local2/bin
This directory will contain the GNU tools for a Cywin host (i686-pc-cygwin) and ColdFire target (m68k-elf).
C:\pemicro\pkg5272C3z\usr\local3\bin which translates to the Cygwin path /usr/local3/bin
This directory will contain the GNU tools for a Windows host (i386-mingw32) host and ColdFire target (m68k-elf).
In the directory C:\pemicro\pkg5272C3z\etc, change the file named profile (or profile.default). Change the value of the PATH variable, defined at the top of the file:
This will provide Cygwin with the proper search order for the GNU executable files.
Downloading Source
Download the following source code packages from the web: Binutils version 2.10 http://sources.redhat.com/binutils/ Binutils version 2.13.90 http://sources.redhat.com/binutils/ GCC version 2.95.3 http://gcc.gnu.org/ GCC version 3.3.1
Download the following archives: gcc-core-3.3.1-20030804-1-src gcc-g++-3.3.1-20030804-1-src gcc-testsuite-3.3.1-20030804-1-src http://www.mingw.org/ Newlib version 1.9.0 http://sources.redhat.com/newlib/
GNU ColdFire Patches version 20010415
http://fiddes.net/coldfire/
Mingw32 Runtime Libraries version 3.2
http://www.mingw.org/
Win32 Runtime Libraries for Mingw32 version 2.4
http://www.mingw.org/
Extracting the Source Code
In the directory C:\pemicro\pkg5272C3z, the root / directory for Cygwin, launch cygwin.bat, which opens a UNIX bash shell. The default home directory for this
example is /home/Administrator. Place all source code archives into this directory, C:\pemicro\pkgMPC555z\home\Administrator.
Extract the source code using a utility such as gunzip. For example, if the archive files are in the format .tar.gz, use this command to extract binutils 2.10:
gunzip c binutils2.10.tar.gz | tar xvf
-This will create the directory /home/Administrator/binutils-2.10.
Using this syntax, extract the following archives into the current directory /home/Administrator:
binutils-2.13.90 gcc-2.95.3 gcc-3.3.1 newlib-1.9.0
gcc-m68k-source-r7-20010415-no-gnu-source (ColdFire patches)
Note that for gcc-3.3.1, the following archives must be extracted to the same directory:
gcc-core-3.3.1-20030804-1-src gcc-g++-3.3.1-20030804-1-src gcc-testsuite-3.3.1-20030804-1-src
Create four additional empty directories in the current directory /home/Administrator: build-binutils-2.10-A build-binutils-2.10-B build-binutils-2.13.90 build-gcc-2.95.3-A build-gcc-2.95.3-B build-gcc-3.3.1
Installing Supplemental Libraries
The directory /usr/local1 will contain the cross-compiler that will execute under Cygwin (i686-pc-cygwin) and produce target code for Windows (i386-mingw32). Install the Mingw32 Runtime Libraries and the Win32 Runtime Libraries for Mingw32 using these commands:
cd /usr/local1/i386-mingw32
gzip dc "/home/Administrator/mingwruntime3.2.tar.gz" | tar xf gzip dc "/home/Administrator/w32api2.4.tar.gz" | tar xf
-Building Binutils 2.13.90 for a Cygwin Host (i686-pc-cygwin) and a Windows (i386-mingw32) Target
Change directories to /home/Administrator/build-binutils-2.13.90. Issue these commands:
/home/Administrator/binutils-2.13.90/configure --disable-nls target=i386-mingw32 host=i686-pc-cygwin prefix=/usr/local1 with-gcc with-gnu-as --with-gnu-ld --disable-shared
make "LDFLAGS=-s" "CFLAGS=-O2 -g0" make install
Building GCC 3.3.1 for a Cygwin Host (i686-pc-cygwin) and a Windows Target (i386-mingw32)
Change directories to /home/Administrator/build-gcc-3.3.1. Issue these commands:
/home/Administrator/gcc-3.3.1/configure with-gcc with-gnu-ld with-gnu-as --target=i386-mingw32 --host=i686-pc-cygwin --prefix=/usr/local1 --enable-threads disable-nls enable-languages=c,c++ disable-win32-registry disable-shared --enable-sjlj-exceptions --enable-libgcj --disable-java-awt --without-x --enable-java-gc=boehm --disable-libgcj-debug --enable-interpreter
--enable-hash-synchronization --without-newlib
make "CFLAGS=-O2" "GCJFLAGS=-O2" "LDFLAGS=-s -Wl,--stack=0x00800000" DEBUG_FLAGS=-g0 2>err.log
make install
Patching the Source Code for Binutils 2.10, GCC 2.95.3, and Newlib 1.9.0
Patch the source code using the following commands: cd /home/Administrator/binutils-2.10 patch -p1 < /home/Administrator/gcc-m68k-source-r7-20010415-no-gnu-source/binutils-2.10-coldfire-cpushl.diff patch -p1 < /home/Administrator/gcc-m68k-source-r7-20010415-no-gnu-source/binutils-2.10-coldfire-fixes.diff cd /home/Administrator/gcc-2.95.3 patch -p1 < /home/Administrator/gcc-m68k-source-r7-20010415-no-gnu-source/gcc-2.95.3-coldfire-alignment.diff patch -p1 < /home/Administrator/gcc-m68k-source-r7-20010415-no-gnu-source/gcc-2.95.3-coldfire-epilogue-fix.diff patch -p1 < /home/Administrator/gcc-m68k-source-r7-20010415-no-gnu-source/gcc-2.95.3-coldfire-hwdiv.diff patch -p1 < /home/Administrator/gcc-m68k-source-r7-20010415-no-gnu-source/gcc-2.95.3-coldfire-longmul.diff patch -p1 < /home/Administrator/gcc-m68k-source-r7-20010415-no-gnu-source/gcc-2.95.3-coldfire-version-message.diff patch -p1 < /home/Administrator/gcc-m68k-source-r7-20010415-no-gnu-source/gcc-2.95.3-interrupt-attribute-20010127.diff cd /home/Administrator/newlib-1.9.0 patch -p1 <
/home/Administrator/gcc-m68k-source-r7-20010415-no-gnu-Remove the following directories with these commands: cd /home/Administrator/gcc-2.95.3 rm -Rf gcc/f rm -Rf gcc/ch rm -Rf gcc/objc rm -Rf gcc/java rm -Rf libchill rm -Rf libf2c rm -Rf libobjc
Create symlinks using these commands in the current directory, /home/Administrator/gcc-2.95.3:
ln -s /home/Administrator/newlib-1.9.0/newlib. ln -s /home/Administrator/newlib-1.9.0/libgloss.
Issue these commands in the current directory, /home/Administrator/gcc-2.95.3: mv 2.95.3/texinfo
/home/Administrator/gcc-2.95.3/old.texinfo
Building Binutils 2.10 for a Cywin Host (i686-pc-cygwin) and a ColdFire Target (m68k-elf)
Change directories to /home/Administrator/build-binutils-2.10-A. Issue these commands:
/home/Administrator/binutils-2.10/configure --target=m68k-elf --host=i686-pc-cygwin --prefix=/usr/local2
make
make install
Building GCC 2.95.3 and Newlib 1.90 for a Cywin Host (i686-pc-cygwin) and a ColdFire Target (m68k-elf)
Change directories to /home/Administrator/build-gcc-2.95.3-A. Issue these commands:
/home/Administrator/gcc-2.95.3/configure --target=m68k-elf --host=i686-pc-cygwin --prefix=/usr/local2 --with-included-gettext --with-newlib
make
make install
Building Binutils 2.10 for a Windows Host (i386-mingw32) and a ColdFire Target (m68k-elf)
Change directories to /home/Administrator/build-binutils-2.10-B. Issue these commands:
/home/Administrator/binutils-2.10/configure build=i686-pc-cygwin --target=m68k-elf --host=i386-mingw32 --prefix=/usr/local3
make
make install
Building GCC 2.95.3 and Newlib 1.90 for a Windows Host (i386-mingw32) and a ColdFire Target (m68k-elf)
Change directories to /home/Administrator/build-gcc-2.95.3-B. Issue these commands:
/home/Administrator/gcc-2.95.3/configure --build=i686-pc-cygwin --target=m68k-elf --host=i386-mingw32 --prefix=/usr/local3 included-gettext
--with-newlib
Edit the file /home/Administrator/build-gcc-2.95.3-B/gcc/Makefile. Replace the source line
USE_COLLECT2 = collect2$(exeext) with
From the directory /home/Administrator/build-gcc-2.95.3-B, issue the following commands:
make
make install
The Windows GNU tools for ColdFire now reside at /usr/local3.
