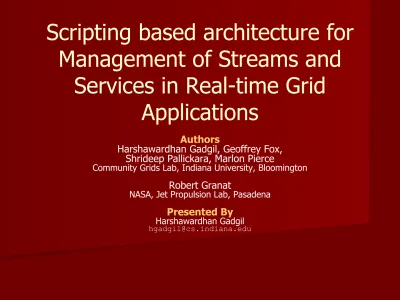

Scripting based architecture for Management of Streams and Services in Real time Grid Applications

Scripting based architecture for

Management of Streams and

Services in Real-time Grid

Applications

Authors

Harshawardhan Gadgil, Geoffrey Fox, Shrideep Pallickara, Marlon Pierce

Community Grids Lab, Indiana University, Bloomington

Robert Granat

NASA, Jet Propulsion Lab, Pasadena

Presented By

Harshawardhan Gadgil

Talk Outline

n

Introduction to HPSearch Architecture

A quick view of NaradaBrokering

middleware

n

System Goals

– RDAHMM Example

HPSearch

n A JavaScript based scripting runtime serving as

an administration console

– Currently uses Rhino (http://www.mozilla.org/rhino) implementation of JavaScript.

n Management viewed as

– Setting up the distributed application (Involves setting

up the broker network, initializing system components)

– Querying Run-time System Metadata

§ For logging purposes

§ Monitor metadata to help dynamically rewire system to

improve performance

HPSearch Architectur

Component Summary

n Binds URIs to a scripting language

– Allows us to manage (manipulate) the Resource

identified by the URI

§ E.g. Read / Write to files, sockets, topics

§ Read from data base, data from FTP/HTTP resource

§ This data can then be streamed to distributed application OR

data can be read from a stream and processed / stored

n “Host-objects” allow us to dynamically access

the host system.

– Useful for constructing objects that monitor system meta-data, perform management tasks

– PerfMetrics gathers system performance data and

HPSearc

HPSearch Control Events using

PUB/SUB on predefined topic Data buffers sent / received as Narada Events

NaradaBrokering

n NaradaBrokering

– Messaging infrastructure for collaboration, peer-to-peer and Grid applications

– Implements high-performance protocols (message

transit time of 1 to 2 ms per hop)

– Order-preserving, optimized message transport with

QoS and security profiles for sent and received messages

– Support for different underlying protocols such as TCP, UDP, Multicast, RTP

HPSearch + NaradaBrokerin

Managing Streams

n HPSearch uses NaradaBrokering to route data

streams

– Each stream is represented by a topic name – Components subscribe / publish to specified

topic

§ The WSProxy component automatically maps

topics to Input / Output streams

§ Each write (byte[] buffer) and

byte[] read() call is mapped to a NaradaBrokering event

System Goals

n Investigate the use of HPSearch as a management

console to deploy system and application components using scripting

n Use HPSearch in scientific / grid applications which can

use streaming data

– Data filtering is essential in most cases and we do not want to transfer entire data set when only a small percentage of data would be used,

§ E.g. Choosing data satisfying certain input constraints.

– Data re-ordering might be required for formatting input data to match the requirements of executable,

§ E.g. Converting GML to remove XML elements

n Use publish-subscribe methodologies to connect

n GPS time series have modes caused by unknown

underlying physical processes

n RDAHMM allows us to identify these modes and

time periods where physical processes

dominated the sequence without any a-priori knowledge of these processes

n Help to determine

– The actual physical causes

– When is the system entering a new mode (perhaps a

hint of some important seismic event)

Exampl

RDAHMM

Exampl

Application Components

n GPS database (Surface displacement time series

collected by SCIGN, http://www.scign.org)

n Data filter (filters data, removes unwanted

components, reorders data as required by the actual RDAHMM executable)

n RDAHMM executable, performs the time series

analysis. This data is transferred to the Graph plotting application.

HPSearch Engine

Applications

Streaming Data Filtering

Data Filter

Filters the input data to get

only the estimate and error

values

RDAHMM Analyze the data

Matlab Plotting

Script Output Graph

HPSearch Handler GPS Data Senso r Sourc e Handler Handler

Each Handler controls operation of 1 service

Sample Outpu

Related Work

n Scripting languages have been very popular and

successful for Rapid Application Deployment (RAD)

– Sash by IBM, allow RAD and handlers for various tasks such as reading from databases, LDAP registries, invoking Web Services and providing GUI

– Jython and Matlab are popular in many scientific communities. E.g. GeoDISE

– XCAT project at IU, Extreme Lab uses Jython for scripting to deploy distributed components

– Karajan (Ant Like scripting) is used for deploying applications over grid

– WSRF::Lite uses perl to implement Web Services Resource

Framework and host grid services

Future Work

n Investigate system and management scaling

with increasing number of components.

n Use of security for streams

n Negotiation of optimal (high performance)

transport

n More handlers for different aspects of

NaradaBrokering’s management (broker / topic discovery, security, replay etc…)

n Investigate interaction with WS Management

To conclude…

n

Presented a scripting based architecture

for management of data streams and

distributed services

n

Shown how we can use publish subscribe

methodologies to connect components

that process data in a stream

n

Create and deploy quick data filtering

applications

More Information

n

HPSearch Project Website

http://www.hpsearch.org

n

Na

radaBrokering Project @ IU

http://www.naradabrokering.org

n

CGL

Publications

Questions / Comments

n

Any Questions / Comments ?

THANKS

for attending the presentation
