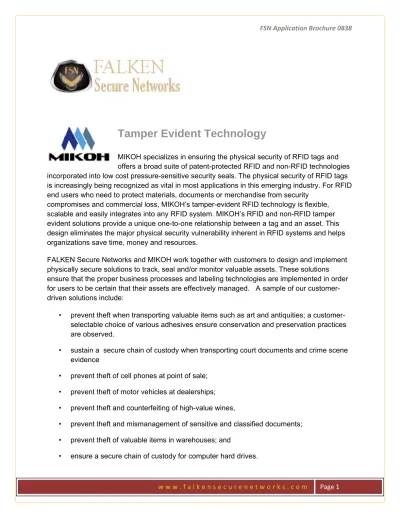

Tamper Evident Technology
MIKOH specializes in ensuring the physical security of RFID tags and offers a broad suite of patent-protected RFID and non-RFID technologies incorporated into low cost pressure-sensitive security seals.The physical security of RFID tags is increasingly being recognized as vital in most applications in this emerging industry. For RFID end users who need to protect materials, documents or merchandise from security
compromises and commercial loss, MIKOH’s tamper-evident RFID technology is flexible, scalable and easily integrates into any RFID system. MIKOH’s RFID and non-RFID tamper evident solutions provide a unique one-to-one relationship between a tag and an asset. This design eliminates the major physical security vulnerability inherent in RFID systems and helps organizations save time, money and resources.
FALKENSecure Networks and MIKOH work together with customers to design and implement physically secure solutions to track, seal and/or monitor valuable assets. These solutions ensure that the proper business processes and labeling technologies are implemented in order for users to be certain that their assets are effectively managed. A sample of our customer-driven solutions include:
• prevent theft when transporting valuable items such as art and antiquities; a customer-selectable choice of various adhesives ensure conservation and preservation practices are observed.
• sustain a secure chain of custody when transporting court documents and crime scene evidence
• prevent theft of cell phones at point of sale; • prevent theft of motor vehicles at dealerships; • prevent theft and counterfeiting of high-value wines,
• prevent theft and mismanagement of sensitive and classified documents; • prevent theft of valuable items in warehouses; and
MIKOH’s patent-protected technologies are applicable to both RFID and non-RFID physical security solutions that require tamper evidence. Tamper evidence can include both visual and electronic indicators depending on the application and how the tag or label has been tampered. MIKOH has offices in Melbourne and Sydney in Australia, and McLean, Virginia and New York, New York in the USA.
MIKOH Quick Videos for Tamper Evident Technologies:
http://www.mikoh.com/flash/asset.html
http://www.mikoh.com/flash/ssv.html
Smart&Secure
The MIKOH Smart&Secure Inform tag is a pressure-sensitive RFID label incorporating a chip and antenna manufactured from destructible conductive ink. Its tamper layer causes antenna damage when the tag is
compromised or removed.
Smart&Secure Inform is currently offered in both UHF and HF designs. • Patented RFID physical security technology
• Deployed by high-security government agencies
• Rigorously tested by large SI’s and end customers(Depending on the application, adjustments in the adhesive can be made to optimize performance for specific surfaces and other operating conditions).
Smart&Secure Inform disables the RFID functionality of tags, labels and seals if tampering occurs. This creates a unique, one-to-one relationship between the tag and the asset to which it is attached, preventing unauthorized tag removal and transfers. The result mitigates risk
surrounding asset tampering, theft and counterfeiting. A functional tag indicates a genuine product. With Smart&Secure Inform, users can be certain that more than just the RFID tag is being tracked.
The MIKOH Smart&Secure Inform tag is a pressure-sensitive RFID label incorporating a chip and antenna manufactured from destructible conductive ink. Its tamper layer causes antenna damage when the tag is compromised or removed. This is done through a special multi-layer adhesive design. A proprietary adhesive chemistry and multi-layer manufacturing process result in reliable tamper indication even when sophisticated tamper methods are used, including:
• Damages the tamper trace • RFID chip can still be read and written to and indicates tampering • Destroys tag when tampered
• Damages the antenna, cannot be repaired
• Damages the tamper trace • RFID chip can still be read and written to and indicates tampering
• Temperature Extremes (e.g. Liquid Nitrogen Freezing, Heat Guns) • Chemical Attack (e.g. Solvents, Corrosives)
• Mechanical Attack (e.g. Razor Blades, Knives)
MIKOH's highly-flexible Smart&Secure Inform platform works across a wide variety of RFID designs with no impact on performance. Smart&Secure Inform tags are compatible with all existing passive RFID frequencies, protocols and chips.
The MIKOH Smart&Secure Insight tag is a pressure-sensitive RFID label incorporating a chip, antenna and dedicated tamper circuit manufactured from destructible conductive ink. Smart&Secure Insight’s tamper layer causes disruption to the tamper circuit on tampering or removal of the tag without affecting the chip or antenna. During a read operation, this disruption is sensed by the chip and the tampering is reported to the reader.This is done through a special multi-layer adhesive design. A proprietary adhesive chemistry and multi-layer manufacturing process result in reliable tamper indication even when sophisticated tamper methods are used, including:
• Temperature Extremes (e.g. Liquid Nitrogen Freezing, Heat Guns) • Chemical Attack (e.g. Solvents, Corrosives)
• Mechanical Attack (e.g. Razor Blades, Knives)
MIKOH's highly-flexible Smart&Secure Insight platform is currently available at 13.56 MHz. UHF chip designs are currently on the roadmap for future introduction.
Smart&Secure: Merchandise Tag
Unlike other RFID tags designed for retail applications, the Smart&Secure Merchandise Tag allows consumers to reduce the RFID read distance simply by unfolding the top layer of the tag, which decouples the tag’s antenna from its RFID chip and thereby ensures consumer privacy. If the product is returned, the tag’s read distance can easily be restored by folding the tag closed again, making it fully usable in an inventory management system or reverse supply chain.
Smart&Secure Merchandise Tag
Read Distance: 15-20 feet Read Distance: Approx. 4 inches Read Distance: 15-20 feet
SecureContainer
A system designed to seal reusable plastic containers (RPCs) using low cost pressure-sensitive security seals, incorporating intellectual property licensed from the US National Security Agency (NSA).
Complete SecureContainers with initial sealing kit in a variety of sizes and usage applications, including: Long, Large and Medium. Familiar rugged cases from Pelican with the added benefit of MIKOH SecureContainer technology.
• Utilizes tamper indicating seals with Reusable Plastic Containers
• Residue from tamper evident tag remains on insert that is replaced
SecureEnclosure
US Patent Pending• Enables tamper indicating seals to be conveniently used on containers such as Reusable Plastic Containers (RPCs) • Recesses are incorporated in both sides of the container lid • Inserts project into the recesses of both sides of the cover • The seal is applied across the inserts
• When the seal is removed, the residue remains on the inserts • The inserts can be replaced eliminating the need to clean off the residue
SubScribe (Non-RFID)
• Low cost alternative to RFID solutions • Security Construction and Equipment Committee (SCEC) certified in Australia • FIPS certified (US)• Robust subsurface laser marking
• Digital laser marking resulting in high flexibility
SubScribe labels as document authentication Tampered SubScribe label
Smart&Secure:
Warehouse
• Inventory Management
• Storage of Classified and Sensitive
Materials
• Weaponry and Munition Storage
• Disaster Recovery and Relief
Smart&Secure:
Transport
• Automatic Vehicle Identification/EVR
• Supply Chain Management
• Facility Access Control
• Fleet Management
• Cold Chain Logistics
Smart&Secure loop seals are also used to secure cases for transport.
Smart&Secure:
Healthcare &
Pharma
Track and trace and e-pedigree systems detect the tag but only infer the presence of the product. As a result, RFID can
actually disguise theft and counterfeiting.
Conventional RFID tags can be easily moved from one item to another, without
affecting the RFID function.
• Nothing prevents a shipping carton from being opened, removing all RFID tags and placing them on counterfeit items. • It is easy to remove the RFID tags, steal the assets and leave the tags in the empty carton.
MIKOH’s Smart&Secure platform fills the current holes in other RFID systems by creating a one-to-one relationship between the tag and drug packaging that is tamper-evident. It instills certainty of pharmaceutical authenticity while meeting track and trace and e-pedigree
requirements, saving your company money and time.
SecureContainer eliminates the need for item level tagging by providing a trusted reusable plastic container (RPC) for tracking and tracing pharmaceutical shipments. Other Mikoh applications include:
• Patient ID Wristbands
• Tissue Sample and Transplant
• Organ Shipment Containers
• Pharmaceutical Track and Trace/e- Pedigree
• Sealed Surgical Kits
Smart&Secure: Document
Police to Courthouse to Storage
Diplomatic Courier Service
Transport of Intellectual Property
• Storage/Control of Legal Evidence
• Chain of Custody
Frangible Tags
A material is said to be frangible if through deformation it tends to break up into fragments, rather than deforming plastically and retaining its cohesion as a single object.Frangible Tags that tear apart upon removal are typically positioned as a physically secure solution. However, Frangible Tags can be easily defeated and provide little to no physical security.
• Tamper Slits or Tamper Destruct Material • RFID functionality is NOT tamper evident
• Can be defeated by a razor blade and temperature to release the label from the surface • Additional Face Stock with strong adhesive may be overlayed to act as a new tag backbone
Tamper Evidence vs. Authentication
Tag authentication is frequently confused with tamper evidence Examples of authentication technologies:• Authentication technologies include: Color shifting inks, security threads and holograms • Authentic tags can still be easily moved if not also designed to be tamper evident
____________________________________________________________________________
Security Threads
Color Shifting Ink
Holograms
A tag with a variety of
authentication features..
...can be easily moved if
not designed properly
Genuine
Asset
Serialization
• Serialization identifies tags and labels as unique
• Serialized tags can still be easily moved if not also designed to be tamper evident
Three Components of Anti-Counterfeiting
Authentication +
Serialization + Tamper Evidence
Smart&Secure -
Third Party Testing Results
MIKOH tags all operated within specification under the following conditions:
•-40º C → 150º C, cycled in different patterns •Stress: 31 days, -40º C → 95º C every 2 hours
Proves that a
Proves that a tag
or label is genuine
Proves application
of correct tag or label
Indicates whether
tag or label has been
manipulated
•24 hour immersion •Household: Windex, Glass Plus, Armor All, Coke, Coffee • Industrial: Toluene, MEK, Hexane
•Razor blade, as it is the most stringent test on a glass surface
•7 days at 65º C and 94% humidity
•Simulated 1 year of outdoor exposure in Arizona
NSA Technology:
SecureEnclosure
• MIKOH has licensed the NSA’s Closure Technology
• NSA developed the concept to quickly verify door closure location has been ‘swept’
• Similar to the closure mechanism
SecureContainer
• Seal can be used for any closure • Building doorways
• Container doors • Filing cabinet drawers
Our Customers Include Various High Security Government Agencies
Motorola/Symbol
CERTIFIED Partner
Authorized Value-Added Reseller
Authorized Value-Added Reseller Authorized Value-Added Reseller
CERTIFIED Partner
Authorized Value-Added Reseller
Authorized FileTrail Partner
Authorized Mikoh Partner
FALKEN Secure Networks(FSN)—Your partner for RFID automation
If you choose to pursue RFID implementation in your organization, here is the FALKEN Secure Networks commitment to you:
• FSN will provide solution architects to work with you to define system requirements for your particular installation. Multiple locations can be networked together for a central and real-time view and centralized management.
• FSN will do a RFID site survey to validate radio frequencies, tag types, system design and performance
• FSN will provide all necessary hardware and software to make the system work for you • FSN will integrate the system with your existing enterprise management software • FSN will provide documentation for the system, including operating procedures • FSN will train your people
• FSN will provide warranty and continued system support
Our sole uncompromised focus as a RFID solution architect and specialized system integrator is cost-effectively solving the customer business issue and optimizing the RFID security and physics variables in our recommended solutions.
