Os Lab Manual-1

(1)

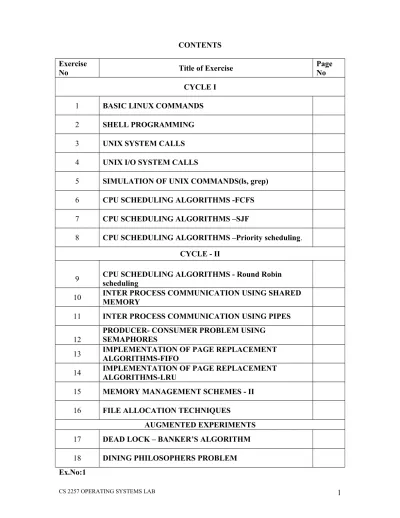

CONTENTS Exercise

No Title of Exercise Page No

CYCLE I

1 BASIC LINUX COMMANDS

2 SHELL PROGRAMMING

3 UNIX SYSTEM CALLS

4 UNIX I/O SYSTEM CALLS

5 SIMULATION OF UNIX COMMANDS(ls, grep)

6 CPU SCHEDULING ALGORITHMS -FCFS

7 CPU SCHEDULING ALGORITHMS –SJF

8 CPU SCHEDULING ALGORITHMS –Priority scheduling. CYCLE - II

9 CPU SCHEDULING ALGORITHMS - Round Robin _scheduling 10 INTER PROCESS COMMUNICATION USING SHARED _MEMORY

11 INTER PROCESS COMMUNICATION USING PIPES

12

PRODUCER- CONSUMER PROBLEM USING SEMAPHORES

13 IMPLEMENTATION OF PAGE REPLACEMENT

ALGORITHMS-FIFO

14 IMPLEMENTATION OF PAGE REPLACEMENT _{ALGORITHMS-LRU}

15 MEMORY MANAGEMENT SCHEMES - II

16 FILE ALLOCATION TECHNIQUES

AUGMENTED EXPERIMENTS

(2)

Date:

1. BASIC LINUX COMMANDS Objective

To study different types of UNIX/LINUX command syntax and check the output of each command.

Introduction to UNIX Operating System

An Operating System (OS) can be defined as a software program designed to control the hardware, manage the system resources and supervises interaction between the system and its users.

Types of Operating System

• Single User Operating Systems are those which are used in PCs.

Eg.DOS

• Multi User Operating Systems are those which can handle

multiple users as well as peripherals simultaneously. Eg.UNIX

Functions of a Multi user Operating system

• Isolating the user from the hardware.

• Providing a transparent layer to communicate with hardware.

• Scheduling tasks of various users.

• Managing resources and allocating them to various users.

• Resolving conflicting requests of various users.

• Monitoring and auditing system operations

Structure of UNIX Operating System

Kernel

Kernel forms the core of the UNIX operating system. This interacts with the hardware. It is loaded into the memory when a system is booted. Its functions are,

Hardwar e

Kernel Shell Application

(3)

• Process Scheduling and Management

• Managing Hardware devices.

• Allocating time for different users and processes

Shell

The Shell in one layer above the kernel. It acts as a command interpreter for the command input by the user. The Shell takes the user command as input, interacts with the kernel using system calls and the kernel in turn interacts with the hardware.

Additionally shell contains a programming language which enables users to write shell scripts on their own.

The Unix Shell performs the following functions:

• It acts as command interpreter

• It expands the various meta characters used in file operations (like ?,[] etc)

• It is responsible for redirecting the output of one command as the input of another

command in a redirection or filtering operation initiated from the command prompt.

• It is responsible for executing the shell scripts which use the programming language of the shell

• It is responsible for setting up the environment for the user.

The most important shells are the Bourne Shell, C shell Korn shell etc.

Features of UNIX OS * Multitasking

Multitasking is the capability of the operating system to perform various tasks.ie., A single user can perform various tasks.

*Multi-user capability

This allows several users to use the same computer to perform their tasks.

*Security

Every user has a login name and a password. So, accessing another user’s data is impossible without permission

*Portability

UNIX is portable because it is written in a high level language ©. So UXIX can be run on different computers.

*Communication:

UNIX supports the following communications.

i) Between the different terminals connected to the UNIX server.

ii) Between the users of one computer to the users of another

Programming facility:

UNIX is highly programmable, the UNIX shell programming language has all the necessary ingredients like conditional and control structures (Loops) and variables.

Structures of a UNIX file system

(4)

/dev Contains file that link hardware devices /tmp temporary storage of files

/home user home directories

Getting started with UNIX

Switching the system ON will provide the user with login prompt. Here we enter the login name. Then it prompts for the password. The password is not echoed on the screen to protect the privacy of the war. If both are correct, then we will get the S prompt.

UNIX Commands

Basic Commands

I file and Directory Related commands 1) pwd

This command prints the current working directory. Syntax: $ pwd

2) ls

This command displays the list of files in the current working directory. $ ls

$ ls -a: It displays all files in current directory including hidden files and directory.

$ ls r*: It displays files whose begins with ‘*’ specifies number of characters.

$ls r?:This displays files which are having r from second character irrespective of 1st_character.

$ ls[a-m]* :It lists files whose names begin with alphabets from a to m

$ ls [!a –g]*:List all files not begin with character a to g.

$ls –l Lists the files in the long format. It is the way of controlling accessibility of file each of groups and other.

$ls –t lists in the order of last modification time $ls –d Lists directory instead of contents $ls -u Lists in order of last access time

3) cd

This command is used to change from the working directory to any other directory specified.

$cd directory-name

4) cd ..

This command is used to come out of the current working directory. $cd ..

(5)

$mkdir directory-name

6) rmdir

This command is used to remove a directory specified in the command line. It requires the specified directory to be empty before removing it.

$rmdir directory-name

7) cat

This command helps us to list the contents of a file we specify. $cat [option][file]

$cat filename-Used to display the content of the file $cat > filename – This is used to create a new file.

$cat >>filename – This is used to append the contents of the file

8) cp

This command helps us to create duplicate copies of ordinary files. $cp source-filename destination-filename

9) mv

This command is used to move files from one place to another place (Renaming). $mv source-filename destination-filename

10) ln

This command is to establish an additional filename for the same ordinary file. $ln firstname secondname

11) rm

This command is used to delete one or more files from the directory. $rm [option] filename

$rm -i -asks the user if he wants to delete the file mentioned.

$rm -r -Recursively delete the entire contents of the directory as well as the directory itself.

12) man

This command is used to syntax help of various commands. $man command-name

(6)

II) Process and status information commands 1) who

This command gives the details of who all have logged in to the UNIX system currently.

$ who

2) who am i

This command tells us as to when we had logged in and the system’s name for the connection being used.

$who am i

3) date

This command displays the current date in different formats.

+%D mm/dd/yy +%w Day of the week

+%H Hr-00 to 23 +%a Abbr.Weekday

+%M Min-00 to 59 +%h Abbr.Month

+%S Sec-00 to 59 +%r Time in AM/PM

+%T HH:MM:SS +%y Last two digits of the year

4) echo

This command will display the text typed from the keyboard. $echo

Eg: $echo “Have a nice day” Output: Have a nice day

5) Executing more command at a time:

The semicolon operator overcomes the limitation of executing only one command at a time.

SYNTAX:

$ command1; $ command2 $ pwd;who

6) tput and clear:

It clears the screen and places a$ prompt at left top corner of screen

SYNTAX:

$ tput clear $clear

(7)

7) calendar : cal:

It is used to keep track of our days, it displays specified month of year.

SYNTAX:

$ cal month or year

8) calculator: bc:

Offers on online calculator and can be invoked by command be calculator is programmable and has complex functions.

SYNTAX:

$ bc

9) Re-directing standard output to a file:

SYNTAX:

$ command > file.

The symbol ‘>’ is the redirection operation. It sends the output of the command to a file as a device such as printer, disk, type etc

SYNTAX:

$ ls >file-name

II Text related commands 1. head

This command displays the initial part of the file. By default it displays first ten lines of the file.

$head [-count] [filename]

$head -3 filename ->displays first 3 lines of the file

2. tail

This command displays the later part of the file. By default it displays last ten lines of the file.

$tail [-count] [filename]

$tail -3 filename ->displays last 3 lines of the file

3. wc

This command is used to count the number of lines, words or characters in a file. $wc [-lwc] filename

4. find

The find command is used to locate files in a directory and in a subdirectory. $find –name option

This lists out the specific files in all directories beginning from the named directory. Wild cards can be used.

(8)

$find –type option

This option is used to identify whether the name of files specified are ordinary files or directory files. If the name is a directory then use “-type d “and if it is a file then use “-type f”.

$find –mtime option

This option will allow us to find that file which has been modified before or after a specified time. The various options available are –mtime n(on a particular day),-mtime +n(before a particular day),-mtime –n(after a particular day)

$find –exec option

This option is used to execute some commands on the files that are found by the find command.

$find $HOME -print will lists all files in your home directory. $find /work -name chapter1 -print will list all files named chapter1 in /work directory.

5) Diff

diff command will compare the two files and print out the differences between them. Here I have two ascii text files. fileone and file two.

$diff fileone filetwo 6) Cmp command.

cmp command compares the two files. For exmaple I have two different files fileone and filetwo.

$cmp fileone filetwo 7) Dircmp Command.

dircmp command compares two directories. If i have two directories in my home directory named dirone and dirtwo and each has 5-10 files in it. Then

$dircmp dirone dirtwo

IV File Permission commands 1) chmod

Changes the file/directory permission mode: $ chmod 777 file1

Gives full permission to owner, group and others $ chmod o-w file1

(9)

$ chmod o +x file1

Add execute permission to others.

V Useful Commands: 1) $exit

Ends your work on the UNIX system.

2) $Ctrl-l or clear

Clears the screen.

3) $Ctrl-c

Stops the program currently running.

4) $Ctrl-z

Pauses the currently running program. 5) more FILE

Display the contents of FILE, pausing after each screenful.

There are several keys which control the output once a screenful has been printed. <enter> Will advance the output one line at a time.

<space bar> Will advance the output by another full screenful. "q" Will quit and return you to the UNIX prompt.

6) less FILE

"less" is a program similar to "more", but which allows backward movement in the file as well as forward movement.

7) lpr FILE

To print a UNIX text or PostScript file, type the following command at the system prompt:

Meta characters

Some special characters, called metacharacters may be used to specify multiple filenames. These characters substitute filenames or parts of filenames.

The “*”

This character is used to indicate any character(s)

$ cat ap*

This displays the contents of all files having a name starting with ap followed by any number of characters.

The “?” This character replaces any one character in the filename. $ ls ?st

(10)

The [] These are used to specify range of characters. $ ls [a-z]pple

Lists all files having names starting with any character from a to z.

PIPES AND FILTERS

In UNIX commands were created to perform single tasks only. If we want to perform multiple tasks we can go for pipes and filters.

PIPES

A pipe is a mechanism, which takes the output of a command as its input for the next command.

$who | wc –l

$cat text.c | head –3

FILTERS

Filters are used to extract the lines, which contain a specific pattern, to arrange the contents of a file in a sorted order, to replace existing characters with some other characters, etc.

1. Sort filter

The sort filter arranges the input taken from the standard input in alphabetical order. The sort command when used with “-r” option will display the input taken from the keyboard in the reverse alphabetical order. When used with “-n” option arranges the numbers, alphabets and special characters according to their ASCII value. If we want to sort on any one field, then sort provides us with an option called “+pos1 –pos2” option.

sort command sort the lines of a file or files, in alphabetical order. for example if you have a file named testfile with these contents

zzz aaa 1234 yuer wer qww wwe Then running $sort testfile

(11)

wwe yuer zzz

Options:

-b ignores leading spaces and tabs. -c checks whether files are already sorted. -d ignores punctuation.

-i ignore non-printing characters -n sorts in arithmetic order. -ofile put output in a file.

+m [-m] skips n fields before sorting, and sort upto field position m. -r reverses the order of sort.

-u identical lines in input file appear only one time in output.

$ sort input1.txt input2.txt > output.txt

2. Grep filter

This command is used to search for a particular pattern from a file or from standard input and display those lines on the standard output. Grep stands for “Global search for regular expression”.

There are various options available with grep command.

-v displays only those lines which do not match the pattern specified.

-c displays only the count of those lines which match the pattern specified -n displays matched lines with line numbers

-i displays matched pattern ignoring case distinction

$ grep hello *.txt

$ grep -vi hello *.txt

•

If you want to search all files in an entire directory tree for a

particular pattern, you can combine

grep

with

find

using

backward single quotes to pass the output from

find

into

grep

. So

$ grep hello `find . -name "*.txt"

-print`

will search all text files in the directory tree rooted at the current

directory for lines containing the word "hello".

Syntax:

grep "word-to-find" {file-name}

(12)

The uniq filter compares adjacent lines in the sorted input file and when used with different options displays single and multiple occurrences.

-d displays only the lines which are duplicated in the input file. -u displays only the lines with single occurrences.

• uniq

removes duplicate adjacent lines from a file. This facility is

most useful when combined with

sort

:

$ sort input.txt | uniq > output.txt

4. Pg and more filter

These commands display the output of the command on the screen page by page. The difference between pg and more filter is that the viewing screen of the latter can be done by pressing space bar while that of the former is done by pressing enter.

5. Cut command

One particular field from any file or from output of any command can be extracted and displayed using this cut command. One particular character can also be extracted using the –c option of this command.

$cut options [files]

for example if a file named testfile contains

this is firstline this is secondline this is thirdline

Examples:

$cut -c1,4 testfile will print this to standard output (screen)

ts ts ts

It is printing columns 1 and 4 of this file which contains t and s (part of this).

Options:

• -c list cut the column positions identified in list.

• -f list will cut the fields identified in list.

• -s could be used with -f to suppress lines without delimiters.

6. Tr command

This command is used to translate characters taken from the standard input. This command when used with “-s” option is used to squeeze multiple spaces into a single space.

(13)

HI I AM VIVEK

what a magic

WHAT A MAGIC Press

7) Paste Command.

Paste command merge the lines of one or more files into vertical columns separated by a tab.

for example if a file named testfile contains

this is firstline

and a file named testfile2 contains

this is testfile2

then running this command $paste testfile testfile2 > outputfile will put this into outputfile

this is firstline this is testfile2 it contains contents of both files in columns.

$who | paste - - will list users in two columns.

Options:

-d'char' separate columns with char instead of a tab. -s merge subsequent lines from one file.

(14)

Exercises

Part- I

1. Create a directory called stud. Change to stud directory. Verify whether you have Changed to the stud directory. Return to your original directory.

2. Create a file called top. Display the first lines from the beginning of the file and the last three lines of the file top.

3. List the contents of a file from the fourth line to the end of the file top. List the contents of a file from the seventh line, of the file top.

4. Create a file called list which contains sample data as follows:

1. Display the contents of the file sorted according to the marks in the descending order.

2. Display the names of the students in the alphabetical order ignoring the cases. 3. Display the list of students who have scored marks between 50 and 80. 4. Display the list of students and their registration numbers.

5. Sort the file according to the third field and dump in to a file called code.

5. Create a file called places whose sample data is as follows and answer the questions below.

Bombay India 45677 Asia

Karachi Pakistan 54876 Asia

Nairobhi Kenya 32196 Africa

1. List the details for the countries USA, Kenya and Canada. 2. List the details for the continent asia ignoring the case.

3. Display the list of those countries whose population is between 40000 and 60000.

4. Extract the lines which end with “ia”.

6. Create a file emp as given and answer the questions below. E0001: malan: mktg: 5000

E0010: balan: acct: 7000

1. Sort the file on the employee department and display the name of the employee and the department.

2. List the employees who earn between 4000 and 6000.

3. Sort the file on the employee name in the reverse order and extract their codes and their names.

7. What is the command to be given if we want to display the entire text of a file into upper case?

8. Display the date in mm/dd/yy format, along with the present time in AM/PM. 9. List the various formats of date command.

(15)

EX. NO :2

DATE : SHELL PROGRAMMING

A Linux shell is a command language interpreter, the primary purpose of which is to translate the command lines typed at the terminal into system actions. The shell itself is a program, through which other programs are invoked

What is a shell script ?

• A shell script is a file containing a list of commands to be executed by the Linux

shell. shell script provides the ability to create your own customized Linux commands

• Linux shell have sophisticated programming capabilities which makes shell script

powerful Linux tools

How to work with shell ?

Step1:

In the dollar prompt type $ vi < file name>

Where vi is the editor ,it will open a new window in which you can type the program you want

Step2:

After typing the program press ESC and : together then at the bottom of the vi screen you can see i.e. prompt .In that type as wq which means write and quit i.e. the content what is typed will be written and saved into that file that has been created

Step3:

Once wq is typed at the : prompt ,the prompt would change to $ symbol in which you have to do the following

$ sh < file name >

Sh – command is used to run the shell program

<file name> - is the name of the file for which the output is to be got Basically to print a text in the your shell programs echo command is used. To make the shell scripts interactive we can use read command.

#!/bin/sh

echo “ Give your name” read name

(16)

The variable with $ is called shell variable. We can assigh values to shell variables like name=raji

The usage will be $ a=20 $ echo $a 20

SYNTAX FOR LOOPING STATEMENTS IF –THEN-ELSE CONSTRUCT if [ condition] then <action> else statements fi (end of if)

The relational operators are

-gt - greater than

-ge - greater than and equal to

-lt - less than

-le - less than and equal to

-ne - not equal to

-eq - equal to

To compare two strings the following operators are used

str1 = str2 - True if both the strings are same

str1 != str2 - True if strings are different

-n string - True if the string’s length is greater than zero

-z string - True if length of the string is zero

string - True if the string is not null

WHILE while <condition> do <statements> Done [ CASE Case $<option> in 1) <statements>;; 2) <statements>;; 3) .. 4) *) <error statement>;; Esac

(17)

For loop

For(( intitialization;condition;incremetation/decrementation))

Function

Function is series of instruction/commands. Function performs particular activity in shell i.e. it had specific work to do or simply say task. To define function use following syntax:

Syntax: function-name ( ) { command1 command2 ... ... commandN return }

Where function-name is name of you function, that executes series of commands. A return statement will terminate the function. Example:

Type SayHello() at $ prompt as follows

$ SayHello() {

echo "Hello $LOGNAME, Have nice computing" return

}

To execute this SayHello() function just type it name as follows:

$ SayHello

Hello vivek, Have nice computing.

(18)

FINDING BIGGEST AMONG THREE NUMBERS Aim:

To write a shell script to find biggest among three numbers.

Algorithm:

1) START: Take three nos as n1,n2,n3.

2) Is n1 is greater than n2 and n3, if yes print n1 is bigest no goto step 5,

otherwise goto next step

3) Is n2 is greater than n1 and n3, if yes, print n2 is bigest no goto step 5,

otherwise goto next step

4) Is n3 is greater than n1 and n2, if yes , print n3 is bigest no goto step 5, otherwise goto next step

(19)

(20)

Output:

Enter the value of a:20 Enter the value of b:45 Enter the value of c:60 C is greater

(21)

FACTORIAL Aim:

To write a shell script to calculate the factorial value of a number.

Algorithm:

1) START: read the value of ‘n’.

2) If n=1, assign i=fact =1

3) Construct a while loop as:

* Calculate fact=fact * i * Increment I by 1 as i=i+1 4) Repeat step2 until i <n

5) Display fact as factorial value END

(22)

(23)

Output:

enter the number 6

The factorial of 6 is 720

(24)

FIBONACCI SERIES Aim:

To write a shell script to generate Fibonacci series.

Algorithm:

1) START: Read the value of ‘n’.

2) Assign i=3, a=c=0, b=1

3) Display a and b.

4) Construct a while loop as * c=a+b

* Assign a=b, b=c

* Echo c and increment by 1 5) Repeat step 4 until i<=n

(25)

(26)

Output:

Enter the number of terms : 9 0 1 1 2 3 5 8 13 21 Result:

(27)

ARMSTRONG NUMBER Aim:

To write a shell script to check whether the number is Armstrong or not.

Algorithm:

1) START: Read the value of ‘n’, assign d=0 and c=n.

2) Construct a while loop as * Calculate b= n %10 * Find b= b* b *b * n= n / 10

* d=d+s

3) Repeat step 2 until n > 0

4) Check by using if statement for c =n. * True, display Armstrong

* False, display not Armstrong END

(28)

(29)

Output:

Enter the number 371

371 is an Armstrong number Enter the number

369

369 is not an Armstrong number

(30)

PALINDROME Aim:

To write a shell script to check whether a string is a palindrome or not..

Algorithm:

1) START: Read string as str.

2) assign str to str1

3) Calculate length of str

4) Initialize while loop as

* Using temporary variable, reverse the string * Decrement length by one

5) Check if reverse = str1 * If true, then goto step 7

6) Display string is not palindrome. Goto step 8. 7) Display string is palindrome.

(31)

(32)

Output:

Ente the string : malayalam

the given string is palindrome

(33)

Ex.No:3 Date:

UNIX SYSTEM CALLS Aim:

Write a program using the following system calls.

Description System Calls

When a computer is turned on, the program that gets executed first is called the ``operating system.'' It controls pretty much all activity in the computer. This includes who logs in, how disks are used, how memory is used, how the CPU is used, and how you talk with other computers. The operating system we use is called "Unix".

The way that programs talk to the operating system is via ``system calls.'' A system call looks like a procedure call (see below), but it's different -- it is a request to the

operating system to perform some activity. getpid

Each process is identified by a unique process id (called a “pid”). The init process (which is the supreme parent to all processes) posesses id 1. All other processes have some other (possibly arbitrary) process id. The getpid system call returns the current process’ id as an integer.

// …

int pid = getpid();

printf(“This process’ id is %d\n“,pid);// …

fork

The fork system call creates a new child process. Actually, it’s more accurate to say that it forks a currently running process. That is, it creates a copy of the current

process as a new child process, and then both processes resume execution from the fork ()

call. Since it creates two processes, fork also returns two values; one to teach process. To the parent process, fork returns the process id of the newly created child process. To the child process, fork returns 0. The reason it returns 0 is precisely because this is an invalid process id. You would have no way of differentiating between the parent and child processes if fork returned an arbitrary positive integer to each. Therefore, a typical call to fork looks something like this:

int pid;

if ( (pid = fork()) == 0 ) {

/* child process executes inside here */ }

else {

/* parent process executes inside here */ }

(34)

execvp & execlp

The exec functions (there are more than one) are a family of functions that

execute some program within the current process space. So if I write a program that calls

one of the exec functions, as soon as the function call succeeds the original process gets

replaced with whatever program I asked exec to execute. This is usually used in

conjunction with a fork call. You would typically fork a child process, and then call exec from within the child process, to execute some other program in the new process entry created by fork.

Directory Operations

The complex nature of Unix File system directory entries means that it is not realistic to read such a directory using normal read() system calls and, in fact, attempting to use read() to read a directory will fail. Instead the system call getdents() is used to read directory entries, however this has a rather complex interface and for all normal purposes a set of library routines is provided, these, of course, work via getdents().

There are eight such routines and two data types. Directory handling data objects

DIR Used to hold a pointer to an open directory. Analagous to FILE *

struct dirent

A structure holding information about the directory entry.

struct dirent {

ino_t d_ino; /* i-number */

off_t d_off; /* offset into directory file */ ushort d_reclen; /* length of record */ char d_name[1]; /* file name */

}

Both the above are #define'd in the standard header dirent.h. The eight routines are

Prototype Function

DIR *opendir(const char *path) Opens a directory

struct dirent *readdir(DIR *dirp) Gets the next entry

struct dirent *readdir_r(DIR *dirp,struct dirent *res)

Similar to readdir, takes address of buffer as parameter. Intended for MT applications.

long telldir(DIR *dirp) returns current location

void seekdir(DIR *dirp,long loc) alters current position

void rewinddir(DIR *dirp) set current position to start

(35)

Exercises:

1. Write programs using the following system calls of UNIX operating system: fork, exec, getpid, exit, wait, close, stat, opendir, readdir

2. Write a program to list the files in the specified directory. (opendir, readdir) 3. Write a program to create a specified number of child processes (given through command line) and display the pid of child processes with its parent’s pid.

Output: Fork()system call: HELLO BYE BYE

Exec() system call: Output:

Segmentation fault

Fork() and getpid() system call:

Executing in parent process,pid=4302; Executing in parent process,pid=5044;

Wait and execution system call:

I’m the child I’m the parent Child returned :0

(36)

Ex.No: 4 Date:

I/ O SYSTEM CALLS Aim:

Write programs using system calls (I/O).

Description.

System Calls for I/O

There are 5 basic system calls that UNIX provides for file I/O. The system object that is used to manipulate files is file descriptor. This is an integer number that is used by the various I/O system calls to access a memory area containing data about the open file.

Open

Open makes a request to the operating system to use a file. The call takes two parameters. The first argument 'path' specifies what file you would like to use, and the 'flags' and 'mode' arguments specify how you would like to use it. This call returns a file descriptor.

The mode may be any of the following: O_RDONLY

Open the file in read-only mode. O_WRONLY

Open the file in write-only mode. O_RDWR

Open the file for both reading and writing.

In addition, any of the following flags may be OR-ed with the mode flag: O_CREAT

If the file does not exist already - create it. O_EXCL

If used together with O_CREAT, the call will fail if the file already exists. O_TRUNC

If the file already exists, truncate it (i.e. erase its contents). O_APPEND

Open the file in append mode. Any data written to the file is appended at the end of the file.

O_NONBLOCK (or O_NDELAY)

If any operation on the file is supposed to cause the calling process block, the system call instead will fail, and errno be set to EAGAIN. This requires caution on the part of the programmer, to handle these situations properly.

O_SYNC

Open the file in synchronous mode. Any write operation to the file will block until the data is written to disk. This is useful in critical files (such as database files) that must always remain in a consistent state, even if the system crashes in the middle of a file operation.

Close

Close() tells the operating system that you are done with a file descriptor. The OS can then reuse that file descriptor. The usage is

(37)

Read

Read() tells the operating system to read "size" bytes from the file opened in file descriptor "fd", and to put those bytes into the location pointed to by "buf". It returns how many bytes were actually read. The prototype is

int read(fd, buf, size)

Write

Write() is just like read(), only it writes the bytes instead of reading them. It returns the number of bytes actually written, which is almost invariably "size".

rename

The rename() system call may be used to change the name (and possibly the directory) of an existing file. It gets two parameters: the path to the old location of the file (including the file name), and a path to the new location of the file (including the new file name). If the new name points to an already existing file, that file is deleted first. We are allowed to name either a file or a directory.

/* rename the file 'logme' to 'logme.1' */ if (rename("logme", "logme1") == -1) { perror("rename (1):");

exit(1); }

delete

Deleting a file is done using the unlink() system call. This one is very simple: /* remove the file "/tmp/data" */

if (unlink("/tmp/data") == -1) { perror("unlink");

exit(1); }

Exercises:

1. Write a program to open, read and write files using system calls. 2. Write a program to write line of texts in a file using system calls.

3. Write a program to open, read and write files and perform file copy operation.

Output :

Read and write:

Enter the source filename: Deepi

Enter the destination filename: Deepa

(38)

Ex.No:5 Date:

SIMULATION OF UNIX COMMANDS Aim:

To simulate the following unix commands 1)ls 2)grep

Description ls

Use ls to see what files you have. Your files are kept in something called a directory. % ls foo letter2 foobar letter3 letter1 maple-assignment1 %

Note that you have six files. There are some useful variants of the ls command: % ls l*

letter1 letter2 letter3 %

Note what happened: all the files whose name begins with "l" are listed. The asterisk (*) is the " wildcard" character. It matches any string.

grep

Use this command to search for information in a file or files. For example,

suppose that we have a file dictwhose contents are

red rojo green verde blue azul white blanco black negro

Then we can look up items in our file like this; % grep red dict

red rojo

% grep blanco dict white blanco % grep brown dict %

Notice that no output was returned by grep brown. This is because "brown" is not in our dictionary file.

Grep can also be combined with other commands. For example, if one had a file of phone numbers named "ph", one entry per line, then the following command would give an alphabetical list of all persons whose name contains the string "sona".

(39)

The symbol "|" is called "pipe." It pipes the output of the grep command into the input of the sort command.

(40)

Exercises

1. Write a program for the simulation of ls command. 2. Write a program for the simulation for grep command.

Output:

Enter the directory name: Rain Violet . . . . .

(41)

Ex.No: 6 Date:

CPU SCHEDULING ALGORITHMS -FCFS Aim:

To implement FCFS (First Come First Served) scheduling algorithms.

Description

When a computer is multi programmed, it has multiple processes competing for the CPU at the same time frequently. This situation occurs whenever two or more processes are simultaneously in the ready state. If only one CPU is available, a choice has to be made which process has to be in CPU. The part of the operating system that makes the choice is called the scheduler and the algorithm is called scheduling algorithm.

FCFS

In this scheduling policy the processes are assigned the CPU according to the order they arrive.

Algorithm:

1) Start the program. 2) Declare the variables.

3) Get the number of process and their burst time for each process.

4) Draw the chart of the processes as first come first serve (FCFS) manner. 5) Calculate waiting time and turnaround time of each process.

6) Calculate average waiting and average turn around time of all the process. 7) Display waiting time, turnaround time, average waiting time and turn around

time of the processes. 8) Stop the program

Sample Input

Enter the number of processes:3 Process 1

Enter the CPU burst time: 5 Process 2

(42)

Sample Output:

Entet the no.of process:3 Enter the brust time:1 3

4

Enter the arrival time:0 0

0

Process waiting time turnaround time P0 0 1 P1 1 4 P2 4 8 Avg.waiting time is 1.66667

(43)

(44)

Ex.No:7 Date:

CPU SCHEDULING ALGORITHMS –SJF Aim

To implement SJF (Shortest Job First) scheduling algorithms.

Description

When a computer is multi programmed, it has multiple processes competing for the CPU at the same time frequently. This situation occurs whenever two or more processes are simultaneously in the ready state. If only one CPU is available, a choice has to be made which process has to be in CPU. The part of the operating system that makes the choice is called the scheduler and the algorithm is called scheduling algorithm.

SJF

In this scheduling the process with shortest burst will be selected first. The processes are sorted in ascending order according to the CPU burst time.

Algorithm:

3) Get the number of process and their burst time for each process. 4) Sort the processes in ascending order according to the burst time. 5) Draw the chart of the processes as in sorted order (SJF) manner. 6) Calculate waiting time and turnaround time of each process.

Sample Input

Enter the number of processes: 3 Process 1

(45)

Sample Output

Enter the no.rocess:5 Enter the brust time:2 4

5 6 8

Process waiting time turnaroundtime

P[0] 0 2

P[1] 2 6

P[2] 6 11 P[3] 11 17 P[4] 17 25 Average waiying time = 17.2000

(46)

Ex.No:8 Date:

CPU SCHEDULING ALGORITHMS –Priority scheduling Aim

To implement using Priority scheduling algorithms.

Description Priority

In this scheduling policy the processes are given certain priorities usually specified as a number. They are sorted according to the priorities and the process with highest priority is scheduled first.

Algorithm:

3) Get the number of process and their burst time and priority of each process. 4) Sort the processes in ascending order according to the priority of the process. 5) Draw the chart of the processes as in sorted order (priority) manner.

6) Calculate waiting time and turnaround time of each process.

Sample Input

Enter the CPU burst time: 5

Enter the priority of the process : 2 Process 2

Enter the CPU burst time: 10

Enter the priority of the process : 3 Process 3

Enter the CPU burst time:4

(47)

Sample Output

Enter the no.process:3

Enter the brust time(in ms)for process:#1:30 Enter the priority for process#1:2

Enter the brust time(in ms)for process:#2:20 Enter the priority for process#2:1

Enter the priority for process#3:3

Enter the brust time(in ms)for process:#3:40

Process startingtime endingtime waiting time turnarouond time

#2 0 20 0 20 #1 20 50 20 50 #3 50 90 50 90 Avg: Waiting time:23.33ms Turnaround time;53.333

(48)

Ex.No:9 Date:

CPU SCHEDULING ALGORITHMS - Round Robin scheduling Aim

To implement Round Robin scheduling algorithms.

Description Round Robin

In this algorithm, a time quantum is fixed for the process to get executed in the CPU. After that time quantum is over, the process is pre-empted and CPU is scheduled to another process. This will continue until all processes in the system complete their turn.

Algorithm:

3) Get the number of process and their burst time of each process. 4) Get the quantum time.

5) Schedule the CPU to the first process, after that quantum time is over schedule the second process ….. This will continue until all processes in the system complete their turn.

6) Draw the chart of the processes as Round Robin manner. 7) Calculate waiting time and turnaround time of each process.

Sample Input

Enter the CPU burst time: 4 Enter the quantum time: 3

(49)

Sample Output:

Enter the process :4

Enter the process name and brust time for the process Enter the process :1

Enter the brust time for the process 1:8 Enter the process :2

Enter the process :3

Enter the brust time for the process 3:6 Enter the process :4

Enter the brust time for the process 4:1

Process name brust time

1 8

2 3

3 6

4 1

1.roundrobin 2.exit

enter the time slice:

processname remainingtime totaltime

1 6 2 2 1 4 3 4 6 4 0 7 1 4 9 2 6 10 3 2 12 1 2 14 3 0 16

(50)

(51)

Ex.No:10 Date:

INTER PROCESS COMMUNICATION USING SHARED MEMORY

Aim:

To implement inter process communication using shared memory.

Algorithm:

1. Create the child process using fork().

2. Create the shared memory for parent process using shmget() system call. 3. Allow the parent process to write in shared memory using shmptr pointer

which is return type of shmat().

4. Attach the same shared memory to the child process.

5. The data in the shared memory is read by the child process using the shmptr. 6. Detach and rebase the shared memory.

Output :

Child is reading a b c d e f g h i j parent is reading a b c d e f g h i j

(52)

Ex.No:11 Date:

INTER PROCESS COMMUNICATION USING PIPES Aim:

To implement inter process communication using Pipes

Algorithm:

1. Create the child process using fork (). 2. Create the pipe structure using pipe ().

3. Close the read end of the parent process using close (). 4. Write the data in the pipe using write ().

5. Close the write end of child process using close (). 6. Read the data in the pipe using read ().

7. Display the string.

SAMPLE OUTPUT

(53)

Aim:

To implement Producer-Consumer Problem using semaphores.

Description

Whenever there are more than one processes running in the system, they may have access same data. This problem is termed as Inter Process Communication. One such problem is producer-consumer also called as bounded buffer problem. Two processes share a common, fixed size buffer. The producer puts information into the buffer and the consumer takes it out. Problem arises when the producer wants to put a new item in the buffer but it is already full. Similarly if the consumer wants to take an item but buffer is empty. This can be solved easily using semaphores.

An algorithm to Producer-Consumer problem with bounded buffer is shown below:

Semaphore mutex=1 // binary semaphore that ensures that only one accesses the buffer Semaphore empty=N // indicates the number of empty slots in the buffer

Semaphore full=0 // indicates the number of filled slots in the buffer Producer() { while(true) { produce_item(item); decrement(empty); decrement(mutex); enter_itme(item); increment(full); increment(mutex); } } Consumer() { while(true) { decrement(full); decrement(mutex); remove_item(item); increment(empty); increment(mutex); consume(item); } }

(54)

Algorithm:

1) Start the program.

2) Declare the required variables.

3) Initialize the buffer size and get maximum item you want to produce.

4) Get the option, which you want to do either producer, consumer or exit from the operation.

5) If you select the producer, check the buffer size if it is full the producer should not produce the item or otherwise produce the item and increase the value buffer size. 6) If you select the consumer, check the buffer size if it is empty the consumer

should not consume the item or otherwise consume the item and decrease the value of buffer size.

7) If you select Exit come out of the program. 8) Stop the program.

Sample input:

Enter the maximum size of the buffer: 3 Enter your choice: producer, consumer or exit

Output:

Item produced …… Item consumed….. Content of the buffer

Producer should not able produce.. Consumer should not able to consume…

(55)

Ex.No:13 Date:

IMPLEMENTATION OF PAGE REPLACEMENT ALGORITHMS-FIFO Aim:

To implement FIFO page replacement algorithm.

Description FIFO

This is the simplest page replacement algorithm. A FIFO replacement algorithm associates with each page the time when the page was brought into the memory. When the page must be replaced, the oldest page is chosen. FIFO Page replacement algorithm can be implemented using a FIFO queue. When a page is brought into the memory, we insert it at the tail of the queue. We replace the page at the head of the queue.

Algorithm:

3) Get the total number of frames and strings.

4) Check the page fault, if page fault occur replace the first added string. 5) Else no need to replace the page.

6) Count the number of page fault.

7) Print the number of page fault and content of the frame in each time. 8) Stop the program

Sample input:

Enter the no of frames: Enter the no strings: Enter the strings:

Output:

Content of frames:

Page fault occurred or not: No of page faults:

(56)

Ex.No:14 Date:

IMPLEMENTATION OF PAGE REPLACEMENT ALGORITHMS-LRU Aim:

To implement LRU page replacement algorithm.

Description LRU

LRU uses the recent past as an approximation of near future. We replace the page that has not been used for the longest period of time. Two implementations are feasible: 1. Counters:

In the simplest case, we associate with each page table entry a time-of –use field, and add to the CPU a logical clock or counter. The clock is incremented for every memory reference. Whenever a reference to a page is made, the contents of the clock are copied to the time-of –use field in the page table entry for that page. We replace the page with the smallest time value.

2. Stack:

Maintain a stack of page numbers. Whenever a page is referenced, it is removed from the stack and put on top. In this way, the top of the stack is always the most recently used page and the bottom is the LRU page. Because entries must be removed from the middle of the stack, it is best implemented by a doubly linked list, with a head and tail pointer.

Algorithm:

3) Get the total number of frames and strings.

4) Check the page fault, if page fault occur replace string n LRU manner. 5) Else no need to replace the page.

6) Count the number of page fault.

7) Print the number of page fault and content of the frame in each time. 8) Stop the program

Sample input:

Enter the no of frames: Enter the no strings: Enter the strings:

Output:

Content of frames:

Page fault occurred or not: No of page faults:

(57)

Aim:

To implement first fit, best fit and worst fit storage allocation algorithms for memory management.

Description

A set of holes, of various sizes is scattered through the memory at any given time. When a process arrives and needs the memory, the system searches for a hole that is large enough for this process. The first-fit, best-fit and worst-fit are strategies used to select a free hole from the set of available holes.

Implementation details

Free space is maintained as a linked list of nodes with each node having the starting byte address and the ending byte address of a free block. Each memory request consists of the process-id and the amount of storage space required in bytes. Allocated memory space is again maintained as a linked list of nodes with each node having the process-id, starting byte address and the ending byte address of the allocated space.

When a process finishes (taken as input) the appropriate node from the allocated list should be deleted and this free disk space should be added to the free space list. [Care should be taken to merge contiguous free blocks into one single block. This result in deleting more than one node from the free space list and changing the start and end address in the appropriate node]. For allocation use first fit, worst fit and best fit.

First-Fit

Allocate the first hole that is big enough. Searching can start either at the beginning of the set of holes or where the previous first-fit search ended. We can stop searching as soon as we find a free hole that is large enough.

Best-Fit

Allocate the smallest hole that is big enough. We must search the entire list unless the list is kept ordered by size. The strategy produces the smallest leftover hole.

Worst fit

Allocate the biggest hole.

Exercise

Write a program to simulate the above memory management scheme.

Ex.No:16 Date:

(58)

File structure

-Logical storage unit

-Collection of related information

-File system resides on secondary storage (disks). -File system organized into layers.

-File control block – storage structure consisting of information about a file.

ALLOCATION METHODS:

An allocation method refers to how disk blocks are allocated for files:

 Contiguous allocation

 Linked allocation

 Indexed allocation

Contiguous allocation

• Each file occupies a set of contiguous blocks on the disk.

• Simple – only starting location (block #) and length (number of blocks) are

required.

• Random access.

• Wasteful of space (dynamic storage-allocation problem).

• Files cannot grow.

(59)

• Simple – need only starting address

• Free-space management system – no waste of space

• No random access

• Mapping

Indexed allocation

• Brings all pointers together into the index block.

• Logical view.

• Need index table

• Random access

• Dynamic access without external fragmentation, but have overhead of index

(60)

Aim:

To implement Contiguous File allocation techniques.

(61)

DEADLOCK-BANKER’S ALGORITHM Aim:

To implement banker’s algorithm for deadlock avoidance.

Algorithm:

1. Obtain the number of process from the user.

2. Get the allocation matrix , max matrix from the user for each process. 3. Find the need matrix for each process which is

Need[i][j]=max[i][j] - allocation[i][j]

4. Now, check for safe sequence using banker’s algorithm. 5. If safe sequence exists, display it.

6. Else display no safe sequence.

(62)

DINING PHILOSOPHERS PROBLEM Aim:

To implement dining philosophers problem for deadlock avoidance.

The Dining Philosophers problem is a classic OS problem that’s usuallu stated in very non-OS terms: There are N philosphers sitting around a circular table eating spaghetti and discussing philosphy.

The problem is that each philosopher needs 2 forks to eat, and there are only N forks, one between each 2 philosophers. Design an algorithm that the philosophers can follow that insures that none starves as long as each philosopher eventually stops eating, and such that themaximum number of philosophers can eat at once.

Why describe problems this way? Well, the analogous situations in computers are sometimes so technical that they obscure creative thought. Thinking about philosophers makes it easier to think abstractly. And many of the early students of this field were theoreticians who like abstract problems. There are a bunch of named problems - Dining Philosophers, Drinking Philiosophers, Byzantine Generals,etc.

Here’s an approach to the Dining Phils1 that’s simple and wrong: void philosopher() { while(1) { sleep(); get_left_fork(); get_right_fork(); eat(); put_left_fork(); put_right_fork(); } }

If every philosopher picks up the left fork at the same time, noone gets to eat - ever. Some other suboptimal alternatives:

• Pick up the left fork, if the right fork isn’t available for a given time, put the left fork down,

wait and try again. (Big problem if all philosophers wait the same time - we get the same failure mode as before, but repeated.) Even if each philosopher waits a different random time, an unlucky philosopher may starve (in the literal or technical sense).

• Require all philosophers to acquire a binary semaphore before picking up any forks. This guarantees that no philosopher starves (assuming that the semaphore is fair) but limits parallelism dramatically. (FreeBSD has a similar problem with multiprocessor performance).

Here’s Tannenbaum’s example, that gets maximum concurrency: 1 Now that you’ve seen the problem, you can call them Phil, too.

(63)

-2-#define LEFT(i) (((i)==N) ? 0 : (i)+1)

typedef enum { THINKING, HUNGRY, EATING } phil_state; phil_state state[N];

semaphore mutex =1;

semaphore s[N]; /* one per philosopher, all 0 */ void test(int i) {

if ( state[i] == HUNGRY && state[LEFT(i)] != EATING &&

state[RIGHT(i)] != EATING ) {state[i] = EATING; V(s[i]);} } void get_forks(int i) { P(mutex); state[i] = HUNGRY; test(i); V(mutex); P(s[i]); } void put_forks(int i) { P(mutex); state[i]= THINKING; test(LEFT(i)); test(RIGHT(i)); V(mutex); }

void philosopher(int process) { while(1) { think(); get_forks(process); eat(); put_forks(process); } }

The magic is in the test routine. When a philosopher is hungry it uses test to try to eat. If test fails, it wiats on a semaphore until some other process sets its state to EATING. Whenever a philosopher puts down forks, it invokes test in its neighbors. (Note that test does nothing if the process is not hungry, and that mutual exclusion prevents races.) So this code is correct, but somewhat obscure. And more importantly, it doesn’t encapsulate the philosopher - philosophers manipulate the state of their neighbors directly. Here’s a version that does not require a process to write another process’s state, and gets equivalent parallelism.

-3-#define N 5 /* Number of philosphers */ #define RIGHT(i) (((i)+1) %N)

#define LEFT(i) (((i)==N) ? 0 : (i)+1)

typedef enum { THINKING, HUNGRY, EATING } phil_state; phil_state state[N];

semaphore mutex =1;

semaphore s[N]; /* one per philosopher, all 0 */ void get_forks(int i) {

(64)

while ( state[i] == HUNGRY ) { P(mutex);

if ( state[i] == HUNGRY && state[LEFT] != EATING && state[RIGHT(i)] != EATING ) { state[i] = EATING; V(s[i]); } V(mutex); P(s[i]); } } void put_forks(int i) { P(mutex); state[i]= THINKING;

if ( state[LEFT(i)] == HUNGRY ) V(s[LEFT(i)]); if ( state[RIGHT(i)] == HUNGRY) V(s[RIGHT(i)]); V(mutex);

}

void philosopher(int process) { while(1) { think(); get_forks(process); eat(); put_forks(); } }

If you really don’t want to touch other processes’ state at all, you can always do the V to the left and right when a philosopher puts down the forks. (There’s a case where a condition variable is a nice interface.) Tannenbaum discusses a couple of others that are worth looking at.

Deadlock

Another danger of concurrent programming is deadlock. A race condition is produces incorrect results, where a deadlock results in the deadlocked processes never making any progress. In the simplest form it’s a process waiting for a resource held by a second process that’s waiting for a resource that the first holds.

4 Conditions

More formally there are 4 conditions for deadlock:

• Mutual Exclusion: Resources can only be held by at most one process. A process canniot

deadlock on a sharable resource.2

• Hold and Wait: A process can hold a resource and block waiting for another.

• No Preemption: The operating system cannot take a resource back from a process that has it.

• Circular Wait: A process is waiting for a resource that another process has which is waiting for a resource that the first has. This generalizes.

(65)

If these 4 conditions are necessary and sufficient. (If these four appear, there is a deadlock, if not no deadlock.) The problem is that the chain in a circular wait can be long and complex.

Reactions To Deadlock

An OS can react to deadlock one of 4 ways: • Ignore it

• Detect and Recover from it

• Avoid it (invest effort at run-time to make deadlock impossible) • Prevent it (short circuit one of the 4 conditions )

Ignoring Deadlock

Running, stable Operating Systems ignore potential deadlocks. In fact, I would venture that there is no production operating system that cannot be deadlocked by pathological behavior.
