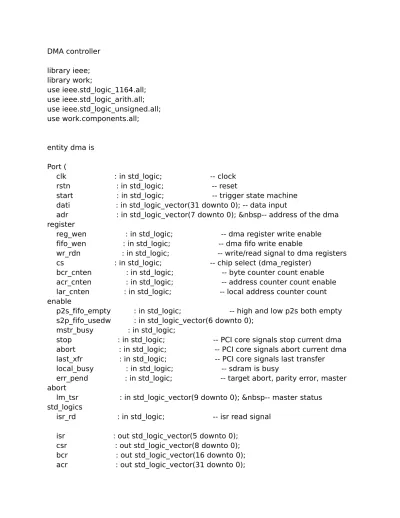

DMA controller library ieee; library work; use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; use work.components.all; entity dma is Port ( clk : in std_logic; -- clock rstn : in std_logic; -- reset

start : in std_logic; -- trigger state machine dati : in std_logic_vector(31 downto 0); -- data input

adr : in std_logic_vector(7 downto 0); &nbsp-- address of the dma register

reg_wen : in std_logic; -- dma register write enable fifo_wen : in std_logic; -- dma fifo write enable

wr_rdn : in std_logic; -- write/read signal to dma registers cs : in std_logic; -- chip select (dma_register)

bcr_cnten : in std_logic; -- byte counter count enable acr_cnten : in std_logic; -- address counter count enable lar_cnten : in std_logic; -- local address counter count enable

p2s_fifo_empty : in std_logic; -- high and low p2s both empty s2p_fifo_usedw : in std_logic_vector(6 downto 0);

mstr_busy : in std_logic;

stop : in std_logic; -- PCI core signals stop current dma abort : in std_logic; -- PCI core signals abort current dma last_xfr : in std_logic; -- PCI core signals last transfer local_busy : in std_logic; -- sdram is busy

err_pend : in std_logic; -- target abort, parity error, master abort

lm_tsr : in std_logic_vector(9 downto 0); &nbsp-- master status std_logics

isr_rd : in std_logic; -- isr read signal

isr : out std_logic_vector(5 downto 0); csr : out std_logic_vector(8 downto 0); bcr : out std_logic_vector(16 downto 0); acr : out std_logic_vector(31 downto 0);

lar : out std_logic_vector(25 downto 0);

req : out std_logic; -- dma requesting a PCI core for data transfer

local_start : out std_logic; -- dma requesting sdram controller to start data transfer

dato : out std_logic_vector(31 downto 0); &nbsp-- dma register read data output

probe : out std_logic_vector(7 downto 0) );

end dma;

architecture rtl of dma is

signal normal_termination : std_logic; signal start_chain : std_logic; signal chain_end : std_logic;

signal dma_bcr : std_logic_vector(16 downto 0); signal dma_csr : std_logic_vector(8 downto 0); signal dma_done : std_logic;

signal dma_error : std_logic; signal chain_acr_ld : std_logic; signal chain_bcr_ld : std_logic; signal dma_fifo_rd : std_logic; signal trans64 : std_logic;

signal isr_in : std_logic_vector(5 downto 0); signal dma_on : std_logic;

signal dma_acr : std_logic_vector(31 downto 0); signal dma_isr : std_logic_vector(5 downto 0); signal dma_lar : std_logic_vector(25 downto 0); signal dma_fifo_dato : std_logic_vector(31 downto 0); signal soft_flush : std_logic;

signal dma_reg_dati : std_logic_vector(31 downto 0); signal reg_dat_sel : std_logic;

signal direction : std_logic; signal acr_wr : std_logic; signal csr_wr : std_logic; signal csr_wr_reg : std_logic; signal int_irq : std_logic; signal local_irq : std_logic; signal rst : std_logic; signal req_int : std_logic; signal high : std_logic;

begin

&nbsphigh <= '1';

&nbsprst <= not rstn;

&nbspsoft_flush <= dma_csr(1); &nbsp-- flush std_logic of the control status register

&nbspstart_chain <= dma_isr(5); &nbsp-- DMA chaining mode enable &nbspdirection <= dma_csr(3); &nbsp-- 1 for write, 0 for read

-- interrupt pending std_logic

&nbspisr_in(0) <= err_pend or int_irq or (dma_isr(3) and not dma_csr(5)); &nbspint_irq <= local_irq;

-- assert local irq when there is error pending or DMA has completed &nbsplocal_irq <= dma_isr(1) or (dma_isr(3) and not dma_csr(5)); &nbspisr_in(1) <= err_pend;

&nbspisr_in(2) <= int_irq;

-- generate transfer complete status std_logic 3

&nbspprocess(dma_done, isr_rd, csr_wr, acr_wr, dma_isr) -- dma_tc begin

&nbspif(dma_done = '1') then isr_in(3) <= '1';

&nbspelsif(isr_rd = '1' or csr_wr = '1' or acr_wr = '1') then isr_in(3) <= '0'; &nbspelse isr_in(3) <= dma_isr(3); &nbspend if; end process;

-- write signal to the address counter

&nbspacr_wr <= dma_reg_hit(1) and cs and reg_wen; -- generate ad_loaded singal for the isr std_logic 4

&nbspprocess(acr_wr, dma_isr, soft_flush, dma_done, dma_error) begin

&nbspif(acr_wr = '1') then isr_in(4) <= '1';

&nbspelsif(dma_isr(3) = '1' or soft_flush = '1' or dma_done = '1' or dma_error = '1') then

isr_in(4) <= '0'; &nbspelse isr_in(4) <= dma_isr(4); &nbspend if; end process;

-- control status register write signal

&nbspcsr_wr <= dma_reg_hit(0) and cs and reg_wen;

&nbspprocess(clk,rstn) &nbsp-- register csr_wr begin

&nbspif(rstn='0') then csr_wr_reg <= '0';

&nbspelsif(clk'event and clk = '1') then csr_wr_reg <= csr_wr;

&nbspend if; end process;

-- generate start_chain std_logic

&nbspprocess(csr_wr_reg, dma_isr, dma_csr, soft_flush, dma_done, dma_error) begin

&nbspif (csr_wr_reg = '1' and dma_csr(8) = '1') then &nbsp-- start chain

isr_in(5) <= '1';

&nbspelsif (dma_isr(3) = '1' or soft_flush = '1' or dma_done = '1' or dma_error ='1') then isr_in(5) <= '0'; &nbspelse isr_in(5) <= dma_isr(5); &nbspend if; end process;

-- generate dma_on std_logic csr(6)

&nbspdma_on <= (dma_isr(4) and dma_csr(4) and not err_pend) or (isr_in(5) and dma_csr(4) and &nbspnot err_pend);

-- dma state machine instantiation dma_sm0 : dma_sm

clk => &nbspclk, rstn => &nbsprstn, normal_termination => &nbspnormal_termination, stop => &nbspstop, lm_tsr => &nbsplm_tsr, err_pend => &nbsperr_pend, start => &nbspstart , start_chain => &nbspstart_chain, chain_end => &nbspchain_end, p2s_fifo_empty => &nbspp2s_fifo_empty, s2p_fifo_usedw => &nbsps2p_fifo_usedw, direction => &nbspdirection, dma_bcr => &nbspdma_bcr, local_busy => &nbsplocal_busy, req => &nbspreq_int, dma_done => &nbspdma_done, dma_error => &nbspdma_error, chain_acr_ld => &nbspchain_acr_ld, chain_bcr_ld => &nbspchain_bcr_ld, dma_fifo_rd => &nbspdma_fifo_rd, local_start => &nbsplocal_start, chain_dma_loading => &nbspreg_dat_sel );

-- DMA registers instantiation &nbspdma_reg0 : dma_reg &nbspport map ( clk => &nbspclk , rstn => &nbsprstn , adr => &nbspadr ,

dati => &nbspdma_reg_dati , -- mux output select between dati and dma_fifo_dato

wen => &nbspreg_wen , acr_ld => &nbspchain_acr_ld , bcr_ld => &nbspchain_bcr_ld , acr_cnten => &nbspacr_cnten, lar_cnten => &nbsplar_cnten, bcr_cnten => &nbspbcr_cnten, isr_in => &nbspisr_in , dma_on => &nbspdma_on ,

cs => &nbspcs, acr => &nbspdma_acr , bcr => &nbspdma_bcr , csr => &nbspdma_csr , isr => &nbspdma_isr , lar => &nbspdma_lar , dato => &nbspdato, dma_reg_hit => &nbspdma_reg_hit );

&nbsp-- muxing data input to dma register -- data comes from the pci side or the descriptor process(reg_dat_sel, dati, dma_fifo_dato)

begin

case (reg_dat_sel) is when '1' =>

dma_reg_dati <= dma_fifo_dato; &nbsp-- descriptor fifo for chaining DMA when OTHERS =>

dma_reg_dati <= dati; end case;

end process;

-- set normal termination when lm_lastn has asserted req <= req_int;

process(clk,rstn) begin

if(rstn='0') then

normal_termination <= '0'; elsif(clk'event and clk='1') then if(last_xfr='1') then

normal_termination <= '1'; &nbsp-- set when lm_last elsif(req_int='1') then

normal_termination <= '0'; &nbsp-- reset when request end if; end if; end process; -- assign outputs bcr <= dma_bcr; acr <= dma_acr; lar <= dma_lar;

csr <= dma_csr; isr <= dma_isr;
