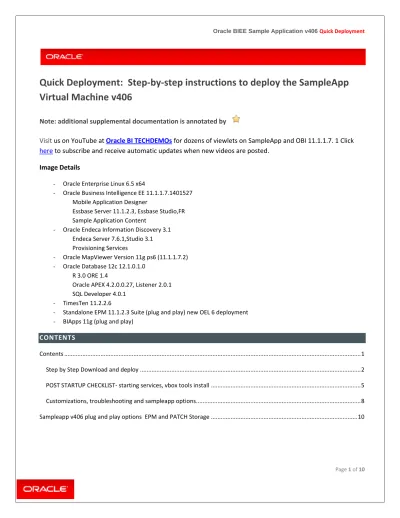

Page 1 of 10
Quick Deployment: Step-by-step instructions to deploy the SampleApp
Virtual Machine v406
Note: additional supplemental documentation is annotated by
Visit us on YouTube at Oracle BI TECHDEMOs for dozens of viewlets on SampleApp and OBI 11.1.1.7. 1 Click here to subscribe and receive automatic updates when new videos are posted.
Image Details
- Oracle Enterprise Linux 6.5 x64
- Oracle Business Intelligence EE 11.1.1.7.1401527 Mobile Application Designer
Essbase Server 11.1.2.3, Essbase Studio,FR Sample Application Content
- Oracle Endeca Information Discovery 3.1 Endeca Server 7.6.1,Studio 3.1 Provisioning Services
- Oracle MapViewer Version 11g ps6 (11.1.1.7.2) - Oracle Database 12c 12.1.0.1.0
R 3.0 ORE 1.4
Oracle APEX 4.2.0.0.27, Listener 2.0.1 SQL Developer 4.0.1
- TimesTen 11.2.2.6
- Standalone EPM 11.1.2.3 Suite (plug and play) new OEL 6 deployment - BIApps 11g (plug and play)
CONTENTS
Contents ... 1
Step by Step Download and deploy ... 2
POST STARTUP CHECKLIST- starting services, vbox tools install ... 5
Customizations, troubleshooting and sampleapp options ... 8
Page 2 of 10
STEP BY STEP DOWNLOAD AND DEPLOY 1. Prepare your host system.
Minimum 8GB of real memory; more is better.
Turn on Virtual Assist features in the BIOS (usually done by default). Refer to Troubleshooting tips in Step 12 for more details.
~96GB disk space needed to download and install. (This includes the 29GB unzipped .vmdk file and ~67GB for the imported image. Once the image is imported, the 29GB .vmdk file can be removed and the im-ported image is all that is required.
- Download and install Free Download Manageror an ftp client of your choice. - Download and install 7Zip.
- Download and install md5sum (optional)
2. Download and install Oracle Virtual Box (4.2.6 and above is supported) 3. Sign in to the SampleApp OTN Home page at
http://www.oracle.com/technetwork/middleware/bi-foundation/obiee-samples-167534.html 4. Navigate to SampleApp v406 Section
- Download the SampleAppv406 documentation
- Download files SampleAppv406.zip.001 - 006 and follow the steps in the quick deployment guide. - Note: Once your SampleAppv406 image is running you can review the available “options” for this
release
File Description
SampleApp v406 Documentation Quick deployment guide, user guide and what’s new in SA 406 SampleAppv406.zip.001 SampleAppv406.zip.002 SampleAppv406.zip.003 SampleAppv406.zip.004 SampleAppv406.zip.005 SampleAppv406.zip.006 Checksums (MD5)
Download all zip files into a single directory (approx 29GB). Optionally verify integrity of zip files using checksums. Open a zip file manager such as 7zip and select the first zip file (001) and extract. This will extract a compressed VMDK file, and .ovf file into Sampleappv406appliance folder. Open VBox Manager, select Import, navigate to the directory, select the .ovf file and click import. After import the initial image size is about 67 GB.
SampleApp v406 Options Plug and Play available for SA v406 * OPTIONAL DOWNLOADS:
EPMStandAloneV406.tar.gzv (* Optional Download)
For users who require full standalone EPM deployment. Please refer to EPM Deployment Plug and Play for SampleApp v406.pdf for details.
Patch Storage.tar.gzv (* Optional Download)
For users that want to patch their own SampleApp v406 environment. Please refer to the Patch Storage SampleAppv406.pdf for details
Page 3 of 10
6. When all zip files are downloaded, unpack them with 7zip.
In a command window or 7z file Manager, run the following command(or 7z file manager). It will create a directory called SampleAppv406Appliance
7z x SampleApp406.zip.001
(Typical extraction time will take 20 to 40 minutes depending on your host machine) Result:
SampleAppv406ga.ovf
SampleAppv406ga-disk1.vmdk (29GB)
7. Start Oracle Virtual Box Manager
Click File / Import Appliance ( Ctrl-I ) (you will need ~67GB of free space to import the appliance) Click Open appliance...
Navigate to and Select SampleAppv406ga.ovf machine definition file
Check [x] Reinitialize the MAC address of all network cards
Sample ScreenshotPage 4 of 10 Wait for it to complete (typical import takes between 30 and 60 minutes). Your SAv406 vm is now ready.
Important: By default your virtual appliance will import to your local C:\users directory on a windows ma-chine . If you do not have adequate space at this location or would like to deploy to a different location you can edit the path of the Virtual Disk Image as shown in the screenshot below- Note: Do not change the value of the vmdk file when modifying your path.
8. Virtual Machine Settings
By default your virtual machine is configured with the following parameters which is ideal for an 8GB host sys tem
6.5GB ram 2 processors
Bridged Network adapter
Users with more physical host memory can allocate more memory to the virtual machine
o You can edit any of the VM configurations by clicking on edit/settings
9. Start your VM
Your VM will auto logon as oracle/Admin123. Upon logon your IP address will be displayed with further in-structions on getting up and running. Note: If your VM does not have an active network connection no IP ad-dress will be displayed.
IMPORTANT
:
if you are using bridge networking and your VM does not have a IP address at boot up youmust either assign it one manually or power off and switch to NAT networking in order for services to start properly
Page 5 of 10
Note: Bridge networking is ideal when your virtual machine has the ability to obtain its own IP address. (Exam-ples include “at home, host machine on wifi”, in “in office, host machine hardwired connection). Open a browser on your local host machine to access OBI using the IP address provided at the time of image start up. NAT networking is ideal when your virtual machine cannot obtain an IP address of its own. In this case, your virtual machine will always have an IP address of 10.2.0.15. Depending on your networking configuration your VM may still have access to the “web” but users will have to configure port forwarding to access OBI from a remote browser. See how to setup port forwarding on YouTube.
For additional networking configuration and scenarios please download the SampleApp network Guide available for download from the SampleApp Launch Pad /Image configuration section
Confirm your VBox tools are up to date prior to continuing as a reboot will be necessary once completed. Pro-ceed to step 11 to upgrade your VBox tools. A good indication that your vbox tools require updating is the ina-bility to change your VM screen resolution. See minute 3:20 in the following YouTube video on how to upgrade your vbox tools or see the txt version in step 11 below.
POST STARTUP CHECKLIST- STARTING SERVICES, VBOX TOOLS INSTALL
SampleApp Launch Pad, Starting services, installing VBox tools, importing troubleshooting, customized screen resolution
10. Starting Services
From the desktop of your virtual machine, click on the Sample App Launch Pad. The launch pad will guide us-ers through: (note) a “online vus-ersion” of the Launch Pad is available from the BIEE General Index Page
image configuration
Starting and stopping services Firefox shortcuts
product log file location
all system username/ passwords SampleApp Software Inventory guide
Page 6 of 10 From the launch Pad click on the link “starting services” Here you can review recommended startup proce-dures, expected RAM consumption as well on board client tool locations.
Note: Individual start scripts have been provided for all products. Use the SampleApp Start services menu for your specific services, note services are to be started in the order shown in the menu.
Page 7 of 10
Example of BIEE Instance 1 Managed Server running
11. Upgrading your vbox tools (if necessary/optional) – Current vbox tools version is 4.2.18 from menu options click device/Install guest addition
When prompted click ok
Click run
Page 8 of 10 Virtual Box tools will now automatically install/ reboot when completed
CUSTOMIZATIONS, TROUBLESHOOTING AND SAMPLEAPP OPTIONS 12. Troubleshooting tips
a) After importing the appliance, when you start the image, you may hit the following error.
This may be because hardware virtualization is not en-abled on your machine. In order to determine if it is enabled, go to
http://www.microsoft.com/en-us/download/details.aspx?id=592 download the hard-ware detection tool and execute it on your machine. If virtualization is not enabled, then enable it by following the steps outlined in
http://www.microsoft.com/windows/virtual-pc/support/configure-bios.aspx
Once hardware virtualization is enabled and the machine is rebooted, you should be able to start the im-age.
b) While the image is starting up, after the following initial few messages, you see a blank screen. If this happens, then stop the image. Go back to Virtual Box Manager and click on the image’s settings. Go to display and increase the Video memory from 1MB to 6MB. Start the image and you should no longer see the blank screen.
Page 9 of 10 To fix this go Settings of the VM in Virtual Box, then in System configuration change Chipset to ICH9 from PIIX3. Also, make sure that you have Enable I/O APIC checked in Extended Features. Settings shown below for reference.
13. Update your screen resolution
Navigate to system/Preferences/display
Page 10 of 10
14. Installing Client Tools
Use the SampleApp Launch Pad (starting services) section for information regarding installing OBIEE client tools. For additional client tool install details including configuring your BIEE admin tool see the
SampleApp Client Install guide which is accessible from the SampleApp Launch Pad/starting services section 15. YUM Updates
To enable your SampleAppv406 image to receive/retrieve yum updates perform the following steps: a) Open a cmd window and su to the root user
b) As the root user at the next cmd prompt enter gedit c) Open /etc/yum.conf
d) Uncomment the last line in the first block of text that references the “proxy” e) Save file.
SAMPLEAPP V406 PLUG AND PLAY OPTIONS EPM AND PATCH STORAGE 16. Optional Plug and Play Options
From the SampleApp OTN home page under the “optional section for 406 there are several Plug-in compo-nents that can be deployed on your SampleAppv406 image
Depending on your interest please review the corresponding deployment doc for each optional component
SampleApp v406 Options Plug and Play available for SA v406 * OPTIONAL DOWNLOADS:
EPMStandAloneV406.tar.gzv (* Optional Download)
For users who require full standalone EPM deployment. Please refer to EPM Deployment Plug and Play for SampleApp v406.pdf for details.
Patch Storage.tar.gzv (* Optional Download)
For users that want to patch their own SampleApp v406 environment. Please refer to the Patch Storage SampleAppv406.pdf for details
