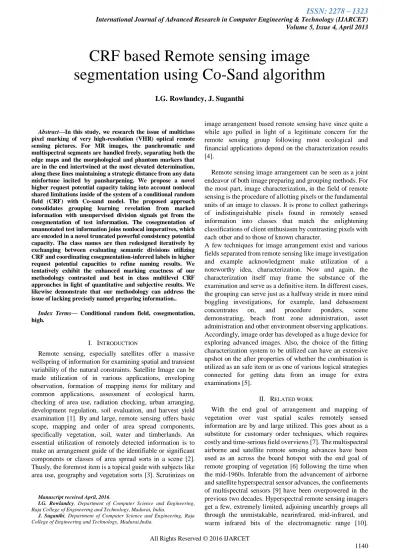

CRF based Remote sensing image segmentation using Co Sand algorithm



Abstract—In this study, we research the issue of multiclass

pixel marking of very high-resolution (VHR) optical remote sensing pictures. For MR images, the panchromatic and multispectral segments are handled freely, separating both the edge maps and the morphological and phantom markers that are in the end intertwined at the most elevated determination, along these lines maintaining a strategic distance from any data misfortune incited by pansharpening. We propose a novel higher request potential capacity taking into account nonlocal shared limitations inside of the system of a conditional random field (CRF) with Co-sand model. The proposed approach consolidates grouping learning revelation from marked information with unsupervised division signals got from the cosegmentation of test information. The cosegmentation of unannotated test information joins nonlocal imperatives, which are encoded in a novel truncated powerful consistency potential capacity. The class names are then redesigned iteratively by exchanging between evaluating semantic divisions utilizing CRF and coordinating cosegmentation-inferred labels in higher request potential capacities to refine naming results. We tentatively exhibit the enhanced marking exactness of our methodology contrasted and best in class multilevel CRF approaches in light of quantitative and subjective results. We likewise demonstrate that our methodology can address the issue of lacking precisely named preparing information..

Index Terms— Conditional random field, cosegmentation, high.

I. INTRODUCTION

Remote sensing, especially satellites offer a massive wellspring of information for examining spatial and transient variability of the natural constraints. Satellite Image can be made utilization of in various applications, enveloping observation, formation of mapping items for military and common applications, assessment of ecological harm, checking of area use, radiation checking, urban arranging, development regulation, soil evaluation, and harvest yield examination [1]. By and large, remote sensing offers basic scope, mapping and order of area spread components, specifically vegetation, soil, water and timberlands. An essential utilization of remotely detected information is to make an arrangement guide of the identifiable or significant components or classes of area spread sorts in a scene [2]. Thusly, the foremost item is a topical guide with subjects like area use, geography and vegetation sorts [3]. Scrutinizes on

Manuscript received April, 2016.

I.G. Rowlandcy, Department of Computer Science and Engineering, Raja College of Engineering and Technology, Madurai, India.

J. Suganthi, Department of Computer Science and Engineering, Raja College of Engineering and Technology, Madurai,India.

image arrangement based remote sensing have since quite a while ago pulled in light of a legitimate concern for the remote sensing group following most ecological and financial applications depend on the characterization results [4].

Remote sensing image arrangement can be seen as a joint endeavor of both image preparing and grouping methods. For the most part, image characterization, in the field of remote sensing is the procedure of allotting pixels or the fundamental units of an image to classes. It is prone to collect gatherings of indistinguishable pixels found in remotely sensed information into classes that match the enlightening classifications of client enthusiasm by contrasting pixels with each other and to those of known character.

A few techniques for image arrangement exist and various fields separated from remote sensing like image investigation and example acknowledgment make utilization of a noteworthy idea, characterization. Now and again, the characterization itself may frame the substance of the examination and serve as a definitive item. In different cases, the grouping can serve just as a halfway stride in more mind boggling investigations, for example, land debasement concentrates on, and procedure ponders, scene demonstrating, beach front zone administration, asset administration and other environment observing applications. Accordingly, image order has developed as a huge device for exploring advanced images. Also, the choice of the fitting characterization system to be utilized can have an extensive upshot on the after properties of whether the combination is utilized as an safe item or as one of various logical strategies connected for getting data from an image for extra examinations [5].

II. RELATED WORK

With the end goal of arrangement and mapping of vegetation over vast spatial scales remotely sensed information are by and large utilized. This goes about as a substitute for customary order techniques, which requires costly and time-serious field overviews [7]. The multispectral airborne and satellite remote sensing advances have been used as an across the board hotspot with the end goal of remote grouping of vegetation [6] following the time when the mid-1960s. Inferable from the advancement of airborne and satellite hyperspectral sensor advances, the confinements of multispectral sensors [9] have been overpowered in the previous two decades. Hyperspectral remote sensing imagers get a few, extremely limited, adjoining unearthly groups all through the unmistakable, nearinfrared, mid-infrared, and warm infrared bits of the electromagnetic range [10].

CRF based Remote sensing image

segmentation using Co-Sand algorithm

Volume 5, Issue 4, April 2016

1141

www.ijarcet.org

Hyperspectral images have taken a noteworthy part in broad uses of water asset administration, horticulture and natural checking [8]. A far reaching innovative work has been performed in the field of hyperspectral remote sensing.

Propelled order innovations and extensive amounts of Remotely Sensed Imagery [11] give chance to helpful results. Removing fascinating examples and guidelines from information sets made out of images and related ground information is essential for asset revelation. Image order is a critical part of the remote sensing information mining. The execution [12] of the classifiers relies on the information. So a superior comprehension of information is vital for further advances. Such a comprehension is unrealistic in the customary hypothetical studies. Near investigations of classifiers that relate their exhibitions to information qualities have gotten consideration just as of late. Fruitful characterization requires experience and experimentation. The investigator must choose a grouping technique that will best perform a particular assignment. At present it is impractical to state which classifier is best for all circumstance as the attributes of every image and the circumstances for every study change so enormously

III. PROPOSED SYSTEM

In this proposed system, two images can take as an input. One is named as panchromatic image next one is multispectral image. Multispectral images are the principle sort of images procured by remote detecting (RS) radiometers. Partitioning the range into numerous groups, multispectral is the inverse of panchromatic, which records just the aggregate intensity of radiation falling on every pixel. As a rule, Earth perception satellites have three or more radiometers (Landsat has seven). Each gets one digital image (in remote detecting, called a 'scene') in a little unearthly band. Panchromatic images are made when the imaging sensor is delicate to an extensive variety of wavelengths of light, regularly traversing a huge part of the noticeable part of the range. Here is the thing; all imaging sensors require a specific least measure of light vitality before they can distinguish a distinction in splendor.

These two images comprise distinctive wavelength points of interest of an image. So in our proposed work these images are intertwined to anticipate the label image. It is having three sections.

• First part is preprocessing, in which two image's edges are extricated and intertwined to get more itemized combination image.

• Second one is segmentation. In this module, the combination image will send to two distinctive segmentation strategies for CRF [13] and Co-segmentation [14] independently.

• Third part is named as label combination. Here two labeled image of CRF and co-segmentation images are intertwined in light of atlas based segmentation.

Below Fig 1 represents the total work flow of our proposed work .The following section describes the detail work flow of each stage.

Fig 1. Data Flow Diagram of proposed work

A. Preprocessing

In this way, a straightforward low-many-sided quality edge combination strategy in light of morphological operations has been proposed here [15]. Edges from the PAN and MS parts are extricated independently, and the last mentioned are up sampled and thinned to coordinate the objective higher determination. At that point, expel MS edges near PAN edges, in this way keeping away from twofold edges. By doing along these lines, be that as it may, we evacuate likewise the terminal parts of MS edges where they meet PAN edges, making undesirable gaps. Eventually, the two sorts of edges are converged in a solitary HR edge map. This straightforward arrangement, all in view of morphological sifting, permits us to abuse edge data at both resolutions maintaining a strategic distance from tedious forms. We will unquestionably enhance it in further forms be that as it may, much the same as for edge location, this will have no outcomes on the general work process, just on execution.

B. CRF Algorithm

supplement the lost logical data, a few specialists have expanded aspect models with MRF [16, 17]. The subsequent MRF viewpoint models, which for the most part construct angle models with MRF properties at a dormant point level, have indicated noteworthy supports in arrangement execution over standard perspective models. Here we use CRF [18, 19] to improve the delicate name field, which can specifically model the back likelihood of classes. The fundamental arrangement of CRF can be composed as:

𝑃 𝑥 𝑦 =

1

𝑍exp − 𝑛𝑖∅ 𝑥𝑖, 𝑦𝑖

𝑖

+ 𝑤𝑖𝑗𝜑(𝑥𝑖, 𝑥𝑗, 𝑦𝑖, 𝑦𝑗 𝑗 ∈𝑁(𝑖)

𝑖

(1)

Here, x and y indicate the prescient class marks and perception image individually. 𝑛𝑖and𝑤𝑖𝑗 are the model

parameters. φ and ϕ signify, individually, the unary potential capacity and the double potential capacity, which both portray the interrelations among fundamental components in CRF. In our trial, the unary potential is meant by the delicate likelihood, and in the interim, these pairwise possibilities are parameterized by the Potts model. Along these lines, the first CRF model could be changed into the variational structure as underneath, where σ is the smooth coefficient:

𝑃 𝑥

𝑦 ∝ 𝑒𝑥𝑝 log 𝑃 𝑥𝑖 𝑦𝑖

𝑖

+ 𝜎 . 𝑥𝑖= 𝑥𝑗 𝑗 𝜖𝑁 𝑖

𝑖

(2)

By using the above mentioned enhanced CRF model, the index image was created. Different pixel ranges are represented by different index value which is used to find out the final classified image.

C. Co-segmentation Algorithm

The schematic outline of CoSand is given in Fig 2. The information to the calculation is an image set I and the quantity of fragments K. The primary target of the calculation is to put the K segment focuses keeping in mind the end goal to augment the division certainty at every pixel in an image while authorizing between image likenesses between the picked portions crosswise over images in the image set. CoSand comprises of three stages:

Stage 1: Preprocessing

(a) The intra-image chart Gi = (Vi , Ei , Di), where the vertex set Vi is the arrangement of extricated superpixels and the edge set Ei is the arrangement of all sets of contiguous superpixels, is built. Gaussian likeness is utilized to figure the diffusivity Di on the components of Superpixels. The 3-D CIE Lab shading and 4-D surface elements are extricated in each superpixel.

(b) Agglomerative grouping is keep running on Gi to discover the assessment focuses Li .

Fig 2 Co-segmentation Algorithm Flow

Stage 2:Source situation

(a) The addition at each of the assessment focuses for each image is gotten by tackling an arrangement of straight mathematical statements that requires network reversal, a computationally serious operation.

(b) Subsequently, conviction engendering is performed to get the consistent element estimation to the calculation.

Stage 3: Clustering

This stage utilizes the source focuses from the past stage to get the cosegmentation by grouping the Superpixels that have the same source point as the most plausible destination in every image.

As it is clear from the calculation, stages 1, 2 (a) and 3 should be possible autonomously for each image. Just the conviction proliferation stage (2(b)) requires information from all the images. Accordingly all the stages other than 2(b) allow themselves to parallelization.

D. Label Fusion

Volume 5, Issue 4, April 2016

1143

www.ijarcet.org

segmentation additionally doles out 0 or 1 to each voxel. Probabilistic segmentation (where each voxel is allotted a likelihood of having a given name) can likewise be accomplished by and by utilizing the same weighting plan as we create beneath. Similarly, a segmentation issue with more than two names can be deteriorated into different paired segmentation issues, i.e. dividing every mark from the remaining names. Our strategy can be connected to multi-name segmentation issues by creating weight maps as depicted beneath; utilizing weighted voting to figure accord segmentation for every name, and selecting at each voxel the name with the most astounding estimation of the agreement segmentation.

In binary segmentation, we can model segmentation mistakes created in chart book based segmentation as takes after:

ST(x) =Si(x)+ δi (x) (3)

whereδi (x)is the label contrast between objective image at

x and the ith atlas.δi (x) belongs to {−1, 0} when Si(x) = 1

and δi (x)belongs to {0, 1} when Si(x) = 0. We model the

label contrast as a discrete arbitrary variable, portrayed by the accompanying conveyance:

qi(x)=p(|δi(x)|=1|FT,F1,…,Fn) (4)

We receive the weighted voting structure, where at every x, an agreement segmentation S̅ (x) is produced as the weighted aggregate

𝑆 𝑥 = 𝑤𝑖 𝑥 𝑆𝑖 𝑥 (5) 𝑛

𝑖=1

where wi(x) are spatially shifting weight maps that indicate

1 at every x . Note that though the hopeful and target segmentations are taken to be binary , the agreement segmentation S̅(x) is definitely not. Our point is to locate the arrangement of voting weights that minimize the aggregate expected mistake amongst S̅(x) and the genuine segmentation ST (x), given by

Eδ1(x),…,δn(x)[(ST(x)− S̅(x)) 2|FT,F1,…,Fn]=

= 𝐸𝛿1(𝑥),…,𝛿𝑛(𝑥) 𝑤𝑖 𝑥 𝛿𝑖 𝑥 𝑛

𝑖=1

2

|𝐹𝑇, 𝐹1, … , 𝐹𝑛

= 𝑤𝑖 𝑥 𝑤𝑗 𝑥 𝐸𝛿1(𝑥),…,𝛿𝑛(𝑥) 𝑛

𝑗 =1 𝑛

𝑖=1

𝛿𝑖 _{𝑥 𝛿}𝑗 _{𝑥 | 𝐹}

𝑇, 𝐹1, … , 𝐹𝑛

= 𝑊𝑥𝑡𝑀𝑥𝑊𝑥 (6)

Wherewx = [w1(x);… ;wn(x)], and t remains for transpose.

Mx is a pairwise reliance framework with:

𝑀𝑥 𝑖, 𝑗

= 𝐸_𝛿1 _{𝑥 ,…,𝛿}𝑛 _𝑥 𝛿𝑖 𝑥 𝛿𝑗 𝑥 | 𝐹_𝑇, 𝐹₁, … , 𝐹_𝑛 (7)

= 𝑝 𝛿𝑖 _{𝑥 𝛿}𝑗 _{𝑥 = 1 |𝐹}

𝑇, 𝐹1, … , 𝐹𝑛 (8)

Mx(i, j) appraises how likely atlases i and j are to both create wrong segmentations for the objective image, given the watched highlight images. Note that the item δi(x)δj(x)

can just take values 0 or 1, with δi(x)δj(x) = 1 if and just if

both atlases create a label not the same as the objective segmentation.

Under this definition, to accomplish ideal label combination, the voting weights ought to be chosen such that the desire of the joined label distinction is minimized, i.e.,

𝑊𝑥∗=

𝑎𝑟𝑔𝑚𝑖𝑛

𝑊𝑧 𝑊𝑥

𝑡_𝑀

𝑥𝑊𝑥 𝑠𝑢𝑏𝑗𝑒𝑐𝑡 𝑡𝑜 𝑊𝑥 𝑖 = 1 𝑛

𝑖=1

(9)

Utilizing Lagrange multipliers, we can infer a shut structure answer for this minimization issue, given by

𝑊𝑥=

𝑀𝑥−1𝑛

1𝑛𝑡𝑀𝑥−1𝑛

(10)

Where 1n = [1; 1;… ; 1] is a vector of size n. At the point when Mx is not full rank, the weights can be assessed

utilizing quadratic programming streamlining [20]. In any case, the weights that minimize (10) are not exceptional. We take an option arrangement by continually including a character lattice weighted by a little positive number α to Mx. With the molding grid, we minimize the accompanying

target capacity:

𝑊𝑥𝑡 𝑀𝑥+ 𝛼𝐼 𝑊𝑥= 𝑊𝑥𝑡𝑀𝑥𝑊𝑥+ 𝛼 ∥ 𝑊𝑥

∥ 𝑠𝑢𝑏𝑗𝑒𝑐𝑡 𝑡𝑜 𝑊𝑥 𝑖 = 1

𝑛

𝑖=1

(11)

Subsequently, including a little molding character network can be deciphered as implementing a regularization term that inclines toward more comparable voting weights allotted to various atlases.

To ensure that the additional molding lattice is adequate to abstain from modifying a poorly adapted framework and the subsequent voting weights likewise give an answer near the worldwide least of the first target capacity, 𝑊𝑥𝑡𝑀𝑥𝑊𝑥, α

ought to be picked regarding the size of the evaluated reliance grid Mx. We found that setting α ≃ 1–2% of the maximal size of assessed Mx functions admirably.

IV. RESULT AND DISCUSSION

Fig 3 Input Image

Fig3 represents an input image of remote sensing image, which consist of both land use and land cover areas. Number of class label can be given by user. They can classify a given image into more than two classes.

Fig 4 label image of CRF

Connected components labeling of CRF method examines an image and gatherings its pixels into components taking into account pixel network, i.e. all pixels in a connected component offer comparable pixel intensity values and are somehow connected with each other. When the sum total of what gatherings have been resolved, every pixel is named with a gray level as per the component it was appointed to.

Fig 5 label image of Cosegmentation

Fig 4and Fig 5 represents the label image of conditional random field and Cosegmentation method respectively. Here an input image is classified into four different label regions. These different regions are represented by different gray level. Label image consist of different index value to represent different region. The index value can be given by pixel color value.

Fig 6Final fusion label image

Volume 5, Issue 4, April 2016

1145

www.ijarcet.org

Fig. 7 Classified images

Final classified image of remotely sensed image is given in Fig. 7. Different label region of land use and land cover regions are represented by different false color. The classified image region names are given below

- Black roof building -Ref roof building -Tree

-

-

Table 1 Performance comparison

Method Accuracy Error Rate

Proposed 95 5

AHRF 67.8 32.2

Darwin 84.8 15.2

Table 1 represents the performance evaluation of proposed method with AHRF and Darwin method. From the table, an accuracy of our proposed work will be increased to 95% when compared with existing method.

We performed examinations with AHRF and Darwin since they have been accounted for to beat other existing CRF-based labeling approaches. The AHRF calculation utilized as a part of the test additionally joins a three-layer CRF, which is like our CRF structure. Nonetheless, the AHRF approach does not consider the common appearance data from test information. The multiclass division model utilized as a part of Darwin executes a nonlocal pairwise potential capacity taking into account nonlocal coordinating limitations, notwithstanding regularly utilized unary and pairwise terms. The aftereffects of the correlation showed that our methodology accomplished recognizable execution changes contrasted and the other three CRF approaches particularly when utilizing a set number of training tests.

Fig 8 Performance Graph

Fig.8 demonstrates that the proposed strategy got more intelligible semantic segmentation results with significantly less commotion than AHRF and Darwin. This was because of the iterative authorization of nonlocal shared requirements in the proposed higher request capacities, which continuously adjusted the wrong labels amid the last emphasis.

V. CONCLUSION

our methodological system.
