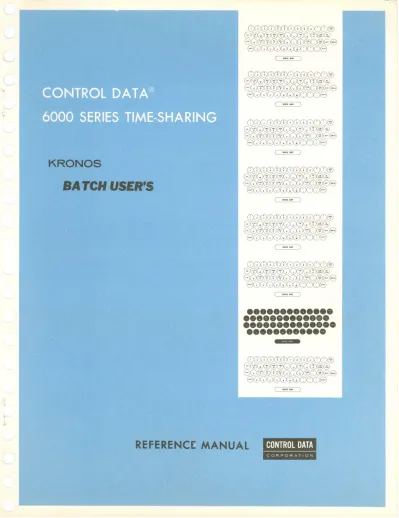

KRONOS Batch Users Reference Manual 59150600A Feb1970 pdf

(1)

(2)

-y

CONTROL DATA®

6000 SERIES TIME-SHARING

KRONOS

SA

TCH USER'S

REFERENCE MANUAL _

(3)

RECORD OF REVISIONS

Revision Notes

A Released 2-27-70

Address comments concerning this manual to:

KRONOS

Batch User's Reference Manual Publication Number 59150600

ii

Control Data Corporation

Business and Industrial Systems Division Technical Publications

4201 North Lexington Avenue St. Paul, Minnesota 55112

(4)

PREFACE

The KRONOS Time-Sharing System was developed by the Business and Industrial Systems

Division of Control Data Corporation. KRONOS processes jobs from a maximum of 384

time-sharing terminals, central site batch jobs, and remote batch jobs.

This manual describes the external features of the KRONOS Operating System for the batch

user. It does not contain a detailed internal description of the associated software nor a

description of the time-sharing commands.

For further information concerning Control Data® 6000 Series computers and the KRONOS

Time-Sharing System, consult the following manuals:

Title

Control Data 6400/6500/6600 Computer Systems

Reference Manual

Time -Sharing FOR TRAN Reference Manual

FOR TRAN Translator (FTNTRAN) Reference Manual

EXPOR T /IMPOR T Reference Manual

BASIC

Reference Manual

ALGOL

Reference Manual

Text Editor (EDIT) Reference Manual

KRONOS Operating Guide

Control Data MODIFY File Editing System Reference Manual

Instant KRONOS

Time-Sharing User's Reference Manual

KRONOS Terminal User's

Publication Number

60100000

59150900

59151000

59150500

59150800

59151200

59150700

59151600

59151100

59152100

59151300

(5)

(6)

SYSTEM DESCRIPTION

INTRODUCTION

The KRONOS Time-Sharing System coordinates multiple-user access to one CDC 6000

Series computer. Programs can be submitted from:

• Time-Sharing Terminal

• Central Site

• 200 User Terminal

1

The user can submit his job to KRONOS from a time-sharing terminal. The terminal

re-sponds as if it were a small computer console to which the user has sole access. However,

the 6000 Series computer at the central site allocates only a small portion of its total time

to process the requests of each individual terminal in succession. Hence, KRONOS is a

time-sharing system.

A user can also enter his program at the computer center. He can then use all the

equip-ment attached to the computer; i. e., card reader, punches, line printers, tapes, and other

peripheral devices.

The user can also communicate with the 6000 Series computer from a 200 User Terminal

at his own site. One or more jobs are collected into a job stack which is sent to the

com-puter center over telephone lines. K:RONOS processes the job stack in a manner similar

to that of local batch processing. The system transmits the resulting output to the remote

site.

KRONOS operation and performance depend directly on the system resources available for

job processing. The job types, the number of time-sharing users, and the remote batch

terminals determine the minimum hardware configuration necessary for system operation.

HARDWARE/SOFTWARE INTEGRATION

KRONOS uses the ten Peripheral Processor Units (PPUs) for system and input/ output tasks,

and the Central Processor Unit (CPU) to execute the user's jobs. Central Memory (CM)

con-tains the user programs and a system software area called Central Memory Resident (CMR).

When the term "system" appears in this manual, it is the equivalent of the KRONOS

operat-ing system. When lower case letters appear in format descriptions, they represent

user-supplied values. Capital letters and punctuation markst represent themselves.

(11)

CENTRAL PROCESSOR UNIT

The CPU performs computational tasks but has no input/output capability. It communicates

with the outside world through central memory. Under KRONOS, the CPU is used almost

ex-clusively for program compilations, assemblies, and executions. The CPU program makes

request of the system through the CPU Request register which is the Reference Address

plus one (RA+l) of the current program.

PERIPHERAL PROCESSOR UNITS

The ten peripheral processors (PPO, PP1, . . . , PP9) are identical and perform a variety

of tasks. However, the PPUs cannot assemble, compile, and execute user programs

effi-ciently. Under KRONOS, the PPus are assigned various tasks such as system

housekeep-ing, job processhousekeep-ing, and input/ output.

PPU number 0 contains the Monitor Program (MTR) that oversees or controls all other

system activities. PP9, under the supervision of MTR, permanently drives the console

typewriter and display scopes. The remaining PPUs, 1 through 8, are initially assigned

to read their input registers (specific locations in central memory) over and over. To

make a request, the monitor inserts a significant word into the input register of a PPU.

When the PPU reads its input register, it obeys the request (or determines that it cannot

do so), sets a drop PPU request in its output register to indicate to the monitor that the

PPU has processed the request, and returns to its idling state. When idling, pool PPUs

continually read their input registers. Thus, all requests to a PPU (other than PPO) are

communicated through the input register of that PPU.

Each PPU (other than PPO) uses its output register (another locatio~in central memory)

for requests to the monitor and for completion status of the requests. The monitor

peri-odically searches the PPU output registers for requests. The monitor zeros certain bits

in the PPU output registers when the requests have been processed.

Although the primary task of a PPU is to act on requests from MTR, a PPU most

occasion-ally request the cooperation of another PPU. PPUs request these additional PPUs through

the monitor and must request permission from the monitor before using an input/ output

channel. Since each PPU is capable of connecting itself to any channel, only one PPU can

use a specific channel at one time. To avoid two PPUs attempting to use the same channel

(which would hang up both PPU s and the channel), the monitor maintains a list of channels

and their status. Whenever a PPU requires a channel, it must first request the monitor to

assign that channel for its exclusive use. When finished with the channel, the PPU specifies

(12)

CENTRAL MEMORY (60-BIT WORDS)

A number of programs can be executed concurrently under KRONOS. These programs are

stored in central memory (user area) along with a set of necessary data for system

opera-tion (central memory resident). Central memory is accessible to both the CPU (within the

field length of a given program) and the PPUs, and thus forms the communications link

be-tween the 11 processors and the system.

Central memory resident contains the library directory, system communication area,

sys-tem tables, the CPU resident routine, and information about each job currently being

exe-cuted. The user area contains the programs currently being executed for each job.

Central memory words are 60 bits in length and contain five 12-bit PPU memory words.

These five PPU words, called bytes, are numbered 0 through 4:

59 47 35 23 11 0

1 b_y_t_e_o_....

I__

b_y_te_l_-J,.I_ _b_yt_e_2_---L...I_ _b_y_te_3_---1..I b_y_te_4_----J1

Central Memory Word

MULTIPROGRAMMING

CONTROL POINTS

The system can execute several jobs simultaneously. During execution, these jobs are

numbered (l-n). The index of each job is called a control point. When the system has

se-lected a job for execution, it assigns the job to a control point. The control point number

identifies and differentiates the job from the other jobs in execution. Each control point ,has

a control point area in central memory that contains all of the information necessary for

KRONOS to define and process the a~signedjob.

CONTROL POINT AREA

When a job is in central memory, the control point area to which it is assigned contains

such information as job name, length, starting address in CM, elapsed time, assigned I/O

equipment, and control statements. The control point area also contains a 16-word section

called the exchange package. The exchange package contains all necessary information for

starting or resuming a CM program - the contents of all registers used in executing a

pro-gram.

Under KRONOS, control point 1 is dedicated to TELEX, the CPU executive for the REMOTE

teletypewriter communication package. Control point n is reserved for the EXPORT

(13)

CONTROL POINT NUMBER

In the control point system, a 5-bit number identifies a job in process. For example, a

user's program requests the system to read a magnetic tape. This request generates

several internal requests (which the PPUs pass back and forth). Each of these requests

requires only five bits to identify the user's job.

FILES

A file is an organized collection of data. The file name identifies it to the user and to the

system. KRONOS, the jobs it processes, and intermediate results are files or parts of

files. A file consists of one or more logical records. Each logical record contains one

or more Physical Record Units (PRUs) of data.

Files can be transferred from one device to another since equivalent formats are used for

files on cards, printer, disk, and magnetic tape. The information in a file is stored

seri-ally. An object program can operate on named files and the actual medium of a file can

be specified on control cards; disk storage is assumed if no medium is specified.

Coded information is stored internally in display code on either a disk sector or a

mag-netic tape record. The concept of logical records makes it possible to have equivalent

forms of a file on several media, without losing the advantages of each form of storage.

For example, several cards constituting a logical record can be transferred to an

equi-valent form on disk storage where they are blocked in sectors.

FILE NAMES

File names consist of one to seven alphanumeric characters.

Input and output operations of a central program involve a named file - a disk, magnetic

tape, punched card, or printer file. The physical unit associated with a file name is

con-trolled by the job control cards and is not a function of the central program coding directly.

The operating system provides a common interface between the central program and the

peripheral programs which drive the equipment.

The special files named:

•

INPUT

•

OUTPUT

•

PUNCH

•

PUNCHB

(14)

are supplied to each job by the system. The user should not try to assign these names to

other temporary or I/O files.

INPUT FILE

The file named INPUT is the file from which the job can be read after it has been assigned to a control point. Before a job is at a control point, the job file is identified by the job name.

OUTPUT FILE

The file named OUTPUT contains the results which are to become printed copy when the job

terminates. During job processing, the file OUTPUT collects records which are to be

printed. When job processing is completed, the name of this file changes from OUTPUT to

the job name.

PUNCH FILE

The file named PUNCH contains the data which is to become Hollerith punch card output

when the job terminates. When job processing is completed, the name of this file changes

from PUNCH to the job name.

PUNCHB FILE

The file named PUNCHB contains the data which is to become binary punch card output when

the job terminates. When job processing is completed, the name of file PUNCHB also changes to the job name.

pa

FILE

The file named P8 contains the data which is to become 80-column binary punch card output

when the job terminates. When job processing is completed, the name of file P8 also changes to the job name.

LOGICAL RECORDS

All files under the KRONOS system are organized into logical records. Input files are

organ-ized into logical records by the language translator or other program producing the output. Otherwise, the user must generate logical records.

Since the logical record is defined for each type of peripheral device, files retain their

structure when transferred between devices. The physical format of a logical record is

(15)

smallest amount of information the system transfers during a single physical read or write

operation for each device.

Logical records consist of one or more PRUs, the last of which is short- or zero-length.

For mass storage and tape, a physical record unit that contains less than the normal amount

of data marks the End-of-Record (EOR). Card data has a special EOR mark. An EOR is written on tape or mass storage as a zero-length PR U if the logical record data is an even

multiple of the PRU size, or if a write operation was requested when no data was in the

buffer. A zero-length PRU is a PRU containing no data.

DATA FORMATS

Data within the system can be binary or coded. Binary records can be of any length. Coded

records are lines of display-coded characters. Binary data is in images of central memory

but is blocked into physical records. The data block lengths are device -dependent.

Each line of coded data begins at the first byte of a word and continues two characters per

byte to the end of a line. The line can be of any length, but should be of a size

correspond-ing to the device to which the line will be written. The last CM word of the line is completed

with at least one cleared byte. A cleared byte is the End-of-Line designation.

Coded data on mass storage or odd parity tape has the same format as binary data, and can

be grouped into records. The following paragraphs describe data formats for each device.

MASS STORAGE

All data on a mass storage device is in 64 CM word PRUs. Each PRU is preceded by two

bytes of control information which is available to the system only. Files on mass storage

can be randomly accessed (logical records of mass storage can be read or written directly

without reading or writing the entire file). Under KRONOS, a user can access a random file

record by address or by record index. In Address mode, a user can access any randorrl

access file. In Index mode, a user can access only those random access files which have a

list of record names or numbers as the first logical record. The addressing structure

allows random access files to be temporarily stored on non-random devices without losing

their random access characteristics.

After an initial random access read request for a file or End-of-Information has been

writ-ten, the system treats a random access file like a sequential file. Subsequent read or write

requests occur at the current file position.

(16)

KRONOS allows a random access file to be used as a sequential file. However, a user should

not assume that a rewritten random access file is in any particular order.

ADDRESS MODE

The Address mode of random access allows the user to read or rewrite any group of PRUs.

The user specifies the address of the first PRU to be read or rewritten. The length of the

buffer or data in the buffer determines the number of PRUs to be read or rewritten.

There-fore, the rewrite feature should be used carefully because it is possible to overwrite into

the next block of data if a user requests a random write when more data is in the buffer than in the original block. Also, End-of-File (EOF) and End-of-Record write requests can cause

control PRUs to overlap into following data.

To request A.ddress mode random access processing, set the random access bit (r), set the first sector number in the random request field of the File Environment Table (FET) (Sec-tion 4), and set bit 1 7 of the random request field.

INDEX MODE

The Index mode of random access requires a table of record names or numbers with the

associated first sector numbers. When an indexed random access file is to be saved, the.

system writes this table as the last logical record of the file.

A table of record names requires two words per record. A table of record number requires

one word per record.

All random write requests on an indexed file occur at the End-of-Information mark.

There-fore, when a record on an indexed file is rewritten, it can differ in size from the original

record. The system writes the new record at the End-of-Information (EOI) mark and does

not release the space reserved for the old record.

KRONOS provides system macros for Index mode random access (Section 4).

CODED PUNCHED CARDS

Coded cards are in Hollerith code, 80 characters per card. The system reads data

from cards, converts it to display code, deletes trailing spaces, and packs it into a line of

up to nine CM words. The system punches data for a card until an End-of-Line mark or the

80th character appears. If an End-of-Line mark does not appear after 80 characters, data

is lost. Since the search for an End-of-Line mark terminates when 14 CM words have been

(17)

CONVERSION

Conversion can be specified by the code card. This card has a 5-7-9 punch in column 1.

Column 2 specifies the conversion.

Column 2

blank

9

8

Conversion

026

029 FORTRAN

029 COBOL

Conversion is initially set to 026. A conversion code remains in effect until changed or

until an End-of-Information mark is read, whichever occurs first.

BINARY PUNCHED CARDS

Binary cards contain:

• up to 15 words per card,

• a 7 -9 punch in column 1,

• word count of card in column 1, rows 0, 1, 2, 3,

• an ignore checksum punch in column 1, row 4,

• the checksum modulo 4,095 in column 2,

• the binary sequence number in columns 79 and 80, and

• a blank in column 78.

An End-of Record mark has a 7-8-9 punch in column 1. An End-of-File mark has a 6-7-9

punch in column 1. An End-of-Information mark has a 6-7-8-9 punch in column 1.

PRINTED DATA

All printed data is in coded format. The system extracts data to be printed until an

End-of-Line mark or the 136th character appears. If an End-of-Line mark does not appear after

136 characters, data is lost. Since the search for an End-of-Line mark terminates when

14

eM

words have been checked, up to four characters can be lost.

CARRIAGE (ONTROl

The system recognizes the first character in a line as the carriage control character. If the

first character is a carriage control character (Table 1-1), it is not printed. When the

system recognizes a carriage control character, it prints a line containing a maximum of

(18)

crease). This is the only carriage control command that remains in effect until changed.

All other carriage control commands must be given for each line that they control.

TABLE 1-1. CARRIAGE CONTROL CHARACTERS

Character Command

space Single-space

1 Eject page before print

o

Skip one line before print (double space) - Skip two lines before print (triple space)

+ Suppress space before print

/ Suppress space after print

2 Skip to last line of form before print

t

8 Skip to format channel 1 before printt

7 Skip to format channel 2 before print

t

H Skip to format channel 1 after print

G Skip to format channel 2 after print

F Skip to format channel 3 after print

E Skip to format channel 4 after print

D Skip to format channel 5 after print

C Skip to format channel 6 after print

Q Clear Auto Eject

R Set Auto Eject

S Select 6 lines

T Select 8 lines

t No space after print

STANDARD FORMAT MAGNETIC TAPE

The standard KRONOS magnetic tape format is 7-trackJ 1/2-inch tape. The system writes

to tape in odd parity; 512

eM

word PRUs. An EOR mark is a short PHU (less than 512

(19)

UNBLOCKED EXTERNAL BCD FORMAT MAGNETIC TAPE

Unblocked External BCD format is 7-track, line or card image 1/2-inch tape. The system

writes to tape in even parity, 136 character PRUs unless the user specifies another PRU

size on an ASSIGN or REQUEST card. Both EOR and EOF marks are represented by tape

file marks. The system converts data to display code, deletes trailing spaces, and stores

ten characters per CM word for a read operation. For a write operation, the system

con-verts data to External BCD, adds trailing spaces if necessary, and writes the characters in

a coded line, discarding characters that occur after the specified number.

BLOCKED EXTERNAL BCD FORMAT MAGNETIC TAPE

Blocked External BCD format is 7-track, 1/2-inch tape. The system writes to tape in even

parity, 150 character PRUs unless the user specifies another PR U size on an ASSIGN or

REQUEST card. Both EOR and EOF marks are represented by tape file marks. The

sys-tem converts data to display code and stores ten characters per CM word for a read

opera-tion. If necessary, the system completes the last word with spaces. For a write operation,

the system converts data to External BCD and writes the characters in a coded line,

dis-carding the characters that occur after the specified number.

PERMANENT FILES

Under KRONOS the user has access to permanent files - files which cannot be lost by a

dead-start operation. Permanent files can be accessed in any available system mode (Address

or Index) once the file has been retrieved from permanent file storage and is available at

(20)

JOB PROCESSING

2

A job consists of one file of punched cards or card images. The first logical record of a job

file contains the control cards that specify the job's processing requirements. The system

processes jobs in three sequential but independent stages:

• Input • Execution

• Output

Many jobs can be in the input and output stages of processing but only n jobs (one for each

control point) can be in the execution stage. Each job must begin with a job card and end

with an End-of-Information card. All other control cards follow the job card directly. The

end of the control cards is signified by a 7-8-9 card (End-of-Record) or a 6-7-8-9 card

(End-of-Information) if the job consists of control cards only.

JOB INPUT

The system reads an entire job from the card reader and stores it on mass storage in the

input queue. A typical job file has three logical records: control cards, program cards, and data cards.

JOB EXECUTION

The system executes a job by:

• bringing the job to a control point,

• following the directives of the control cards, and

• accumulating data for the output stage of job processing.

A job is executed only when it is assigned to a control point. One job is assigned to each control point. When a control point becomes available, the system selects a job from the

input queue and assigns it to the free control point.

After a job is assigned to a control point, KRONOS advances the job according to the job control

cards. These control cards contain directives (such as LOAD or EXECUTE) that are

inter-preted and obeyed, one at a time, in the order they appear in the job file. For example, a

(21)

During execution, the system accumulates the output data (if there is any) in files on the

system mass storage device.

JOB OUTPUT

When the system has obeyed the last control card for a job, it enters the files of accumulated

output data into the output queue. The system selects files from the output queue and

pro-cesses them according to file type (punched cards, printer listings, etc.).

CONTROL CARD TRANSLATION

KRONOS translates a control statement by:

1. Reading the statement from the control point control card buffer. If necessary, the

system reloads control statements from the file INPUT.

2. Deleting all spaces between the beginning of the statement and the termination

char-acter (a period or a right parenthesis). KRONOS allows only standard FORTRAN

characters to appear before the termination character, although other characters

can appear in the comment field.

3. Searching the list of control card names and comparing them with the name of the

card being processed. If the card name is on the list, the system processes the

control statement according to the parameters. If the card name is not on the list,

the system searches further.

4. Searching the File Name Table with the first characters (seven or less up to the

separator character) for a file assigned to the control point with a name identical

to the first characters of the control statement. If the system finds such a file on

a mass storage device in absolute format, the system reads the file into central

memory as a CPU program. If the file resides on a non-mass storage device, KRONOS

aborts the job. If the file is in relocatable format on a mass storage device, the

system transfers control to the loader (Section 5), extracts the arguments from the

control statement, stores them in RA+2 through RA+(n+1), and requests the CPU

to begin program execution.

5. Searching the Chippewa Library Directory for a program name that coincides with

the card name. If the system finds such a program, it loads the program, stores

the arguments in RA+2 through RA+(n+1), and requests the CPU to begin program

(22)

6. Searching the SCOPE Library Directory for a program name that coincides with

the card name. If the system finds such a program in absolute format, the system

proceeds as for a Chippewa Library program (Step 5). If the program is in

relocat-able format, the system transfers control to the loader (Section 5).

7. Searching the Peripheral Library Directory if the statement name is three

charac-ters long and begins with a letter. If the system finds such a program, it constructs

a call to a PPU using the name and arguments from the control statement.

(23)

(24)

CONTROL CARDS

As introduced in Section 2, control cards direct job execution. KRONOS recognizes four types of control cards:

• Job

• Program Execution

• File Management

• Permanent File

3

All control cards, except the job card and program call cards, have two fields. The first

field contains the card name, beginning in column 1. Card names described in this section

are reserved for the system and cannot be used as program call names. The second field is optional; it can contain one or more parameters separated by commas. The two fields

are separated by a separator character: + - " / = , (or $.

The parameter field is terminated by a period or right parenthesis. A terminator must be present, even though no parameters are. specified.

The card names on job cards and program call cards contain the name of the job and the

name of the program, respectively.

JOB CONTROL CARDS

JOB CARD

Control card format: jobname, Tt, CMfl, Pp. or jobname, p, t, fl.

jobname Alphanumeric job name (one to seven characters) must begin with a

letter. To assure unique job names, KRONOS replaces the last three

characters with a system-generated value.

t Central processor time limit in octal seconds (maximum 777708). This time limit must suffice for compilation and execution of the job.

If t is absent, KRONOS assumes t=100

_a

(100

8 seconds ~ 1 minute).

fl Total central memory field length of the job; a maximum of six octal

digits. The system rounds the field length (storage requirement) to

(25)

p

• _{360,000 8 on a 131K machine}

• _{163,000 8 on a 65K machine}

• 61,0008 on a 32K machine

If fl is absent, KRONOS assumes fl=50, 000 8.

Priority level (octal) at which job enters the system;

1 ~ p ~ 17. If p is absent, KRONOS as sumes p~10.

The first control card for a job indicates the job name, priority, CPU time limit, and

memory requirements. Commas separate the fields and a period terminates the job card.

Blanks have no meaning. Fields other than jobname can appear in any order when identified

by the leading characters in the field.

ACCOUNT CARD

Control card format: ACCOUNT, xxxxxxx, pswd.

xxxxxxx user account number

pswd user password

The second card in the control card record must be the ACCOUNT card. It specifies the

user's account number. This account number is used in system bookkeeping as well as for

user access to permanent files.

ONSW CARD

Control card format:

n·₁ Pseudo-sense switch number; 1 ~ n ~ 6.

The ONSW control card sets pseudo-sense switches for reference by the user's program.

The system stores the sense switch settings in the control point area and copies them to

address RA of the user's area for use by the central program. The system operator can

change these switch settings by console command.

OFFSW CARD

n.

1 Pseudo-sense switch number; 1 ~ n ~ 6.

The OFFSW control card clears pseudo-sense switches for reference by the user's program.

The system stores the sense switch settings in the control point area and copies them to

address RA of the user's area for use by the central program. The system operator can

(26)

MODE CARD

Control card format: MODE(n)

n

o

1

2

3

4

5

7

Exit Condition

Disable Exit mode; no selections made

Address is out of range because:

• Attempt was made to reference central memory or extended core storage outside established limits

• Word count in extended core storage communication instruction is negative

• Attempt was made to reference last 50-bit \vord (word 7) in relative address FL ECS

Operand out of range; floating-point arithmetic unit received an

infinite operand

Address or operand is out of range

Indefinite operand; floating-point arithmetic unit received an indefinite operand

Indefinite operand or address is out of range

Indefinite operand or operand is out of range

Indefinite operand, operand is out of range, or address is out of

range

The MODE control card selects the exit or stop conditions for the CPU program. When MTR

executes an exchange jump, the exit selection code enters the CPU. The exit occurs as soon

as the selected condition arises. If the user does not specify an error mode, the system

assumes n=7.

COMMENT CARD

Control card format: COMMENT. comments or *:comments

comments Combination of characters the user wishes to display

The system displays the combination of characters following the period or asterisk on a

COMMENT control card and enters them into the dayfile.

EXIT CARD

(27)

The EXIT card separates the control cards for normal execution from those used when an

error exit occurs. When the error exit condition occurs, the system searches the control

card record for the next EXIT card. If the record does not contain an EXIT card, the

sys-tem terminates the job. If the system finds an EXIT card, it clears the error condition and

obeys the subsequent control cards. Appendix D describes the error messages.

MAP CARD

Control card format: MAP.

The MAP card sets the Loader Map flag for the control point. The loader will generate a core map for the job.

PARTIAL MAP CARD

Control card format: MAP{P)

The MAP card with a defined parameter sets the Partial Map flag for the control point. A

full MAP card or NOMAP card clears the Partial Map flag.

NOMAP CARD

Control card format: NOMAP.

The NOMAP card clears the Loader Map flag for the control point. The loader w·ill not

generate a core map for the job.

REDUCEFL CARD

Control card format: REDUCEFL.

The REDUCEFL card clears the No Reduce FL flag for programs which normally reduce

field length for the job.

NOREDUCE CARD

Control card format: NOREDUCE.

The NOREDUCE card sets the No Reduce FL flag for the job.

ROLLOUT CARD

Control card format: ROLLOlJT.

The ROLLOUT card requests that the user's job be rolled out so that all memory assigned

(28)

SETPR CARD

Control card format: SETPR(p)

p priority level; 1 ~ P ~ 17.

The SETPR control card allows the user to specify a new priority level for his job.

SETTL CARD

Control card format: SETTL(t)

t Central processor time limit in octal seconds (maximum 777708)

The SETTL control card permits the user to specify a new time limit for his job.

PROGRAM EXECUTION CONTROL CARDS

These control cards direct loading and execution of files. Program execution control cards

have the general format:

name list comment

The card is a unit record of up to 80 characters, including freely interspersed spaces.

The name and list fields are required and comment is optional. The name is a string of one

to seven alphanumeric characters. The comment is a string of Hollerith characters.

The list contains parameters to be used by the program being loaded. The contents of the list can vary greatly, depending on the requirements of the program being loaded. If

para-meters are not required, list is simply a period. Parapara-meters can be enclosed in parentheses

or preceded by a comma and terminated by a period. The list can contain as many

para-meters as fit on one card. The program being loaded dictates the form of the parameters to be used. The parameters can specify the type of information flow, input BCD output,

binary output, special information, or the name of a file involved.

LOAD CARD

Control card format: LOAD (lfn1) or

LOAD (lfn1' Ifn 2 ,

Ifn1

Ifn2-lfnn

Name of file to be loaded

Names of library files (other than the system library) from v/hich

to satisfy external references of Ifn1 (0 ~ n ~ 50)

T he LOAD card directs the system to load the file lfn 1, and the programs from files Ifn2

(29)

Files Ifn2 through lfnn must reside in mass storage. Loading begins from the current file position. Loading of IfnI terminates when the EOI mark or an empty record appears. The

user can load segments and relocatable binary decks with the LOAD control card.

Use a LOAD card for each complete file required. The first record of the first file

deter-mines the kind of loading for subsequent LOAD cards.

SATISFY CARD

Names of library files (other than the system library) from

which to satisfy external references

For the SATISFY card, the system loads the programs from files IfnI through lfn

n required to satisfy external references in a file that the system has already loaded into central

mem-ory as a result of a LOAD card.

File Ifni must reside in mass storage when a SATISFY card appears.

EXECUTE CARD

name Program entry point where execution is to begin. If name is absent,

the system uses the last transfer address (XFER) encountered

List of parameters

The EXECUTE card causes the loader to complete program loading. This includes filling

all unsatisfied references with entry points from the system library except where inhibited

by segment parameters.

For segment or overlay operations, program execution begins in the first segment or the

main overlay.

PROGRAM CALL CARD

lfn

p.

1

Program name and entry point where execution is to begin

List of parameters

The system searches the File Name Table /File Status Table for a file named lfn. If it finds

file lfn, it loads the file subprograms and bypasses any routines already loaded by LOAD

(30)

file named lfn in the FNT /FST, it searches the system library and loads a subprogram with

the same lfn name. When the system completes loading, and if it finds no fatal errors, it

passes the parameters to the requested program and begins execution at the entry point

named lfn.

Examples:

LOA,D (ESTE)

EXECUTE. is equivalent to: ESTE.

To replace one subprogram with a subprogram of the same name from another file, the sequence could take the form:

LOAD (HOST) GUEST.

The subprograms will be loaded from the file HOST and the system bypasses

the subprograms of the same name on GUEST.

FORTRAN CARD

Control card format: RUN (cm, fl, bl, if, of, rf, lc, as, cs)

cm Compiler mode option; if omitted, the system assumes cm = G; if unrecognizable, the system assumes cm = S.

G

S P

L

M

Mode

Compile and execute; do not list unless explicit LIST cards appear in the deck

Compile with source list; do not execute

Compile with source list and punch deck on file PUNCHB; do not execute

Compile with source and object list; do not execute

Compile with source and object list; produce a punch deck on file PUNCHB; do not execute

fl Object program field length (octal); if omitted, the system sets fl field length at compile time.

bl Object program I/O buffer length (octal); if omitted, the system sets bl = 20228

if Name of file containing compiler input; if omitted, the system assumes if

=

INPUT

of Name of file to receive computer output; if omitted, the system assumes of

=

OUTPUT

(31)

lc

as

cs

Line limit (octal) of the object program OUTPUT file; if omitted,

the system assumes lc = _{1000 S;} if the line count exceeds the line limit, the system terminates the job

ASA switch; if non-zero or non-blank, causes A SA. I/O list/format

interaction at execution time.

Cross reference switch; produces a cross reference listing

The RUN control card calls the FORTRAN compiler to the job control point.

COMPASS CARD

Parameters; can be in the following format:

a

a = fname a 0 Option A B B=O B=fname D LO LO=O lVleaning

Source is MODIFY compressed symbolic. If A. is

omitted, no A option is assumed.

Binary on file LGO. If no B parameter is supplied,

this option is assumed.

No binary.

Binary on file fname.

Generates binary even if there are assembly errors.

If D is omitted, no D option is assumed.

Select list options: CFGX.

Normal list options. Options Land R are set.

LO=chars Select list options according to the character string

"chars" . Character L R G A C D E F M S X Lists Normal listing Reference information

Lines that result in code generation Lines with -or =I marks removed

EJECT, SPACE, and TITLE control cards Detailed code not normally listed

(32)

I

I=fname

L

L=O

L=fname

o

0=0

O=fname

P

S

S=O

S=sname

x

X=fname

Input from file COMPILE.

Input from file fname.

When the I parameter is omitted, the system assumes

I=INPUT"

Long list on file OUTPUT. When the L parameter is

omitted, this option is assumed.

No long list.

Long list on file fname.

Short list on file OUTPUT. When the 0 parameter is

omitted, this option is assumed.

No short list.

Short list on file fname.

Select consecutive page numbering. When P is

omitted, no P option is assumed.

System text name SYSTEXT. When S is omitted., this

option is assumed.

No system text.

System text name sname.

External text from file OPL. When X is omitted, this

option is assumed.

External text from file fname.

The COMPASS control card calls the COMPASS assembler to the job control point.

MODIFY CARD

C;ontrol card form.at:

p.

1 Parameters; can be in the following general formats:

a

a = fname a

=

0

Options Specify

I

I=fname

1=0

Use directive input from file INPUT

Use directive input from file fname

(33)

Options Specify

P Use file OPL for old program library

P=fname Use file fname for old program library p=o Use no old program library file

C Write compile output to file COMPILE

C =fname Write compile output to file fname

C=O Write no compile file

N Write new program library on file NPL

N=fname Write new program library on file fname

N=O Write no new program library

S Write source output on file SOURCE

S=fname Write source output on file fname S=O Write no source output

L List output on file OUTPUT L=fname List output on file fname

L=O List no output information

LO Select list options: ECTMWDS

LO=chars Select list options according to the character string "chars":

Character

E

C

T

M

W

D

S

I

A

Lists

Errors

Directives other than INSERT, DELETE, RESTORE

Input text

Modifications made Compile file directives Deck status

Statistics Inactive cards

Active cards

A

D

F

U

NR

X

Any combination of characters selects the combination of list options.

Write compressed compile file

Ignore errors

Modify all decks

Modify only decks mentioned on DECK directives; F overrides U option

Do not rewind compile file

(34)

X=prog

X=O

Rewind input and output files, set A option, and call the prog processing program when modification is completed

Do not call another processing program

The following options apply only if the X option is selected.

CB Set assembler argument B=LGO

CB=name Set assembler argument B=name

CB=O Set assembler argument B=O

CL Set assembler argument L=OUTPUT

CL=name Set assembler argument L=name

CL=O Set assembler argument L=O

CS Set assembler argument S=SYSTEXT

CS=name Set assembler argument S=name

CS=O Set assembler argument S=O

With the MODIFY control card, the user calls the MODIFY program to his control point to

edit a library file. The parameter list specifies additional information to MODIFY. The

parameters can be in any order and are not mandatory. For any or all parameters omitted

from the control card, the system uses a default value:

I INPUT LO = ECTMWDS NR deselected

P OPL A deselected X = 0

C COMPILE D deselected CB

N 0 F deselected CL = 0

S 0 U deselected CS

L OUTPUT

NOGO CARD

Control card format: NOGO.

When the loader encounters a NOGO card, it processes the loaded program in the same

manner as for an EXECUTE card; however, it does not execute the program. This card

permits program mapping, execution bypassing, and continuation of other portions of the job.

FILE MANAGEMENT CONTROL CARDS

The file management control cards permit the user to:

• request a file in a particular type of output,

(35)

• route a file to a particular destination,

• create a COMMON file,

• attach a COMMON file,

• change a LOCAL file to a COMMON file, and

• release a COMMON file.

If a file is not specifically assigned to a REQUEST or ASSIGN card, the system assigns it

to disk storage. A job does not assign the card reader, printer, or punch for normal input/ output from such things as compilations or assemblies since the system does this

automati-cally. In addition, any file named OUTPUT, PUNCH, or PUNCHB will always be printed,

punched, or punched binary by the system at job completion. The REQUEST card is used

for large installations where the operator can best assign the available equipment when any

peripheral device of a particular type is suitable. The ASSIGN card is for smaller

installa-tions and situainstalla-tions where only one particular peripheral device is suitable.

REQUEST CARD

lfn

x.

1

Logical file name; one to seven digits or letters. This is the name of

the file to which equipment is to be assigned, and the name by which the

user refers to the file within his program. A REQUEST card must have at least one parameter; the first parameter is the lfn.

Any of the following:

LO

HI

HY X

B

C=xxxx

Density = 200 bpi

Density = 556 bpi

Density = 800 bpi

Process coded data in unblocked External BCD (136 characters /PR U unless otherwise specified). (Section 1)

Process coded data in blocked External BCD (150 char-acters /PRU unless otherwise specified). (Section 1)

Set External BCD character count per PRU=xxxx;

1 ~ xxxx .~ 4,096. Any value not in this range is ignored without comment and standard values are used

The user can fill his REQUEST card with x. parameters. If parameter commands conflict,

1

TSOS ignores all except the last parameter given.

The REQUEST card directs the system to display (at the system console) the user's request

(36)

acceptable type of device. When the system operator assigns the peripheral equipment, job

execution commences. Any equipment the user wishes to use must be requested on a

RE-QUEST card or assigned on an ASSIGN card.

Because the system processes control cards in order, the REQUEST card must appear

be-fore the user references the file. If a parameter appears more than once or is illegal, the

system issues a message and aborts the job.

ASSIGN CARD

nn Ordinal in equipment Status Table (EST) of peripheral device or

equipment type:

Type

CP

CR

DA

DB DC

DD

DE DF

DG

LP MT

Equipment Card punch

Card reader

6603 disk·

6638 disk 863 drum

854 disk drive

Extended core storage 814 disk

Disk drive group

Line printer

1/2 -inch magnetic tape

lfn

x.

1

Name of file to be assigned

Any of the following:

LO

HI HY

X

B

C=xxxx

Density = 200 bpi

Density =556 bpi Density = 800 bpi

Process coded data in unblocked External BCD (136 characters/PRU unless otherwise specified). (Section 1)

Proces s coded data in blocked External BCD (150 char-acters/PRU unless otherwise specified). (Section 1)

(37)

The user can fill his ASSIGN card with xi parameters. If parameter commands conflict, KRONOS ignores all except the last parameter given.

The ASSIGN card directs the system to assign equipment nn to file lfn. The system will

refuse to assign the equipment if the user is not allowed to use the device or the file is already assigned to another device.

SETID CARD

SETID (IfnI = _{aI' Ifn2} = _{a 2, · · · , lfnn} = an)

Logical file name

a·₁ New area code for file

The SETID card assigns a new area code or changes the area code for file lfn. The area code allows the user to route his file to a particular output device or device group because

of proximity or other considerations.

COMMON CARD

Control card format: COMMON (lfn

l, Ifn2, . . . , lfnn) Ifni Name(s) of COMMON file(s)

If file Ifni is a COMMON file in the FNT /FST and is not being used by another job, the

sys-tem assigns it to this job. If the file is being used by another job or is not a COMMON file, the job must wait until the file is available.

If file lfn appears as a LOCAL file for the job, the system changes it to a COMMON file in

the FNT /FST and it becomes available to any succeeding job after the current job terminates.

However, if a COMMON file of the same name already exists, the system rejects the

COM-MON request and allows the job to continue.

If the file resides on a non-allocatable device such as magnetic tape, the equipment is

re-served until the user releases the COMMON file.

RELEASE CARD

Control card format: RELEASE (IfnI' Ifn₂, . . . , lfn_n)

Logical file name

For the RELEASE card, the system changes COMMON file Ifni' currently assigned to the

job, to a LOCA L file in the FNT /FST. The file is then discarded at the end of the job unless

(38)

LOCK CARD

Control card format: LOCK (lfn

1, lfn2, · · . , lfnn)

Logical file name of a LOCAL file

With the LOCK card, the user can set the write lockout for local file lfn. Subsequently, the

system allows only read operations on the file.

UNLOCK CARD

Control card format: UNLOCK (lfn

1, lfn2, · · · , lfnn) Logical file name of a LOCAL file

With the UNLOCK card, the user can clear the write lockout (rescind a LOCK command for

10 cal file lfn).

MACE CARD

Control card format: MACE.

The MACE card clears the SCOPE bit for loading of a file.

SCOPE CARD

Control card format: SCOPE.

The SCOPE card sets the SCOPE bit for loading of a file.

PERMANENT FILE CONTROL CARDS

SAVE CARD

Control card format: _{SA VE, lfn}

1 = pfn1, · . . , lfnn =pfnn

lfn.

1

pfn.

1

Local file name; name of the file to be saved

Permanent file name; name under which the file is to be

stored on the permanent file device. (If omitted, pfni=Ifni)

The SAVE control card permits the user to retain files in the permanent file system. As

(39)

GET CARD

lfn.

I

xxxxxxx

GET, Ifn₁= pfn₁, ... , lfn

n = pfnn, ACCOUNT = xxxxxxx .

Local file name; name given to the file when in use

Permanent file name; name of the permanent file to be

retrieved. (If omitted, pfni = Ifni)

The user number of another user; given when a user wishes to

re-trieve the file(s) of another user (provided permis sion has been granted)

Control card fornlat:

The GET control card enables the user to retrieve a file from permanent file storage. As

many files as can be specified on one control card can be retrieved with each GET command.

REPLACE CARD

REPLACE, Ifn1 =pfn1, ... , lfnn=pfnn , ACCODNT=xxxxxxx.

Local file name; name of the new file that will be placed on the

permanent file device

pfn.

I

xxxxxxx

Permanent file name; name of the file that is replaced

(If omitted, pfn. = lfn.)

I I

The user number of another user; given when the user wishes to

replace the file(s) of another user (provided permission has been

granted)

The REPLACE control card permits the user to substitute a new file for an old file on the

permanent file device. As many files as can be specified on one control card can be

re-placed with one REPLACE command.

PURGE CARD

Control card format: PURGE, pfn₁, ... , pfn_n, ACCOUNT = xxxxxxx.

pfn.

I

xxxxxxx

Permanent file name; name of the file to be removed from the

permanent file system

The user number of another user; given when a user wishes to

re-move a file of another user from the permanent file system (provided

permission has been granted)

The PURGE control card permits the user to remove a file from the permanent file device.

(40)

PERMIT CARD

Control card format: PER MIT, pfn, MODE

=

y, accnum₁_{, . . . , accnumn ·}

pfn

y

accnumi

Permanent file name; permanent file on which permission is to

be granted.

Permission level. The possible permission levels are:

A - append only

E - execute only

N - none, removes previously granted permission

R - read and / or execute

W - write, read and/or execute

The user numbers of persons to be granted access to file pfn

The PERMIT control card allows a user to grant file access to other users. As many users

can be granted permission as user numbers can be contained on one control card.

APPEND CARD

APPEND, Ifn

1J pfn

1J • • • J lfn

n, pfnn, ACCOUNT = xxxxxxx.

Name of the local file to be appended to the permanent file

Name of the permanent file to which the local file is to be appended

xxxxxxx The user number of another user; given when a user wishes to

append the file(s) of another user

The APPEND control card permits the user to attach supplementary information to an

exist-ing file. The files lfn. and pfn. must always appear in pairs.

1 1

CATllST CARD

Control card formats: CAT LIST. or CAT LIST~ F. or CAT LIST, xxxxxxx.

F

xxxxxxx

Specifies a full listing including the file length, creation date,

and last access date of each permanent file

User number of another user; allows a user to obtain a listing

of the files he can access in the catalog of user xxxxxxx.

The permanent file catalog control cards permit the user to obtain information about the

files to which he has access. If a user has been granted access to the permanent files of

user xxxxxxx (through the use of the PERMIT card), he can obtain a listing of the files to

(41)

(42)

PROGRAM/SYSTEM COMMUNICATION

4

In addition to control cards, KRONOS provides a comprehensi ve set of system macros that the

user's program can call to control input/output operations, request file manipulations, and

communicate with the system at execution time. Input/output is accomplished via circular

buffers.

During program execution, the system performs three types of operations as the result of

macro calls:

• System operations; initiated by job action requests

• Input/output operations; initiated by file action requests

• File manipulations; initiated by file action requests

For file manipulation and input/output operations, the user must establish a File

Environ-ment Table (FET) for the pertinent file. The FET contains the circular buffer parameters

for the operation. For FORTRAN or other compiler language input/output, the user should

not be concerned about circular buffers and FET's as the compiler automatically provides

these.

Moreover, the system does not require the FET to process job action requests.

This section describes circular buffers, File Environment Table, user / system

communica-tion subroutines, job accommunica-tion requests, and file accommunica-tion requests.

CIR CU LAR BU FFERS

A circular buffer is a temporary storage area in central memory that contains data during

input/output operations. It is called circular because routines that process input/output

treat the last word of the buffer area as contiguous to the first word of the buffer area. The

buffer parameters (FIRSTJ INJ OUTJ and LIMIT) in the FET describe the circular buffer

(see Figure 4-1).

FIRST

FIRST is the first word address of the buffer area. Routines that process I/O never change

(43)

LIMIT

LIMIT is the last word address plus one of the buffer area. Data is not stored in LIMIT.

When LIMIT is reached, the next available address for storage is FIRST. Routines that

process I/O likewise never change the value of LIMIT.

CIRCULAR BUFFER FIRST

DATA

FILE ENVIRONMENT TABLE (FET) F I L E NAME CODE

a

STATUS

OUT

OUT LIMIT

IN

J,

OUT

J,

LIMIT

Figure 4 -1 . Circular Buffer

SPACE FOR DATA

DATA

OUT is the next location to read to remove data from the circular buffer. Either the system

or the calling program changes OUT depending on whether the operation is a write or a

read (see Figure 4-2).

CALLING PROGRAM

IN

)

OUT

----~)SYSTEM----~)

(44)

IN

IN is the next location to write data into the circul9-r buffer. Either the system or the

call-ing program changes IN dependcall-ing on whether the operation is a read or a write (see Figure

4-3). When IN = OUT, the buffer is empty. When IN = OUT-l,the buffer is full.

CALLING

PROGRAM (

OUT IN

( SYSTEM

~(---Figure 4-3. Read Operation

That is, one location is left empty in a full buffer to distinguish an empty buffer from a full

buffer. A buffer is normally initialized with IN

=

OUT

=

FIRST., and IN and OUT circle the

buffer as data is inserted and extracted.

FILE ENVIRONMENT TABLE

As introduced, the FET is a user-initiated communication area. The system and the user

interrogate and update the FET during job execution. An FET within the user's field length

must be initiated for each file of the user's job. The PPU I/O routine (CIa), CPU I/O

sub-routines, and the user's program access the system portion of the FET. A user section

can be appended to the system FET to centralize other pertinent file information. The

format of the system FET is shown in Figure 4-4.

59 47 44 35 32 29 23 17 0 Words

Logical File Name (lfn) Code and Status

Device Type FIRST 2

0 IN 3

0 OUT 4

FNT Pointer Record Bloc k LIMIT 5

Size

Working Storage Working Storage ₆

fwa I wa +1

Current Random Address Random Request/ Return Information 7

(45)

The following lists describe the user and system information that appear in the system

portion of an FE T:

USER INFORMATION

Parameter

device type

record block size

physical record unit

SYSTEM INFORMATION

Parameter

logical file name

Word (Bits) 2 (48-59) 5 (33-47) 5 (18-32) Word (Bits) 1 (18-59) Description

The system sets the device type in this byte when the user's program rnakes an OPEN request.

Possible device types are:

Code Device

0401 6603 disk unit 0402 6638 disk unit

0403 836 drum

0404 854 disk drive

0405 Extended core storage

0406 814 disk

0407 Disk drive group

5524 1/2 -inch magnetic tape

5420 Line printer

4322 Card reader

4320 Card punch

The device code is the display code for the device mnemonic with the most significant bit set for non -allocatable devices.

If the file resides in allocatable storage, the system returns the size of the device record block in this fie ld at OPEN time. It is the number of physical record units in a record block. If the number of PRU's is not defined or is variable, the field is zero.

KRONOS returns the physical record unit size of the device to which the file is assigned in this field at OPEN time. It is the number of central memory words in a PR U.

Description

(46)

Parameter

code and status

r

up

ep

Word (Bits)

1 (0 -1 7)

1 (9-13) 1 (1-8) 1 (1) 1 (0) 2 (47) 2 (45) 2 (44) 2 (18-23) Description

The code and status field communicates requested function codes and resulting status between the CPU program and the PPU I/O routines. The CPU program sets the request code in this field when it encounters a request for this file. The request codes are defined in the file action re-quest descriptions and summarized in Appendix C. This field is initialized to one.

Status information when request is complete; zero field indicates normal completion; non-zero field indicates abnormal completion (not necessarily an error).

Request code for PPU call; these codes are defined in the file action request descriptions.

File mode; 0 = coded, 1 = binary.

Completion bit; 0

=

busy or not complete, 1 = not busy or complete.

Random access bit; set to 1 if this is a random access file.

User processing bit; set to 1 to notify the calling program an End-of -Reel condition has been en-countered during a 1/2-inch magnetic tape oper-ation. If the up bit is set to 0, tape swapping proceeds automatically without notification to the calling program. The system completes the function being processed on the alternate tape reel.

When the up bit is set to 1, and an End-of-Reel condition arises during a 1 /2-inch magnetic tape operation, the system sets an End-of-Reel status

(028) in bits 9-13 of the code and status field.

Error processing bit; set to 1 to notify calling program of error conditions. If ep bit is set to 0, the operator must correct fatal errors when they arise.

(47)

Parameter FNT pointer FIRST IN OUT LIMIT working storage fwa working storage lwa+ 1 current random address

random request / return information

Word (Bits)

5 (48-59)

2 (0 -1 7)

3 (0-17)

4 (0-17)

5 (0-17) 6 (30-47) 6 (0-17) 7 (36-59) 7 (0-35) Description

KRONOS sets the address of the corresponding FNT/ FST entry for the file in this byte when it pro-cesses a file action request for the file. If the FET is of minimum length, the system does not set this pointer.

The first word address of the buffer area; rou-tines that process I/O never change the value of FIRST.

The next location to write data into the circular buffer; either CIa or the calling program changes IN depending on whether the request is for a read or a write operation. When IN =OUT, the buffer is empty. When IN=OUT-1, the buffer is full; that is, one location remains empty in a full buffer to distinguish it from an empty buffer. The upper bits of location 3 of the FET are zeros to elimin-ate the need for masking.

The next location to read or remove data from the circular buffer; either CIa or the calling program change OUT depending on whether the re-quest is for a write or a read operation. The upper bits of location 4 of the FET are zeros to eliminate the need for masking.

The last word address plus one of the buffer area; no data is stored at address I-JIMIT. When LIMIT is reached, the next available address for reading or writing is FIRST. Routines that process I/O never change the value of LIMIT.

First word address of a working storage area from which data can be blocked into or deblocked from the circular buffer.

Last word address plus one of the working storage area (above).

Specifies file position if the file is a mass storage random access file.

KRONOS Batch Users Reference Manual 59150600A Feb1970 pdf

CONTROL DATA®

6000 SERIES TIME-SHARING

KRONOS

SA

TCH USER'S

REFERENCE MANUAL _

PREFACE

ALGOL

CONTENTS

SYSTEM DESCRIPTION

INTRODUCTION

1

HARDWARE/SOFTWARE INTEGRATION

I__

MULTIPROGRAMMING

FILES

•

•

•

•

pa

DATA FORMATS

eM

o

t

t

t

t

t

t

eM

PERMANENT FILES

JOB PROCESSING

2

JOB INPUT

JOB EXECUTION

JOB OUTPUT

CONTROL CARD TRANSLATION

CONTROL CARDS

3

JOB CONTROL CARDS

a

o

PROGRAM EXECUTION CONTROL CARDS

=

=

o

x

=

FILE MANAGEMENT CONTROL CARDS

PERMANENT FILE CONTROL CARDS

=

PROGRAM/SYSTEM COMMUNICATION

4

CIR CU LAR BU FFERS

a

J,

J,

=

=

FILE ENVIRONMENT TABLE

=

_a
