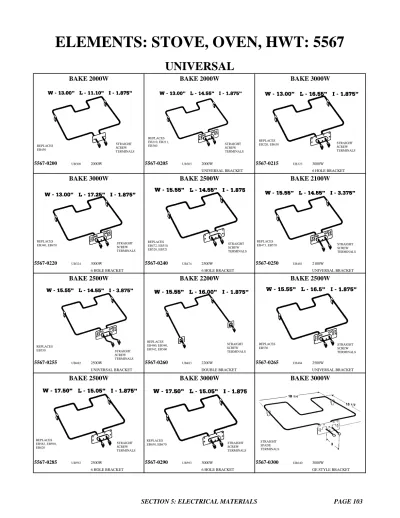

ELEMENTS: STOVE, OVEN, HWT: 5567

UNIVERSAL

BAKE 2000W

BAKE 2000W

BAKE 3000W

5567-0200

UB300

2000W

5567-0205

UB303

2000W

5567-0215

UB323

3000W

UNIVERSAL BRACKET

6 HOLE BRACKET

BAKE 3000W

BAKE 2500W

BAKE 2100W

5567-0220

UB324

3000W

5567-0240

UB474

2500W

5567-0250

UB481

2100W

6 HOLE BRACKET

6 HOLE BRACKET

UNIVERSAL BRACKET

BAKE 2500W

BAKE 2200W

BAKE 2500W

5567-0255

UB482

2500W

5567-0260

UB483

2200W

5567-0265

UB484

2500W

UNIVERSAL BRACKET

DOUBLE BRACKET

UNIVERSAL BRACKET

BAKE 2500W

BAKE 3000W

BAKE 3000W

5567-0285

UB592

2500W

5567-0290

UB593

3000W

5567-0300

UB640

3000W

REPLACES EB450 REPLACES EB210, EB211, EB360 REPLACES EB220, EB430 REPLACES EB340, EB470 REPLACES EB472, EB510, EB520, EB521 REPLACES EB473, EB570 REPLACES EB550 REPLACES EB480, EB540, EB542, EB560 REPLACES EB530 REPLACES EB582, EB590, EB620 REPLACES EB650, EB670 STRAIGHT SCREW TERMINALS STRAIGHT SCREW TERMINALS STRAIGHT SCREW TERMINALS STRAIGHT SCREW TERMINALS STRAIGHT SCREW TERMINALS STRAIGHT SCREW TERMINALS STRAIGHT SCREW TERMINALS STRAIGHT SCREW TERMINALS STRAIGHT SCREW TERMINALS STRAIGHT SCREW TERMINALS STRAIGHT SCREW TERMINALS STRAIGHT SPADE TERMINALS

(2)

ELEMENTS: STOVE, OVEN, HWT: 5567

UNIVERSAL

BAKE 3000W

BAKE 3000W

BAKE 3000W

5567-0302

UB641

3000W

5567-0305

UB642

3000W

5567-0310

UB643

3000W

"GE" STYLE BRACKET

6 HOLE BRACKET

UNIVERSAL BRACKET

BAKE 3000W

BAKE 3000W

BAKE 2500W

5567-0315

UB644

3000W

5567-0330

UB732

3000W

5567-0350

UB811

2500W

UNIVERSAL BRACKET

6 HOLE BRACKET

UNIVERSAL BRACKET

BAKE 2500W

BAKE 3000W

BAKE 3000W

5567-0355

UB813

2500W

5567-0360

UB814

3000W

5567-0370

UB822

3000W

6 HOLE BRACKET

6 HOLE BRACKET

6 HOLE BRACKET

BAKE 2500W

BAKE 3000W

BAKE 3000W

5567-0380

UB873

2500W

5567-0400

UB962

3000W

5567-0405

UB963

3000W

DOUBLE BRACKET

6 HOLE BRACKET

6 HOLE BRACKET

REPLACES EB920, EB922 STRAIGHT SCREW TERMINALS REPLACES EB910, EB911 EB960, EB990 STRAIGHT SCREW TERMINALS REPLACES EB880, EB882 STRAIGHT SCREW TERMINALS REPLACES EB830, EB870 EB872, EB890 STRAIGHT SCREW TERMINALS REPLACES

EB820 STRAIGHT SCREW TERMINALS REPLACES

EB860, EB862 STRAIGHT SCREW TERMINALS REPLACES EB850 REPLACES EB730, EB760 EB790 STRAIGHT SCREW TERMINALS REPLACES EB720, EB572 STRAIGHT SCREW TERMINALS REPLACES EB640, EB780 STRAIGHT SCREW TERMINALS REPLACES WB44M147, WB44M161, RB147, AM001-111, 40020-001, TIBK40035-001, 902808, CT329 STRAIGHT SCREW TERMINALS

W - 18.50" L - 16.00" I - 3.875"

STRAIGHT SCREW TERMINALS

(3)

ELEMENTS: STOVE, OVEN, HWT: 5567

UNIVERSAL BAKE

BAKE 3000W

BAKE 2500W

5567-0410

UB964

3000W

5567-0430

9750213A

2500W

6 HOLE BRACKET

UNIVERSAL BROIL

BROIL

5567-0450

UT096

3000W

UNIVERSAL BRACKET

REPLACES ET135, 147, 155, 156 AM002-005 AM002-010 902212, 902359 STRAIGHT SCREW TERMINALS

FOR WHIRLPOOL, INGLIS, KENMORE, ADMIRAL AND KITCHENAID REPLACES EB930 STRAIGHT SCREW TERMINALS

(4)

ELEMENTS: STOVE, OVEN, HWT: 5567

BROIL, 3000W

BROIL, 2500W

5567-0500

ET155

INSERT 2.0in

5567-0520

ET165

INSERT 1.5in

902212

902358

BAKE, 2000W

BAKE, 3100W

BAKE, 2000W

5567-0700

EB210

INSERT 2.1in

5567-0780

EB430

INSERT 2.3in

5567-0800

EB450

INSERT 1.1in

902352

902785

902351

BAKE, 2500W

BAKE, 2200W

BAKE, 2200W

5567-0820

EB470

INSERT 2.5in

5567-0830

EB480

INSERT 1.5in

5567-0860

EB540

INSERT 1.5in

902215

902307

902336

BAKE, 2200W

BAKE, 2200W

BAKE, 2500W

5567-0870

EB542

INSERT 1.5in

5567-0885

EB570

2200W

5567-0890

EB580

INSERT 1.5in

902324

902322

902353

1. TI-20651-089 2. CT410 3. AM001-078 1. 2. RB440 3. AM001-092 1. TI-3-27191 2. CT415 3. AM001-061 1. TI-2-27191 2. CT411 3. AM001-046 1. TI-9-27351 2. RB-418 3.AM001-014 1. TI-20781-001 2. RB-431 3. AM001-087 1. T1-20952-001 2. RBMMT30 1. TI-2-27350 2. CT304 3. AM002-003 1. 2. RBMM25 3. AM001-096

BAKE = BOTTOM

BROIL = TOP

1. TI-20477-004 2. RB-155 3. AM001-144 & 149

CROSS REFERENCE

1. RESCO

2. CHROMALOX

3. CAMCO

1. TI-20953-001 2. RBMM25 3. AM001-115

(5)

ELEMENTS: STOVE, OVEN, HWT: 5567

BAKE, 3000W

BAKE, 3000W

BAKE, 3000W

5567-0920

EB640

INSERT 3in

5567-0950

EB690

INSERT 2.5in

5567-1000

EB740

INSERT 4.3in

902314

902315

902808

BAKE, 3000W

BAKE, 2200W

BAKE, 3000W

5567-1020

EB760

INSERT 1.5in

5567-1070

EB812

INSERT 1.5in

5567-1100

EB870

INSERT 2.3in

902211

902316

902354

BAKE, 2200W

BAKE, 3000W

5567-1110

EB880

INSERT 1.5in

5567-1200

EB990

INSERT 1.1in

902337

902305

1. TI-44M93 2. RB419 3. AM001-011 CT419 1. TI-2-27351 2. RB410 3. AM001-062 1. 2. RM22530 3. AM001-093 1. TI-20477-001 2. RP584 3. AM001-148 ALSO AM001-143 AM001-003 1. TI-20953-002 2. RBMM30 3. AM001-090 1. TI-20968-001 2. WB44MM147 3. AM001-111 1. TI-20655-001 2. RB-422 3. AM001-027 1. TI-20731-001 2. CT425 3. AM001-025

(6)

ELEMENTS: STOVE, OVEN, HWT: 5567

CONTROLS

OVEN UNIVERSAL THERMOSTAT

5567-1500

201902

OVEN THERMOSTAT

38-UOT-5 NO PILOT, NO TEMP DIAL

ADMIRAL = 5E5440C208, CONRAD = RCC57374R

STOVE INFINITE SWITCH

STOVE INFINITE SWITCH

WESTINGHOUSE SWITCHES

5567-1600

IS6500-208

OFF AT VERTICAL

5567-1610

IS6500-209

OFF AT HORIZONTAL

5567-1630

IS6500-213

NO PILOT LIGHT

240V 15A

240V 15A

5567-1640

IS6500-723

SEPARATE PILOT LIGHT

ACCESSORIES

INFINITE DIAL KIT

REPLACEMENT KNOB

DIAL INSERTS

5567-1800

P65-400

4 KNOBS, 4 RINGS &

5567-1850

P64-12

1 DIAL, 1 DIAL, 4 INSERTS

5567-1900

CD2034-3

SET OF 4, GREY .143D

4 YELLOW INSERTS

OVEN DIAL

5567-1920

P65-012

CHROME, HI - LO

1. 201911 2. U.IC.3 3. RDSK92R 1. 902544 2. U.IC.5 3. RDSK94R 1. 201910 2. U.IC.2 3. RDSK91R

FOR USE WITH "64" SERIES RANGE KNOBS INSERTS

YELLOW, GREEN, RED & GRAY

CROSS REFERENCE

1. RESCO

2. CHROMALOX

3. CAMCO

(7)

ELEMENTS: STOVE, OVEN, HWT: 5567

STOVE SURFACE ELEMENTS

HOOK TYPE (HOTEMP)

TAB TYPE

PS DELUXE TYPE

5567-2500

211762-103A

SMALL 6in, 1250W

5567-2600

PS-15M

SMALL 6in, 1500W

5567-2700

PS-12

SMALL 1250W

38-217-B

4 TURNS, 240/208V

38-141

4 TURNS, 240/208V

38-127

4 TURNS, 240/208V

5567-2510

211762-105A

LARGE 8in, 2400W

5567-2610

PS-21M

LARGE 8in, 2100W

5567-2710

PS-21

LARGE 2100W

38-159-B

5 TURNS, 240/208V

38-148

5 TURNS, 240/208V

38-129

5 TURNS, 240/208V

2 PRONG TYPE

PC DELUXE STYLE, DUAL COIL

TYPE M DELUXE

5567-2750

205208-905

6in, 1250W

5567-2780

PC-15WR

6in, 1500W

5567-2800

MS-15L

6in, 1500W

5567-2755

205208-906

8in, 2100W

5567-2785

PC-21WR

8in, 2100W

5567-2805

MS-21L

8in, 2100W

TYPE M DELUXE

CONRAD, GSW, MOFFAT STYLE

MOFFAT OEM STYLE

5567-2820

MS-15CS

6in, 1500W, SINGLE COIL

5567-2860

PS15MB

6in, 1500W

5567-2880

WIS15E

6in, 1500W

5567-2825

MS-21CS

8in, 2100W, SINGLE COIL

5567-2865

PS21MB

8in, 2100W

5567-2885

WIS21E

8in, 2100W

5567-2840

MC-12W

6in, 1250W, DUAL COIL

5567-2845

MC-21W

8in, 2100W, DUAL COIL

ELEMENT KITS

SINGLE COIL ELEMENT KITS

DOUBLE COIL ELEMENT KITS

5567-3000

MS12B-RH6

SMALL 1250W

5567-3100

MC12B-RH6

KIT SMALL 1250W

38-230 38-223

FRIGIDAIRE

FRIGIDAIRE

CONRAD

GSW

McCLARY

MOFFAT

LOCK UP

TYPE

HINGED TYPE

TERMINAL

PROFILE

(8)

ELEMENTS: STOVE, OVEN, HWT: 5567

STOVE ELEMENT BLOCKS

STOVE BLOCK

BLOCK & BRACKET

BLOCK & BRACKET

5567-3500

PB4-2B

FOR HOOK TYPE

5567-3510

PB4-2L

W/27in LEADS

5567-3520

WB17M146

FOR TAB TYPE ELEMENT

7in LEADS

NEW STYLE

5567-3522

WB17M147

FOR TAB TYPE ELEMENT

MOFFAT, CAMCO

STOVE BLOCK

BLOCK & BRACKET

PORCELAIN TERMINAL BLOCK

5567-3530

PB2-2K

FOR PS SERIES

5567-3540

100156

FOR McCLARY, BEATTY

5567-3600

38-SB1-2

SPLIT

CHROMALOX

SERIES UXY1200

DRIP PANS & RINGS

ELEMENT DRIP PANS

ELEMENT DRIP PANS

MAYTAG DRIP PAN

5567-3800

DB6CLP2

6in SMALL

5567-3850

DB6CLP

6in SMALL

5567-3870

5301317238

9in ONE PIECE

5567-3810

DB9CLP2

9in LARGE

5567-3860

DB9CLP

9in LARGE

STOVE ELEMENT RINGS

UNIVERSAL ELEMENT RINGS

MOFFAT ELEMENT RINGS

5567-3890

K97A01

6in SMALL

5567-3920

DB6S

6in

5567-3950

KM6

6in

5567-3900

K97A02

9in LARGE

5567-3925

DB9S

9in

5567-3955

KM8

8in

"RH" STYLE ELEMENT RINGS

MOFFAT "T" STYLE

GREY OR BLACK DRIP PANS

5567-3970

RH6

6in

5567-4000

DB6SWM

6in

5567-4200

318067200

6in

5567-3975

RH9

9in

5567-4005

DB9SWM

9in

5567-4205

318067201

9in

168B300G03

902437

UNIVERSAL STYLE

1 1/2in OPENING

UNIVERSAL STYLE

2in OPENING

WESTINGHOUSE STYLE

K97A01, K97A02

NARROW

OPENING

1 1/2in

PORCELAIN

ENAMELED

902597

38-PBM

5567-3522 SHOWN

(9)

ELEMENTS: STOVE, OVEN, HWT: 5567

ACCESSORIES

FUSE HOLDER

TERMINAL BLOCK

SNAP IN PLUG

5567-4300

902292

FUSE OUTLET 2 SCREWS

5567-4320

270AL

TERMINAL BLOCK

5567-4340

2 PRONG SNAP

29-1011

RE270

38-325

SNAP IN PLUG

PILOT LIGHTS

STOVE CIRCUIT BREAKERS

5567-4350

203022-1090

3 PRONG SNAP BLACK

5567-4400

152

3/8 DIAM 120V RED

5567-4500

RE578-15

15A

5567-4355

49-2W

3 PRONG SNAP WHITE

5567-4405

152-1

1/4 DIAM 120V RED

5567-4510

RE578-20

20A

5567-4410

152-2

1/4 DIAM 240V RED

OVEN DOOR LIGHT SWITCH

(10)

WATER TANK THERMOSTSATS: 5567

HIGH LIMIT CONTROL

LOWER THERMOSTATS

UPPER THERMOSTAT

5567-5000

902663

OEM 1610 (ULN 1469)

5567-5020

902661

SPST (ULN 1465)

5567-5080

902662

SPDT (ULN 1466)

5567-5050

4000-59T

SPST LOWER FOR "STATE"

LOWER THERM W/HI LIMIT

UPPER THERM W/HI LIMIT

STATE THERMOSTAT

5567-5100

902665

SPST

5567-5120

902667

SPDT (ULN 1467)

5567-5200

9001954

STATE

HOT WATER TANK ELEMENTS

FLANGE TYPE (TSR)

BOLT ON TYPE (R)

SCREW-IN TYPE (D)

5567-5480

20200-180

1000W, 240V, 7 1/16in

5567-5600

902622

3000W, 240V

5567-5700

902624

1300W, 120V

5567-5500

902619

1500W, 120V, 10 13/16in

5567-5620

902623

4500W, 240V

5567-5705

39-S1500-1

1500W 120V

5567-5520

902620

3000W, 240V, 11 7/16in

5567-5710

39-S1500

1500W 240V

5567-5535

20200-860

4500W, 208V, 16 3/16in

5567-6520

TSU

GASKET ONLY

5567-5720

902625

3000W, 240V

5567-5540

902621

4500W, 240V, 16 1/4in

5567-6550

14A1116-1

BRACKET ONLY

5567-5740

902940

4500W, 240V

5567-6530

14E1065

GASKET ONLY

CROSS REFERENCE

CROSS REFERENCE

CROSS REFERENCE

CODE

STILLMAN

CHROMALOX

CODE

STILLMAN

CHROMALOX

CODE

STILLMAN

CHROMALOX

5567-5500

AM013-001 20200-250

5567-5600

AM010-003 20700-780

5567-5700

AM011-001

20704-580

5567-5520

AM013-003 20200-780

5567-5620

AM010-004 20700-870

5567-5720

AM011-003

20704-360

5567-5540

AM013-004 20200-870

5567-5740

AM011-004

20704-420

BOX TYPE ELEMENT (TM)

5567-5870

30201-250

1500W, 120V, 9 3/4in

5567-5900

30201-360

3000W, 240V, 10 3/8in

5567-5920

30201-450

5000W, 240V, 16 5/8in

THERM-O-DISC 1610 THERM-O-DISC 7135 THERM-O-DISC 5567-5020= 7059(7025) 5567-5050 = 4000-59T CALIBRATED TO OPEN CIRCUIT WHEN THERMOSTAT REACHES TEMPERATURE OF 190º F THERM-O-DISC 7025/1610 THERM-O-DISC 7135/1610

1in MIP

1 9/16in

ROUND FLANGE

1in MIP

(11)

HOT WATER TANK ELEMENTS: 5567

ACCESSORIES

WATER TANK SQUARE GASKET

WATER TANK GASKETS

ELEMENT BRACKET

5567-6500

TSR

FOR FLANGE TYPE "F"

5567-6520

TSU

RUBBER FOR TYPE "R"

5567-6550

14A1116-1

FOR TYPE "R" ELEMENT

OR "TSR"

5567-6530

14E1065

RUBBER FOR TYPE "D"

ANODE ROD

5567-6700

71921

38in

References

Download now ( PDF - 11 Page - 1.12 MB )

Related documents

TROUBLESHOOTING. FAQs

Depending on your cooktop element setting or the temperature selected in your oven it is NORMAL for the cooking elements to cycle on and off?. My new oven doesn’t cook like my

Competence in Health Care - An Industrial Systems Analysis Using Competence Bloc Theory to Compare European and US Health Care

The conditions for the development of a sophisticated high-technology health care industry, therefore, are only good in a country in which the citizens are willing (and in practice

Steve Brammer. Profile Name Steve Brammer IT Consultant Date of Birth Marital Status Single

The assignment included applications architecture and design, development and support of ABB's global document management solution (EDMS) based on Documentum's suite of products.

Disability Consciousness: A Prolegomenon

The relevance for education involves exposing all students to different points of view while allowing reflection and the empathy that arise from such reflection to challenge notions

General Electric Stove Manual

Purchase date of a store location across all available through billions of stove manual general electric oven bottom of the buttons to open the features of cooking appliance

The United Nations Security Council and Human Rights Advocacy

Portugal has consistently condemned the indiscriminate violence against civilians and the gross and systematic violations of human rights and of humanitarian law perpetrated by a

CAE EXPERT - Photocopiables

If I don’t set time aside for each, I find that before I know it the week has gone and I’ve not done what I wanted to... What time of day do you prefer to study

Tale of Two Cities: Strategies to Support Developmental Screening

activities Parent Screeners in the community Children in Informal Care (parent, babysitter, relative) Children in Formal Early Education Programs Young Children (0-5)
