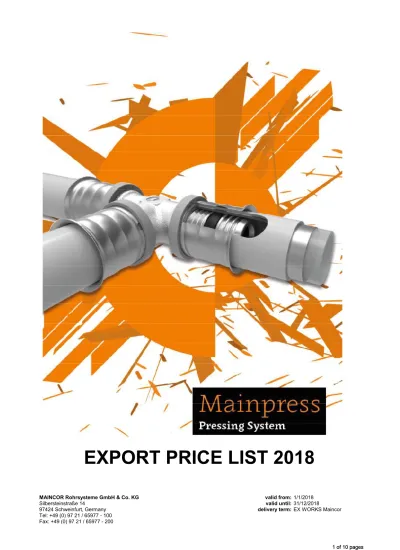

EXPORT PRICE LIST 2018

(1)

1 of 10 pages

EXPORT PRICE LIST 2018

valid from:1/1/2018

Silbersteinstraße 14 valid until:31/12/2018

97424 Schweinfurt, Germany delivery term:EX WORKS Maincor

Tel: +49 (0) 97 21 / 65977 - 100 Fax: +49 (0) 97 21 / 65977 - 200

EXPORT PRICE LIST 2018

MAINCOR Rohrsysteme GmbH & Co. KG

(2)

Pipes

Composite pipe in coils PE-RT / Alu / PE-RT

Description Code Qty/unit Qty/pallet Net price

€/m 16 x 2,0 8.160.014.100 100m 2.600m 0,44 € 16 x 2,0 8.160.014.200 200m 2.600m 0,44 € 16 x 2,0 8.160.014.500 500m 4.000m 0,44 € 20 x 2,25 8.200.014.100 100m 1.300m 0,73 € 25 x 2,5 8.250.014.050 50m 650m 1,23 € 32 x 3,0 8.320.014.050 50m 600m 1,79 €

Composite pipe in bars PE-RT / Alu / PE-RT

Description Code Qty/unit Qty/box Net price

€/m Material: PE-RT (PE raised temperature resistance according to DIN 16833) and aluminium.

Usable for radiator connections, sanitary and underfloor heating installations.

€/m 16 x 2,0 8.160.014.003 3,5m 77m 0,72 € 16 x 2,0 8.160.014.005 5m 110m 0,72 € 20 x 2,25 8.200.014.003 3,5m 42m 0,91 € 20 x 2,25 8.200.014.005 5m 80m 0,91 € 25 x 2,5 8.250.014.003 3,5m 28m 1,56 € 25 x 2,5 8.250.014.005 5m 40m 1,56 € 32 x 3,0 8.320.014.003 3,5m 17,5m 2,09 € 32 x 3,0 8.320.014.005 5m 25m 2,09 € 40 x 4,0 10.140.401 5m 20m 4,95 € 50 x 4,5 10.150.451 5m 20m 6,68 € 63 x 6,0 10.160.601 5m 15m 10,10 €

Material: PE-RT (PE raised temperature resistance according to DIN 16833) and aluminium. Usable for radiator connections, sanitary and underfloor heating installations.

(3)

Pipe in pipe PE-RT / Alu / PE-RT

€/m

16 x 2,0 6.111.620.350 50m 1.200m 0,79 €

20 x 2,25 6.112.023.350 50m 1.200m 1,20 €

Composite pipe PE-RT / Alu / PE-RT, pre-insulated

€/m

16 x 2 / 6mm 10.016.204 50m 650m 0,71 €

20 x 2,25 / 6mm 10.020.224 50m 550m 1,03 €

25 x 2,5 / 6mm 10.025.254 50m 450m 1,61 €

16 x 2,0 / 9mm 10.016.209 50m 550m 0,83 €

Material: PE-RT (PE raised temperature resistance according to DIN 16833) and aluminium. Suitable for radiator connections, sanitary and underfloor heating installations.

The protective pipe is a non-halogen conduit made of PE catering for special resistances to alcohols, fats, petroleums and petrol. It has no resistance to concentrated, strongly oxidising acids.

16 x 2,0 / 9mm 10.016.209 50m 550m 0,83 € 20 x 2,25 / 9mm 10.020.229 50m 450m 1,16 € 25 x 2,5 / 9mm 10.025.259 50m 350m 1,78 € 16 x 2,0 / 13mm 100.162.013 50m 450m 0,95 € 20 x 2,25 / 13mm 100.202.213 50m 350m 1,32 € 25 x 2,5 / 13mm 100.252.513 50m 250m 2,27 € 32 x 3,0 / 13 mm 100.323.013 25m 200m 2,93 € 16 x 2 / 26mm 100.162.027 25m 225m 2,20 € 20 x 2,25 / 26mm 100.202.227 25m 150m 2,64 € 25 x 2,5 / 26mm 100.252.527 25m 150m 3,28 € 16 x 2 / 6mm red 10.316.206 50m 650m 0,71 € 20 x 2,25 / 6mm red 10.320.226 50m 550m 1,03 € 25 x 2,5 / 6mm red 10.325.256 50m 450m 1,61 € 16 x 2 / 6mm blue 10.216.206 50m 650m 0,71 € 20 x 2,25 / 6mm blue 10.220.226 50m 550m 1,03 € 25 x 2,5 / 6mm blue 10.225.256 50m 450m 1,61 €

Material: PE-RT (PE raised temperature resistance according to DIN 16833) and aluminium. Suitable for radiator connections, sanitary and underfloor heating installations. Heat insulation

Protective pipe

€/m 20 (for 16 x 2,0) red 520.150 50m 2.500m 0,23 € 23( for 20 x 2,25) red 523.150 50m 2.000m 0,28 € 20 (for 16 x 2,0) blue 520.250 50m 2.500m 0,23 € 23 (for 20 x 2,25) blue 523.250 50m 2.000m 0,28 € 20 (for 16 x 2,0) black 520.350 50m 2.500m 0,23 € 23 (for 20 x 2,25) black 523.350 50m 2.000m 0,28 €

The protective pipe is a non-halogen conduit made of PE, catering for special resistances to alcohols, fats, petroleums and petrols. It has no resistance to concentrated, strongly oxidising Suitable for radiator connections, sanitary and underfloor heating installations. Heat insulation according to EnEV. Minimum thickness of the insulation according to a heat conductivity of 0,0040W/mK. Made of closed-cell PE with a vapour-proof barrier made of closed-cell PE. Normal

(4)

Elbow 90°

Description Code Qty/box Net price

€/piece 16 x 16 41.500.101 10 pieces 1,94 € 20 x 20 41.500.202 10 pieces 2,60 € 25 x 25 41.500.303 10 pieces 3,88 € 32 x 32 41.500.404 5 pieces 5,48 € 40 x 40 41.500.505 1 piece 12,90 € 50 x 50 41.500.606 1 piece 15,41 € 63 x 63 41.500.707 1 piece 29,26 € Tee Net price

Fittings and Accessories

All fittings are composed of brass and meet the demands of DVGW and ÖVGW. The surface is tin-coated according to DVGW process sheet W 534. Suitable for heating and sanitary installations. Pressing profile: U

€/piece 16 x 16 x 16 41.300.111 10 pieces 2,31 € 20 x 20 x 20 41.300.222 10 pieces 3,67 € 25 x 25 x 25 41.300.333 10 pieces 5,61 € 32 x 32 x 32 41.300.444 5 pieces 9,65 € 40 x 40 x 40 41.300.555 1 piece 16,28 € 50 x 50 x 50 41.300.666 1 piece 20,56 € 63 x 63 x 63 41.300.777 1 piece 49,03 € Tee, reduced

€/piece 16 x 20 x 16 41.300.121 10 pieces 3,47 € 20 x 16 x 16 41.300.211 10 pieces 3,47 € 20 x 16 x 20 41.300.212 10 pieces 3,51 € 20 x 20 x 16 41.300.221 10 pieces 3,51 € 25 x 16 x 16 41.300.311 10 pieces 4,83 € 25 x 16 x 25 41.300.313 10 pieces 5,07 € 25 x 20 x 20 41.300.322 10 pieces 4,95 € 25 x 20 x 25 41.300.323 10 pieces 5,44 € 25 x 25 x 16 41.300.331 10 pieces 5,61 € 32 x 16 x 32 41.300.414 5 pieces 8,70 € 32 x 16 x 32 41.300.414 5 pieces 8,70 € 32 x 20 x 32 41.300.424 5 pieces 9,03 € 32 x 25 x 25 41.300.433 5 pieces 9,32 € 32 x 25 x 32 41.300.434 5 pieces 9,44 € 40 x 20 x 40 41.300.525 1 piece 15,33 € 40 x 25 x 40 41.300.535 1 piece 15,33 € 40 x 32 x 32 41.300.544 1 piece 15,45 € 40 x 32 x 40 41.300.545 1 piece 15,45 € 50 x 25 x 50 41.300.636 1 piece 19,90 € 50 x 32 x 50 41.300.646 1 piece 20,36 € 50 x 40 x 50 41.300.656 1 piece 20,56 € 63 x 40 x 63 41.300.757 1 piece 38,73 €

Tee, female thread

€/piece 16 x 1/2" x 16 41.303.111 10 pieces 4,08 € 20 x 1/2" x 20 41.303.212 10 pieces 4,62 € 25 x 1/2" x 25 41.303.313 10 pieces 5,26 € 25 x 3/4" x 25 41.303.323 10 pieces 5,53 € 32 x 3/4" x 32 41.303.424 5 pieces 8,51 € 32 x 1" x 32 41.303.434 5 pieces 10,68 € 40 x 1" x 40 41.303.535 1 piece 15,25 € 50 x 1" x 50 41.303.636 1 piece 18,83 € 50 x 1" x 50 41.303.636 1 piece 18,83 €

Wall elbow, female thread

€/piece

16 x 1/2" FT 41.603.101 10 pieces 2,81 €

20 x 1/2" FT 41.603.201 10 pieces 3,34 €

(5)

Transit elbow

€/piece

16 x 1/2" FT x 16 41.324.111 10 pieces 9,81 €

20 x 1/2" FT x 20 41.324.212 10 pieces 12,69 €

Male connector

€/piece 16 x 3/8" MT 31.202.103 10 pieces 2,08 € 16 x 1/2" MT 31.202.101 10 pieces 1,16 € 16 x 3/4" MT 31.202.102 10 pieces 1,65 € 20 x 1/2" MT 31.202.201 10 pieces 1,82 € 20 x 3/4" MT 31.202.202 10 pieces 1,94 € 25 x 3/4" MT 31.202.302 10 pieces 2,19 € 25 x 1" MT 31.202.303 10 pieces 3,01 € 32 x 1" MT 31.202.403 5 pieces 3,96 € 32 x 1 1/4" MT 31.202.404 5 pieces 6,68 € 32 x 1 1/4" MT 31.202.404 5 pieces 6,68 € 40 x 1 1/4" MT 31.202.504 1 piece 8,45 € 40 x 1 1/2" MT 31.202.505 1 piece 13,39 € 50 x 1 1/2" MT 31.202.605 1 piece 14,75 € 50 x 2" MT 31.202.606 1 piece 21,02 € 63 x 2" MT 31.202.706 1 piece 25,55 € Female connector

€/piece 16 x 3/8" FT 31.203.103 10 pieces 2,28 € 16 x 1/2" FT 31.203.101 10 pieces 1,57 € 16 x 3/4" FT 31.203.102 10 pieces 2,02 € 20 x 1/2" FT 31.203.201 10 pieces 2,19 € 20 x 3/4" FT 31.203.202 10 pieces 2,23 € 25 x 3/4" FT 31.203.302 10 pieces 2,97 € 25 x 1" FT 31.203.303 10 pieces 3,67 € 32 x 1" FT 31.203.403 5 pieces 6,14 € 32 x 1 1/4" FT 31.203.404 5 pieces 7,96 € 40 x 1 1/2" FT 31.203.504 1 piece 14,18 € 50 x 1 1/2" FT 31.203.605 1 piece 15,04 € 63 x 2" FT 31.203.706 1 piece 21,76 €

Elbow 90°, male thread Elbow 90°, male thread

€/piece 16 x 1/2" MT 41.402.101 10 pieces 1,90 € 20 x 1/2" MT 41.402.201 10 pieces 3,01 € 20 x 3/4" MT 41.402.202 10 pieces 3,67 € 25 x 3/4" MT 41.402.302 10 pieces 4,37 € 25 x 1" MT 41.402.303 10 pieces 6,06 € 32 x 1" MT 41.402.404 5 pieces 6,64 €

Elbow 90°, female thread

€/piece 16 x 1/2" FT 41.403.101 10 pieces 1,94 € 20 x 1/2" FT 41.403.201 10 pieces 3,05 € 20 x 3/4" FT 41.403.202 10 pieces 3,14 € 25 x 3/4" FT 41.403.302 10 pieces 4,83 € 25 x 1" FT 41.403.303 10 pieces 6,47 € 32 x 1" FT 41.403.403 5 pieces 6,99 € Coupler

€/piece 16 x 16 31.100.101 10 pieces 1,32 € 20 x 20 31.100.202 10 pieces 1,61 € 25 x 25 31.100.303 10 pieces 2,64 € 32 x 32 31.100.404 5 pieces 3,75 € 40 x 40 31.100.505 1 piece 8,78 € 50 x 50 31.100.606 1 piece 11,54 € 63 x 63 31.100.707 1 piece 26,83 € 5 of 10 pages

(6)

Coupler, reduced

€/piece 20 x 16 31.100.201 10 pieces 1,53 € 25 x 16 31.100.301 10 pieces 2,60 € 25 x 20 31.100.302 10 pieces 2,77 € 32 x 20 31.100.402 5 pieces 3,38 € 32 x 25 31.100.403 5 pieces 3,67 € 40 x 32 31.100.504 1 piece 8,12 € 50 x 32 31.100.604 1 piece 10,72 € 50 x 40 31.100.605 1 piece 11,33 € 63 x 40 31.100.705 1 piece 20,19 € 63 x 50 31.100.706 1 piece 22,25 € Dummy plug

Description Code Qty / unit Qty/box Net price

€/piece

16 x 2,0 31.200.100 1 piece 1,74 €

20 x 2,25 31.200.200 1 piece 2,15 €

Pressure test plug

€/piece

16 x 2,0 41.900.001 1 piece 16,07 €

20 x 2,25 41.900.002 1 piece 17,31 €

25 x 2,5 41.900.003 1 piece 18,96 €

32 x 3,0 41.900.004 1 piece 20,80 €

Push and press joint

€/piece 16 x 12 31.207.102 10 pieces 3,80 € 16 x 15 31.207.101 10 pieces 4,00 € 20 x 18 31.207.202 10 pieces 5,32 € 20 x 22 31.207.203 10 pieces 5,81 € 25 x 22 31.207.303 10 pieces 6,10 € 32 x 28 31.207.404 5 pieces 7,79 €

Joint unit nut female thread

€/piece 16 x 1/2" FT 41.201.101 10 pieces 2,77 € 16 x 3/4" FT 41.201.102 10 pieces 3,34 € 20 x 1/2" FT 41.201.201 10 pieces 2,60 € 20 x 3/4" FT 41.201.202 10 pieces 4,45 € 25 x 1" FT 41.201.303 10 pieces 5,36 € 32 x 1 1/4" FT 41.201.404 5 pieces 6,80 €

Mount for wall elbows

€/piece

H = 35mm 70.700.000 10 pieces 2,44 €

H = 45mm 70.700.450 10 pieces 2,44 €

H = 50mm 70.701.000 10 pieces 2,44 €

Mount for wall elbows, pre-assembled

Mount for up to two wall plate elbows. Consisting of a stepped 3mm strong galvanised metal plate with multiple pre-cut threaded holes for a fastening in multiple positions.

€/piece

L = 80mm (on-wall) 71.702.000 1 piece 10,40 €

L = 153mm (on-wall) 71.703.000 1 piece 10,40 €

L = 80mm (in-wall) 71.702.001 1 piece 10,68 €

(7)

Mount for wall elbows, pre-assembled with sound protection

€/piece

L = 153mm (in-wall), DIM 16 71.703.002 1 piece 14,00 €

L = 153mm (in-wall), DIM 20 71.703.003 1 piece 14,60 €

Screw plug

€/piece

Red 70.700.250 2 pieces 0,20 €

Blue 70.700.251 2 pieces 0,20 €

Radiator terminal box

€/piece

Radiator terminal box 81.900.101 1 piece 6,00 €

Screw plug ½" with a seal and an external hex.

Radiator terminal box 81.900.101 1 piece 6,00 €

Base board radiator adapter

€/piece

16-L-300 71.800.100 1 piece 4,04 €

16-L-1000 71.800.300 1 piece 10,72 €

L-shaped base board radiator adapter with connector, soldered with a copper pipe (according to DIN 1786 and with RAL and DVGW quality mark) for a radiator base board connection. Seal ring made of EPDM (DVGW-certified). The stainless steel press sleeve and the plastic stop ring are fixed permantly to the fitting. The press sleeve has an inspection glass to check the location of the pipe end at the stopper of the fitting. Suitable for heating installations. Leaky if not pressed according to DVGW process sheet W 534.

Radiator terminal box in a block made of polyurethan (thermal conductivity group 035). L-shaped foamed Mainpress composite pipe for height-adjustable connection of valve radiators (centre distance 50mm) out of the wall.

• Size of the pipe: 16mm

• Size of the base body: approx. 190 x 125mm • Colour: yellow

Bolt connection for radiator adapter

€/set

15 x 3/4" 70.709.065 1 set 2,77 €

Crossing tee

€/piece 16 x 16 x 16 41.310.111 1 piece 19,78 € 20 x 16 x 16 41.310.211 1 piece 19,78 € 20 x 16 x 20 41.310.221 1 piece 21,43 € 20 x 20 x 20 41.310.222 1 piece 21,43 € • Length 300mm / 1.000mm

• Nominal size of the connector DIM 16

Mild steel bolt connection for radiators, manifolds or valves. Suitable for base board radiator adapter.

Crossing tee composed of brass. The stainless steel press sleeve and the plastic stop ring are fixed permantly to the fitting. The press sleeve has a inspection window to check the location of the pipe end at the stopper of the fitting. Suitable for heating installations. To cross connecting pipes

Joint for valve radiators

€/set

MPX twofold joint 3/4" 80.902.200 1 set 4,95 €

MPX Twofold joint square form 3/4" 80.902.201 1 set 4,95 €

MPX fourfold joint 3/4" 80.902.202 1 set 13,19 €

pipe end at the stopper of the fitting. Suitable for heating installations. To cross connecting pipes without causing a jump in height. Also including insulating shells (according to EnEV) made of EPP

(8)

Compression fitting

€/piece

16 x 2,0 x 3/4" 70.709.061 2 pieces 1,12 €

20 x 2,25 x 3/4" 70.709.068 2 pieces 1,24 €

Anchor hook

€/piece

80mm, single 800.907 100 pieces 0,08 €

85mm, double 801.007 100 pieces 0,08 €

Galvanised compression fitting made of brass to connect Mainpress composite pipes (16 x 2,0 and 20 x 2,25)

(9)

Set 1: ACO 102 for radial compressions DIM 16 - 40 set

€/piece ACO 102 for radial compressions

DIM 16 - 40 set 90.100.065 1 piece 752,00 €

Set consists of:

Radial compression tool ACO 102 60.953.106 1 piece 530,00 €

Battery 12V Li-Ion 1,5Ah 609.500.271 1 piece 84,00 €

Battery charger 220 - 240V 50 - 60Hz for 12V 609.522.121 1 piece 78,00 €

Case for ACO 102 60.951.109 1 piece 60,00 €

Set 2: ACO 102 with pressjaws for radial compressions DIM 16 - 40 set

€/piece ACO 102 with pressjaws for radial

Tools

ACO 102 with pressjaws for radial

compressions DIM 16 - 40 set 90.100.070 1 piece 944,00 €

MPR pressjaw ACO 102 U DIM 16 60.953.271 1 piece 64,00 €

Battery charger 220 - 240V 50 - 60Hz for 12V 609.522.121 1 piece 78,00 €

Set 3: ACO 203 for radial compressions DIM 16 - 63 set

€/piece ACO 203 for radial compressions

DIM 16 - 63 set 90.100.066 1 piece 955,00 €

Battery charger 230V 50 - 60Hz for 18V 60.952.303 1 piece 80,00 €

Set 4: ACO 203 with pressjaws for radial compressions DIM 16 - 63 set

€/piece ACO 203 with pressjaws for radial

compressions DIM 16 - 63 set 90.100.073 1 piece 1.275,00 €

Battery charger 230V 50 - 60Hz for 18V 60.952.303 1 piece 80,00 €

Pressjaws for ACO 102

€/piece

(10)

Pressjaws for ACO 203

€/piece

Case for four pressjaws

€/piece

Case for four pressjaws 60.951.108 1 piece 25,00 €

M20 Manual pressing tool U-profile DIM 16 - 20

€/piece

MP20 manual pressing tool 60.953.109 1 piece 215,00 €

MPR inset DIM 16 60.953.111 1 piece 24,00 €

MPR inset DIM 20 60.953.112 1 piece 24,00 €

Scissor for Mainpress composite pipes DIM 16 - 20

€/piece

DIM 16 - 20 60.950.014 1 piece 22,00 €

Replacement knife 60.950.114 1 piece 5,00 €

Pipe cutter for Mainpress composite pipes DIM 16 - 40 and pre-insulated Mainpress composite pipes

€/piece

DIM 16 - 40 60.950.011 1 piece 30,00 €

Replacement knife 60.950.111 1 piece 15,00 €

Pipe cutter for Mainpress composite pipes in bars DIM 16 - 63 Pipe cutter for Mainpress composite pipes in bars DIM 16 - 63

€/piece

DIM 16 - 63 60.950.013 1 piece 39,00 €

Bending spring

€/piece

Inside bending spring DIM 16 60.950.040 1 piece 9,60 €

Outside bending spring DIM 16 60.950.140 1 piece 9,60 €

Universal bevelling tool DIM 16 / 20 / 25

€/piece

DIM 16 / 20 / 25 60.953.212 1 piece 12,40 €

Bevelling tool

€/piece

Bevelling tool DIM 16 60.953.217 1 piece 10,20 €
