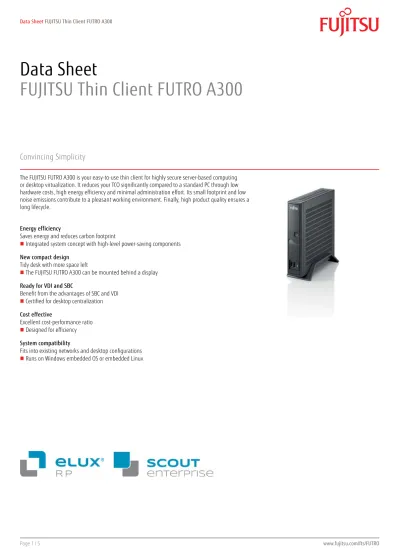

Data Sheet
FUJITSU Thin Client FUTRO A300
Convincing Simplicity
The FUJITSU FUTRO A300 is your easy-to-use thin client for highly secure server-based computing or desktop virtualization. It reduces your TCO significantly compared to a standard PC through low hardware costs, high energy efficiency and minimal administration effort. Its small footprint and low noise emissions contribute to a pleasant working environment. Finally, high product quality ensures a long lifecycle.
Energy efficiency
Saves energy and reduces carbon footprint
Integrated system concept with high-level power-saving components New compact design
Tidy desk with more space left
The FUJITSU FUTRO A300 can be mounted behind a display Ready for VDI and SBC
Benefit from the advantages of SBC and VDI
Certified for desktop centralization Cost effective
Excellent cost-performance ratio
Designed for efficiency System compatibility
Fits into existing networks and desktop configurations
Runs on Windows embedded OS or embedded Linux
Technical details Components
Base unit FUTRO A300-eLux™ RP
Operating systems
Operating system eLux™ RP – Embedded Linux
Notes Pre-installed eLux™ RP.
No licenses for eLux™ or Scout EP are included and need to be ordered additionally out of the FUTRO A300 software options.
Functions eLux™ RP: eLux® RP V4.0.0 or newer
eLux™ RP: Adobe Flash Player 11 for Linux, V11.2.202.275-1 or newer
eLux™ RP: PowerTerm InterConnect, V7.1.2-3 or newer, additional license required eLux™ RP: Mozilla Firefox Browser, V10.0.9-4 or newer
eLux™ RP: VMware® View Client-5.2.1.1-1 or newer (optional) (including support for PCoIP) eLux™ RP: ICA client, V12.1.0-11 or newer
eLux™ RP: RDPConnect, V3.1-1 or newer eLux™ RP: FreeRDP, V1.0.2.1-1 or newer
eLux™ RP: Updates and optional software packages are available at www.myelux.com
Manageability optional: Scout Enterprise for flash memory management, embedded operating system update and system monitoring, BIOS update, managing devices by location, group or user, individual operating system composition with ELIAS
VPN (Linux) VPN client from Cisco (optional)
Mainboard
Mainboard type D2457
Formfactor miniITX
Processor VIA Eden® ULV (1 GHz, )
Chipset VIA VX900
Processor socket embedded
Processor quantity maximum 1
Memory slots 1 SO DIMM (DDR3, 1066 MHz)
Supported capacity RAM (max.) 1 GB
LAN 10/100/1,000 MBit/s
Audio type VIA VT1708S
Audio features Output: full 16-bit stereo sound Interfaces
Audio: line-out / headphone 1 Audio: line-in / microphone 1
USB 2.0 total 4
USB front 2
DVI 1 DVI-I (integrated VGA can be used with DVI-VGA adapter)
Mouse / Keyboard (PS/2) 2
Ethernet (RJ-45) 1
Graphics
Graphics brand name VIA VX900 integrated
Graphics color depth 32 bit colors
Shared video memory 256 MB
TFT resolution (VGA) up to 1,600 x 900 pixel TFT resolution (DVI) up to 1,920 x 1,200 pixel
Graphics notes Graphics resolution depending on operating system and management solution.
Hard disk drives (internal)
Hard disk 1 CF-card 1GB Flash drive
Electrical values
Power supply input AC input 100 - 240 V
Rated frequency range 50 Hz - 60 Hz
Maximum Power (internal test programm)
13.2 W
Idle state power (EN 62623:2013) 12.2 W Off mode power (EN 50564:2011) 0.32 w
Power supply output 12 V, 3 A
Power consumption
Dimensions / Weight / Environmental
Dimensions (W x D x H) 42 x 185 x 185 mm Operating position Vertical / horizontal
Weight 1.0 kg
Weight notes Actual weight may vary depending on configuration Operating ambient temperature 10 - 35 °C
Compliance
Model TCS 200
Europe CE
USA/Canada UL/CSA
FCC Class B
Global RoHS (Restriction of hazardous substances)
Japan VCCI
Russia GOST
China CCC
Australia/New Zealand C-Tick
Compliance link http://globalsp.ts.fujitsu.com/sites/certificates
Warranty
Warranty period 2 years (depending on country)
Warrenty type Bring-in Service (for countries within region FTS CEMEA&I, for all other countries depending on local regulations, minimum: 2 years material warranty)
Warranty Terms & Conditions http://support.ts.fujitsu.com/warranty Product Support Services - the perfect extension
Recommended Service 9x5, Onsite Response Time: Next Business Day Spare Parts availability 5 years after end of product life
Service Weblink http://www.fujitsu.com/fts/services/support
Recommended Accessories
Mouse M510 The PC Mouse M510 is an essential input device that works on nearly
every surface and follows your hand movements smoothly and precisely.
It features two buttons and a scroll wheel which also can be used as third button.
Order Code:
S26381-K457-L100
Mouse M510 The PC Mouse M510 is an essential input device that works on nearly
every surface and follows your hand movements smoothly and precisely.
It features two buttons and a scroll wheel which also can be used as third button.
Order Code:
S26381-K457-L101
Keyboard KB900 The KB900 is a very flat keyboard with extra low keys and spill-resistant protection. The elegant design and top-quality construction makes the KB900 the ideal input device for any PC or Notebook user. If you accidently spill some water or coffee onto the keyboard, this special construction helps the liquid to flow away.
S26381-K560-L4** (**:
Country specific variation)
