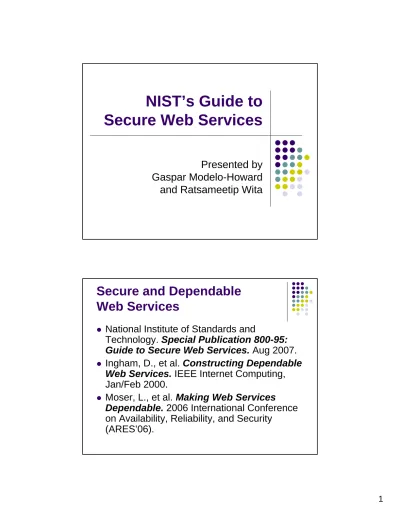

NIST’s Guide to
Secure Web Services
Presented by
Gaspar Modelo-Howard
and Ratsameetip Wita
Secure and Dependable
Web Services
z
National Institute of Standards and
Technology. Special Publication 800-95:
Guide to Secure Web Services. Aug 2007.
z
Ingham, D., et al. Constructing Dependable
Web Services. IEEE Internet Computing,
Jan/Feb 2000.
Goals
z
Give a broad overview of field (secure and
dependable web services)
z
Provide challenges and open problems in
research
Outline
z
Introduction to Web Services
z
Web Security Dimensions
z
Attacks to Web Services
z
Web Service Security Functions
Introduction to Web Services
z WS: Software system designed to support
interoperable machine to machine interaction over a network [W3C]
z Ex: Web APIs accessed over a network and executed remotely
Introduction to Web Services
z Make a collection of software services accessible via standardized protocols whose functionality can be automatically discovered and integrated into
applications (loosely coupled)
z Allows WS to dynamically bind to other WS at run-time, depending on needs of user or app
A Few More Acronyms
to Your Vocabulary
z OWL-S: Ontology Web Language for Services
z SOA: Service Oriented Architecture
z SOAP: Service Oriented Architecture Protocol
z SAML: Security Assertion Markup Language
z UDDI: Universal Description, Discovery and Integration
z WSDL: Web Services Description Language
z XACML: eXtensible Access Control Markup Language
Introduction to Web Services
z
Components of a SOA application
Introduction to Web Services
z
Components of a SOA application
z Discovery z Messaging z SOAP (XML) z Portals z Roles z Coordination
Introduction to Web Services
z
Components of a SOA application
z Discovery
z Messaging
z Portals
z Roles
Introduction to Web Services
z
Components of a SOA application
z Discovery z Messaging z Portals z Roles z Requester z Intermediary z Provider z Coordination
Introduction to Web Services
z
Components of a SOA application
Introduction to Web Services
z
Components of a SOA application
z Discovery z Messaging z Portals z Roles z Coordination z Orchestration z Choreography
Outline
z
Introduction to Web Services
zWeb Security Dimensions
z
Attacks to Web Services
z
Web Service Security Functions
WS Security Dimensions
z
Secure Messaging
z SOAP was not designed with security in mind
z Possible approaches: HTTP over SSL, XML Encryption and XML Signature, WS-Security
z
Protecting Resources
z WS are intended to be accessible only to authorized requesters
z Protection involves more than just access control (disruption, mitm, eavesdropping, impersonating)
WS Security Dimensions
z
Negotiation of Contracts
z WS should automatically negotiate and agree upon contracts (ebXML, WSDL)
z No standards that support enforcement of implicit contracts (WSDL)
z QoP: Only some support for negotiating security requirements
WS Security Dimensions
z
Trust Relationships
z Currently limited to trust of the service identity
z Architecture models:
z Pairwise trust
Each WS is provided the sec info of all other WS z Brokered trust
Uses TTP, WS should be designed with this in mind z Federated trust
WS from different organizations can interact z Perimeter defense
XML gateways placed between providers and requesters
WS Security Dimensions
z Some Pitfalls
z XML Encryption / XML
Signature: no std for informing recipients how were applied to message
Web Services Security
Standards
Attacks to Web Services
z
Reconnaissance Attacks
z
Code Templates
z
Forceful Browsing Attack
zDirectory Traversal Attack
z
WSDL Scanning
z
Registry Disclosure Attack
zPrivilege Escalation Attack
zDictionary Attack
Outline
z
Introduction to Web Services
z
Web Security Dimensions
z
Attacks to Web Services
z
Web Service Security Functions
z
Challenge and Open Problems
Web Service Security
Functions
z Service-to-Service Authentication z
Identity Management
z
Establishing Trust between Services
z
Describing Web Services Policies
(WS-Policy)
z Distributed Authorization and Access Management
z Confidentiality and Integrity of Service to Service Interchanges
Identity Management
z An Identity Management System (IDMS) is responsible for z Verifying identities of entities z Registering them z Issuing them digital identifiers
Identity Management
z
Three major identity architectures for WS
z Isolated identity managementz Credential and identity providers are merged
z Service must know for all requesters (scalability issue) z Federated identity management
z Group of providers agrees to recognize user ids from one another
Establishing Trust between
Services
z Trust relationships need to be established between remote WSs for SAML or WS-Security to be useful on a large scale
z Trust models like Kerberos have worked well for a single organization
z Pairwise trust circle
z Each entity that is authorized to communicate with another must share its key information (unscalable)
z Brokered trust model
z TTP is used to exchange key information between services to communicate
z Community trust model
z Relies on an external PKI for establishing trust
Establishing Trust between
Services
z
Practical approaches for federation of trust
z Liberty Alliancez Provides both Web app and WS federation using SAML to perform trust brokering
z Suitable for businesses and governments z WS-Federation
Describing Web Services
Policies (WS-Policy)
z Extension to WSDL, allows to express capabilities, requirements and characteristics of WS
z WSDL is limited to describing what is included in the message itself
z WS-Policy requirement types
z On the wire (WS-Sec encryption, signature)
z Abstract (QoS, privacy)
z WS-Policy expression contains a set of policy alternatives encompassing sets of assertions
z Policy expressions are external to metadata stored in UDDI and WSDL, need distribution mechanism z WS-MetadataExchange or WS-PolicyAttachment
Describing Web Services
Policies (WS-Policy)
z
Specifications defining WS-Policy assertions
z WS-SecurityPolicy defines assertions to specifyintegrity, confidentiality, and information about security tokens
Describing Web Services
Policies (WS-Policy)
Availability of WS
z Availability is intended to ensure that QoS and reliability are maintained even under intentional attempts to compromise the WS operation (DoS) z Recognize and react to DoS patterns
z Constrain and isolate the DoS attack
z Recover and resume secure operation after DoS
z Necessary to include redundancy, error handling capabilities and defensive techniques
z Most common accidental threats z Service recursion
z Service deadlock
Availability of WS
z
Failover
z UDDI supports listing multiple URIs for each WS
z Makes the UDDI registry the point of failure
z UDDI supports replication
z
QoS
Outline
z
Introduction to Web Services
z
Web Security Dimensions
z
Attacks to Web Services
z
Web Service Security Functions
z
Challenge and Open Problems
Challenge and Open Problems
z
Security remains a major challenge, in the
presence of dynamic composition and
heterogeneity in large, autonomous and
un-trusted environments
Challenge and Open Problems
z Service description, automatic service discovery, and QoS
z Make WS simpler? Feasible? z Secure issuance of credentials
z Repudiation of transactions
z Few logging implementations that can be used across an entire SOA
z Relationship between contracts and federated identity management
Challenge and Open Problems
z DoS attacks
z Protection from DoS attacks that exploit vulnerabilities unique to WS (discovery service)
z Spread of malware
z Compromised services
z Functional integrity of WS that requires the establishment of trust between services on transaction-by-transaction basis
