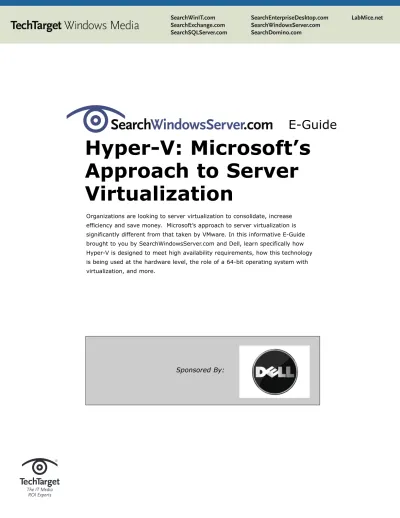

Hyper-V: Microsoft’s
Approach to Server
Virtualization
Organizations are looking to server virtualization to consolidate, increase efficiency and save money. Microsoft’s approach to server virtualization is significantly different from that taken by VMware. In this informative E-Guide brought to you by SearchWindowsServer.com and Dell, learn specifically how Hyper-V is designed to meet high availability requirements, how this technology is being used at the hardware level, the role of a 64-bit operating system with virtualization, and more.
E-Guide
SearchExchange.com
SearchSQLServer.com
SearchWindowsServer.com
SearchDomino.com
TechTarget Windows Media
Table of Contents
Table of Contents:
Can Microsoft Hyper-V meet high availability requirements? Server virtualization at the hardware level with Hyper-V Virtualization and 64-bit: A match made in Windows heaven Resources from Dell
Hyper-V: Microsoft’s
Approach to Server
Virtualization
Can Microsoft Hyper-V meet high availability requirements?
Danielle Ruest and Nelson Ruest, Contributors
The buzz in the industry right now is all about virtualization. Virtualization vendors are jockeying for position and each one touts the features the others are not supposed to have. One of these is a feature every hypervisor should have and one that Windows Server 2008 Hyper-V seems to be without in this version: live virtual machine (VM) migration. Live migration in a virtual environment does not mean migration from one state to another, such as migrating a physical machine to a virtual state. It means moving a VM from one host server to another while the VM is running and delivering service to end users without interrupting the service.
In order to move virtual machines in this manner, you need to make sure that each host server has access to the files that make it up. When you move a VM through live migration, you don’t want to have to move the files that make it up since those can be considerable in size. Instead, you want to move only the in-memory contents of the virtual machine — contents that are stored within the host server’s memory.
Both VMware ESXi and Citrix XenServer have the ability to do this, and both use the same strategy. Generally, host servers are linked together in high-availability clusters or resource pools. The servers tie into the same shared storage container and because of this, they have immediate access to the files that make up the VM during such a move. This is the first rule of host servers: They must be configured to tie into shared storage in order to provide high availability for the virtual machines they host (see Figure 1).
Figure 1
Microsoft’s Hyper-V does not support live migration. Instead it supports Quick Migration—a feature that saves the
tool. Despite this, multi-site clustering is available by default for Hyper-V. Other hypervisors do not offer this out of the box.
Figure 2
Windows Failover Clustering and Network Load Balancing (NLB) are two features that have been part of Windows Server since Windows NT (though NLB was called Windows Load Balancing at the time). These two features are mutually exclusive, but both provide high availability to some degree. Failover clustering is mostly used for the protection of stateful workloads or workloads that must commit changes to data, such as SQL Server or the Mailbox Server role in Exchange Server. Network load balancing clusters are created for workloads that are stateless or read-only. A good candidate for NLB is the Web server, especially when it is used as a front end to an n-tier application. If you are running Windows workloads in virtual machines and you want to make sure those workloads are always highly available no matter which hypervisor you use, you can and should configure them to use either Windows Failover Clustering or Network Load Balancing. In addition, you can configure non-affinity policies to make sure that each node of a cluster does not reside on the same host server. Then, if a failure occurs either at the VM or the host level, your workloads are automatically failed over without any service interruption to end users (see Figure 3).
Figure 3
So, is it essential for Microsoft Hyper-V to have live migration? The answer is no, not at this time. Most organiza-tions running Hyper-V as a hypervisor will also run Windows workloads in their virtual machines. By relying on Windows Server 2008’s own internal features, it’s easy for administrators to make sure there are no service inter-ruptions to end users, no matter what happens to the host server. It doesn’t work for every Windows workload, but it does for most of them, and as a proven technology, it works really well.
Server virtualization at the hardware level with Hyper-V
Brien M. Posey, Contributor
For as long as Windows has existed, applications have been prohibited from communicating directly with hardware. This is because one of the major principles behind the Windows operating system is that it acts as a level of abstrac-tion between hardware apps. Applicaabstrac-tions never communicate with the hardware directly. Instead, they communicate with Windows, which in turn uses various device drivers to enable it to communicate with the physical hardware. Recently, however, this philosophy has started to change—at least when it comes to server virtualization. Let’s start with a little history.
A look back at Virtual Server 2007
Prior to the release of Windows Server 2008, Microsoft’s primary virtualization solution was Virtual Server 2007. Virtual Server used the standard philosophy, that is, that apps were not allowed to communicate directly with the system hardware, taking something of a monolithic approach to server virtualization.
Windows treated Virtual Server 2007 pretty much the same as any other Windows application in that the host operating system ultimately retained control of all of the system’s resources. That meant guest operating systems all shared system resources, such as memory, network communications, video processing and so on.
This sharing of resources is both inefficient and risky. It’s inefficient because guest operating systems do not have a
Enter the hypervisor
With the release of Hyper-V, Microsoft took a completely different approach to server virtualization in that virtual machines are now allowed to communicate directly with the hardware (well, sort of). The exception is disk I/O, which is still coordinated through the host operating system. Guest servers running on Hyper-V completely bypass the host OS and communicate directly with the server’s hardware. The reason why Microsoft is able to take such a radically different approach to server virtualization is that Hyper-V is based on some relatively recent changes to server hardware.
The latest server hardware supports something called hardware-assisted virtualization. For example, Intel servers offer Intel VT (Virtualization Technology), while AMD has AMD-V. Hyper-V absolutely requires that your server be equipped with one of these two technologies. It is also worth noting that I recently deployed a server that was equipped with Intel VT, but I had to enable virtualization at the BIOS level before I was allowed to install Hyper-V. So what else makes V different from previous virtualization technologies? Unlike Virtual Server 2007, Hyper-V is a very small application. This size reduction is due to the fact that it’s really the hardware that is doing most of the virtualization work.
Hyper-V creates special partitions for guest operating systems. These are different from disk partitions, because the partitions include memory and other system resources. Each virtual machine functions solely within its own partition, which greatly reduces the chances that a failure with the host OS or with a different guest could impact a guest operating system. It also makes virtualization much more secure since the virtual machines are physically isolated from each other.
Hardware-assisted virtualization is a technology that is really worth paying attention to. I have been using Hyper-V on a few different servers in my lab, and guest operating systems seem to perform much better than they do in a Virtual Server 2007 environment. In fact, they tend to perform so well that I sometimes forget that they are virtual servers instead of physical ones.
Virtualization and 64-bit: A match made in Windows heaven
Christa Anderson, Contributor
Virtualization is the hot topic of the day. Be it application virtualization, OS virtualization or presentation virtualiza-tion; if you can virtualize it, someone’s probably slapped that label on it.
The thing is, all of these technologies have been around for some time, even years in some cases. Multi-user Windows has existed in various forms since 1992 and became a core part of the Windows operating system with Windows 2000. VMware Inc. has been evangelizing virtualized servers and clients since the company’s inception,
and SoftGrid was talking up application isolation and streaming long before Microsoft purchased the company in 2006. People were buying it, too.
So why is virtualization a hot topic now, instead of two years ago?
There are several possible reasons. The virtualization features have improved with every release and therefore have become more like working on a non-virtualized computer. Increased interest in environmentally friendly computing solutions has fostered interest in remote access and server consolidation.
Still, perhaps the most important reason why virtualization has become such a hot topic is that the infrastructure now exists to support it and make it scale while ensuring a rich experience. Reliable high-speed LANs and WANs are part of that infrastructure, as is 64-bit Windows.
In fact, 64-bit Windows is a key part of virtualization because of the one major virtualization bottleneck—memory. Let’s take a look at the relationship between physical memory (the DMMs you install in your computer) and virtual memory (the place where the operating system stores data and applications in use).
In a 32-bit system, Windows can address up to 4 GB of virtual memory. Two gigabytes of virtual memory are shared among kernel-mode processes that support core functions of the operating system, and 2 GB are allocated individually to each user-mode process and isolated from all other user-mode processes. The number of virtual memory addresses available to user-mode processes may appear enormous because each process sees the entire 2 GB area for its exclusive use.
But in order for virtual memory to be useful, the memory manager must be able to map the virtual address to a physical location so that when the data is needed, the operating system knows how to go get it. Windows does this through a system of pages that store data, page tables that index the pages and a record of page table entries. Combined, these all document how a virtual memory address maps to a physical location.
The 32-bit operating system’s method of mapping virtual addresses to physical ones works for up to 4 GB of physical memory under normal circumstances, since the addresses are 32 bits long. The rest of the virtual memory addresses must be backed by an area of hard disk called the page file, which provides alternate storage but is slower than RAM.
If the virtualized experience is limited, then people won’t like it. But if it’s got most of the same features of a non-virtualized platform, then supporting that takes resources. For example, the new support for monitor spanning in Windows Server 2008 Terminal Services requires more memory than a single monitor because the viewing space is larger.
Therefore, you need an efficient virtualization platform with enough memory to back it properly. Although terminal servers have used 32-bit operating systems for smaller deployments, 64-bit platforms—combined with adequate processor support and a disk topology designed to reduce I/O bottlenecks—will be necessary to support larger deployments. And that’s just as true for virtualized operating systems attempting desktop replacement. For this reason, Microsoft’s Hyper-V is available only on 64-bit operating systems, although you can install 32-bit operating systems as guests on Hyper-V.
There are some catches to 64-bit operating systems too, of course. For one, 64-bit processes use more memory than their 32-bit counterparts, so you’ll need to run enough processes to require more than 4 GB of memory before it’s worth it. In addition, 64-bit operating systems need 64-bit drivers, which can be harder to find. Still, although they require more planning to implement, 64-bit operating systems are the future, especially since they are more or less required to support the virtualization that people are looking for.
