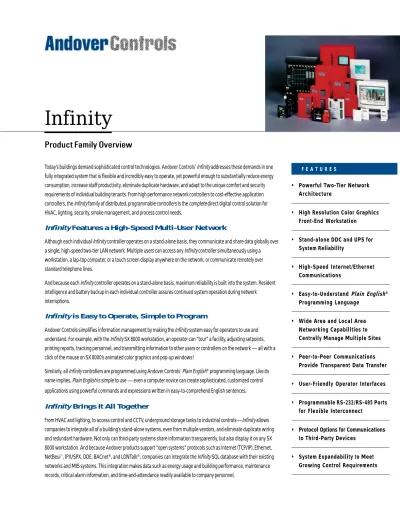

Infinity. Product Family Overview. Infinity Features a High-Speed Multi-User Network. Infinity is Easy to Operate, Simple to Program

(1)

Product Family Overview

Infinity

F E A T U R E S Today’s buildings demand sophisticated control technologies. Andover Controls’ Infinity addresses these demands in one

fully integrated system that is flexible and incredibly easy to operate, yet powerful enough to substantially reduce energy consumption, increase staff productivity, eliminate duplicate hardware, and adapt to the unique comfort and security requirements of individual building tenants. From high performance network controllers to cost-effective application controllers, the Infinity family of distributed, programmable controllers is the complete direct digital control solution for HVAC, lighting, security, smoke management, and process control needs.

Infinity Features a High-Speed Multi-User Network

Although each individual Infinity controller operates on a stand-alone basis, they communicate and share data globally over a single, high-speed two-tier LAN network. Multiple users can access any Infinity controller simultaneously using a workstation, a lap-top computer, or a touch screen display anywhere on the network, or communicate remotely over standard telephone lines.

And because each Infinity controller operates on a stand-alone basis, maximum reliability is built into the system. Resident intelligence and battery backup in each individual controller assures continued system operation during network interruptions.

Infinity is Easy to Operate, Simple to Program

Andover Controls simplifies information management by making the Infinity system easy for operators to use and understand. For example, with the Infinity SX 8000 workstation, an operator can “tour” a facility, adjusting setpoints, printing reports, tracking personnel, and transmitting information to other users or controllers on the network — all with a click of the mouse on SX 8000’s animated color graphics and pop-up windows!

Similarly, all Infinity controllers are programmed using Andover Controls’ Plain English®_{programming language. Like its} name implies, Plain English is simple to use — even a computer novice can create sophisticated, customized control applications using powerful commands and expressions written in easy-to-comprehend English sentences.

Infinity Brings It All Together

From HVAC and lighting, to access control and CCTV, underground storage tanks to industrial controls—Infinity allows companies to integrate all of a building’s stand-alone systems, even from multiple vendors, and eliminate duplicate wiring and redundant hardware. Not only can third-party systems share information transparently, but also display it on any SX 8000 workstation. And because Andover products support “open systems” protocols such as Internet (TCP/IP), Ethernet, NetBeui™_{, IPX/SPX, DDE, BACnet}®_{, and LONTalk}®_{, companies can integrate the}_Infinity_{SQL database with their existing} networks and MIS systems. This integration makes data such as energy usage and building performance, maintenance records, critical alarm information, and time-and-attendance readily available to company personnel.

• Powerful Two-Tier Network Architecture

• High Resolution Color Graphics Front-End Workstation

• Stand-alone DDC and UPS for System Reliability

• High-Speed Internet/Ethernet Communications

• Easy-to-Understand Plain English®

Programming Language

• Wide Area and Local Area Networking Capabilities to Centrally Manage Multiple Sites

• Peer-to-Peer Communications Provide Transparent Data Transfer

• User-Friendly Operator Interfaces

• Programmable RS-232/RS-485 Ports for Flexible Interconnect

• Protocol Options for Communications to Third-Party Devices

• System Expandability to Meet Growing Control Requirements

(2)

Infinity Network Architecture

Infinity’s communications architecture is unique — it combines the reliability and functionality

of programmable, distributed stand-alone controllers and graphical operator workstations

with the data integration and communications of a powerful, and cost-effective, two-tier local

area network (LAN) or wide area network (WAN).

Plain English

®

_{Programming Language}

Infinity distinguishes itself further by its flexibility and ease-of-use. With Andover Controls’

powerful programming language, Plain English, users can program any Infinity controller using

simple English statements such as “START THE PUMP”; “UNLOCK THE MAIN_DOOR”; or.

“OPEN THE MIXING_VALVE”. It is so simple even people without programming experience can

create custom programs that override or enhance their standard HVAC, access, alarm,

schedule, or communications strategies for their unique requirements— without technical

assistance or the inflexibility of “canned” programs!

Plain English programs are entered into Infinity controllers anywhere on the network using an

SX 8000 workstation, LSX 280 Lap-Top service tool, or dumb terminal.

Upper Tier

Ethernet,Infinity’s upper tier backbone bus, provides the system with high-speed communications, utilizing standard Internet protocols. Ethernet supports Andover’s network controllers, including the CX 9200 network controller and the ÈEclipse rack-mounted controller, giving a building’s systems centralized communications, high performance I/O, and expandability. In addition, Ethernet supports up to 64 SX 8000 workstations and a central Windows™_{NT file server. All data is shared} globally over this high-speed network. SX 8000

(3)

Lower Tier

The lower-tier, the Infinet field bus, features RS-485, twisted-pair communications to the Infinity family of distributed application controllers. The Infinet provides complete peer-to-peer communication, transparently sharing data with any controller on the network, including controllers on Infinets connected to other Ethernet network controllers. Each Infinet bus will support up to 127 Infinet controllers, such as the SCX 920 system controller, the TCX 850 terminal controller, the IDX 851 intrusion detection controller, and the LCX 890 lighting controller; along with 31 priority controllers, such as the DCX 250 touch screen display and the ACX 700 or ACX 780 access controller.

Network Expansion

The Infinity system is expandable to meet any building’s growing requirements. Add additional controllers, workstations, and other user interfaces at any time in a variety of combinations to suit the most demanding applications.

System expansion is also made easier with Infinity

expansion modules. These low-cost modules increase the I/O capacity of individual controllers and provide a cost-effective solution to increased point requirements in specific locations.

Ethernet network controllers contain up to four user-programmable RS-232 or RS-485 ports to support communications, printers, or modems, plus connections to Infinet networks and even Andover’s first generation of AC256 controllers. In addition, network controllers can directly interface to third-party devices such as fire alarm panels, HVAC equipment, CCTV switchers, lighting controllers, power monitoring systems, and variable speed drives. Touch Screen DCX 250 Lighting Control LCX 890 Cooling Tower Control LCX 810 Parking Control ACX 780 Network Access Control CMX Access Dial-Up Network CMX 240 Lighting Control LCX 890 Door Control ACX 700 Touch Screen DCX 250 Chiller Control SCX 920 Heat Pump Control LCX 810 Fan Coil Control LCX 800 AHU Control SCX 920 Intrusion Detection IDX 800i VAV Control TCX 840 Rooftop Unit Control LCX 810 VAV Control Actuator TCX 865 Fan Coil Control LCX 800 Third-party Video Switcher VAV Control TCX 840 VAV Control TCX 850 RS 232 Laptop Service Tool LSX 280

OPEN Communications

Interfaces

BACnet™ LONtalk™ Air Compressors Air Handlers Annunciators Boilers

Building Automation Systems Chillers

Fire Systems Fume Hood Controls Heat Pumps/Unit Ventilators Intercom Systems Lighting Controllers Paging Systems Power Monitoring PLCs Security Systems Sensors/Meters Telephone Switchers UPS Systems Variable Speed Drives Video Switchers VCR Controllers Third-party Fire Panel

R

T1 WAN Routers ETHERNET—BACnet™_—INTERNET File Server CX 9200

Network Controller Network ControllerÈEclipse SX 8000

Workstation

Internet Browser

(4)

Agency Listings: UL/CUL 916, 1076, 864-UUKL, FCC, (CE - CX 9001)

CX 9200

The powerful Infinity CX 9200 provides reliable system control across a high-speed local or wide area Ethernet-based

network. An optional built-in DCX 250 Touch Screen Display allows users to quickly monitor and adjust equipment, schedules, and setpoints, etc., using custom graphic control panels. In addition, utilizing Infinity’s Ethernet TCP/IP communications capabilities, the CX 9200 controller can become an actual Web Server, allowing building personnel to control and monitor their buildings over an Intranet or Internet.

For ARCNet networks, the Infinity CX 9001 network controller offers similar features and is CE-approved for European use.

Andover provides high performance network management with the Infinity family of CX, CMX, and

ÈEclipse family of programmable network controllers. While Andover’s Infinet field controllers are

providing stand-alone direct digital control of your building services, Infinity network controllers

act as system coordinators for these distributed controllers. Infinity network controllers provide:

• Network communications and integrated global control across a high-speed Ethernet or

ARCNet network

• Full programmability using Andover Controls’ Plain English

®

_{programming language}

• User-friendly menu driven interface

• Local and remote alarming

• History and trend logging

• Choice of Internet (TCP/IP), Novell, or NetBeui protocols

• Programmable RS-232 connections for modems, terminals, and printers

• Direct programmable serial communications to third-party equipment

• Optional command line interface

• Support for up to two RS-485 Infinet field bus networks

• TankNet port connection for underground storage tank (UST)

leak detection sensing probes

• Infinity Web Server option available on CX controllers.

NETWORK

CONTROLLERS

(5)

ÈEclipse Controller System

The Infinity ÈEclipse rack-mounted controller system combines network control with high-density I/O modules, including a 32 high-accuracy universal input module and a 16 digital output module, in a single stand-alone 8-slot compact rack. More than ten types of modules are available to provide total I/O flexibility. The CX 9400 CPU module monitors and controls these I/O modules through the high-speed ÈEclipse parallel backplane.

Available I/O modules include:

• 32 (or 16) high-accuracy universal input module with 16 (or 12) bit resolution • 32 dry contact input module

• 16 digital output module • 8 digital output module

• 8 high-accuracy analog output module • 80 high-density LED driver output module

The CX 9400 also acts as a network manager for the distributed Infinity Infinet controllers. An optional Echelon™ control module on the CX 9400 provides an open communications interface to Andover or third-party LON-compatible products and flash EPROM allows easy on-line software updates. Similar to the CX 9200, the CX 9400 can become an actual Web Server, allowing building personnel to control and monitor their buildings over an Intranet or Internet.

Agency Listings: UL/CUL 916, 1092, FCC, CE

CMX 240

The Infinity CMX 240 supports an Infinet field bus and is the ideal network controller for smaller or remote facilities. The CMX 240 features cost-effective direct-connect or remote communications capabilities and contains a dedicated TankNet port for connection to Andover’s family of UST leak detection sensing probes.

(6)

SCX 920

The Infinity SCX 920 Infinet controller is used for direct digital control of chillers, cooling towers, boilers, air handling units, perimeter radiation, lighting, etc. The SCX 920 contains an I/O expansion port to meet additional point count needs and an optional display with keypad for local viewing of point values and setpoint modifications.

Infinity system controllers are stand-alone, programmable Infinet applications controllers used for

direct digital control of chillers, cooling towers, boilers, air handling units, packaged HVAC units,

heat pumps, and fan coils. Infinity system controllers bring reliable plant and equipment control to

every part of your building with features such as:

• Universal inputs and outputs

• Form C relays

• Manual overrides

• I/O expansion ports

• Service ports

• Optional keypad displays

• Peer-to-peer communications

SYSTEM

CONTROLLERS

Inputs: 16 Universal: Digital, Counter, Voltage, or Temperature

Outputs: 8 Universal: Pulse, Voltage, Current, Form C, or Tri-state

Agency Listings: UL/CUL 916, 1076 (SCX 920S), FCC, CE

LCX 800, 800i, LCX 810

The Infinity LCX 800 Infinet controller provides direct digital control and monitoring of packaged HVAC units, heat pumps, and fan coil units. The LCX 800i is an input-only version of the LCX 800. The LCX 810 offers the same features, plus an I/O expansion port, built-in overrides for manual control of each output, and optional display with keypad for local information control.

Inputs: 8 Universal: Digital, Counter, Voltage, Temperature, or Supervised

Outputs: 8 (SPDT) Form C relays (LCX 800, LCX 810 only)

(7)

Infinity’s family of programmable terminal controllers are specifically designed for direct digital

control of VAV boxes, fan powered induction units, unit ventilators, and rooftop units. Infinity

offers a controller model for practically any terminal control application with flexible I/O

combinations and Andover's unique peer-to-peer communications.

TCX 840

The Infinity TCX 840 family (TCX 840, 843, and 846) provides versatile, low-cost direct digital control of simple VAV to full-featured package unit applications.

Inputs: 2 Universal (TCX 840, TCX 843); 4 Universal (TCX 845, TCX 846): Digital, Counter, Voltage, or Temperature

1 airflow sensor (TCX 843, TCX 846)

Outputs: 2 Form A, triac-based (can be configured as 1 Form K) (TCX 840)

5 Form A, triac-based (2 Form K plus 1 Form A) (TCX 843, TCX 845, TCX 846); 2 Analog (TCX 845, TCX 846)

Agency Listings: UL/CUL 916, FCC, CE

TCX 850

The Infinity TCX 850 family (TCX 850, 851, 852, TCX 853, and 855) controls individual terminal units: VAV boxes, fan powered induction units, unit ventilators, heat pumps, etc., similar to the TCX 840. All but the TCX 852 model feature an I/O expansion port to meet additional point count needs.

Inputs: 2 Universal (TCX 852); 4 Universal (TCX 850, TCX 851, TCX 855); 6 Universal (TCX 853): Digital, Counter, Voltage, or Temperature

1 airflow sensor (TCX 850, TCX 852, TCX 855) (TCX 853 has 2) 3 on-board adjustable potentiometers (TCX 850, TCX 855)

Outputs: 3 (SPDT) Form A relays (TCX 852 has 1 Form A) 1 Form K Tri-state relay

Agency Listings: UL/CUL 916, 1076, 864-UUKL, FCC, CE

TCX 865

The Infinity TCX 865 is a unique, low-cost VAV box controller that comes equipped with a built-in damper actuator to streamline hardware installation and save commissioning time. The TCX 866 model adds an additional Universal input; a room sensor input for the Andover Smart Sensor (or any standard room sensor); and two analog outputs.

Inputs: 2 Universal (TCX 865); 3 Universal (TCX 866): Digital, Counter, Voltage, or Temperature; 1 airflow sensor; 1 room sensor (TCX 866)

Outputs: 3 (SPDT) Form A triac-based (can be configured as 2 Form K and 1 Form A) 1 integrated damper actuator

2 analog outputs (TCX 866)

Agency Listings: UL/CUL 916, 864-UUKL, FCC, CE

TCX 870

The Infinity TCX 870 model is the perfect choice for controlling fan coil units, heat pumps, and small AHUs that require both digital and analog outputs. The TCX 870 includes an input for the Infinity EMX 170, Andover’s low-cost programmable user interface.

Inputs: 4 Universal: Digital, Counter, Voltage, or Temperature

Outputs: 3 (SPDT) Form A relays; 2 Analog

TERMINAL

CONTROLLERS

(8)

The Infinity Security Management system is a complete family of stand-alone programmable

controllers and state-of-the-art workstation software for access control and intrusion detection.

And because Infinity is a fully integrated system, it has the power to combine access control and

intrusion detection with HVAC scheduling and control, live video imaging, CCTV, badging,

elevator control, lighting control, time and attendance, and serial communications to fire systems,

matrix switchers, and other third-party devices. The Infinity Security Management is designed to

meet the security demands of both large and small facilities, from two doors to thousands.

Each Infinity ACX Access Controller provides:

• Local database storage for up to 20,000 cardholders (ACX 780 only)

• Fast validation speed at the local controller level

• Choice of reader technologies; Wiegand swipe and insert readers, proximity,

magnetic stripe (ABA), or keypad

• Built-in tamper switches with alarm notification

• Peer-to-peer communications

• Client/server architecture with real-time SQL central database

of up to 57,000 cardholders

For reliable intrusion detection, Infinity’s IDX series controllers offer:

• Local alarm monitoring, annunciation, and stand-alone control

• Universal inputs for digital and analog monitoring in one controller

• Peer-to-peer communications

ACX 780, 781, 700

The Infinity ACX 780 Access Controller controls access to eight doors and provides local database storage for 6,500 personnel records. An ACX 781 model is also available with storage capacity for up to 20,000 records.

Similar in design to the ACX 780 and the ACX 781 but with fewer inputs and outputs, the Infinity ACX 700 controls access to two doors, and with the optional EMX 190 expansion module, up to four doors. The ACX 700 can store up to 1,700 personnel records at the local level.

ACCESS

SECURITY

CONTROLLERS

Inputs: 8 reader (Wiegand or ABA) (ACX 781 supports Wiegand only) (ACX 700-2, expandable to 4) 8 keypad (ACX 700 - 2)

32 supervised (ACX 700 - 8)

Outputs: 8 Form C relays (ACX 700 - 2); 1 Form C auxiliary relay

(9)

IDX 800, 800i, 851

The Infinity IDX 800 eight-zone security controller provides cost-effective, reliable intrusion detection with supervised inputs plus digital and analog monitoring for temperature and humidity control. The Infinity IDX 800i is an input-only version of the IDX 800. The lower-priced, reduced input Infinity IDX 851 intrusion and alarm controller is also capable of both digital and analog monitoring and supports Infinity expansion modules.

CMX Access Controller

The Infinity CMX Access Controller combines Infinity's robust ACX780 stand-alone eight door access control unit and

Infinity's powerful CMX 240 communications controller in one panel. This cost-effective and space-saving combination can be linked with a full feature single-user SX 8000 graphical front-end workstation for a complete access control management package for smaller facilities. It is also available in an ACX 700/CMX 240 version.

Inputs: 8 Supervised Universal (IDX 851 has 4 Universal)

Outputs: 8 (SPDT) Form C relays (IDX 800 only) 3 (SPDT) Form A relays

1 Form K Tri-state relay (IDX 851 only)

Agency Listings: UL/CUL 916, 1076, FCC, CE

Inputs: 8 reader (Wiegand or ABA) 8 keypad

32 supervised

Outputs: 8 Form C relays; 1 Form C auxiliary relay

(10)

Andover offers high performance in lighting control with a dedicated controller designed

specifically for direct high-voltage switching of lighting zones. Through flexible scheduling,

building owners can realize substantial energy savings while occupants enjoy fully-lit work areas

during scheduled business hours. No additional hardware such as hard-wired interface panels,

duplicate networks, and controllers are needed. Building tenants can enjoy the safety and

convenience of Infinity’s after-hours override capability and modify their area’s lighting schedule

using the Infinity local programmable interface, for example, or by swiping their access card to

turn on the lights before entering their office.

LCX 890

The Infinity LCX 890 series of lighting controllers (LCX 890, 892, and 898) provides unparalleled performance and flexibility in lighting control. Each lighting controller switches up to 48 high voltage lighting circuits, using mechanically held latching relays. The LCX 890 series enclosure includes isolation for high voltage wiring, eliminating the need for additional interface panels, multiplexors, or relays to control the lighting circuits.

LIGHTING

CONTROLLERS

Inputs: 8 (LCX 890, 16 (LCX 891), 24 (LCX 892) or 48 (LCX 898) Class II Low Voltage Inputs 6 Digital

8 Universal: Digital, Counter, Voltage, or Temperature

Outputs: 8 (LCX 890), 16 (LCX 891), 24 (LCX 892), or 48 (LCX 898) Pulsed Output Lighting Control Relays, with or without status feedback, mechanically latched

Agency Listings: UL/CUL 916, FCC

The Infinity family of EMX “plug-in” expansion modules provide a convenient, low-cost, and

flexible means to add additional digital, analog, pneumatic, or supervised input and output points

to Andover’s distributed application controllers. Up to two modules can be powered directly from

any of these Infinet controllers: the SCX 920, LCX 810, TCX 850, TCX (IDX) 851, TCX 853, TCX 855,

and the ACX 700. Additional modules can be added by providing power from an external 24 VDC

supply.

EMX 140, 150, 151, 155, 156, 160, and 190

EMX expansion modules are treated in the same manner as the built-in I/O of each Infinet controller. Once expansion points are assigned using Andover’s Plain English®_{programming language, they are seamlessly integrated into operator input and}

EXPANSION

(11)

SX 8000 Workstation

The Infinity SX 8000 front end workstation provides “point and click” access to Infinity controllers through a multi-tasking window-based, color graphics user interface. SX 8000 is designed for both single-user and multi-user applications in both direct connect and remote communications. Standard capabilities include high resolution, animated color graphics; year-in-advance scheduling; comprehensive alarm management; a universal report generator including historical trend analysis; and centralized control and data acquisition. In addition, Plain English programs can be created off-line on an SX 8000 workstation. A built-in interactive Plain English editor saves time by quickly locating programming errors line-by-line.

Operators can “tour” a single facility or centrally manage multiple sites from a single SX workstation. — adjust setpoints, turn equipment on and off, track personnel, open and close doors, and acknowledge alarms — all with a click of the mouse on intuitive on-screen animations. SX 8000’s high-resolution vivid graphic displays and custom controls can be created and animated using SX 8000’s built-in library of graphics, drawing tools, and color palette. In addition, SX 8000 imports ten different graphic file types, including Autocad™_.

The SX 8000 supports up to 64 users and a central SQL file server directly on the high-speed Ethernet backbone network. As SX operators make changes in the Infinity system, the SX 8000 file server automatically updates any other users on the network, guaranteeing current information is available system-wide. With SX 8000’s user-customized list views, real-time information can be displayed in the most useful format for any application.

SX 8000’s user-programmable alarm management system simplifies creating, responding to, and evaluating alarms. The SX 8000 automatically logs alarms as they occur and provides comprehensive alarm status information for the operator. Audio and voice annunciation of alarms comes standard with SX 8000. SX 8000 alarms can also be combined with CCTV and intercom applications to provide live monitoring of secured areas in response to alarms.

Infinity supports several leading operating systems such as Microsoft Windows NT™_{Server, Microsoft OS/2 LAN} Manager™_{, and Novell Netware}™_{. As a result, information from your}_Infinity_{system can be directly shared with mini,} mainframe, and other computers across the same network. SX 8000 also supports the Infinity Web Server option which provides easy access to lists, logs, and reports via any PC with an Internet browser.

USER

(12)

LSX 280 Lap-Top Service Tool

The Infinity LSX 280 Lap-Top Service Tool allows users to program and interrogate the Infinity system from anywhere on the network using Andover’s PlainEnglish programming language. The LSX 280 connects to a lap-top computer via an RS-232 serial port and plugs into the built-in service port connection on all Infinity controllers, or any Infinity room sensor equipped with a service jack. The LSX 280 is housed in a rugged black polyethylene carrying case and comes complete with a DC power pack and a rechargeable NiCad battery pack. Easy-to-use pull-down menus and function keys are provided to access point and program summaries or connect to any other controller on the network. In addition, the LSX 280 includes the complete Plain English full-screen editing package for making changes to, or creating new programs, functions, data files, and reports.

DCX 250

The Infinity DCX 250 programmable touch screen display is a streamlined, wall-mounted man-machine interface for conference rooms, lobbies, nurse and guard stations, or virtually any location where building personnel or occupants need quick and direct access to the building and security controls. The DCX 250 features a large 24-line by 40-character LCD display that graphically depicts user-defined floor plans and mechanical and electrical systems, while superimposing real-time information such as temperatures, humidity, on/off status, and calculated data. Each DCX 250 includes a built-in library of graphic controls such as knobs, dials, gauges, and buttons so operators can easily create sophisticated graphics and control panels. The DCX 250 is also available as a built-in option on the CX 9001 and CX 9200 network controllers.

USER

INTERFACES

(13)

EMX 170

The Infinity EMX 170 Programmable Interface Module combines a true interactive display with a room temperature sensor to provide users with an easy, cost-effective way to view or modify facility operations. The 8-character LCD display and six programmable function keys enable operators and building occupants to change setpoints, monitor occupancy counts, turn equipment on and off, air balance VAV boxes, arm or disarm high security areas, or perform virtually any building automation or security function within the Andover Infinity system. The EMX 170 is available in two versions: standard wall mount and industrial (NEMA 4X).

Andover TTS-S Wall Mount Room Temperature Sensor

The Andover Controls TTS-S Wall Mount Temperature Sensor provides accurate, reliable measurement of interior room temperature for use in an Andover Controls building automation system. The active sensing element is a highly stable, Type III 10K thermistor bead, accurate to within ±.36° F within a 40° to 100° F (4.4° to 37.8° C) operating range. The Wall Mount Temperature Sensor features low profile, sleek plastic packaging and a common backplate, designed for both US and European mounting. It can be mounted directly on dry wall or on an electrical outlet box with no adapters required. A ruggedized version of this sensor, which is immune to moisture or condensation and suitable for temperature extremes, is also available.

Andover TTS-SE Sensor Plus Temperature Sensor

The Andover Controls TTS-SE Sensor Plus provides precise interior temperature measurement for use in an Andover Controls building automation systems. The SE model includes a setpoint adjustment slider; an over-ride push-button; and a programmable LED for status indication. The active sensing element is identical to that in the Wall Mount Sensor. The Sensor Plus utilizes an attractive, well-ventilated plastic enclosure and a common backplate, designed for both US and European mounting. Sensor Plus may be mounted directly on dry wall or on an electrical outlet box with no adapters required. This model includes a service port option for the Andover Infinity LSX 280 Lap-Top Service Tool.

Andover TTS-SD Smart Sensor

The Andover Controls TTS-SD Smart Sensor combines a programmable display and room temperature sensor to provide users with a cost-effective way to view and modify information in the Infinity TCX 866 model VAV box controller. The Smart Sensor features the same active sensing element, combined with a user-programmable 6-button keypad and a choice of either a 2-digit LED display or a 4-digit LCD display, enabling operators and occupants to change setpoints, monitor occupancy status, turn equipment on and off, and more. Both models come in an attractive, well-ventilated plastic enclosure and have a common backplate design for both US and European mounting. A service port for the Andover Infinity Lap-Top Service Tool is included.

USER

INTERFACES

(14)

Andover Controls Corporation World Headquarters 300 Brickstone Square

Andover, Massachusetts 01810 USA Tel: 978 470 0555 • Fax: 978 470 0946 http://www.andovercontrols.com Andover Controls Ltd. Smisby Road

Ashby-de-la-Zouch

Leicestershire LE65 2UG England Tel: 01530 417733 • Fax: 01530 415436 Andover Controls GmbH Am Seerhein 8

D-78467 Konstanz, Germany Tel: 07531 99370 • Fax: 07531 993710 Andover Controls S.A. Immeuble Dolomites 2 58 Rue Roger Salengro 94126 Fontenay Sous Bois Cedex, France

Tel: 331 53 99 16 16 • Fax: 331 53 99 16 15 Andover Controls Asia

Unit 1201-02, Phase I, Cheuk Nang Centre 9 Hillwood Road, Tsim Sha Tsui Kowloon, Hong Kong Tel: 2739 5497 • Fax: 2739 7350 Andover Controls Mexico Insurgentes Sur. 1722-501 Col. Florida
