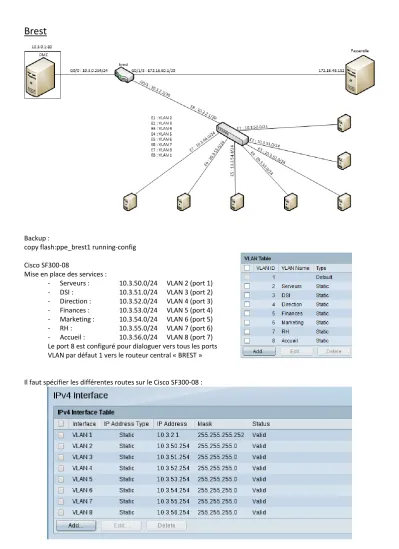

Brest

Backup :

copy flash:ppe_brest1 running-config

Cisco SF300-08

Mise en place des services :

-

Serveurs :

10.3.50.0/24

VLAN 2 (port 1)

-

DSI :

10.3.51.0/24

VLAN 3 (port 2)

-

Direction :

10.3.52.0/24

VLAN 4 (port 3)

-

Finances :

10.3.53.0/24

VLAN 5 (port 4)

-

Marketing :

10.3.54.0/24

VLAN 6 (port 5)

-

RH :

10.3.55.0/24

VLAN 7 (port 6)

-

Accueil :

10.3.56.0/24

VLAN 8 (port 7)

Le port 8 est configuré pour dialoguer vers tous les ports

VLAN par défaut 1 vers le routeur central « BREST »

(2)

Mise en place du routage entre les différents services afin de limiter les domaines de diffusion.

Comment nos VLAN ont été mis en place :

VLAN 2 :

VLAN 3 :

VLAN 4 :

VLAN 5 :

VLAN 6 :

VLAN 7 :

(3)

Puis, pour finir la configuration des routes :

Configuration du routeur Cisco 1941 brest :

brest#show run Building configuration...

Current configuration : 2126 bytes !

! Last configuration change at 15:39:05 UTC Thu Dec 19 2013 version 15.1

service timestamps debug datetime msec service timestamps log datetime msec no service password-encryption ! hostname brest ! boot-start-marker boot-end-marker ! ! ! no aaa new-model ! no ipv6 cef ip source-route ip cef ! ! ! ! !

multilink bundle-name authenticated !

crypto pki token default removal timeout 0 !

!

license udi pid CISCO1941/K9 sn FCZ1648C1SF ! ! ! ! ! !

(4)

! ! interface Embedded-Service-Engine0/0 no ip address shutdown ! interface GigabitEthernet0/0 ip address 10.3.0.254 255.255.255.0 ip nat inside ip virtual-reassembly in duplex auto speed auto ! interface GigabitEthernet0/1 ip address 10.3.2.2 255.255.255.252 ip nat inside ip virtual-reassembly in duplex auto speed auto ! interface Serial0/0/0 no ip address shutdown clock rate 2000000 ! interface Serial0/0/1 no ip address shutdown clock rate 2000000 ! interface GigabitEthernet0/1/0 no ip address ! interface GigabitEthernet0/1/1 no ip address ! interface GigabitEthernet0/1/2 no ip address ! interface GigabitEthernet0/1/3 switchport access vlan 2 no ip address ! interface Vlan1 no ip address ! interface Vlan2 ip address 172.16.60.1 255.255.240.0 ip nat outside ip nat enable ip virtual-reassembly in ! ip forward-protocol nd ! no ip http server no ip http secure-server !

ip nat inside source list 1 interface Vlan2 overload

ip nat inside source static tcp 10.3.0.1 80 172.16.60.1 80 extendable ip route 0.0.0.0 0.0.0.0 172.16.48.152 ip route 10.3.50.0 255.255.255.0 10.3.2.1 ip route 10.3.51.0 255.255.255.0 10.3.2.1 ip route 10.3.52.0 255.255.255.0 10.3.2.1 ip route 10.3.53.0 255.255.255.0 10.3.2.1 ip route 10.3.54.0 255.255.255.0 10.3.2.1 ip route 10.3.55.0 255.255.255.0 10.3.2.1 ip route 10.3.56.0 255.255.255.0 10.3.2.1 !

access-list 1 permit any ! ! ! control-plane ! ! ! line con 0 line aux 0

(5)

line 2

no activation-character no exec

transport preferred none transport input all

transport output pad telnet rlogin lapb-ta mop udptn v120 ssh stopbits 1

line vty 0 4 login

transport input all !

scheduler allocate 20000 1000 end

Puis, la configuration du Switch CISCO SF300-08

interface ethernet e1 switchport mode general exit

vlan database vlan 2-8 exit

interface ethernet e1 switchport general pvid 2 exit

interface ethernet e1

switchport general allowed vlan add 2 untagged exit

interface ethernet e8

switchport trunk allowed vlan add 2 exit

interface ethernet e2 switchport trunk native vlan 3 exit

interface ethernet e8

switchport trunk allowed vlan add 3 exit

interface ethernet e3 switchport trunk native vlan 4 exit

interface ethernet e8

switchport trunk allowed vlan add 4 exit

interface ethernet e4 switchport trunk native vlan 5 exit

interface ethernet e8

switchport trunk allowed vlan add 5 exit

interface ethernet e5 switchport trunk native vlan 6 exit

interface ethernet e8

switchport trunk allowed vlan add 6 exit

interface ethernet e6 switchport trunk native vlan 7 exit

interface ethernet e8

switchport trunk allowed vlan add 7 exit

interface ethernet e7 switchport trunk native vlan 8 exit

interface ethernet e8

switchport trunk allowed vlan add 8 exit interface vlan 2 name Serveurs exit interface vlan 3 name DSI exit interface vlan 4 name Direction exit interface vlan 5 name Finances exit

(6)

interface vlan 6 name Marketing exit interface vlan 7 name RH exit interface vlan 8 name Accueil exit

voice vlan oui-table add 0001e3 Siemens_AG_phone________ voice vlan oui-table add 00036b Cisco_phone_____________ voice vlan oui-table add 00096e Avaya___________________ voice vlan oui-table add 000fe2 H3C_Aolynk______________ voice vlan oui-table add 0060b9 Philips_and_NEC_AG_phone voice vlan oui-table add 00d01e Pingtel_phone___________ voice vlan oui-table add 00e075 Polycom/Veritel_phone___ voice vlan oui-table add 00e0bb 3Com_phone______________ interface vlan 1 ip address 10.3.2.1 255.255.255.252 exit interface vlan 2 ip address 10.3.50.254 255.255.255.0 exit interface vlan 3 ip address 10.3.51.254 255.255.255.0 exit interface vlan 4 ip address 10.3.52.254 255.255.255.0 exit interface vlan 5 ip address 10.3.53.254 255.255.255.0 exit interface vlan 6 ip address 10.3.54.254 255.255.255.0 exit interface vlan 7 ip address 10.3.55.254 255.255.255.0 exit interface vlan 8 ip address 10.3.56.254 255.255.255.0 exit ip route 0.0.0.0 0.0.0.0 10.3.2.2 ip route 10.3.0.0 255.255.255.0 10.3.2.2 interface vlan 1 no ip address dhcp exit

bonjour mode include bonjour service enable csco-sb bonjour service enable http bonjour service enable https bonjour service enable ssh bonjour service enable telnet bonjour interface range vlan-range 1 hostname switchcce2e7

username cisco password 95fbdb3e3d93f62058f8c18acd1d01130b16296c level 15 encrypted no snmp-server enable
