CanIt-Domain-PRO Administration Guide

for Version 9.2.4

Roaring Penguin Software Inc. 24 April 2015

(2)

(3)

List of Figures

2.1 Flow of Mail through CanIt-Domain-PRO . . . 28

2.2 RCPT TO: Decision. . . 29

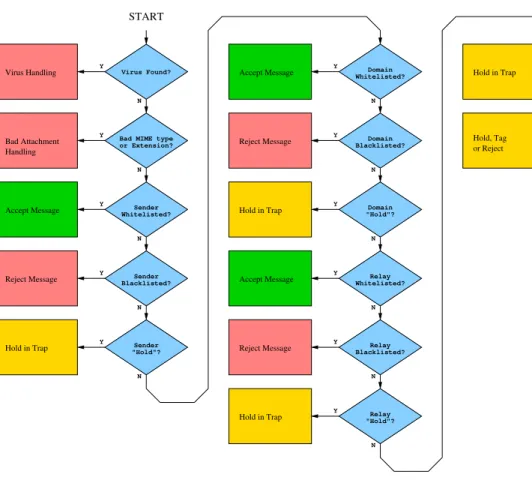

2.3 Post-Data Decision . . . 31

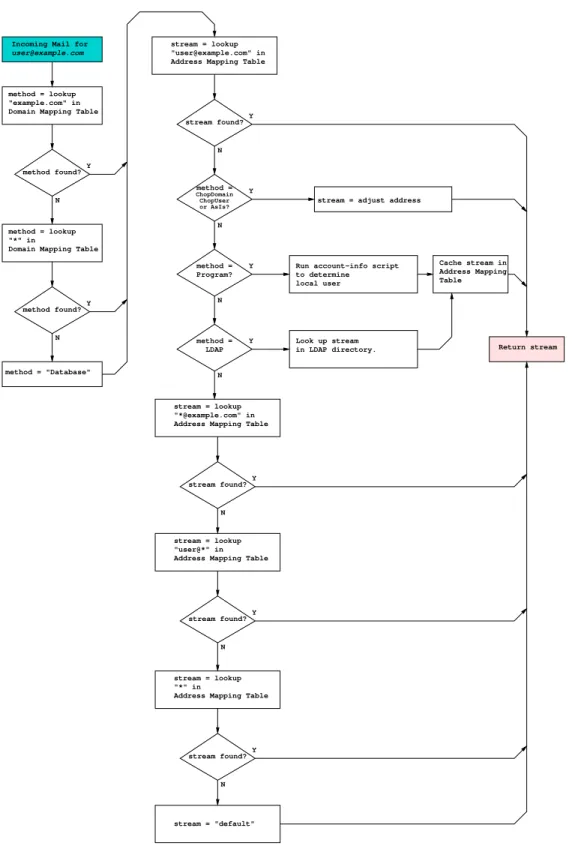

2.4 Address Streaming . . . 35

2.5 Database Agents . . . 38

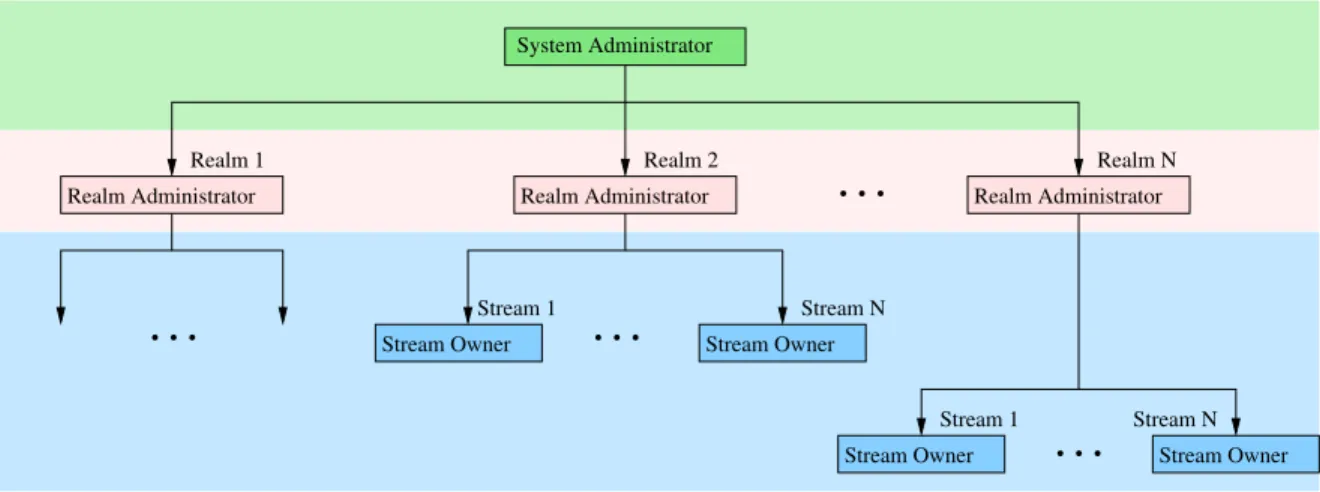

3.1 Administrative Levels . . . 41

3.2 Realm Screen . . . 42

3.3 Realm Mappings . . . 43

3.4 Realm Hierarchy Example . . . 46

3.5 Realm Custom Fields . . . 47

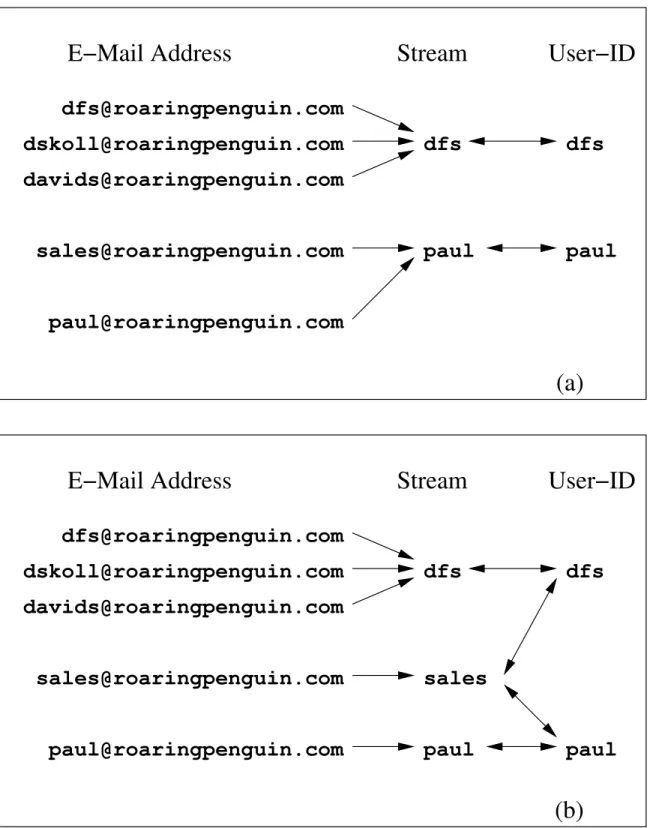

4.1 Streaming Scenarios . . . 51

5.1 License Key Screen . . . 55

5.2 Login Screen . . . 56

5.3 Welcome Screen . . . 57

5.4 Verification Server Operation . . . 59

5.5 Verification Servers . . . 60

5.6 Domain Routing Screen. . . 62

5.7 Domain Routing Detail . . . 63

5.8 Cluster Management Page . . . 65

5.9 Known Networks . . . 67

5.10 Rate-Limiting Rules. . . 72

5.11 System Check . . . 77

5.12 Templates . . . 78

5.13 Theme Customizations . . . 80

5.14 Theme Customization Editor . . . 81

(16)

5.15 Domain Mappings . . . 83

5.16 Address Mappings . . . 85

5.17 Domain Overview Page . . . 88

5.18 Autotask Integration Settings . . . 90

6.1 Global Settings . . . 93

6.2 Master RBLs . . . 98

6.3 Phishing URL Votes . . . 100

6.4 Known Phishing URLs . . . 102

6.5 Users . . . 104

6.6 Add User . . . 105

6.7 Edit User . . . 106

6.8 Granting Access to Streams . . . 107

6.9 Stream Opt-In Approval . . . 108

6.10 Groups. . . 109

6.11 Group Members . . . 110

6.12 Active Streams . . . 111

6.13 Known Network with Associated Domains. . . 113

6.14 Adding a DKIM Key Pair . . . 113

6.15 DKIM Key Details . . . 114

6.16 Copying Rules . . . 115

6.17 Test Plugins . . . 117

6.18 Block Delivery Status Notifications Page. . . 119

7.1 User Lookup List . . . 122

7.2 User Lookup Wizard . . . 122

7.3 User Lookup: Method Selection . . . 122

7.4 IMAP/POP3 User Lookup . . . 124

7.5 LDAP User Lookup . . . 126

7.6 Program User Lookup. . . 129

7.7 Authentication Mappings . . . 134

9.1 Permissions Page . . . 143

9.2 Permissions Page . . . 143

9.3 Stream Permissions Page . . . 144

(17)

LIST OF FIGURES 17

9.5 Permission Grantability . . . 147

9.6 Grantable Permissions Detail . . . 148

10.1 Stream Inheritance Terminology . . . 150

10.2 Stream Inheritance Table . . . 150

10.3 Special Stream Table . . . 151

10.4 Simplified Interface . . . 152

11.1 Periodic Reports. . . 157

11.2 Add Periodic Report . . . 158

13.1 Delayed Attachments . . . 164

13.2 Attachment-Stripping Rules . . . 165

14.1 Redirected Link . . . 167

14.2 URL Proxy Rules . . . 168

15.1 CanIt Storage Manager . . . 172

15.2 Storage Manager Configuration. . . 174

16.1 Log Search Page . . . 180

16.2 Saved Log Searches . . . 183

16.3 Log Search Results . . . 184

16.4 Log Search Details . . . 185

16.5 Log Forwarding Page . . . 186

A.1 Domain Configuration: Enter Domain Name . . . 195

A.2 Domain Configuration: Enter Realm Name . . . 196

A.3 Domain Configuration: Configuring Streaming . . . 196

A.4 Domain Configuration: Configuring Authentication . . . 197

A.5 Domain Configuration: Configuring Routing and Verification . . . 198

C.1 Network Configurations. . . 276

D.1 CanIt-Domain-PRO Architecture . . . 282

L.1 Anomaly Notice. . . 324

L.2 Anomaly Details . . . 325

(18)

(19)

Chapter 1

Introduction

CanIt-Domain-PRO is server-based anti-spam software that stops spam from entering your network. This guide explains how to administer CanIt-Domain-PRO, and is intended for e-mail administrators. For installation instructions, please see the Installation Guide, and for end-user instructions, see the User’s Guide.

1.1 Principles of Operation

CanIt-DomaPRO uses many sophisticated rules and mechanisms to detect spam. These rules in-clude those in an open-source anti-spam package, and are very effective and broad-spectrum. Once CanIt-Domain-PRO decides that a message is probably spam, it is held for review.

You can configure CanIt-Domain-PRO to return an SMTP “temporary failure” code to the sending relay host for any message held for review. In this way, the message body is held in thesender’sspool directory and not in yours. A more complete description of how CanIt-Domain-PRO operates is given in Chapter2.

1.2 Handling False-Positives

Although CanIt-Domain-PRO’s rules for identifying spam are very accurate, no purely automated pro-cess can be 100% correct. That is why CanIt-Domain-PRO relies, in the end, on human intervention. In this way, it can guarantee that no legitimate e-mail message will ever be rejected, and you will never lose an important e-mail because of automated scanning.

At first glance, it seems that requiring human intervention is a step backwards—spam messages again must be reviewed by a person. In reality, CanIt-Domain-PRO still saves time and money for the following reasons:

• CanIt-Domain-PRO includes many features to lower your workload. (These features are de-scribed later in this manual.) You can scan and categorize e-mail messages using CanIt-Domain-PRO much more quickly than using mail reader software.

(20)

• As time passes, you will begin recognize mailing-list traffic and other traffic that tends to be falsely flagged as spam, and tell CanIt-Domain-PRO to always whitelist that traffic. Over time, this reduces the amount of human intervention required.

• If you are willing to take the risk of inappropriately rejected messages, you can configure CanIt-Domain-PRO to automatically reject very high-scoring messages.

1.2.1 Spam-Control Delegation

CanIt-Domain-PRO operates similarly to CanIt-PRO, except that it allows two levels of administrative delegation. In CanIt-PRO, the system administrator can create separatestreams. Stream owners can review quarantined mail within their streams. Only the single system administrator can create streams. In CanIt-Domain-PRO, however, the system administrator createsrealms, each of which has its own Realm Administrator. Realm Administrators, in turn, can createstreams, each of which has a Stream Owner responsible for settings within the stream.

Settings in different streams do not affect other streams.

1.3 Organization of this Manual

This manual is divided as follows:

Chapter1, “Introduction”, is this chapter. You should familiarize yourself with the terms in Section1.4 before proceeding.

Chapter2, “Operation”, describes the principles behind CanIt-Domain-PRO’s operation.

Chapter3, “Realms”, describes Realms. A Realm is a complete administrative unit in CanIt-Domain-PRO. You must read and understand this chapter before using CanIt-Domain-PRO in production. Chapter4, “Streams”, describes the concepts behind streaming. You must read and understand this chapter before using CanIt-Domain-PRO in production.

Chapter 5, “CanIt-Domain-PRO Setup”, describes basic setup steps you need to take to configure CanIt-Domain-PRO.

Chapter6, “PRO Administration”, describes tasks undertaken by the CanIt-Domain-PRO administrator.

Chapter7, “External Authentication”, describes how to integrate CanIt-Domain-PRO with an external authentication mechanism (such as LDAP or POP3.)

Chapter8, “Bayesian Filtering”, explains CanIt-Domain-PRO’s Bayesian filtering module. Bayesian filtering uses statistical analysis and training so that CanIt-Domain-PRO “learns” to recognize spam based on user feedback.

Chapter9, “Permissions”, describes how to control access to various parts of the CanIt-Domain-PRO Web interface.

Chapter10, “Streams, Inheritance and the Simple GUI”, describes how the CanIt-Domain-PRO ad-ministrator can set up different groups of spam-handling settings and allow end-users to select from

(21)

1.4. DEFINITIONS 21

one of a limited number of predetermined setups. The simplified interface is very useful if you wish to provide “canned” settings for unsophisticated users.

Chapter12, “Locked Addresses”, describes how CanIt-Domain-PRO permits users to generate ad-dresses that they can give out to strangers, but that those strangers cannot in turn give or sell to third-parties.

Chapter13, “Attachment Handling”, describes CanIt-Domain-PRO options for handling various at-tachments.

Chapter14, “URL Proxying”, describes a CanIt-Domain-PRO feature that can help mitigate phishing attacks that trick users into visiting hostile web sites and entering sensitive information.

Chapter 16, “Searching Logs”, describes CanIt-Domain-PRO’s log-indexing and searching feature (available only on appliance builds.)

Chapter 17, “Tips”, contains guidelines for reducing the workload of the spam-control officer and dealing with spam more effectively.

Chapter18, “Security”, contains information about CanIt-Domain-PRO security.

AppendixC, “A Testing Topology for PRO”, gives tips on how to test CanIt-Domain-PRO before putting it into production. This appendix also contains useful information on production network topology, so if you are planning on using CanIt-Domain-PRO as a relay-only server, you should read this appendix.

AppendixD, “CanIt-Domain-PRO Architecture”, discusses CanIt-Domain-PRO’s filter architecture in detail. It provides tips on tuning CanIt-Domain-PRO and describes the various configuration files used by CanIt-Domain-PRO.

AppendixE, “CanIt-Domain-PRO HOWTOs”, gives short “how-to” recipes for performing common CanIt-Domain-PRO administrative tasks, such as restoring a database from the text dump, or moving CanIt-Domain-PRO to another machine.

AppendixH, “CanIt-Domain-PRO Logging”, explains how CanIt-Domain-PRO logs statistics, warn-ing, and error messages.

AppendixJ, “Additional Scripts”, describes some additional scripts bundled with CanIt-Domain-PRO that you might find useful.

1.4 Definitions

We use many terms related to Internet e-mail in this manual. Here is a definition of some of the terms we use.

API Application Programming Interface. In the context of CanIt-Domain-PRO, the API is a method for interacting with CanIt-Domain-PRO from a program or script.

Backscatter Unwanted DSNs (see “DSN”) caused when e-mail systems respond to faked sender addresses.

Bayesian Analysis is a method whereby an anti-spam system keeps track of how often words appear in spam and non-spam. Once enough statistics have been accumulated, the system can calculate

(22)

the likelihood that a new message is spam.

Blacklist A list of domains, senders or hosts that are blocked from sending e-mail.

CIDR “Classless Inter-Domain Routing”. A method for specifying an entire set of contiguous IP addresses.

CanIt-Domain-PRO is an enhanced version of CanIt-PRO that allows two levels of delegation of responsibility. See the next three definitions for more details.

CanIt-PRO is an enhanced version of CanIt that allows flexible delegation of spam-control respon-sibilities rather than requiring a single spam-control officer.

CanIt is extra software built on top of MIMEDefang that provides sophisticated spam-management functions.

Cron A UNIX program that runs tasks periodically.

DKIM “DomainKeys Identified Mail”. A mechanism for proving that a particular organization’s servers have relayed an email message. DKIM uses cryptographic techniques to assert that a particular domain name is responsible for relaying the message.

DNS “Domain Name System”. The mechanism used on the Internet to translate host names to IP addresses and more generally, to associate various sorts of information with domain names.

DSN “Delivery Status Notification”. A message generated automatically to notify senders of prob-lems or failure to deliver an e-mail.

Daemon A long-running UNIX program that typically starts at system boot and continues running in the background until the system is shut down.

Envelope Mail messages often haveheadersspecifying the sender (the “From:” header) and recipi-ents (typically the “To:” header.) However, SMTP has a completely separate set of commands for specifying the sender and recipients. The sender and recipients specified in the SMTP com-mands are referred to as the envelope senderandenvelope recipients, and do not necessarily match the information in the message headers. CanIt-Domain-PRO uses both the Header From and Envelope Sender address in Sender and Domain rules. It always uses only Envelope Recip-ients in its recipient rules.

Envelope Sender The sender address used in the “MAIL FROM” SMTP command. This is not necessarily the same as theHeader Fromaddress. Most email readers display the Header From address rather than the Envelope Sender address.

Hash An algorithm that computes a short “signature” given a chunk of data. Different inputs are very likely to yield different signatures, so that a signature can be considered as a short-hand identifier for the original data.

Header From The sender address used in the “From:” header of an email message. This is the sender address displayed by most mail readers. SeeEnvelope Senderfor information about the SMTP sender address.

(23)

1.4. DEFINITIONS 23

Greylisting A technique to block spam from certain spam-sending software. It works by issuing a Temporary Failure Code the first time an e-mail arrives from an unknown sender and IP address. Legitimate SMTP servers will retry, allowing the message to be delivered. Some spam-sending software does not retry, and messages sent by such software will be blocked without any content-scanning if greylisting is enabled.

Joe-Job A technique in which spammers fake the sending address to be that of an innocent victim, who often receives DSNs (see “DSN”) and complaints.

Malware is software designed with a malicious purpose in mind. Examples of malware are viruses, trojans, and keyloggers.

MIMEDefang is a free (GPL’d) e-mail scanning program that integrates with Sendmail’s Milter API. It forms the basis for CanIt.

MIME “Multipurpose Internet Mail Extensions”. A set of rules for encoding different types of at-tachments as plain-text messages for transmission over SMTP.

Milter is a Sendmail interface that allows external programs to listen in on the SMTP dialog, and potentially modify Sendmail’s actions and SMTP responses.

Permanent Failure Code Also calledreject, this is a code sent to a relay host telling it that e-mail transmission has failed and will not succeed. (For example, this code is sent if someone tries to send e-mail to a nonexistent user.) The relay host typically e-mails a failure notification to the original sender and discards the message.

Phishing An attack in which someone forges e-mail pretending to be from a security organization, a bank, etc. and convinces naive users to reveal sensitive information like user-names and passwords.

PostgreSQL A free and open-source SQL database heavily used by CanIt-Domain-PRO.

Ransomware is a specific type of malware. It typically makes changes on your computer that are almost impossible to undo (such as encrypting all your files) and then demands payment within a short period of time to undo the damage.

Ratware is software dedicated to sending out large volumes of spam.

RBL “Real-time Blocklist”. A DNS-based system for checking in real-time whether or not hosts or domains should be blocked.

RPTN is the Roaring Penguin Traning Network. This is a system whereby multiple CanIt-Domain-PRO installations can share Bayes training data.

RSS stands for “Really Simple Syndication” and is a format for publishing “news feeds” on the Web. CanIt-Domain-PRO can produce an RSS feed showing pending incidents.

Realm Administrator is a user with administrative privileges in a realm. Unlike the System Admin-istrator, a Realm Administrator can only administer his or her own realm.

(24)

Realm is a “virtual CanIt-PRO”. Within a realm, realm administrators can create streams for end-users, and streams in one realm are independent of streams in another realm.

Relay Host When a mail server wishes to transmit e-mail to your server using SMTP, it establishes a connection with your mail server. The machine attempting to transmit mail to your server is called arelay host.

REST Representational State Transfer. An architectural style for interacting with an API over HTTP or HTTPS. CanIt-Domain-PRO’s API is REST-based.

Root Privileges A CanIt-Domain-PRO user with root privileges can create other users and configure basic operating parameters. Also, he or she can edit other users’ preferences and stream settings.

SMTP Dialog During the course of e-mail transmission, the two ends of an SMTP connection trans-mit commands and results back and forth. This conversation is called theSMTP dialog.

SMTP “Simple Mail Transfer Protocol”, as described in Internet RFC 2821. This is the protocol used to transmit e-mail over the Internet.

SPF stands for “Sender Policy Framework”. It is a mechanism that allows a domain’s administrator to list which hosts are allowed to originate e-mail claiming to come from that domain. For more details, please seehttp://www.openspf.org.

SRS stands for “Sender Rewriting Scheme”. It is used in conjunction with SPF to avoid spurious SPF failures when a CanIt-Domain-PRO machine forwards mail to a back-end server that performs SPF checks. For a description of SRS, please seehttp://en.wikipedia.org/wiki/ Sender_Rewriting_Scheme.

Sender’s Domain This is the domain part (everything after the@sign) in the sender’s e-mail address.

Sendmail A UNIX-based program for sending and receiving e-mail. Sendmail is designed to route mail from one mail server to another.

Spam Score A numerical score computed by CanIt-Domain-PRO that rates the likelihood that a mes-sage is spam.

Stream is a “virtual CanIt” machine offered by CanIt-PRO. If an incoming e-mail arrives for more than one recipient, and the recipients each wish to have his or her own private spam quarantine, CanIt-PRO re-mails the original message so each recipient has his or her own copy, and can dispatch it as he or she sees fit.

Syslog A UNIX program that centralizes the logging of messages from various system daemons.

System Administrator is a user with administrative privileges in thebaserealm. The System Ad-ministrator is responsible for overall administration of the CanIt-Domain-PRO installation.

Tempfail See “Temporary Failure Code”

Temporary Failure Code Also calledtempfail, this is a code sent to a relay host telling it that e-mail transmission has failed temporarily, and it should retry in a little while. Typically, the relay host retains the e-mail message in a spool directory and retries transmission periodically. The host

(25)

1.4. DEFINITIONS 25

eventually gives up after a certain period (typically, a few days) has elapsed without successful transmission.

Ticker A CanIt-Domain-PRO program that runs periodic maintenance tasks.

Ticker Host In a CanIt-Domain-PRO cluster consisting of more than one machine, exactly one host is designated to run the Ticker tasks. That host is called the Ticker Host.

Whitelist A list of domains, senders or hosts whose e-mail is permitted through without spam-scanning.

(26)

(27)

Chapter 2

Operation

2.1 Principles of Operation

CanIt-Domain-PRO watches each incoming SMTP message and operates as follows. Because differ-ent recipidiffer-ents can have differdiffer-ent settings, CanIt-Domain-PRO makes the following decisions at RCPT time (once the recipient is known):

• If the SMTP connection is from a blacklisted host, the RCPT command is rejected.

• If the message sender is blacklisted (or the domain is blacklisted), the RCPT command is re-jected.

• Otherwise, the message is collected and scanned.

After CanIt-Domain-PRO has scanned the message, it performs the following operations:

• Messages containing dangerous files (such as viruses) are discarded or rejected, depending on which option you choose.

• If the sender, relay host or domain are whitelisted, the message is accepted without being scanned for spam.

• Many spam-detection rules are applied to the message. If the message is judged not to be spam, it is accepted and the SMTP transaction succeeds. Otherwise, CanIt-Domain-PRO will hold the message locally.

For messages judged to be spam, CanIt-Domain-PRO takes the following steps:

• A unique ID is calculated by running the message body through a special hash function. The hash calculation is designed to be resistant to some forms of trivial message modification. • The ID is looked up in a database.

(28)

1. If the ID is not found in the database, it is entered as apendingmessage. CanIt-Domain-PRO will either hold a copy of the message locally or send a temporary failure code to the SMTP sender, depending on how CanIt-Domain-PRO has been configured.

2. If the ID is in the database with statuspending, CanIt-Domain-PRO may either save a local copy or return a temporary failure code to the SMTP sender, depending on how CanIt-Domain-PRO has been configured.

3. If the ID is in the database with statusspam, a permanent rejection code is sent to the SMTP sender.

4. If the ID is in the database with statusnot-spam, the message is accepted for delivery.

The flow of mail through CanIt-Domain-PRO is summarized in Figure 2.1. Note that this is the conceptualflow; in reality, several optimizations are performed that would only complicate the figure. See also Figures2.2on page29and2.3on page31for more accurate details about blacklisting and whitelisting. RCPT Command Blacklisted? Accept RCPT Reject RCPT Proceed to DATA

End of DATA

Virus? Whitelisted? Message Discard Message Deliver Looks Like Spam? Message Deliver Message Hold Y N Y N N Y N Y

Figure 2.1: Flow of Mail through CanIt-Domain-PRO

2.2 Interaction between Whitelists and Blacklists

CanIt-Domain-PRO must prioritize whitelists and blacklists. For example, suppose a sender is whitelisted, but the host the message comes from is blacklisted. What should CanIt-Domain-PRO do?

(29)

2.2. INTERACTION BETWEEN WHITELISTS AND BLACKLISTS 29

2.2.1 RCPT TO: Actions

At the SMTP RCPT TO: command, CanIt-Domain-PRO examines the envelope sender and SMTP relay address, and makes decisions according to Figure2.2.

REJECT Sender Whitelisted? Whitelisted? Domain Domain Blacklisted? REJECT REJECT ALLOW ALLOW REJECT Whitelisted? Relay REJECT ALLOW ALLOW Relay Blacklisted? Y N Y N Relay on Reject RBL? Y N Sender Blacklisted? Y N Y N Y N Y N Recipient? Y N Start Invalid

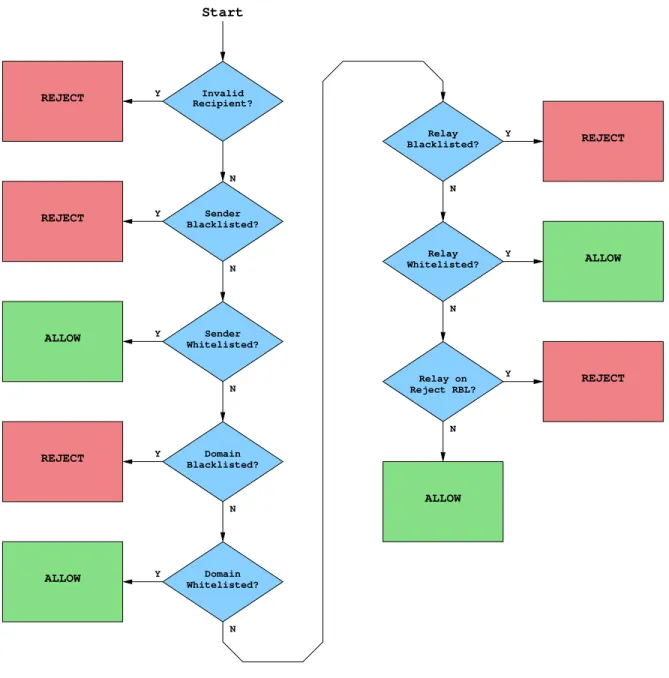

Figure 2.2: RCPT TO: Decision

Here are the steps illustrated in Figure2.2. They determine the response to the RCPT TO: command. The first rule that matches returns the result; subsequent rules are not tested.

1. If the recipient is blacklisted, the command is rejected. Blacklisted recipients canneverreceive e-mail.

(30)

2. If the recipient has opted out of spam-scanning, the command is accepted.

3. If the sender address is blacklisted, reject the command with an SMTP failure code.

4. If the sender address is whitelisted, accept the command. (That is, permit the SMTP transaction to continue. The message may be rejected later for other reasons.)

5. If the domain of the sender is blacklisted, reject the command. 6. If the domain of the sender is whitelisted, accept the command. 7. If the sending relay’s IP address is blacklisted, reject the command. 8. If the sending relay’s IP address is whitelisted, accept the command.

9. If the sending relay is on a real-time blacklist for rejection, then reject the command. 10. Otherwise, accept the command.

2.2.2 Post-DATA Actions

After the SMTP “DATA” command has transmitted the entire message, CanIt-Domain-PRO has enough information to determine a spam score. At this point, it makes decisions according to Fig-ure2.3.

(31)

2.2. INTERACTION BETWEEN WHITELISTS AND BLACKLISTS 31

START

Virus Handling

Accept Message

Reject Message

Hold in Trap Accept Message

Reject Message

Hold in Trap Bad Attachment

Handling

Reject Message Accept Message

Hold in Trap

Accept Message Hold in Trap

Hold, Tag or Reject Virus Found?

Sender Whitelisted? Bad MIME type or Extension? Sender Sender "Hold"? Blacklisted? Y Y Y Y N N N N "Hold" RBL Rule? High Spam Score? Y Y N N Whitelisted? Blacklisted? "Hold"? Relay Relay Relay Whitelisted? Domain Domain Domain Blacklisted? "Hold"? Y N Y N Y Y Y Y Y N N N N N

Figure 2.3: Post-Data Decision

Here are the steps illustrated in Figure2.3. They determine the response to the DATA command. The first rule which matches returns the result; subsequent rules are not tested. (There is one exception: If a “Hold Sender”, “Hold Domain” or “Hold Relay” rule is hit, but the message scores over the auto-reject threshold, the message is rejected rather than held for review.)

When a message is “held in the quarantine”, an SMTP temporary-failure code may be issued, or the message may be queued locally, depending on your global settings. When a message is “rejected”, the sending relay receives an SMTP failure code. If the message being rejected was queued locally, it is simply discarded. When a message is “accepted”, it is delivered, and removed from the local queue if it was queued locally.

1. If a virus was found in the message, then the action depends on the virus-handling setting. Here’s what happens for the various settings:

• Hold/Tag– the message is held in the quarantine (or tagged in a tag-only stream.) • Reject– the message is rejected with an SMTP failure code.

• Discard– the message is discarded. An SMTP success code is returned. • Accept– processing continues to step (2) below.

2. If a bad MIME part or filename extension was found, then if the bad part has a “Reject” setting, the message is rejected. Otherwise, the message is held in the quarantine.

(32)

3. If the user has opted-out of spam-scanning, the message is accepted 4. If the sender is whitelisted, the message is accepted.

5. If the sender is blacklisted, the message is rejected. It may seem superfluous to check for a blacklist here, given that the blacklist was checked during the RCPT command. However, by the DATA command, we have the From: header, and CanIt-Domain-PRO applies sender checks to the From: header adress also.

6. If the sender has a “Hold/Tag” setting, the message is held in the quarantine (or tagged in a tag-only stream.) However, if it scores over the auto-reject threshold, it will be rejected. 7. If the domain is whitelisted, the message is accepted.

8. If the domain is blacklisted, the message is rejected. Again, at this point, CanIt-Domain-PRO can make use of the From: header address.

9. If the domain has a “Hold/Tag” setting, the message is held in the quarantine or tagged. How-ever, if it scores over the auto-reject threshold, it will be rejected.

10. If the relay is whitelisted, the message is accepted.

11. If the relay has a “Hold/Tag” setting, the message is held in the quarantine or tagged. However, if it scores over the auto-reject threshold, it will be rejected.

12. If the relay is on a “Hold/Tag” real-time DNS blacklist, the message is held in the quarantine or tagged.

13. If CanIt-Domain-PRO is in “Tag Only” mode, the message is tagged (if it looks like spam) and accepted.

14. If the spam score is equal to or above the auto-reject threshold, the message is rejected. Oth-erwise, if the spam score is equal to or above the spam threshold, the message is held in the quarantine.

15. Otherwise, the message is accepted.

2.3 Streaming

Because CanIt-Domain-PRO allows different recipients to have different spam-processing rules, an incoming message for more than one recipient must bestreamed.

The diagram in Figure 2.1 shows what happens to messages after they have been streamed. If an incoming message arrives for more than one stream, copies are re-mailed to recipients in each stream, and the original message is discarded. Then, each re-mailed message folows the flow in Figure 2.1, with some minor differences that will be explained later.

In Figure2.1, all of the blacklisting and whitelisting decisions are unique to a stream. It is perfectly feasible for one stream to whitelist a sender, a second stream to blacklist it, and a third stream to do neither.

(33)

2.4. HOW ADDRESSES ARE STREAMED 33

Messages that are streamed and re-mailed are not held by issuing a temporary-failure code, because they would then reside in your own mail spool and waste resources during repeated sending attempts (until they are approved or rejected.) Instead, held messages are stored in the database, and re-mailed if approved or discarded if rejected.

2.4 How Addresses are Streamed

CanIt-Domain-PRO can map e-mail addresses to streams using the following techniques:

Database CanIt-Domain-PRO maintains a table of address-to-stream mappings in the Address Map-ping Table. If you choose the Database technique, then this table is consulted to perform the mapping. You hand-enter the mappings between addresses and streams. In addition, the

Databasetechnique allows a “wildcard” lookup if the original lookup does not exist.

AsIs This method simply uses the entire e-mail address as the stream name, after stripping angle-brackets and converting to lower-case. Therefore, [email protected] gets mapped to [email protected],

ChopDomain This method simply chops the domain part off the e-mail address. Therefore, [email protected] mapped toxzyyz.

ChopUser This method chops the user part off the e-mail address. Therefore, [email protected] mapped toexample.com.

Program This method runs theaccount-infoprogram to determine the stream. Please see Sec-tion7.2.4on page133for details.

User Lookup You can create so-called “User Lookups” that permit you to use LDAP or arbitrary scripts to map addresses to streams. These are described in Section7.2.

Note: No matter what stream method you choose, an exact-match database lookup is always done first. This lets you override the mapping for special cases. For example, if you host only a single domain, then the ChopDomainmethod is probably fine for most addresses. However, if you also host mailing lists, you’d like to stream spam for the lists to the mailing list owners. In that case, you can add special mappings [email protected], (wherejoe-owner is the person responsible forlist-name.)

Because the Program method is somewhat inefficient, CanIt-Domain-PRO caches results in the database table. This improves efficiency while retaining flexibility. By default, cached entries are valid for 24 hours, but you can adjust the timeout.

2.5 How Streaming Methods are Chosen

Each domain can be streamed using its own method. To select a streaming method, CanIt-Domain-PRO first looks up the domain in the Domain Mapping Table. This table holds a list of streaming

(34)

methods for each domain. If the lookup fails, CanIt-Domain-PRO looks up the wildcard entry “*” in the Domain Mapping Table and uses that method to stream the address.

(35)

2.5. HOW STREAMING METHODS ARE CHOSEN 35

Incoming Mail for [email protected]

method = lookup "example.com" in Domain Mapping Table

method = lookup "*" in

Domain Mapping Table method found?

method found?

stream = lookup Address Mapping Table "[email protected]" in stream found? method = ChopDomain ChopUser or AsIs? Return stream stream = adjust address

method = "Database"

method =

Program? to determine local user

Run account−info script Cache stream in Address Mapping Table

method =

LDAP in LDAP directory. Look up stream

stream = lookup Address Mapping Table "*" in

stream found? stream = lookup Address Mapping Table "user@*" in stream = lookup Address Mapping Table "*@example.com" in

stream found?

stream = "default" Y N N Y N Y N Y N Y Y Y N Y N stream found? N Y N

Figure 2.4: Address Streaming

(36)

Figure 2.4looks complicated, but the streaming process is very flexible, and actually quite simple. Here is a description of the figure, with some more details that would crowd the figure too much.

1. For an incoming message to [email protected], CanIt-Domain-PRO first looks up exam-ple.comin the Domain Mapping Table. If that lookup succeeds, CanIt-Domain-PRO will have a method (ChopDomain,ChopUser,Program,Databaseor a user-lookup name), and CanIt-Domain-PRO proceeds to Step4.

2. If the lookup fails, the leading component of the domain name is dropped (ie: “subdo-main.example.com” becomes “example.com”) and we retry Step1with the shorter name. 3. If lookups on all domain components fail, CanIt-Domain-PRO looks up*in the Domain

Map-ping Table. This allows you to set a default streaming method for all domains. If that lookup fails, the method defaults toDatabase.

4. Regardless of the method chosen, CanIt-Domain-PRO looks [email protected] the Ad-dress Mapping Table. If an exact match is found (and it is not expired if it is a cached entry), the result of that lookup is used as the stream.

5. Otherwise, CanIt-Domain-PRO determines the stream as follows:

• If the method isChopDomain, [email protected] is deleted, and the stream becomes user.

• If the method is ChopUser, the user@ part is deleted, and the stream becomes exam-ple.com.

• If the method isAsIs, the entire e-mail [email protected] used as the stream name.

• If the method is Program, CanIt-Domain-PRO runs the account-info program as described in Section7.2.4.

• If the method refers to a user-lookup, then the user-lookup is invoked to determine the stream. See Section7.2for details.

If the stream determination succeeded (AsIs, ChopDomain andChopUser always succeed;

Programfails if the program produces no output), then the stream is returned. Additionally, the stream may be cached in the Address Mapping Table.

6. If the previous step failed to determine a mapping method, or the method was set toDatabase, CanIt-Domain-PRO looks upuser@*. If that fails, then*@example.comin the address mapping table. This allows you to map all addresses in a particular domain to a stream. If that fails, as a last resort, CanIt-Domain-PRO looks up*in the address mapping table. If that final lookup fails, then a special stream nameddefaultis used.

2.6 Status of Messages

(37)

2.7. HANDLING OF SUSPECT MESSAGES 37

pending Messages enterpending state when they arrive, and remain there until they are marked as spam or nonspam. These messages are displayed in the Web-based “Pending Messages” list.

spam The spam-control officer can mark a message as spam. If a message marked asspamis re-ceived, a rejection notice is sent to the sending mail server, and the message is not delivered.

not-spam The spam-control officer can mark a message asnot-spam. If a message marked as not-spamis received, it is delivered as usual.

2.7 Handling of Suspect Messages

As discussed earlier, CanIt-Domain-PRO may be configured to issue an SMTP temporary failure response if a message is held because it is suspected of being spam. This response ensures that the message remains in the sender’s queue. The sender will retry transmission periodically, until one of three things happens:

• The message is marked asspam. On the next transmission attempt, it will be rejected with a permanent failure response.

• The message is marked asnot-spam. On the next transmission attempt, it will be accepted and delivered.

• The sending relay times out and bounces the message. Most relays retry transmissions for at least 3 days, so this will not happen unless you do not check the spam quarantine often enough.

2.7.1 Handling Methods

While keeping the message in the sender’s queue is useful, it does mean that your CanIt-Domain-PRO installation relies on the server to retransmit. It also may consume excessive bandwidth on a busy site. Therefore, CanIt-Domain-PRO has three options for handling suspicious messages:

1. The default handling,Until-Dispatched, always replies with a temporary failure indication until the CanIt-Domain-PRO operator marks a message asspamornot-spam.

2. TheFirst-Timehandling replies with a temporary failure indication thefirsttime a suspicious message is received. A lot of spamming software ignores error returns and will never retransmit the message. Failing it the first time, therefore, stops a lot of spam without human intervention. If the message is transmitted a second time, however, it is accepted and held in the CanIt-Domain-PRO database. If the operator marks the messagespam, it is simply deleted from the database. If the message is markednot-spam, CanIt-Domain-PRO re-mails it to the original recipient before deleting it from the database.

3. TheNeverhandling never replies with a temporary failure indication. Suspicious messages are always accepted and then held in CanIt-Domain-PRO’s database. Incoming messages immedi-ately move to thependingstate.

Please note that holding messages locally may greatly increase the disk space used by CanIt-Domain-PRO. Be sure to leave enough disk space to handle all messages you anticipate will be held locally.

(38)

2.7.2 Secondary MX Relays

Many organizations have secondary MX hosts that queue mail if the primary host is down. They then relay the queued mail when the primary MX host comes back up. Ideally, CanIt-Domain-PRO should run on all of your MX hosts. However, if it can only run on your primary MX host, then all other MX hosts should relay to the CanIt-Domain-PRO machine. You should then tell CanIt-Domain-PRO the IP addresses of the secondary MX hosts via the “Known Networks” facility so that CanIt-Domain-PRO can use theNever Tempfailhandling for messages from thoses hosts. (There is no point in keeping mail queued and retransmitted on your secondary MX hosts; it’s better to accept and hold the message on the CanIt-Domain-PRO machine.)

2.8 The Database

The incident database is key to the correct operation of CanIt-Domain-PRO. Three different agents operate on the database as shown in Figure2.5:

Incidents Database Web−Based

GUI Periodic Jobs

CanIt Filter

Figure 2.5: Database Agents

The agents operating on the database are:

• The CanIt-Domain-PRO Filter – This is the portion of CanIt-Domain-PRO that integrates with Sendmail and disposes of spam messages.

• The Web-Based GUI – This is used by users or administrators to mark messages as spam or legitimate. The Web-Based GUI also lets you monitor the levels of spam and take action against specific senders, domains or relay hosts.

• Periodic Jobs – These housekeeping jobs perform operations like moving expired pending mes-sages intospamstatus and purging very old messages from the database. Periodic jobs may be started from one of two places:

(39)

2.9. REMAILING MESSAGES 39

1. The/usr/share/canit/scripts/canit.cronscript, which should be run once a night.

2. As part of the operation of the CanIt-Domain-PRO daemon (canitd). Canitd is a daemon that starts on bootup and runs continuously, performing background maintenance tasks.

2.9 Remailing Messages

On occasion, CanIt-Domain-PRO will be forced to remail a message after discarding the original. The following scenarios cause remailing:

1. If a message comes in for recipients in more than one stream, CanIt-Domain-PRO generates one new copy foreachstream and mails out the copies. The original message is then discarded. You may see a message in the log file indicating that the message has been discarded; don’t panic. The copies are safely queued.

2. If a Pending message is held in the database and subsequently approved for release, CanIt-Domain-PRO fetches the message body from the database and remails it. This always takes place on the designated ticker host, no matter which host processed the original message. In all cases when CanIt-Domain-PRO remails a message, the message goes into Sendmail’s submission queue (most likely in the queue directory /var/spool/clientmqueue or /var/spool/mqueue-client. The message is only processed on the next run of the submis-sion queue. For this reason, you should keep the submissubmis-sion queue interval short (on the order of a minute or two.) On CanIt-Domain-PRO appliances, the submission interval is automatically config-ured for you. On other platforms, consult your system’s documentation for details on how to shorten Sendmail’s submission queue interval.

(40)

(41)

Chapter 3

Realms

3.1 Introduction to Realms

CanIt-Domain-PRO has three levels of administrative control:

1. TheSystem Administratoradministers all aspects of CanIt-Domain-PRO and is responsible for setting up and provisioning the system.

2. ARealm Administratoradministers settings and rules for a givenrealm. A realm encompasses one or more Internet domains. The realm administrator is responsible for provisioningstreams within his or her realm. A realm administrator is said to haveroot privilegeswithin a realm. 3. A Stream Owner administers settings and rules for his or her own stream. A stream owner

is typically an end-user or a person responsible for administering a small group of e-mail ad-dresses.

The administrative levels are illustrated in Figure3.1below:

Realm Administrator Realm Administrator Realm Administrator

Stream Owner Stream Owner

Stream Owner Stream Owner System Administrator

Realm 2

Realm 1 Realm N

Stream 1 Stream N

Figure 3.1: Administrative Levels

(42)

3.2 Realm Names

A realm name can consists only of letters, numbers, dashes and underscores. That is, only the follow-ing characters can appear in a realm name:

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d e f g h i j k l m n o p q r s t u v w x y z 0 1 2 3 4 5 6 7 8 9 0

-Realm names are case-sensitive; a realm namedREALM-ONEis different fromrealm-one.

3.2.1 ThebaseRealm

The realm namedbase is special. This realm always exists and cannot be deleted. Any user with root privileges in thebaserealm is considered an overall CanIt-Domain-PRO system administrator, and can access any realm and setting.

In other words, a realm administrator of thebaserealm is an overall CanIt-Domain-PRO administra-tor.

3.3 Creating Realms

Note: This section describes features that only the CanIt-Domain-PRO System Administrator can use. Click onSetupand thenRealms. The Realm Screen appears:

Figure 3.2: Realm Screen To create a realm:

1. Enter the realm name in theRealmbox.

(43)

3.4. REALM MAPPINGS 43

3. If you wish to enter an expiry date, do so in theExpirybox. See Section3.6for details about realm expiry.

4. Normally, all realms you create have thebase realm as a parent realm. If you wish to set a realm’s parent to something else, select a realm name from theParentpull-down mennu. See Section3.7for details about realm hierarchy.

5. ClickSubmit Changes.

To delete a realm:

1. Enable theDelete?checkbox for the realm you wish to delete.

Note that it is not possible to delete thebaserealm.

3.4 Realm Mappings

Note: Only the CanIt-Domain-PRO System Administrator can create new realm mappings. Realm adminis-trators can delete realm mappings (irrevocably) or remap a domain from one realm to another. To associate a domain with a realm, CanIt-Domain-PRO uses aRealm Mapping Table. To access this table, click onSetupand thenRealm Mappings. The Realm Mappings screen appears:

Figure 3.3: Realm Mappings

In this example, the domains roaringpenguin.com and roaringpenguin.ca are both mapped to theroaringpenguin realm, while artandframingsolutions.comis mapped toafs. If CanIt-Domain-PRO accepts mail for other domains, then they will be mapped to thebase

(44)

realm. Any domain without an explicit realm mapping will be mapped tobase. (The rules for realm mapping are summarized in Section3.5.)

To add a realm mapping:

1. Enter the domain name in theDomainbox.

2. Select the realm name in theRealmbox. Note that you must create realms before you can add mappings to them.

To delete a realm mapping:

• Enable the checkbox next to the mapping you wish to delete. • ClickSubmit Changes.

3.5 Determining the Realm

CanIt-Domain-PRO determines the realm for e-mail addresses and user names as follows:

3.5.1 Mapping an Address to a Realm

1. Given an e-mail address of the form[email protected], CanIt-Domain-PRO looks up the domain (domain.com) in the Realm Mapping Table and uses the realm found in the table. 2. If no realm was found in Step 1, the address is placed in thebaserealm.

Note: The addresses postmaster, postmaster@localhost andpostmaster@machine name arealways mapped to thebaserealm, no matter what. (Here,machine nameis the name of the host processing the email.)

3.5.2 Mapping a Login Name to a Realm

1. If a user’s login name is of the form[email protected], then CanIt-Domain-PRO uses the procedure described in Section3.5.1to determine the realm.

2. If a user logs in with a name of the formrealm:user, then CanIt-Domain-PRO usesrealm as the realm name.

3. Otherwise, CanIt-Domain-PRO uses the default realm as configured in the site/config.php configuration file. If no default realm is set in that file, then CanIt-Domain-PRO usesbaseas the realm name.

(45)

3.6. REALM EXPIRY 45

3.6 Realm Expiry

When you create a realm, you can set an expiry date. Whenever the realm administrator logs in to CanIt-Domain-PRO, he or she will receive a warning starting 30 days prior to the expiry date. If you are hosting CanIt-Domain-PRO realms on behalf of third-parties, this is a good way to remind them to renew their subscription. The expiry date normally has no other effect (in particular, CanIt-Domain-PRO will continue filtering mail as usual after the expiry date) and is intended only as a renewal reminder. If you do not set an expiry date, then the realm never expires.

3.6.1 Suspending Service to a Realm

While the expiry date field normally has no effect, if you set the expiry to the “magic” date 1990-01-01, then all service to the realm is suspended. What this means is:

• No users in that realm will be able to log in.

• Allmail to anyone in the realm will bepermanently rejectedwith a “Service suspended” error message.

Suspending service to a realm is a drastic step since it causes all mail to bounce. Please use it only as a last resort.

3.7 Realm Hierarchy

Realms normally have thebaserealm as their parent. However, if you are reselling CanIt-Domain-PRO services to others who wish to have their own set of realms for their customers, you can create a realm hierarchy. A realm administrator has access to his or her own realmandall realms under it. Consider Figure3.4:

(46)

base

cust−1 cust−2

subcust−2−1 subcust−2−2

subcust−2−1−1

Figure 3.4: Realm Hierarchy Example

In the example in Figure 3.4, the parent of cust-1 and cust-2 is base. The parent of subcust-2-1 and subcust-2-2 is cust-2, and the parent of subcust-2-1-1 is subcust-2-1.

• The administrative user in thebaserealm can access all realms. • The administrator incust-1can only access thecust-1realm.

• The administrator in cust-2 can access subcust-2-1, subcust-2-2 and subcust-2-1-1.

• The administrator insubcust-2-1can accesssubcust-2-1andsubcust-2-1-1. • The administrator insubcust-2-2can only accesssubcust-2-2.

• The administrator insubcust-2-1-1can only accesssubcust-2-1-1.

In the Realms screen (Figure3.2), click on Tree Viewto see a hierarchical view of the realms. You can restrict the view to a subtree of the entire hierarchy by selecting the root of the tree from theTree rootpull-down menu.

3.8 Realm Custom Fields

CanIt-Domain-PRO allows you to create up to four custom fields so you can associate various pieces of information with a realm. For example, you may wish to include a customer number with each realm. To configure custom fields, click onSetup and thenRealms. In the realm display, click on

(47)

3.8. REALM CUSTOM FIELDS 47

Figure 3.5: Realm Custom Fields To create custom fields:

1. Enter the name of the field in theNamebox.

2. If you wish to have the field displayed specially, enter a format string in theFormatbox. This string must contain exactly one%ssequence; this will be replaced by the value of the custom field. In the example in Figure3.5, Custom Field 2 (AccountID) will be displayed as a hyperlink, presumably to an accounting system.

3. ClickSubmit Changesto make the changes take effect.

Any custom fields you create are displayed as additional columns in the Realms screen (for the CanIt-Domain-PRO administrator only!). To remove a custom field, simply make theNamecolumn blank.

(48)

(49)

Chapter 4

Streams

4.1 Introduction to Streams

The stream is a central concept in CanIt-Domain-PRO. Understanding streams is essential to un-derstanding CanIt-Domain-PRO. Please be sure to read this chapter before configuring a production CanIt-Domain-PRO server.

4.2 Realms

Arealmis a collection of Internet domains, all of whose anti-spam settings and quarantines are provi-sioned by aRealm Administrator. Within a realm, there may be manystreams. Two streams with the same name can coexist in different realms; CanIt-Domain-PRO will consider them to be two different streams.

4.3 The Definition of a Stream

Astreamis a collection of rules and policies. Each stream in CanIt-Domain-PRO can have its own rules, settings, thresholds and policies.

Associated with each stream is aquarantine. A quarantine consists of messages that have been held based on the streams settings. For example, a message can be held because of its spam score, or because it contains a suspicious MIME type.

4.4 Users and E-Mail Addresses

Under many circumstances, a single e-mail address corresponds to a single user. For example, the e-mail [email protected] to the single userdfs.

However, most mail setups are more complicated than this. The first complication comes from aliases. For example, the user dfs may have, in addition to his normal e-mail address, aliases

(50)

[email protected]@roaringpenguin.com. We would most likely want the same settings and policies to apply to all three aliases.

Another complication comes from list addresses. For example, the e-mail address [email protected] does not correspond to any particular user. Instead, it is a list alias that expands to several users. It might make sense to have a separate set of policies forsales than for real users, or it might make sense to assign the policies used by one of the recipients on the saleslist.

As we see above, the mapping between users and e-mail addresses is not simple. A single e-mail address may result in delivery to several users (thesalesexample), or a single user may have several e-mail addresses that all deliver to the same place (the aliases example.)

Streams were created to give you the flexibility of assigning policies. They act as an intermediate container between e-mail addresses and actual users, and let you assign policies any way you choose. As an example, consider Figure4.1:

(51)

4.4. USERS AND E-MAIL ADDRESSES 51

dfs

paul

Stream

E−Mail Address

User−ID

dfs

paul

dfs

Stream

E−Mail Address

User−ID

dfs

[email protected]

(b)

paul

sales

Figure 4.1: Streaming Scenarios

Note that streaming affects only how CanIt-Domain-PRO directs mail for rule and quarantine pur-poses. Streaming doesnotalter the ultimate delivery address; normally, CanIt-Domain-PRO delivers

CanIt-Domain-PRO Administration Guide. for Version Roaring Penguin Software Inc. 24 April 2015
