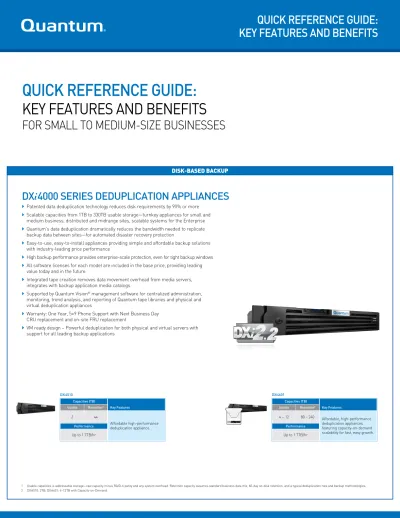

QUICK REFERENCE GUIDE:
KEY FEATURES AND BENEFITS
FOR SMALL TO MEDIUM-SIZE BUSINESSES
DISK-BASED BACKUP
DX
i
4000 SERIES DEDUPLICATION APPLIANCES
Patented data deduplication technology reduces disk requirements by 90% or more
Scalable capacities from 1TB to 330TB usable storage—turnkey appliances for small and medium business, distributed and midrange sites, scalable systems for the Enterprise
Quantum's data deduplication dramatically reduces the bandwidth needed to replicate backup data between sites—for automated disaster recovery protection
Easy-to-use, easy-to-install appliances providing simple and affordable backup solutions with industry-leading price performance
High backup performance provides enterprise-scale protection, even for tight backup windows
All software licenses for each model are included in the base price, providing leading value today and in the future
Integrated tape creation removes data movement overhead from media servers, integrates with backup application media catalogs
Supported by Quantum Vision® management software for centralized administration,
monitoring, trend analysis, and reporting of Quantum tape libraries and physical and virtual deduplication appliances
Warranty: One Year, 5×9 Phone Support with Next Business Day CRU replacement and on-site FRU replacement
VM ready design – Powerful deduplication for both physical and virtual servers with support for all leading backup applications
QUICK REFERENCE GUIDE:
KEY FEATURES AND BENEFITS
DXi4510 DXi4601
Capacities (TB)
Key Features Usable Retention¹
2 44
Affordable high-performance deduplication appliance.
Performance
Up to 1.7TB/hr
Capacities (TB)
Key Features Usable Retention¹
4 – 12 80 – 240 Affordable, high-performance deduplication appliances featuring capacity-on-demand scalability for fast, easy growth.
Performance
Up to 1.7TB/hr
1 Usable capacities is addressable storage—raw capacity minus RAID-6 parity and any system overhead. Retention capacity assumes standard business data mix, 60-day on-disk retention, and a typical deduplication rate and backup methodologies. 2 DXi4510: 2TB; DXi4601: 4–12TB with Capacity-on-Demand.
PROTECTION SOLUTIONS FOR VIRTUAL MACHINES
Capacities (TB)
Key Features Usable Retention
2 – 12* 44 – 240 Complete backup and recovery solution for virtual machines in smaller sites, combining turnkey simplicity, advanced technology, and affordability. Includes backup software for VMs and backup disk target with deduplication.
Performance
Up to 1.7TB/hr Backup software for virtual machines and storage all in one, integrated
solution optimized for SMBs and remote offices
Includes deduplication for 90% or more reduction of data on disk and integrated replication capability for automated DR protection compatible with DXi appliances for distributed environments
Progressive optimization technology reduces backup data by 75% or more for maximum network performance and resource utilization
Virtual appliance deployment eliminates agents and extra servers
Includes Capacity-on-Demand scalability from 4 to 12TB—add capacity as needed with a software license only; no hardware to purchase or install
One affordable price includes all software and hardware for a complete protection system
Single point of service and support for the entire solution set, including on-site and phone support
Backs up in native format, providing easy drag-and-drop restores of individual files, objects and whole VMs; also reduces vendor lock-in and provides flexibility in DR choices, including cloud-based deployments
Instantly boot VMs from DR site or the Cloud—saving you time, IT resources, and most importantly, cost
Reduce data by 95%
Speed – Restore files or boot entire VMs in seconds
Simplicity – Drag-and-drop restores reduces complexity and admin time
Performance – Reduce host, network and storage resources by up to 75% with patented Progressive Optimization
Flexibility – Avoid vendor lock-in and ensure future-proof flexibility
Cost Savings – Save over 50% compared to traditional backup applications
Integration – Simplify integration with existing backup infrastructure
Certainty – Be Certain with Quantum’s 30 years of data protection expertise
Free Standard Edition – Download at www.quantum.com/vmpro
vmPRO 4000
vmPRO Software
NAS AND DISK SOLUTIONS
8-Slot removable disk-based library
Simple network attached iSCSI connectivity
Up to 12TB of capacity
Disk-Based Backup and Disaster Recovery in One Unit – Backup to removable RDX cartridges and then take them offline or offsite
Speed of Disk – Fast access to data, fast restores and an array of RDX cartridge capacities to meet your needs today and in the future
Compatible with major ISVs
Also available as a complete data protection solution using Quantum deduplication software
QUANTUM RDX 8000
QUICK REFERENCE GUIDE:
KEY FEATURES AND BENEFITS
8TB NAS available as tower or 1U rack unit, 12TB NAS available as 1U rack unit
Data protection and primary storage models
Available with Quantum DATASTOR Shield™ client-side deduplication software for backup and disaster recovery
Enterprise-class hard drives, Intel Core i3 processors and 4GB of RAM
Quantum NDX-d Series with integrated DATASTOR Shield deduplication software for backup and disaster recovery to disk, tape, or cloud
-Protects 2 years of data or more while maintaining greater history than tape or other disk
-Controls Data Growth, reducing the amount of data stored and network traffic by up to 90%
-Centrally managed from the NAS unit through a simple, easy-to-use interface
-Agentless backup – no software to install on the clients
Quantum NDX is true business class NAS for primary storage
-Windows Storage Server, enterprise class hard drives and best-in-class processing power and RAM
-Identical hardware and operating system for seamless integration with NDX
NDX SERIES NAS FOR PRIMARY STORAGE
AND DATA PROTECTION
AUTOLOADERS
TAPE LIBRARIES — ENTRY-LEVEL
The intelligent tape library for entry-level and remote office environments
iLayer intelligent management simplifies library management and increases reliability, reducing service calls by 50%
Encryption – FIPS-validated tape-based encryption. Highly secure and easy to manage. KMIP support provides an open solution for future investment protection.
Scalar LTFS – Presents tapes as NAS storage, enabling new ways to manage and access archive files
Capacity-on-Demand (COD) growth for simple, non-disruptive expansion, providing market-leading investment protection
AES 256-Bit Encryption Standard for highest levels of security
Disk-friendly design supports operations with disk, for seamlessly integrated backup and archive processes
Supported by Quantum Vision management software for centralized administration, monitoring, and reporting of Quantum tape libraries and disk systems
SAS and native FC interfaces
Warranty: One Year, 5×9 Phone Support with Next Business Day CRU replacement and on-site FRU replacement
SCALAR
i
40 /
i
80
Scalar i80 Scalar i40
Drive Type Compressed
Capacity* (TB) Drives Cartridge SlotsActive
i40 – Base Configuration
LTO-6 156 up to 2 25 LTO-5 75 up to 2 25 LTO-4 40 up to 2 25
i40 – with COD License
LTO-6 250 up to 2 40 LTO-5 120 up to 2 40 LTO-4 64 up to 2 40
i80 – Base Configuration
LTO-6 312 up to 5 50 LTO-5 150 up to 5 50 LTO-4 80 up to 5 50
i80 – with COD License
LTO-6 500 up to 5 80 LTO-5 240 up to 5 80 LTO-4 128 up to 5 80
Superior Performance – 2U rackmount form factor with up to 100TB of compressed data
Scalable from 8 slots to 16 slots
Superior Value – Easy automation supporting 16 LTO cartridges
Flexibility – Mail slot and removable magazine that scales up to 16 cartridges in a 2U rackmount utility
Ease of use – Simple integration into existing environment
Complete backup, recovery and archive solutions with accessories
StorageCare® Guardian for remote monitoring and diagnostics
Warranty: One-year 5×9 Phone Support with Rapid Exchange
SUPERLOADER 3
Drive Type Compressed
Capacity* (TB)
Maximum Drives
Maximum Cartridge Slots
LTO-6 (SAS) 100 1 16
LTO-5 (SAS) 48 1 16
LTO-4 (SCSI and SAS) 25.6 1 16
TAPE AND REMOVABLE BACKUP DRIVES
*Based on 2.5:1 compression (LTO-6), 2:1 compression (other LTO)
Complete Solution – Disk-based solution that includes Dock, Cartridges (onsite/offsite) and Data Protection Software (featuring data deduplication technology) ideal for SMBs and corporate remote offices
Speed – Native transfer rate over 10X low-end tape drives, with quick random access to data for faster restores
Capacity – Data deduplication software provides a cartridge advantage of up to 20:1 over traditional low-end tape drives during maximum data replication at similar stated capacity points
Investment Protection – Backward and Forward compatibility with interchangeable cartridges to choose from that work in any RDX dock, providing easy scalability
Ruggedized – Cartridge can withstand a 1-meter drop onto a hard surface with no damage
Easy to Install – Tabletop version is plug-and-play with USB 3.0 interface; internal SATA or USB 2.0 can be quickly installed into a standard 5.25-inch server or desktop bay
QUANTUM RDX
CartridgeCapacity
320GB 500GB 1TB 1.5TB
DAT 160 DRIVE
Usage – Perfect for high-performance workstations and low-end server environments requiring3.5-inch form factors
Value – Low total cost of ownership
Investment Protection – DAT 72 backward read and write to millions of DDS-4 and DDS-3 units, DAT 160 backward read/write to DDS-4 and DAT 72
Flexibility – Internal, tabletop and rackmount configurations
Adaptability – DAT 72 offers multiple interface options, SCSI, USB, SATA and eSATA, to better fit your environments. DAT 160 available in SCSI, USB and SAS configurations.
Drive Type Compressed Capacity*
DAT 160 160GB
QUICK REFERENCE GUIDE:
KEY FEATURES AND BENEFITS
Designed specifically for standalone applications, server direct-attach configurations, or for library upgrades, Quantum has the broadest portfolio of tape drive technologies.
LTO DRIVES
Usage – High performance for enterprise servers and upgrades for existing Scalar librariesQuantum’s LTO-6 tape drive provides compressed capacity of up to 6.25TB on a single media cartridge, with transfer rates of up to 400MB/s*
Quantum’s LTO-5 tape drive provides compressed capacity of up to 3.0TB on a single media cartridge, with transfer rates of up to 280MB/s*
Quantum’s LTO-4 drive is a high-performance, energy-efficient, half-height drive providing compressed capacity of up to 1.6TB, and delivers a native transfer rate of 240MB/sec*
Reliability – FastSense™ variable speed technology optimizes performance, SmartVerify™ verifies all data written to tape, while Dynamic Powerdown™ protects in the event of power loss
Compatibility – LTO is backward read two generations of media and read/write to one generation
Flexibility – Includes half-height form factor drive, as well as internal, desktop and rackmount configurations
Drive Type Compressed
Capacity*
LTO-6 6.25TB LTO-5 3.0TB LTO-4 1.6TB LTO-3 800GB
Upgradable Libraries
Scalar i6K Scalar i500 Scalar i80 Scalar i40
MEDIA
Compact and cost-efficient media
Compatible with DAT 320, DAT 160, DAT 72, DDS-4 and DDS-3 drives
Storage capacities from 24-320MB (compressed)
DAT/DDS MEDIA
Cost-effective storage choice for small business, home or mobile backup
Compatible with Travan 20 and Travan 40 drives
Storage capacities from 20-40GB (compressed)
TRAVAN MEDIA
Ruggedized removable hard drives
Compatible with all RDX docks including Quantum, HP, and Dell
Storage capacities from 320GB to 1.5TB
RDX MEDIA
Reliable media for critical data
Compatible with all DLTtape® drives
Storage capacities from 20-1,600GB (compressed)
DLTtape MEDIA
The Quantum media family provides you more choices to better manage your data over time. Quantum offers a full line of media options including LTO Ultrium, DLTtape, DAT, DDS and Travan data cartridges depending on your specific media requirements. Quantum media cartridges are manufactured to industry standards for quality and reliability ensuring low error rates, high performance and long-term durability. Quantum media allows you to archive your data with confidence.
Optimized media for high capacity and performance
Compatible with all LTO Ultrium drives
Storage capacities from 200-6,250GB (compressed)
LTO ULTRIUM MEDIA
ABOUT QUANTUM
Quantum is a proven global expert in Data Protection and Big Data management, providing specialized storage solutions for physical, virtual and cloud environments. From small businesses to major enterprises, more than 50,000 customers trust Quantum to help maximize the value of their data by protecting and preserving it over its entire lifecycle. With Quantum, customers can Be Certain they’re able to adapt in a changing world – keeping more data longer, bridging from today to tomorrow, and reducing costs. See how at www.quantum.com/BeCertain.
