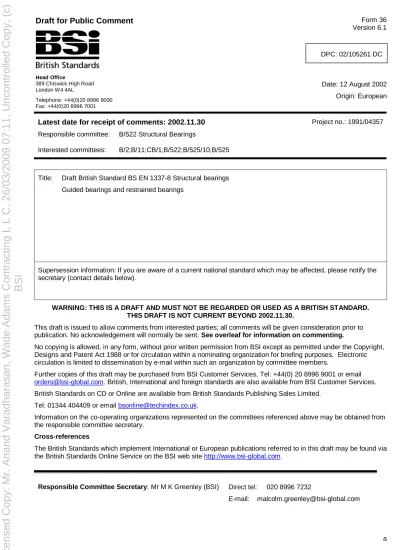

02-10561 DC (BS EN 1337-8)

(1)

Date: 12 August 2002 Origin: European

Latest date for receipt of comments: 2002.11.30

Project no.: 1991/04357

Responsible committee: B/522 Structural Bearings

Interested committees: B/2;B/11;CB/1;B/522;B/525/10;B/525

Title: Draft British Standard BS EN 1337-8 Structural bearings Guided bearings and restrained bearings

Supersession information: If you are aware of a current national standard which may be affected, please notify the secretary (contact details below).

WARNING: THIS IS A DRAFT AND MUST NOT BE REGARDED OR USED AS A BRITISH STANDARD. THIS DRAFT IS NOT CURRENT BEYOND 2002.11.30.

This draft is issued to allow comments from interested parties; all comments will be given consideration prior to publication. No acknowledgement will normally be sent. See overleaf for information on commenting.

No copying is allowed, in any form, without prior written permission from BSI except as permitted under the Copyright, Designs and Patent Act 1988 or for circulation within a nominating organization for briefing purposes. Electronic circulation is limited to dissemination by e-mail within such an organization by committee members.

Further copies of this draft may be purchased from BSI Customer Services, Tel: +44(0) 20 8996 9001 or email [email protected]. British, International and foreign standards are also available from BSI Customer Services. British Standards on CD or Online are available from British Standards Publishing Sales Limited.

Tel: 01344 404409 or [email protected].

Information on the co-operating organizations represented on the committees referenced above may be obtained from the responsible committee secretary.

Cross-references

The British Standards which implement International or European publications referred to in this draft may be found via the British Standards Online Service on the BSI web sitehttp://www.bsi-global.com.

Direct tel: 020 8996 7232 Responsible Committee Secretary: Mr M K Greenley (BSI)

E-mail: [email protected] Head Office

389 Chiswick High Road London W4 4AL

Telephone: +44(0)20 8996 9000 Fax: +44(0)20 8996 7001

(2)

Even if this draft standard is not approved by the UK, if it receives the necessary support in Europe, the UK will be obliged to publish the official English Language text unchanged as a British Standard and to withdraw any conflicting standard.

UK Vote

Please indicate whether you consider the UK should submit a negative (with reasons) or positive vote on this draft. Submission

The guidance given below is intended to ensure that all comments receive efficient and appropriate attention by the responsible BSI committee. Annotated drafts are not acceptable and will be rejected.

All comments must be submitted, preferably electronically, to the Responsible Committee Secretary at the address given on the front cover. Comments should be compatible with Version 6.0 or Version 97 of Microsoft® Word for Windows™, if possible; otherwise comments in ASCII text format are acceptable. Any comments not submitted electronically should still adhere to these format requirements.

All comments submitted should be presented as given in the example below. Further information on submitting comments and how to obtain a blank electronic version of a comment form are available from the BSI web site at:

http://www.bsi-global.com/Standards+Development/Drafts/index.xalter Date Document National Committee Clause/ subclause Paragraph/ Figure/ Table Type of comment (General/ technical/editorial)

COMMENTS Proposed change OBSERVATIONS OF

THE SECRETARIAT

3.1 1st definition Editorial Definition is ambiguous and needs clarifying.

Amend to read ‘... so that the mains connector to which no connection ...’ 6.4 § 2 Technical The use of the UV

photometer as an alternative cannot be supported as serious problems have been encountered in its use in the UK.

Delete reference to UV photometer.

Microsoft and MS-DOS are registered trademarks, and Windows is a trademark of Microsoft Corporation.

(3)

Title: Structural bearings - Part 8: Guide bearings and restrain bearings

Work Item : 00167008 - CEN/TC 167 SUBMISSION DATE : 2002-08-01

BC Ref. : BC/CEN/92/18.17 DEADLINE : 2003-02-01

Resolution : BTS1 C18/1991

Brussels, 2002-07-27

With reference to the above, please find enclosed documents related to:

the following procedure :

the result of the following procedure : PQ/UQ

Enquiry

Parallel Enquiry ( ISO/ CEN Lead ) Formal Vote

Parallel Formal Vote ( ISO/ CEN Lead ) UAP

Comments before voting meeting (ENV - CEN/TS) 2-year Enquiry (ENV - CEN/TS)

COCOR Approval

According to the Internal Regulations Part 2, and to the relevant BT resolutions please,

send your reply by the deadline : confirm the proposed dates (DOA, DOP, DOW) to CMC (Standards Delivery) and

to ISO/CS

provide the correct title in your language version to CMC to the relevant Technical Committee only confirm (or correct) the title in your language version to CMC (Standards Delivery) only

use the electronic voting only, in accordance with Resolution CA 4/1996 use the attached form for your reply.

CMC will proceed with the preparation and distribution of the definitive texts.

The Technical Committee is requested to prepare, and to provide CMC with, the definitive texts. CMC will then proceed with the distribution of the definitive texts.

For: Action Info

CEN Members CEN Affiliates CEN/TC Secretary/Chairman ISO/CS CMC Standards Development CMC Standards Delivery ISO/TC(/SC) T2 / TALLA Encls.

BSI

BSI No.02/105261

(4)

DRAFT EUROPEAN STANDARD PROJET DE NORME EUROPÉENNE EUROPÄISCHER NORM-ENTWURF

prEN 1337-8

Originator - Auteur du projet - Urheber: CEN/TC 167 Secretariat - Secrétariat - Sekretariat : UNI

Work item - Projet - Projekt : 00167008

Title : Structural bearings - Part 8: Guide bearings and restrain bearings Titre :

Titel :

Deadline for replies - Date limite de réponse - Termin : 2003-02-01

Reply by - Réponse de - Antwort von : ... (CEN Member - Membre CEN - CEN-Mitglied)

Answers to be stated in full details in an annex; * Critical comments shall be underlined (BT Resolution 37/1997). Détails des réponses à joindre en annexe; * Les commentaires critiques doivent être soulignés (Résolution BT 37/1997).

Antworten sind als Anhang mit allen Einzelheiten beizufügen; * Kritische Kommentare sind zu unterstreichen (BT-Resolution 37/1997).

YES NO

Possible acceptance as a European Standard : Accord possible en tant que norme européenne : Mögliche Annahme als Europäische Norm : * Comments of editorial nature :

* Commentaires rédactionnels : * Redaktionelle Kommentare : * Comments of technical nature : * Commentaires techniques : * Fachliche Änderungen :

National legislative/administrative deviation : Divergences nationales législatives/administratives : Nationale legislative/administrative Abweichungen : National technical/economic deviation :

Divergences nationales techniques/économiques : Nationale technische/wirtschaftliche Abweichungen :

Place and date - Lieu et date - Ort und Datum Name and signature - Nom et signature - Name und Unterschrift

... ...

E U R O P Ä I S C H E S K O M I T E E F Ü R N O R M U N G

(5)

EUROPÄISCHE NORM

_{August 2002} ICS

English version

Structural bearings - Part 8: Guide bearings and restrain

bearings

This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 167.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and

shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION C O M I T É E U R O P É E N D E N O R M A L I S A T I O N E U R O P Ä I S C H E S K O M I T E E F Ü R N O R M U N G

Management Centre: rue de Stassart, 36 B-1050 Brussels

Ref. No. prEN 1337-8:2002 E

(6)

4 Requirements ...8 4.1 General...8 4.2 Geometrical Requirements ...8 5 Material Properties...8 5.1 General...8 5.2 Ferrous materials ...8 5.3 Structural Fasteners ...8 5.4 Welding ...8 5.5 Anchors...8 6 Design Rules ...9 6.1 General...9

6.2 Connection to Shimming, Packing, Anchor Plates and the Main Structure ...9

6.3 Clearances ...9

6.4 Combination with other elements ...9

7 Manufacturing and Tolerances...9

7.1 General...9

7.2 Welding ...10

8 Conformity evaluation ...10

8.1 General...10

8.2 Control of the construction product and its manufacture...10

8.3 Raw materials and constituents ...10

8.4 Sampling ...11

Annex A (informative) Factory production control (FPC)...12

Annex ZA (informative) Provisions for the CE marking of guide bearings and restrain bearings under the EU Construction Products Directive ...15

(7)

Foreword

This document (prEN 1337-8) has been prepared by Technical Committee CEN/TC 167 "Structural bearings", the secretariat of which is held by UNI.

This document is currently submitted to the CEN Enquiry.

This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s).

For relationship with EU Directive(s), see informative annex ZA, which is an integral part of this document. The European Standard EN 1337 “Structural bearings” consists of the following 11 parts:

Part 1 General design rules

Part 2 Sliding elements

Part 3 Elastomeric bearings

Part 4 Roller bearings

Part 5 Pot bearings

Part 6 Rocker bearings

Part 7 Spherical and cylindrical PTFE bearings

Part 8 Guide bearings and restrain bearings

Part 9 Protection

Part 10 Inspection and maintenance

Part 11 Transport, storage and installation

(8)

1 Scope

This Part of this European Standard deals with the requirements for the design and manufacture of Guide Bearings and Restrain Bearings in accordance with Table 1 of Part 1 of this European Standard, bearings No. 8.1 and 8.2 respectively.

Bearing that transmitvertical loads are not covered in this Part of this European Standard.

2 Normative References

This European Standard incorporates, by dated or undated reference, provisions from other publications. These normative references are cited at the appropriate places in the text and the publications are listed hereafter. For dated references, subsequent amendments to or revisions of any of these publications apply to this European Standard only when incorporated in it by amendment or revision. For undated references the latest edition of the publication referred to applies.

EN 1337-1, Structural bearings - Part 1: General design rules. EN 1337-2, Structural bearings - Part 2: Sliding elements. EN 1337-9, Structural bearings - Part 9: Protection.

EN 10025:1990/A1:1993, Hot-rolled products of non-alloy structural steels - Technical delivery conditions. EN 10083-3, Quenched and tempered steels - Part 3: Technical delivery conditions for boron steels.

EN 10088-2, Stainless steels - Part 2: Technical delivery conditions for sheet/plate and strip for general purposes. EN 10113-1, Hot-rolled products in weldable fine grain structural steels - Part 1: General delivery conditions. EN 10204, Metallic products – Types of inspection documents.

ENV 1090-5,Execution of steel structures – Part 5: Supplementary rules for bridges. prEN 1337-5:2001, Structural bearings – Part 5: Pot bearings.

prEN 1337-6:1994, Structural bearings – Part 6: Rocker bearings. EN ISO 14555, Welding – Arc stud welding of metallic materials. ISO 3755, Cast carbon steels for general engineering purposes. ISO 1083, Spheroidal graphite cast iron – Classification.

(9)

3 Definitions, Symbols and Abbreviations

3.1 Definitions

For the purpose of this part of this European Standard the following definitions apply:

3.1.1

Anchor Plates

are plates that are positioned between the bearing plates and the main structure, are normally permanently attached to the latter and are provided to allow easy removal of the bearing.

3.1.2

Bearing Plates

are plates that are an integral part of the bearing devices and form the main support to which restrains and guides are attached

3.1.3

Packing Plates

are plates placed between the bearing plates and the anchor plates for adjusting the overall height of the bearing.

3.1.4

Shimming Plates

shimming plates are plates used to perform the same function as packing plates when the adjustment required is small.

3.1.5

Mechanical Shear Devices

are the elements which transmit horizontal loads between adjacent parts of the bearing or between the bearing plates and the anchor plates.

3.1.6

Sliding Element

is a combination of appropriate materials with flat surfaces that allows relative displacements.

3.1.7

Rotational Element

is the element that transmits the specified forces and permits rotations about at least one axis.

3.1.8

Guide Bearings

are devices which provide restrain in one direction only, allow movements in a perpendicular direction, accommodate rotations and do not transmit vertical loads (see EN 1337-1, Table 1, No. 8.2)

(10)

1 Sliding elements

Figure 1 — Examples for guide bearings 3.1.9

Restrain Bearings

are devices which restrain movements in two directions, accommodate rotations and do not transmit vertical loads (see EN 1337-1, Table 1, No. 8.1)

(11)

1 Rotational

Figure 2 — Examples for restrain bearings

3.2 Symbols and Abbreviations

a is the minor side of an anchor plate or a bearing plate ... mm b is the major side of an anchor plate or a bearing plate ... ... mm EC Eurocode

SLS Serviceability Limit State ULSUltimate Limit State

(12)

4.1 General

Guide bearings and restrain bearings shall allow vertical movements and rotations, i.e. shall not transmit vertical loads and bending moments.

Guide bearings shall restrain movements in one direction only. Restrain bearings shall restrain movements in two directions.

4.2 Geometrical Requirements

The thickness t of anchor plates and bearing plates shall be:

or 17 mm, whichever is greater.

5 Material Properties

5.1 General

The materials shall be selected for their compatibility within the expected temperature range of the structure.

5.2 Ferrous materials

Guide Bearings and Restrain Bearings shall be manufactured from ferrous materials in accordance with one of the following standards: EN 10025:1990/A1:1993, EN 10083-3, EN 10113-1, EN 10088-2, ISO 3755, ISO 1083.

5.3 Structural Fasteners

Specification and certification of material shall correspond to the requirements referring to stressing and weldability. All materials used shall comply with ISO 898.

5.4 Welding

Welding materials shall comply with ENV 1090-5.

5.5 Anchors

Steel for shear studs shall have a guaranteed yield of not less than 340 N/mm2 .

Dowels and shear bars shall meet the requirements of sub-clause 5.2 and shall be fixed by welding or by bolts. ) ( 025 , 0 a2 b2 mm t≥ × +

BSI

(13)

6.1 General

The various elements of guide bearings and restrain bearings shall be designed in accordance with other relevant parts of this European Standard.

Particularly, sliding elements of guide bearings shall be designed and manufactured in accordance with EN 1337-2, while rotational elements shall be designed in accordance with sub-clause 6.2.3 of prEN 1337-5:2001.

Loads, load effects and load combinations shall be determined in accordance with ENV 1991 and shall be specified using the format shown in EN 1337-1.

6.2 Connection to Shimming, Packing, Anchor Plates and the Main Structure

The connections between the bearing plates, packing plates, shimming plates, anchor plates and the main structure shall be capable of transmitting the horizontal loads and allow the bearings to be removed if required. These connections shall be provided by bolts, high-strength friction grip bolt connections, shear disks, or pins. Welding shall be used only if easy access is available and if the welding and its removal is not detrimental to the bearing components.

Internal uplift forces shall be resisted by positive means such as bolts.

Friction without positive means of pre-stress shall only be allowed if the guide bearings or restrain bearings are used in combination with a vertical load bearing on a common base plate.

6.3 Clearances

For the determination of clearances, due consideration shall be given to the movement capacity of other devices such as expansion joints, rails, safety fences, pedestrian parapets, services carried through the structure etc. Unless otherwise specified, the total clearance shall not exceed 2 mm.

6.4 Combination with other elements

When a guide bearing or restrain bearing is combined with elements from other parts of this European Standard, the characteristics and kinematics of all elements and their interaction, together with the stiffness, moments and eccentricities of the structural components shall be considered.

7 Manufacturing and Tolerances

7.1 General

The tolerances shall be determined such that the manufactured bearing satisfies the design and clearance requirements.

In particular, tolerances for sliding elements shall be accordance with EN 1337-2, clause 7.

(14)

Welding and welding materials shall comply with ENV 1090-5.

NOTE Specifications for welding of studs are being prepared by CEN/TC 121. Minimum dimensions for a normal weld collar are given in EN ISO 14555 "Arc stud welding of metallic materials".

Shear studs shall be fixed by drawn arc welding, condenser-discharge arc welding or arc welding. Tolerances shall be those of the applicable European Standard ENV 1090-1.

8 Conformity evaluation

8.1 General

This test and inspections specified in this clause shall be carried out to demonstrate conformity of the construction product guide bearing or restrain bearing with this European Standard.

For sliding elements clause 8 of EN 1337-2 applies.

For rotational elements clause 8 of prEN 1337-6:1994 applies.

The given systems of the attestation of conformity (see clause Z.2.1 of Annex ZA) are also valid for non-series production.

NOTE The classification of the bearing into category "not critical" according to clause Z.2.1 of Annex ZA is only justified, if failure of the bearing or the resistance resulting from movements (displacement, rotation) and exceeding of capacity of movements are not significant for the stability and serviceability of the structure (See also EN 1337-1).

8.2 Control of the construction product and its manufacture

The extent and frequency of factory production control by the manufacturer and of controls during audit-testing by a third party shall be in accordance with Table 2. In addition it shall be checked that the incoming raw materials and constituents comply with this European Standard by controlling the inspection certificates as listed in Table 1. Factory production control procedures shall be in accordance with Annex A.

Audit-testing may be required for the purpose of checking the construction product as well as of verifying test results recorded in the documentation of the factory production control or declared in inspection certificates.

8.3 Raw materials and constituents

Compliance with the requirements specified in clause 5 shall be verified by the supplier by means of inspection certificates in accordance with EN 10204 to the level stated in Table 1.

(15)

8.4 Sampling

The samples or random samples shall be taken from the running production of the construction product and shall be selected to reflect the most adverse combination of the tolerances specified in clause 7.

Table 1 —Testing of raw and constituent materials and components

Type of inspection certificate in accordance

with EN 10204

Subject of control Control in

accordance with

Frequency

3.1 B Carbon steel 5.2

Stainless steel 5.2

Cast iron 5.2 Every batch

Cast steel 5.2

Table 2 — Testing and inspection of the product

Type of control Subject of control Control in

accordance with

Frequency

Production control Dimensions Drawing

Materials Clause 5

Corrosion protection EN 1337-9 Every batch

Manufacturing tolerances

7.1

Parallelism 7.1

Marking 7.3 of EN 1337-1

Audit testing in case of third party control

As in factory production control

(16)

Factory production control (FPC)

A.1 General

A.1.1 Objects

The manufacturer shall exercise a permanent FPC (e.g. a quality management system based on the relevant part of the EN ISO 9000 series, or otherwise).

The manufacturer is responsible for organising the effective implementation of the FPC system. Tasks and responsibilities in the production control organisation should be documented and this documentation should be kept up-to-date. In each factory the manufacturer may delegate the action to a person having the necessary authority to:

a) identify procedures to demonstrate conformity of the construction product at appropriate stages; b) identify and record any instance of non-conformity;

c) identify procedures to correct instances of non-conformity.

A.1.2 Documentation

The manufacturer shall draw up and keep up-to-date documents defining the FPC which he applies.

The manufacturer's documentation and procedures shall be appropriate to the construction product and manufacturing process. All FPC systems shall achieve an appropriate level of confidence in the conformity of the construction product. This involves:

a) the preparation of documented procedures and instructions relating to FPC operations, in accordance with the requirements of this European Standard (see D.1.3):

b) the effective implementation of these procedures and instructions; c) the recording of these operations and their results;

d) the use of these results to correct any deviations, repair the effects of such deviations, treat any resulting instances of non-conformity and, if necessary, revise the FPC to rectify the cause of non-conformity.

A.1.3 Operations

FPC includes the following operations:

a) the specification and verification of raw materials and constituents;

b) the controls and tests to be carried out during manufacture of the construction product according to a frequency laid down;

(17)

The appropriate calibrations must be carried out on defined measuring and test instruments.

A.2 Verifications and tests

A.2.1 General comments

The manufacturer shall have or have available the installations, equipment and personnel which enable him to carry out the necessary verifications and tests. He may, as may his agent, meet this requirement by concluding a sub-contracting agreement with one or more organisations or persons having the necessary skills and equipment. The manufacturer shall calibrate or verify and maintain the control, measuring or test equipment in good operating condition, whether or not it belongs to him, with a view to demonstrating conformity of the construction product with its technical specification. The equipment shall be used in conformity with the specification or the test reference system to which the specification refers.

A.2.2 Monitoring of conformity

If necessary, monitoring is carried out of the conformity of intermediate states of the product and at the main stages of its dispatch.

This monitoring of conformity focuses where necessary on the construction product throughout the process of manufacture, so that only products having passed the scheduled intermediate controls and tests are dispatched.

A.2.3 Tests

Tests shall be in accordance with the test plan (tables 2 and 3) and can be carried out in accordance with the methods indicated in this European Standard.

NOTE Initial type tests on the product may not be carried out by the manufacturer himself but shall be carried out or validated by an approved body.

The manufacturer shall establish and maintain records which provide evidence that the construction products has been tested. These records shall show clearly whether the construction product has satisfied the defined acceptance criteria. Where the construction products fails to satisfy the acceptance measures, the provisions for non-conforming products shall be applied.

A.2.4 Treatment of construction products which do not conform

If control or test results show that the construction product does not meet the requirements, then necessary corrective action shall immediately be taken. Construction products or batches not conforming shall be isolated and properly identified. Once the fault has been corrected, the test or verification in question shall be repeated.

If construction products have been delivered before the results are available, a procedure and record shall be maintained for notifying customers.

A.2.5 Recording of verifications and tests (manufacturer's register)

The results of factory production controls shall be properly recorded in the manufacturer's register. The construction product description, date of manufacture, test method adopted, test results and acceptance criteria shall be entered in the register under the signature of the person responsible for control who carried out the verification.

With regard to any control result not meeting the requirements of this European Standard, the corrective measures

(18)

A.3 Traceability

It is the manufacturer's, or his agent's, responsibility to keep full records of individual construction products or product batches, including their related manufacturing details and characteristics and to keep records of to whom these construction products and the related manufacturing details shall be completely identifiable and retraceable. In certain cases, for example for bulk products, a rigorous traceability is not possible.

(19)

under the EU Construction Products Directive

ZA.1 Clauses of this European Standard addressing the essential characteristics of EU

Construction Products Directive

This European Standard has been prepared under a mandate1 given to CEN by the European Commission and the European Free Trade Association.

The clauses of this European Standard, shown in the table ZA1 below, meet the requirements of the Mandate given under the EU Construction Products Directive (89/106).

Compliance with these clauses confers a presumption of fitness of the construction product covered by this European Standard for the intended uses given below.

WARNING: Other requirements and other EU Directives, not affecting the fitness for intended uses can be applicable to the structural bearings within the scope of this annex.

NOTE In addition to any specific clauses relating to dangerous substances contained in this standard, there may be other requirements applicable to the products falling within its scope (e.g. transposed European legislation and national laws, regulations and administrative provisions). In order to meet the provisions of the EU Construction Products Directive, these requirements need also to be complied with, when and where they apply. An informative database of European and national provisions on dangerous substances is available at the Construction web site on EUROPA (CREATE, accessed through http://europa.eu.int).

Table ZA.1 —Scope and relevant clauses

Construction products: guide bearings and restrain bearings covered by the scope of this

standard

Intended uses: In buildings and civil engineering works.

Requirements Requirement clauses in this or other European Standards

Mandated levels and/or classes: Notes: Load bearing capacity EN 1337-8 Clauses 4.1, 5, 6.1, 6.2, 6.4 and 7 None Design value in kN Rotation capability EN 1337-8 Clauses 4.1, 6.1, 6.2,

6.4 and 7.1

None Design

value in radians

Durability aspects EN 1337-8 Clauses 4, 5, 6 and 7 None Pass/fail

criteria

ZA.2 Procedures for the attestation of conformity of products:

ZA.2.1

For the product and intended uses listed in table ZA.1 in accordance with the European Commission Decision 95/467/EC of 24/10/1995 the systems of attestation of conformity are the following: Table ZA.2 Attestation of conformity systems

(20)

Product Intended uses Levels or classes Attestation of conformity systems

Guide bearings and restrain bearings

In building and civil engineering works where requirements on individual bearings are critical 1)

None

1

In building and civil engineering works where requirements on individual bearings are not critical 2)

3

System 1: See CPD Annex III.2.(I) without audit testing of samples System 3: See CPD Annex III.2.(II) second possibility

1) Critical in the sense that those requirements may, in case of failure of the bearing, put the whole works or part thereof beyond those states regarded as serviceability and ultimate.

2) Not critical in the sense that those requirements may not, in case of failure of the bearing, put the whole works or part thereof beyond those limit states regarded as serviceability and ultimate and there is no risk to life.

ZA.2.2

The evaluation of conformity of guide bearings and restrain bearings within the given system of attestation of conformity shall be based on the evaluation of conformity clauses of chapter 8 of EN 1337-8 indicated in table ZA.2a) and ZA.2b).

Table ZA.2a) Assignation of tasks for the attestation of conformity of guide bearings and restrain bearings intended to be subject to critical requirements

Tasks Contents of task Clauses to apply

Tasks for the manufacturer

Factory production control (F.P.C.)

Parameters related to all characteristics of Table ZA.1

EN 1337-8 Clause 8 Tasks for the

notified body

Initial inspection of factory and of F.P.C.

EN 1337-8 Clause 8 Continuous surveillance,

assessment and approval of F.P.C.

EN 1337-8 Clause 8

Table ZA.2b) Assignation of tasks for the attestation of conformity of rocker bearings intended to be subject to non critical requirements

Tasks Contents of task Clauses to apply

Tasks for the manufacturer

Factory production control (F.P.C.)

EN 1337-8 Clause 8 Tasks for the

notified body

Initial inspection of factory and of F.P.C.

EN 1337-8 Clause 8

ZA.2.3 EC Certificate and declaration of conformity

When compliance with the system of attestation of conformity is achieved:

(21)

- Description of the product (type, identification, use,…).

- Provisions to which the product conforms (e.g. annex ZA of EN 1337-8).

- Particular conditions applicable to the use of the product (e.g. provisions for the use of a bearing under certain conditions, etc).

- The certificate's number.

- Conditions and period of validity of the certificate

- Name of, and position held by, the person empowered to sign the certificate.

In addition, for each product covered by an EC Certificate of conformity, the manufacturer shall draw up a declaration of conformity (EC Declaration of conformity) including the following information:

- Name and address of the manufacturer, or his authorised representative established in the EEA. - Number of the attached certificate of factory production control.

- Name of, and position held by, the person empowered to sign the declaration on behalf of the - manufacturer or his authorised representative.

Both documents shall be presented in the official language or languages of the Member State of the EU in which the product is to be used.

b) for bearings under system 3, the manufacturer shall draw up a declaration of conformity (EC Declaration of conformity) with the information indicated below.

- Name and address of the manufacturer, or his authorised representative established in the EEA and place of production.

- Description of the product (type, identification, use,…).

- Provisions to which the product conforms (e.g. annex ZA of EN 1337-8).

- Particular conditions applicable to the use of the product (e.g. provisions for the use of a bearing under certain conditions, etc).

- Name of, and position held by, the person empowered to sign the declaration on behalf of the manufacturer or his authorised representative.

This EC Declaration of conformity entitles the manufacturer to affix the CE marking, as described in ZA.3. This document shall be presented in the official language or languages of the Member State in which the product is to be used.

(22)

ZA.3 CE marking

Regardless of the requirements stated in 7.3 of EN 1337-1:2000, the marking, the identification number of the certification body and the name or identifying mark and registered address of the manufacturer should be affixed on the bearing so that it will be visible throughout the life of the bearing. The full information given below should be in the relevant accompanying documents.

The CE conformity mark consists exclusively of the letters "CE" in the specified form of the directive 93/68/EC and the identification number of the notified body, where relevant.

CE marking for structural bearing products shall be accompanied by the information shown below: a) Identification number of the certification body (only for products under system 1).

b) Name or identifying mark of the producer. c) Registered address of the producer.

d) The last two digits of the year in which the marking is affixed.

e) Number of the EC Certificate of conformity (only for products under system 1). f) Reference to this European Standard.

g) Description of the product: generic name, material, dimensions and intended use. h) Information on the mandated characteristics:

- Values and, where relevant, level or class to declare for each mandated characteristic as indicated in "Notes" in Table ZA.1.

- As an alternative, where possible, standard designations may be given. This designation should give information on all the characteristics, if all are not covered, then values for those not covered shall be additionally given.

As an example, for a guide bearing under system 1, the following information shall accompany the CE marking symbol:

(23)

0123-CPD-0001

CE conformity marking, consisting of CE the “CE” symbol given in the

Directive 93/68/EEC Identification number of the

certification body

Any Co Ltd, PO Box 21, B-1050

01

0123-CPD-0456

EN XXXX-X: 200X

Guided bearing for use in buildings and civil

engineering works where requirements on indivdual bearings are critical

BEARING

Design load bearing capacity in, kN Design rotation capability, in radians

Durability, pass/fail* *Delete as appropriate

Name or identifying mark and registered address of the

manufacturer

The last two digits of the year in which the marking was affixed Number of the EC Certificate of

conformity

No. of European standard Identification of product and

intended use

and

Information on mandated characteristics

(24)

symbol:

CE conformity marking, consisting of CE the “CE” symbol

given in the Directive 93/68/EEC

Any Co Ltd, PO Box 21, B-1050

00

EN 1337-6: 200X Guided bearing for use in

buildings and civil engineering works where requirements on individual

bearings are not critical BEARING Design load bearing

capacity in, kN Design rotation capability,

in radians Durability, pass/fail* *Delete as appropriate

Name or identifying mark and registered address of the

manufacturer

The last two digits of the year in which the marking was affixed

No. of European standard Identification of product and

intended use

and

Information on mandated characteristics
