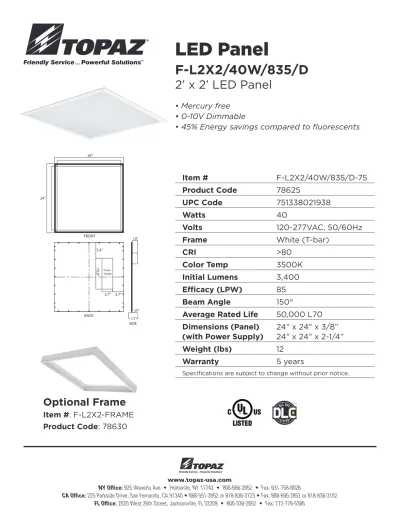

LED Panel
F-L2X2/40W/835/D
2’ x 2’ LED Panel
• Mercury free
• 0-10V Dimmable
• 45% Energy savings compared to fluorescents
Item # F-L2X2/40W/835/D-75
Product Code
78625
UPC Code 751338021938
Watts
40
Volts
120-277VAC, 50/60Hz
Frame
White (T-bar)
CRI >80
Color Temp
3500K
Initial Lumens 3,400
Efficacy (LPW)
85
Beam Angle 150°
Average Rated Life
50,000 L70
Dimensions (Panel)
24” x 24” x 3/8”
(with Power Supply)
24” x 24” x 2-1/4”
Weight (lbs) 12
Warranty
5 years
Specifications are subject to change without prior notice.
www.topaz-usa.com
NY Office: 925 Waverly Ave • Holtsville, NY 11742 • 800-666-2852 • Fax: 631-758-8026
CA Office: 225 Parkside Drive, San Fernando, CA 91340 • 888-551-2852 or 818-838-3123 • Fax: 888-690-2852 or 818-838-3102
FL Office: 2020 West 26th Street, Jacksonville, FL 32209 • 800-338-2852 • Fax: 772-778-5386
24” 24” 1.8” 5.4” 10.6” 3.7” 3.7” Power Supply .39” 2.2” FRONT BACK SIDE
Optional Frame
Item #
: F-L2X2-FRAME
Product Code
: 78630
LED Panel
F-L2X2/40W/835/EM
2’ x 2’ LED Panel
with Emergency Backup
• 0-10V Dimmable
• 45% Energy savings compared to fluorescents
• Emergency Backup provides 90 minutes of
temporary lighting
Item # F-L2X2/40W/835/EM-75
Product Code
72770
UPC Code 751338022003
Watts
40
Volts
120-277VAC, 50/60Hz
Frame
White (T-bar)
CRI >80
Color Temp
3500K
Initial Lumens 3,400
Efficacy (LPW)
85
Beam Angle 150°
Average Rated Life
50,000 L70
Dimensions (Panel)
24” x 24” x 3/8”
(with Power Supply)
24” x 24” x 2-1/4”
Weight (lbs) 12
Warranty
5 years
Specifications are subject to change without prior notice.
www.topaz-usa.com
NY Office: 925 Waverly Ave • Holtsville, NY 11742 • 800-666-2852 • Fax: 631-758-8026
CA Office: 225 Parkside Drive, San Fernando, CA 91340 • 888-551-2852 or 818-838-3123 • Fax: 888-690-2852 or 818-838-3102
FL Office: 2020 West 26th Street, Jacksonville, FL 32209 • 800-338-2852 • Fax: 772-778-5386
24” 24” 1.8” 5.4” 10.6” 3.7” 3.7” Power Supply .39” 2.2” FRONT BACK SIDE
Optional Frame
Item #
: F-L2X2-FRAME
Product Code
: 78630
LED Panel
F-L2X2/40W/840/D
2’ x 2’ LED Panel
• Mercury free
• 0-10V Dimmable
• 45% Energy savings compared to fluorescents
Item # F-L2X2/40W/840/D-75
Product Code
78626
UPC Code 751338066830
Watts
40
Volts
120-277VAC, 50/60Hz
Frame
White (T-bar)
CRI >80
Color Temp
4000K
Initial Lumens 3,500
Efficacy (LPW)
88
Beam Angle 150°
Average Rated Life
50,000 L70
Dimensions (Panel)
24” x 24” x 3/8”
(with Power Supply)
24” x 24” x 2-1/4”
Weight (lbs) 12
Warranty
5 years
Specifications are subject to change without prior notice.
www.topaz-usa.com
NY Office: 925 Waverly Ave • Holtsville, NY 11742 • 800-666-2852 • Fax: 631-758-8026
CA Office: 225 Parkside Drive, San Fernando, CA 91340 • 888-551-2852 or 818-838-3123 • Fax: 888-690-2852 or 818-838-3102
FL Office: 2020 West 26th Street, Jacksonville, FL 32209 • 800-338-2852 • Fax: 772-778-5386
24” 24” 1.8” 5.4” 10.6” 3.7” 3.7” Power Supply .39” 2.2” FRONT BACK SIDE
Optional Frame
Item #
: F-L2X2-FRAME
Product Code
: 78630
LED Panel
F-L2X2/40W/840/EM
2’ x 2’ LED Panel
with Emergency Backup
• 0-10V Dimmable
• 45% Energy savings compared to fluorescents
• Emergency Backup provides 90 minutes of
backup lighting
Item # F-L2X2/40W/840/EM-75
Product Code
72771
UPC Code 751338022010
Watts
40
Volts
120-277VAC, 50/60Hz
Frame
White (T-bar)
CRI >80
Color Temp
4000K
Initial Lumens 3,500
Efficacy (LPW)
88
Beam Angle 150°
Average Rated Life
50,000 L70
Dimensions (Panel)
24” x 24” x 3/8”
(with Power Supply)
24” x 24” x 2-1/4”
Weight (lbs) 12
Warranty
5 years
Specifications are subject to change without prior notice.
www.topaz-usa.com
NY Office: 925 Waverly Ave • Holtsville, NY 11742 • 800-666-2852 • Fax: 631-758-8026
CA Office: 225 Parkside Drive, San Fernando, CA 91340 • 888-551-2852 or 818-838-3123 • Fax: 888-690-2852 or 818-838-3102
FL Office: 2020 West 26th Street, Jacksonville, FL 32209 • 800-338-2852 • Fax: 772-778-5386
24” 24” 1.8” 5.4” 10.6” 3.7” 3.7” Power Supply .39” 2.2” FRONT BACK SIDE
Optional Frame
Item #
: F-L2X2-FRAME
Product Code
: 78630
LED Panel
F-L2X2/40W/850/D
2’ x 2’ LED Panel
• Mercury free
• 0-10V Dimmable
• 45% Energy savings compared to fluorescents
Item # F-L2X2/40W/850/D-75
Product Code
78627
UPC Code 751338066854
Watts
40
Volts
120-277VAC, 50/60Hz
Frame
White (T-bar)
CRI >80
Color Temp
5000K
Initial Lumens 3,600
Efficacy (LPW)
90
Beam Angle 150°
Average Rated Life
50,000 L70
Dimensions (Panel)
24” x 24” x 3/8”
(with Power Supply)
24” x 24” x 2-1/4”
Weight (lbs) 12
Warranty
5 years
Specifications are subject to change without prior notice.
www.topaz-usa.com
NY Office: 925 Waverly Ave • Holtsville, NY 11742 • 800-666-2852 • Fax: 631-758-8026
CA Office: 225 Parkside Drive, San Fernando, CA 91340 • 888-551-2852 or 818-838-3123 • Fax: 888-690-2852 or 818-838-3102
FL Office: 2020 West 26th Street, Jacksonville, FL 32209 • 800-338-2852 • Fax: 772-778-5386
24” 24” 1.8” 5.4” 10.6” 3.7” 3.7” Power Supply .39” 2.2” FRONT BACK SIDE
Optional Frame
Item #
: F-L2X2-FRAME
Product Code
: 78630
LED Panel
F-L2X2/40W/850/EM
2’ x 2’ LED Panel
with Emergency Backup
• 0-10V Dimmable
• 45% Energy savings compared to fluorescents
• Emergency Backup provides 90 minutes of
temporary lighting
Item # F-L2X2/40W/850/EM-75
Product Code
72772
UPC Code 751338022027
Watts
40
Volts
120-277VAC, 50/60Hz
Frame
White (T-bar)
CRI >80
Color Temp
5000K
Initial Lumens 3,600
Efficacy (LPW)
90
Beam Angle 150°
Average Rated Life
50,000 L70
Dimensions (Panel)
24” x 24” x 3/8”
(with Power Supply)
24” x 24” x 2-1/4”
Weight (lbs) 12
Warranty
5 years
Specifications are subject to change without prior notice.
www.topaz-usa.com
NY Office: 925 Waverly Ave • Holtsville, NY 11742 • 800-666-2852 • Fax: 631-758-8026
CA Office: 225 Parkside Drive, San Fernando, CA 91340 • 888-551-2852 or 818-838-3123 • Fax: 888-690-2852 or 818-838-3102
FL Office: 2020 West 26th Street, Jacksonville, FL 32209 • 800-338-2852 • Fax: 772-778-5386
24” 24” 1.8” 5.4” 10.6” 3.7” 3.7” Power Supply .39” 2.2” FRONT BACK SIDE
